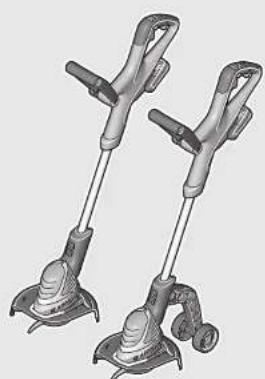

USER MANUAL ART 2618 Li + BOSCH

Warning: Keep a safe distance

from the machine when operat- ing. Not applicable. Remove battery before adjust- ing or cleaning, and before leav- ing the machine unattended for any period. Wear eye and ear protection. Do not work in the rain or leave the trimmer outdoors whilst it is raining. Beware of thrown or flying objects to bystanders.

Warning: Keep a safe distance from the

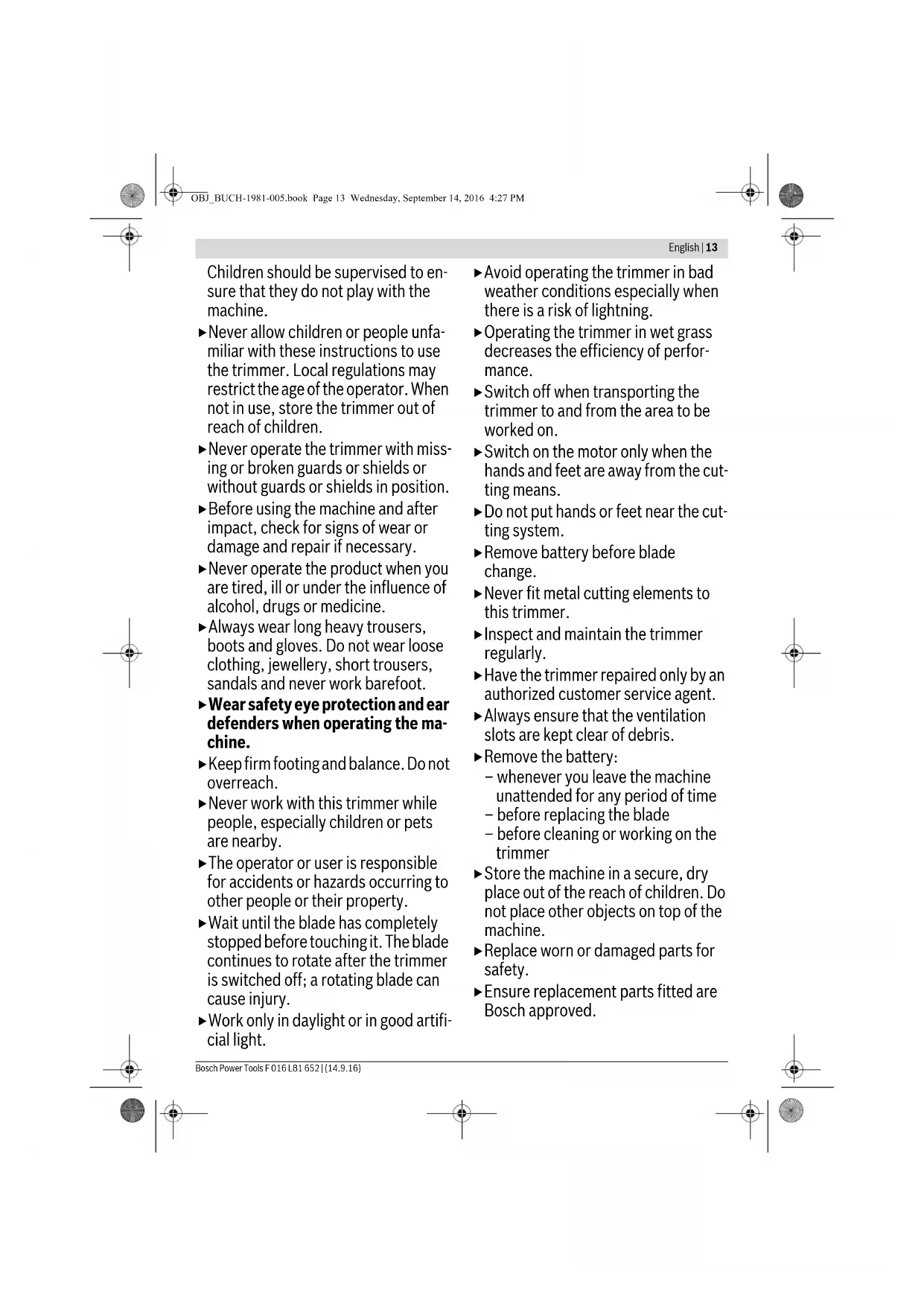

machine when operating. Operation This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction con- cerning use of the machine by a per- son responsible for their safety. a.c. d.c. OBJ_BUCH-1981-005.book Page 12 Wednesday, September 14, 2016 4:27 PMEnglish | 13 Bosch Power Tools F 016 L81 652 | (14.9.16) Children should be supervised to en- sure that they do not play with the machine. Never allow children or people unfa- miliar with these instructions to use the trimmer. Local regulations may restrict the age of the operator. When not in use, store the trimmer out of reach of children. Never operate the trimmer with miss- ing or broken guards or shields or without guards or shields in position. Before using the machine and after impact, check for signs of wear or damage and repair if necessary. Never operate the product when you are tired, ill or under the influence of alcohol, drugs or medicine. Always wear long heavy trousers, boots and gloves. Do not wear loose clothing, jewellery, short trousers, sandals and never work barefoot. Wear safety eye protection and ear defenders when operating the ma- chine. Keep firm footing and balance. Do not overreach. Never work with this trimmer while people, especially children or pets are nearby. The operator or user is responsible for accidents or hazards occurring to other people or their property. Wait until the blade has completely stopped before touching it. The blade continues to rotate after the trimmer is switched off; a rotating blade can cause injury. Work only in daylight or in good artifi- cial light. Avoid operating the trimmer in bad weather conditions especially when there is a risk of lightning. Operating the trimmer in wet grass decreases the efficiency of perfor- mance. Switch off when transporting the trimmer to and from the area to be worked on. Switch on the motor only when the hands and feet are away from the cut- ting means. Do not put hands or feet near the cut- ting system. Remove battery before blade change. Never fit metal cutting elements to this trimmer. Inspect and maintain the trimmer regularly. Have the trimmer repaired only by an authorized customer service agent. Always ensure that the ventilation slots are kept clear of debris. Remove the battery: – whenever you leave the machine unattended for any period of time – before replacing the blade – before cleaning or working on the trimmer Store the machine in a secure, dry place out of the reach of children. Do not place other objects on top of the machine. Replace worn or damaged parts for safety. Ensure replacement parts fitted are Bosch approved. OBJ_BUCH-1981-005.book Page 13 Wednesday, September 14, 2016 4:27 PM14 | English F 016 L81 652 | (14.9.16) Bosch Power Tools Do not operate the machine with- out the trimmer attachment fitted. Recommendations for Optimal Handling of the Battery Ensure the switch is in the off posi- tion before inserting battery pack. Inserting the battery pack into ma- chines that have the switch on can cause accidents. Use only Bosch battery packs in- tended specifically for the ma- chine. Use of any other battery packs may create a risk of injury and fire. Do not open the battery. Danger of short-circuiting. Protect the battery against heat, e. g., against continuous intense sunlight, fire, water, and moisture. Danger of explo- sion. When battery pack is not in use, keep it away from other metal ob- jects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals to- gether may cause burns or a fire. In case of damage and improper use of the battery, vapours may be emitted. Ventilate the area and seek medical help in case of com- plaints. The vapours can irritate the respiratory system. Use the battery only in conjunction with your Bosch product. This measure alone protects the battery against dangerous overload. The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit can occur and the battery can burn, smoke, explode or overheat. Do not short-circuit the battery. There is danger of explosion. Protect the battery against moisture and water. Store the battery only within a tem- perature range between –20 °C and 50 °C. As an example, do not leave the battery in the car in summer. Occasionally clean the venting slots of the battery using a soft, clean and dry brush. Safety Warnings for Battery Chargers Read all safety warnings and all instructions. Failure to follow the warnings and in- structions may result in elec- tric shock, fire and/or serious injury. Save these instructions. Use the battery charger only when you fully understand and can perform all functions without limitation, or have re- ceived appropriate instructions. This charger is not intended for use by children and persons with phy- sical, sensory or mental limitations or a lack of experience or know- ledge. This charger can be used by children aged 8 and above and by persons who have physical, senso- ry or mental limitations or a lack of experience or knowledge if a per- son responsible for their safety su- OBJ_BUCH-1981-005.book Page 14 Wednesday, September 14, 2016 4:27 PMEnglish | 15 Bosch Power Tools F 016 L81 652 | (14.9.16) pervises them or has instructed them in the safe operation of the charger and they understand the associated dangers. Otherwise, there is a danger of operating errors and injuries. Supervise children during use, cleaning and maintenance. This will ensure that children do not play with the charger. Only charge Bosch lithium-ion batteries with a capacity of 1.5 Ah or more (5 battery cells or more). The battery voltage must match the battery charging voltage of the charger. Do not charge non-re- chargeable batteries. Otherwise there is danger of fire and explosion. Keep the battery charger away from rain or moisture. Penetration of water in the bat- tery charger increases the risk of an electric shock. Only charge Bosch lithium-ion bat- teries. The battery voltage must match the battery charging voltage of the charger. Otherwise there is danger of fire and explosion. Keep the battery charger clean. Contamination can lead to danger of an electric shock. Before each use, check the battery charger, cable and plug. If damage is detected, do not use the battery charger. Never open the battery charger yourself. Have repairs per- formed only by a qualified techni- cian and only using original spare parts. Damaged battery chargers, ca- bles and plugs increase the risk of an electric shock. Do not operate the battery charger on easily inflammable surfaces (e. g., paper, textiles, etc.) or sur- roundings. The heating of the battery charger during the charging process can pose a fire hazard. Do not cover the ventilation slots of the battery charger. Otherwise, the battery charger can overheat and no longer operate properly. Products sold in GB only: Your prod- uct is fitted with a BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362). If the plug is not suitable for your socket outlets, it should be cut off and an ap- propriate plug fitted in its place by an authorised customer service agent. The replacement plug should have the same fuse rating as the original plug. The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere. Symbols The following symbols are important for reading and under- standing the operating instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the garden product in a better and safer manner. Symbol Meaning Wear protective gloves Movement direction Reaction direction Weight OBJ_BUCH-1981-005.book Page 15 Wednesday, September 14, 2016 4:27 PM16 | English F 016 L81 652 | (14.9.16) Bosch Power Tools Intended Use The machine is intended for the cutting of grass and weeds under bushes, as well as on slopes and edges that can not be reached with the lawn mower. Intended use is related to operation within 0 °C and 40 °C ambient temperature. Technical Data Switching On Switching Off Permitted action Prohibited action Audible noise Symbol Meaning CLICK! Accessories/Spare Parts Symbol Meaning Trimmer ART 23-18 LI/

Cutting diameter cm 23 26 Weight according to EPTA-Procedure 01:2014 kg 2.3/2.5/2.3 2.4/2.6/2.4 Battery Li-Ion Li-Ion Article number –1.5 Ah –2.0 Ah –2.0 Ah –2.5 Ah

Charging current A1.51.5 Allowable charging temperature range °C 0–45 0–45 Charging period (battery discharged) –1.5 Ah –2.0 Ah –2.5 Ah min min min

Weight according to EPTA-Procedure 01:2014 kg 0.38 0.38 Protection class / II /II Battery Charger AL 1830 CV AL 1830 CV Article number

Charging current A3.03.0 Allowable charging temperature range °C 0–45 0–45 Charging period (battery discharged) –1.5 Ah –2.0 Ah –2.5 Ah min min min

Weight according to EPTA-Procedure 01:2014 kg 0.4 0.4 Protection class / II /II Battery Charger AL 2215 CV AL 2215 CV Article number

Charging current A1.51.5 Allowable charging temperature range °C 0 –45 0–45 Charging time for battery capacity, approx. –1.5 Ah –2.0 Ah min min

Weight according to EPTA-Procedure 01:2014 kg 0.4 0.4 Protection class /II /II Trimmer ART 23-18 LI/

Warning: Switch off and remove battery from machine

before adjusting or cleaning. The blade continues to rotate for a few seconds after the cordless trimmer is switched off. Allow the motor/ blade to stop rotating before switching “on” again. Battery Charger AL 2204 CV AL 2204 CV Article number

Charging current A0.430.43 Allowable charging temperature range °C 0–45 0–45 Charging period (battery discharged) –1.5 Ah –2.0 Ah min min

Weight according to EPTA-Procedure 01:2014 kg 0.7 0.7 Protection class / II /II Serial number see type plate on the garden product Trimmer ART 23-18 LI/

UniversalGrassCut 18-260 3 600 ... HA5 C.. HA5 E.. Typically the A-weighted noise levels of the prod- uct are: Sound pressure level Sound power level Uncertainty K Wear hearing protection! dB(A) dB(A)

(triax vector sum) and un- certainty K determined according to EN 50636-2-91: Vibration emission value a

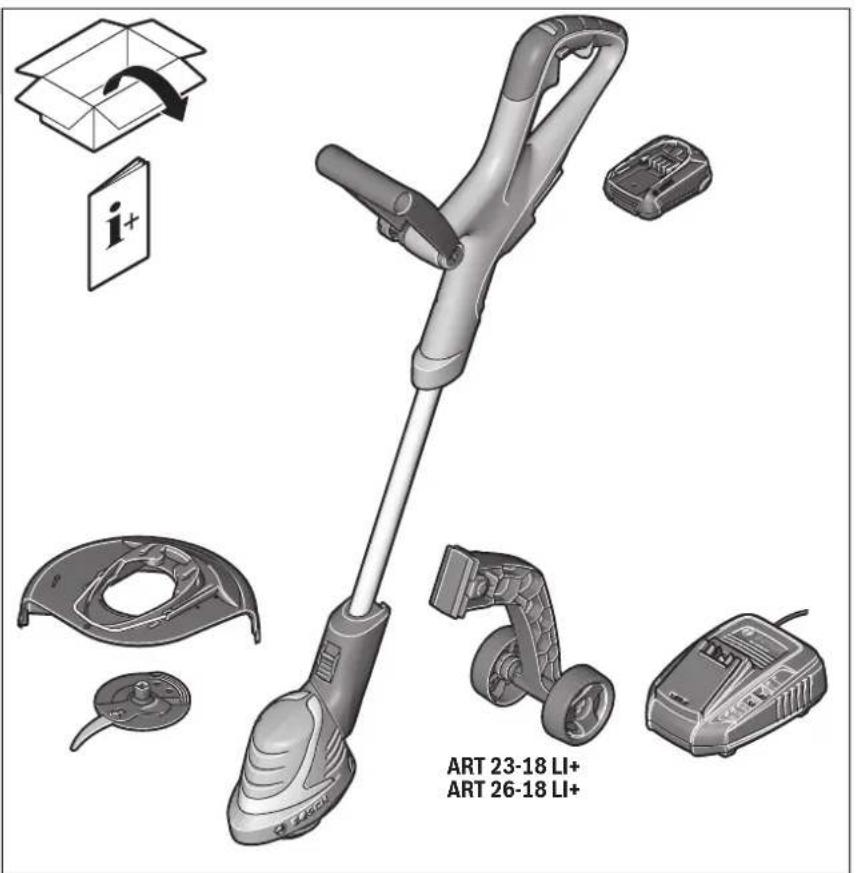

< 2.5 =1.5 < 2.5 =1.5 Action Figure Page Delivery Scope

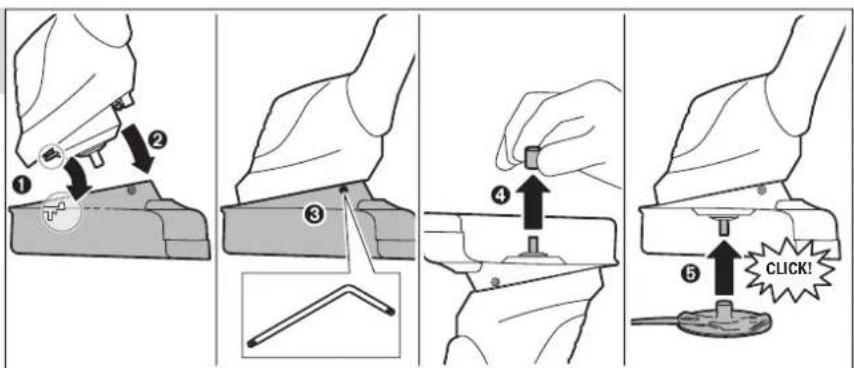

Mounting the Cutting Guard

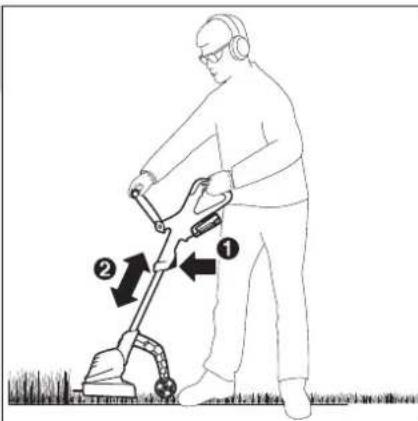

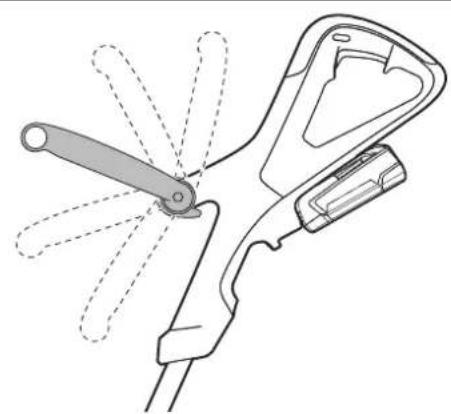

Adjusting the Handle

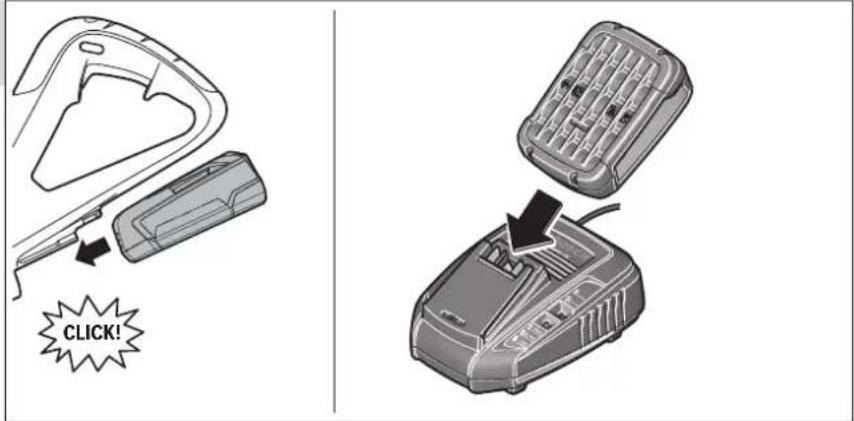

Charging the Battery Pack Inserting and removing the battery pack

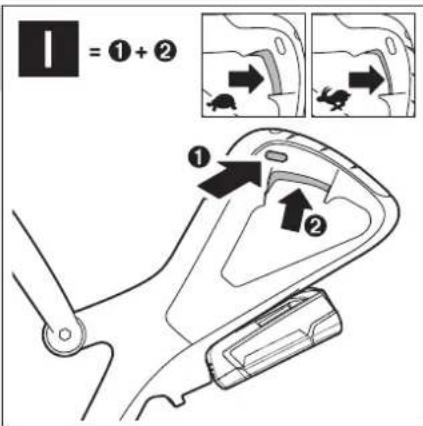

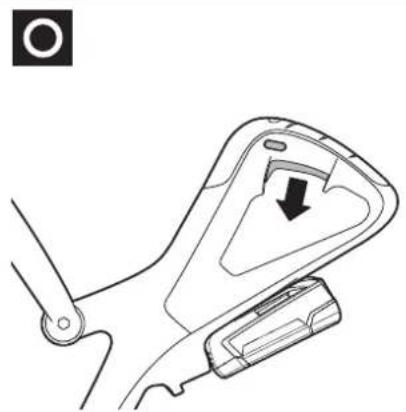

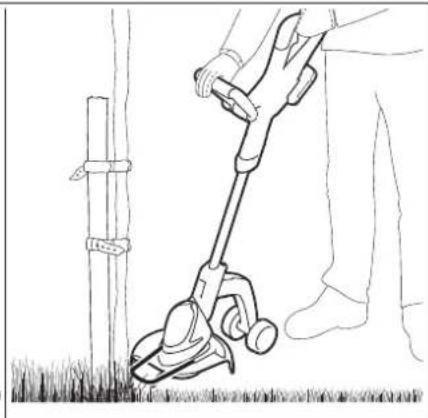

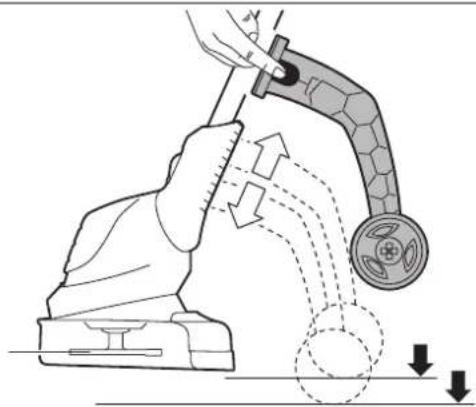

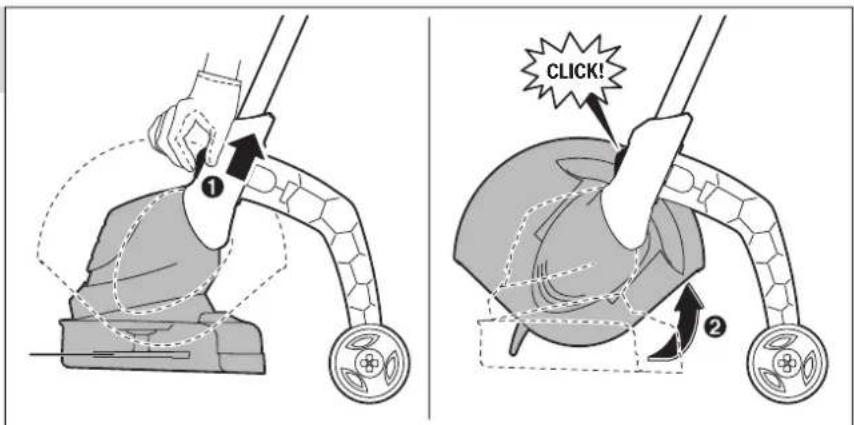

Switching On and Off 9 277 Working Advice Adjusting the Cutting Height

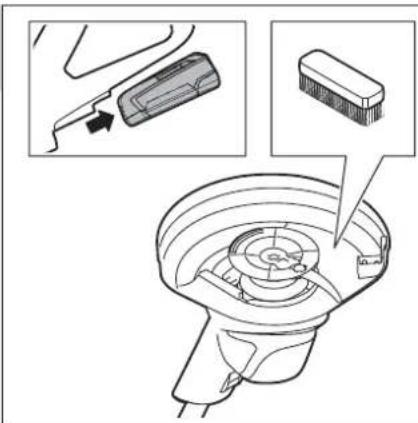

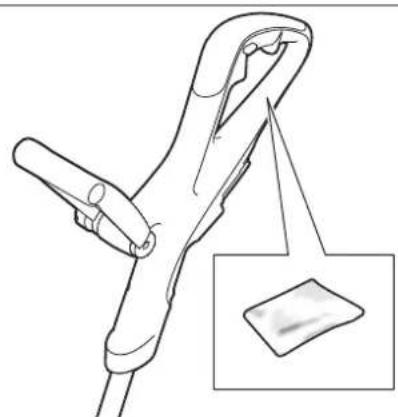

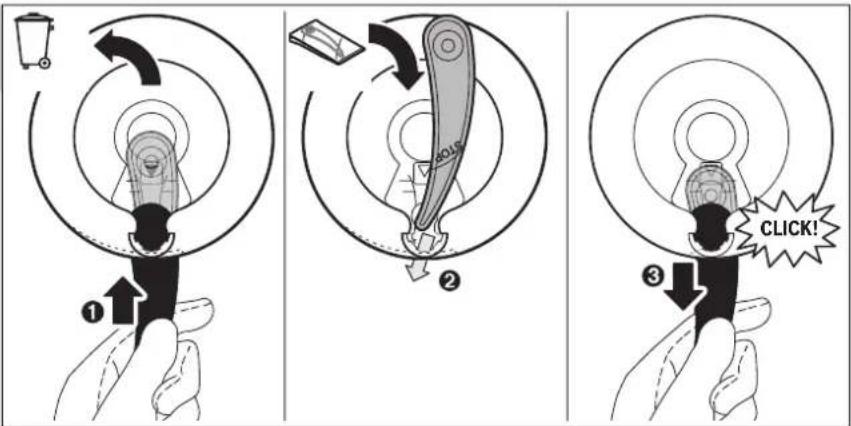

Maintenance, Cleaning and Storage

Selecting Accessories

Action Figure Page OBJ_BUCH-1981-005.book Page 18 Wednesday, September 14, 2016 4:27 PMEnglish | 19 Bosch Power Tools F 016 L81 652 | (14.9.16) Do not rapidly switch off and on. Only use Bosch approved cutting elements. Cutting performance will vary with different cutting elements. Battery Charging Do not use other battery chargers. The supplied battery charger is designed for the Lithium-Ion battery in your gar- den product. Observe the mains voltage! The voltage of the power supply must correspond with the data given on the name- plate of the battery charger. Battery chargers marked with 230 V can also be operated with 220 V. The battery is equipped with temperature monitoring that al- lows charging only in the temperature range between 0 °C and 45 °C. In this manner, a high battery service life is achieved. Note: The battery supplied is partially charged. To ensure full capacity of the battery, completely charge the battery in the battery charger before using your power tool for the first time. The lithium-ion battery can be charged at any time without re- ducing its service life. Interrupting the charging procedure does not damage the battery. The “Electronic Cell Protection (ECP)” protects the lithium- ion battery against deep discharging. When the battery is run down or discharged, the garden product is shut off by means of a protective circuit: The garden product no longer oper- ates. Do not continue to press the On/Off switch after the garden product has been automatically switched off. The battery can be dam- aged. Charging Procedure The charging procedure starts as soon as the mains plug of the battery charger is plugged into the socket outlet and the battery is inserted into the charging compartment . Due to the intelligent charging method, the charging condi- tion of the battery is automatically detected and the battery is charged with the optimum charging current, depending on battery temperature and voltage. This gives longer life to the battery and always leaves it fully charged when kept in the charger for storage. Meaning of the Indication Elements (Fast) Flashing of the Green Battery Charge Indicator The rapid-charging procedure is indicated by fast flashing of the green battery charge indica- tor . Note: The rapid-charging procedure is only possible when the battery temperature is within the allowable charging temper- ature range, see section “Technical Data”. (Slow) Flashing of the Green Battery Charge Indicator When the charging condition of the battery is 80 %, the green battery charge indicator flash- es slowly. The battery can be removed for immediate use. Continuous Lighting of the Green Battery Charge Indicator Continuous lighting of the green battery charge indicator indicates that the battery is fully charged. When the battery is not inserted, continuous lighting of the battery charge indicator indicates that the mains plug is in- serted in the socket and that the battery charger is ready for operation. Continuous Lighting of the Red Battery Charge Indicator Continuous lighting of the red battery charge indicator indicates that the temperature of the battery is not within the allowable charging temperature range, see section “Technical Data”. As soon as the allowable charging temperature range is reached, the battery charger automatically switches to rapid charging. Flashing Red Battery Charge Indicator A flashing red battery charge indicator indicates a different malfunction of the charging proce- dure, see section “Troubleshooting”. Charging Advice With continuous or several repetitive charging cycles without interruption, the charger can warm up. This is not meaningful and does not indicate a technical defect of the battery charg- er. A significantly reduced working period after charging indi- cates that the battery is used and must be replaced. OBJ_BUCH-1981-005.book Page 19 Wednesday, September 14, 2016 4:27 PM20 | English F 016 L81 652 | (14.9.16) Bosch Power Tools Troubleshooting After-sales Service and Application Service www.bosch-garden.com In all correspondence and spare parts orders, please always include the 10-digit article number given on the type plate of the garden product. Great Britain Robert Bosch Ltd. (B.S.C.) P.O. Box 98 Broadwater Park North Orbital Road Denham Uxbridge UB 9 5HJ At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair. Tel. Service: (0344) 7360109 E-Mail: boschservicecentre@bosch.com Ireland Origo Ltd. Unit 23 Magna Drive Magna Business Park City West Dublin 24 Tel. Service: (01) 4666700 Fax: (01) 4666888 d.c. Problem Possible Cause Corrective Action Blade guard can not be mounted over cutting disc Incorrect assembly Remove cutting disc and mount blade guard again Trimmer fails to operate Battery discharged Recharge battery; also see “Battery Charging” Battery too hot/cold Allow to cool/warm Trimmer runs intermittently Internal wiring of machine damaged Contact Service Agent On/Off switch defective Contact Service Agent Garden product labours Grass too high Cut in stages Machine does not cut Cutting blade damaged Replace the blade Increased vibration Cutting blade damaged Replace the blade Continuous lighting of the battery charge indicator No charging procedure possible Battery not (properly) inserted Properly insert battery into battery charger Battery contacts contaminated Clean the battery contacts (e.g. by in- serting and removing the battery several times) or replace the battery Battery pack defective Replace the battery Battery charge indicator does not light

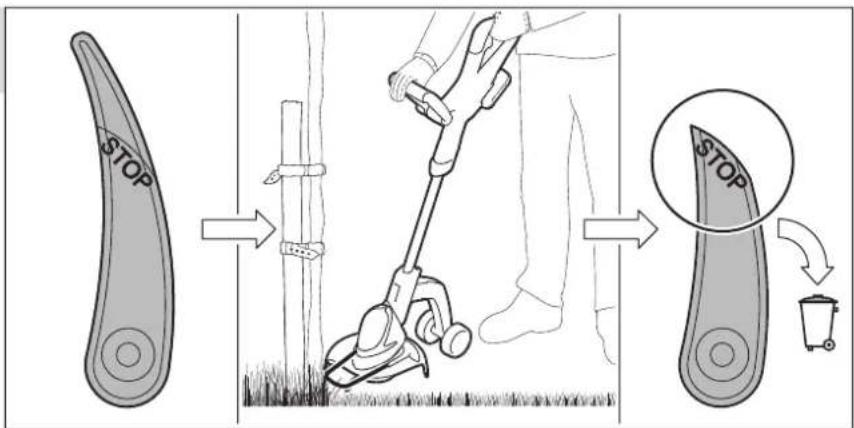

Verificar as lâminas

• Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2, Stowmarket, Suffolk IP14 1EY, England Henk Becker Executive Vice President Engineering and Manufacturing Helmut Heinzelmann Head of Product Certification Robert Bosch Power Tools GmbH, 70538 Stuttgart, GERMANY Stuttgart, 01.01.2017 OBJ_DOKU-55919-002.fm Page VIII Tuesday, December 13, 2016 2:12 PM
