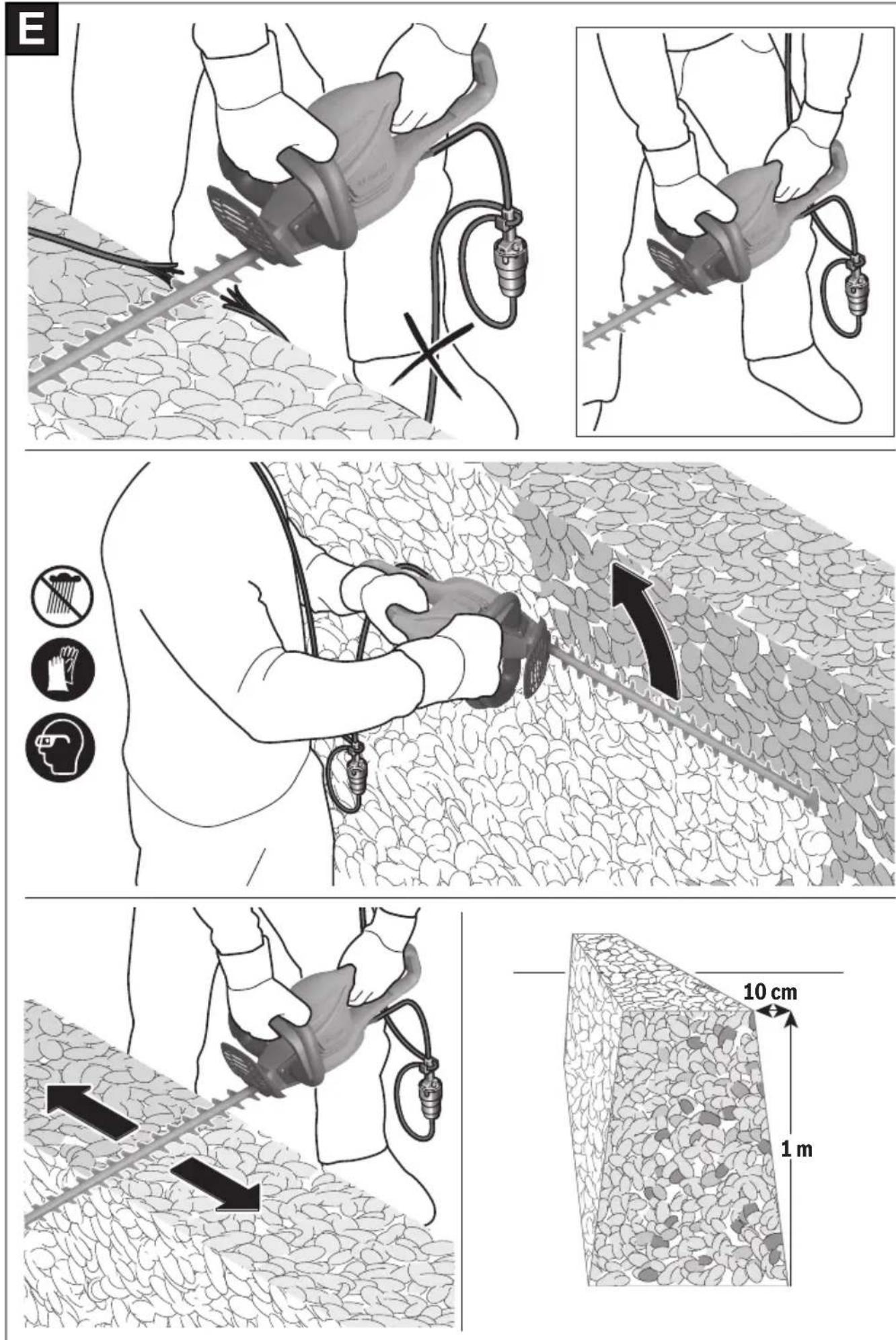

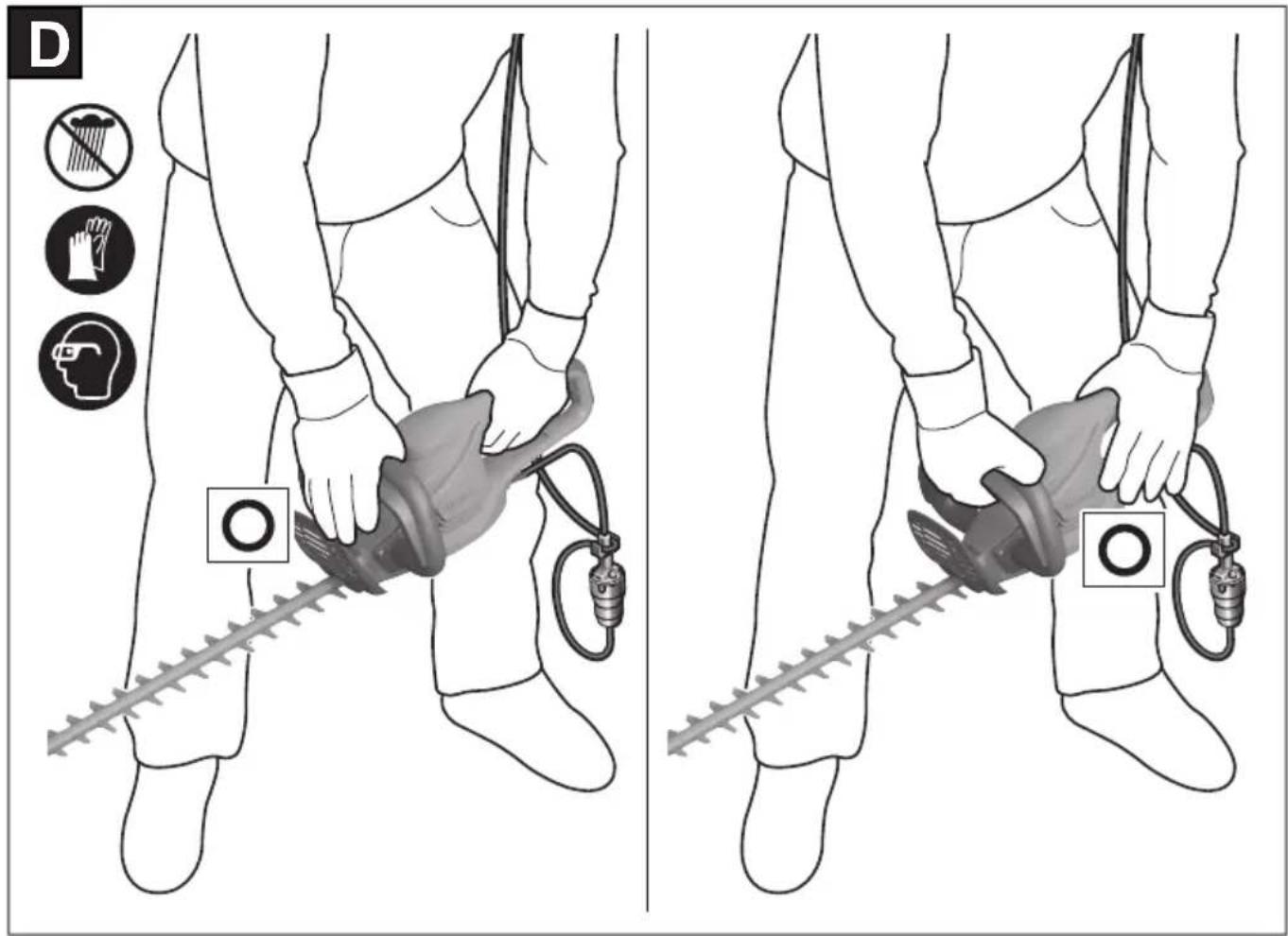

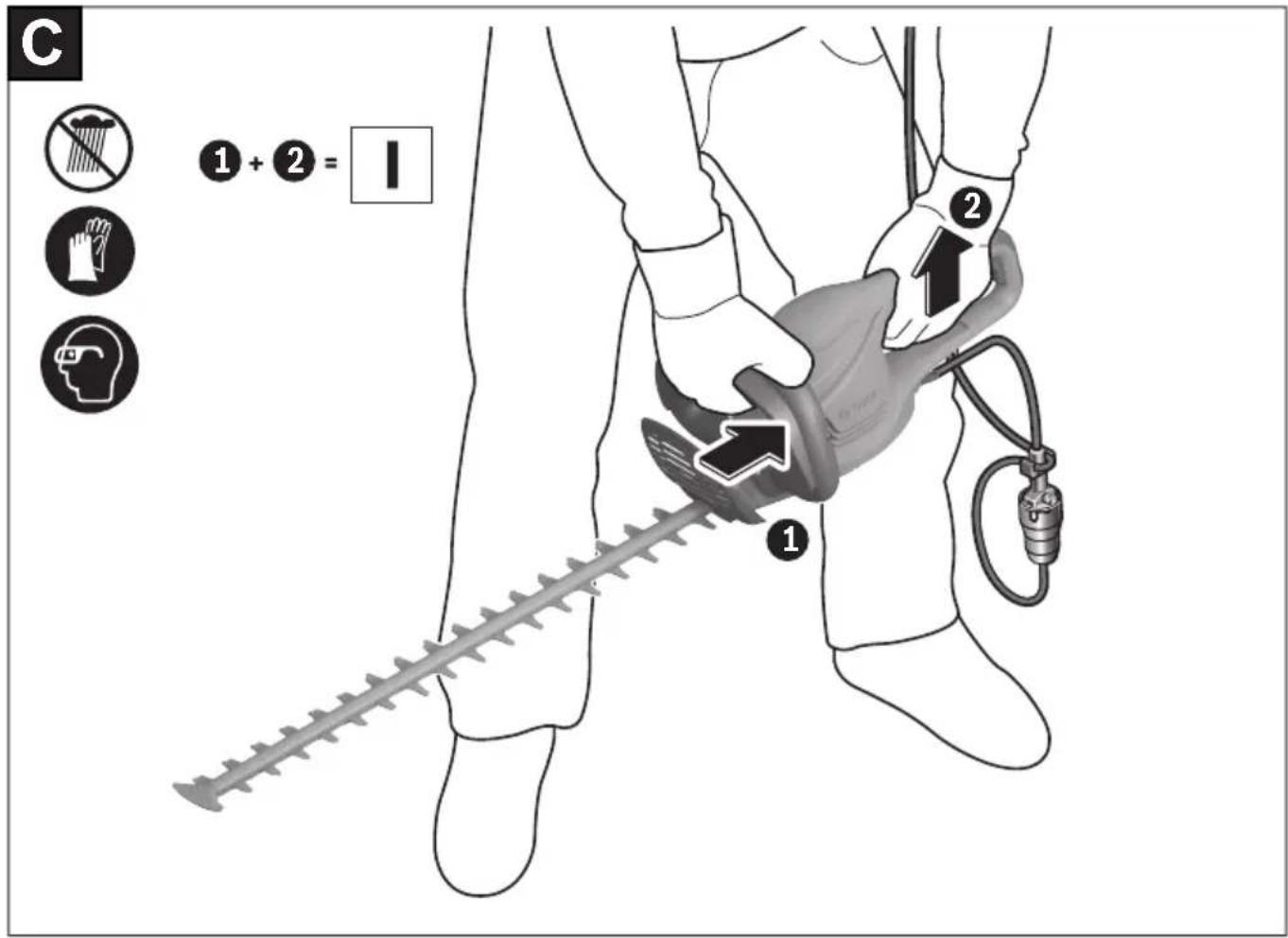

USER MANUAL AdvancedHedgeCut 70 BOSCH

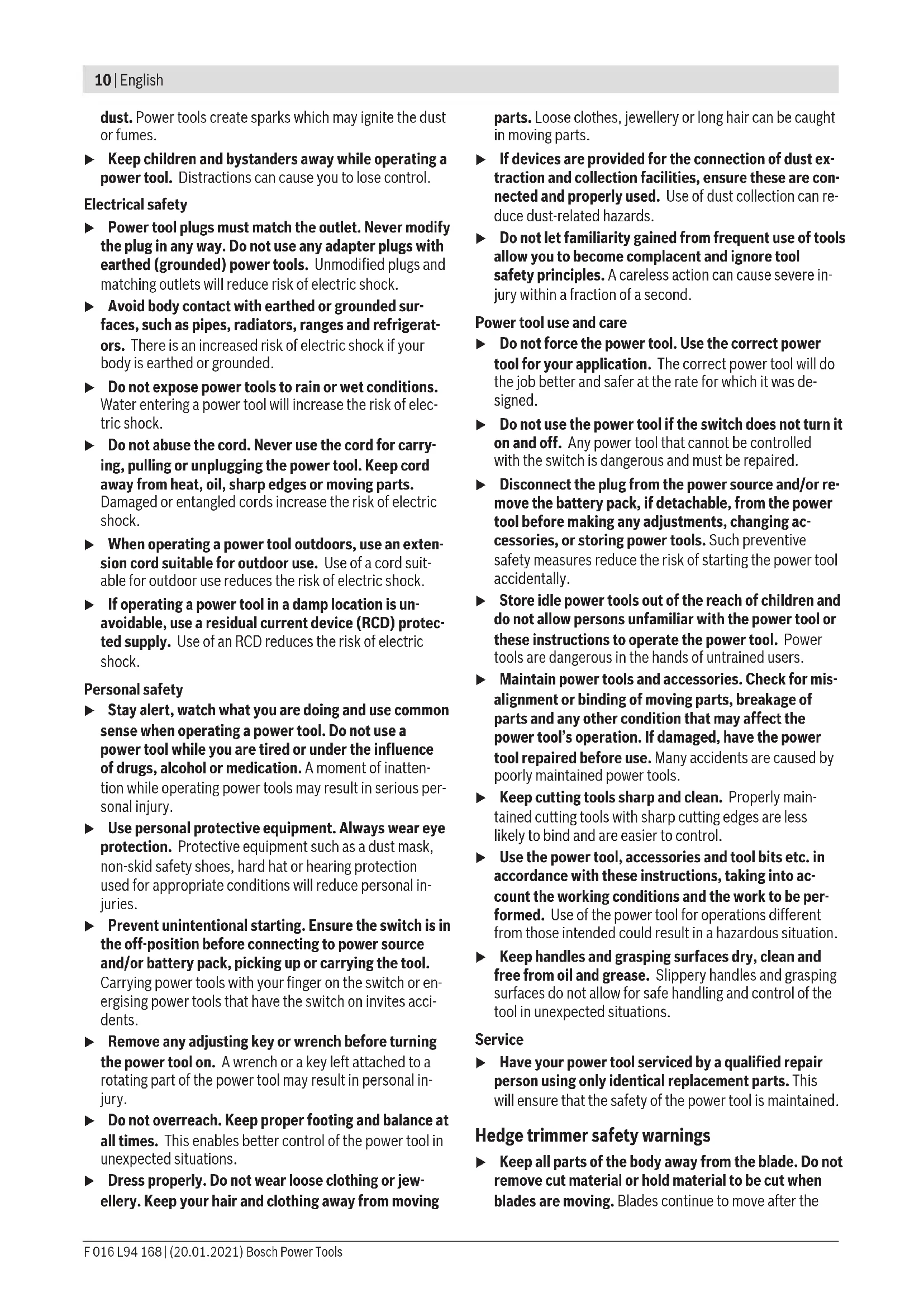

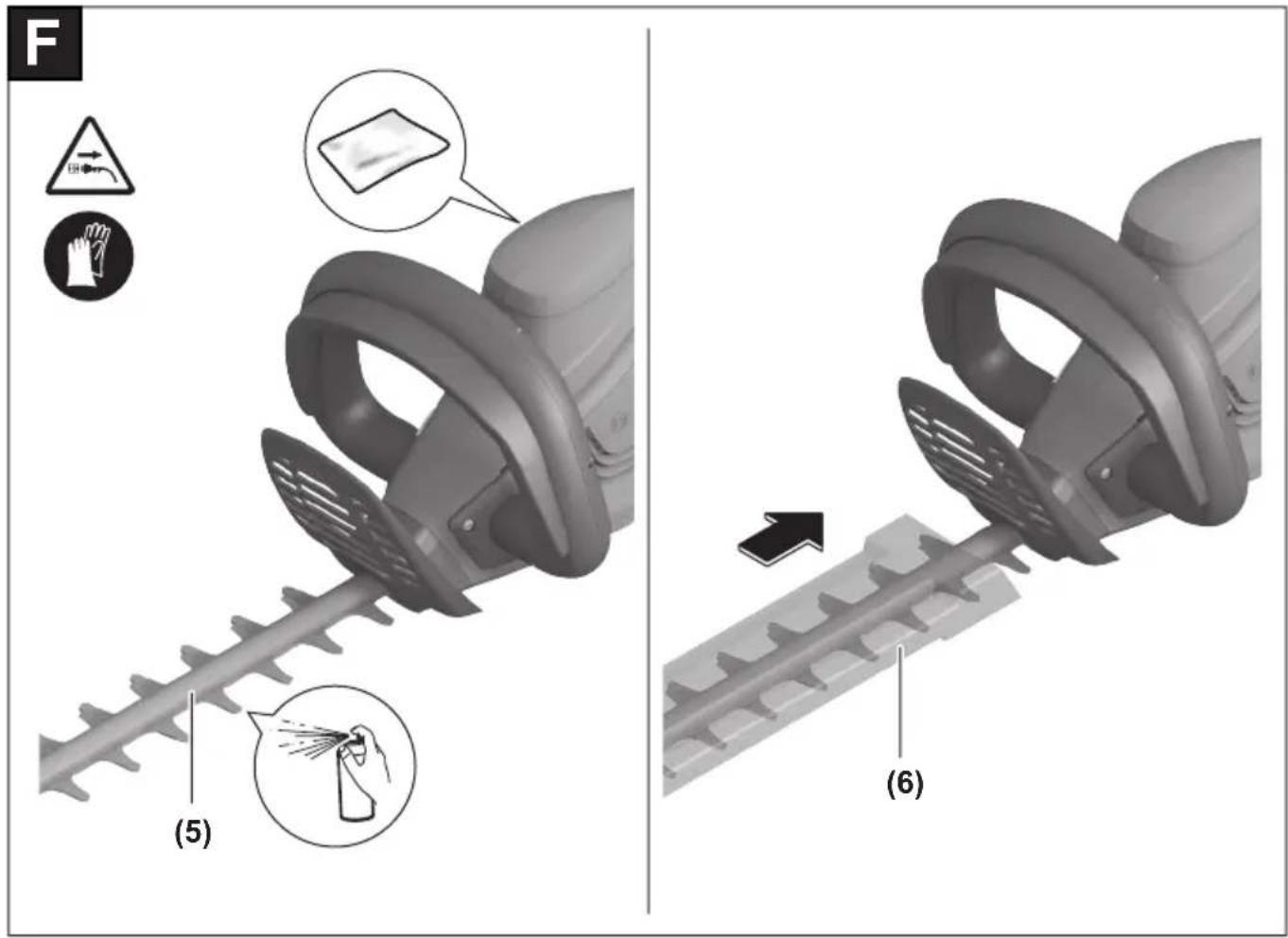

Warning: Switch off, remove plug from

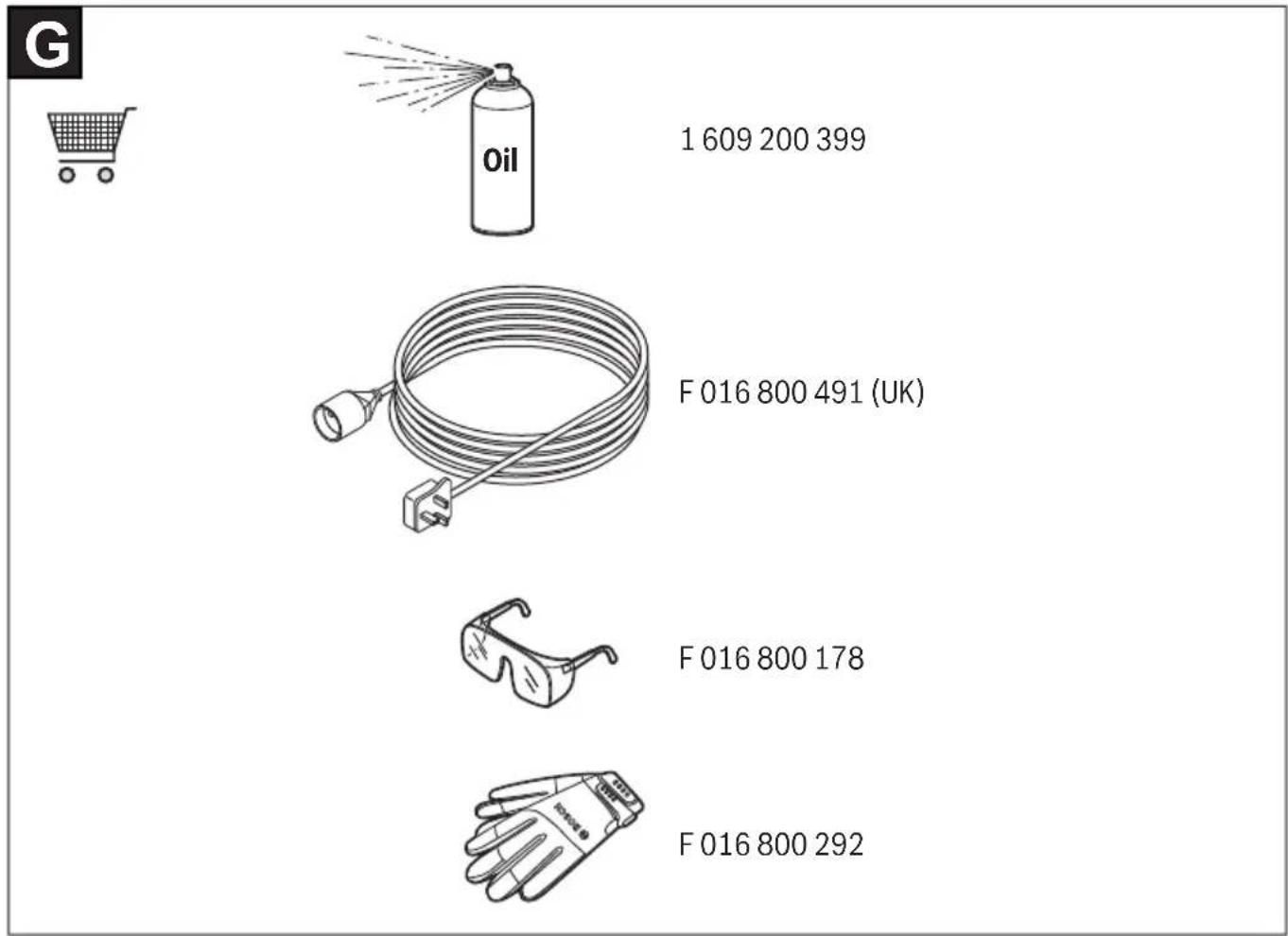

mains before adjusting, cleaning or if cable is cut, damaged or entangled. Your machine is double insulated for safety and requires no earth connection. The operating voltage is 230VAC, 50Hz (for non-EU countries 220V, 240V 50Hz) Contact your Bosch Service Centre for details. If in doubt contact a quali- fied electrician or the nearest Bosch Service Centre. Bosch Power Tools F 016 L94 168 | (20.01.2021)12 | English For increased electrical safety use a Residual Current Device (RCD) with a tripping current of not more than 30mA. Al- ways check your RCD every time you use it. Keep the supply cables away from moving hazardous parts and avoid damage to the cables; this can lead to contact with live parts. The connections (plugs and sockets) should be kept dry and off the ground. The supply cables must be inspected for signs of damage at regular intervals and may only be used if in perfect condi- tion. If the supply cable on the product is damaged, it must only be replaced by a Bosch Service Centre. Only use approved extension cables. Use only extension cords, cables, leads, cable reels that comply with EN 61242/IEC 61242 or IEC 60884-2-7. If you want to use an extension cable when operating your product, only the following cable dimensions should be used: – Nominal conductor area of 1.25mm

– Maximum length 30m for a Cord Extension Set or max- imum length of 60m for a Cable Reel with Residual Cur- rent Device (RCD). Note: If an extension cable is used it must be earthed and connected through the plug to the earth cable of your supply network in accordance with prescribed safety regulations. WARNING! Inadequate extension cables can be dangerous. Extension cable, plug and socket must be of watertight construction and intended for outdoor use. Products sold in GB only: Your product is fitted with an BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362). If the plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place by an au- thorised customer service agent. The replacement plug should have the same fuse rating as the original plug. The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere. u Products that are only sold in AUS and NZ: Use a resid- ual current device (RCD) with a nominal residual current of 30 mA or less. Symbols The following symbols are important for reading and under- standing the original instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the product in a better and safer manner. Symbol Meaning Wear protective gloves Movement direction Reaction direction Weight Switching On Switching Off CLICK! Audible noise Prohibited action Accessories/Spare Parts Product Description and Specifications Read all safety warnings and all instruc- tions. Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury. Please observe the illustrations at the ending of this operat- ing manual. Intended Use The machine is intended for cutting and trimming hedges and bushes in domestic use. Product features (see figures A and B) The numbering of the product features refers to the illustra- tion of the product on the graphics pages. (1) Handle (insulated gripping surface) (2) On/Off switch (3) Lock-off button for On/Off switch (4) Hand guard (5) Blade (6) Protection sleeve (7) Mains plug

Cutting length mm 500 600 600 Tooth opening mm 26 30 30 Weight according to EPTA‑Pro- cedure 01:2014 kg 3.5 3.7 3.7 Protection class / II / II / II Serial number see type plate on garden tool The specifications apply to a rated voltage [U] of 230 V. These specifications may vary at different voltages and in country- specific models. Hedge trimmer AdvancedHedgeCut 65 AdvancedHedgeCut 68 AdvancedHedgeCut 70 Article number 3600HC08.. 3600HC09.. 3600HC09.. Rated power input W 500 500 500 No-load stroke speed min

Cutting length mm 650 700 700 Tooth opening mm 34 34 34 Weight according to EPTA‑Pro- cedure 01:2014 kg 4.0 4.1 4.1 Protection class / II / II / II Serial number see type plate on garden tool The specifications apply to a rated voltage [U] of 230 V. These specifications may vary at different voltages and in country-specific models. Noise/Vibration Information UniversalHedgeCut 50 UniversalHedgeCut 58 UniversalHedgeCut 60 Typically the A-weighted noise levels of the product are: Noise emission values determined according to EN62841-4-2:2019 . – Sound pressure level dB(A)

Vibration total values ah (triax vector sum) and uncertainty K determined according to EN62841-4-2:2019 – Vibration emission value a

AdvancedHedgeCut 65 AdvancedHedgeCut 68 AdvancedHedgeCut 70 Typically the A-weighted noise levels of the product are: Noise emission values determined according to EN62841-4-2:2019 . – Sound pressure level dB(A)

Vibration total values ah (triax vector sum) and uncertainty K determined according to EN62841-4-2:2019 – Vibration emission value a

That the declared vibration total value(s) and the declared noise emission value(s) have been measured in accordance with a standard test method any may be used for comparing one tool to another. Bosch Power Tools F 016 L94 168 | (20.01.2021)14 | English That the declared vibration total value(s) and the declared noise emission value(s) may also be used in a preliminary as- sessment of exposure. That the vibration and noise emissions during actual use of the power tool can differ from the declared values depend- ing on the ways in which the tool is used especially what kind of workpiece is processed; and of the need to identify safety measures to protect the operator that are based on an estim- ation of the exposure measures in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time). Noise emission values determined according to EN 62841-4-2:2019. Typically the A-weighted noise levels of the product are: Sound pressure level 75dB(A); sound power level 95dB(A). Uncertainty K=2.0dB. Wear hearing protection! Vibration total values a

(triax vector sum) and uncertainty K determined according to EN 62841-4-2:2019:

EU Declaration of Conformity We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regu- lations listed below and are in conformity with the following stan- dards. Hedge trimmer Article number
