| Product Type | Silent Garden Shredder |
| Brand | Bosch |
| Model | AXT 2550 TC |
| Article Number | 3 600 H03 3.. |
| Power Input (S6 40/60s) | 2500 W |
| Power Input (S1 continuous) | 2300 W |
| No-Load Speed | 40 rpm |
| Cutting System | Turbine-Cut |
| Maximum Throughput | 230 kg/h |
| Maximum Branch Diameter | 45 mm |
| Collection Bin Capacity | 53 L |
| Weight (according to EPTA 01/2003) | 30.5 kg |
| Protection Class | II (double insulation) |
| Sound Pressure Level | 82 dB(A) |
| Guaranteed Sound Power Level | 92 dB(A) |
| Reverse Function | Yes, via yellow button |
| Overload Protection | Automatic shutdown with acoustic signal |
| Child Safety | Do not allow children to use the device |
| Power Supply | 230 V ~ 50 Hz, 13 A |
| Maintenance | Clean with soft brush, no water or high-pressure cleaner |
| Counter Blade Adjustment | Adjustment button to compensate for wear |
| Included Accessories | Hoppers, pusher, collection bin, instruction manual |
Frequently Asked Questions - AXT 2550 TC BOSCH
User questions about AXT 2550 TC BOSCH
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Meat Grinder in PDF format for free! Find your manual AXT 2550 TC - BOSCH and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. AXT 2550 TC by BOSCH.
USER MANUAL AXT 2550 TC BOSCH
OHJ DOKU-15442-005. Im Page 1 Friday, September 26, 2014 12:13 PM


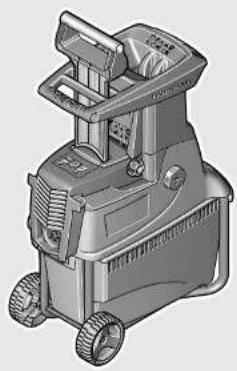

Illustration of a portable industrial machine with wheels and control panel (no text or symbols)Robert Bosch GmbH
Power Tools Division
70764 Leinfelden-Echterdingen
GERMANY
www.bosch-garden.com
F016 L81 145 (2014.08) O/259 EURO
AXT
22 D | 25 D | 23 TC | 25 TC | 2550 TC
BOSCH


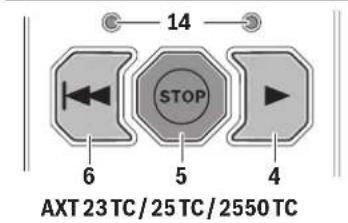

14 6 5 4 STOP AXT 23 TC / 25 TC / 2550 TCH
6 | Deutsch
Sicherheitshinweise
Bosch Lawn and Garden Ltd., PT-LG/ENS23,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
01.08.2014
Montage
Zu Ihrer Sicherheit
www.bosch-garden.com
Warning! Read these instructions carefully, be familiar with the controls and the proper use of the machine. Please keep the instructions safe for later use!
Explanation of symbols on the machine
General hazard safety alert.
Read instruction manual.
Before handling the cutter, switch off and remove the plug from the mains supply. If the ca-

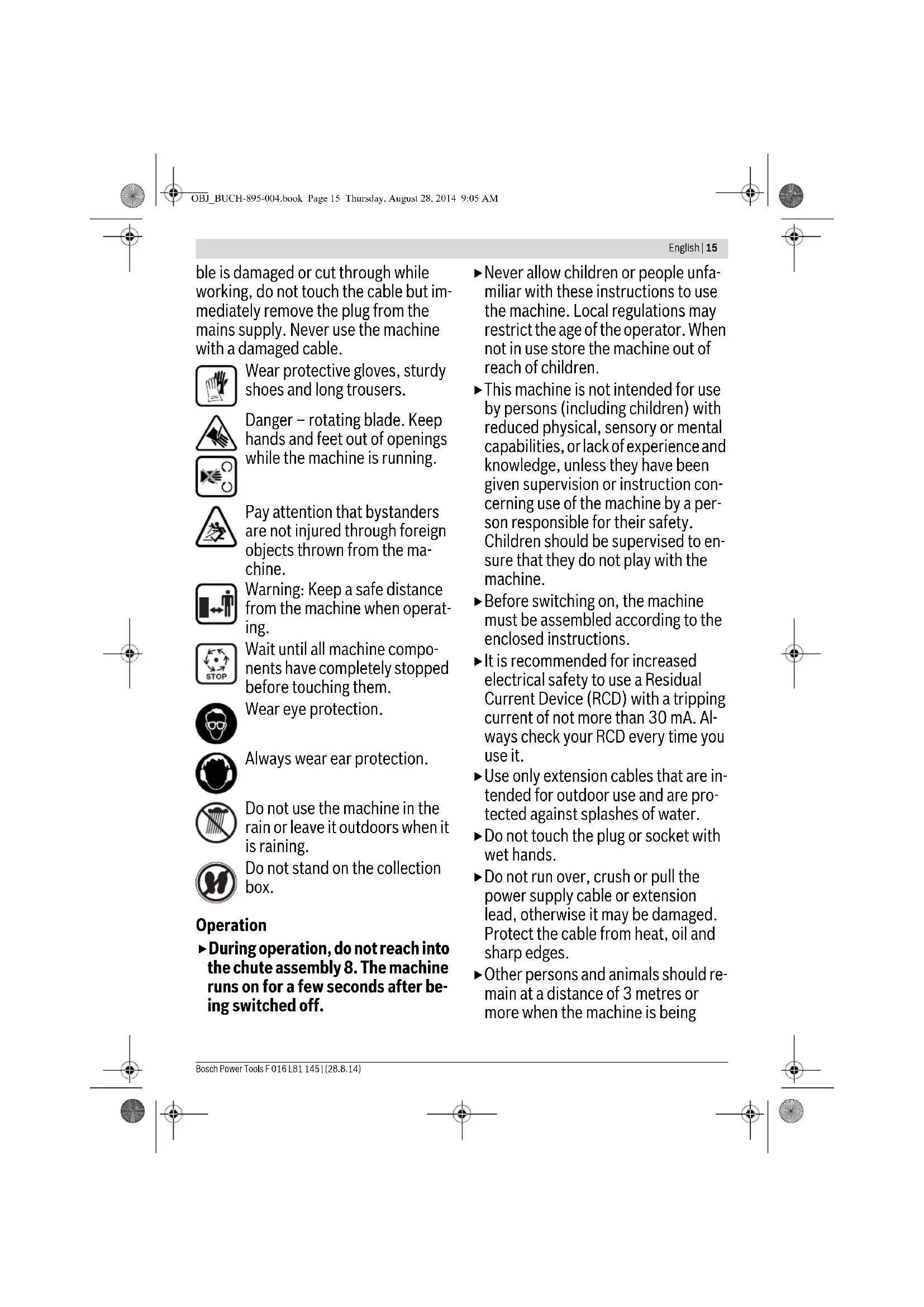

English | 15
ble is damaged or cut through while working, do not touch the cable but immediately remove the plug from the mains supply. Never use the machine with a damaged cable.
Wear protective gloves, sturdy shoes and long trousers.
Danger – rotating blade. Keep hands and feet out of openings while the machine is running.
Pay attention that bystanders are not injured through foreign objects thrown from the machine.
Warning: Keep a safe distance from the machine when operating.
Wait until all machine components have completely stopped before touching them.
Wear eye protection.
Always wear ear protection.
Do not use the machine in the rain or leave it outdoors when it is raining.
Do not stand on the collection box.
Operation
▶ During operation, do not reach into the chute assembly 8. The machine runs on for a few seconds after being switched off.
▶ Never allow children or people unfamiliar with these instructions to use the machine. Local regulations may restrict the age of the operator. When not in use store the machine out of reach of children.
This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the machine by a person responsible for their safety. Children should be supervised to ensure that they do not play with the machine.
▶ Before switching on, the machine must be assembled according to the enclosed instructions.
▶ It is recommended for increased electrical safety to use a Residual Current Device (RCD) with a tripping current of not more than 30 mA. Always check your RCD every time you use it.
▶ Use only extension cables that are intended for outdoor use and are protected against splashes of water.
▶ Do not touch the plug or socket with wet hands.
▶ Do not run over, crush or pull the power supply cable or extension lead, otherwise it may be damaged. Protect the cable from heat, oil and sharp edges.
▶ Other persons and animals should remain at a distance of 3 metres or more when the machine is being
16 | English
used. The operator is responsible for third persons in the working area.
▶ Bosch can assure flawless functioning of the machine only when original accessories are used.
▶Become familiar with the instruction manual before attempting to operate this machine.
- Avoid wearing loose-fitting clothing, hanging cords or ties.
▶ Only operate the machine in open space (e. g. not too close to a wall or other fixed objects) and on a firm, level surface.
▶ Do not operate the machine on paved or gravel surface where ejected material could cause injury.
▶ Before starting the machine, check that all screws, nuts, bolts and other fasteners are properly secured and that guards and screens are in place. Replace damaged or unreadable warning and operating labels.
▶ Before starting the machine, make certain that the chute assembly is empty.
- Keep your face and body away from the chute assembly.
▶ Do not allow hands or any other part of the body or clothing inside the chute assembly, discharge chute or near any moving part.
- Keep proper balance and footing at all times. Do not overreach. Never stand at a higher level than the base of the machine when feeding material.
▶ Always stand clear of the discharge zone when operating the machine.
▶When feeding material into the machine be extremely careful that pieces of metal, rocks, bottles, cans or other foreign objects are not included.
▶ If the cutting mechanism strikes any foreign object or if the machine should start making any unusual noise or vibration, immediately switch off and allow the cutter to stop. Remove the plug from the mains supply and take the following steps:
- Inspect for damage.
- Replace or repair any damaged parts.
- Check for and tighten any loose parts.
▶ Do not attempt to repair the machine unless you are qualified to do so.
▶ Do not allow processed material to build up in the discharge zone; this may prevent proper discharge which can result in kickback of material through the chute assembly.
▶ If the machine becomes clogged, switch off and allow the cutter to stop. Remove the plug from the mains supply before clearing debris.
▶ Check if guards and protective devices are undamaged and properly mounted. Before using, carry out any necessary maintenance and repairs.
▶ Do not tamper with the motor speed control settings. Contact a Bosch approved service agent if a problem exists.
- Keep the motor cooling vents clean of debris and other accumulations to prevent damage to the motor or possible fire.
English | 17
▶ Never pick up or carry the machine while the motor is running.
▶ Switch off, allow the cutter to stop and remove the plug from the mains supply whenever you leave the work area.
▶ Do not tilt the machine while it is running.
▶ Do not expose the machine to rain.
Only store the machine in a dry place.
▶When using an aggregator then it needs to be an Automatic Voltage Regulation (AVR) version avoiding damages caused by overvoltage spikes.
Maintenance and Storage
▶When the machine is stopped for servicing, inspection, or storage, or to change an accessory, switch off and remove the plug from the mains supply and allow the machine to cool. Make sure that all moving parts have come to a complete stop before making any inspections, adjustments, etc.
- Maintain the machine with care and keep it clean.
▶ Examine the machine and replace worn or damaged parts for safety.
▶ Ensure replacement parts fitted are Bosch approved.
▶ If an extension cord is used it shall not be of lighter grade than the supply cord already fitted to the machine.
▶ Check the supply and any extension cord regularly for damage or signs of ageing. Do not use the machine, if the cords are damaged.
▶When servicing the cutter be aware that, even though the motor will not start due to the interlock feature of the guard, the cutter can still be moved if the motor is turned by hand.
▶ Never attempt to override the inter-lock feature of the guard.
Product Description and Specifications
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Intended Use
The product is intended for cutting of fibrous and woody garden waste for composting.
The collection box is intended for collecting the material cut, and for storing the chute assembly and prodder.
The collection box should not be used for other purposes.
Delivery Scope
Carefully remove the garden product from its packaging and check if the following parts are complete:
- Quiet-shredder
- Chute assembly
- Prodder
- Collection box
- Operating instructions
When parts are missing or damaged, please contact your dealer.
When fully assembled the garden product weighs approximately 30,5–31,3 kg. If necessary, obtain assistance to remove from packaging.
Product Features
The numbering of the garden product features refers to the illustration of the garden product on the graphics page.
1 Undercarriage
2 Power plug**
3 Ventilation slots
4 Green button
5 Red STOP button
6 Yellow button
7 Prodder
8 Chute assembly
9 Clamping knob
10 Adjustment knob
18 | English
| 11 Collection box | 16 Cutting roller |
| 12 Serial number | 17 Hex key* |
| 13 Blade cover plate | ** country specific |
| 14 LED indicator (AXT 23 TC/ 25 TC 2550 TC only) | *Accessories shown or described are not part of the standard delivery scope of the product. A complete overview of accessories can be found in our accessories program. |
| 15 Pressure plate |
Technical Data
| Quiet-shredder | AXT 22 D | AXT 25 D | AXT 23 TC | AXT 25 TC | AXT 2550 TC | |
| Article number | 3 600 ... | H03 0.. | H03 1.. | H03 2.. | H03 3.. | H03 3.. |
| Power consumption, S 6 (40/60 s) ^1) | W 2200 2500 2300 2500 2500 | |||||
| Power consumption, S 1 | W 2000 2300 2100 2300 2300 | |||||
| No-load speed | min^-1 | 40 40 40 40 | 40 | |||
| Cutting system | Drum | Drum | Turbine | Turbine | Turbine | |
| Capacity, max. | kg/h 180 | ^2) | 190^2) | 215^2) | 230^2) | 230^2) |
| Branch diameter, max. | mm | 38^2) | 40^2) | 42^2) | 45^2) | 45^2) |
| Collection box | l | 53 | 53 | 53 | 53 | 53 |
| Weight according to EPTA-Procedure 01/2003 | kg | 31.3 | 31.3 | 30.5 | 30.5 | 30.5 |
| Protection class | ± /1 | ± /1 | ± /1 | ± /1 | ± /1 | |
^1) The S 6 operating mode (40 %) indicates a load profile of 40 s load and 60 s idle time. For practical application, continuous operation is permitted.
^21 Depending on the hardness of the wood.
Starting cycles generate brief voltage drops. Interference with other equipment/machines may occur in case of unfavourable mains system conditions.
Malfunctions are not to be expected for system impedances below 0.36 ohm.
Noise/Vibration Information
| Sound emission values determined according to EN 50434. | 3 600 ... | H03 0.. | H03 2.. |
| H03 1.. | H03 3.. | ||
| Typically the A-weighted noise levels of the product are: | |||
| Sound pressure level | dB(A) | 81 | 82 |
| Sound power level | dB(A) | 89 | 90 |
| Uncertainty K | dB | =3 | =2 |
| Wear hearing protection! | |||
Declaration of Conformity C€
| 3 600 ... | H03 0..H03 1.. | H03 2..H03 3.. | |
| We declare under our sole responsibility that the product described under “Technical data” is in conformity with all relevant provisions of the directives 2011/65/EU, 2014/30/EU, 2006/42/EC, 2000/14/EC including their amendments and complies with the following standards: EN 60335-1, EN 50434.2000/14/EC: Guaranteed sound power level: Conformity assessment procedure according to Annex V. | dB(A) | 92 | 92 |
| Equipment category: 50 | Henk Becker | Helmut Heinzelmann |
| Technical file (2006/42/EC, 2000/14/EC) at: | Executive Vice President | Head of Product Certification |
| Bosch Lawn and Garden Ltd., PT-LG/ENS23, | Engineering | PT/ETM9 |
Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY 01.08.2014
F016 L81 145 | (28.8.14) Bosch Power Tools
Assembly
For Your Safety
▶ Warning! Switch off, remove plug from mains before adjusting, cleaning or if cable is cut, damaged or entangled.
Observe correct mains voltage: The voltage of the power source must agree with the voltage specified on the name-plate of the unit. Equipment marked with 230 V can also be connected to 220 V or 240 V.
The circuit must at least be protected as follows:
AXT 22 D/25 D/23 TC/25 TC/2550 TC=13 A
An extension cable with a cross section that is too small causes a distinct reduction in the performance capabilities of the machine. For cables to 25 m in length, a cross section of at least 3 x 1.5 mm ^2 is required, for cables more than 25 m in length, the cross section must be at least 2.5 mm ^2 .
▶ WARNING! Inadequate extension cables can be dangerous. Extension cable, plug and socket must be of watertight construction and intended for outdoor use.
Cable connections should be kept dry and off the ground. It is recommended for increased electrical safety to use a Residual Current Device (RCD) with a tripping current of not more than 30 mA. Always check your RCD every time you use it. If the supply cord is damaged, it must be replaced by a Bosch Service Centre.
When using cable drums, these must be completely unreeled.
Products sold in GB only: Your product is fitted with a BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362).
If the plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place by an authorised customer service agent. The replacement plug should have the same fuse rating as the original plug.
The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere.
Assembly

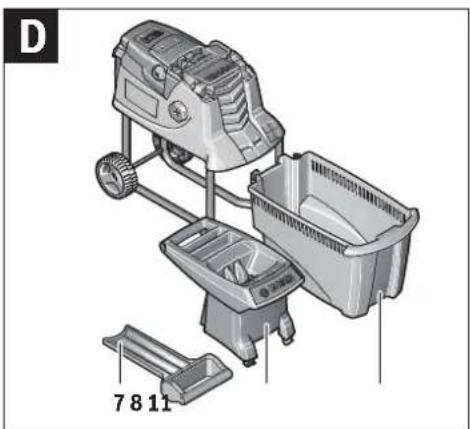

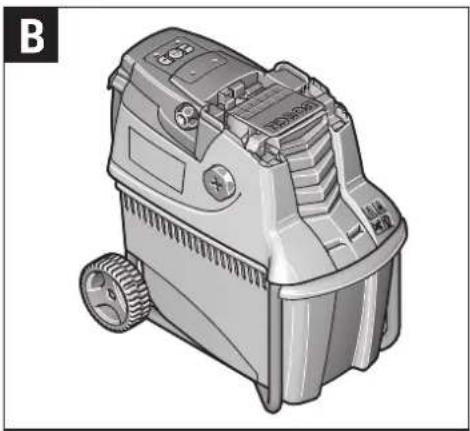

Remove the machine from the package. (see figures A–D).

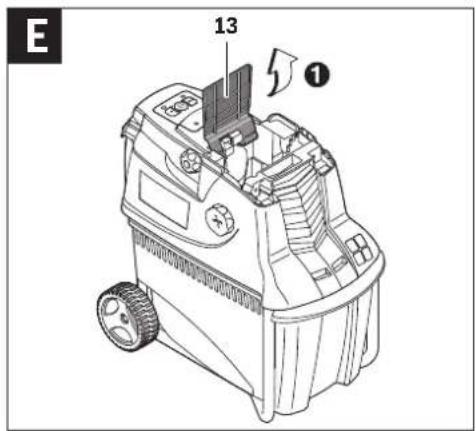

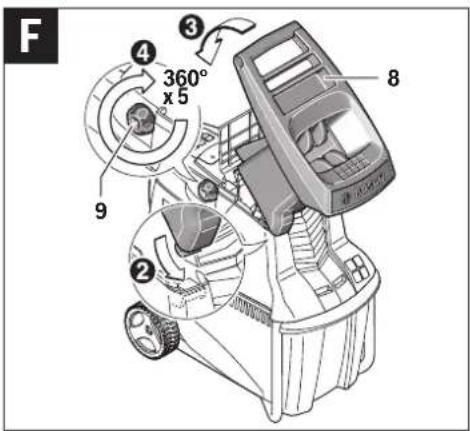

Assemble the chute (seefigures E-F)
1 Lift back blade cover plate 13.
②③ Hook in chute assembly 8 to the garden product, and then release the blade cover plate 13.
4 Press the chute 8 down and turn red clamping knob 9 fully clockwise to lock the chute 8 in place, approximately 5x full turns of the clamping knob 9 are required.
Operation
Starting Operation (see figure G)
▶ Always place the machine on firm level ground. During operation, do not tilt or move.
▶ The motor will coast after switching off!
Remove earth from roots. Foreign material such as stones, glass, metals, fabrics or plastics must not enter the chute assembly 8. Otherwise this could damage the cutting roller 16. The chute assembly 8 must be empty.
Starting
Press green button 4.
Stopping
Press red STOP button 5.
Wait for 2 seconds before restarting the machine.
Restarting Protection
A mains failure causes machine to switch off. The machine cannot restart on its own when the power returns.
Return Motion
Press and hold the yellow button 6 to reverse the feed.
The cutting roller 16 runs backward and frees jammed material.
Overload Protection
Overloading (e. g. blocking of the cutting roller 16) causes the machine to stop after a few seconds, that time a beep is audible. Press red STOP button to clear the error. After blocking the tool can start in reverse direction.
Press and hold the yellow button 6 to reverse the cutter to un-block.
In case of starting in the same direction the tool won't start and beeps.

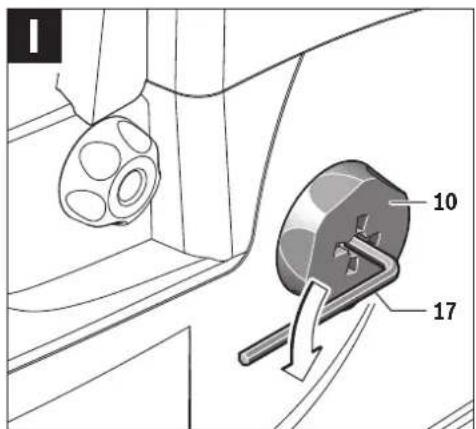

If the blockage cannot be cleared the pressure plate 15 will need to be moved away from the cutter.
The adjustment knob 10 will need to be turned a counterclockwise direction a small amount until the "jammed" material is clear. The pressure plate 15 will need adjustment (see "Pressure Plate Adjustment (see figure H)").
Working Advice
▶ Wear eye protection, hearing protection and safety gloves at all times while operating the machine.
▶ Always check before use that the collection box and chute assembly are fitted correctly.
The machine is fitted with sensors, unless the collection box 11 is fitted correctly and the chute assembly 8 is correctly positioned, the machine will not start and the buzzer beeps (on AXT 23 TC/ 25 TC 2550 TC also the 2 LEDs 14 flash).
Press the red STOP button to clear the error.
Insert the material to be shredded. The material will be fed by the cutter roller 16 without further assistance.
20 | English
▶ Longer material standing out from the machine could lash out when being pulled in by the knives! Please keep at safe distance!
- Only insert as much material so that the chute assembly 8 will not be blocked up.
- Shred withered, moist material and garden waste which has been stored for some days alternately with branches. This prevents the cutting roller 16 from clogging.
- Do not fill soft waste such as kitchen rubbish into the shredder but compost directly.
- Take care that the shredded material can fall freely from the discharge chute – danger of backing up!
- The ventilation slots 3 must not be covered by the shredded material.
- Avoid blocking the discharge chute with shredded material as this could result in kickback of material through the chute assembly 8 opening.
Advice on Shredding
Branches become harder to shred depending on the type, age and dryness of the wood.
For best results, shred fresh branches soon after they have been cut.
Soft garden waste should be shredded in smaller loads, particularly when wet. Any blockages can be avoided by intermittently shredding branches.
Pressure Plate Adjustment (see figureH)
The pressure plate 15 is factory adjusted and may not require adjustment before the first use.
Adjustment of the pressure plate 15 is necessary as a result of wear (shredded material, e. g. branches, hangs together as a chain and is not properly cut through).
With the motor running in the forward direction (green button 4), turn the adjustment knob 10 a small amount at a time in a clock wise direction until a light grinding sound can be heard (the cutting roller 16 cuts the pressure plate 15 to the proper clearance, and some small aluminium shavings fall out of the ejection chute).
To check, look for shavings in the collection box 11.
Readjust only to the required extent, otherwise the pressure plate 15 could wear unnecessarily.
Troubleshooting
The following chart lists problem symptoms, possible causes and corrective action, if your garden product does not operate properly. If these do not identify and correct the problem, contact your service agent.
▶ Warning! Switch off, remove plug from mains before adjusting, cleaning or if cable is cut, damaged or entangled.
Problem Possible Cause Corrective Action
| Machine fails to operate Collection box not fitted correctly Fit collection box correctly | ||
| Chute assembly not fitted correctly Fit chute assembly correctly | ||
| Mains socket faulty Use another socket | ||
| Extension cable damaged Inspect cable, replace if damaged | ||
| The machine is overheated Wait until the machine cools down | ||
| Fuse faulty/blown | Replace fuse | |
| Machine beeps (also two lights on AXT 23 TC/ 25 TC 2550 TC) and does not start | Collection box/chute is not correctly assembled | Ensure the collection box is in positionEnsure the chute assembly is in position and clamped by turning the clamping knob (red) fully clockwise |
| Machine periodically beeps three times and does not start.(also two lights are flashing rapidly the same way on AXT 23 TC/25 TC/2550 TC) | Undervoltage protection | Press the STOP button. Wait until the machine cools down. The machine will beep for 2 seconds and switch to standby. |
| One flashing light on AXT 23 TC/ 25 TC 2550 TC | None, this is ok, machine is “plugged in” and ready to use | |
| Machine periodically beeps three times and does not start.(also two lights are flashing rapidly the same way on AXT 23 TC/25 TC/2550 TC) | Undervoltage protection | Restart machine.Check extension cable is as required in instructions(lower quality extension cables can cause error)When powered by aggregator, check its performance. |
| Machine beeps continuously for 10 seconds and does not start,error cannot be cleared pressing STOP button (also two lights are blinking the same way on AXT 23 TC/25 TC/2550 TC) | The electronic control unit is faulty | Contact your Bosch Service Centre |
F 016 L81 145 | (28.8.14) Bosch Power Tools
English | 21
Problem Possible Cause Corrective Action
| The material to be shredded is not pulled in | Material to be shredded is wet and soft | Use the prodder to push the material into the machine |
| Jammed material in the machine Clear jammed material (always wear protective gloves) Use the reverse button (see “Return Motion”) | ||
| Shredded material is not completely separated and hangs together as a chain | Pressure plate requires adjustment | see “Pressure Plate Adjustment (see figure H)” |
| The material stucked between the cutter and pressure plate and cannot be released by the reverse button | Pressure plate were over set | Push in adjusting knob 10 and insert Allen key 17 (sized 5 – not included) into the recess on the end of adjusting screw and release by anti clockwise (see figure I) Then repeat pressure plate adjustment (see “Pressure Plate Adjustment (see figure H)”) |
Maintenance and Cleaning
▶ Warning! Switch off, remove plug from mains before adjusting, cleaning or if cable is cut, damaged or entangled.
▶ Always wear protective gloves when using, adjusting or cleaning the garden product.
Note: To ensure long and reliable service, carry out the following maintenance regularly.
Regularly check for obvious defects such as loose, dislodged or damaged blades, loose fixings, and worn or damaged components.
Check that covers and guards are undamaged and correctly fitted. Carry out necessary maintenance or repairs before using.
If the garden product should happen to fail despite the care taken in manufacture and testing, repair should be carried out by an authorised customer service agent for Bosch garden products.

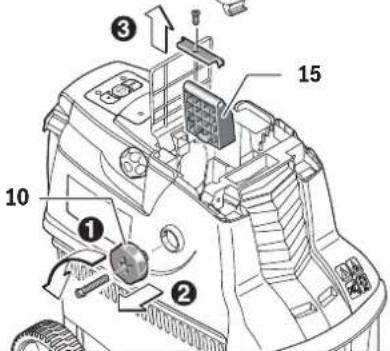

Removing the Pressure Plate (see figure J)
▶ Warning! Switch off, remove plug from mains before adjusting, cleaning or if cable is cut, damaged or entangled.
▶ Always wear protective gloves when using, adjusting or cleaning the garden product.
The cutting roller 16 and the pressure plate 15 have a life expectancy of several years under normal usage and when adjusted according to instructions.
Use the following to remove the pressure plate 15, to aid cleaning or for replace:
① ② Unscrew the pressure plate screw fully as shown.
③ Lift out pressure plate 15 using screw driver.
Fit in the reverse order, the pressure plate 15 will require adjustment (see "Pressure Plate Adjustment (see figure H)").
After Use/Storage
The shredder must not be cleaned with high-pressure cleaners or running water.
Clean the exterior of the machine thoroughly using a soft brush and cloth. Do not use water, solvents or polishes. Remove all grass and debris, especially from the ventilation slots 3.
Store the machine in a dry place. Do not place other objects on top of the machine.

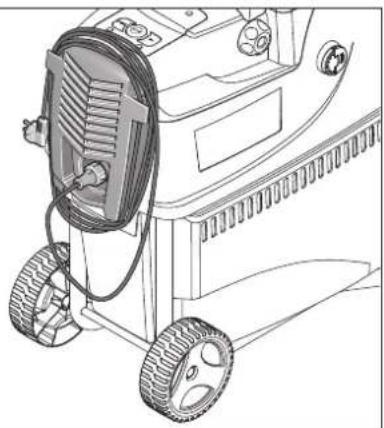

Cable can be stored on the shredder as shown (only UK). (see figure K).
The shredder can be stored as in figure B by removing the chute assembly (see also "Assemble the chute (see figures E-F)").
After-sales Service and Application Service
www.bosch-garden.com
In all correspondence and spare parts orders, please always include the 10-digit article number given on the type plate of the garden product.
Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham
Uxbridge
UB 9 5HJ
At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.
Tel. Service: (0844) 7360109
E-Mail: boschservicecentre@bosch.com
22 | Français
Ireland
Origo Ltd.
Unit 23 Magna Drive
Magna Business Park
City West
Dublin 24
Tel. Service: (01) 4666700
Fax: (01) 4666888
Australia, New Zealand and Pacific Islands
Robert Bosch Australia Pty. Ltd.
Power Tools
Locked Bag 66
Clayton South VIC 3169
Customer Contact Center
Inside Australia:
Phone: (01300) 307044
Fax: (01300) 307045
Inside New Zealand:
Phone: (0800) 543353
Fax: (0800) 428570
Outside AU and NZ:
Phone: +61 3 95415555
www.bosch.com.au
Republic of South Africa
Customer service
Hotline: (011) 6519600
Gauteng - BSC Service Centre
35 Roper Street, New Centre
Johannesburg
Tel.: (011) 4939375
Fax: (011) 4930126
E-Mail: bsctools@icon.co.za
KZN - BSC Service Centre
Unit E, Almar Centre
143 Crompton Street
Pinetown
Tel.: (031) 7012120
Fax: (031) 7012446
E-Mail: bsc.dur@za.bosch.com
Western Cape - BSC Service Centre
Democracy Way, Prosperity Park
Milnerton
Tel.: (021) 5512577
Fax: (021) 5513223
E-Mail: bsc@zsd.co.za
Bosch Headquarters
Midrand, Gauteng
Tel.: (011) 6519600
Fax: (011) 6519880
E-Mail: rbsa-hq.pts@za.bosch.com
Disposal
The garden product, accessories and packaging should be sorted for environmental-friendly recycling.
Do not dispose of garden products into household waste!
Only for EC countries:
According to the European directive 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national law, electrical and electronic equipment that are no longer usable must be collected separately and disposed of in an environmentally correct manner.
Subject to change without notice.
Français
Dossier technique (2006/42/CE, 2000/14/CE) auprès de : Bosch Lawn and Garden Ltd., PT-LG/ENS23, Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President Engineering
Helmut Heinzelmann
Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY 01.08.2014
www.bosch-garden.com
Robert Bosch (France) S.A.S.
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Helmut Heinzelmann
Executive Vice President Engineering
Head of Product Certification PT/ETM9
jwJeo i.v. h.w.
Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY 01.08.2014
Montaje
Para su seguridad
www.bosch-garden.com
Bosch Lawn and Garden Ltd., PT-LG/ENS23,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
01.08.2014
www.bosch-garden.com
Bosch Lawn and Garden Ltd., PT-LG/ENS23,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
PPa
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
01.08.2014
Montaggio
www.bosch-garden.com
m = 311
www.bosch-garden.com
Produktkategori: 50
Teknisk dossier (2006/42/EF, 2000/14/EF) ved:
Bosch Lawn and Garden Ltd., PT-LG/ENS23,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
i.v. h=w
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
01.08.2014
72 | Dansk
Montering
www.bosch-garden.com
Bosch Service Center
Telegrafvej 3
2750 Ballerup
På www.bosch-pt.dk kan der online bestilles reservedele eller oprettes en reparations ordre.
Tlf. Service Center: 44898855
Fax: 44898755
E-Mail: vaerktoej@dk.bosch.com
Bortskaffelse
www.bosch-garden.com
Bosch Service Center
Telegrafvej 3
2750 Ballerup
Danmark
Tel.: (08) 7501820 (inom Sverige)
Fax: (011) 187691
Avfallshantering
Bosch Lawn and Garden Ltd., PT-LG/ENS23,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
PPa
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
01.08.2014
Montering
www.bosch-garden.com
Bosch Lawn and Garden Ltd., PT-LG/ENS23,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Helmut Heinzelmann
Executive Vice President
Head of Product Certification
Engineering
PT/ETM9
jue Bo i.v. h.w.
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
01.08.2014
Asennus
Turvallisuussyistä
www.bosch-garden.com
www.bosch-garden.com
Bosch Lawn and Garden Ltd., PT-LG/ENS23,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
01.08.2014
Montaj
Güvenliğiniz için
www.bosch-garden.com
Bosch San. ve Tic. A.S.
Ahi Evran Cad. No:1 Kat:22
Polaris Plaza
80670 Maslak/Istanbul
Bosch Uzman Ekibi +90 (0212) 367 18 88
Işıklar LTD.ŞTİ.
Kizilay Cad. No: 16/C Seyhan
Adana
Tel.: 0322 3599710
Tel.: 0322 3591379
116 | Polski
Bosch Lawn and Garden Ltd., PT-LG/ENS23,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
01.08.2014
Montaż
www.bosch-garden.com
Robert Bosch Sp. z o.o.
Bosch Lawn and Garden Ltd., PT-LG/ENS23,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
P^a
i.v. k=mc
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
01.08.2014
Česky | 131
Montáž
Pro Vaši bezpečnost
www.bosch-garden.com
Bosch Service Center PT
K Vápence 1621/16
692 01 Mikulov
Bosch Lawn and Garden Ltd., PT-LG/ENS23, Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President Engineering
Helmut Heinzelmann
Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY 01.08.2014
Montáž
www.bosch-garden.com
www.bosch-garden.com
Bosch Lawn and Garden Ltd., PT-LG/ENS23,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
01.08.2014
Bosch Power Tools F 016 L81 145 | (28.8.14)
158 | Русский
Сборка
www.bosch-garden.com
www.bosch-garden.com
Bosch Lawn and Garden Ltd., PT-LG/ENS23,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
i.v. h=mc
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, ГЕРМАНИЯ
01.08.2014
178 | Казакша
Жинау
www.bosch-garden.com
Bosch Lawn and Garden Ltd., PT-LG/ENS23,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
i.v. h=w
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
01.08.2014
Bosch Power Tools F 016 L81 145 | (28.8.14)
188 | Română
Montare
www.bosch-garden.com
Tel. service scule electrice: (021) 4057540
Fax: (021) 4057566
E-Mail: infoBSC@ro.bosch.com
Bosch Lawn and Garden Ltd., PT-LG/ENS23, Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President Engineering
Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY 01.08.2014
Монтиране
За Вашата сигурност
www.bosch-garden.com
Bosch Lawn and Garden Ltd., PT-LG/ENS23.
Stowmarket, Suffolk IP14 1EY, England
Henk Becker Helmut Heinzelmann
Executive Vice President Head of Product Certification
Engineering PT/ETM9
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
01.08.2014
Монтажа
За Ваша безбедност
www.bosch-garden.com
Bosch Lawn and Garden Ltd., PT-LG/ENS23,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
John Zeo
i.v. h=w
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
01.08.2014
Montaža
Radi vaše sigurnosti
Pažnja! Pre radova održavanja i čišćenja isključite baštenski uređaj i izvucite mrežni utikač. Isto važi i ako je strujni kabl oštećen, zasečen ili zapleten.
Paziti na mrežni napon: Napon izvora struje mora se podudarati sa podacima na tipskoj tablici uređaja. Uređaji označeni sa 230 V mogu raditi i na 220 V/240 V.
Strujni krug mora da se najmanje osigura na sledeći način:
AXT 22 D/25 D/23 TC/25 TC/2500 TC = 13 A
Produžni kabl sa malim presekom provodnika prouzrokuje značajno smanjivanje smage uredjaja. Kod kablova do 25 m dužine potreban je presek provodnika najmanje 3 x 1,5 mm ^2 kod kablova preko 25 m dužine mora iznositi presek provodnika najmanje 2,5 mm ^2 .
214 | Srpski
OPREZ: Nepropisni produžni kablovi mogu biti opasni. Produžni kabl, utikač i spojnica moraju biti zaptiveni za vodu i dozvoljene konstrukcije za spoljnu upotrebu.
www.bosch-garden.com
Molimo navedie kod svih pitanja i naručivanje rezervnih delova neizostavno broj predmeta sa 10 mesta prema tipskoj tablici baštenskog uredjaja.
Slovensko | 217
Srpski
Bosch-Service
Dimitrija Tucovića 59
11000 Beograd
Tel.: (011) 6448546
Fax: (011) 2416293
Bosch Lawn and Garden Ltd., PT-LG/ENS23,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
01.08.2014
Montaža
Za vašo varnost
www.bosch-garden.com
www.bosch-garden.com
Kod svih upita i naručivanja rezervnih dijelova molimo neizostavno navedite 10-znamenkasti kataloški broj sa tipske pločice vrtnog uređaja.
Hrvatski
Robert Bosch d.o.o
Kneza Branimira 22
10040 Zagreb
Tel.: (01) 2958051
Fax: (01) 2958050
Zbrinjavanje
Tootekategooria: 50
Tehniline toimik (2006/42/EÜ, 2000/14/EÜ) saadaval:
Bosch Lawn and Garden Ltd., PT-LG/ENS23,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
01.08.2014
238 | Eesti
Montaž
Tööohutus
www.bosch-garden.com
Bosch Lawn and Garden Ltd., PT-LG/ENS23,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
01.08.2014
Montāža
Jūsu drošībai
www.bosch-garden.com
Bosch Lawn and Garden Ltd., PT-LG/ENS23,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
01.08.2014
Lietuviškai | 255
