Product Type	Meat Grinder
Model	MFW45000
Brand	Bosch
Power Input	800 W
Voltage	220-240 V, 50/60 Hz
Dimensions (L x W x H)	Approx. 25 x 20 x 30 cm
Weight	4.2 kg
Grinding Capacity	Up to 2.5 kg/min
Housing Material	Plastic with stainless steel feed tube
Cutting Plate Hole Sizes	3 mm, 4.5 mm, 8 mm
Accessories Included	3 cutting plates, 2 blades, sausage stuffing tube, kibbeh attachment, pusher
Safety Features	Overload motor protection, non-slip suction feet, safety switch
Cleaning	Removable parts dishwasher safe (except motor unit)
Cable Length	1.2 m
Warranty	2 years

Frequently Asked Questions - MFW45000 BOSCH

How do I assemble the meat grinder?

Insert the pusher into the feed tube. Align the cutting plate and blade with the worm gear, then secure the locking ring by turning clockwise.

Can I grind bones?

No, this grinder is designed for boneless meat. Bones may damage the blade and motor.

How do I clean the grinder?

Disassemble all removable parts and wash them in warm soapy water or the dishwasher (top rack). Wipe the motor unit with a damp cloth.

Why is the motor not starting?

Check that the locking ring is securely tightened. The safety switch prevents operation if the grinder head is not properly assembled.

Can I use the grinder for soft fruits or vegetables?

It is intended for meat only. Using vegetables may clog the plates and cause overheating.

How do I change the cutting plate?

Unplug the grinder, remove the locking ring, and replace the plate. Ensure the blade is correctly positioned before reassembling.

What is the maximum operating time?

Do not run the grinder continuously for more than 10 minutes. Allow it to cool down for 15 minutes between uses.

How do I make sausages?

Attach the sausage stuffing tube instead of the cutting plate. Slide the casing onto the tube and feed the ground meat through.

Is the pusher necessary?

Yes, always use the pusher to feed meat into the feed tube. Never use fingers or utensils.

Where can I get spare parts?

Spare parts such as blades, cutting plates, and worm gear are available from Bosch service centers or online retailers.

USER MANUAL MFW45000 BOSCH

new device on MyBosch now and get free benefits:

bosch-home.com/welcome

ProPower

MFW4... MFW6...

[en] Instruction manual Meat mincer 10

This appliance is intended for domestic use only. Use the appliance only for processing normal quantities of food and for normal amounts of time for domestic use.

This appliance is suitable for cutting and mixing raw and cooked meat, bacon, poultry and fish. Food which is to be processed must not contain any hard components (e.g. bones). The appliance must not be used for processing other substances or objects.

Additional applications are possible if the accessories approved by the manufacturer are used. Only use the appliance with approved genuine parts and accessories.

Never use the attachments on other appliances. Only use matching parts for the relevant attachments.

Only use the appliance indoors at room temperature and up to 2000 m above sea level.

Important safety information

Read and follow the instruction manual carefully and keep for later reference! Enclose these instructions when you give this appliance to someone else. If the instructions for correct use of the appliance are not observed, the manufacturer's liability for any resulting damage will be excluded.

This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Keep children away from the appliance and connecting cable and do not allow them to use the appliance. Do not let children play with the appliance. Cleaning and user maintenance must not be performed by children.

⚠️ Risk of electric shock and fire!

■ Connect and operate the appliance only in accordance with the specifications on the rating plate. Do not use the appliance if the power cord and / or appliance are damaged. Only our customer service may repair the appliance, e.g. by replacing a damaged power cord, in order to avoid hazards.

■ Never connect the appliance to timer switches or remote-controllable sockets.

■ Do not place the appliance on or near hot surfaces, e.g. hobs. The power cord must not come into contact with hot parts or be pulled across sharp edges.

■ Never immerse the base unit in liquids or hold under running water and do not clean in the dishwasher. Do not steam-clean the appliance. Do not use the appliance with damp hands.
■ After each use, whenever the appliance is unsupervised, prior to assembly, prior to disassembly, prior to cleaning and in the event of an error, the appliance must always be disconnected from the mains.
■ Never leave the appliance unattended while it is switched on!

Risk of injury!

■ Do not insert mains plug until all preparations for working with the appliance are complete.

■ Attachments must be completely assembled before use. Never assemble attachments on the base unit.

■ Before replacing accessories or additional parts which move during operation, the appliance must be switched off and disconnected from the power supply. After switching off, the drive continues running for a short time. Wait until the drive has come to a standstill.

■ If there is a power cut, the appliance remains switched on and will start up again when the power is restored.

- Keep hands clear of rotating parts. Never reach into the feed chute or outlet opening.

■ Only use the pusher provided!

Caution!

■ Check that there are no foreign objects in the feed chute or attachments. Do not insert objects (e.g. knives, spoons) into the feed chute or outlet opening.

■ Never press the On/Off button and reverse button at the same time. Before pressing the other button, wait until the drive has come to a complete standstill. Risk of damaging the appliance.

⚠️ Risk of suffocation!

■ Do not allow children to play with packaging material.

⚠️ Important!

It is essential to clean the appliance thoroughly after each use or after it has not been used for an extended period. → “Cleaning and servicing” see page 14

Congratulations on the purchase of your new Bosch appliance. You can find further information about our products on our website.

Contents

Intended use....10

Important safety information....10

Overview....12

Safety devices 12

Predetermined breaking point .....12

Operation....12

Operating the appliance ....13

Cleaning and servicing ....14

Troubleshooting 14

Recipes and tips....14

Disposal....15

Guarantee....15

Overview

Please fold out the illustrated pages.

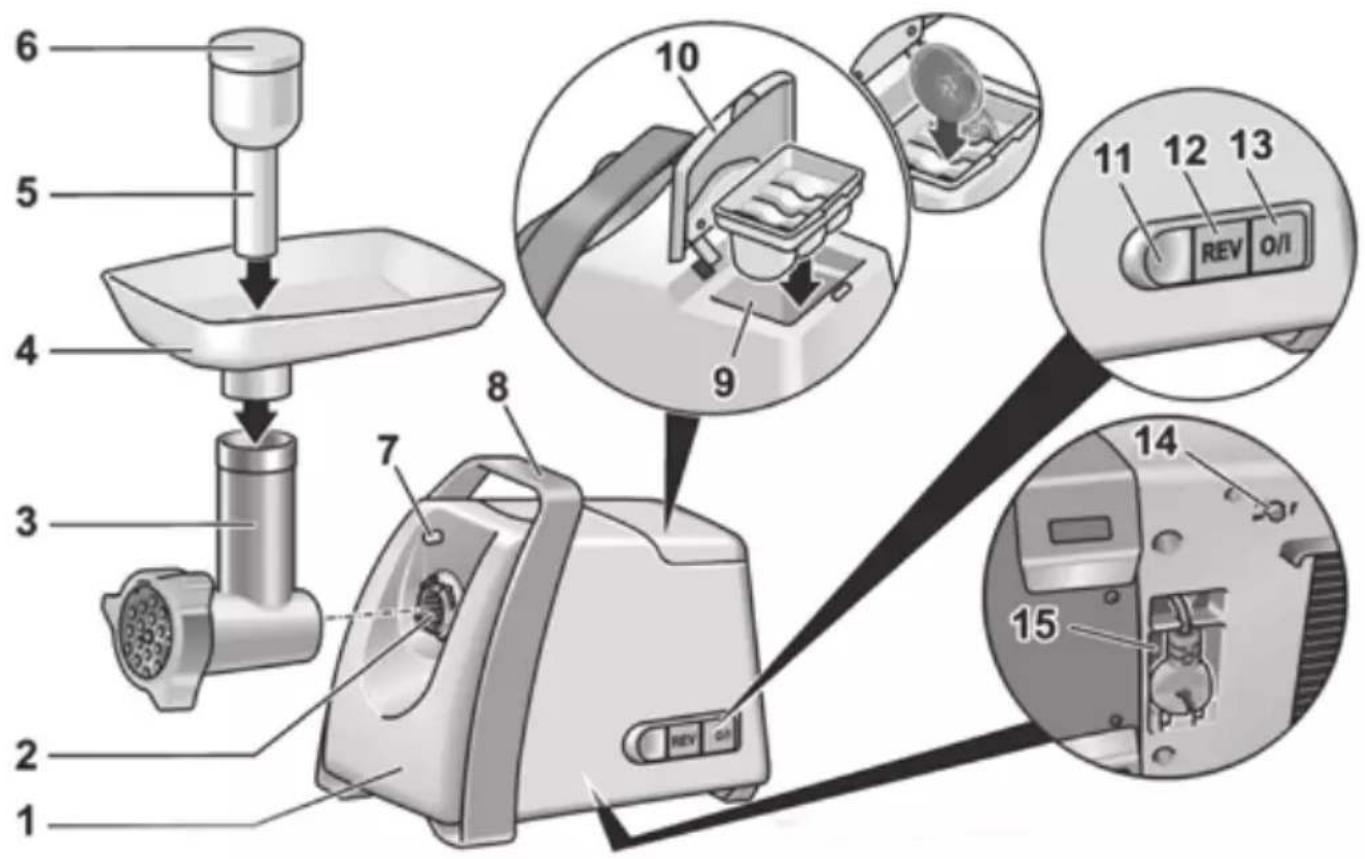

→ Fig. A

1 Mincer

2 Drive

3 Mincer attachment

4 Filler tray

5 Pusher

6 Lid for pusher

7 Release button

8 Handle

9 Storage compartment with insert*

10 Cover for storage compartment

11 Indicator light

12 Reverse button

13 On/Off button

14 Thermal circuit breaker

15 Cord store

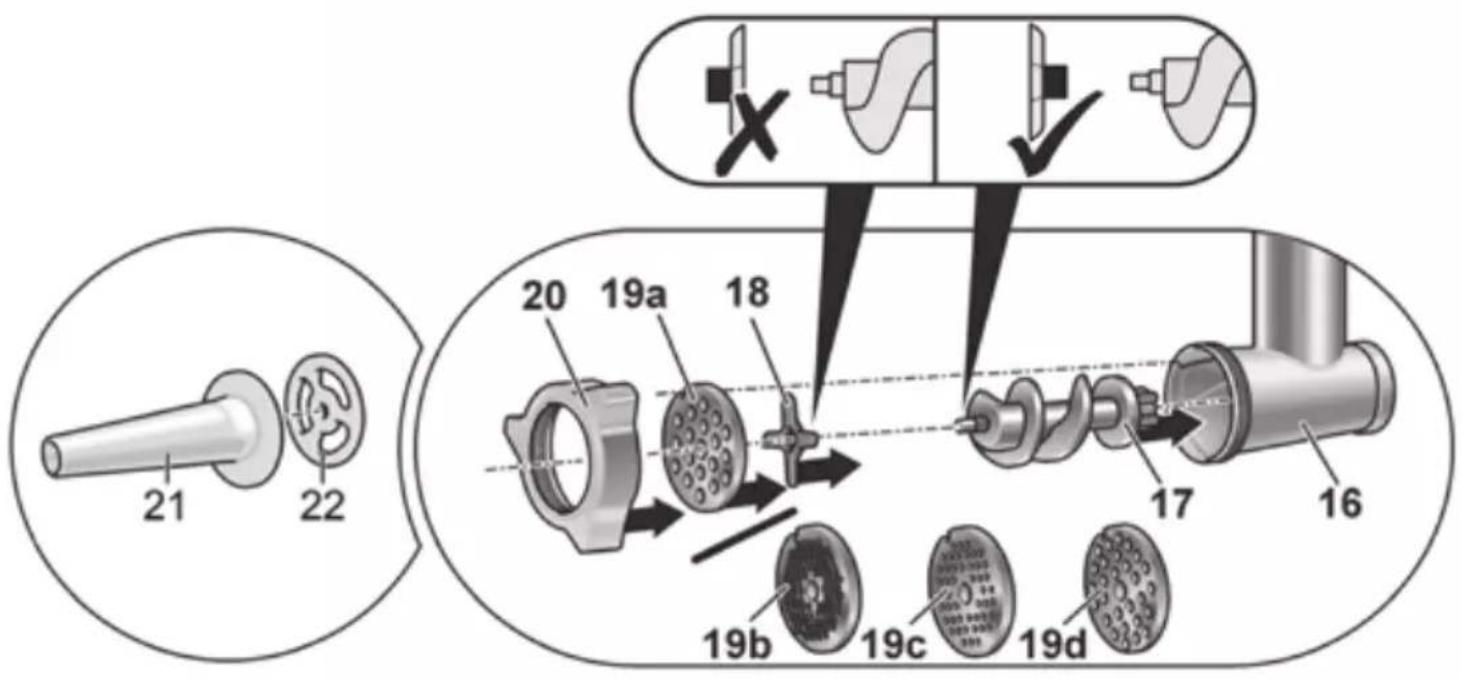

Mincer attachment

16 Casing

17 Worm gear with driver

18 Blade

19 Perforated disc

a coarse, hole diameter 8 mm
b fine, hole diameter 3 mm*
c fine, hole diameter 3.8 mm*
d medium, hole diameter 4.8 mm*

20 Threaded ring

Sausage filler attachment

21 Nozzle

22 Bearing ring

* for some models

Safety devices

Overload protection

(thermal circuit breaker)

If the motor switches itself off while the appliance is being used, the overload protection feature has been activated.

Possible causes may be the simultaneous processing of large quantities of food or a blockage caused by bones.

If a safety system is activated, see "Troubleshooting".

Predetermined breaking point

To prevent serious damage to your appliance if the mincer is overloaded, the driver has a notch (predetermined breaking point). If an overload occurs, the driver breaks instead. However, the driver can easily be replaced.

Otherwise spare parts with a predetermined breaking point are not a component of our warranty obligations.

Such spare parts can be purchased from customer service (order no. 753348).

Operation

Risk of injury!

Do not insert mains plug until all preparations for working with the appliance are complete.

■ Before operating the appliance and accessories for the first time, clean thoroughly; see “Cleaning and servicing”.

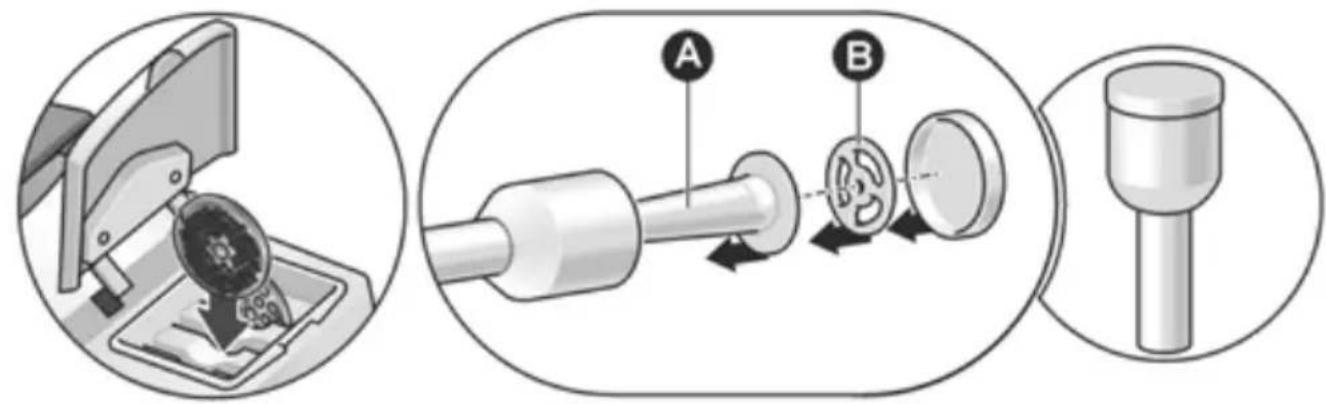

→ Fig. B

■ Stow perforated discs in the storage compartment.
■ Stow individual parts of the sausage filler attachment in the pusher and close the pusher with the lid.

Assembling the mincer attachment

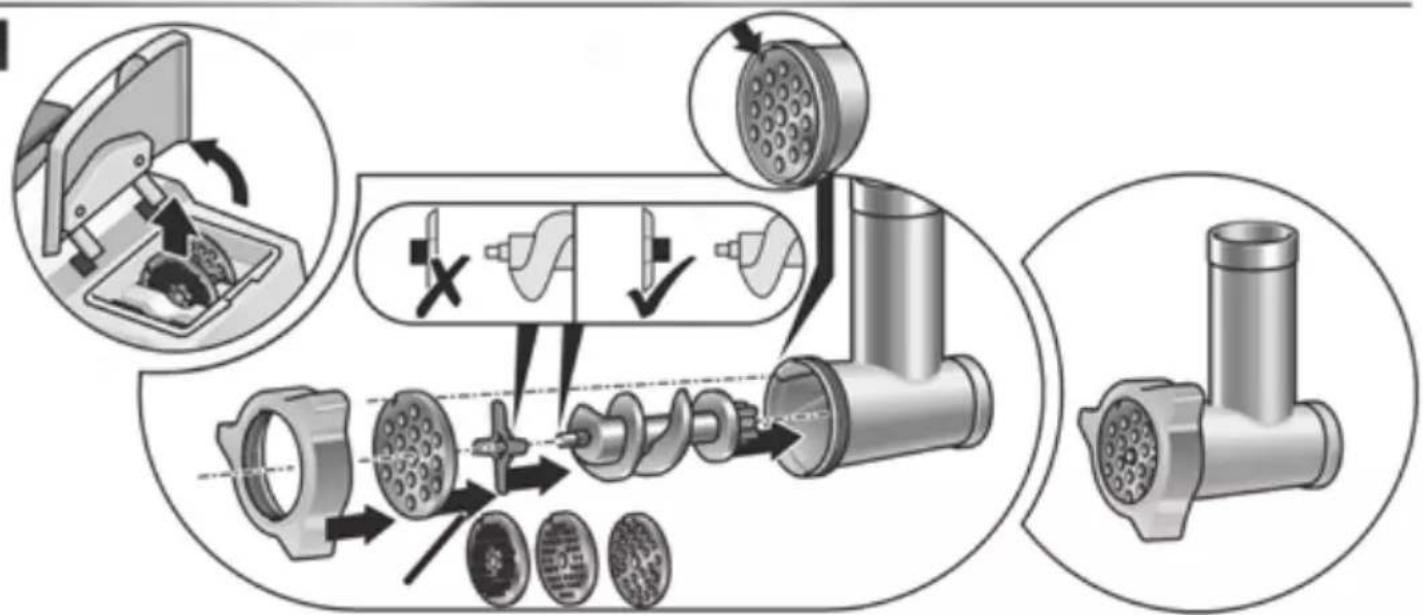

→ Fig. ©

■ Take perforated disc with required hole diameter out of the storage compartment.
■ Insert worm gear into the housing.
■ Put blade on the worm gear. Blades must face the perforated disc.
■ Put perforated disc with the required hole diameter on the worm gear.
Recess on the perforated disc must be situated on the lug in the housing.
■ Screw on threaded ring clockwise. Do not tighten the threaded ring too tight.
■ Disassembly is in reverse order.

Use for:

• Processing raw or cooked meat, bacon, poultry and fish.
• Do not process bones!
• Process steak tartare through the mincer twice.

Assembling sausage filler attachment

Note: The parts of the mincer attachment (without perforated disc and blade) are used.

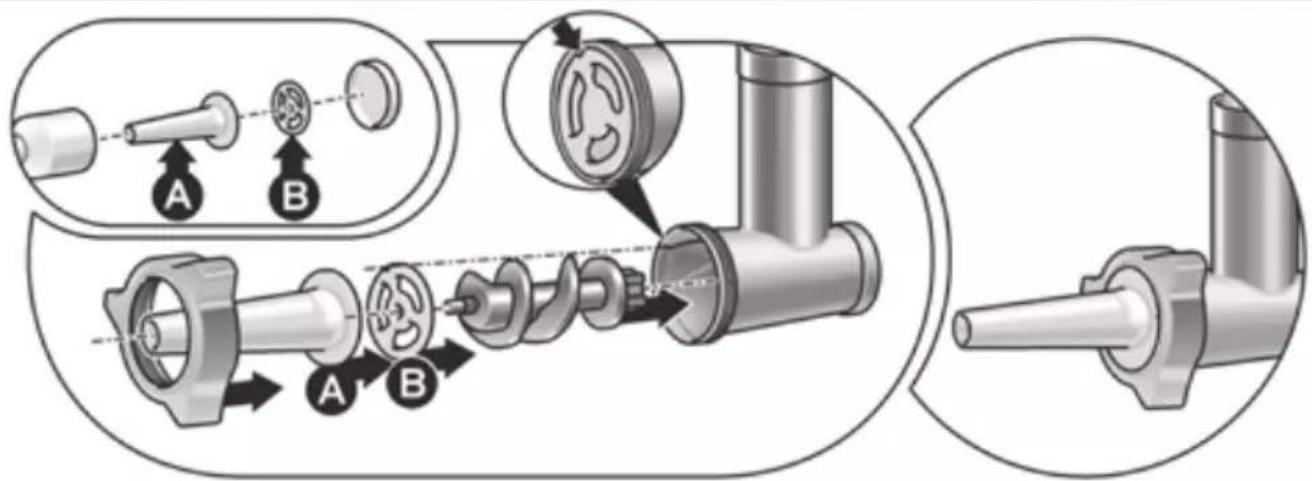

→ Fig. D

■ Take nozzle (A) and bearing ring (B) out of the pusher.
■ Insert worm gear into the housing.
■ Insert nozzle into the threaded ring.
■ Put bearing ring on the worm gear and hold in place. Recess on the bearing ring must be situated on the lug in the housing.
■ Screw on threaded ring with nozzle clockwise. Do not tighten the threaded ring too tight.
■ Disassembly is in reverse order.

Use for:

Filling artificial and natural casings with sausage meat.

Operating the appliance

Risk of injury

– Before fitting/removing attachment, wait until the drive has come to a standstill and pull out the mains plug.
- Do not reach into the feed tube. Use the pusher to slide the food down the feed chute, applying light pressure.

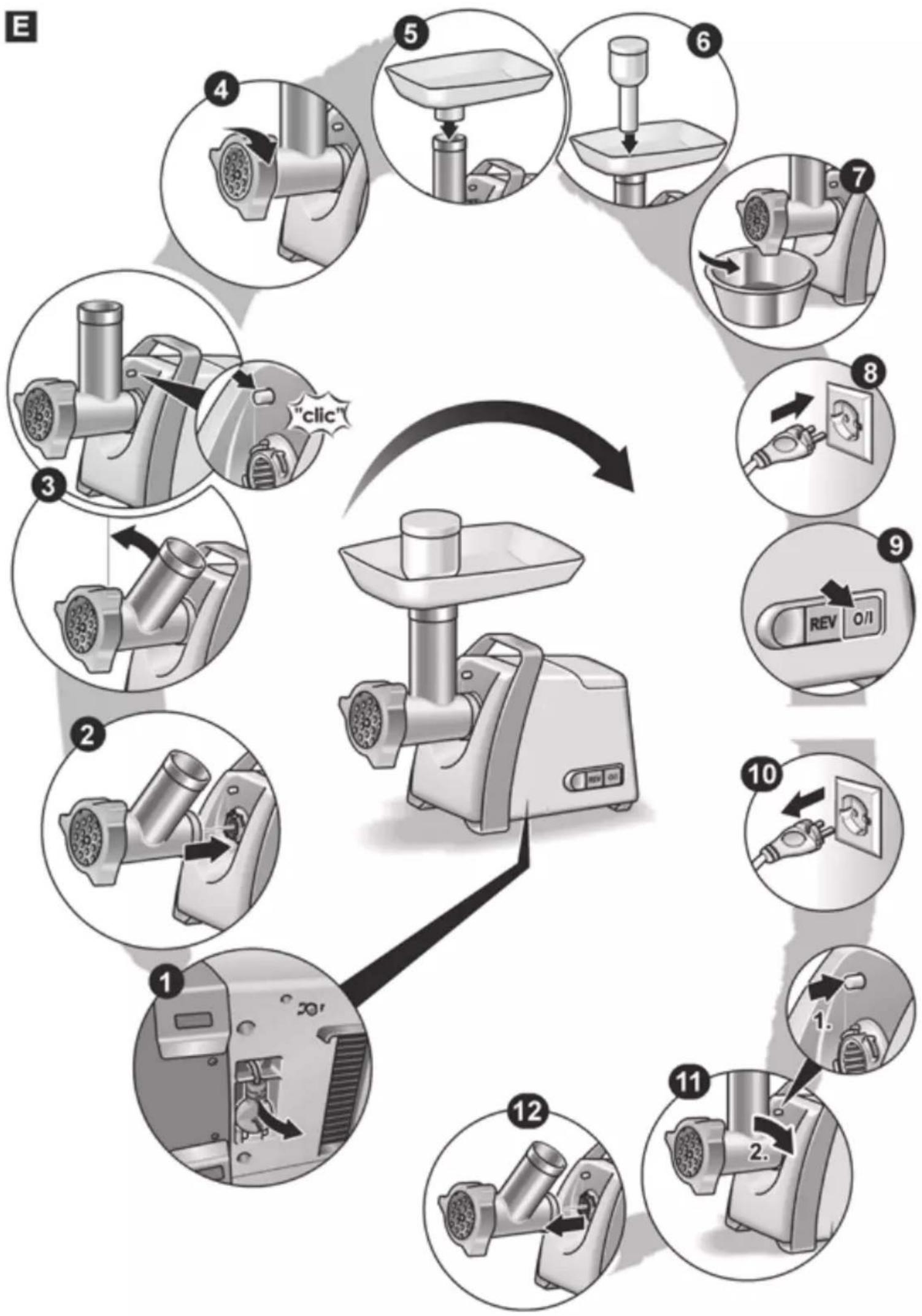

→ Fig. 田

■ Stand the mincer on a clean, level work surface.
■ Take power cord out of the cable storage and pull out to the required length.
■ Put the completely assembled mincer attachment, inclined slightly to the right, on the drive.
■ Turn mincer attachment upwards until it engages.
■ Tighten threaded ring on the mincer attachment.
■ Attach filling tray.
■ Insert pusher into filling opening.
■ Place a bowl or plate under the outlet opening.
■ Insert the mains plug.
■ Switch appliance on with the On/Off button.
■ Place the food to be processed in the filling tray.
■ Only use the pusher when adding more ingredients.

Application instructions:

If the food to be chopped up jams in the worm gear: Use reverse button to remove the blockage.

1. Switch appliance off with the On/Off button.
2. Wait until the drive comes to a standstill.
3. Briefly press reverse button.
4. Wait until the drive comes to a standstill.
5. Switch appliance on with the On/Off button.

After using the appliance:

■ Switch appliance off with the On/Off button.
■ Remove mains plug.
■ Pull out the pusher.
■ Remove filling tray.
■ Remove the mincer attachment. Holding down the release button, turn the attachment to the right and remove.
■ Disassemble mincer attachment.
- Clean all parts, see “Cleaning and servicing”.

Cleaning and servicing

Important information

The appliance requires no maintenance. Thorough cleaning protects the appliance from damage and keeps it functional.

Electric shock risk

• Never immerse the base unit in liquids and do not clean in the dishwasher.
  – Before cleaning the appliance, pull out the mains plug!

Warning!

Do not use abrasive cleaning agents. Surfaces may be damaged. Do not clean the aluminium parts (housing, worm gear and threaded ring of the mincer attachment) in the dishwasher. Harmless discolouration may occur over time.

Cleaning the appliance

■ Pull out the mains plug.
■ Wipe the mincer clean with a damp cloth. If required, use a little detergent.

Cleaning the attachments

■ Rinse housing, worm gear and threaded ring of the mincer attachment by hand.
■ Dry metal parts straight away and apply a little edible oil to protect them from rust.

■ Fig. F gives an overview of how to clean the individual parts.

Troubleshooting

Fault

Appliance stops but does not switch off.

Cause

Appliance overloaded, e.g. mincer blocked.

Remedial action

■ Switch appliance off and wait until it comes to a standstill.
■ Press reverse button to remove the blockage.
■ Wait until the drive comes to a standstill.
■ Switch on appliance again.

Fault

Appliance switches off during use.

Cause

Appliance overloaded. Overload protection feature has been activated.

Remedial action

■ Switch off the appliance.
■ Remove mains plug.
■ Leave the appliance to cool down for approx. 60 minutes.
■ Lift appliance and press the thermal circuit breaker on the underside of the appliance (Fig. A, 14).
■ Insert the mains plug.
■ Switch on appliance again.

Important information

If the fault cannot be eliminated, please contact customer service.

Recipes and tips

Mincer attachment

Perforated disc, fine (3 mm/3.8 mm): cooked chicken, pork, beef, cooked liver, cooked fish for soups; raw pork and beef for meat loaf; raw liver, meat and bacon for liverwurst; pork for Mettwurst

Perforated disc, medium (4.8 mm): Pork and beef for pâté and Cervelat sausage.

Perforated disc, coarse (8 mm): roast pork for goulash soup; leftovers (joint, sausage, ...) for casserole

Bread dumplings

Using the perforated disc 8 mm

• 300 g of fresh white bread
• 40 g of butter or margarine
• 200 ml of milk
• 2 eggs
• 1 tbs. of finely chopped onions
  – Parsley, salt
• A little flour

Processing ingredients

■ Using the mincer, chop up the white bread.
■ Add the finely chopped onions, a little parsley and butter and mix.
■ Whisk eggs, milk and salt and mix into the bread dough.
■ Leave the dough to prove for several minutes. Then knead again.
■ Shape the dumplings with wet hands. Roll dumplings in flour.
■ Place dumplings in boiling water and leave to simmer for approx. 20 minutes. Do not bring to the boil!

Ground cheese

Basic recipe

• 500-600g Gouda cheese
  ■ To make Gouda cheese easier to process, cut into cubes, 2.5 x 2.5 x 2.5 cm, and freeze for 24 h to -20 °C
  ■ Process frozen Gouda using the mincer (perforated disc, fine).

Operation time: 1 minute

Minced meat rolls with Gouda

Basic recipe

• 500 g beef, cut into strips
• 500 g pork, cut into strips
• 200 g cheese (Gouda)
• 10 g salt
• 2 g freshly ground black pepper
• Garlic (optional)
  – Oil for deep frying

■ First process the frozen Gouda

(→ "Ground cheese"), followed by the beef and pork using the mincer (perforated disc, fine).

■ Add the salt, pepper and garlic (optional) and mix.
■ Make rolls approx. 10 cm in length either using your hands or with the sausage stuffing attachment.
■ Heat a little oil in a frying pan and fry the minced meat rolls for approx. 5 minutes. Turn several times until everything is cooked through.

Sausage filler attachment

■ Soak natural casing in lukewarm water for approx. 10 minutes before processing.
■ Do not overfill sausages, otherwise the sausages may burst while they are being boiled or fried.
■ The nozzles can also be used without casings! Coat sausage meat with breadcrumbs and then fry.

Disposal

Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposal facilities.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Changes reserved.

[e-mail]

Thank you for buying a Bosch Home Appliance!

Register your new device on MyBosch now and profit directly from:

• Expert tips & tricks for your appliance
  • Warranty extension options
  • Discounts for accessories & spare-parts
  • Digital manual and all appliance data at hand
• Easy access to Bosch Home Appliances Service

Free and easy registration – also on mobile phones:

www.bosch-home.com/welcome

BOSCH HOME APPLIANCES SERVICE

Looking for help? You'll find it here.

Expert advice for your Bosch home appliances, need help with problems or a repair from Bosch experts.

Find out everything about the many ways Bosch can support you:

www.bosch-home.com/service

Contact data of all countries are listed in the attached service directory.

BSH Hausgeräte GmbH

Carl-Wery-Straße 34

81739 München, GERMANY

A Bosch Company

www.bosch-home.com

8001147473

(010818)

Valid within Great Britain:

Imported to Great Britain by

BSH Home Appliances Ltd.

Grand Union House

Old Wolverton Road

Wolverton, Milton Keynes

MK12 5PT

United Kingdom

B

C

D

