Product Type	Meat Grinder
Model	CompactPower MFW3710B
Brand	Bosch
Power	700 W
Voltage	220-240 V ~ 50 Hz
Dimensions (H x W x D)	Approx. 35 x 18 x 25 cm
Weight	Approx. 3.2 kg
Housing Material	Plastic with metal gearbox
Cutting Set Material	Stainless steel
Sausage Filler Attachments	Yes, included
Kubbe Attachment	Yes, included
Reverse Function	Yes, for clearing blockages
Safety Switch	Yes, prevents accidental start
Overload Protection	Yes, motor shuts off if overloaded
Cleaning	Removable parts are dishwasher-safe; wipe motor unit with damp cloth
Accessories Storage	Integrated storage compartment in unit
Warranty	2 years

Frequently Asked Questions - CompactPower MFW3710B BOSCH

How do I assemble the meat grinder?

First, ensure the appliance is unplugged. Insert the auger into the housing, then attach the cutting blade with the flat side facing outward, followed by the grinding plate. Secure the ring nut tightly. Attach the desired accessory (e.g., sausage filler).

Can I grind bones with this grinder?

No, the CompactPower MFW3710B is designed for boneless meat only. Grinding bones can damage the blade and motor.

How do I clean the meat grinder?

Unplug the appliance. Disassemble all removable parts (auger, blade, plates, accessories) and wash them in warm soapy water or a dishwasher. Wipe the motor unit with a damp cloth. Dry all parts thoroughly before reassembling.

What is the reverse function used for?

The reverse function helps clear blockages. If the grinder jams, press and hold the reverse button for a few seconds. The auger will rotate in the opposite direction to push the blockage back out.

Can I grind frozen meat?

It is recommended to use meat that is partially frozen (slightly icy but not rock hard) for best results. Do not grind fully frozen meat as it can overload the motor.

What size grinding plates are included?

The grinder comes with two stainless steel plates: one coarse (approx. 8 mm) and one fine (approx. 4.5 mm).

How do I make sausages with this grinder?

After grinding the meat, remove the grinding plate and blade, attach the sausage filler attachment. Place the casing onto the tube and feed the ground meat through using the pusher. Twist links as desired.

The grinder suddenly stopped working. What should I do?

The motor has an overload protection. Unplug the appliance, let it cool for about 15 minutes, and clear any blockages. Then restart. If it still doesn't work, check the fuse or contact Bosch service.

Are replacement parts available?

Yes, Bosch sells spare parts such as grinding plates, blades, and augers. Contact Bosch customer service or check online for compatible parts for model MFW3710B.

Can I use the grinder for vegetables?

While primarily for meat, you can grind soft vegetables like cooked potatoes or tomatoes using the fine plate. However, avoid hard vegetables like carrots as they may jam the grinder.

USER MANUAL CompactPower MFW3710B BOSCH

new device on MyBosch now and get free benefits:

bosch-home.com/welcome

CompactPower

MFW3...

[en] Instruction manual Meat mincer 14

Read and follow the operating instructions carefully and keep for later reference! Enclose these instructions when you give this appliance to someone else.

If the instructions for correct use of the appliance are not observed, the manufacturer's liability for any resulting damage will be excluded.

This appliance is intended for domestic use only. Use the appliance for processing normal quantities of food for domestic use.

The appliance and accessories (depending on the model) are suitable for the following purposes:

Meat mincer: for cutting and mixing raw and cooked meat, bacon, poultry and fish.

Sausage filler: for making sausages and meat rolls.

Kebbe maker: for making dough and minced meat pockets.

Shredding attachment: for shredding and slicing food.

Food which is to be processed must not contain any hard components (e.g. bones). The appliance should not be used for processing other substances or objects. Additional applications are possible if the accessories approved by the manufacturer are used. Use the appliance only with genuine parts and accessories. Never use the attachments or slicing / shredding inserts on other appliances. Only use matching parts for the relevant attachments. Only use the appliance indoors at room temperature and up to 2000 m above sea level. Do not place the appliance on or near hot surfaces, e.g. hobs.

Your work surface should be easily accessible, resistant to moisture, firm, flat, dry and large enough to prevent any harm from splashing and to let you work unhindered.

This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning safe use of the appliance and if they understand the hazards involved. Keep children away from the appliance and connecting cable and do not allow them to use the appliance.

Children must not play with the appliance. Cleaning and user maintenance must not be performed by children.

Safety instructions

⚠️ Danger of electric shock and fire

Connect and operate the appliance only according to the type plate specifications. Do not use if the mains cable or appliance show any signs of damage. To avoid potential hazards, repairs such as replacing a damaged cable must only be carried out by our customer service personnel. Never connect the appliance to timer switches or remote-controllable sockets. Never leave the appliance unattended while it is switched on! We recommend that the appliance is never switched on for longer than is necessary to process the ingredients.

The mains cable must not come into contact with hot parts or be pulled across sharp edges. Never immerse the base unit in water or place it in the dishwasher. Do not steam-clean the appliance. Do not use the appliance with damp hands and do not operate at no load. The appliance must always be disconnected from the mains after each use, whenever the appliance is unattended, prior to assembly, disassembly or cleaning and in the event of a fault.

Risk of injury

Immediately after using the appliance wait for it to stop. Before fitting or replacing attachments, the appliance must be switched off and disconnected from the mains.

Do not grasp the sharp blades and edges of the shredding and slicing inserts. Keep hands clear of rotating parts. Never reach into the feed chute or outlet opening. Never put the food to be processed into the feed chute with your hands. Only use the pusher provided! Never clean the sharp blades and edges of the shredding and slicing inserts with your bare hands.

Caution! Risk of damaging the appliance

Check that there are no foreign objects in the feed chute or attachments. Do not poke objects (e.g. knives, spoons) in the feed chute or outlet opening.

Only allow the appliance to run uninterrupted for a maximum of 10 minutes. Then switch off and allow to cool down to room temperature.

⚠️ Important!

It is essential to clean the appliance as described after each use or after it has not been used for an extended period. → “Care and daily cleaning” see page 19

Congratulations on the purchase of your new Bosch appliance.

On the following pages of these operating instructions you will find useful information for safe use of this appliance.

We request that you read these operating instructions carefully and observe all instructions. This ensures you will be able to enjoy this appliance for a long time, and the results will confirm your choice of this appliance.

Retain these operating instructions for subsequent use or for the next owner.

You can find further information about our products on our website.

Content

Intended use....14

Safety instructions....15

Overview....16

Before using for the first time....17

Control and display elements ....17

Overload protection....17

Base unit....17

Base attachment....18

Shredding attachment ....19

Care and daily cleaning....19

Recipes....20

Tips....21

Disposal....21

Guarantee....21

Spare parts and accessories....22

Troubleshooting....23

Overview

→ Fig. A

1 Base unit

a Drive for attachments

b Button I

c Button O

d Operation indicator

e Release button

f Carrying handle

g Storage compartment with cover

h Mains cable

i Cable storage compartment

2 Base attachment

a Housing

b Feed chute

c Filling tray

d Pusher

e Worm gear with agitator paddle

f Threaded ring

3 Meat mincer insert

a Blade

b Perforated disc, medium (4 mm) *

c Perforated disc, coarse (8 mm)

4 Sausage filler insert \*

a Bearing ring

b Sausage filler nozzle

5 Kebbe insert \*

a Conical ring

b Kebbe nozzle

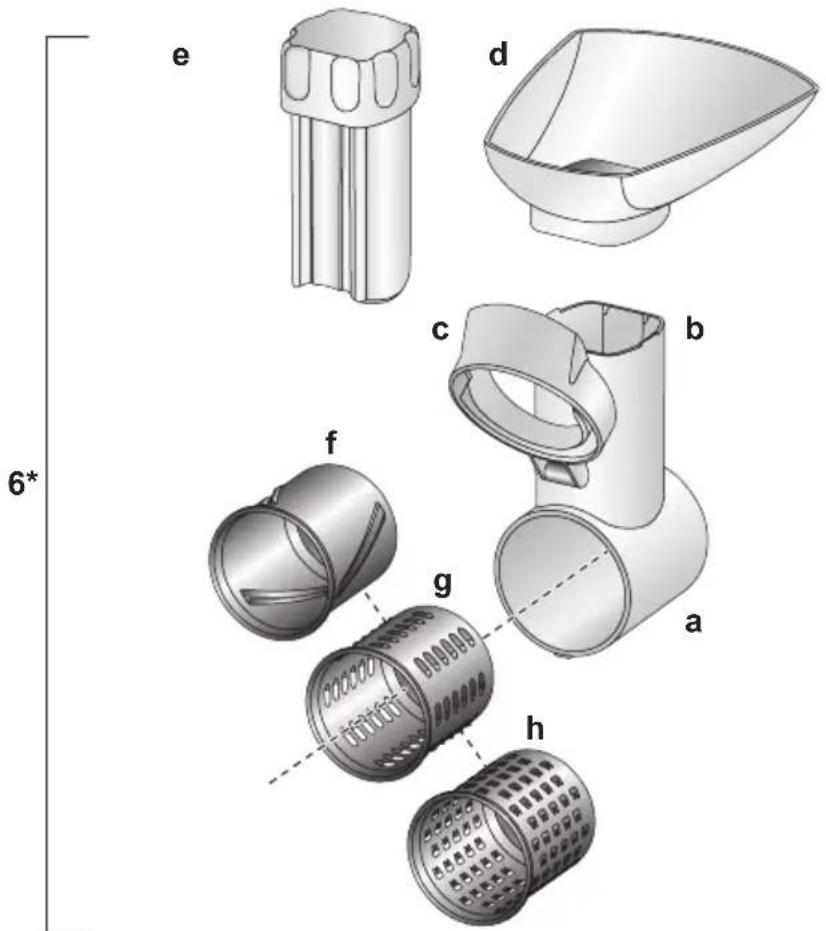

→ Fig. B

6 Shredding attachment \*

a Housing

b Feed chute

c Cap

d Filling tray

e Pusher

f Slicing insert

g Shredding insert, coarse

h Shredding insert, fine

* depending on the model

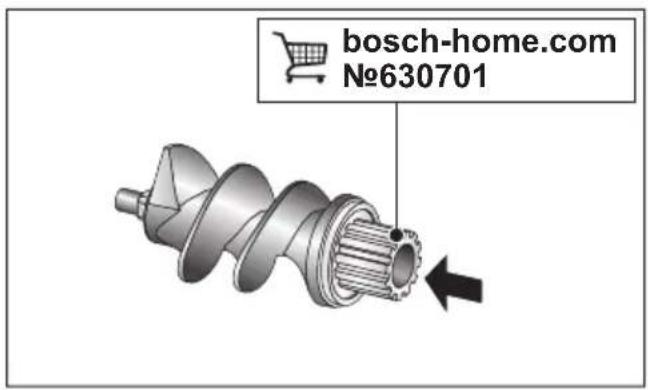

Spare parts and accessories are available from Customer Service or at

www.bosch-home.com. → “Spare parts and accessories” see page 22

Before using for the first time

Before the new appliance can be used, it must be fully unpacked, cleaned and checked.

Caution!

Never operate a damaged appliance!

■ Remove the base unit and all accessories from the packaging.
■ Remove the packaging material that is present.
■ Dismantle any assembled parts into their individual parts. Do this in reverse order, as described under „Preparation“.
■ Check all parts for completeness.

→ Fig. A / B

■ Inspect all parts for visible damage.

■ Thoroughly clean and dry all parts before using for the first time.

→ "Care and daily cleaning" see page 19

Control and display elements

Button |

Press button I to switch on the appliance. The drive will start up at once.

Button O

Press button O to switch off the appliance. The drive stops.

Operation indicator

The operation indicator lights up when the appliance is switched on.

Release button

Press the release button to unlock an attachment fitted on the appliance. Only when the release button is pressed is it possible to turn the attachment clockwise and remove it from the base unit.

Cable storage compartment

The mains cable can be pulled out of the cable storage compartment or pushed back in again. Only ever pull the cable out as much as is required.

Storage compartment

Unused perforated discs belonging to the meat mincer can be kept in the storage compartment and it closed with the cover.

Overload protection

To prevent serious damage to your appliance if the base attachment is overloaded, the agitator paddle has a notch (predetermined breaking point). If overloading occurs, the agitator paddle will break at this point. A new agitator paddle is available from Customer Service (No. 630701). Spare parts with a predetermined breaking point are not covered by our warranty obligations.

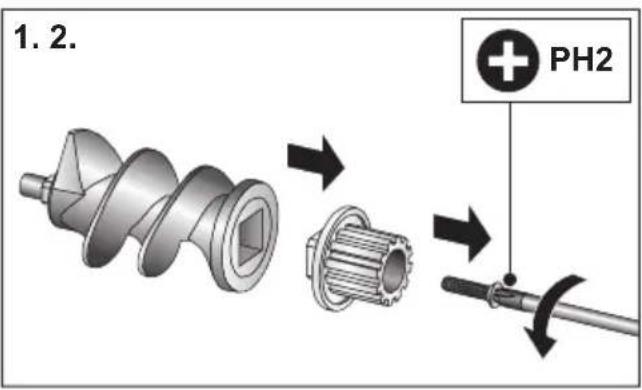

Replace agitator paddle

→ Fig. ©

1. Release the screw in the agitator paddle with a screwdriver (PH2) and remove the faulty paddle.
2. Fit a new agitator paddle and screw tight again.

Base unit

Preparation

Risk of injury!

Do not insert the mains plug until all preparations for working with the appliance are complete and the required attachments are assembled correctly and connected to the base unit.

■ Place the base unit on a stable and level work surface.
■ Pull the mains cable out of the cable storage compartment to the required length.

The base unit is now prepared.

Base attachment

The base attachment can be used for the following applications:

Meat mincer

For chopping up raw or cooked food. Select the appropriate perforated disc depending on the type and consistency of the food to be processed. → "Tips" see page 21

Sausage filler

For filling artificial and natural casings with sausage meat. For producing meat rolls.

Kebbe maker

For producing tubes of dough or minced meat.

Note: Other applications are possible using the base attachment and appropriate accessories available from Customer Service.

Caution!

When assembling the different individual parts, make sure that the notched markings on the inserts match up with the relevant one on the housing.

Preparation for meat mincer

Risk of injury!

Do not reach into the sharp knife.

Caution!

Always only use one perforated disc.

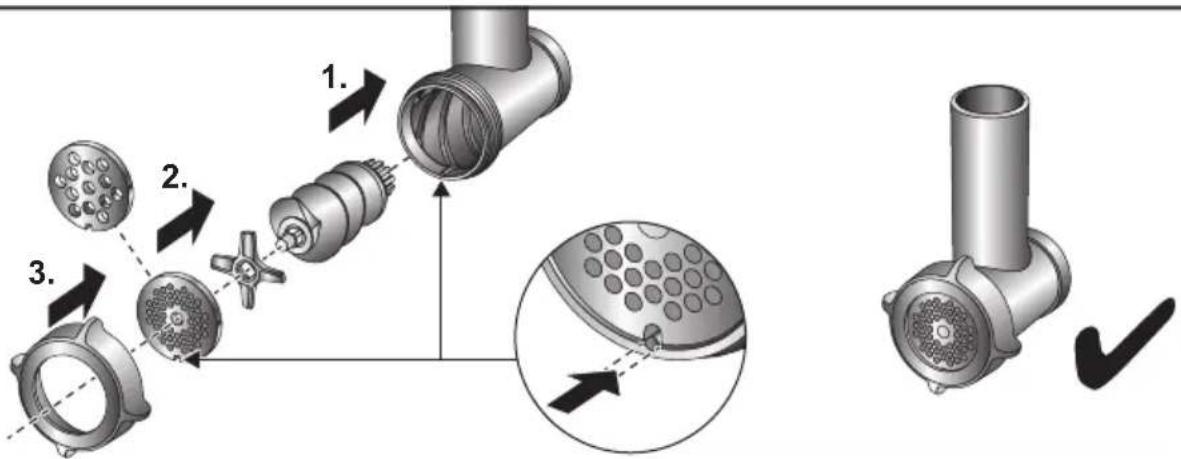

→ Fig. D

1. Insert the worm gear with the agitator paddle at the front in the housing.
2. First fit the knife and then the required perforated disc onto the worm gear.
3. Fit the threaded ring onto the housing and screw tight in a clockwise direction without using force.

The meat mincer is now prepared.

Preparation for sausage filler

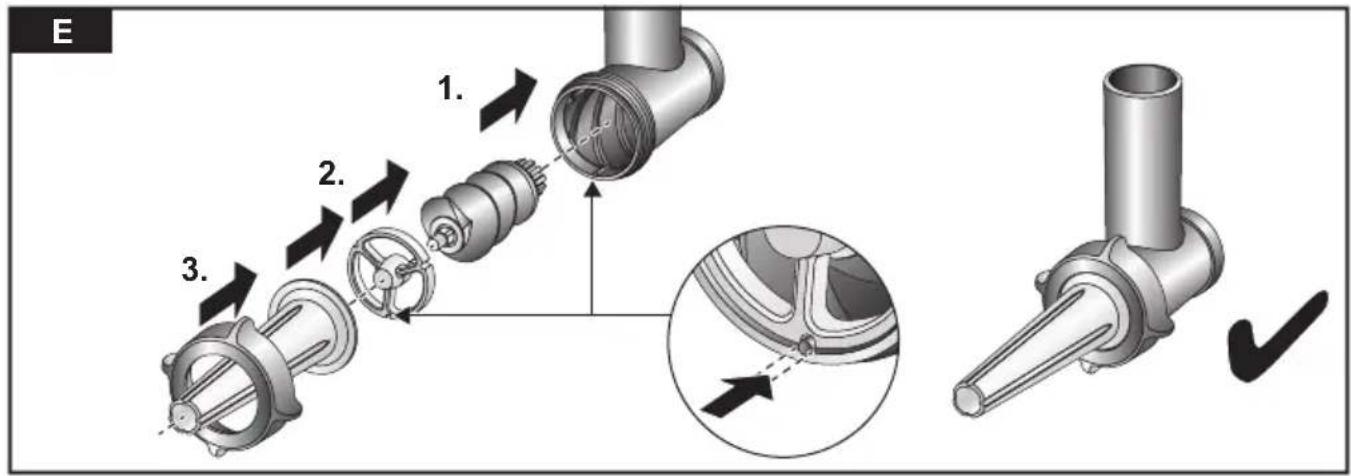

→ Fig. E

1. Insert the worm gear with the agitator paddle at the front in the housing.
2. First fit the bearing ring onto the worm gear and then the sausage nozzle into the housing.
3. Fit the threaded ring onto the housing and screw tight in a clockwise direction without using force.

The sausage filler is now prepared.

Preparation for kebbe maker

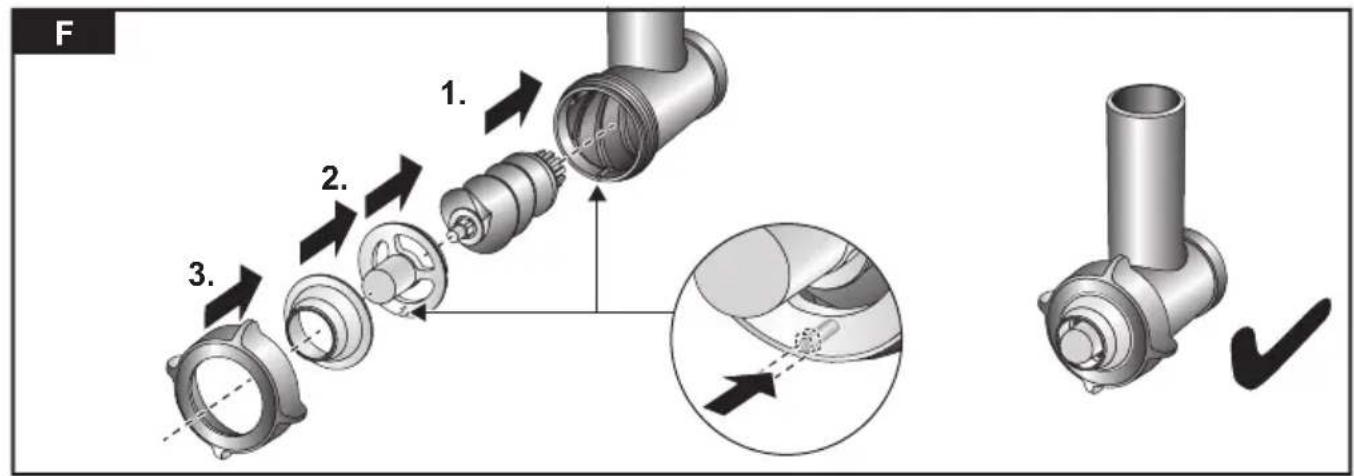

→ Fig. F

1. Insert the worm gear with the agitator paddle at the front in the housing.
2. First fit the conical ring onto the worm gear and then the kebbe nozzle into the housing.
3. Fit the threaded ring onto the housing and screw tight in a clockwise direction without using force.

The kebbe maker is now prepared.

Use

Note: The food is processed in different ways depending on the application.

→ "Recipes" see page 20

The following example describes use of the base attachment as a meat mincer:

Risk of injury!

• Do not reach into the feed chute with your hands.
• Only use the pusher when adding more food.

Caution!

• Do not process bones, gristle, sinews or other solid components.
• Do not process frozen meat.
• Do not apply great force with the pusher.

→ Sequence of figures ©

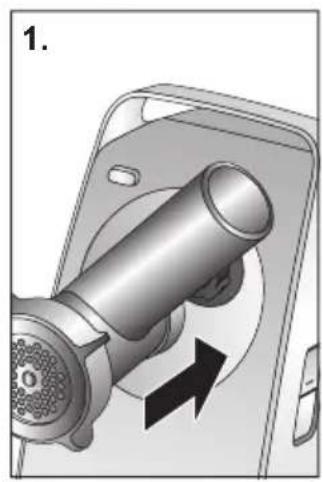

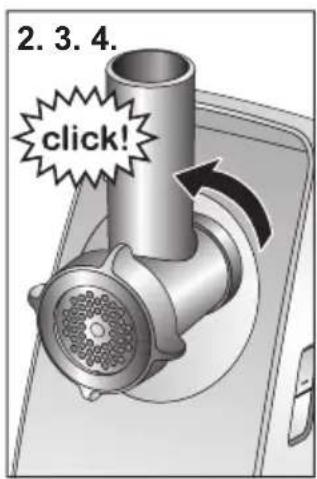

1. Fit the prepared attachment onto the drive of the base unit, holding it at an angle.
2. Turn the attachment anticlockwise until you hear it click into position.

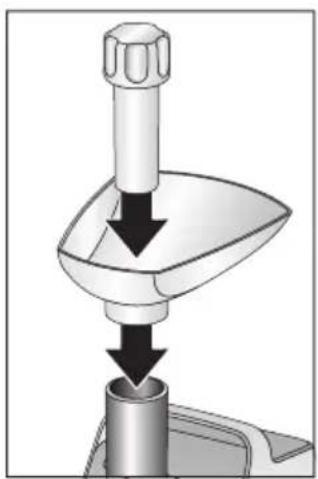

3. Fit the filling tray and insert the pusher in the feed chute.

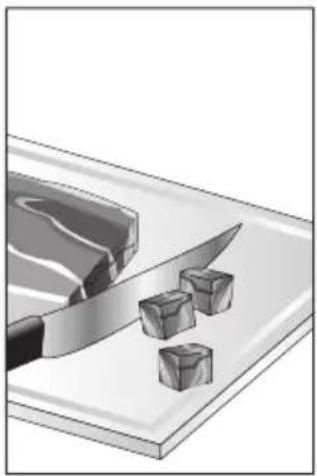

4. Prepare your food. Chop up large parts beforehand so they fit into the feed chute without having to press them in.

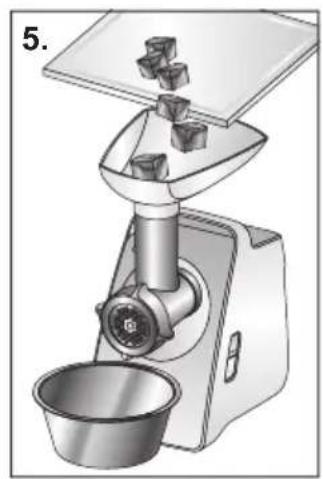

5. Place a suitable container under the attachment. Add the prepared food to the filling tray.

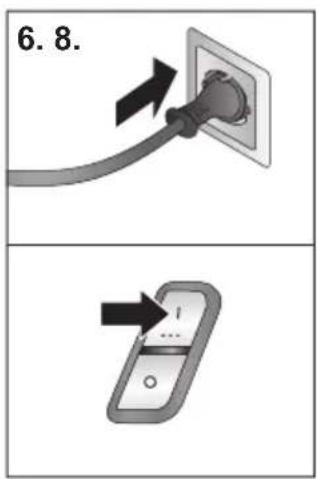

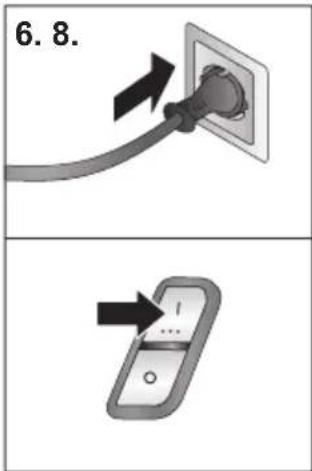

6. Connect the mains plug. Switch on the appliance.

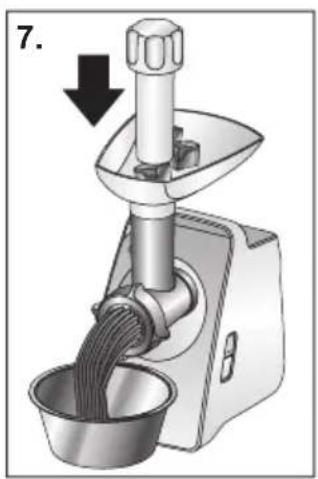

7. Use the pusher to slide the food down the feed chute, applying light pressure.

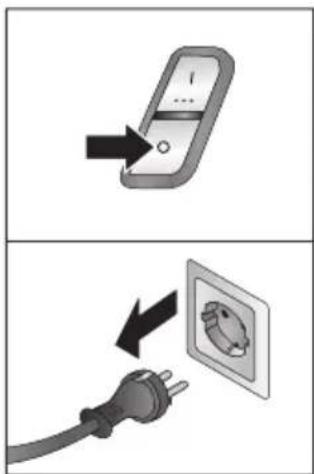

8. Once you have finished, switch off the appliance and pull out the mains plug.

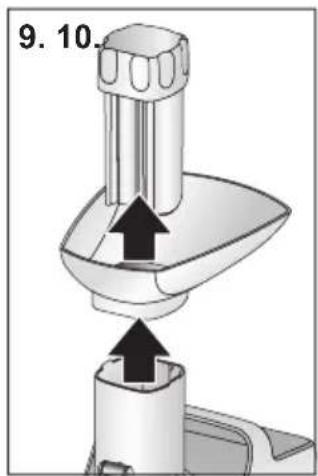

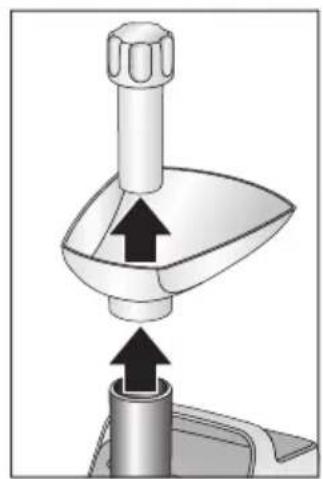

9. Remove the filling tray and pusher.

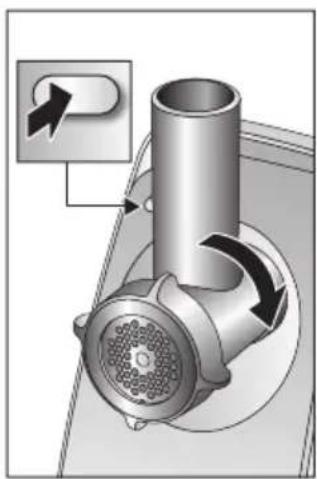

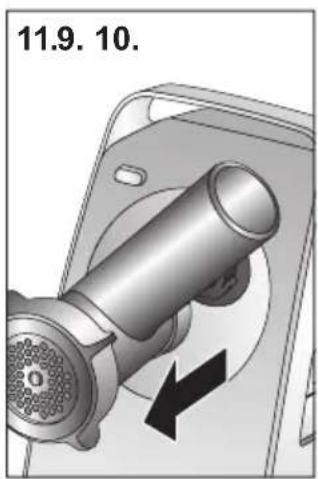

10. Hold down the release button and turn the attachment clockwise until it disengages.
11. Remove the attachment, take it apart and clean all parts. → “Care and daily cleaning” see page 19

Shredding attachment

For shredding, grating and slicing items such as cheese, fruit, vegetables, nuts, almonds, dried bread rolls and other hard foodstuffs. Select the appropriate insert depending on the type and consistency of the food to be processed. "Tips" see page 21

Preparation

Risk of injury!

Do not reach into the sharp blades and edges of the shredding, grating and slicing inserts.

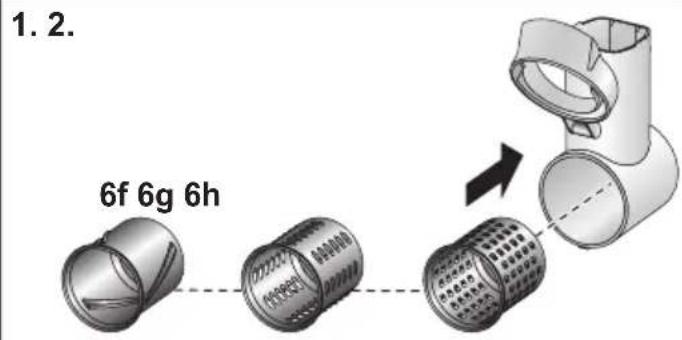

→ Sequence of figures H

1. Open the cap. Fit the required insert into the housing.

2. Close the cap until you hear it click into position.

The shredding attachment is now prepared.

Use

Risk of injury!

• Do not reach into the feed chute with your hands.
• Only use the pusher when adding more food.

Caution!

• The pusher can only be inserted in one direction.
• Remove hard shells (e.g. on nuts).
• Do not apply great force with the pusher.

→ Sequence of figures Ⅰ

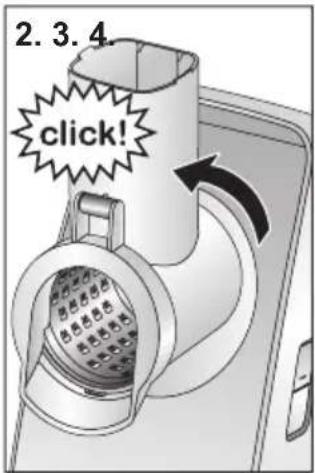

1. Fit the prepared attachment onto the drive of the base unit, holding it at an angle.
2. Turn the attachment anticlockwise until you hear it click into position.

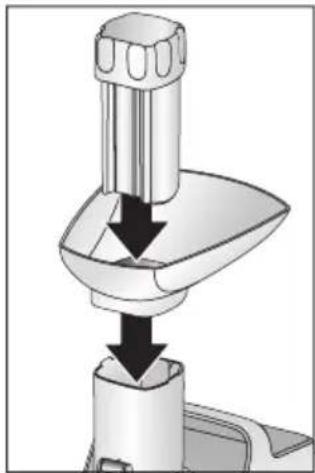

3. Fit the filling tray and insert the pusher in the feed chute.

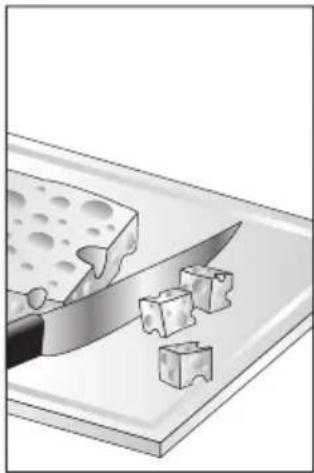

4. Prepare your food. Chop up large parts beforehand so they fit into the feed chute without having to press them in.

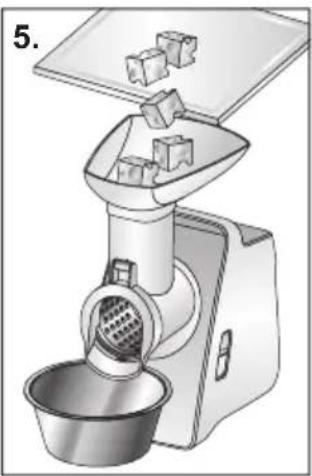

5. Place a suitable container under the attachment. Add the prepared food to the filling tray.
6. Connect the mains plug. Switch on the appliance.

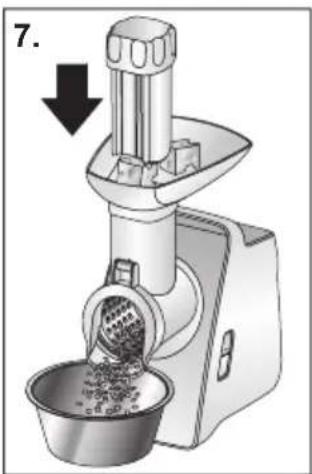

7. Use the pusher to slide the food down the feed chute, applying light pressure. The food is now cut up or shredded.

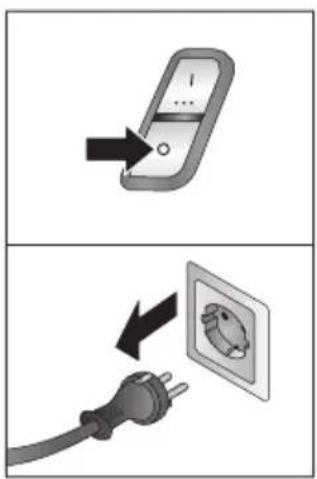

8. Once you have finished, switch off the appliance and pull out the mains plug.
9. Remove the filling tray and pusher.

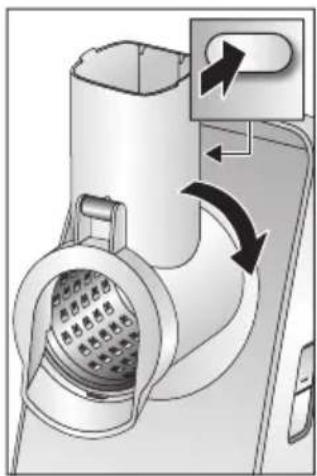

10. Hold down the release button and turn the attachment clockwise until it disengages.

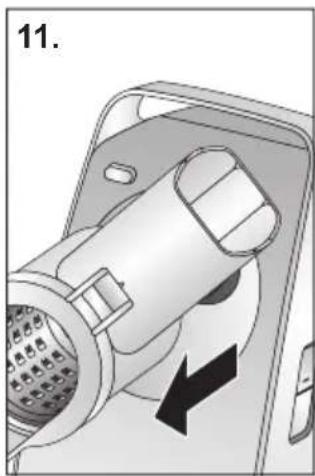

11. Remove the attachment, take it apart and clean all parts. → “Care and daily cleaning” see page 19

Care and daily cleaning

The appliance, all attachments and the relevant accessories must be thoroughly cleaned after each use.

⚠️ Risk of electric shock!

• Disconnect the mains cable from the socket prior to cleaning.
  – Never immerse the base unit in liquids and do not clean in the dishwasher.

Risk of injury!

Do not reach into the sharp blades and edges of the shredding and slicing inserts.

en Recipes

Caution!

• Do not use any cleaning agents containing alcohol or spirits.
• Do not use any sharp, pointed or metal objects.
• Do not use abrasive cloths or cleaning agents.

Fig. J gives an overview of how to clean the individual parts.

■ Wipe the outside of the base unit with a soft, damp cloth and dry off.
■ Dismantle the attachments used in reverse order (see „Preparation“ for the relevant attachment).
■ Clean all accessories with a detergent solution and a soft cloth/sponge or with a soft brush.
■ Allow all parts to dry.

Notes:

- Immediately rub metal parts dry and apply a little cooking oil to protect them from rust.

- Discolouration of plastic parts may occur when processing foods such as carrots. This can be removed with a few drops of cooking oil.

Recipes

Bread dumplings

• 300 g fresh white bread
• 20 ml milk
• 40 g butter or margarine
• 3 eggs
• 1 tbsp finely chopped onions
• Parsley
• A little flour
• Salt and pepper

■ Cut the bread into slices 10 mm thick and halve lengthways. Add 20 ml of milk and soak.

■ Process the moistened bread for approx. 50 secs with the meat mincer (perforated disc, medium).

■ Add the finely chopped onions, parsley and melted butter and mix.

■ Add the whisked eggs, salt and pepper and mix into the bread dough.

■ Leave the dough to prove for several minutes. Then knead again.
■ Shape the dumplings with wet hands. Roll the dumplings in flour.
■ Place dumplings in boiling water and leave to simmer for approx. 20 minutes. Do not bring to the boil!

Kebbe

Dough pockets:

• 500 g lamb, cut into strips
• 500 g bulgur wheat, washed and drained
• 1 small onion, chopped
  ■ Process the lamb and wheat with the meat mincer, alternating between the two (perforated disc, fine).
  ■ Mix the dough thoroughly and mix in the onion.
  ■ Process the mixture another two times with the meat mincer.

Filling:

• 400 g lamb, cut into strips
• 2 medium-sized onions, chopped
• 1 tablespoon of oil
• 1 tablespoon of flour
• 2 teaspoons of pimento
• Salt and pepper
  ■ Process the lamb with the meat mincer (perforated disc, fine).
  ■ Fry the onions until golden brown.
  ■ Add the lamb and fry until well done.
  ■ Add the remaining ingredients.
  ■ Fry everything gently for about 1-2 minutes.
  ■ Pour off the excess fat.
  ■ Leave the filling to cool down.

Prepare the kebbe:

■ Use the kebbe maker to process the mixture for dough pockets.
■ Cut off pieces 7.5 cm in length from the hollow strand of dough.
■ Press one end of the dough pocket to seal.
■ Insert a little filling in the opening and also seal the other end of the dough pocket.
■ Heat the oil (approx. 180 °C) and deep-fry the dough pockets for about 6 minutes until golden brown.

Tips

Meat mincer

Using the perforated discs

• Perforated disc, medium (4 mm) for: pork and beef for pâté and Cervelat sausage
• Perforated disc, coarse (8 mm) for: roast pork for goulash soup; leftovers (joint, sausage) for bakes
  ■ If you require a finer consistence to your processed food, process it several times or use different perforated discs one after the other (coarse, medium).
  ■ You can add other ingredients (e.g. onions, spices) directly during processing. This ensures all ingredients are mixed together thoroughly.

Sausage filler

■ Soak natural casing in lukewarm water for about 10 minutes before processing.
■ Do not stuff casings too full or the sausages may burst during boiling or frying.

Shredding attachment

Using the inserts

• Slicing insert: for carrots, celery, kohlrabi, courgettes
• Shredding insert (coarse): for carrots, nuts, hard cheese (e.g. Emmentaler)
• Shredding insert (fine): for nuts, hard cheese, Parmesan cheese

Disposal

Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrica and electronic equipment – WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposalfacilities.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Changes reserved.

Spare parts and accessories

Spare parts and accessories
	2.7 mm	638407	Perforated disc (fine) for meat mincer
	4 mm	637985	Perforated disc (medium) for meat mincer
	8 mm	637986	Perforated disc (coarse) for meat mincer
		[KACC] 637987	Sausage filler: for filling artificial and natural casings with sausage meat. For producing meat rolls.
		12000397
	[BYX4]	638281	Kebbe maker: for producing tubes of dough or minced meat.
		12001096	Pasta maker:For producing spaghetti or tagliatelle.Whirl maker:For producing 3 different dough profiles for whirls.
		12011263	Shredding attachment: for shredding, grating and slicing
		798161	Slicing insert for the shredding attachment
		798162	Shredding insert (coarse) for the shredding attachment
		798160	Shredding insert (fine) for the shredding attachment
		798130	Grating insert for the shredding attachment
		791603	Citrus press attachment: for squeezing oranges, lemons and grapefruits.

Spare parts and accessories are available from retailers and Customer Service.

Troubleshooting

Problem Cause Remedy
The appliance does not start when switched on.	Appliance has no power supply.	Insert the mains plug in the socket.
The appliance is running normally, but the food is not being processed.	The appliance was overloaded, and the agitator paddle has broken at the predetermined breaking point.	Switch the appliance off and wait until it has stopped. Unplug the appliance, remove the attachment, take it apart and clean. Replace the agitator paddle. → “Overload protection” see page 17
The food is not being processed or only very slowly.	The attachment or worm gear is blocked.	Switch appliance off, wait until it has stopped and unplug. Remove the attachment, take it apart and clean to eliminate the blockage. → “Care and daily cleaning” see page 19
	The pressure on the pusher is too great or the feed chute is too full.	Reduce the pressure on the pusher and fill the feed chute with less food.
	The food to be processed still contains hard components.	Remove hard components. Precook/steam vegetables before processing them.

If you are unable to solve the problem, always call the hotline! You will find the telephone numbers at the back of these instructions.

To arrange an engineer visit, to order

spare parts and accessories or for

product advice please visit

www.bosch-home.co.uk

or call Tel.: [phone]*

* Calls are charged at the basic rate, please check with your telephone service provider for exact charges

GR Greece, Ελλάς

BSH Ikiakes Siskeves A.B.E.

Central Branch Service

17 km E.O. Athinon-Lamias & Potamou 20

14564 Kifisia

Unit 1 & 2, 3rd Floor,

North Block, Skyway House,

3 Sham Mong Road

Tai Kok Tsui, Kowloon

Hong Kong

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.cn

HR Hrvatska, Croatia

www.bosch-home.com/hr

www.bosch-home.com/hu

IE Republic of Ireland

BSH Home Appliances Ltd.

M50 Business Park

Ballymount Road Upper

Walkinstown

Dublin 12

To arrange an engineer visit, to order spare parts and accessories or for product advice please call

Tel.: [phone]*

www.bosch-home.ie

* Calls are charged at the basic rate, please check with your telephone service provider for exact charges.

IL Israel,

C/S/B/ Home Appliance Ltd.

1, Hamasger St.

North Industrial Park

Lod, 7129801

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.co.il

IN India, Bhārat, भारत

BSH Household Appliances Mfg. Pvt. Ltd.

Arena House, Main Bldg, 2nd Floor,

Plot No. 103, Road No. 12,

MIDC, Andheri East

Mumbai 400 093

Toll Free 1800 266 1880*

www.bosch-home.com/in

* Mo-Sa: 8.00am to 8.00pm

(exclude public holidays)

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.: [phone]

Fax: [phone]

www.sminor.is

IT Italia, Italy

www.bosch-home.com/it

KZ Kazakhstan, Казақстан

IP Anackiy A.N. PTN-Service

Kuyshi Dina str.23/1 N3

Astana

Tel.: [phone]

mailto: [e-mail]

Technodom Service

Utegen Batira Str. 73

480096 Almaty

Tel.: [phone]

mailto: [e-mail]

www.technodom.kz

Kombitechnocentr

Zhambyl st. 117

480096 Almaty

Tel.: [phone]

mailto:[e-mail]

www.cts.kz

TOO Evrika Service

Shimkent, Riskulova 22.

Shimkent 160018

Tel.: [phone]

mailto:evrika [e-mail]

www.evrika.com

AV SERVICE

Abulhair hana Str. 51

Uralsk 090000

Tel.: [phone]

mailto:[e-mail]

www.avservice.kz

LB Lebanon,

Teheni, Hana & Co.

Boulevard Dora 4043 Beyrouth

P.O. Box 90449

Jdeideh, 1202 2040

Tel.: [phone]

mailto:[e-mail]

LT Lietuva, Lithuania

Senuku prekybos centras UAB

Jonavos g. 62

44192 Kaunas

Tel.: [phone]

Fax: [phone]

www.senukai.lt

UAB "AG Service"

R. Kalantos g. 32

52494 Kaunas

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.agservice.lt

Baltic Continent Ltd.

Lukšio g. 23

09132 Vilnius

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.balticcontinent.lt

UAB Emtoservis

S.R.L. "Rialto-Studio"

ул. Щусева 98

2012 Кишинев

Unit F 2, 4 Orbit Drive

Mairangi Bay

Auckland 0632

Tel.: [phone]*

Fax: [phone]

mailto:[e-mail]

www.bosch-home.co.nz

* Mo-Fr: 8.30 am to 5.00 pm (exclude public holidays)

PL Polska, Poland

and Airconditioning Co. Ltd.

BOSCH Service centre,

Kilo 5 Old Makkah Road

(Next to Toyota), Jamiah Dist.

P.O.Box 7997

Jeddah 21472

Tel.: [phone]

mailto:[e-mail]

www.aljelectronics.com.sa

SE Sverige, Sweden

BSH Home Appliances AB

Landsvägen 32

169 29 Solna

Tel.: [phone] local rate

Tel.: [phone] local rate

mailto:[e-mail]

www.bosch-home.se

SG Singapore新加坡

BSH Home Appliances Pte. Ltd.

Block 4012, Ang Mo Kio Avenue 10

01-01 Techplace 1

Singapore 569628

Tel.: [phone]*

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com.sg

* Mo-Fr: 8.30am to 7.00pm, Sa: 8.30am to 5.30pm (exclude public holidays)

SI Slovenija, Slovenia

BSH Hišni aparati d.o.o.

Litostrojska 48

1000 Ljubljana

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com/si

SK Slovensko, Slovakia

www.bosch-home.com/tr

BSH Home Appliances Private Limited

台北市內湖區洲子街80號11樓

11F., No.80, Zhouzi St., Neihu Dist.

Taipei City 11493

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

Service-General SH.P.K.

Rruga Mag Prishtine-Ferizaj

70000 Ferizaj

Tel.: [phone]

Tel.: [phone]

mailto:a_service@

gama-electronics.com

XS Srbija, Serbia

BSH Kućni aparati d.o.o.

15th Road Randjespark

Private Bag X36, Randjespark

1685 Midrand – Johannesburg

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com/za

[e-mail]

Thank you for buying a Bosch Home Appliance!

Register your new device on MyBosch now and profit directly from:

• Expert tips & tricks for your appliance
• Warranty extension options
  • Discounts for accessories & spare-parts
  • Digital manual and all appliance data at hand
• Easy access to Bosch Home Appliances Service

Free and easy registration – also on mobile phones:

www.bosch-home.com/welcome

BOSCH HOME APPLIANCES SERVICE

Looking for help? You'll find it here.

Expert advice for your Bosch home appliances, need help with problems or a repair from Bosch experts.

Find out everything about the many ways Bosch can support you:

www.bosch-home.com/service

Contact data of all countries are listed in the attached service directory.

3D diagram of a bowl-shaped object with labeled points C and E (no text or symbols on the object itself)

3D rendering of a T-shaped pipe fitting with labeled parts (a and b), no text or symbols present.

4*

Technical diagram of a mechanical component with labeled parts (a and b), showing a cylindrical shaft and a circular dial (no text or symbols present)

3 / 4* / 5*

5*

Diagram of two mechanical components labeled 'a' and 'b', connected by a dashed line (no text or symbols beyond labels)

B

C

D

G

Mechanical component diagram showing a cylindrical shaft inserted into a housing, with an arrow indicating direction (no text or symbols present)

Mechanical assembly diagram showing a tool pressing down on a cylindrical component (no text or symbols visible)

Illustration of a knife cutting ice cubes on a cutting board (no text or symbols)

Illustration of a food processing machine with a bowl and granules, no text or symbols present

Mechanical device with a lever and bowl, showing material flow or processing (no text or symbols visible)

Diagram of a mechanical device with an upward arrow indicating force or movement (no text or symbols present)

Mechanical component diagram showing a motor handle and fan assembly with directional arrows (no text or symbols)

Mechanical component diagram showing a cylindrical shaft with a rotating arrow, no text or symbols present

H

Diagram of a connector with internal components and directional arrows indicating flow or movement (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with downward force arrows (no text or symbols)

Illustration of a knife slicing cheese on a cutting board (no text or symbols)

Illustration of a kitchen grater with a bowl and lid, no text or symbols present

Illustration of a manual hand mixer with a bowl of food being inserted (no text or symbols)

Mechanical component diagram showing a valve mechanism with directional arrows (no text or symbols)

J
		√
		√	√
		√	√
		√	√
		√	√
		√	√
		√	√
		X	√
