Explanation of the symbols on the product

Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.

	Warning - Read the operating manual to reduce the risk of injury.
	Only the operator may stand in the working area of the machine. Keep uninvolved persons as well as pets and livestock away from the danger zone.
	Wear suitable work shoes!
	Use head protection
	Do not stand under suspended loads.
	Arrangement as a simple cable pull.
	Arrangement as a pulley block hoist with with 2 cables and a deflection roller.
	Ensure that the steel cable is properly wound on the drum. The distance between the coils must be smaller than the diameter of the steel cable.
	The product complies with the applicable European directives.
	The product complies with the applicable Serbian directives.

Table of contents: Page:

1. Introduction 19
2. Product description (Fig. 1)....19
3. Scope of delivery (Fig. 2)....19
4. Proper use 19
5. General safety instructions.... 20
6. Residual risks 21
7. Technical data....21
8. Unpacking....21
9. Assembly (Fig. 3)....22
10. Start-up 22
11. Electrical connection 23
12. Cleaning 23
13. Storage 23
14. Maintenance 23
15. Repair & ordering spare parts 24
16. Disposal and recycling....24
17. Troubleshooting 25
18. Declaration of conformity 245

1. Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer,

We hope your new product brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this product assumes no liability for damage to the product or caused by the product arising from:

• Improper handling
• Failure to comply with the operating instructions
  • Repairs carried out by third parties, unauthorised specialists
  • Installing and replacing non-original spare parts
• Improper use
• Failure of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 57113 / VDE 0113 not being observed

Note:

The operating manual is part of this product. It includes important instructions for the safe, proper and economic operation of the product, for avoiding danger, for minimising repair costs and downtimes and for increasing the reliability and extending the service life of the product. In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the product in your country.

Familiarise yourself with all operating and safety instructions before using the product. Only operate the product as described and for the specified areas of application. Keep the operating manual in a good place and hand over all documents when passing the product on to third parties.

2. Product description (Fig. 1)

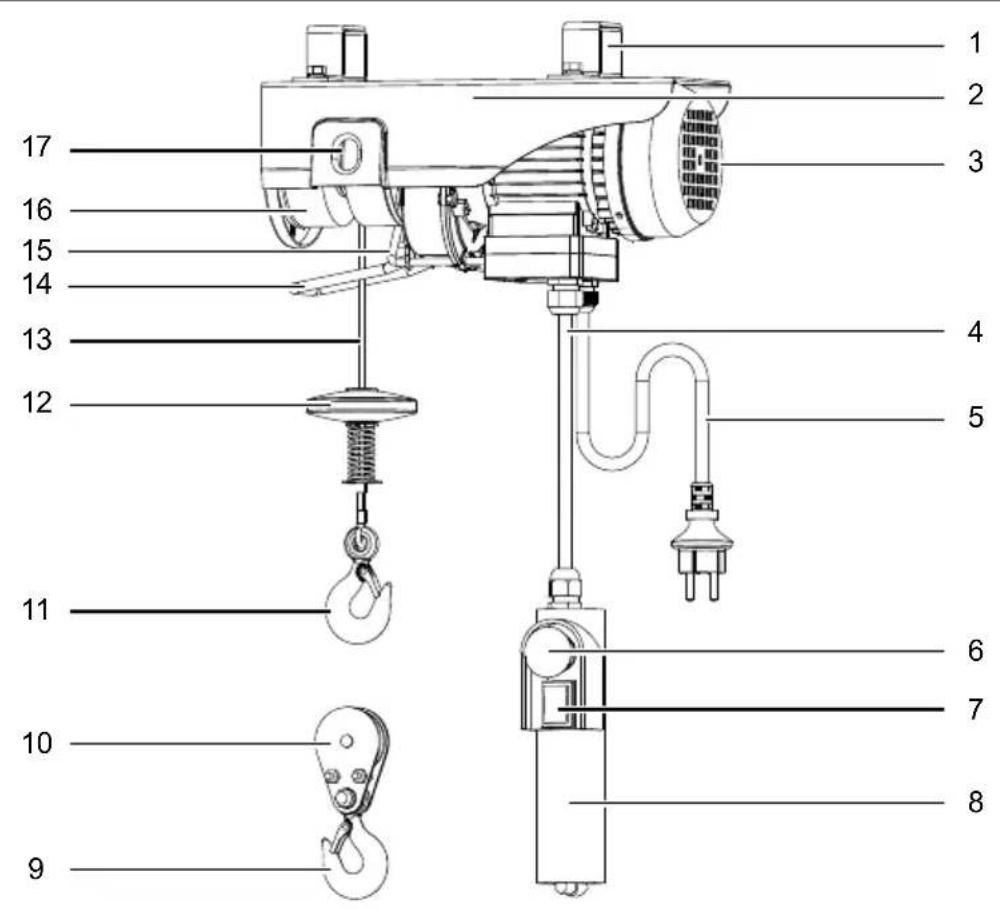

1. Mounting bracket
2. Cable hoist
3. Motor
4. Control cable
5. Mains cable
6. Emergency stop switch
7. Control switch (up/down)
8. Control unit
9. Additional hook
10. Deflection roller
11. Hook
12. Switch-off buffer
13. Steel cable
14. Drum

15. Fixing hole for hook

16. Automatic stop bar (upwards movement)

17. Automatic stop bar (downwards movement)

3. Scope of delivery (Fig. 2)

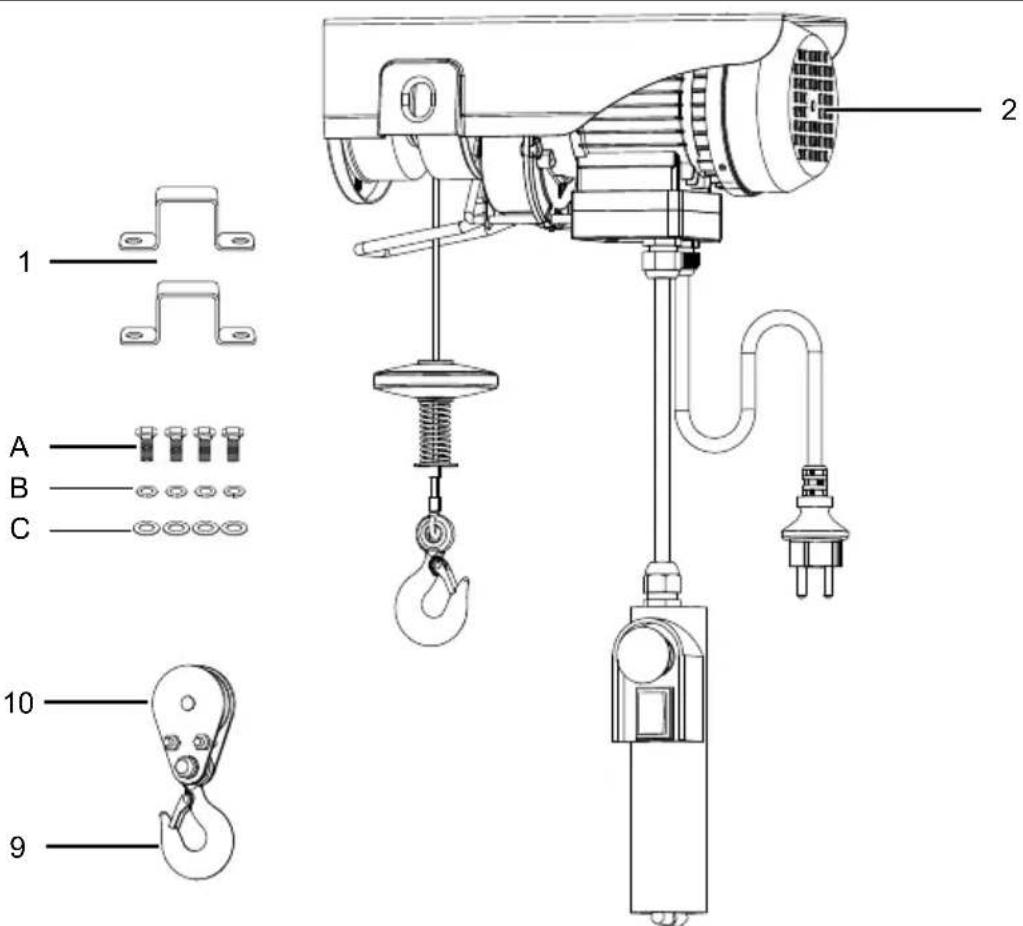

Item Quantity Designation

1 2x Mounting bracket

2 1x Cable hoist

9 / 10 1x Additional hook / deflection roller

A 4x Hexagonal bolt M8

B 4x Spring washer M8

C 4x Washer M8

4. Proper use

This cable hoist is suitable for lifting and lowering loads. The load is attached to a hook on the product.

The product may only be used in the intended manner. Any use beyond this is improper. The user/operator, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual. Persons who operate and maintain the product must be familiar with the manual and must be informed about potential dangers.

The liability of the manufacturer and resulting damages are excluded in the event of modifications of the product. The product may only be operated with original parts and original accessories from the manufacturer.

The safety, operating and maintenance specifications of the manufacturer, as well as the dimensions specified in the technical data, must be observed.

Please note that our products were not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the product is used in commercial or industrial applications, or for equivalent work.

The manufacturer is not liable for damage caused by improper use or incorrect operation.

Explanation of the signal words in the operating manual

DANGER

Signal word to indicate an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in minor or moderate injury.

ATTENTION

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in product or property damage.

5. General safety instructions

⚠ WARNING - Read all safety information, instructions, illustrations and technical data for this product.

Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

- Ensure that the rated voltage on the type plate corresponds to the mains voltage of your power supply.

- Do not pull the mains plug out of the socket by the connection cable.

- Check the cable pull and the control unit regularly for damage.

- Check the mains voltage of the socket to see if it matches the voltage on the type plate.

- Check that the hook moves in the same direction as the button on the control is pressed.

• Always be attentive when operating the product.

- Do not leave suspended loads unattended without having taken appropriate safety precautions.

- The maximum speed specified on the cable pull may not be exceeded.

- It is not permitted to lift stuck or jammed loads.

- It is prohibited to lift people with the cable pull.

- Do not pull loads sideways and avoid swinging.

- The steel cable must be taut when the load is lifted.

- If the device cannot lift a load, the weight is greater than the maximum load capacity. Do not press the control switch any further.

- Do not stand or work under suspended loads.

- Do not operate the product in the presence of children or unauthorised persons.

- Unplug the mains plug when the cable pull is not in use.

- The product may only be used in closed rooms.

- Do not operate the product in rain or thunderstorms.

- Do not use the product at temperatures below 5^ or above 35^ .

- When starting work, check that the steel cable is correctly wound on the drum.

- Excessive inching operation (e.g. giving the motor short pulses) should be avoided.

- Leave at least 3 cable windings on the drum.

- Have a defective steel cable replaced only with a cable of the same quality from a specialist workshop.

- Repairs to the electrical system must only be carried out by a qualified electrician.

The term “electric tool” used in the safety instructions refers to mains-powered electrical tools (with a mains cable) and battery-powered electrical tools (without a mains cable).

Warning! This power tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain circumstances. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the power tool.

6. Residual risks

The product has been built according to state-of-the-art and the recognised technical safety rules. However, individual residual risks can arise during operation.

• Health hazard due to electrical power, with the use of improper electrical connection cables.
• Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.
- Residual risks can be minimised if the "Safety Instructions" and the "Intended Use" together with the operating instructions as a whole are observed.
- Avoid accidental starting of the product: the operating button may not be pressed when inserting the plug in a socket. Use the tool attachment that is recommended in this operating manual. This is how to ensure that your product provides optimum performance.
- Keep your hands away from the working area when the product is in operation.

1. Technical data

	HRS300	HRS500
Rated voltage	230 V~/ 50 Hz	230 V~/ 50 Hz
Nominal current	2.18 A	3.1 A
Power max.	500 W 800 W
Operating mode	S3 20% S3 20%
Maximum load capacity	125 kg / 250 kg	200 kg / 400 kg
Cable length	12 m / 6 m	12 m / 6 m
Hoisting speed	8 m/min4 m/min	8 m/min4 m/min
Cable diameter	3.18 millimeters	4.0 mm

Tensile strength of the steel cable	1870 N/mm2	1870 N/mm2
Protection category	IP 54 IP 54
Insulation class B B
Dimensions L x W x H	353 x 140 x 210 millimeters	378 x 150 x 220 millimeters
Working temperature	5 - 35° 5 - 35°
Weight 10.95 kg 15.6 kg

Subject to technical changes!

* Operating mode S3, periodic intermediate duty. The mode comprises of a nominal load and downtime. The operating time is 10 mins, the relative duty cycle is 20% of the operating time.

8. Unpacking

• Open the packaging and carefully remove the product.
• Remove the packaging material, as well as the packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the product and accessory parts for transport damage. In the event of complaints the carrier must be informed immediately. Later claims will not be recognised.
• If possible, keep the packaging until the expiry of the warranty period.
• Familiarise yourself with the product by means of the operating instructions before using for the first time.
• With accessories as well as wearing parts and replacement parts use only original parts. Spare parts can be obtained from your specialist dealer.
• When ordering please provide our article number as well as type and year of manufacture for the product.

⚠ WARNING!

The product and the packaging material are not children's toys! Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

9. Assembly (Fig. 3)

Warning!

Always remove the mains plug before carrying out adjustments on the product.

DANGER

• The square beam (cross-section dimensions: 45 x 45 mm) must be able to bear at least twice the nominal load of the cable hoist at the mounting position of the product. It is recommended to consult a qualified professional (e.g. a structural engineer) for installation.
• As specialised knowledge is required, consult a qualified technician to ensure that all screws are fully and correctly tightened.
• A qualified technician or a suitably trained person should also check the anchoring of the square beam before the product is attached.

9.1 Mounting the cable hoist on the square beam (Fig. 3)

1. Attach the cable hoist (2) to a suitable square beam (not included in the scope of delivery) using the two spring washers (1), 4x M8 hexagon head bolts (A), 4x M8 lock washers (B) and 4x M8 washers (C).
2. The dimensions of the tube must match the size of the mounting bracket (1).

9.2 Use as a pulley block hoist (Fig. 5, 6, 7, 9)

Tool required:

1x Pad*

1x 10 mm* open-ended spanner

1x Slotted-head screwdriver*

2x 13mm* open-ended spanner

*not included in the scope of delivery!

When arranged as a pulley block hoist, the load is distributed over 2 steel cables. That is why it can lift twice the weight. The maximum lifting height and speed are halved.

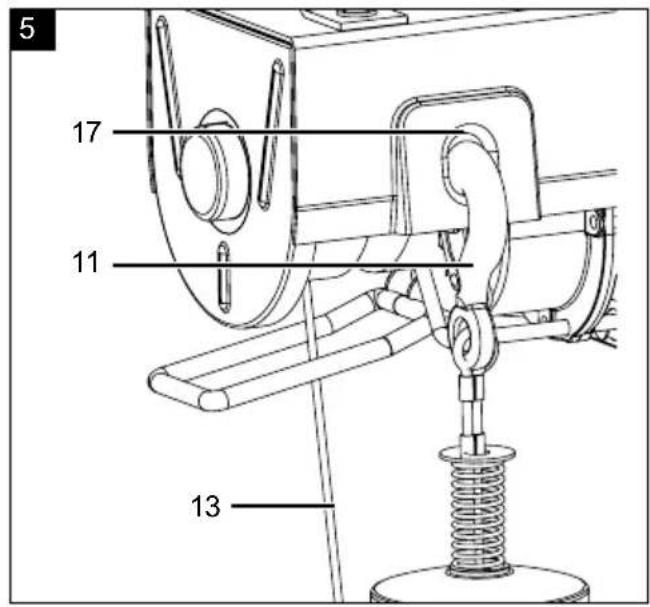

1. The fixed hook (11) must be hooked into the mounting hole (17). The steel cable (13) forms a loop (Fig. 5).

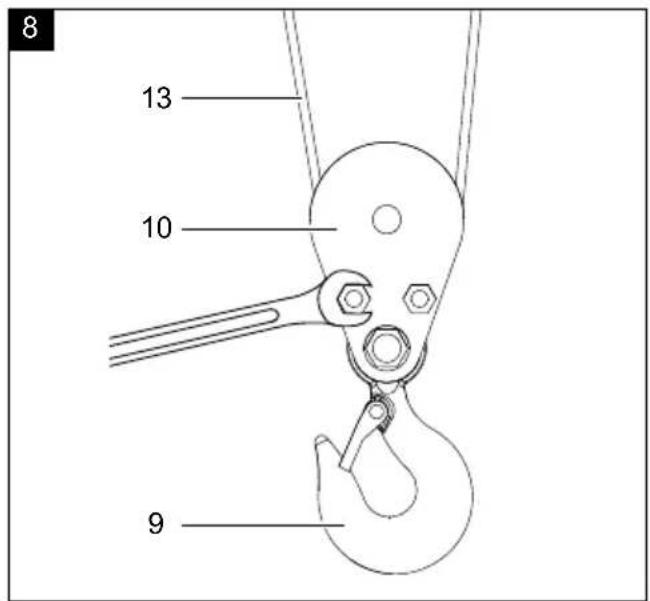

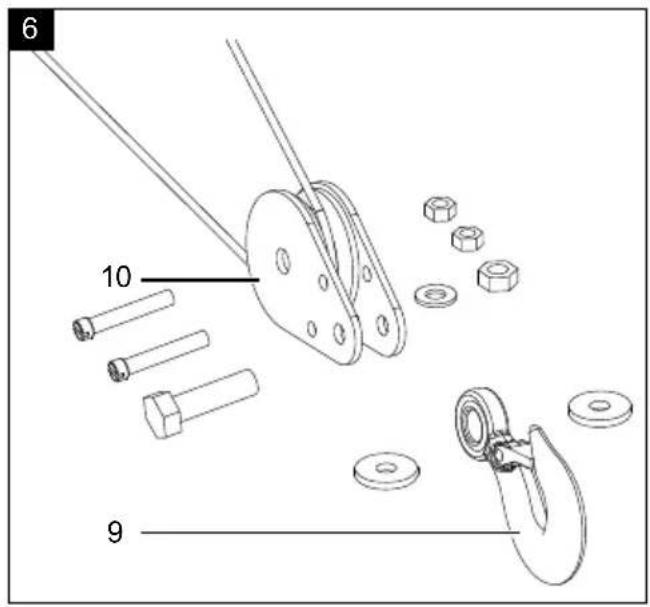

2. Remove the deflection roller (10) of the additional hook (9). Remove the 3 screws (Fig. 6).

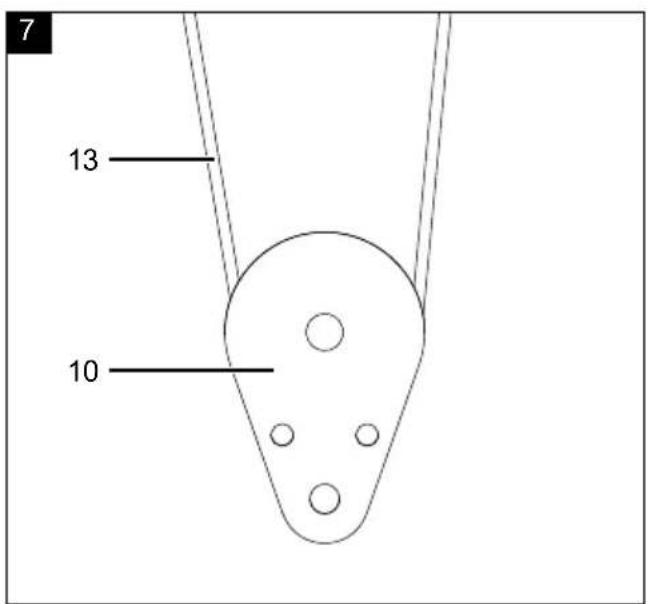

3. Hang the deflection roller (10) in the loop of the steel cable (13) (Fig. 7).

4. Mount the screws and the additional hook (9) on the deflection roller (10). Tighten the 3 screws firmly (Fig. 8). NOTE! Tighten the screws only enough to allow the deflection roller (10) and the hook (11) to still move.

5. The pulley block hoist can now be used (Fig. 9).
6. When arranging the cable pull, please proceed in reverse order.

10. Start-up

⚠ Attention!

Always make sure the product is fully assembled before commissioning!

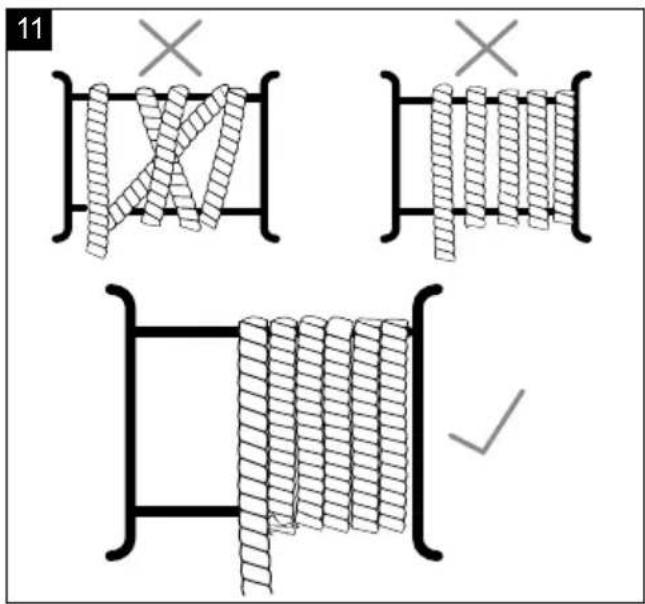

Ensure that the steel cable is correctly wound on the drum and that there is no space between the turns (Fig. 11).

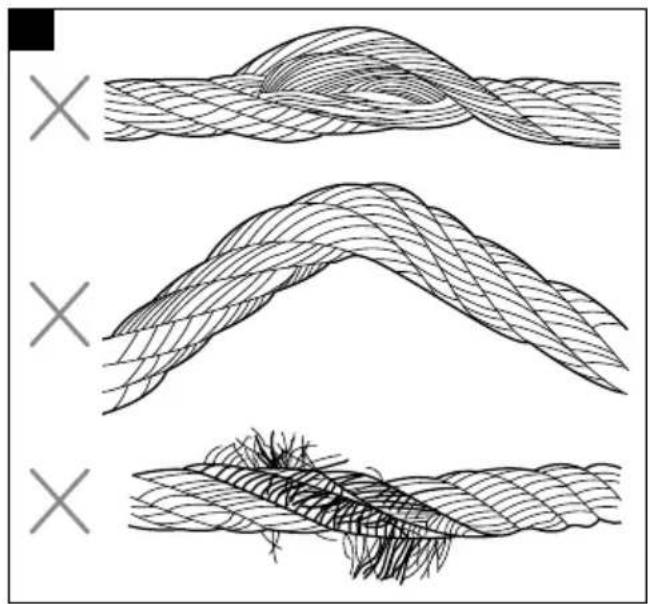

Ensure that the steel cable is not damaged (Fig. 12).

10.1 Unreeling/reeling up the cable (Fig 10)

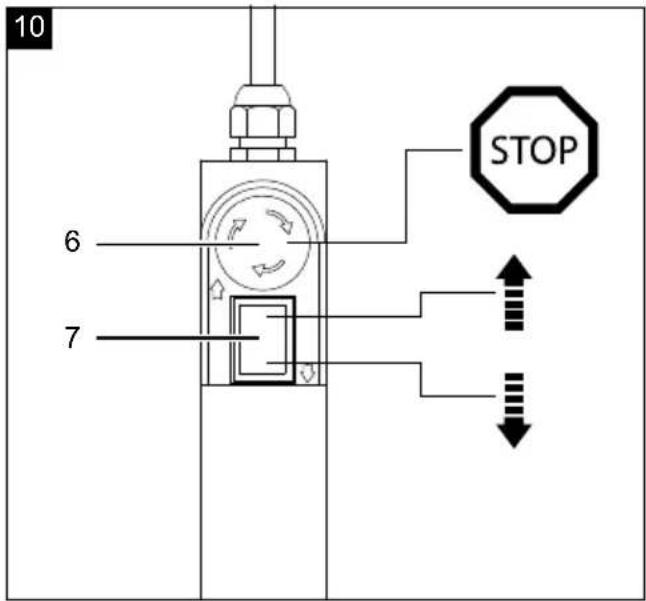

1. Reeling up the cable: Push the control switch (7) up in the direction of the arrow.
2. Unreeling the cable: Press the control switch (7) down in the direction of the arrow.

10.2 Raising the load

1. Lower the steel cable (13) so that you can work comfortably.
2. Attach the load to the hook (11) or additional hook (9). The centre of gravity of the load must be under the product.
3. Roll up the steel cable (13) so that it is initially only taut. Then raise the load completely.

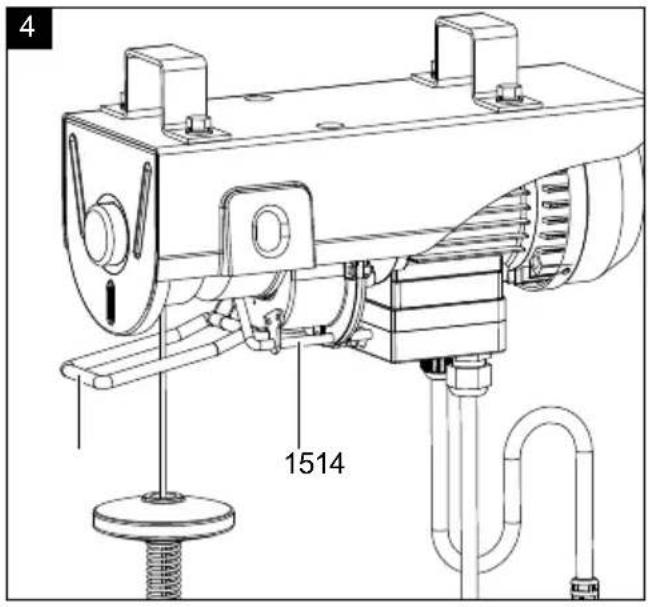

10.3 Automatic stop bar (Fig. 4)

NOTE! The automatic stop bars (upward movement and downward movement 14 & 15) are not intended for regular stopping of the product. Always try to stop the product before it triggers one of the automatic stop bars.

1. Upwards movement: When the steel cable (13) is fully reeled up, the automatic stop bar (upwards movement) (14) is activated. The steel cable (13) cannot be reeled up any further and can only be unreeled.
2. Downwards movement: When the steel cable (13) has completely unreeled, the automatic stop bar (downward movement) (15) is activated. The steel cable (13) cannot be unreeled any further and can only be reeled up.

10.4 EMERGENCY STOP switch (Fig. 10)

1. In an emergency, press the emergency stop switch (6) to stop the lifting and lowering process.
2. The product is then blocked.
3. Unlock the product by turning the emergency stop switch (6) clockwise (in the direction of the arrow) until it pops out again.

11. Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions.

The customer's mains connection as well as the extension cable used must also comply with these regulations.

Damaged electrical connection cable

The insulation on electrical connection cables is often damaged.

This may have the following causes:

• Pressure points, where connection cables are passed through windows or doors
• Kinks where the connection cable has been improperly fastened or routed
• Places where the connection cables have been cut due to being driven over
  • Insulation damage due to being ripped out of the wall socket
  • Cracks due to the insulation ageing

Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage.

Check the electrical connection cables for damage regularly. Ensure that the connection cables are disconnected from electrical power when checking for damage.

Electrical connection cables must comply with the applicable VDE and DIN provisions. Only use connection cables of the same designation.

The printing of the type designation on the connection cable is mandatory.

For single-phase AC motors, we recommend a fuse rating of C 16A or K 16A for products with a high starting current (from 3000 watts)!

Connection type Y

If it is necessary to replace the mains connection cable, this must be done by the manufacturer or their representative to avoid safety hazards.

12. Cleaning

Danger!

Pull out the mains plug before carrying out any cleaning work.

• Keep protective devices, air vents and the motor housing as free of dust and dirt as possible. Rub the product clean with a clean cloth or blow it off with compressed air at low pressure.
  • We recommend that you clean the product directly after every use.
• Clean the product at regular intervals using a damp cloth and a little soft soap. Do not use any cleaning products or solvents; they could attack the plastic parts of the product.
  Make sure that no water can penetrate the interior of the product. Water penetration increases the risk of an electric shock.

13. Storage

Store the product and its accessories in a dark, dry and frost-free place that is inaccessible to children.

The optimum storage temperature is between 5 and 30°C.

Store the product in its original packaging. Cover the product to protect it from dust or moisture. Store the operating instructions with the product.

14. Maintenance

The interior of the product has no further internal parts that require maintenance.

Test interval Process
Before each use	Check that the emergency stop switch (6) and the control switch (7) are working properly.
Every 30 cycles*	Check the entire steel cable (13) for damage (Fig. 12). Replace a damaged steel cable.
Every 100 cycles*	Check the functioning of the stop bars (14, 15) without load.
Every 200 cycles*	Lubricate the steel cable (13) and the deflection roller (10).
Every 800 cycles*	Check that all screws are firmly seated. Check the entire product for wear and tear.
* One cycle corresponds to one upward and downward movement of a load

15. Repair & ordering spare parts

After repairs or maintenance, make sure that all safety-related parts are installed and are in perfect condition. All parts which may cause injury must be kept where they are inaccessible to children or others.

Attention: According to the German Product Liability Act, no liability is accepted for damage caused by improper repairs or by not using original spare parts.

Such work should be performed by a customer service centre or an authorised specialist. The same applies to accessory parts.

Spare parts and accessories can be obtained from our Service Centre. To do this, scan the QR code on the front page.

Connections and repairs

Connections and repair work on the electrical equipment may only be carried out by electricians.

Please provide the following information in the event of any queries:

• Type of current for the motor

• Machine data - type plate

• Motor data - type plate

Important note in the case of repairs:

For return delivery of the product for repair, please ensure for safety reasons that it is free of oil and fuel when it is sent to the service centre.

Ordering spare parts

Please provide the following information when ordering spare parts:

- Model designation

- Item number

- Type plate data

Spare parts / accessories

Deflection roller cpl. 250kg - Article no.: 4906904046

Deflection roller cpl. 600kg - Article no.: 5906903012

16. Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

Notes on the electrical and electronic equipment act (ElektroG)

Waste electrical and electronic equipment does not belong in household waste, but must be collected and disposed of separately!

- Used batteries or rechargeable batteries that are not installed permanently in the old device must be removed non-destructively before disposal! Their disposal is regulated by the battery act.

- Owners or users of electrical and electronic devices are legally obliged to return them after use.

- The end user is responsible for deleting their personal data from the old device being disposed of!

- The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste.

- Waste electrical and electronic equipment can be handed in free of charge at the following places:

- Public disposal or collection points (e.g. municipal works yards)

- Points of sale of electrical appliances (stationary and online), provided that dealers are obliged to take them back or offer to do so voluntarily.

- Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity.

- Further supplementary take-back conditions of the manufacturers and distributors can be obtained from the respective customer service.

- If the manufacturer delivers a new electrical device to a private household, the manufacturer can arrange for the free collection of the old electrical device upon request from the end user. Please contact the manufacturer's customer service for this.

- These statements only apply to devices installed and sold in the countries of the European Union and which are subject to the European Directive 2012/19/EU. In countries outside the European Union, different regulations may apply to the disposal of waste electrical and electronic equipment.

17. Troubleshooting

The following table shows fault symptoms and describes remedial measures in the event of your product failing to work properly. If you cannot localise and rectify the problem with this, please contact your service workshop.

Fault Possible cause Remedy
Product does not start	The mains plug is not properly inserted into the socket	Insert the mains plug into the socket correctly
	Mains cable defective	Check the mains cable, have it repaired by a certified electrician if defective
	Control switch defective	Repair by an authorised service centre
	Emergency stop switch active	Check whether the emergency stop switch is active
	Active stop bar (jammed)	Check that the stop bars are not jammed and are active; if they are, release them
	Engine defective	Repair by an authorised service centre
Motor stops during operation	The mains plug is not properly inserted into the socket	Insert the mains plug into the socket correctly
	Mains cable (loose connection)	Check the mains cable, have it repaired by a certified electrician if defective
	Control switch (loose contact)	Repair by an authorised service centre
	Emergency stop switch (loose contact)	Repair by an authorised service centre

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Günzburger Straße 69

D-89335 Ichenhausen, Germania

Egregio cliente,

Günzburger Straße 69

D-89335 Ichenhausen

Geachte klant,

Günzburger Straße 69

Günzburger Straße 69

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazníku,

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazník,

Günzburger Straße 69

D-89335 Ichenhausen

Kedves Ügyfelünk!

Günzburger Straße 69

D-89335 Ichenhausen

Szanowny Kliencie,

Günzburger Straße 69

D-89335 Ichenhausen

Poštovani kupci,

želimo vam mnogo zadovoljstva i uspjeha pri radu s novim proizvodom.

Napomena:

Prema važećem njemačkom Zakonu o odgovornosti za proizvode, proizvođač ovog proizvoda ne odgovara za štete koje nastanu na ovom proizvodu ili koje ovaj proizvod uzrokuje u slučaju:

• neispravnog rukovanja
• Nepridržavanje priručnika za uporabu
• popravaka koje obave drugi, neovlašteni stručnjaci
• ugradnje i zamjene neoriginalnih rezervnih dijelova
• nenamjenske uporabe
• kvarova električnog sustava zbog nepoštivanja električnih propisa i VDE propisa 0100, DIN 57113 / VDE 0113

Günzburger Straße 69

D-89335 Ichenhausen

Spoštovani kupec,

želimo vam veliko veselja in uspeha pri delu z vašim novim izdelkom.

Napotek:

Proizvajalec tega izdelka skladno z veljavnim zakonom o odgovornosti za izdelke ne jamči za poškodbe na tem izdelku ali poškodbe s tem izdelkom, do katerih pride pri:

Günzburger Straße 69

D-89335 Ichenhausen

Austatud klient!

Günzburger Straße 69

D-89335 Ichenhausen

Gerbiamas kliente,

Günzburger Straße 69

Günzburger Straße 69

D-89335 Ichenhausen

Bästa kund!

Günzburger Straße 69

D-89335 Ichenhausen

Arvoisa asiakas,

Günzburger Straße 69

D-89335 Ichenhausen, Tyskland

Kære kunde,

Günzburger Straße 69

D-89335 Ichenhausen

Kjære kunde,

Günzburger Straße 69

D-89335 Ichenhausen, Германия

Уважаеми клиенти,

Günzburger Straße 69

D-89335 Ichenhausen

Αξιότιμε πελάτη,

Günzburger Straße 69

D-89335 Ichenhausen

Stimate client,

Günzburger Straße 69

D-89335 Ichenhausen

Poštovani kupče,

Günzburger Straße 69

D-89335 Ichenhausen

İthalatçı:

Technical diagram of an automotive electrical switch assembly with numbered components and exploded view

EU Declaration of Conformity

2000/14/EG_2005/88/EG
	Noise: measured LWA= xx dB; guaranteed LWA= xx dB
	Annex V
	Annex VI

X 2006/42/EG
	Annex IV Notified Body: Notified Body No.: Certificate No.:

	2016/1628/EU
	Emission. No:

Standard references:

EN ISO 12100:2010; EN 14492-2:2019; EN 60204-32:2008;

EN IEC 55014-1:2021; EN IEC 55014-2:2021; EN IEC 61000-3-2:2019+A1; EN 61000-3-3:2013+A1+A2

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Subject to change without notice

Documents registrar: Matthias Herz

Günzburger Str. 69, D-89335 Ichenhausen

EU Declaration of Conformity

Standard references:

EN ISO 12100:2010; EN 14492-2:2019; EN 60204-32:2008;

EN IEC 55014-1:2021; EN IEC 55014-2:2021; EN IEC 61000-3-2:2019+A1; EN 61000-3-3:2013+A1+A2

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Subject to change without notice

Documents registrar: Matthias Herz

Günzburger Str. 69, D-89335 Ichenhausen

EU Declaration of Conformity

Standard references:

EN ISO 12100:2010; EN 14492-2:2019; EN 60204-32:2008;

EN IEC 55014-1:2021; EN IEC 55014-2:2021; EN IEC 61000-3-2:2019+A1; EN 61000-3-3:2013+A1+A2

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Subject to change without notice

Documents registrar: Matthias Herz

Günzburger Str. 69, D-89335 Ichenhausen

EU Declaration of Conformity

AB uygunluk beyanı

CE

Scheppach GmbH, Günzburger Str. 69, D-89335 Ichenhausen

DE	erklärt folgende Konformität gemäß EU-Richtlinien und Normen für den Artikel	RO	declară următoarea conformitate corespunzător directivelor și normelor UE pentru articolul
GB	hereby declares the following conformity under the EU Directive and standards for the following article	GR	δηλώνει την ακόλουθη συμμόρφωση σύμφωνα με την Οδηγία ΕΕ και τα πρότυπα για το προϊόν
BG	декларира съответното съответствие съгласно Дирек-тива на ЕС и норми за артикул	TR	Burada açıklanan ürünün geçerli yönetmeliklere ve standartlara uygun olduğunu tamamen kendi sorumluluğumuz altında beyan ediyoruz.
RS	potvrđuje sledeću usklađenost prema smernicama EZ i normama za artikal

2000/14/EG_2005/88/EG Noise: measured LWA = xx dB; guaranteed LWA = xx dB Annex V Annex VI

	2016/1628/EU
	Emission. No:

Standard references:

EN ISO 12100:2010; EN 14492-2:2019; EN 60204-32:2008;

EN IEC 55014-1:2021; EN IEC 55014-2:2021; EN IEC 61000-3-2:2019+A1; EN 61000-3-3:2013+A1+A2

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Subject to change without notice

Documents registrar: Matthias Herz Günzburger Str. 69, D-89335 Ichenhausen

Garantie DE

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer's rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer's rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Záruka CZ

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer is rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantii EE

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer's rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

гаранция BG
