USER MANUAL I-Spin Multiway Joie

enhanced child restraint

GB Instruction Manual

Simple icon of a person relaxing with a child, enclosed in a rounded square frame (no text or symbols)

ECE R129/03: i-Size

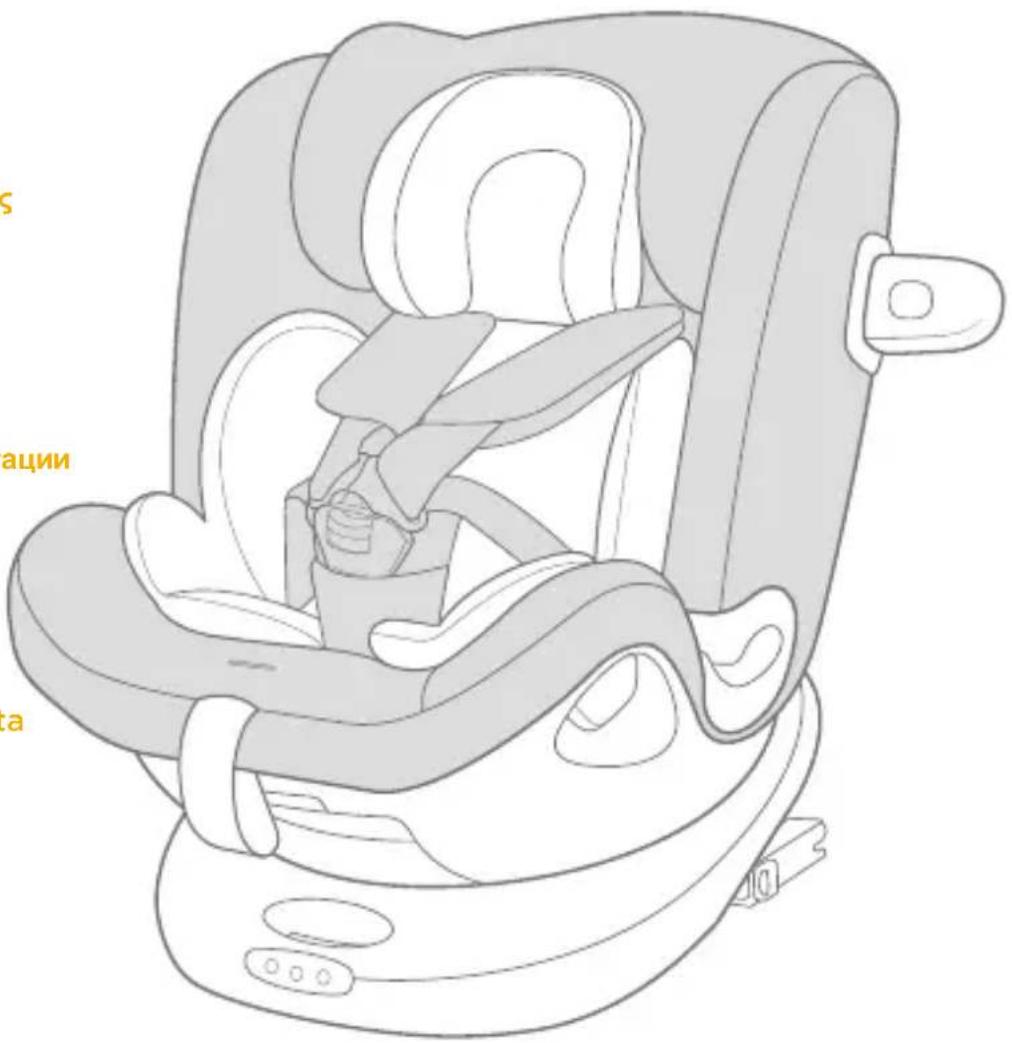

Line drawing of a car comfort seat with no text or symbols

GB

Welcome to Joie™

Congratulations on becoming part of the Joie family! We are so excited to be part of your journey with your little one. While traveling with the i-Spin Multiway enhanced child restraint you are using a high quality, fully certified safety i-Size enhanced child restraint. Please carefully read this manual and follow each step to ensure a comfortable ride and best protection for your child.

To use this Joie enhanced child restraint with the i-Size ISOFIX connections according to the ECE R129 Regulation, your child must meet the following requirements.

Rearward Facing: Child height 40cm-105cm/ max. 18.5kg; Forward Facing: Child height 76cm-125cm/ max. 25kg;

Base

Please read all the instructions in this manual before installing and using the product.

! IMPORTANT: KEEP FOR FUTURE REFERENCE. PLEASE READ CAREFULLY.

Please keep the instruction manual in the storage compartment at the back of the seat as right figure.

For warranty information, please visit our website at joiebaby.com

Line drawing of a car seat with an open book and a pointer, set against a solid yellow background (no text or symbols)

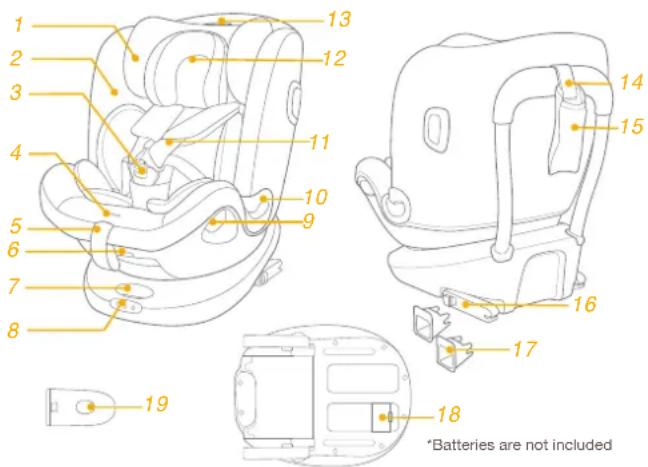

Parts List

Please make sure there are no missing parts. Please contact the retailer if anything is missing.

1 Head Support
2 Seat Cover
3 Buckle
4 Harness Adjustment Button
5 Adjustment Webbing
6 Recline Adjustment Button
7 ISOFIX Adjuster Button
8 LED Electronic Display
9 Rotation Button
10 Lap Belt Guide
11 Shoulder Strap
12 Infant Insert
13 Head Support Adjustment Lever
14 Top Tether Strap
15 Top Tether Storage Bag
16 ISOFIX Attachments Connector
17 ISOFIX Attachments Guides
18 Battery Case
19 Side Impact Protection *must use on door side only

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 *Batteries are not included

WARNING

! BE cautious that the rigid items and plastic parts of the enhanced child restraint system shall be so located and installed that they are not liable to become trapped by a movable seat or in the door of the vehicle.
! DO NOT use the rearward facing enhanced child restraint systems in seating positions where there is an active frontal airbag installed.
! To use this enhanced child restraint according to the UN Regulation No.129, your child must meet the following requirements.
! Rear facing mode: Child height 40cm-105cm/max. 18.5kg;
! Forward Facing: Child height 76cm-125cm/ max. 25kg;
! IMPORTANT - DO NOT USE FORWARD FACING BEFORE THE CHILD'S AGE EXCEEDS 15 MONTHS (Refer to instructions).
! The enhanced child restraint may not fit in all approved vehicles. Please refer to the fitting list included for more details.
! Any straps holding the enhanced child restraint to the vehicle should be tight. Any straps restraining the child should be adjusted to the child's body, and straps should not be twisted.

WARNING

! DO NOT use any load bearing contact points other than those described in the instructions and marked on the enhanced child restraint.
! After your child is placed in this enhanced child restraint, the safety belt must be used correctly. Ensure that any lap strap is worn low down, so that the pelvis is firmly engaged, shall be stressed.
This enhanced child restraint should be replaced when it has been subject to violent stresses in an accident. An accident can cause damage to it that you cannot see.
! Consider the danger of making any alterations or additions to the device without approval of the adequate authority, and the danger of not following closely to the installation instructions provided by the enhanced child restraint manufacturer.
! Please keep this enhanced child restraint away from sunlight, otherwise it may be too hot for child's skin. Always touch the enhanced child restraint before placing child in it.
! DO NOT leave your child unattended in the enhanced child restraint system.
! Any luggage or other objects liable to cause injuries in the event of a collision shall be properly secured.

WARNING

! The enhanced child restraint system shall NOT BE USED without the soft goods.
! The soft goods should not be replaced with any other than the one recommended by the manufacturer, because the soft goods constitutes an integral part of the restraint performance.
! Please check if this enhanced child restraint can be installed properly in your vehicle before you purchase it.
NO enhanced child restraint can guarantee full protection from injury in an accident. However, proper use of this enhanced child restraint will reduce the risk of serious injury or death to your child.
! DO NOT install this enhanced child restraint without following the instructions in this manual or you may put your child at serious risk of injury or death.
! DO NOT use this enhanced child restraint if it has damaged or missing parts.
! DO NOT have your child in large/oversized clothes because this may prevent your child from being, properly and securely fastened by the shoulder harness straps and the crotch strap between the legs.

Emergency

In case of emergency or accidents, it is most important to have your child taken care of with first aid and medical treatment immediately.

Product Information

For installation with ISOFIX system + Top Tether

1. This is an i-Size Enhanced Child Restraint System. It is approved according to UN Regulation No.129, for use in, i-Size compatible vehicle seating positions as indicated by vehicle manufacturers in the vehicle users' manual.

2. If in doubt, consult either the Enhanced Child Restraint System manufacturer or the retailer.

For installation with 3-point belt + ISOFIX system + Top Tether

1. This is an i-Size booster seat Enhanced Child Restraint System. It is approved according to UN Regulation No.129, for use primarily in "i-Size seating positions" as indicated by vehicle manufacturers in the vehicle user's manual.

2. If in doubt, consult either the Enhanced Child Restraint System manufacturer or the retailer.

Materials Plastics, metal, fabrics

Patent No. Patents pending

Choose the Installation Mode

ECE R129	Child's Size	Installation Mode	Installation	Reference Age	Recline Position
	40cm-105cm/≤18.5kg	Rear facing mode		Approx 4 years	Position 1-6
	76cm-105cm/≤18.5kg	Forward facing mode		15 months to approx 4 years	Position 1-6
	100cm-125cm/≤25kg	Booster mode		3.5 years to 7 years	Position 1-6

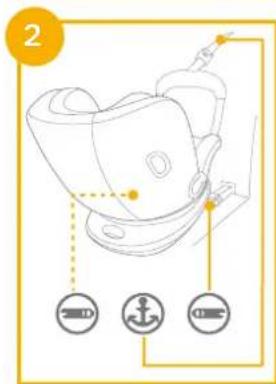

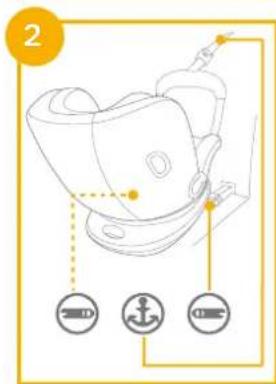

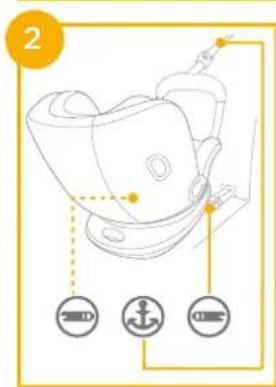

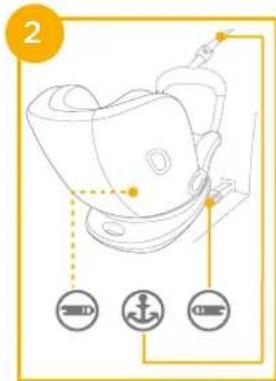

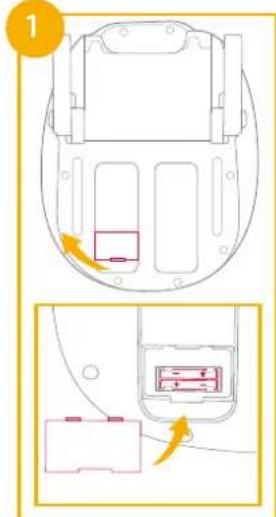

Use Electronic Module

see images 1 - 2

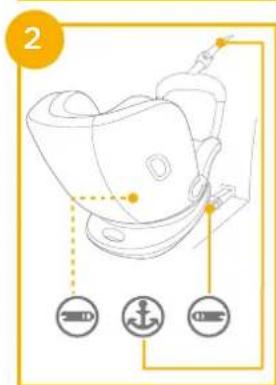

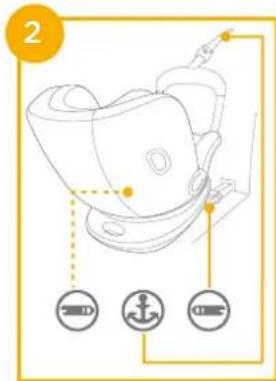

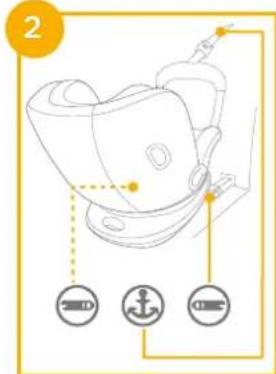

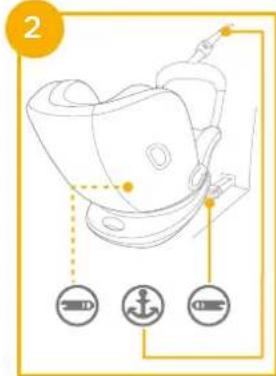

! The ISOFIX alert system will engage when any of the 3 connectors is hooked onto an anchorage point. If any of the 3 required connections are incorrectly installed and tensioned, the LED indicator will light up and you will hear a notification sound. The sound will gradually increase in volume for 3.5 minutes, and then will repeat once after 15 minutes if any of the connectors are still not securely connected.
When low battery, the alert system will sound and last for 15 secs to remind to replace with new batteries.
! Batteries are not included.
Recommended type batteries-alkaline disposables, size AAA (2X1.5V). NEVER mix battery types.
! The indicator LED light will be off when all ISOFIX connectors are securely attached and tensioned.

1

2

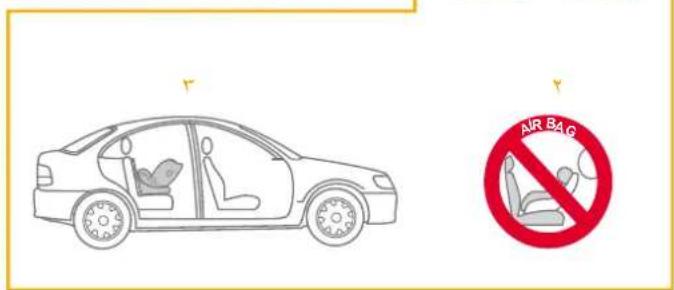

Concerns on Installation

see images 3 - 6

Interior view of a car seatbelt with no visible text or symbols

Interior view of a car seatbelt with a black strap and yellow checkmark indicating a location (no text or symbols on the belt)

Interior view of a train seat with two seats and a checkmark indicator (no text or symbols on the seats)

6 1 ① ② 3 4 ⑤ 6 7 ① ② 3 4 ⑤ 6 7

Line drawing of a car interior showing driver seat, passenger seat, and dashboard (no text or symbols)

Use Side Impact Protection

see images 7 - 8

1. The enhanced child restraint is delivered with removable side impact protection. This side impact protection must be used on the door side of the vehicle for best protection. Installation shown in 7.
2. Press the release button to remove Side Impact Protection. 8 -1&8 -2

Line drawing of a seatbelt buckle with a highlighted belt (no text or symbols)

8 2 1

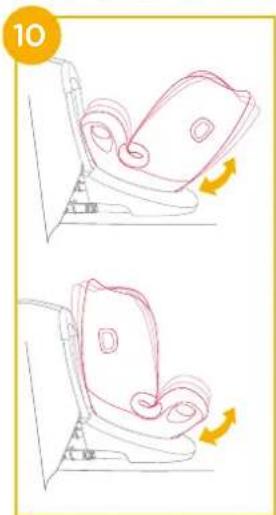

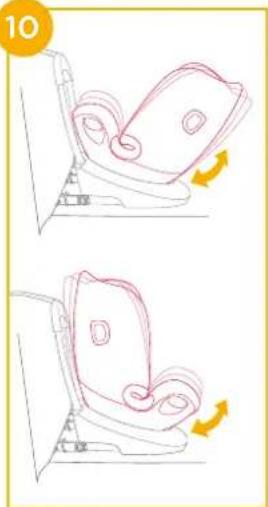

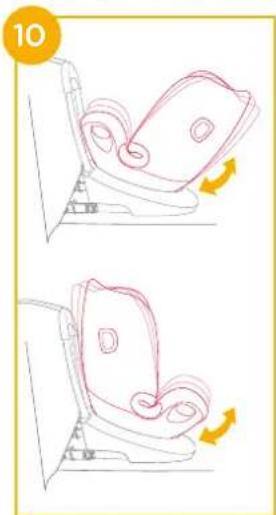

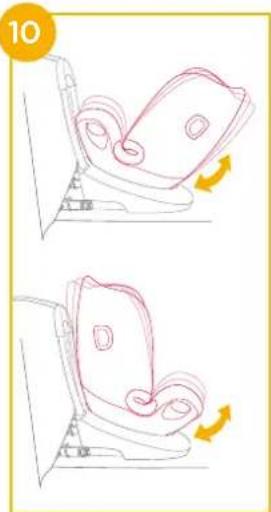

Recline Adjustment

see images 9 - 10

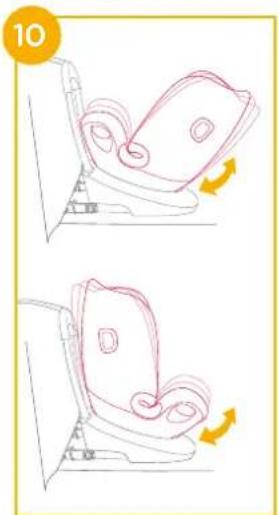

Squeeze the recline adjustment button ⑨, to adjust the enhanced child restraint to the proper position. The recline angles are shown as ⑩.

All rear facing mode, forward facing mode and booster mode have 6 recline positions.

Illustration of a baby car seat with a hand adjusting the seat area (no text or symbols)

Illustration of a baby car seat with two steps showing the change in seat width (no text or symbols)

Height Adjustment for Head Support and Shoulder Harnesses

see images 11 - 13

1. Please adjust the head support and check if the shoulder harnesses are at the correct height according to 11 & 12 & 13
   When used in rear facing mode, the shoulder harness height must be even with or just below the top of child's shoulders. 11-1
   When used in forward facing mode, the shoulder harness height must be even with or just above the top of child's shoulders. 1-2
   When used in booster mode, the shoulder belt guides must be even with child's shoulders.

2. Lift up the head support adjustment lever, while pull up or push down on the head support until it snaps into one of the 7 positions. The head support positions are shown as 13.

11 1 2

Line drawing of a person wearing a seatbelt and neck chair, with no text or symbols present.

13 1 2

Installing the Base

see images 14 - 25

! Insert ISOFIX guides into ISOFIX anchor points (see vehicle owner's manual). 14

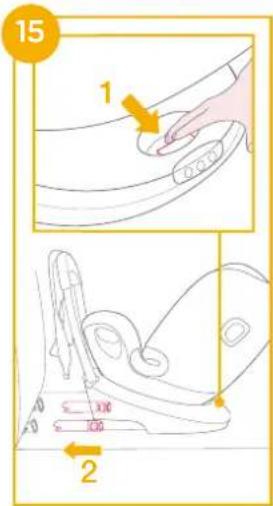

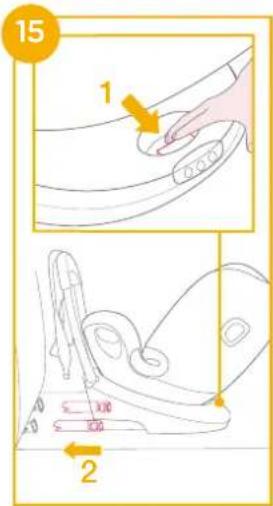

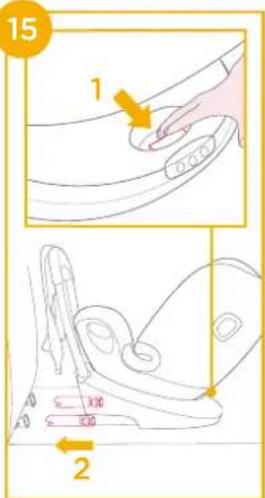

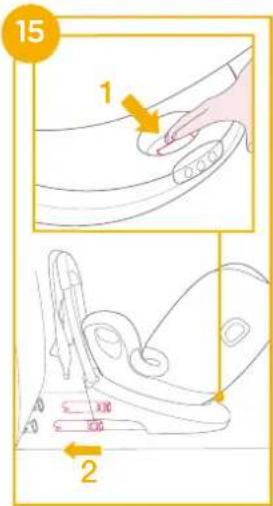

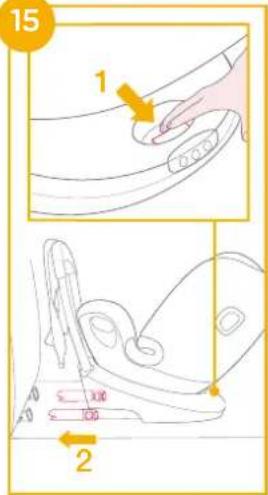

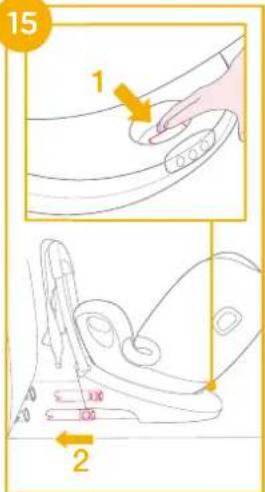

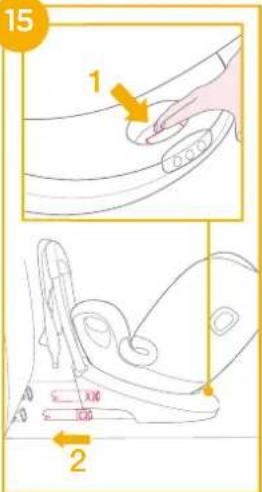

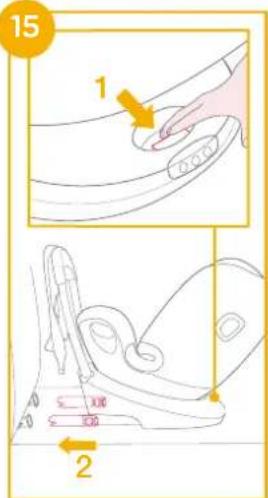

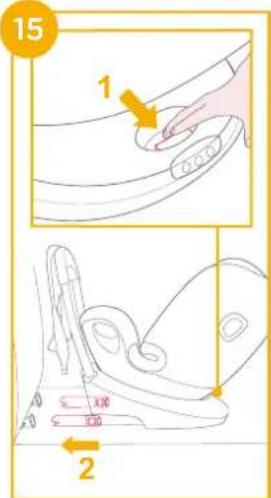

! To extend the ISOFIX connectors, press in and hold the ISOFIX adjustment button first. 15

Simple line drawing of a tray with four hanging items and directional arrows (no text or symbols)

15 1 2

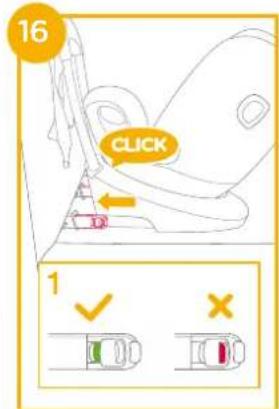

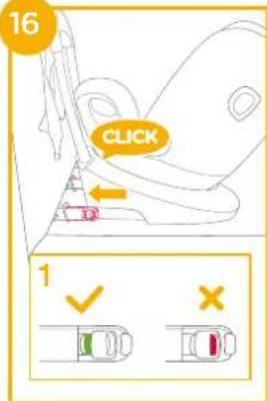

! Make sure that both ISOFIX attachments connectors are securely attached to their ISOFIX anchor points. The colors of the indicators on both ISOFIX connectors should be completely green.
! Pull on both ISOFIX connectors to make sure they are securely connected.

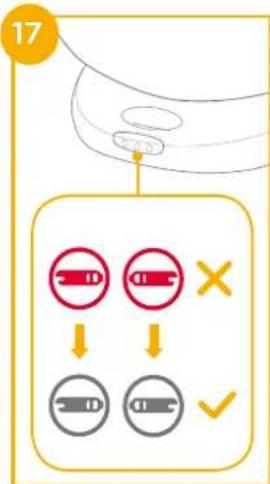

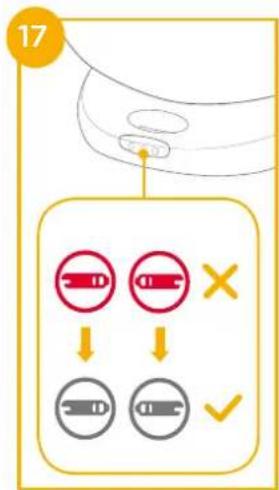

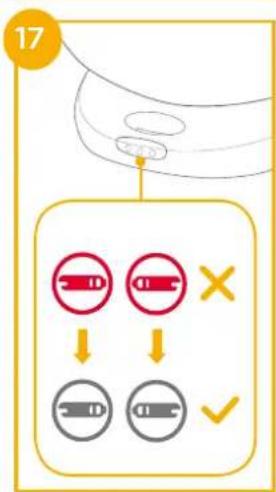

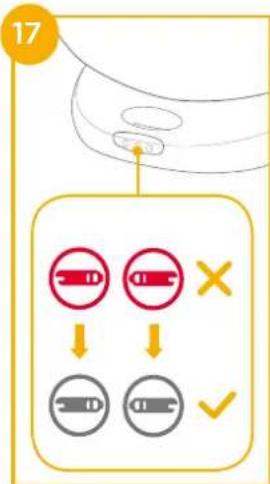

! Make sure that both two ISOFIX indicator LEDs turn off after the ISOFIX connectors are connected. each LED indicates if the ISOFIX connector on the same side is properly connected or not. 17

16 CLICK 1 ✓ ×

17 × ↓ ↓ ✓

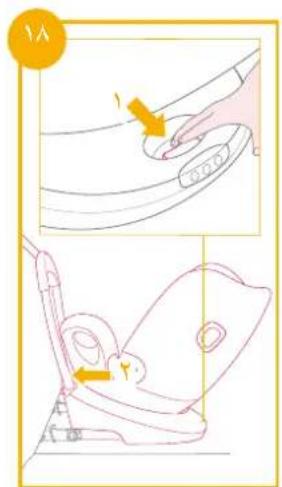

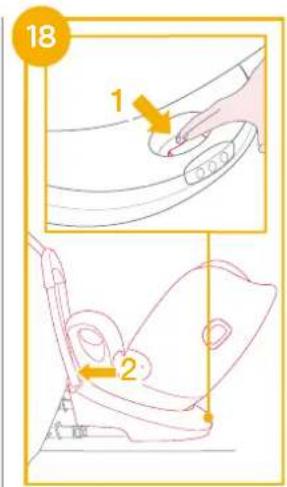

! Press the ISOFIX adjustment buttons again while pushing the seat back until it comes in contact with the vehicle seat backrest. 18

18 1 2

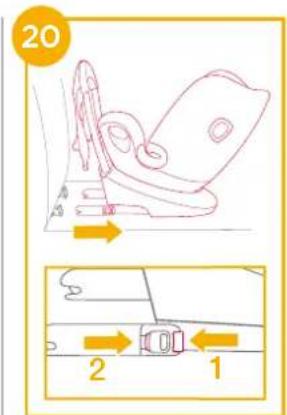

! Press and release ISOFIX connectors connectors from ISOFIX anchorage. 20

20 2 1

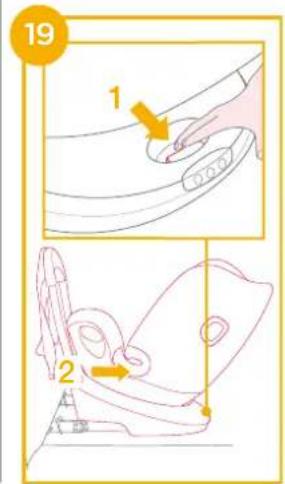

Removing the seat

! To remove from the vehicle press the ISOFIX adjuster button and pull the enhanced child restraint away from the seat. 19

19 1 2

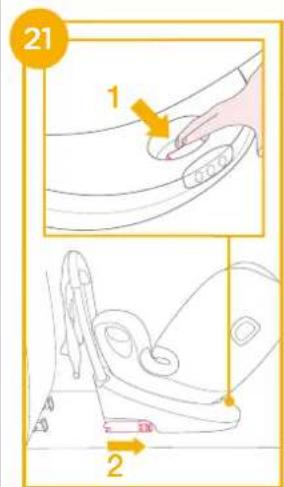

To prevent damage during transit, press the ISOFIX adjuster button 21 -1 and fold the connector completely. 21 -2

21 1 2

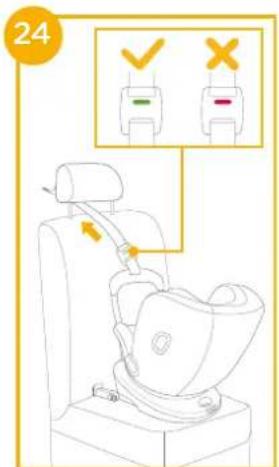

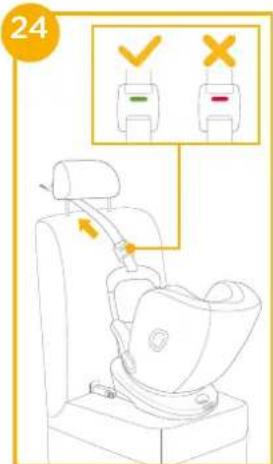

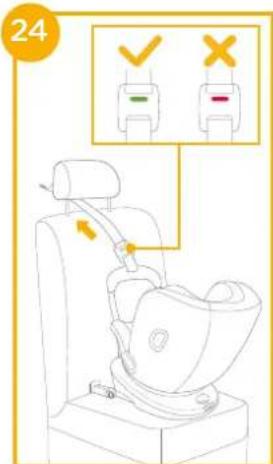

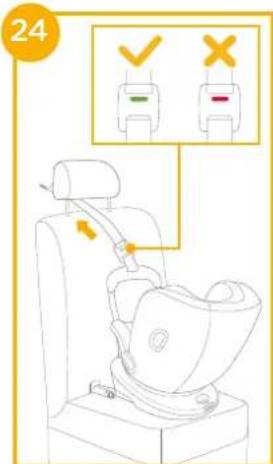

To extend top tether for use, press the button on tether adjuster and pull to lengthen.

Connect the tether hook securely to vehicle's anchorage point. (see vehicle owner's manual). 23

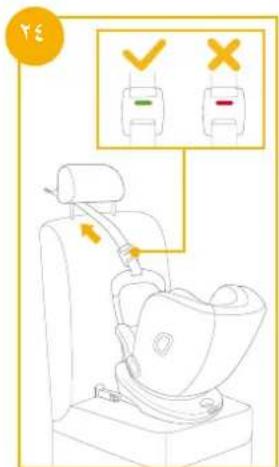

! Make sure that tether hook is securely attached to the anchorage point. The color of the indicator on tether strap adjuster should be completely green. ^24

22 1 2

23

24

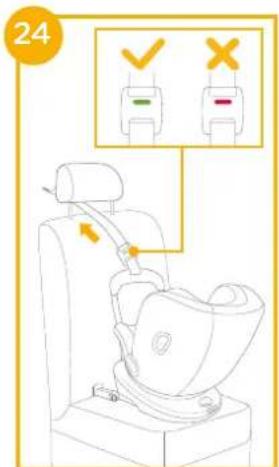

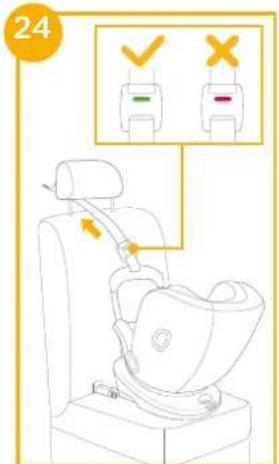

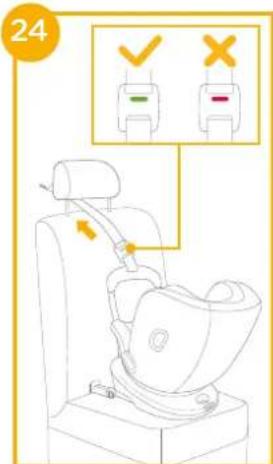

! If recline angle is adjusted, check the tension on the top tether, or loosen to adjust angle then re-tension.

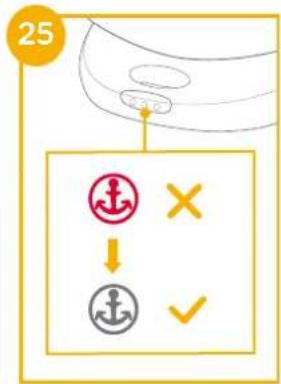

! The top tether indicator LED (in the middle) does not light up means the top tether is securely connected.

Using in the rear facing mode (Child height 40cm-105cm/Child weight ≤18.5kg/infant - 4 years old)

see images 26 - 32

! Please install the enhanced child restraint on the rear vehicle seat and then put the child in the enhanced child restraint.

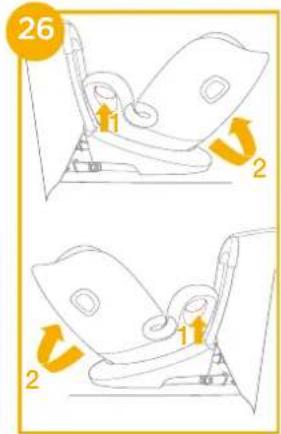

Press the rotating button to rotate for easier side loading/unloading of the child, then rotate the seat to the rear facing position. 25 & 27

! Press the rotating button on either side to rotate the enhanced child restraint.

25 ↓ × ✓

26 2 1 2

Securing Child

1. To lengthen the shoulder harness belts, press the harness adjustment button while pulling out the shoulder harnesses to loosen. (grab the both two shoulder pads to pull).
2. Unlock the buckle of the harnesses by pressing the red button.

Line drawing of a car comfort seat assembly (no text or symbols)

28

29

1. Fix the buckles on the both sides of the seat shown as ③ which located on the both sides of seat to make placing the child in forward facing mode more convenient.

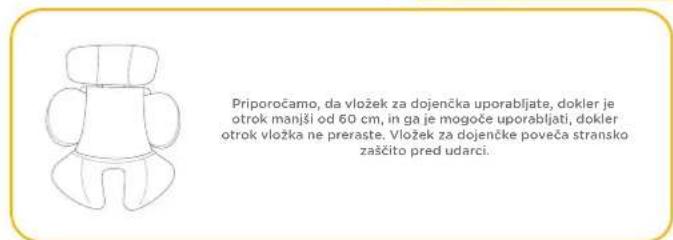

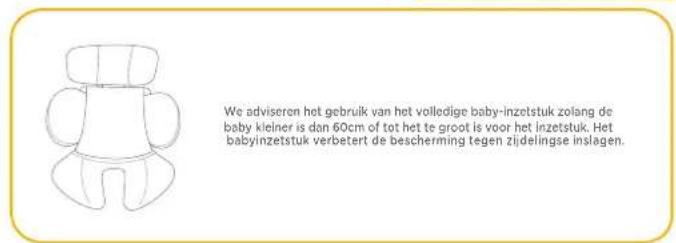

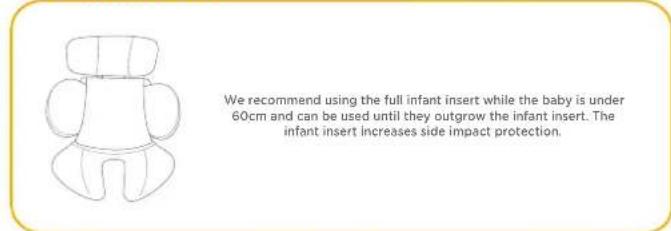

Use Infant Insert

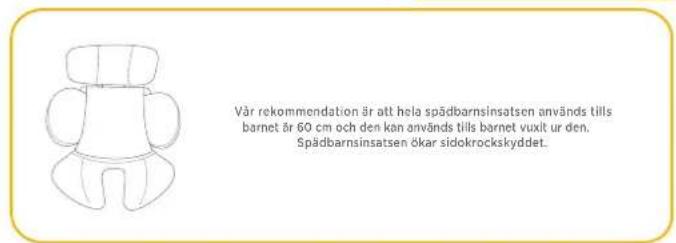

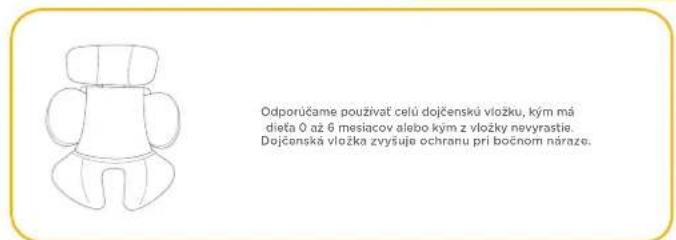

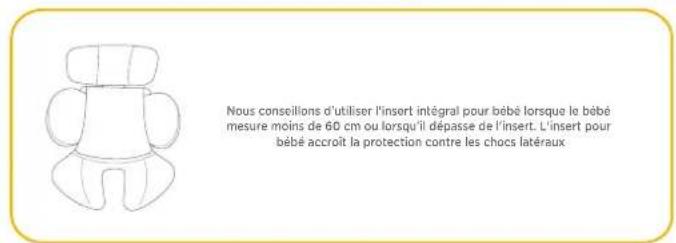

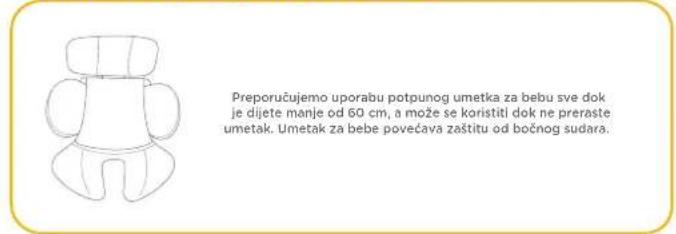

We recommend using the full infant insert while the baby is under 60cm and can be used until they outgrow the infant insert. The infant insert increases side impact protection.

1. Place the child into the enhanced child restraint and pass both arms through the harnesses.

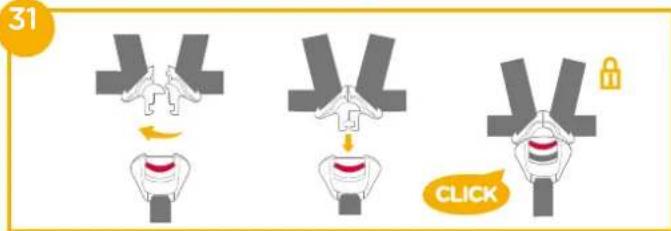

2. Engage the buckle. Please refer to

31 CLICK

1. Pull down the adjustment webbing and adjust it to the proper length to make sure your child is properly secured.

! Always keep child secured in harness and properly tightened by removing any slack.

Illustration of a baby car seat with a hand adjusting the seatbelt (no text or symbols)

Using in the forward facing mode (Child height 76cm-105cm/Child weight ≤18.5kg/15 months - 4 years old)

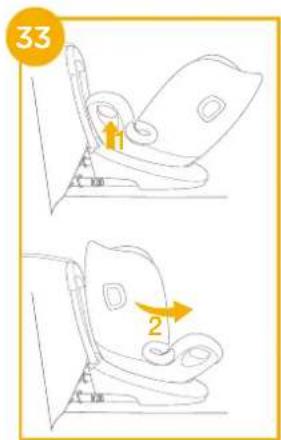

see images 33 - 36

! Please install the enhanced child restraint on the vehicle seat, and then put the child in the enhanced child restraint.

33 2

! Remove the infant insert when forward facing mode.

34

! Fix the buckles on the both sides of the seat shown as 30 which located on the both sides of seat to make placing the child in forward facing mode more convenient.

Line drawing of a car seatbelt with directional arrows indicating movement (no text or symbols)

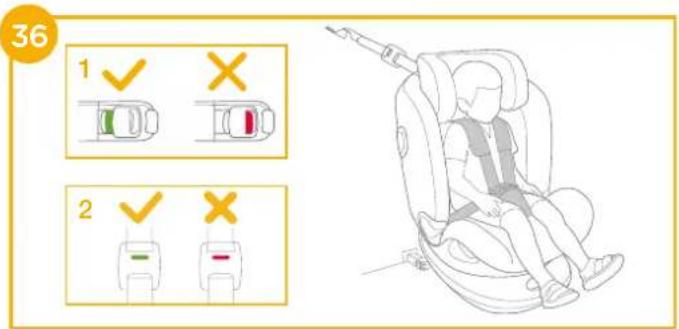

36 1 ✓ × 2 ✓ ×

! Engage the buckle.

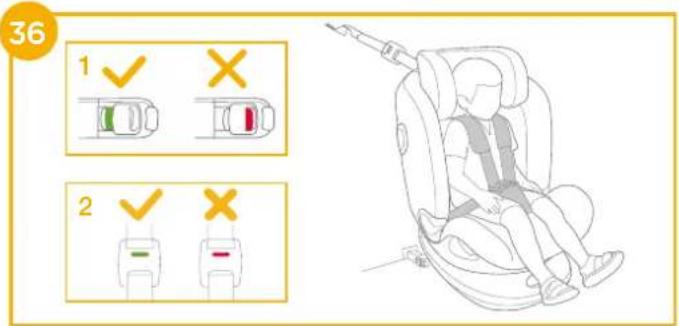

! The colors of the indicators on both ISOFIX attachments connectors should be completely green. 30-1
! The colors of the indicators on tether strap adjuster should be completely green. 36-2
! Check to make sure the child restraint is securely installed by pulling on the both ISOFIX connectors.
! Pull down the adjustment webbing and adjust it to the proper length to make sure your child is properly secured.
! Always keep child secured in harness and properly tightened by removing any slack.

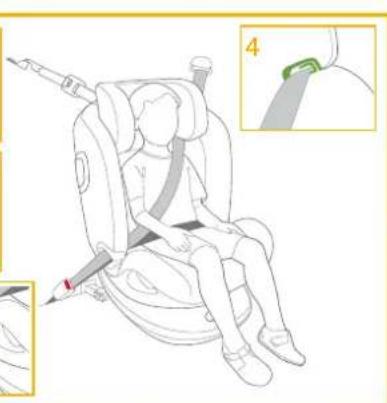

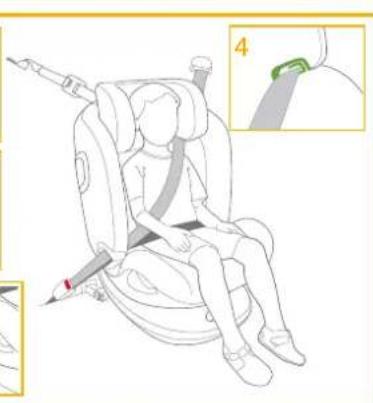

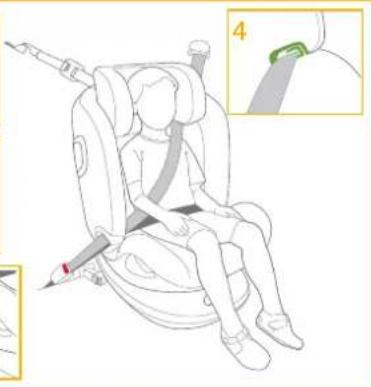

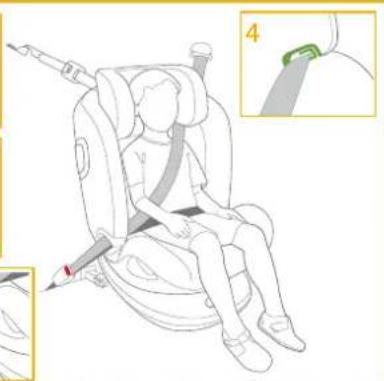

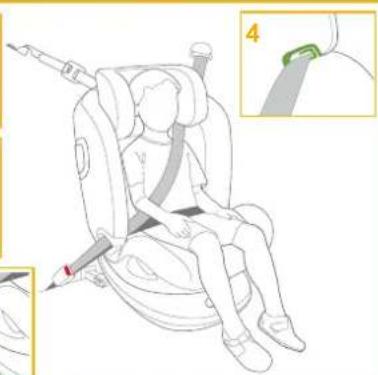

Using in the booster mode (Child height 100cm-125cm/Child weight ≤slant 25kg/3.5 - 7 years old)

see images 37 - 44

! Please install the enhanced child restraint on the vehicle seat, and then put the child in the enhanced child restraint.

! Remove the infant insert when booster mode.

37 2

38

! Store the crotch belt cover in a safe place.
! Store the buckle and harness strap along with harness strap cover in the compartment as the images shown. 40 & 41 & 42 & 43

Line drawing of a car seat with a hand adjusting the seat area, showing no text or symbols

Illustration of a hand holding a small object with an arrow indicating downward motion (no text or symbols)

Line drawing of a car interior with hand positioning and directional arrows indicating movement (no text or symbols)

Illustration of a car seat with highlighted arm positions and directional arrows (no text or symbols)

43

44 1 ✓ × 2 ✓ ×

Diagram showing a child in a car seat with a belt buckle, labeled with parts 4 and 5.

! The colors of the indicators on both ISOFIX attachments connectors should be completely green. 44-1
! The colors of the indicators on tether strap adjuster should be completely green. 44-2

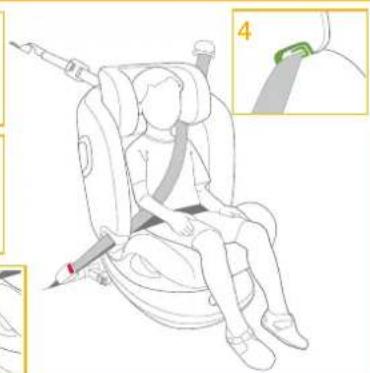

The enhanced child restraint can not be used if the vehicle safety belt buckle (female buckle end) is too long to anchor the enhanced child restraint securely. 14-3

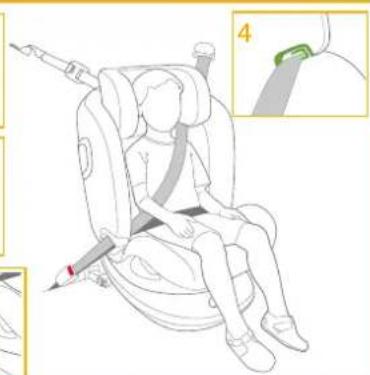

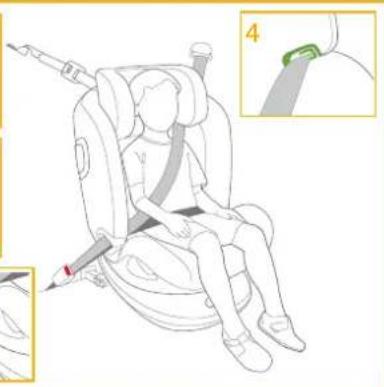

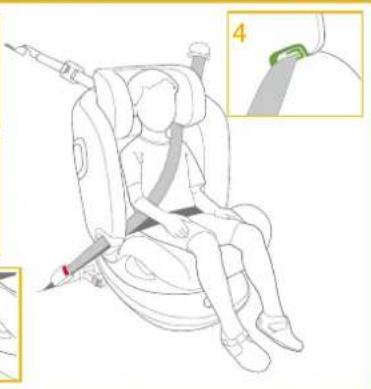

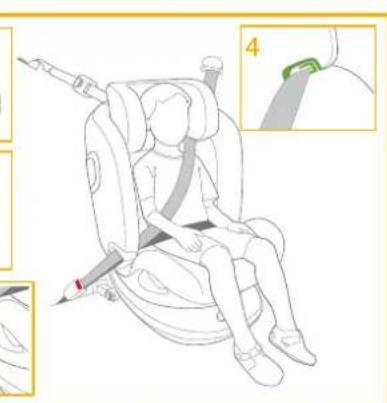

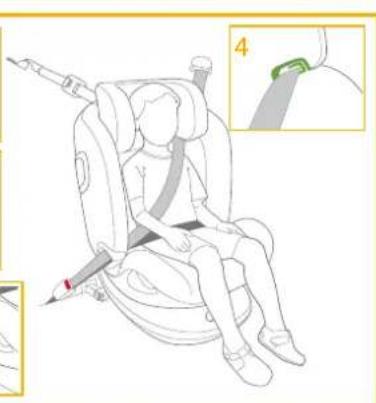

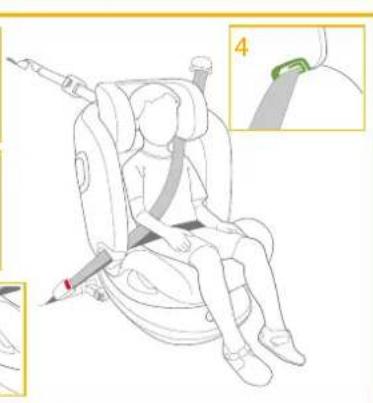

Shoulder belt must pass through shoulder belt guide. 44-4
! Check to make sure the child restraint is securely installed by pulling on the both ISOFIX connectors.

! Never use a vehicle waist-only belt across front of child.
Do not use shoulder belt loose or positioned under arm.
! Do not use shoulder belt behind child's back.
Do not allow child to slide down in the enhanced child restraint in case of strangulation.

Detach Soft Goods

see images 45 - 48

Press the red button to disengage the buckle. 45

Follow steps 46 - 48 to detach soft goods.

To re-attach the soft goods please repeat the above steps in the reverse step.

45

Illustration of a hand pressing down on a chair with directional arrows indicating motion (no text or symbols)

Line drawing of a car seat with a highlighted section and arrow indicating direction (no text or symbols)

Illustration of a person's head with arrows indicating movement or change, no text or symbols present

Care and Maintenance

! Please wash the seat cover and inner padding with cold water under 30^ C.
! Do not iron the soft goods.
! Do not bleach or dry clean the soft goods.
Do not use undiluted detergents gasoline or other organic solvent to wash the enhanced child restraint or base. It may cause damage to the enhanced child restraint.
! Do not wring out the seat cover and inner padding to dry. It may leave the seat cover and inner padding with wrinkles.
! Please hang dry the seat cover and inner padding in the shade.
! Please remove the enhanced child restraint and base from the vehicle seat if not in use for a long period of time. Put the enhanced child restraint in a cool, dry place where your child cannot access it.
! Do not tamper with the harness connectors during cleaning.

NOTE

PT

Bem-vindo à Joie™

Line drawing of a person reading a book with a pointer, against a solid orange background (no text or symbols)

Lista de componentes

Diagram of car seat components with numbered labels pointing to different sections

Technical diagram of a vehicle seat with numbered labels pointing to different components

Diagram showing a device casing with internal components and a close-up of its internal component with red indicator lights.

2

Interior view of a car seatbelt with a close-up of the seat and a 'X' symbol (no text or labels)

Interior view of a car seatbelt with a black strap and yellow checkmark indicating a location (no text or symbols on the belt)

Interior view of a train carriage seat with red markers, no visible text or symbols

6 1 2 3 4 5 6 7 1 2 3 4 5 6 7

Line drawing of a car interior showing the seat, seatbelt, and dashboard (no text or symbols)

Line drawing of a car seatbelt with a highlighted orange button (no text or symbols)

8 2 1

Illustration of a baby car seat with a hand adjusting the seat area (no text or symbols)

Two-step illustration of a baby car seat with rotation arrows indicating movement (no text or symbols)

Illustration of a person wearing a seatbelt with a diagonal band, no text or symbols present

13 1 2

Instalar a base

ver imagens 14 - 25

Simple line drawing of a tray with four hanging items and directional arrows, no text or symbols present.

15 1 2

16 CLICK 1 ✓ ×

17 ×

Line drawing of a car seat with seatbelt and seat rack (no text or symbols)

28

Illustration of a hand using a tool to lift a small object into a seat (no text or symbols present)

29

Hand holding a padlock with a lock icon, no text or symbols present

Line drawing of a car seat with seatbelt and seatbelt bands, showing directional arrows indicating movement (no text or symbols)

Illustration of a baby car seat being held, with hands adjusting the seat (no text or symbols)

36 1 ✓ × 2 ✓ ×

Illustration of a hand placing a cup into a seat with an arrow indicating motion (no text or symbols)

42

43

Illustration of a hand holding a small object with an arrow indicating downward motion, no text or symbols present

44 1 ✓ × 2 ✓ ×

Diagram showing a child's seatbelt with a numbered inset highlighting the seatbelt location.

Line drawing of a car interior with hand holding a small object, no text or symbols present

Illustration of a hand using a device to lift a seatbelt, with arrows indicating motion (no text or symbols)

Line drawing of a car seat with a highlighted section and arrow indicating direction (no text or symbols)

Illustration of a person's head in profile with arrows indicating movement or pressure (no text or symbols)

Line drawing of a car with an open book and a pointer, set against a solid orange background (no text or symbols)

Lista de piezas

Technical line drawing of a mechanical component with no visible text or symbols

Diagram showing a device with labeled components and directional arrow, likely illustrating a process or system.

2 I II III

Illustration of a car seatbelt with a numbered circle and X mark (no text or symbols on the suit itself)

Interior view of a car seatbelt with a black bandage, no text or symbols visible

Interior view of a train seat with red buttons and a yellow checkmark (no text or symbols)

6 1 2 3 4 5 6 7 1 2 3 4 5 6 7

Line drawing of a car showing the interior and exterior view of a vehicle (no text or symbols)

Line drawing of a seatbelt buckle with a highlighted belt (no text or symbols)

8 2 1

Illustration of a baby car seat with a hand adjusting the seat area (no text or symbols)

Two-step illustration of a baby seat with rotation arrows indicating movement (no text or symbols)

Ajuste de la altura

Illustration of a person sitting in a chair with a diagonal band indicating seat alignment (no text or symbols)

13 1 2

Simple line drawing of a tray with four pink triangular shapes and two yellow arrows indicating movement or movement (no text or symbols)

15 1 2

16 CLICK 1 ✓ ×

17 ×

Line drawing of a car seat assembly (no text or symbols)

28

Illustration of a hand using a seatbelt to lift a seatbelt, with arrows indicating force direction (no text or symbols)

29

Illustration of a hand holding a padlock with a yellow arrow pointing downward (no text or symbols)

Line drawing of a car seat with seatbelt and belt, showing directional arrows (no text or symbols)

Illustration of a baby car seat with a hand pointing to the seat (no text or symbols)

Line drawing of a car seatbelt with directional arrows indicating movement (no text or symbols)

36 1 ✓ × 2 ✓ ×

Illustration of a hand placing a small object into a container with an arrow indicating downward motion (no text or symbols)

41

42

43

44 1 ✓ × 2 ✓ × - -

Diagram showing a child in a car seat with a belt buckle, labeled with parts 4 and 5.

Illustration of a hand pressing down on a car seatbelt with directional arrows indicating motion (no text or symbols)

Line drawing of a car backseat with seat layers and a highlighted section (no text or symbols)

Illustration of a person's head with arrows indicating movement or force direction (no text or symbols)

Line drawing of a car seat with an open book on top, against a solid orange background (no text or symbols)

تحذیر

Technical diagram showing three-step assembly of a device with labeled components and directional arrows indicating motion.

Line drawing of a car seatbelt with a pink belt buckle and arrow indicating direction (no text or symbols)

Illustration of a hand adjusting fabric with arrows indicating movement (no text or symbols)

Interior view of a car seatbelt with a yellow 'X' symbol indicating no text or symbols on the seat (no readable text or symbols)

Interior view of a train carriage seat with red buttons and a yellow checkmark (no text or symbols)

نبيهات بشأن التركيب

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Illustration showing two containers with numbered items and symbols, possibly indicating quantities or rankings.

AIR BAG

Illustration of two children sitting on chairs, one using a pole and the other using a rod (no text or symbols)

Line drawing of a person sitting in a chair with a bandage, no text or symbols present

17 ↑ ↓

١٣ - ١١ راجع الصور

Illustration of a baby car seat with a hand adjusting the seat area (no text or symbols)

Illustration of a baby car seat with two steps showing the shift from seat to seat (no text or symbols present)

ضبط الانحناء

١٠ - ٦ راجع الصور

17 CLICK OK

Diagram showing a device with three warning symbols (red circle, red cross, gray circle) and corresponding checkmark indicators below.

Simple line drawing of a tray with four red icons and yellow arrows indicating movement or flow (no text or symbols)

Diagram illustrating car seat mounting technique with hand placement and angle measurement annotations

Y. A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

Diagram illustrating a hand holding a device with an arrow indicating the process, alongside a close-up of the device's interior components.

Illustration showing a hand pressing down on a car seat with an arrow indicating the motion, alongside a close-up of the seat's seat.

yo S310 ↓ X ✓

Illustration of a car seatbelt with orange arrows indicating rotation or movement (no text or symbols)

Illustration of a hand adjusting a belt buckle, showing motion arrows (no text or symbols)

Diagram showing a hand holding a small object with an arrow indicating motion or change, accompanied by a yellow circular icon labeled 'Y1'.

Diagram showing a toilet seat with checkmark and cross icons indicating absence or rejection status

Line drawing of a car seat with arrows indicating left and right motion (no text or symbols)

Line drawing of a baby car seat with seatbelt and seat rack (no text or symbols)

Illustration of a person's seatbelt being lifted by a hand, showing pressure points (no text or symbols)

29

تامين الطフル

Illustration of a car seat assembly showing two steps with arrows indicating motion (no text or symbols)

r2

Illustration of a baby car seat with a hand adjusting the seatbelt (no text or symbols)

Illustration of a car seat assembly showing two steps with arrows indicating motion (no text or symbols)

Illustration showing a hand holding a padlock with a downward arrow and lock icon, symbolizing a process or state change.

Line drawing of a car seat with two seats and a belt, showing no text or symbols

Diagram showing two sets of battery symbols with checkmarks and X marks, likely indicating correct and incorrect status indicators.

Line drawing of a child seated in a car seat using a lift device (no text or symbols)

Illustration of a hand holding a small object on a surface with an arrow indicating downward motion (no text or symbols)

Diagram showing a hand inserting a small object into a car seat, with arrows indicating direction of movement.

Line drawing of a car seat with a highlighted orange arrow indicating motion (no text or symbols)

Simple line drawing of a person wearing a VR headset with directional arrows indicating motion (no text or symbols)

Illustration showing a hand holding a key with a lock icon, indicating lock status or sequence

Illustration of a hand adjusting a device with directional arrows (no text or symbols)

٤٨ - ٥٥ رراجع الصور

Line drawing of a person reading a book with a pointer, set against a solid orange background (no text or symbols)

Lista componentelor

Technical diagram showing a device casing with internal components and a close-up of its internal component with red arrows indicating rotation or movement.

2 10 12

Illustration of a car seatbelt buckle with a highlighted belt (no text or symbols)

8 2 1

Reglarea înclinării

Illustration of a baby car seat with a hand adjusting the seat area (no text or symbols)

Illustration of a car seat assembly showing two steps with rotation arrows (no text or symbols)

Line drawing of a person wearing a seatbelt and neck, with no text or symbols present

13 1 2

Instalarea bazei

Simple line drawing of a tray with four red icons and yellow arrows indicating movement or flow (no text or symbols)

15 1 2

16 CLICK 1 ✓ ×

17 ×

Line drawing of a baby car seat assembly (no text or symbols)

Illustration of a hand using a belt to lift a seatbelt, showing pressure points (no text or symbols)

29

Line drawing of a car seat with belt and straps, no text or symbols present

Illustration of a baby in a car seat being lifted, with hands adjusting the seat (no text or symbols)

Diagram of a car seatbelt with directional arrows indicating movement (no text or symbols)

36

Line drawing of a child seated in a car seat using a pull-up device (no text or symbols)

Line drawing of a car seatbelt with a hand adjusting the seatbelt (no text or symbols)

Illustration of a hand holding a small object with an arrow indicating downward motion (no text or symbols)

41

Line drawing of a car seat with arrows indicating movement or movement, no text or symbols present

44 1 ✓ × 2 ✓ × - -

43

Diagram showing a child wearing a car seatbelt with a close-up of the seatbelt detail, labeled with parts 4 and 5.

Illustration of a hand using a device to lift a seatbelt, with arrows indicating motion (no text or symbols)

Line drawing of a car back seat with no text or symbols

Illustration of a person's head with arrows indicating movement or force direction (no text or symbols)

Line drawing of an open book with a pointer and a small dot, on a solid orange background (no text or symbols)

Popis dijelova

Technical diagram of a vehicle seat assembly with numbered components labeled 14, 15, 16, and 17.

UPOZORENJE

Diagram showing a device casing with internal components and a close-up of its internal component with labeled parts.

2 No ID No Anchor

Pripazite prilikom postavljanja

Interior view of a car seatbelt with a bandage, no text or symbols visible

Interior view of a car seatbelt with a black strap and yellow checkmark indicating a location (no text or symbols on the belt)

Interior view of a vehicle seat with a yellow checkmark indicating selection (no text or symbols on the seat itself)

6 1 1 2 3 4 5 6 7 2 3 4 5 6 7

Side view line drawing of a car with seatbelt and passenger seat, labeled with number 3 (no text or symbols on the diagram itself)

Upotreba zaštite od bočnog udarca

Line drawing of a car seatbelt with a highlighted seatbelt (no text or symbols)

8 2 1

Podešavanje nagiba

Illustration of a baby car seat with a hand adjusting the seat area (no text or symbols)

Illustration of a car seat assembly showing two steps with rotation arrows (no text or symbols)

Podešavanje visine

Line drawing of a person sitting in a chair with a gray bandage and a numbered circle marker (12) in the top-left corner.

13 1 2

Postavljanje baze

Diagram showing a container with four hanging items and directional arrows, no text or symbols present

15 1 2

16 CLICK 1 ✓ ×

17 ×

Simple line drawing of a shoe and a car with an arrow indicating motion (no text or symbols)

24

Line drawing of a baby car seat assembly (no text or symbols)

Illustration of a hand using a belt to lift a baby's seat (no text or symbols)

29

Line drawing of a car seat with two side seats and a belt, showing no text or symbols

Illustration of a baby in a car seat being lifted, showing the seat and hand positioning (no text or symbols)

Line drawing of a car seatbelt with directional arrows indicating movement (no text or symbols)

36 1 ✓ × 2 ✓ ×

Illustration of a hand placing a cup into a car seat with a magnified view of the cup (no text or symbols)

42

43

Illustration of a hand holding a small object with an arrow indicating downward motion (no text or symbols)

44 1 ✓ × 2 ✓ × - -

Diagram showing a person seated in a car seat with a medical device, accompanied by an instructional diagram labeled '4' pointing to the device.

41

Illustration of a hand adjusting a seatbelt with directional arrows (no text or symbols)

Line drawing of a car back seat with no text or symbols

Line drawing of a person's head with arrows indicating movement or change, no text or symbols present

Briga i održavanje

Line drawing of a car interior with an open book and a diagonal line extending from it, set against a solid orange background (no text or symbols)

Deleliste

Technical line drawing of a mechanical component with mounting holes and a highlighted section (no text or symbols)

Diagram showing a device with a highlighted internal component and a yellow arrow indicating direction (no text or symbols)

2

Diagram of a car seat assembly with labeled components and connection arrows

Interior view of a car seatbelt with no visible text or symbols

Interior view of a car seatbelt with a black strap and yellow checkmark indicating a location (no text or symbols on the belt itself)

Interior view of a vehicle seat with a yellow checkmark indicating selection (no text or symbols on the seats)

6 1 1 2 3 4 5 6 7 2 3 4 5 6 7

Line drawing of a car interior showing a passenger seat and driver, labeled with number 3 (no text or symbols on the diagram itself)

Line drawing of a seatbelt buckle with a highlighted belt (no text or symbols)

8 2 1

Ryggjustering

se bilder

Illustration of a baby car seat with a hand adjusting the seat area (no text or symbols)

Two-step line drawing of a car seat assembly, showing front and side views with no text or symbols

Høydejustering

Line drawing of a person wearing a seatbelt with a diagonal band indicating pressure or pressure (no text or symbols)

13 1 2

Installere basen

se bilder

Simple line drawing of a container with four red icons and yellow arrows indicating movement or flow (no text or symbols)

15 1 2

16 CLICK 1 ✓ ×

17 ×

Simple line drawing of a car handle and a car with a red outline, no text or symbols present

24

Line drawing of a baby car seat assembly (no text or symbols)

Illustration of a hand using a belt to lift a baby seat, with arrows indicating the motion (no text or symbols)

29

Line drawing of a car seat with straps and seatbelt, no text or symbols present

Illustration of a baby car seat with a hand adjusting the seat (no text or symbols)

Bruke til småbarn

Line drawing of a car seatbelt with directional arrows indicating movement (no text or symbols)

36 1 ✓ × 2 ✓ ×

Line drawing of a car seat with a hand adjusting the seat area, showing no text or symbols

Illustration of a hand holding a small object with an arrow indicating downward motion, no text or symbols present

41

42

43

44 1 ✓ × 2 ✓ ×

Diagram showing a child's seatbelt with a green belt buckle, labeled with parts 4 and 5, and a pencil pointing to the seat.

Illustration of a hand pressing down on a car seatbelt, showing airflow direction (no text or symbols)

Line drawing of a car seat with a highlighted section and arrow indicating direction (no text or symbols)

Line drawing of a person's head with arrows indicating movement or change, no text or symbols present

Line drawing of an open book and a chair on a yellow background (no text or symbols)

Liste des pièces

Labeled diagram of a car seat with numbered parts for identification

Technical diagram of a vehicle seat with numbered labels pointing to different components

Diagram showing a device component with highlighted internal components and directional arrows indicating movement or change.

2

Illustration of a car seatbelt with a numbered circle and X mark (no text or symbols on the suit itself)

Interior view of a car seatbelt with a black strap and yellow checkmark indicating a location (no text or symbols on the belt)

Interior view of a vehicle seat with red buttons and a yellow checkmark (no text or symbols)

6 1 2 3 4 5 6 7 1 2 3 4 5 6 7

Line drawing of a car showing a driver seated in the seat and a passenger inside, with no text or symbols present.

Illustration of a car seatbelt with a highlighted belt (no text or symbols)

8 2 1

Line drawing of a baby car seat with a hand adjusting the seat area (no text or symbols)

Illustration of a car seat assembly showing two steps with rotation arrows (no text or symbols)

Line drawing of a person seated in a chair with a seatbelt, no text or symbols present

13 1 2

Installation de la base

voir images 14 - 25

Simple line drawing of a tray with four hanging items and directional arrows, no text or symbols present.

15 1 2

16 CLICK 1 ✓ ×

17 ×

Line drawing of a baby car seat assembly (no text or symbols)

Illustration of a hand adjusting a seatbelt with arrows indicating movement (no text or symbols)

29

Line drawing of a car seat with arrows indicating rotation (no text or symbols)

36 1 ✓ × 2 ✓ ×

Illustration of a hand holding a small object with an arrow indicating downward motion (no text or symbols)

44 1 ✓ × 2 ✓ ×

Diagram showing a child in a car seatbelt with a highlighted safety clip and numbered annotation '4'

41

Illustration of a hand pressing down on a chair with arrows indicating motion (no text or symbols)

Line drawing of a car seat with measurement lines and an arrow indicating direction (no text or symbols)

Illustration of a person sitting on a chair with arrows indicating movement or pressure (no text or symbols)

Line drawing of a car with an open book and a pointer, set against a solid orange background (no text or symbols)

Onderdelenlijst

Technical line drawing of a mechanical component with no visible text or symbols

Simple line drawing of a battery connected to a device with a directional arrow (no text or symbols)

Diagram of a car seat assembly with labeled components and connection arrows

Installatiekwesties

Illustration of a car seatbelt with a numbered circle and X mark (no text or symbols on the suit itself)

Illustration of a car seatbelt buckle with a checkmark indicating the correct side view (no text or symbols on the suit itself)

Interior view of a train seat with visible seatbelt and window (no text or symbols)

6 1 2 3 4 5 6 7 1 2 3 4 5 6 7

Line drawing of a car showing a seatbelt and passenger seat, with no text or symbols present.

Illustration of a car seatbelt buckle with a highlighted belt (no text or symbols)

8 2 1

Instelling schuine stand

Illustration of a baby car seat with a hand adjusting the seat area (no text or symbols)

Illustration of a car seat assembly showing two steps with arrows indicating motion (no text or symbols)

Hoogteafstelling

Line drawing of a person sitting in a chair with a bandage, no text or symbols present

13 1 2

De voet installeren

Simple line drawing of a tray with four hanging items and directional arrows (no text or symbols)

15 1 2

16 CLICK 1 ✓ ×

17 ×

Simple line drawing of a hand holding a small object with an arrow pointing to it, no text or symbols present.

24

Line drawing of a baby car seat assembly (no text or symbols)

28

29

Line drawing of a car seat with belt and straps, no text or symbols present

Line drawing of a baby car seat with a hand pointing to the seat (no text or symbols)

Diagram showing two steps of a seatbelt buckle adjustment, labeled 1 and 2 with arrows indicating direction.

34

34

Line drawing of a car seatbelt with directional arrows indicating movement (no text or symbols)

36 1 ✓ × 2 ✓ ×

Line drawing of a car seat with a hand adjusting the seat area, no text or symbols present

Illustration of a hand placing a small object on a surface with an arrow indicating direction (no text or symbols)

Line drawing of a car interior with hand pointing to seat, no text or symbols present

42

44 1 ✓ × 2 ✓ × - -

3 ✓ ×

43

Diagram showing a child in a car seat with a belt buckle, labeled with step 4 and magnified views.

Illustration of a hand pressing down on a car seatbelt, showing airflow direction (no text or symbols)

Line drawing of a car backseat with seat layers and seatbelt, no text or symbols present

Illustration of a person's head with arrows indicating movement or force direction (no text or symbols)

Line drawing of an open book and a chair on orange background (no text or symbols)

Elenco parti

Diagram showing a device casing with internal components and a close-up of its internal component with a battery, labeled with arrows indicating motion or assembly.

2

Illustration of a car seatbelt with a numbered circle and X mark (no text or symbols on the suit itself)

Interior view of a car seatbelt with a black strap and yellow checkmark indicating a location (no text or symbols on the belt itself)

Interior view of a train seat with red painted spots, no text or symbols visible

6 1 1 2 3 4 5 6 7 2 3 4 5 6 7

Side view line drawing of a car with a seatbelt and passenger seat, labeled with number 3 (no text or symbols on the diagram itself)

Illustration of a car seatbelt with a highlighted seatbelt (no text or symbols)

8 2 1

Illustration of a baby car seat with a hand adjusting the seat area (no text or symbols)

Illustration of a car seat assembly showing two steps with rotation arrows (no text or symbols)

Line drawing of a person sitting in a chair with a seatbelt, no text or symbols present

13 1 2

Simple line drawing of a tray with four hanging items and directional arrows (no text or symbols)

15 1 2

16 CLICK 1 ✓ ×

17 ×

Simple line drawing of a shoe being cut with an arrow indicating motion (no text or symbols)

24

Line drawing of a baby car seat with seatbelt and seat rack (no text or symbols)

28

Illustration of a hand holding a car seat with two arrows indicating a step (no text or symbols present)

29

Hand holding a padlock with a lock icon, no text or symbols present

Line drawing of a car seat with yellow directional arrows indicating seat movement (no text or symbols)

Illustration of a baby car seat with a hand pointing to the seat and a downward arrow indicating pressure or change (no text or symbols present)

Diagram showing two steps of a car seat replacement, labeled 1 and 2 with arrows indicating direction of change.

Diagram showing hand holding a lock mechanism with a downward arrow and lock icon, indicating lock status or sequence.

Line drawing of a car seatbelt with directional arrows indicating movement (no text or symbols)

36 1 ✓ × 2 ✓ ×

Illustration of a hand placing a cup into a car seat with a magnified view of the cup (no text or symbols)

42

43

Illustration of a hand placing a small object into a container with an arrow indicating downward motion (no text or symbols)

44 1 ✓ × 2 ✓ ×

Diagram showing a child in a car seat with a medical device inserted, labeled with step 4 and magnified view.

41

Illustration of a hand using a device to lift a seatbelt, with arrows indicating motion (no text or symbols)

Line drawing of a car seat with a highlighted orange section, no text or symbols present

Illustration of a person's head with arrows indicating movement or force direction (no text or symbols)

Cura e manutenzione

Line drawing of a car with an open book and a pointer, set against a solid orange background (no text or symbols)

Lista över delar

Diagram showing a device casing with internal components and a close-up view of the internal component with red arrows indicating movement or change.

2 ID Anode USB

Angående installation

se bilder ③ - ⑥

Interior view of a car seatbelt with no visible text or symbols

Interior view of a car seatbelt with a black strap and yellow checkmark indicating a location (no text or symbols on the belt itself)

Interior view of a vehicle seat with a yellow checkmark indicating selection (no text or symbols on the seat itself)

6 1 ① ② 3 4 ⑤ 6 7 ① ② 3 4 ⑤ 6 7

Line drawing of a car interior showing the seat, driver, and passenger (no text or symbols)

Line drawing of a seatbelt buckle with a highlighted belt (no text or symbols)

8 2 1

Lutningsjustering

se bilder 9 - 10

Illustration of a baby car seat with a hand adjusting the seat area (no text or symbols)

Two-step illustration of a car seat assembly, showing front and side views with rotation arrows (no text or symbols)

Höjdjustering

Illustration of a person wearing a seatbelt with a diagonal band, no text or symbols present

13 1 2

Installera basen

se bilder

Simple line drawing of a tray with four red icons and yellow arrows indicating movement or flow (no text or symbols)

15 1 2

16 CLICK 1 ✓ ×

17 ×

Simple line drawing of a shoe being held by a small object, with no text or symbols present.

24

Line drawing of a baby car seat assembly (no text or symbols)

28

29

Line drawing of a car seat with belt and straps, no text or symbols present

Illustration of a baby car seat with a hand pointing to the seat (no text or symbols)

Line drawing of a car seatbelt with directional arrows indicating movement (no text or symbols)

36 1 ✓ × 2 ✓ ×

Line drawing of a car seat with a hand adjusting the seat area, no text or symbols present

Illustration of a hand holding a small object with an arrow indicating downward motion, no text or symbols present

41

Line drawing of a car seat with arrows indicating movement or movement, no text or symbols present

44 1 ✓ × 2 ✓ ×

43

Diagram showing a person seated in a car seat with a belt, accompanied by a close-up of the seatbelt detail.

Illustration of a hand holding a baby seat with arrows indicating motion (no text or symbols)

Line drawing of a car seat with no text or symbols

Illustration of a person sitting on a chair with arrows indicating movement or change (no text or symbols)

Line drawing of an open book and a chair on a yellow background (no text or symbols)

Diagram showing a device casing with internal components and a close-up of its internal component with labeled parts.

2

Interior view of a car seatbelt with no visible text or symbols

Interior view of a car seatbelt with a black strap and checkmark indicator (no text or symbols on the belt)

Interior view of a vehicle seat with a checkmark indicator (no text or symbols on the seats)

6 1 1 2 3 4 5 6 7 2 3 4 5 6 7

Line drawing of a car interior showing driver, passenger, and seat (no text or symbols)

Line drawing of a car seatbelt with a highlighted belt (no text or symbols)

8 2 1

Ρύθμιση ανάκλισης

Illustration of a car seatbelt with a hand pointing to the seat area (no text or symbols)

Two-step illustration of a car seat assembly with rotation arrows indicating motion (no text or symbols)

Line drawing of a person seated in a chair with a seatbelt, no text or symbols present

13 1↑ 2

Simple line drawing of a tray with four pink diamond-shaped objects and yellow directional arrows (no text or symbols)

15 1 2

16 CLICK 1 ✓ ×

17 ×

Line drawing of a car seat assembly (no text or symbols)

28

Illustration of a hand using a switch to lift a seatbelt, with arrows indicating the process (no text or symbols present)

29

Illustration showing a hand holding a padlock with a lock symbol, indicating lock status or locking mechanism.

Line drawing of a car seat with seatbelt and belt, showing directional arrows (no text or symbols)

Illustration of a baby car seat with a hand adjusting the seatbelt (no text or symbols)

36 1 ✓ × 2 ✓ ×

Illustration of a hand placing a seatbelt into a car seat, with no text or symbols present.

Line drawing of a car seat with highlighted areas and arrows indicating movement (no text or symbols)

43

40

44 1 ✓ × 2 ✓ ×

Diagram showing a child in a car seat with a medical device inserted, labeled with step 4

41

Illustration of a hand using a device to lift a seat, showing motion arrows (no text or symbols)

Line drawing of a car seat with a highlighted orange arrow indicating a specific side view (no text or symbols present)

Illustration of a person's seat with arrows indicating movement or force direction (no text or symbols)

Line drawing of a chair with an open book and a pointer, against a solid yellow background (no text or symbols)

Lista części

Diagram showing a device casing with internal components and a close-up of its internal component with red indicator lights.

2 No 1 No 2

Interior view of a car seatbelt with a bandage, no text or symbols visible

Interior view of a car seatbelt with a black strap and checkmark indicator (no text or symbols on the belt)

Interior view of a train carriage seat with a checkmark indicating selection (no text or symbols on the seats)

6 1 2 3 4 5 6 7 1 2 3 4 5 6 7

Line drawing of a car showing the interior seat and driver seat, labeled with number 3 (no text or symbols on the diagram itself)

Line drawing of a seatbelt buckle with a highlighted belt (no text or symbols)

8 2 1

Illustration of a baby car seat with a hand adjusting the seat area (no text or symbols)

Illustration of a car seat assembly showing two steps with rotation arrows (no text or symbols)

Line drawing of a person wearing a seatbelt and neck, with a diagonal band indicating the seat (no text or symbols)

13 1 2

Instalacja podstawy

Simple line drawing of a tray with four pink diamond-shaped objects and yellow directional arrows, no text or symbols present.

15 1 2

16 CLICK 1 ✓ × ① ②

17 × ↓ ↓ ✓

Illustration of a hand holding a small object with an arrow pointing to it, no text or symbols present

24

Line drawing of a baby car seat assembly (no text or symbols)

Illustration of a hand using a belt to lift a seatbelt, showing force application (no text or symbols)

29

Line drawing of a car seat with arrows indicating clockwise motion (no text or symbols)

Illustration of a baby car seat with a hand adjusting the seat (no text or symbols)

36 1 ✓ × 2 ✓ ×

Line drawing of a car seat with highlighted seatbelt area and directional arrows (no text or symbols)

43

Illustration of a hand placing a small object on a surface with an arrow indicating direction (no text or symbols)

44 1 ✓ × 2 ✓ ×

Diagram showing a child in a car seat with a medical device inserted, labeled with step 4 and magnified detail.

41

Illustration of a hand using a tool to lift a small object, with arrows indicating motion (no text or symbols)

Line drawing of a car seat with a highlighted section and number 47 (no text or symbols on the diagram itself)

Illustration of a person's seat with arrows indicating movement or force (no text or symbols)

Line drawing of a car with an open book and a pointer, set against a solid orange background (no text or symbols)

Seznam dílů

Diagram showing a device casing with internal components and a close-up view of its internal structure with labeled parts.

2 ID Ansh Gear

Illustration of a car seatbelt with a numbered circle and X mark (no text or symbols on the suit itself)

Interior view of a car seatbelt with a black strap and yellow checkmark indicating a location (no text or symbols on the belt)

Interior view of a vehicle seat with red buttons and a yellow checkmark (no text or symbols)

6 1 2 3 4 5 6 7 1 2 3 4 5 6 7

Line drawing of a car interior showing driver seat and passenger seat, labeled with number 3 (no text or symbols on the diagram itself)

Line drawing of a car seatbelt with a highlighted belt (no text or symbols)

8 1 2

Nastavení sklonu

viz obrázky \$ - 10

Illustration of a baby car seat with a hand adjusting the seat area (no text or symbols)

Illustration of a car seat assembly with two steps showing seat movement (no text or symbols)

Line drawing of a person wearing a seatbelt and neck, with no text or symbols present

13 1 2

Instalace základny

viz obrázky 14 - 25

Diagram showing a container with four red icons and yellow arrows indicating movement or flow (no text or symbols)

15 1 2

16 CLICK 1 ✓ ×

17 ×

Simple line drawing of a hand holding a small object with an arrow pointing to it, no text or symbols present.

24

Line drawing of a car seat assembly (no text or symbols)

28

Illustration of a hand pressing down on a seatbelt with arrows indicating force or pressure (no text or symbols)

29

Hand holding a padlock with a lock icon, no text or symbols present

Line drawing of a car seatbelt with yellow directional arrows indicating seat movement (no text or symbols)

Line drawing of a car seat assembly with an orange arrow indicating the seatbelt (no text or symbols present)

Line drawing of a car seatbelt with a yellow arrow indicating direction (no text or symbols)

34

34

36 1 ✓ × 2 ✓ ×

Line drawing of a car seatbelt with a hand adjusting the seatbelt (no text or symbols)

Illustration of a hand holding a small object with an arrow indicating downward motion, no text or symbols present

Line drawing of a car interior with hand pointing to seat, no text or symbols present

Line drawing of a car seat with arrows indicating movement or movement, no text or symbols present

44 1 ✓ × 2 ✓ ×

43

Diagram showing a child seated in a car seat with a belt buckle, labeled with step 4 and a green tag.

Illustration of a hand pressing down on a chair seat with directional arrows indicating motion (no text or symbols)

Line drawing of a car seat with no text or symbols

Line drawing of a seated person with arrows indicating movement or force direction (no text or symbols)

Péče a údržba

Line drawing of a car with an open book and a pointer, set against a solid orange background (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Simple line drawing of a device with a battery and a switch, no text or symbols present

2

Interior view of a car seatbelt with a highlighted 'X' symbol (no text or labels)

Interior view of a car seatbelt with a black strap and checkmark indicator (no text or symbols on the belt)

Interior view of a train seat with white seats and a yellow checkmark (no text or symbols)

6 1 2 3 4 5 6 7 1 2 3 4 5 6 7

Line drawing of a car showing the interior and exterior view of a seatbelt (no text or symbols)

Line drawing of a car seatbelt with a highlighted belt (no text or symbols)

8 2 1

Nastavenie sklonu

Illustration of a baby car seat with a hand adjusting the seat area (no text or symbols)

Illustration of a car seat with two side views showing seat positioning and rotation arrows (no text or symbols)

Line drawing of a person sitting in a chair with a seatbelt and diagonal band, no text or symbols present

13 1↑ 2↓

Inštalácia základne

Simple line drawing of a tray with four pink triangular shapes and yellow directional arrows (no text or symbols)

15 1 2

16 CLICK 1 ✓ ×

17 ×

! Znova stlačte nastavovacie tlačidlá ISOFIX, pričom zatlačte zadnú stranu sedačky tak, aby sa dostala do kontaktu s operadlom sedadla vozidla. ^18

18 1 2

Line drawing of a baby car seat assembly (no text or symbols)

28

29

Line drawing of a car seat with arrows indicating rotation (no text or symbols)

Illustration of a baby car seat with a hand adjusting the seatbelt, showing a finger insertion (no text or symbols)

36 1 ✓ × 2 ✓ ×

Line drawing of a car seat with a hand adjusting the seat area, no text or symbols present

Illustration of a hand placing a small object on a surface with an arrow indicating downward motion (no text or symbols)

Line drawing of a car interior with hand pointing to seat, no text or symbols present

42

44 1 ✓ × 2 ✓ × - -

43

Diagram showing a child seated in a car seat with a device attached, labeled with number 4 and a green tag.

Illustration of a hand inserting a device into a seatbelt, with arrows indicating motion (no text or symbols)

Line drawing of a car seat with a highlighted section and arrow indicating direction (no text or symbols)

Illustration of a person's head in profile with arrows indicating movement or force (no text or symbols)

Line drawing of a person reading a book with a pointer, set against a solid orange background (no text or symbols)

Seznam delov

Prepričajte se, da noben del ne manjka. Če kar koli manjka, se obrnite na prodajalca.

Diagram showing a device casing with internal components and a close-up of its internal component with directional arrows indicating rotation.

2 ID anchor 01

Interior view of a car seatbelt with a bandage, no text or symbols visible

Interior view of a car seatbelt with a black strap and yellow checkmark indicating a location (no text or symbols on the belt itself)

Interior view of a train seat with a yellow checkmark indicating selection (no text or symbols on the seat itself)

6 1 1 1 2 3 4 5 6 7 2 3 4 5 6 7

Line drawing of a car showing the interior seat and driver seat, labeled with number 3 (no text or symbols on the diagram itself)

Line drawing of a seatbelt buckle with a highlighted belt (no text or symbols)

8 2 1

Nastavitev naklona

Glejte slike 9 - 10

Stisnite gumb za nastavitev naklona 9, da sistem za zadrževanje otrok nastavite v pravilen položaj. Koti nagiba so prikazani na sliki 10.

Načini za dojenčka, malčka in otroka imajo 6 položajev naklona.

Illustration of a baby car seat with a hand adjusting the seat area (no text or symbols)

Illustration of a car seat assembly showing two steps with rotation arrows (no text or symbols)

Nastavljanje višine opore za glavo in ramenskih varnostnih pasov

Glejte slike 11 - 13

Line drawing of a person sitting in a chair with a seatbelt, no text or symbols present

13 1 2

Namestitev podnožja

Glejte slike

Simple line drawing of a device with four red triangular symbols and yellow directional arrows (no text or labels)

15

1 2

! Zagotovite, da sta oba prikazovalnika priključkov ISOFIX varno pritrjena v svoji pritrdilni točki ISOFIX. Barve indikatorjev na obeh priključkih ISOFIX morajo biti popolnoma zelene. 16
! Povlecite oba priključka ISOFIX, da zagotovite, da sta varno priključena.
! Zagotovite, da se oba indikatorja LED ISOFIX izključita, potem ko sta priključka ISOFIX priklopljena. Vsak LED prikazuje, ali je priključek ISOFIX na isti strani pravilno priključen ali ne. ^17

16 CLICK 1 ✓ ×

17 ×

Illustration of a hand holding a small object with an arrow pointing to it, no text or symbols present

24 ✓ ×

Line drawing of a baby car seat assembly (no text or symbols)

Illustration of a hand holding a baby seat with a pink bandage and arrows indicating force or pressure (no text or symbols)

29

Line drawing of a car seat with belt and straps, no text or symbols present

Illustration of a baby car seat with a hand adjusting the seat area (no text or symbols)

Diagram of a car seatbelt with directional arrows indicating movement (no text or symbols)

36

Line drawing of a child seated in a car seat using a pull-up device (no text or symbols)

Line drawing of a car seat assembly with an arrow indicating the seatbelt (no text or symbols present)

Line drawing of a car seat with a yellow arrow indicating direction (no text or symbols)

38

38

Line drawing of a car seatbelt with a hand adjusting the seatbelt (no text or symbols)

40

41

42

44 1 ✓ × 2 ✓ × - -

43

Diagram showing a person seated in a car seat with a green safety belt, labeled with number 4

Illustration of a hand holding a car seatbelt with directional arrows indicating motion (no text or symbols)

Line drawing of a car seat with a highlighted orange arrow indicating a specific side view (no text or symbols present)

Diagram of a seated person with arrows indicating movement or force direction (no text or symbols)

Nega in vzdrževanje

Line drawing of a car with an open book and a pointer, set against a solid orange background (no text or symbols)

Parça Listesi

Diagram showing a device casing with internal components and a close-up of its internal component with red indicator lights.

2

Interior view of a car seatbelt with no visible text or symbols

Interior view of a car seatbelt with a black belt buckle, no text or symbols visible

Interior view of a train seat with visible seatbelt and window (no text or symbols)

6 1 ① ② 3 4 ⑤ 6 7 ① ② 3 4 ⑤ 6 7

Line drawing of a car interior showing a passenger seat and driver, labeled with number 3 (no text or symbols on the diagram itself)

Line drawing of a seatbelt buckle with a highlighted belt (no text or symbols)

8 2 1

Yatırma Ayarı

bkz. resim ⑨ - ⑩

Illustration of a baby car seat with a hand adjusting the seat area (no text or symbols)

Illustration of a car seat with two side views showing seat positioning and rotation arrows (no text or symbols)

Line drawing of a person sitting in a chair with a seatbelt, no text or symbols present

13 1 2

Tabani Takma

bkz. resim 14 - 25

Simple line drawing of a box with four red icons and yellow arrows indicating movement or flow (no text or symbols)

15 1 2

16 CLICK 1 ✓ ×

17 ×

Illustration of a hand holding a small object with an arrow pointing to it, no text or symbols present

24

Line drawing of a baby car seat with seatbelt and seat rack (no text or symbols)

28

Illustration of a hand adjusting a seatbelt with arrows indicating force or pressure (no text or symbols)

29

Hand holding a padlock with a lock icon, no text or symbols present

Line drawing of a car seat with belt and seatbelt, showing directional arrows indicating movement (no text or symbols)

Illustration of a baby car seat with a hand adjusting the seatbelt, no text or symbols present

Line drawing of a car seatbelt with directional arrows indicating movement (no text or symbols)

36

Line drawing of a child seated in a car seat using a pull-up device (no text or symbols)

Line drawing of a car seat assembly with an arrow indicating the seat area (no text or symbols)

Line drawing of a car seat with a yellow arrow indicating direction (no text or symbols)

38

38

Illustration of a hand placing a cup into a seat with an upward arrow, no text or symbols present

42

43

Illustration of a hand holding a small object with an arrow indicating downward motion, no text or symbols present

44 1 ✓ × 2 ✓ ×

Diagram showing a child in a car seat with a green safety clip attached, labeled with number 4

41

Illustration of a hand inserting a plug into a seatbelt, with arrows indicating direction (no text or symbols)

Line drawing of a car back seat with a highlighted orange arrow indicating the seat area (no text or symbols)

Line drawing of a person's head in profile with arrows indicating motion or movement (no text or symbols)

Bakım ve Koruma

Line drawing of a person reading a book with a pointer, set against a solid orange background (no text or symbols)

Diagram showing a device casing with internal components and a close-up of its internal component with labeled parts and directional arrows.

2 ID Ansh

Interior view of a car seatbelt with a bandage, no text or symbols visible

Interior view of a car seatbelt with a black strap and yellow checkmark indicating a location (no text or symbols on the belt itself)

Interior view of a train seat with a yellow checkmark indicating selection (no text or symbols on the seat itself)

6 1 1 1 2 3 4 5 6 7 2 3 4 5 6 7

Line drawing of a car interior showing the seat and driver seat, labeled with number 3 (no text or symbols on the diagram itself)

Line drawing of a car seatbelt with a highlighted orange tag and arrow (no text or symbols)

8 2 1

Регулировка наклона

См. рисунки 9 - 10

Illustration of a baby car seat with a hand adjusting the seat area (no text or symbols)

Illustration of a car seat assembly with two steps showing seat movement (no text or symbols)

Illustration of a person wearing a seatbelt and necktie, with no text or symbols present.

13 1 2

Установка основания

См. рисунки 14 - 25

Simple line drawing of a box with four red icons and yellow arrows indicating movement or flow (no text or symbols)

15 1 2

16 CLICK 1 ✓ ×

17 ×

Line drawing of a baby car seat assembly (no text or symbols)

28

29

Line drawing of a car seat with arrows indicating rotation (no text or symbols)

Illustration of a baby car seat with hands adjusting the seat (no text or symbols)

Line drawing of a car seatbelt with directional arrows indicating movement (no text or symbols)

36 1 ✓ × 2 ✓ ×

Illustration of a hand holding a small object with an arrow indicating downward motion (no text or symbols)

44 1 ✓ × 2 ✓ ×

Diagram showing a child in a car seatbelt with a highlighted safety clip labeled '4'

41

Illustration of a hand pressing down on a car seat with directional arrows indicating motion (no text or symbols)

Line drawing of a car seat with a highlighted section and number 47 (no text or symbols on the diagram itself)

Illustration of a person's head with arrows indicating movement or change, no text or symbols present

Уход за изделием

Line drawing of a car with an open book and a pointer, set against a solid orange background (no text or symbols)

Liste over dele

Kontroller, at der ikke mangler nogen dele. Kontakt venligst din forhandler, hvis noget mangler.

Technical line drawing of a mechanical component with no visible text or symbols

Simple line drawing of a device with a battery and a screen, no text or symbols present

2

Interior view of a car seatbelt with a bandage, no text or symbols visible

Interior view of a car seatbelt with a black strap and yellow checkmark indicating a location (no text or symbols on the belt)

Interior view of a vehicle seat with two red buttons and a yellow checkmark (no text or symbols)

6 1 1 2 3 4 5 6 7 2 3 4 5 6 7

Side view line drawing of a car with a seat and passenger seat, labeled with number 3 (no text or symbols on the diagram itself)

Brug sideskærmen

Se billederne 7 - 8

Line drawing of a car seatbelt with a highlighted orange tag and arrow (no text or symbols)

8 2 1

Illustration of a baby car seat with a hand adjusting the seat area (no text or symbols)

Illustration of a baby car seat with two side views showing seat positioning and rotation arrows (no text or symbols)

Line drawing of a person sitting in a chair with a seatbelt, no text or symbols present

13 1 2

Montering af bunden

Simple line drawing of a tray with four hanging items and directional arrows, no text or symbols present.

15 1 2

16 CLICK 1 ✓ ×

17 ×

Line drawing of a car seat assembly (no text or symbols)

28

Illustration of a hand performing a seatbelting technique with arrows indicating force or pressure (no text or symbols)

29

Hand holding a padlock with arrows indicating lock mechanism (no text or symbols)

Line drawing of a car seat with directional arrows indicating seat movement (no text or symbols)

Illustration of a baby in a car seat with a hand pointing to the seat (no text or symbols)

Line drawing of a car seat assembly with an orange arrow indicating the seat area (no text or symbols present)

Line drawing of a car seat with a yellow arrow indicating direction (no text or symbols)

34

Diagram showing hand holding a lock mechanism with a downward arrow and lock icon, indicating lock state or sequence.

Diagram of a car seatbelt with directional arrows indicating movement (no text or symbols)

36

Line drawing of a child seated in a car seat using a pull-up device (no text or symbols)

Line drawing of a car seatbelt with an orange arrow indicating the seatbelt (no text or symbols present)

Line drawing of a car seatbelt with a yellow arrow indicating direction (no text or symbols)

38

38

Illustration of a hand holding a small object with an arrow indicating downward motion (no text or symbols)

44 1 ✓ × 2 ✓ ×

Diagram showing a child in a car seatbelt with a highlighted safety clip labeled '4'

41

Illustration of a hand adjusting a seatbelt with directional arrows indicating motion (no text or symbols)

Line drawing of a car seat with a highlighted orange arrow indicating a specific side view (no text or symbols present)

Diagram of a person's head and shoulders with directional arrows indicating movement or force (no text or symbols)

Line drawing of a car with an open book and a pointer, set against a solid orange background (no text or symbols)

Alkatrészek listája

Diagram showing a device casing with internal components and a close-up of its internal structure with directional arrows indicating movement or force.

2 3D A B

Szerelési útmutatók

Interior view of a car seatbelt with a yellow X mark indicating no text or symbols on the seatbelt.

Interior view of a car seatbelt with a black strap and checkmark indicator (no text or symbols on the belt)

Interior view of a vehicle seat with two seats and a checkmark indicator (no text or symbols on the seats)

6 1 ① ② 3 4 ⑤ 6 7 ① ② 3 4 ⑤ 6 7

Line drawing of a car interior showing a passenger seat and driver, labeled with number 3 (no text or symbols on the diagram itself)

Line drawing of a car seatbelt with a highlighted orange belt (no text or symbols)

8 2 1

Döntés állítás

Line drawing of a baby car seat with a hand adjusting the seat area (no text or symbols)

Illustration of a car seat assembly showing two steps with rotation arrows (no text or symbols)

Line drawing of a person seated in a chair with a seatbelt, no text or symbols present

13 1↑ 2

Az alap szerelése

Simple line drawing of a box with four hanging items and directional arrows (no text or symbols)

15 1 2

16 CLICK 1 ✓ ×

17 ×

Line drawing of a baby car seat with seatbelt and seat rack (no text or symbols)

28

Illustration of a hand performing a seatbelting technique with arrows indicating force or pressure (no text or symbols)

29

Illustration of a hand holding a padlock with a red object, no text or symbols present

Line drawing of a car seat with seatbelt and belt, showing directional arrows indicating movement (no text or symbols)

Illustration of a baby car seat with a hand adjusting the seatbelt, showing no text or symbols.

Line drawing of a car seatbelt with directional arrows indicating movement (no text or symbols)

36

Line drawing of a child seated in a car seat using a pull-up device (no text or symbols)

Line drawing of a car seat assembly with an arrow indicating the seat area (no text or symbols present)

Line drawing of a mechanical device with a numbered arrow indicating direction (no text or symbols)

38

38

Line drawing of a car seatbelt with a hand adjusting the seatbelt (no text or symbols)

42

43

Illustration of a hand placing a small object into a container with an arrow indicating downward motion (no text or symbols)

44 1 ✓ × 2 ✓ ×

Diagram showing a child in a car seat with a highlighted seatbelt, labeled with number 4

Line drawing of a car interior with hand placing a pink object on the seat, no text or symbols present

Illustration of a hand using a device to lift a seatbelt, with arrows indicating motion (no text or symbols)

Line drawing of a car seat with a highlighted side panel and arrow indicating rotation (no text or symbols)

Illustration of a person's head with arrows indicating movement or force direction (no text or symbols)

Line drawing of a car with an open book and a pointer, set against a solid orange background (no text or symbols)

Osad

Diagram of a vehicle chassis frame with a highlighted rectangular component and an arrow indicating rotation (no text or symbols)

Diagram showing a device with a highlighted component and directional arrow, likely indicating a process or signal flow.

2

Interior view of a car seatbelt with no visible text or symbols

Interior view of a car seatbelt with a black bandage, no text or symbols visible

Interior view of a vehicle seat with a highlighted safety checkmark (no text or symbols)

6 1 ① ② 3 4 ⑤ 6 7 ① ② 3 4 ⑤ 6 7

Line drawing of a car interior showing a passenger seat and driver, labeled with number 3 (no text or symbols on the diagram itself)

Line drawing of a seatbelt buckle with a highlighted belt (no text or symbols)

8 2 1

Kalde reguleerimine

vt pilte 9 - 10

Illustration of a baby car seat with a hand adjusting the seat area (no text or symbols)

Illustration of a car seat assembly showing two steps with rotation arrows (no text or symbols)

Illustration of a person wearing a seatbelt and necktie, with a diagonal band indicating the seat (no text or symbols)

Simple line drawing of a tray with four pink diamond-shaped objects and yellow directional arrows (no text or symbols)

15 1 2

16 CLICK 1 ✓ ×

17 ×

Simple line drawing of a shoe being adjusted to a small object, with no text or symbols present.

24

Line drawing of a baby car seat with seatbelt and side arm (no text or symbols)

28

Illustration of a hand inserting a plug into a seatbelt, with arrows indicating force direction (no text or symbols)

29

Illustration showing a hand holding a padlock with a downward arrow and lock symbol, indicating a process or state change.

Line drawing of a car seat with seatbelt and belt, showing directional arrows (no text or symbols)

Illustration of a baby car seat with a hand adjusting the seat (no text or symbols)

Diagram of a car seatbelt with directional arrows indicating movement (no text or symbols)

36

Line drawing of a child seated in a car seat using a pull-up device (no text or symbols)

Line drawing of a car seatbelt with an orange arrow indicating the seatbelt opening (no text or symbols present)

Line drawing of a car seatbelt with a yellow arrow indicating direction (no text or symbols)

38

38

Illustration of a hand inserting a plug into a car seat, with no text or symbols present

42

43

Illustration of a hand placing a small object on a surface with an arrow indicating direction (no text or symbols)

44 1 ✓ × 2 ✓ ×

Diagram showing a child in a car seat with a green belt and numbered annotation '4' pointing to the seat.

41

Illustration of a hand holding a device with directional arrows indicating motion (no text or symbols)

Line drawing of a car seat with a highlighted section and arrow indicating direction (no text or symbols)

Line drawing of a seated human head with arrows indicating motion or movement (no text or symbols)

Line drawing of a car with an open book and a pointer, set against a solid orange background (no text or symbols)

Osaluettelo

Diagram showing a device casing with internal components and a close-up view of its internal component with directional arrows indicating rotation.

2 ID Anode Weight

Interior view of a car seatbelt with no visible text or symbols

Interior view of a car seatbelt with a black bandage, no text or symbols visible

Interior view of a train carriage seat with a checkmark indicator (no text or symbols on the seats)

6 1 ① ② 3 4 ⑤ 6 7 ① ② 3 4 ⑤ 6 7

Line drawing of a car interior showing a passenger seat and driver, labeled with number 3 (no text or symbols on the diagram itself)

Line drawing of a seatbelt buckle with a highlighted belt (no text or symbols)

8 2 1

Kallistuksen säätö

katso kuvat Ⓞ - 10

Illustration of a baby car seat with a hand adjusting the seat area (no text or symbols)

Illustration of a car seat assembly showing two steps with rotation arrows (no text or symbols)

Korkeuden asetus

Illustration of a person wearing a seatbelt with a diagonal band, no text or symbols present

13 1 2

Alustan asentaminen

katso kuvat 14 - 25

Simple line drawing of a container with four red icons and yellow arrows indicating movement or flow (no text or symbols)

15 1 2

16 CLICK 1 ✓ ×

17 ×

Illustration of a hand holding a small object with an arrow pointing to it, no text or symbols present

24

Line drawing of a baby car seat with seatbelt and seat rack (no text or symbols)

Illustration of a hand using a belt switch to lift a baby (no text or symbols present)

29

Line drawing of a car seat with belt and straps, no text or symbols present

Illustration of a baby car seat with a hand adjusting the seatbelt (no text or symbols)

Diagram of a car seatbelt with directional arrows indicating movement (no text or symbols)

36

Line drawing of a child seated in a car seat using a handheld device (no text or symbols)

Line drawing of a car seat assembly with an orange arrow indicating a specific seat (no text or symbols present)

Line drawing of a car seatbelt with a yellow arrow indicating direction (no text or symbols)

38

38

Illustration of a hand placing a small object into a container with an arrow indicating downward motion (no text or symbols)

44 1 ✓ × 2 ✓ ×

Diagram showing a child in a car seatbelt with a highlighted safety clip and numbered annotation '4'

Line drawing of a hand placing a small object on a chair seat, with arrows indicating motion (no text or symbols)

Illustration of a hand pressing down on a chair with arrows indicating motion (no text or symbols)

Line drawing of a car seat with a highlighted section and arrow indicating direction (no text or symbols)

Illustration of a person's head in profile with arrows indicating movement or force direction (no text or symbols)

Line drawing of a car with an open book and a pointer, set against a solid orange background (no text or symbols)

Dalių sąrašas

Diagram showing a device component with highlighted internal components and directional arrows indicating movement or change.

2 ID anchor

Montavimo problemas

Žr. pav. ③ - ⑥

Interior view of a car seatbelt with no visible text or symbols

Interior view of a car seatbelt with a black bandage, no text or symbols visible

Interior view of a vehicle seat with a yellow checkmark indicating a location (no text or symbols on the seats)

6 1 ① ② 3 4 ⑤ 6 7 ① ② 3 4 ⑤ 6 7

Line drawing of a car showing interior compartments and seat, with no text or symbols present.

Line drawing of a car seatbelt buckle with a highlighted belt (no text or symbols)

8 2 1

Atlošo reguliavimas

Žr. pav. 9 - 10

Line drawing of a baby car seat with a hand holding the seat, no text or symbols present

Illustration of a car seat assembly showing two steps with rotation arrows (no text or symbols)

Line drawing of a person sitting in a chair with a bandage, no text or symbols present

13 1 2

Pagrindo montavimas

Žr. pav.14 - 25

Simple line drawing of a container with four red icons and yellow arrows indicating movement or flow (no text or symbols)

15 1 2

16 CLICK 1 ✓ ×

17 ×

Line drawing of a car seat assembly (no text or symbols)

28

Illustration of a hand using a bandage to lift a seatbelt, with arrows indicating force direction (no text or symbols)

29

Diagram showing hand holding a device with a lock icon, indicating lock status or sequence

Line drawing of a car seat with seatbelt and belt, showing directional arrows indicating movement (no text or symbols)

Illustration of a baby car seatbelt being adjusted for a person's seatbelt (no text or symbols present)

Line drawing of a car seatbelt with directional arrows indicating movement (no text or symbols)

36 1 ✓ × 2 ✓ ×

Line drawing of a car seat with a hand adjusting the seat area, no text or symbols present

42

43

Illustration of a hand placing a small object into a container with an arrow indicating downward motion (no text or symbols)

44 1 ✓ × 2 ✓ ×

Diagram showing a child in a car seat with a green belt buckle, labeled with number 4

41

Illustration of a car seatbelt with arrows indicating motion (no text or symbols)

Line drawing of a car seat with a highlighted orange arrow indicating a specific side view (no text or symbols present)

Illustration of a person's head in profile with arrows indicating movement or pressure direction (no text or symbols)

Line drawing of a person reading a book with a pointer, set against a solid orange background (no text or symbols)

Detalu saraksts

Diagram showing a device casing with internal components and a close-up of its internal component with labeled parts.

2

Illustration of a car seatbelt with a yellow X mark indicating no text or symbols on the seat (no text or symbols present)

Illustration of a car seatbelt buckle with a checkmark indicating selection (no text or symbols)

Interior view of a train seat with white seats and a yellow checkmark (no text or symbols)

6 1 1 2 3 4 5 6 7 2 3 4 5 6 7

Side view line drawing of a car with two people inside, one seated and one standing, labeled with number 3 (no text or symbols on the diagram itself)

Line drawing of a seatbelt buckle with a highlighted pocket (no text or symbols)

8 2 1

Illustration of a baby car seat with a hand adjusting the seat area (no text or symbols)

Illustration of a car seat assembly showing two steps with rotation arrows (no text or symbols)

Line drawing of a person sitting in a chair with a bandage, no text or symbols present

13 1 2

Simple line drawing of a tray with four red icons and yellow arrows indicating movement or flow (no text or symbols)

15 1 2

16 CLICK 1 ✓ ×

17 ×

Line drawing of a baby car seat with seatbelt and side arm (no text or symbols)

28

Illustration of a hand holding a seatbelt with two arrows indicating force or movement (no text or symbols)

29

Diagram showing hand holding a lock mechanism with directional arrow and lock symbol

Line drawing of a car seat with directional arrows indicating motion (no text or symbols)

Illustration of a baby car seat with a hand adjusting the seat (no text or symbols)

Line drawing of a car seatbelt with directional arrows indicating movement (no text or symbols)

36 1 ✓ × 2 ✓ ×

Illustration of a hand holding a small object with an arrow indicating downward motion, no text or symbols present

44 1 ✓ × 2 ✓ ×

Diagram showing a child in a car seat with a green tag labeled '4' pointing to the seat area.

41

Illustration of a car seatbelt with directional arrows indicating motion (no text or symbols)

Line drawing of a car seat with a highlighted orange arrow indicating a specific side view (no text or symbols present)

Illustration of a person's head with arrows indicating movement or pressure direction (no text or symbols)

Allison Baby UK Ltd, Venture Point, Towers Business Park Rugeley, Staffordshire, WS15 1UZ

NUNA International B.V. Van der Valk Bourmanweg 178 C, 2352 JD Leiderdorp, The Netherlands
