USER MANUAL i-Spin 360 Max Joie

enhanced child restraint

GB Instruction Manual

Icon depicting a person sitting on a chair next to an adult, enclosed in a rounded square frame (no text or symbols)

ECE R129/03: i-Size

Line drawing of a baby car seat with no text or symbols

1 CLICK

2 2 1

Diagram of a human head with a highlighted anatomical structure and an arrow indicating upward motion (no text or symbols)

Illustration of a hand pressing down on a small object in a car seat (no text or symbols)

Simple line drawing of a child holding a long rod, no text or symbols present

Illustration of a person viewed from behind holding a long rod, with a red band indicating the shoulder (no text or symbols)

Illustration of a baby car seat with two steps showing body positioning and rotation (no text or symbols)

10

Line drawing of a person seated in a chair with a dashed line indicating measurement or alignment (no text or symbols)

Illustration of a hand pressing down on a pink object with an arrow indicating motion (no text or symbols)

Illustration of a baby car seat with a hand operating the seat, showing a yellow arrow indicating motion (no text or symbols)

12 2 1

13 CLICK 1 ✓ ✗ 2 ✓ ✗ 3 ↑

Line drawing of a baby car seat with a highlighted section and arrow (no text or symbols)

18 2 1 1.00

14 2 1

1 ✓ ✗ 2 3

19

Line drawing of a car seat with arrows indicating seat positions (no text or symbols)

15 2 ↑1

Line drawing of a car seat with a highlighted orange arrow indicating the seat area (no text or symbols present)

21 CLICK

Illustration of a baby car seat being lifted by a hand, showing the seat and seat positioning (no text or symbols)

23 CLICK

Line drawing of a baby car seat with an arrow indicating direction (no text or symbols)

29

Anatomical illustration of a spinal cord with an arrow indicating a specific area (no text or labels present)

Line drawing of a baby car seat assembly (no text or symbols)

30 2 1 ✓ X

31 I1 I2 CLICK

26 2 1

27

2 1 ✓ X

32 2 1

33

Line drawing of a car seatbelt with an upward arrow indicating motion (no text or symbols)

37 2 1

Line drawing of a car seat with seatbelt and seat, no text or symbols present

35

36 1 3 2 3

39 1 2 Optional to use ✓ × 3 ✓ ×

40 41

Line drawing of a garment with a patterned collar and belt, showing rotation arrows (no text or symbols)

43 2 1

Line drawing of a baby car seat with a folded seat and seatbelt, no text or symbols present

Diagram of a medical procedure showing a surgical tool inserted into a patient's neck (no text or labels)

44

Line drawing of a car seat with an upward arrow indicating motion (no text or symbols)

Line drawing of a baby pelvic seat with a highlighted arrow indicating motion (no text or symbols)

Simple line drawing of a device with an arrow indicating motion (no text or symbols)

Line drawing of a car seat with two highlighted seats (no text or symbols)

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Line drawing of a baby car seat with a highlighted arrow indicating a specific seat area (no text or symbols present)

Line drawing of a car seatbelt with an arrow indicating the seat area (no text or symbols)

GB

Welcome to Joie™

You have purchased a high quality, fully certified child safety child restraint. This product is suitable for the use of children with height up to 150cm.

Carefully read this Instruction Manual and follow the installing steps because this is the ONLY way to protect your child from serious injury or death in case of an accident, and to provide comfort to your child while using this product.

Keep this instruction manual for future reference.

Please confirm

To use this Joie enhanced child restraint with the i-Size ISOFIX connections according to the UN Regulation No.129, your child must meet the following requirements.

Rear Facing: Child height 40cm-105cm/ Child weight≤19kg;

Forward Facing: Child age ≥ 15m/ Child height 76cm-105cm/ Child weight ≤ 19kg;

Booster: Child height 100cm-150cm;

Please read all the instructions in this manual before installing and using the product.

! IMPORTANT: KEEP FOR FUTURE REFERENCE. PLEASE READ CAREFULLY.

! Please keep the quick start guide for future reference.

For warranty information, please visit our website at joiebaby.com

Simple line drawing of a person sitting on a chair with an open book and a pointer (no text or symbols)

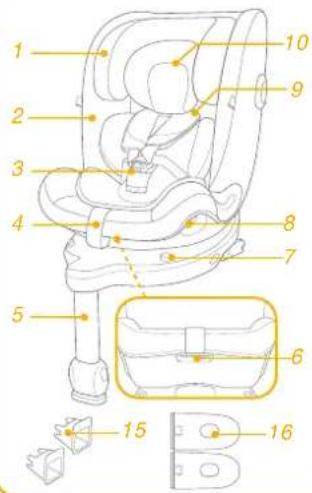

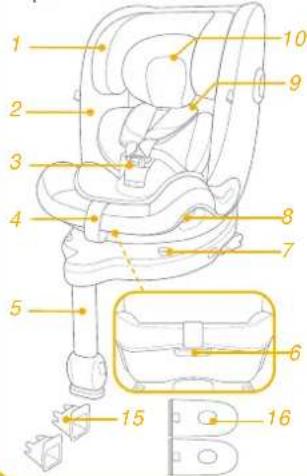

Parts List

Please make sure there are no missing parts. Please contact the retailer if anything is missing.

1 Head Support
2 Seat Pad
3 Buckle
4 Adjustment Webbing
5 Load Leg
6 Recline Adjustment Button
7 Swivel Lock-off
8 Rotation Button
9 Shoulder Harness Covers

1 2 3 4 5 6 7 8 9 10 15 16

10 Infant Insert
11 Head Support Adjustment Lever
12 ISOFIX Adjuster Button
13 Load Leg Adjustment Button
14 ISOFIX Connector
15 ISOFIX Attachments Guides
16 Side Impact Protection *must use on door side only

Technical diagram of a car seat with numbered labels pointing to specific compartments or parts.

Accessory

Canopy

Accessories may be sold separately or may not be available depending on region.

WARNING

! BE informed that the rigid items and plastic parts of an enhanced child restraint system shall be located and installed so that they are not liable to become trapped by a movable seat or in a door of the vehicle during everyday use of the vehicle.
! DO NOT use the rearward facing enhanced child restraint systems in seating positions where there is an active frontal airbag installed.
! To use this enhanced child restraint according to the UN Regulation No.129, your child must meet the following requirements.
! Rear Facing Mode: Child height 40cm-105cm/ max. 19kg;
Forward Facing Mode: Child height 76cm-105cm/max. 19kg;
Booster Mode: Child height 100cm-150cm;
! IMPORTANT - DO NOT USE FORWARD FACING BEFORE THE CHILD'S AGE EXCEEDS 15 MONTHS (Refer to instructions).
! The enhanced child restraint may not fit in all approved vehicles.
! Any straps holding the enhanced child restraint to the vehicle should be tight, that any support-leg should be in contact with the vehicle floor, that any straps restraining the child should be adjusted to the child's body, and that straps should not be twisted.

WARNING

! After your child is placed in this enhanced child restraint, the safety belt must be used correctly. Ensure that any lap strap is worn low down, so that the pelvis is firmly engaged, shall be stressed.
This enhanced child restraint should be replaced when it has been subject to violent stresses in an accident. An accident can cause damage to it that you cannot see.
! Consider the danger of making any alterations or additions to the device without approval of the adequate authority, and the danger of not following closely to the installation instructions provided by the enhanced child restraint manufacturer.
! Please keep this enhanced child restraint away from sunlight, otherwise it may be too hot for child's skin. Always touch the enhanced child restraint before placing child in it.
! DO NOT leave your child unattended in the enhanced child restraint system.
! Any luggage or other objects liable to cause injuries in the event of a collision shall be properly secured.
The enhanced child restraint system shall NOT BE USED without the soft goods.
The soft goods should not be replaced with any other than the one recommended by the manufacturer, because the soft goods constitutes an integral part of the restraint performance.

WARNING

! Please check if this enhanced child restraint can be installed properly in your vehicle before you purchase it.
NO enhanced child restraint can guarantee full protection from injury in an accident. However, proper use of this enhanced child restraint will reduce the risk of serious injury or death to your child.
! DO NOT install this enhanced child restraint without following the instructions in this manual or you may put your child at serious risk of injury or death.
! DO NOT use this enhanced child restraint if it has damaged or missing parts.
! DO NOT have your child in large/oversized clothes because this may prevent your child from being, properly and securely fastened by the shoulder harness straps and the crotch strap between the legs.

Emergency

In case of emergency or accidents, it is most important to have your child taken care of with first aid and medical treatment immediately.

Product Information

For installation with ISOFIX system

1. This is an “i-Size” Enhanced Child Restraint System. It is approved according to UN Regulation No.129, for use in, i-Size compatible vehicle seating positions as indicated by vehicle manufacturers in the vehicle users’ manual.
2. If in doubt, consult either the Enhanced Child Restraint System manufacturer or the retailer.

For installation with 3-point belt

For installation with 3-point belt + ISOFIX system

1. This is an i-Size booster seat Enhanced Child Restraint System. It is approved according to UN Regulation No.129, for use primarily in "i-Size seating positions" as indicated by vehicle manufacturers in the vehicle user's manual.
2. If in doubt, consult either the Enhanced Child Restraint System manufacturer or the retailer.

Materials Plastics, metal, fabrics

Patent No. Patents pending

Choose Your Installation Installa

ECE R129	Child's Size	Installation Mode	Figure for Installation	Reference Age	Seat Position
	40cm-105cm/ ≤ 19kg	Rear Facing		Approx 4 years	Position 1-5
	76cm-105cm/ ≤ 19kg	Forward Facing		15 months to approx 4 years	Position 1-5
	100cm-150cm	Booster		3.5 years to 12 years	Position 1-5

Concerns

Illustration of a train seat with two red dots and a yellow checkmark on the side (no text or symbols)

Side view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Side view line drawing of a car with two seats and driver seat (no text or symbols)

Use Side Impact Protection

see images 1 - 2

1. The enhanced child restraint is delivered with removable side impact protection. This side impact protection MUST be used on the door side of the vehicle. Installation shown in 1.
2. Press the release button to remove side impact protection.
3. Please keep it properly when not in use.

Height Adjustment for Head Support and Shoulder Harnesses

see images 3 - 7

Please adjust the head support and check if the shoulder harnesses are at the correct height according to 3 & 4 & 5 & 6 & 7

When used in rear facing mode, the shoulder harness height must be even with or just below the top of child's shoulders.
When used in forward facing mode, the shoulder harness height must be even with or just above the top of child's shoulders.
! When used in booster mode, the shoulder belt guides must be even with child's shoulders. 5

To adjust the headrest heights, press the adjustment lever first then pull or push down the head support until it clicks into one of the 14 positions. 6 & 7

The shoulder space expands as the head support height is adjusted to the positions from 11th to 14th.

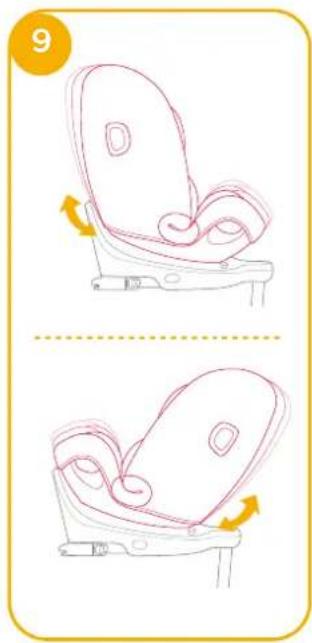

Recline Adjustment

see images 8 - 9

Press the recline adjustment button to adjust the enhanced child restraint to the desired position. 8 & 9

There are 5 recline positions that can be used for rear facing, forward facing, and booster modes.

Base Installation

see images 10 - 15

1. Insert ISOFIX guides to assist with installation. 10

2. Press the ISOFIX adjuster button to extend the ISOFIX. 12-1 12-2

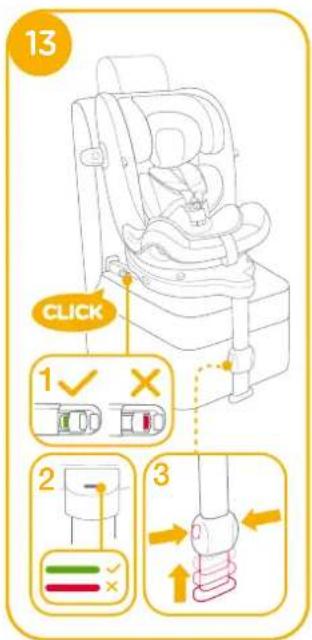

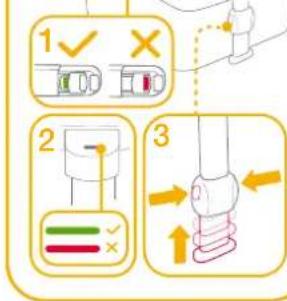

3. Make sure that both ISOFIX connectors are securely attached to their ISOFIX anchor points. The colors of the indicators on both ISOFIX connectors should be completely green. 13-1

! Press the ISOFIX adjustment buttons again while pushing the seat back until it comes in contact with the vehicle seat backrest.
4. After attaching the ISOFIX, pull the load leg downward to floor. When the load leg indicator shows green, the load leg is installed correctly. 13-2
5. Squeeze the load leg releasing button, then adjust the load leg length. 13-3
! Always make sure the support leg has direct contact with the floor and is in locked position even when the child is not in it.

Removing the seat

1. To remove from the vehicle press the ISOFIX adjuster button and pull the base back from the seat. Then press and release the connectors from the vehicle's ISOFIX. 14-1 14-2

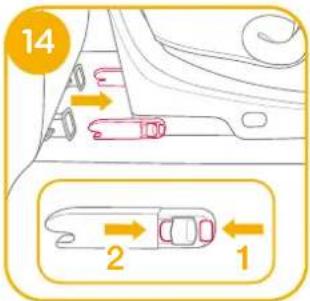

2. To prevent damage during transit, press the ISOFIX adjuster button 15 -1 and fold the connector completely. 15 -2

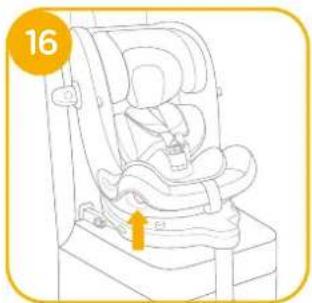

Using in the rear facing mode (Child height 40cm-105cm/Child weight ≤19kg/infant - 4 years old)

see images 16 - 23

! Install the enhanced child restraint on the rear vehicle seat and then put the child in the enhanced child restraint.

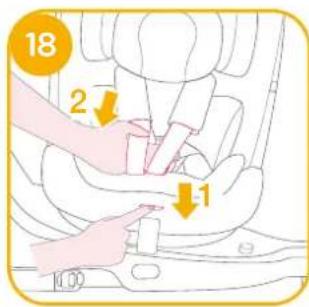

Press the rotating button to rotate for easier side loading/unloading of the child, then rotate the seat to the rear facing position. 16 & 17
! Press the rotating button on either side to rotate the enhanced child restraint.

Securing Child

1. To lengthen the shoulder harness belts, press the harness adjustment button while pulling out the shoulder harnesses to loosen. 18
2. Unlock the buckle of the harnesses by pressing the red button. ^19
3. Fix the buckles on both sides of the seat, marked as ^20 , to make placing the child in rear-facing mode more convenient.

Use Infant Insert

We recommend using the full infant insert while the baby is under 60cm and can be used until they outgrow the infant insert. The infant insert increases side impact protection.

1. Place the child into the enhanced child restraint and pass both arms through the harnesses.
2. Engage the buckle. Please refer to

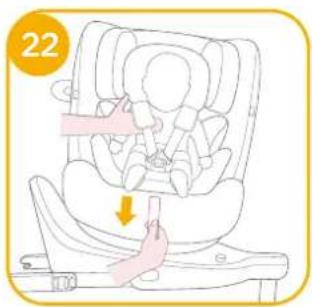

3. Pull down the adjustment webbing and adjust it to the proper length to make sure your child is properly secured. 22

! Always keep child secured in harness and properly tightened by removing any slack.
! Make sure the space between the child and the shoulder harness straps is about the thickness of one hand.

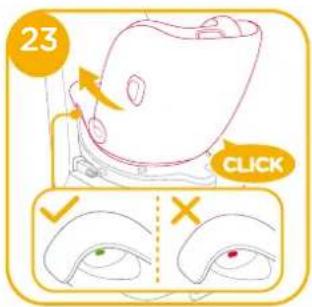

When the seat is rotated in place and properly engaged, rotation button will show green; otherwise it will show red.
! Always make sure the seat is in locked position (rearward facing / forward facing) even when the child is not in it.

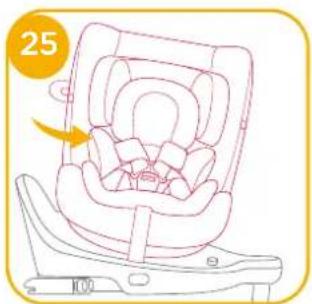

Using in the forward facing mode (Child height 76cm-105cm/Child weight ≤slant 19kg/15 months - 4 years old)

see images 24 - 31

! Install the enhanced child restraint on the rear vehicle seat, and then place the child in the enhanced child restraint.

Press the rotation button to rotate for easier side loading/unloading of the child, then rotate the seat to the forward facing position. 24 & 25

! Press the rotation button on either side to rotate the enhanced child restraint.

Securing Child

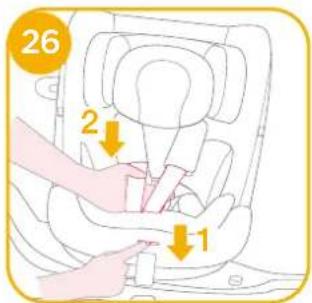

1. To lengthen the shoulder harness belts, press the harness adjustment button while pulling out the shoulder harnesses to loosen. 26
2. Unlock the buckle of the harnesses by pressing the red button.

Remove the infant insert when in forward facing mode. 28
3. Place the buckle tongues against the magnetic area on the outer side of the enhanced child restraint so that the tongues are held in place.
4. Place the child into the enhanced child restraint and pass both arms through the harnesses.
5. Engage the buckle.

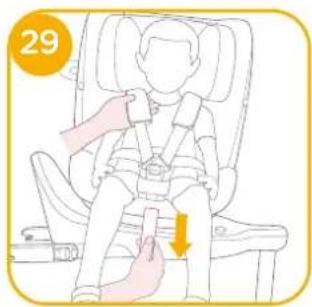

6. Pull down the adjustment webbing and adjust it to the proper length to make sure your child is properly secured.

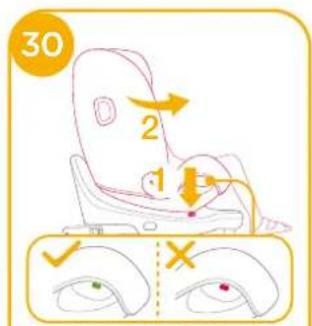

7. Press the swivel lock off button ⚫ -1 while you rotate the seat to the forward facing mode. ⚫ -2

When the seat is rotated in place and properly engaged, rotation button will show green, otherwise it will show red.
! Always make sure the seat is in locked position (rearward facing / forward facing) even when the child is not in it.

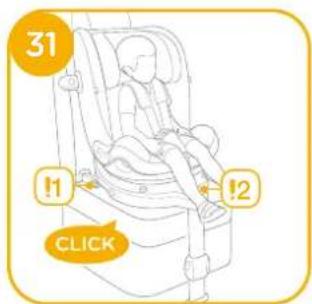

! The ISOFIX connectors must be attached and locked onto the ISOFIX anchor points. 31 -1

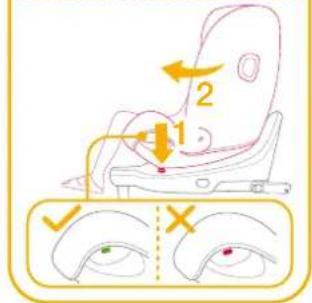

! The load leg must be installed correctly with green indicator. ^31 -2
! Always keep child secured in harness and properly tightened by removing any slack.
! DO NOT use forward facing mode until your child's height is at least 76cm AND 15 months old.

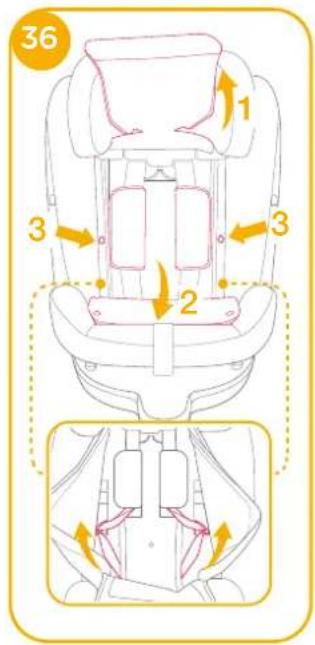

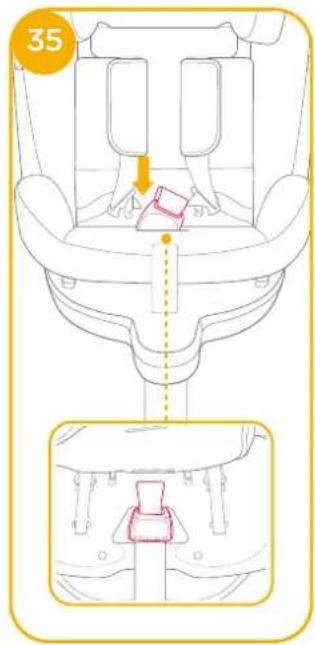

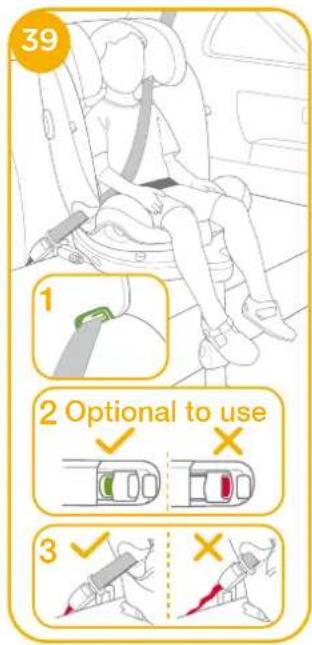

Using in the booster mode (Child height 100cm-150cm/3.5 - 12 years old)

see images -

! Install the enhanced child restraint on the rear vehicle seat, and then place the child in the enhanced child restraint.
! Remove the infant insert when booster mode.

Securing Child

1. Unlock the buckle of the harnesses by pressing the red button.

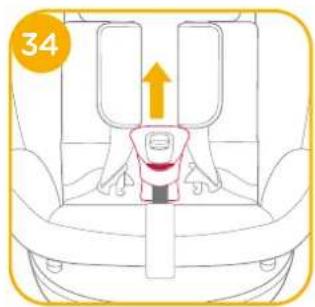

2. Remove the crotch belt cover and keep it properly.
3. Tuck the crotch strap, shoulder strap with covers away in the compartments. 35 & 36 & 37

4. Adjust the headrest so the bottom of the headrest is level with the child's shoulders.

5. Buckle up with the vehicle belt.
   ! Shoulder belt must pass through shoulder belt guide. 39 -1

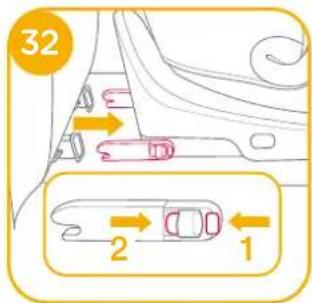

   ! The colors of the indicators on both ISOFIX attachments connectors should be completely green.
   ! The installation with ISOFIX connectors in booster mode is optional. If ISOFIX connectors are used, make sure the indicator colors on both connectors are completely green when attached to the anchor points. 39-2

! The enhanced child restraint can not be used if the vehicle safety belt buckle (female buckle end) is too long to anchor the enhanced child restraint securely. ⚙️-3

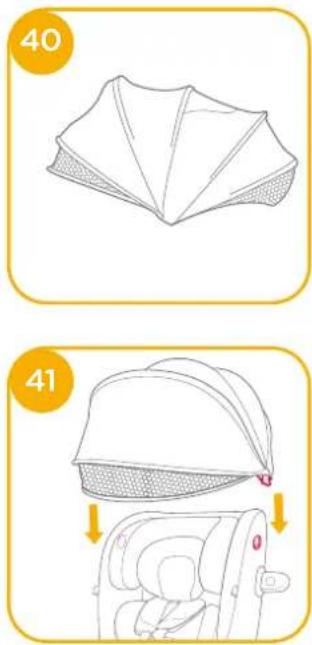

Use Canopy

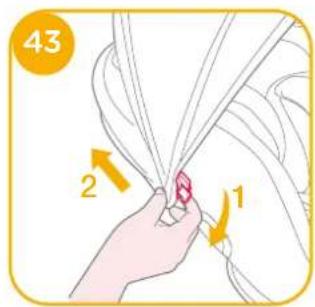

see images 40 - 43

Detach Soft Goods

see images 44 - 53

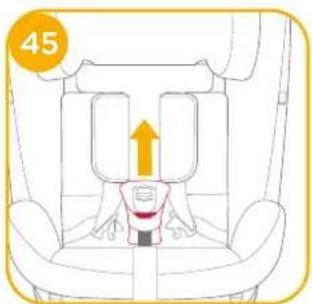

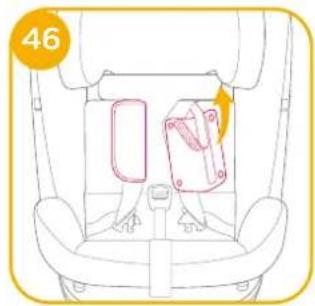

Press the red button to disengage the buckle. 44 Follow steps 45 - 53 to detach soft goods.

To re-attach the soft goods please repeat the above steps in the reverse order.

Care and Maintenance

! Please store the infant insert somewhere out of the child's reach.
! Please wash the soft goods with cold water under 30°C.
! Do not iron the soft goods.
! Do not bleach or dry clean the soft goods.
Do not use undiluted detergents gasoline or other organic solvent to wash the enhanced child restraint or base. It may cause damage to the enhanced child restraint.
! Do not twist the soft goods to dry with great force. It may leave the soft goods with wrinkles.
! Please hang dry the soft goods.
! Please remove the enhanced child restraint from the vehicle seat if it will not be in use for a long period of time.

FR

Simple line drawing of a person holding an open book, no text or symbols present

Liste des pièces

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Line drawing of a car showing the interior and exterior view of a seatbelt (no text or symbols)

Simple line drawing of a person sitting with a book on their back, no text or symbols present

Teileliste

Diagram of a car seat with numbered labels pointing to different components

Technical diagram of a car seat with numbered labels pointing to different compartments or fixtures.

Zubehör

Verdeck

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

Illustration of a car seatbelt with a yellow checkmark indicating a location (no text or symbols present)

Line drawing of a car showing the interior and exterior view of a seatbelt (no text or symbols)

Simple line drawing of a person sitting on a chair with a book icon above (no text or symbols)

Onderdelenlijst

Diagram of a car seat with numbered labels pointing to different components

Technical diagram of a car seat with numbered labels pointing to specific compartments or parts.

Accessoire

Kap

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

Illustration of a car seatbelt with a yellow checkmark indicating a location (no text or symbols present)

Line drawing of a car showing the interior and exterior view of a seatbelt (no text or symbols)

Simple line drawing of a person sitting on a chair with a book icon above (no text or symbols)

Elenco parti

Technical diagram of a car comfort seat with numbered labels pointing to different seat positions and components.

Technical diagram of a car seat with numbered labels pointing to different seat positions

Accessorio

Capottina

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

Illustration of a car seatbelt with a yellow checkmark indicating a location (no text or symbols present)

Line drawing of a car showing the interior and exterior view of a seatbelt (no text or symbols)

Simple line drawing of a person sitting with a book and a pointer, no text or symbols present

Lista de piezas

Technical diagram of a car seat with numbered labels pointing to specific compartments or parts.

Accesorio

Capota

Interior view of a car seat with red markers and a yellow checkmark (no text or symbols)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Line drawing of a car showing interior compartments and seat (no text or symbols)

Simple line drawing of a stylized human figure with no text or symbols

Simple line drawing of a person sitting with a book on their back, against a solid orange background (no text or symbols)

Lista de componentes

Diagram of car seat components with numbered labels pointing to different parts

Interior view of a car seat with red markers and a yellow checkmark (no text or symbols)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Side view line drawing of a car with two seats and seatbelt (no text or symbols)

Simple line drawing of a person holding an open book, no text or symbols present

Lista części

Diagram of a car seat with numbered labels pointing to different components

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols)

Line drawing of a car showing interior compartments and seat (no text or symbols)

Simple line drawing of a person sitting on a chair with a book icon above (no text or symbols)

Seznam dílů

Diagram of a car seat with numbered labels pointing to different components

Technical diagram of a car seat with numbered labels pointing to specific compartments or parts.

Příslušenství

Stříška

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Line drawing of a car showing the interior and exterior view of a seatbelt (no text or symbols)

Simple line drawing of a person sitting with a book on their back, no text or symbols present

Diagram of a car seat with numbered labels pointing to different components

Technical diagram of a car seat with numbered labels pointing to different compartments or parts.

Príslušenstvo

Plátenná strieška

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Line drawing of a car showing the interior and exterior view of a seatbelt (no text or symbols)

Simple line drawing of a person sitting on a chair with a book icon above (no text or symbols)

Seznam delov

Prepričajte se, da noben del ne manjka. Če kar koli manjka, se obrnite na prodajalca.

1 Opora za glavo
2 Sedežna blazina
3 Sponka
4 Prilagoditveni trak
5 Podporna noga
6 Gumb za nastavitev naklona
7 Vrtljivi zaklepni gumb
8 Gumb za obračanje
9 Prevleki za ramenska pasova

Diagram of a car seat with numbered labels pointing to different components

Technical diagram of a car seat with numbered labels pointing to specific compartments or parts.

Dodatna oprema

Strehica

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Line drawing of a car showing the interior and exterior view of a seatbelt (no text or symbols)

Simple line drawing of a person sitting with a book and a pointer, against an orange background (no text or symbols)

Technical diagram of a car seat with numbered labels pointing to specific components

Принадлежность

Козырек

Interior view of a car seat with red markers and a yellow checkmark (no text or symbols)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Side view line drawing of a car with two people seated inside, showing seatbelt and dashboard (no text or symbols)

Simple line drawing of a person sitting with a book on their back, against a solid orange background (no text or symbols)

Liste over dele

Kontroller, at der ikke mangler nogen dele. Kontakt venligst din forhandler, hvis noget mangler.

Diagram of a car seat with numbered labels pointing to different components and parts.

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Line drawing of a car showing the interior and exterior view of a seatbelt (no text or symbols)

Brug sideskærmen

Se billederne 1 - 2

Simple line drawing of a person sitting on a chair with a book icon attached (no text or symbols)

Alkatrészek listája

Diagram of a car seat with numbered labels pointing to different compartments and parts

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

Illustration of a car seatbelt with a yellow checkmark indicating a location (no text or symbols present)

Line drawing of a car showing interior compartments and seat (no text or symbols)

Simple line drawing of a person reading a book with a pointer (no text or symbols)

Lista componentelor

Diagram of car seat components with numbered labels pointing to different parts of the seat.

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Line drawing of a car showing the interior and exterior view of a seatbelt (no text or symbols)

Diagram of car seat components with numbered labels pointing to different parts

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Side view line drawing of a car with two seats and seatbelt (no text or symbols)

Simple line drawing of a person sitting on a chair with a book icon above (no text or symbols)

Parça Listesi

Diagram of car seat components with numbered labels for identification and assembly reference

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Side view line drawing of a car with two people seated inside, showing seatbelt and dashboard (no text or symbols)

Technical diagram of a car seat assembly with numbered parts for identification

12 13 14

الملحقات

المظلة

Simple line drawing of a person reading a book with a pointer (no text or symbols)

تحذير

بعد+((مُصْعِ)الْمَطُّرُ) رَالْتَقَيدِدِ حَرَكَةِ الْفَلَّقِ،).(\text{يُجْب}) ((مُصْعِ)الْمَطُّرُ) (الْمُسْعِ) ((مُصْعِ)الْمُطُّرُ) (الْمُسْعِ) ((مُصْعِ)الْمُطُّرُ) ((مُصْعِ)الْمُطُّرُ) ((مُصْعِ)الْمُطُّرُ) ((مُصْعِ)الْمُطُّرُ) ((مُصْعِ)الْمُطُّرُ) ((مُصْعِ)الْمُطُّرُ) ((مٍ١٠٢٥٣٥٣٥٣٥٣٥٣٥٣٥٣٥٣٥٣٥٣٥٣٥٣٥٣٥٣٥٣٥٣٥٣٥٣٥٣٥٣٥٣٥٣٥٣٥٣٥٣٥٤١٠( ^{1} ))

تحذير

Interior view of a car seatbelt with a yellow checkmark indicating the correct seat (no text or symbols on the belt)

Interior view of a vehicle seat with red markers and a yellow checkmark (no text or symbols)

Side-view line drawing of a car showing the interior and exterior view of the dashboard (no text or symbols)

1. اIncreasing on the right to ensure that the information is a good view of the information.

تركيبIPAعدة

۱۰ - ۱۰ رابع الصور

Simple line drawing of a person sitting on a chair with an open book, no text or symbols present

Popis dijelova

Diagram of car seat components with numbered labels pointing to different parts

10 Umetak za bebu
11 Ručkica za podešavanje naslona za glavu
12 Gumb za podešavanje ISOFIX priključka
13 Gumb za podešavanje potpornog nogara
14 ISOFIX priključak
15 Vodilice ISOFIX priključka
16 Zaštita od bočnog udarca *mora se koristiti samo na strani bočnih vrata

11 12 13 14

Dodatna oprema

Krović

Ovisno o regiji dodatna oprema može biti zasebno u prodaji ili uopće ne mora biti raspoloživa.

UPOZORENJE

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

Illustration of a car seatbelt with a yellow checkmark indicating a location (no text or symbols present)

Line drawing of a car showing interior compartments and seat (no text or symbols)

Upotreba zaštite od bočnog udarca

Simple line drawing of a person sitting with a book on their back, against a solid orange background (no text or symbols)

Lista över delar

Technical diagram of a car seat with numbered labels pointing to different components

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Line drawing of a car showing interior compartments and seat (no text or symbols)

Simple line drawing of a person sitting on a chair with a book icon above (no text or symbols)

Deleliste

Diagram of a car seat with numbered labels pointing to different compartments and parts

10 Spedbarnsinnlegg
11 Hodestøttejusteringsspak
12 ISOFIX-justeringsknapp
13 Justeringsknapp for lastben
14 ISOFIX-kontakt
15 ISOFIX-kontaktførere
16 Sidestøtvern

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Line drawing of a car showing interior compartments and seat (no text or symbols)

Simple line drawing of a person sitting on a chair with a book icon above (no text or symbols)

Osaluettelo

Diagram of a car seat with numbered labels pointing to different components

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Line drawing of a car showing interior compartments and seat (no text or symbols)

Simple line drawing of a person sitting with a book on their back, against a solid orange background (no text or symbols)

부품 리스트

Diagram of car seat components with numbered labels for identification

Technical diagram of a car seat with numbered labels pointing to specific compartments or parts.

약세서리

Illustration of a car seat with red buttons and a yellow checkmark on the side (no text or symbols)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols present)

Side profile line drawing of a car showing passenger seat and passenger seat (no text or symbols)

측면 충돌 보호장치 사용

Simple line drawing of a person sitting with a book on their back, against a solid orange background (no text or symbols)

Osad

Diagram of car seat components with numbered labels for identification

Technical diagram of a car seat with numbered labels pointing to different compartments or parts.

Valikuine

Katus

Illustration of a seat with red dots and a yellow checkmark on the side (no text or symbols)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Side profile line drawing of a car showing seat, driver, and passenger (no text or symbols)

Simple line drawing of a person sitting on a chair with a book icon above (no text or symbols)

Detalu saraksts

Diagram of car seat components with numbered labels pointing to different parts

Technical diagram of a car seat with numbered labels pointing to specific compartments or parts.

Piederums

Jumtinš

Illustration of a seat with red markers and a yellow checkmark (no text or symbols)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols present)

Line drawing of a car interior showing two seats and a seatbelt (no text or symbols)

Simple line drawing of a person sitting with a book on their back, against a solid orange background (no text or symbols)

Dalių sąrašas

Technical diagram of a car seat with numbered components and labeled parts

Technical diagram of a car seat with numbered labels pointing to specific compartments or parts.

Priedai

Stogelis

Illustration of a train seat with red markers and a yellow checkmark (no text or symbols)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols present)

Line drawing of a car interior showing two seats and a seatbelt (no text or symbols)

Venture Point, Towers Business Park,

Rugeley, Staffordshire, WS15 1UZ

[e-mail]

For EU markets:

Bright Children's Products GmbH

Barthstr. 4 80339 Munich Germany

[e-mail]
