USER MANUAL i-Prodigi Joie

enhanced child restraint

GB Instruction Manual
PT Manual de instruções
ES Manual de instrucciones
FR Manuel d'instructions
NL Instructiehandleiding
It Manuale di istruzioni
DE Bedienungsanleitung
SE Bruksanvisning
Εγχειρίδιο οδηγιών χρήσης
HU Használati utasítás
DA Brugervejledning
NO Instruksjonsbok
PL Instrukcja obstugi
CZ Návod k obsluze
sk Návod na použitie
SL Navodila za uporabo
Kullanım Kılavuzu
RU Руководство по эксплуатации
AF دليل التعليمات
ET Kasutusjuhend
F Käyttöopas
LT Naudojimo instrukcija
LV Lietošanas rokasgrāmata

ECE R129/03: i-Size

Line drawing of a baby car seat with seats and straps (no text or symbols)

Diagram showing four red flame icons on a white surface with directional arrows, no text or symbols present

4 CLICK 1 ✓ ×

Illustration of a hand holding a car seatbelt with a yellow arrow indicating force or movement (no text or symbols)

5 2 1 1

6 1 1 2 ✓ ×

Line drawing of a car interior with a hand holding an object, no text or symbols present

7 !1 !2

9 2 1

10 1 2

11 CLICK

14 1 2

12 2 1

Illustration of a hand holding a tool or device, with a yellow arrow indicating motion direction (no text or symbols)

Simple line drawing of a child holding a long rod with a red bandage, no text or symbols present

Line drawing of a baby seat with an arrow indicating rotation (no text or symbols)

17 2 1

18

Line drawing of a car seat with two side straps and directional arrows indicating rotation (no text or symbols)

21

24

26 1 87654321

22

Line drawing of a baby seat with arrows indicating motion or movement (no text or symbols)

Line drawing of a helmet with directional arrows indicating rotation (no text or symbols)

Illustration of a car seatbelt with a highlighted seatbelt and orange arrow indicating compression (no text or symbols)

GB

Welcome to Joie™

You have purchased a high quality, fully certified child safety child restraint. This product is suitable for the use of children with height 40cm-125cm and weight up to 22.5kg. Carefully read this Instruction Manual and follow the installing steps because this is the ONLY way to protect your child from serious injury or death in case of an accident, and to provide comfort to your child while using this product. Keep this instruction manual for future reference.

Please confirm

To use this Joie enhanced child restraint with the i-Size ISOFIX connections according to the UN Regulation No.129, your child must meet the following requirements.

Rearward Facing: Child height 40cm-125cm/ max. 22.5kg;

Please read all the instructions in this manual before installing and using the product.

! IMPORTANT: KEEP FOR FUTURE REFERENCE. PLEASE READ CAREFULLY.

Please keep the instruction manual in the storage compartment at the back of the seat as right figure.

For warranty information, please visit our website at joiebaby.com

Silhouette of a person sitting in a chair with an open book on top, against a solid orange background (no text or symbols)

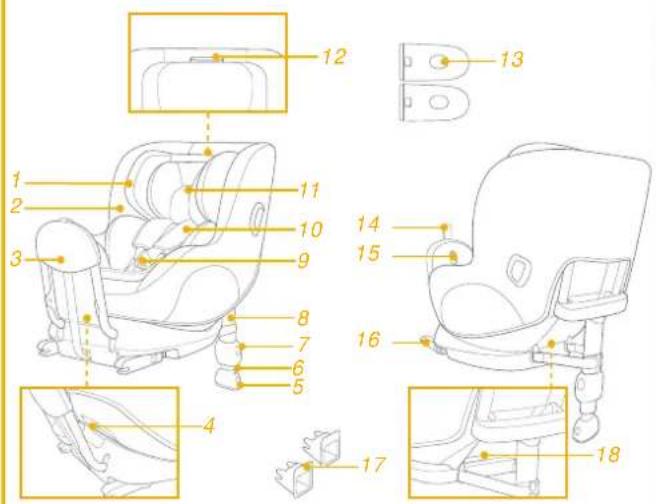

Parts List

Please make sure there are no missing parts. Please contact the retailer if anything is missing.

1 Head Support
2 Seat Pad
3 Rebound Bar
4 Recline Adjustment Button
5 Load Leg Adjustment Button
6 Load Leg Indicator
7 Load Leg Adjustment Button
8 Load Leg
9 Buckle
10 Shoulder Harness Covers
11 Infant Insert

12 Head Support Adjustment Lever
13 Side Impact Protection Pod x2 *must use on door side only
14 Rebound Bar Adjustment Webbing
15 Rebound Bar Release Button
16 ISOFIX Connector
17 ISOFIX Guides
18 ISOFIX Adjuster Button

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18

WARNING

! BE cautious that the rigid items and plastic parts of the enhanced child restraint system shall be so located and installed that they are not liable to become trapped by a movable seat or in the door of the vehicle.

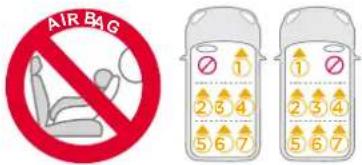

! DO NOT use the rearward facing enhanced child restraint system in seating positions where there is an active frontal airbag installed.
! The enhanced child restraint may not fit in all approved vehicles. Please refer to the fitting list included for more details.
! Any support-leg should be in contact with the vehicle floor and any straps restraining the child should be adjusted to the child's body. The straps should not be twisted.
! Ensure that any lap strap is worn low down, so that the pelvis is firmly engaged, shall be stressed.
This enhanced child restraint should be replaced when it has been subject to violent stresses in an accident. An accident can cause damage to it that you cannot see.

WARNING

! Consider the danger of making any alterations or additions to the device without approval of the adequate authority, and the danger of not following closely to the installation instructions provided by the enhanced child restraint manufacturer.
Children should not be left unattended in their enhanced child restraint system.
! Any luggage or other objects liable to cause injuries in the event of a collision shall be properly secured.
! The enhanced child restraint system shall NOT BE USED without the soft goods.
! The soft goods should not be replaced with any other than the one recommended by the manufacturer, because the soft goods constitutes an integral part of the restraint performance.
! Please also pay attention to the instructions and warnings in the vehicle manufacturer's handbook.

WARNING

! CAREFULLY read the warnings given in the separate Safety Manual to ensure a secure usage of the product.

Emergency

In case of emergency or accidents, it is most important to have your child taken care of with first aid and medical treatment immediately.

Product Information

1. This is an "i-Size" Enhanced Child Restraint System. It is approved according to UN Regulation No.129, for use in, i-Size compatible vehicle seating positions as indicated by vehicle manufacturers in the vehicle users' manual.
2. If in doubt, consult either the Enhanced Child Restraint System manufacturer or the retailer.

Materials Plastics, metal, fabrics

Patent No. Patents pending

Installation Mode

[8005]	Child's Size	Installation Mode	Figure for Installation	Seat Position
	40cm-125cm/≤ 22.5kg	Rear Facing mode		Position 1-8

Installation Concerns

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

Base Installation

see images 1 - 10

1. Attach the ISOFIX guides to the vehicle's ISOFIX anchor points (see vehicle owner's manual). The ISOFIX guides can protect the surface of the vehicle seat from being torn. They can also guide the ISOFIX connectors.
2. Unfold the load leg from storage compartment. ②
3. Extend the ISOFIX connectors by pressing the ISOFIX adjustment button while pulling on the connector. ③

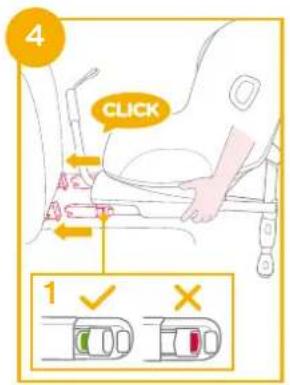

4. Press the ISOFIX adjustment button to adjust the ISOFIX connectors. Line up the ISOFIX connectors with the ISOFIX guides, and then click both ISOFIX connectors into the ISOFIX anchor points. 4
   ! Make sure that both ISOFIX connectors are securely attached to the vehicle's ISOFIX anchor points. There should be two audible clicks and the colors of the indicators on both ISOFIX connectors should be completely green. 4 -1
   ! Check to make sure the base is securely installed by pulling on both ISOFIX connectors.

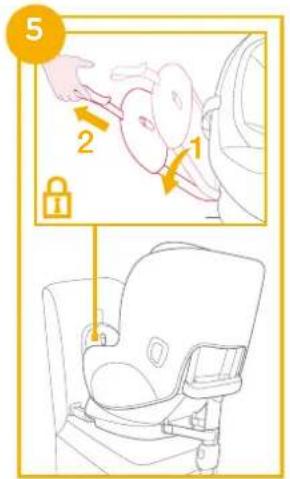

5. Pull the rebound bar towards the back of the vehicle and lock into place by pulling the rebound bar adjustment webbing. ⑤

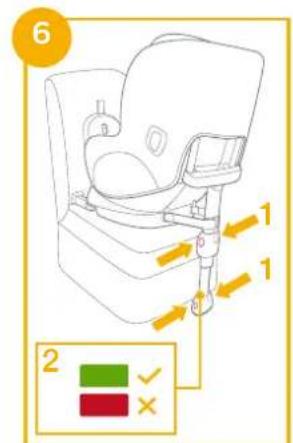

6. After placing the base on the vehicle seat, extend the load leg to floor ⑥. When the load leg is installed correctly, the load leg indicator will turn green. It will turn red when installed incorrectly. ⑥ -2
   ! The load leg has multiple positions. When the load leg indicator turns red this means the load leg is in the wrong position.
   ! Make sure the load leg is in full contact with the vehicle floor pan.
   ! Squeeze the load leg adjustment button, then shorten the load leg upwards. 6 -1

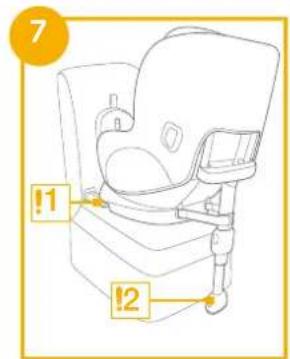

7. The completely assembled base is shown as 7.

! The ISOFIX connectors must be attached and locked onto the ISOFIX anchor points. 7-1

! The load leg must be installed correctly with green indicator. 7-2

! Always make sure the support load leg has direct contact with the floor and is in locked position even when the child is not in it.

Removing the Base

1. To remove the base from the vehicle seat, push the secondary lock buttons 9 -1 first and then press the ISOFIX releasing buttons 9 -2 on the ISOFIX connectors before removing the base from the vehicle seat. 9

2. Before transporting the seat, press ISOFIX adjustment button and move the ISOFIX connectors back into the storage position. ^10

Use Side Impact Protection

see images 11 - 12

1. The enhanced child restraint is delivered with removable side impact protection pod. This side impact protection pod MUST be used on the door side of the vehicle. Installation shown in ^11 .
2. Press the release button to remove side impact protection pod. 12

Height Adjustment for Head Support and Shoulder Harnesses

see images 13 - 14

1. Please adjust the head support and check if the shoulder harnesses are at the correct height according to 13 & 14
   ! The shoulder harness height must be even with or just below the top of child's shoulders. ^13

Lift up the head support adjustment lever, meanwhile pull up or down the head support until it snaps into one of the 8 positions. The head support positions are shown as ^14 .

Recline Adjustment

see images 15 - 16

Squeeze the recline adjustment button to adjust the enhanced child restraint to the proper position. ^15

Adjust the seat recline to any of the 8 recline positions for optimal head and neck support. ^16

Rearward Facing Mode (Child height 40cm-125cm/ Child weight \$22.5kg)

see images 17 - 21

! Please install the enhanced child restraint on the rear vehicle seat and then put the child in the enhanced child restraint.

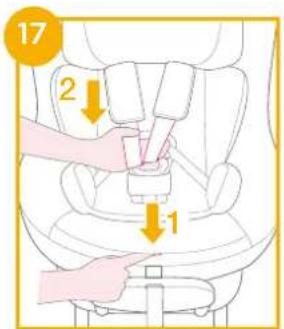

1. Press the harness adjustment button while pulling the shoulder harnesses to the desired length (Pull from below the fixed shoulder pads to lengthen). ^17
2. Unlock the buckle of the harnesses by pressing the red button. 18
3. Fix the buckles on the both sides of seat to make placing the baby more convenient. 19
4. Place the child into the enhanced child restraint and pass both arms through the harnesses.

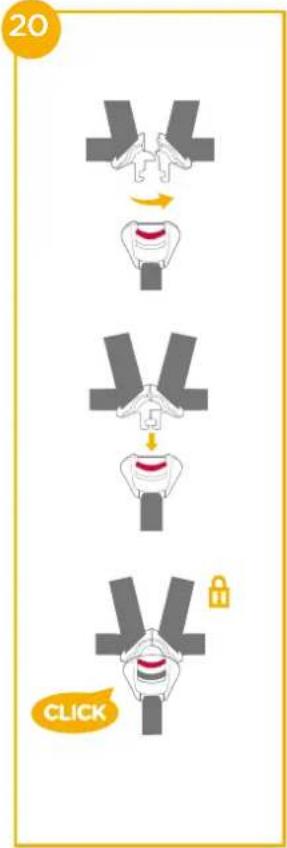

5. Engage the buckle. Please refer to 20
6. Pull down the adjustment webbing and adjust it to the proper length to make sure your child is properly secured. ^21
   ! Always keep child secured in harness and properly tighten the harness by removing any slack.

Use Infant Insert

We recommend using the full infant insert while the baby is under 60cm. It can be used until they outgrow the insert. The infant insert increases side impact protection.

Remove the head support portion of the infant insert when the child's head no longer fits comfortably.

Remove the body portion of the infant insert when the infant's shoulders no longer fit comfortably.

Remove the infant insert cushion by detaching the snaps to allow more space when the infant does not fit comfortably. The cushion can be used separately without being attached to the insert to bolster the infant's back for more comfort.

Detach Soft Goods

see images

Press the red button to disengage the buckle. ^22

Follow steps 23 - 27 to detach soft goods.

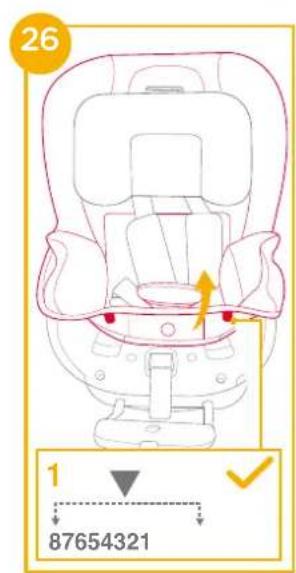

Make sure to adjust the seat to any of the recline positions between

3-8 before pull out the plastic clips at the seat cover bottom. 20 -1

To re-attach the soft goods please repeat the above steps in the reverse order.

Care and Maintenance

! Please store the infant insert somewhere out of the child's reach.
! Please wash the soft goods with cold water under 30°C.
! Do not iron the soft goods.
Do not bleach or dry clean the soft goods.
Do not use undiluted detergents gasoline or other organic solvent to wash the enhanced child restraint or base. It may cause damage to the enhanced child restraint.
Do not twist the soft goods to dry with great force. It may leave the soft goods with wrinkles.
! Please hang dry the soft goods in the shade.
! Please remove the enhanced child restraint from the vehicle seat if it will not be in use for a long period of time.

Bem-vindo à Joie™

Simple line drawing of a person reading a book with a pointer, set against a solid orange background (no text or symbols)

Lista de componentes

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

Instalação da base

ver imagens 1 - 10

Simple line drawing of a person sitting in a chair with a book on top, against a solid orange background (no text or symbols)

Lista de piezas

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

AIR BAG 1 2 3 4 5 6 7 1 2 3 4 5 6 7

Simple line drawing of a person reading a book with a pointer, set against a solid orange background (no text or symbols)

Liste des pièces

Interior view of a car seat with red buttons and a yellow checkmark (no text or symbols)

Installation de la base

Simple line drawing of a person reading a book on their back, with no text or symbols present.

Onderdelenlijst

Illustration of a car seat with red markers and a yellow checkmark on the side (no text or symbols)

Simple line drawing of a person reading a book on their back, with no text or symbols present.

Elenco parti

Interior view of a car seat with red buttons and a yellow checkmark (no text or symbols)

AIR BAG 1 2 3 4 5 6 7 1 2 3 4 5 6 7

Simple line drawing of a person reading a book with a pointer, on an orange background (no text or symbols)

Teileliste

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

Basis installieren

Silhouette of a person sitting on a bench with an open book, against a solid orange background (no text or symbols)

Lista över delar

Interior view of a car seat with red buttons and a yellow checkmark (no text or symbols)

Basinstallation

se bilder 1 - 10

Simple line drawing of a person reading a book on their back, with no text or symbols present.

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

Εγκατάσταση βάσης

Simple line drawing of a person reading a book on their back, with no text or symbols present.

Alkatrészek listája

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

AIR BAG 1 2 3 4 5 6 7 1 2 3 4 5 6 7

Alap szerelése

Illustration of a person reading a book with a pointer, set against an orange background (no text or symbols)

Liste over dele

Kontroller, at der ikke mangler nogen dele. Kontakt venligst din forhandler, hvis noget mangler.

Interior view of a car seat with red buttons and a yellow checkmark (no text or symbols)

AIR BAG 1 2 3 4 5 6 7 1 2 3 4 5 6 7

Montering af bunden

I VIKTIG: BEHOLD FOR FREMTIDIG OPPSLAG. LES N∅YE.

Simple line drawing of a person reading a book with a pointer (no text or symbols)

Deleliste

Illustration of a car seat with red markers and a yellow checkmark (no text or symbols)

AIR BAG 1 2 3 4 5 6 7 1 2 3 4 5 6 7

Baseinstallasjon

se bilder 1 - 10

Simple line drawing of a person sitting with a book on their head, no text or symbols present

Lista części

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

AIR BAG 1 2 3 4 5 6 7 1 2 3 4 5 6 7

Instalacja podstawy

Simple line drawing of a person reading a book on a chair against an orange background (no text or symbols)

Seznam dílů

Illustration of a car seat with red markers and a yellow checkmark on the side (no text or symbols)

Instalace základny

viz obrázky 1 - 10

Diagram illustrating a step-by-step procedure for handling a container, with labeled steps and directional arrows indicating motion.

Simple line drawing of a person reading a book on a chair against an orange background (no text or symbols)

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

AIR BAG 1 2 3 4 5 6 7 1 2 3 4 5 6 7

Inštalácia základne

Silhouette of a person sitting in a chair with an open book on top, against a solid orange background (no text or symbols)

Seznam delov

Prepričajte se, da noben del ne manjka. Če kar koli manjka, se obrnite na prodajalca.

Illustration of a car seat with red markers and a yellow checkmark on the side (no text or symbols)

Namestitev podnožja

Glejte slike 1 - 10

Simple line drawing of a person reading a book on a chair against an orange background (no text or symbols)

Parça Listesi

Interior view of a car seat with red buttons and a yellow checkmark (no text or symbols)

Taban Kurulumu

bkz. resim 1 - 10

Simple line drawing of a person reading a book on their head, no text or symbols present

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

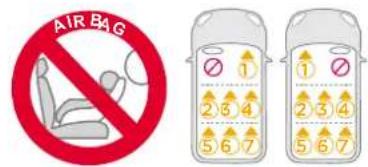

AIR BAG 1 2 3 4 5 6 7 1 2 3 4 5 6 7

Установка основания

См. рисунки 1 - 10

Silhouette of a person sitting at a desk with an open book, against a solid orange background (no text or symbols)

تحير

يTEXIN工程建设الAJZAZAOALINNEBAIAYAISHIAOAKRIBCLAFMOSUENHOMAN YELIMADINNQINNQINNQINNQINNQINNQINNQINNQINNQINNQINNQINNQINNQINNQINNQINNQINNQINNQINNQINNQINNQINNQINNQINNQINNQINNQINNQINNQINNQINNQINNQINNQINNQINNQ IN

ECE R129	Child's Size	Installation Mode	Figure for Installation	Seat Position
	40cm-125cm/ ≤ 22.5kg	Rear Facing mode		Position 1-8

مور متعلقة بالتركيب

Interior view of a car seat with red buttons and a yellow checkmark on the side (no text or symbols)

تحذیر

Silhouette of a person sitting in a chair with an open book on the wall, against a solid orange background (no text or symbols)

Osad

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

Aluse paigaldamine

vt pilte 1 - 10

Simple line drawing of a person reading a book on a chair against an orange background (no text or symbols)

Osaluettelo

Interior view of a car seat with red buttons and a yellow checkmark (no text or symbols)

Alustan asennus

katso kuvat 1 - 10

Simple line drawing of a person reading a book on a chair against an orange background (no text or symbols)

Dalių sąrašas

Interior view of a car seat with red buttons and a yellow checkmark (no text or symbols)

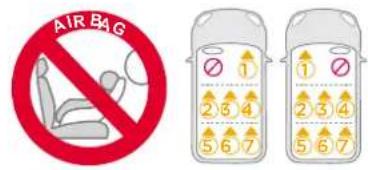

AIR BAG 1 2 3 4 5 6 7 1 2 3 4 5 6 7

Pagrindo montavimas

žr. pav. 1 - 10

Simple line drawing of a person reading a book on a chair against an orange background (no text or symbols)

Detalu saraksts

Interior view of a car seat with a yellow checkmark indicating a location (no text or symbols present)

AIR BAG 1 2 3 4 5 6 7 1 2 3 4 5 6 7

Allison Baby UK Ltd, Venture Point, Towers Business Park Rugeley, Staffordshire, WS15 1UZ

NUNA International B.V. Van der Valk Bourmanweg 178 C, 2352 JD Leiderdorp, The Netherlands
