Welcome to Joie

You have purchased a high quality, fully certified child safety child restraint. This product is suitable for the use of your child with height and weight based on the following:

i-Gemm 3: child height 40cm - 85cm/ child weight ± 13kg
Calmi: child height 40cm - 75cm/ child weights13kg
i-Juva: child height 40cm - 75cm/ child weight ≤ 13 kg
i-Snug 2: child height 40cm - 75cm/ child weight=13kg
i-Harbour: child height 40cm - 105cm/ child weight≤18kg
Sprint: child height 40cm - 75cm/ child weight≤13kg
i-Level Pro: child height 40cm - 87cm/ child weight-13kg
i-Harbour E: child height 61cm - 105cm/ child weight:18kg

Keep this instruction manual for future reference. Carefully read this Instruction Manual and follow the installing steps because this is the ONLY way to protect your child from serious injury or death in case of an accident, and to provide comfort to your child while using this product.

Please keep the instruction manual in the storage compartment at the back of the base as the image on the right or inside of the seat covers.

Parts List

Please make sure there are no missing parts. Please contact the retailer if anything is missing.

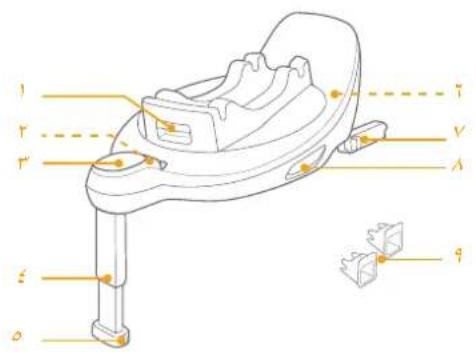

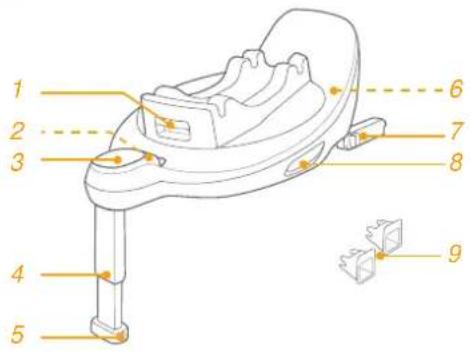

1 Infant Carrier Rotation Button
2 ISOFIX Adjustment Button
3 Safe use indicator
4 Load Leg
5 Load Leg Adjustment Button

6 Instruction Manual Storage Compartment
7 ISOFIX Connector
8 Child Restraint Release
Button
ISOFIX Guides

WARNING

! CAREFULLY read the warnings given in the seperate Safety Manual to ensure a secure usage of the product.
! For the complete information and best protection of using the enhanced child restraints, you must follow their instruction manuals carefully:

Please refer to j-Gemm 3 instruction manual for the use of j-Gemm 3.
Please refer to Calmi instruction manual for the use of Calmi.
Please refer to i-Juva instruction manual for the use of i-Juva.
Please refer to i-Snug 2 instruction manual for the use of i-Snug 2.
Please refer to i-Harbour instruction manual for the use of i-Harbour.
Please refer to Sprint instruction manual for the use of Sprint.
Please refer to i-Level Pro instruction manual for the use of i-Level Pro.
Please refer to i-Harbour E instruction manual for the use of i-Harbour E.

Emergency

In case of emergency or accidents, it is most important to have your child taken care of with first aid and medical treatment immediately.

Product Information

Installation with base

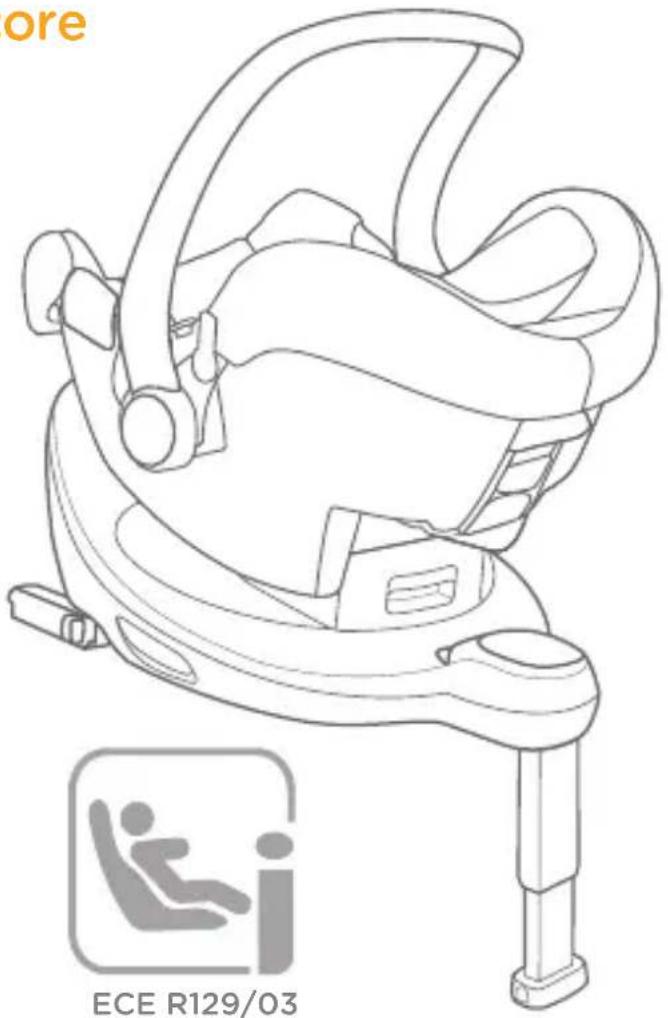

1. This is an i-Size Enhanced Child Restraint System. It is approved according to UN Regulation No.129, for use in, i-Size compatible vehicle seating positions as indicated by vehicle manufacturers in the vehicle users' manual.
2. If in doubt, consult either the Enhanced Child Restraint System manufacturer or the retailer.

Materials Plastics, metal, fabrics

Patent No. Patents pending

3

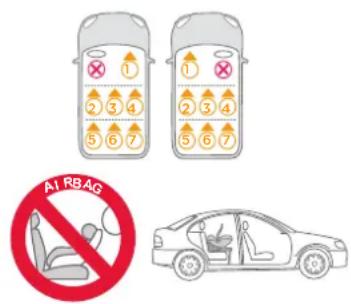

Concerns on Installation

Base Installation

see images 1-13

1. Attach the ISOFIX guides to the vehicle's ISOFIX anchor points (see vehicle owner's manual). The ISOFIX guides can protect the surface of the vehicle seat from being torn. They can also guide the ISOFIX connectors.
2. Unfold the load leg from storage compartment. 2
3. Extend the ISOFIX connectors by pressing the ISOFIX adjustment button while pulling on the connector. 3

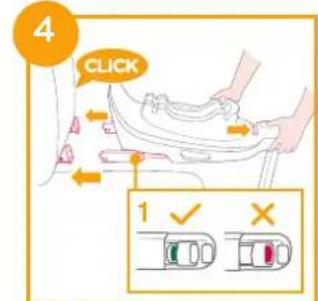

4. Press the ISOFIX adjustment button to adjust the ISOFIX connectors. Line up the ISOFIX connectors with the ISOFIX guides, and then click both ISOFIX connectors into the ISOFIX anchor points. 4

! Make sure that both ISOFIX connectors are securely attached to the vehicle's ISOFIX anchor points. There should be two audible clicks and the colors of the indicators on both ISOFIX connectors should be completely green. 4 -1
! Check to make sure the base is securely installed by pulling on both ISOFIX connectors.

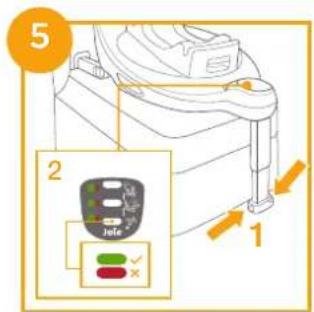

5. After placing the base on the vehicle seat, extend the load leg to floor 5 . When the load leg is installed correctly, the load leg indicator will show green. Red will be shown when installed incorrectly. 5-2

The load leg has multiple positions. When the load leg indicator shows red this means the load leg is in the wrong position.

! Make sure the load leg is in full contact with the vehicle floor pan.
! Squeeze the load leg adjustment button, then shorten the load leg upwards. 5 -1
! Always make sure the support load leg has direct contact with the floor and is in locked position even when the child is not in it.

1. The completely assembled base is shown as
   ! The ISOFIX connectors must be attached and locked onto the ISOFIX anchor points. 6 -1
   ! The load leg must be installed correctly with green indicator. 5 -2
   ! Please install the enhanced child restraint on the rear vehicle seat and then put the child in the enhanced child restraint.

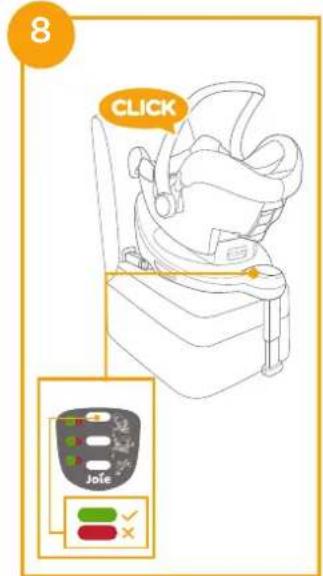

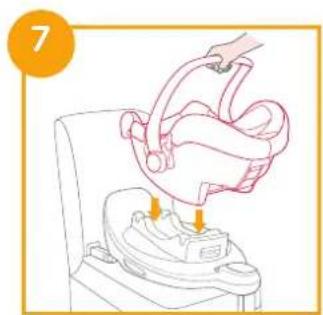

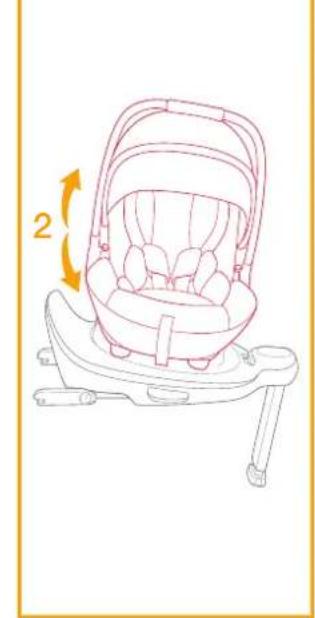

2. Push the enhanced child restraint down onto the base 7. If the enhanced child restraint is secure, the enhanced child restraint indicator will show green. 8
   ! The enhanced child restraint can ONLY be installed and released when in rearward facing mode.
3. Press the rotating button to rotate for easier side loading/unloading of the child.

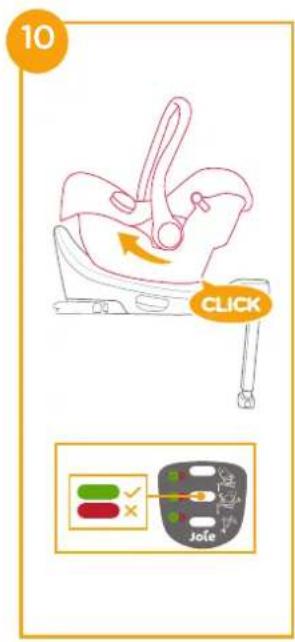

! Rotate the enhanced child restraint to the rear facing position. The enhanced child restraint indicator will show green. 10

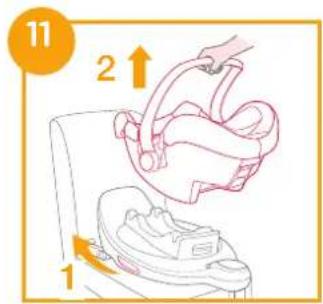

9. To release the enhanced child restraint, first take the child out of the child restraint. Pull the child restraint release button 1-1, then lift the child restraint up 11-2.

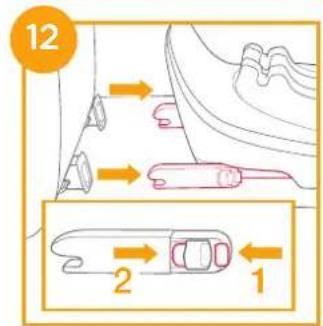

10. To remove the base from the vehicle seat, push the secondary lock buttons 12-1 first and then press the ISOFIX releasing buttons 12-2 on the ISOFIX connectors before removing the base from the vehicle seat. 12
11.For transporting, press ISOFIX adjustment button and move the ISOFIX connectors back into the storage position. 13

Bem-vindo à Joie
