| Brand | Bosch |
| Model | GDR 10 8 V-EC Professional |
| Product type | Cordless impact screwdriver |
| Rated voltage | 10.8 V |
| No-load speed | Setting 1: 0 - 1200 rpm Setting 2: 0 - 2600 rpm |
| Impact rate | Setting 1: 0 - 2700 min⁻¹ Setting 2: 0 - 3100 min⁻¹ |
| Max torque (hard screwdriving) | 110 Nm (according to ISO 5393) |
| Max screw diameter | 8 mm |
| Tool holder | 1/4" hexagon socket |
| Weight (according to EPTA 01/2003) | 0.9 kg |
| Power supply | Lithium-ion battery 10.8 V (models GBA 10.8V) |
| Compatible chargers | Series AL 11.. |
| Operating temperature range | -20 °C to +50 °C |
| Charging temperature range | 0 °C to +45 °C |
| Sound pressure level | 87 dB(A) (uncertainty K=3 dB) |
| Sound power level | 98 dB(A) (uncertainty K=3 dB) |
| Vibration (screwdriving/tightening) | a_h = 10.5 m/s² (K=1.5 m/s²) |
| Main functions | Screwing and unscrewing, tightening and loosening nuts, 2 preset speeds, PowerLight, ECP protection shutdown |
| Safety | Read warnings, wear hearing protection, use gloves, keep work area clean |
| Maintenance and cleaning | Clean ventilation openings regularly with a soft brush; remove battery before any maintenance |
| Spare parts and repairability | Contact Bosch Service (France: 0811 360122) or order online at bosch-pt.fr |
| Included accessories | Double bit, universal bit holder, belt clip, color clip (depending on version) |
Frequently Asked Questions - GDR 10 8 V-EC Professional BOSCH
User questions about GDR 10 8 V-EC Professional BOSCH
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Screwdriver in PDF format for free! Find your manual GDR 10 8 V-EC Professional - BOSCH and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. GDR 10 8 V-EC Professional by BOSCH.
USER MANUAL GDR 10 8 V-EC Professional BOSCH
OBI DOKU-40514-001 [in Page 1 Monday, February 16, 2015 9:22 AM]
Power Tools Division
70764 Leinfelden-Echterdingen
GERMANY
www.bosch-pt.com
2 609 141 152 (2015.02) O/203 EURO
GDR | GDS Professional
10,8V-EC
BOSCH
OBJ BUCH-2221-001.book Page 5 Monday, February 16, 2015 11:15 AM
5
2 609 141 152 | (16.2.15) Bosch Power Tools
6 | Deutsch
Deutsch
Sicherheitshinweise
Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY 16.02.2015
Montage
General Power Tool Safety Warnings
WARNING
Read all safety warnings and all instructions. Failure to follow the warnings
and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
Work area safety
- Keep work area clean and well lit. Cluttered or dark areas invite accidents.
▶ Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
▶ Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
Electrical safety
▶ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
▶ Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is earthed or grounded.
▶ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
▶ Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords increase the risk of electric shock.
- When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
▶ If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
Personal safety
Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
▶ Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

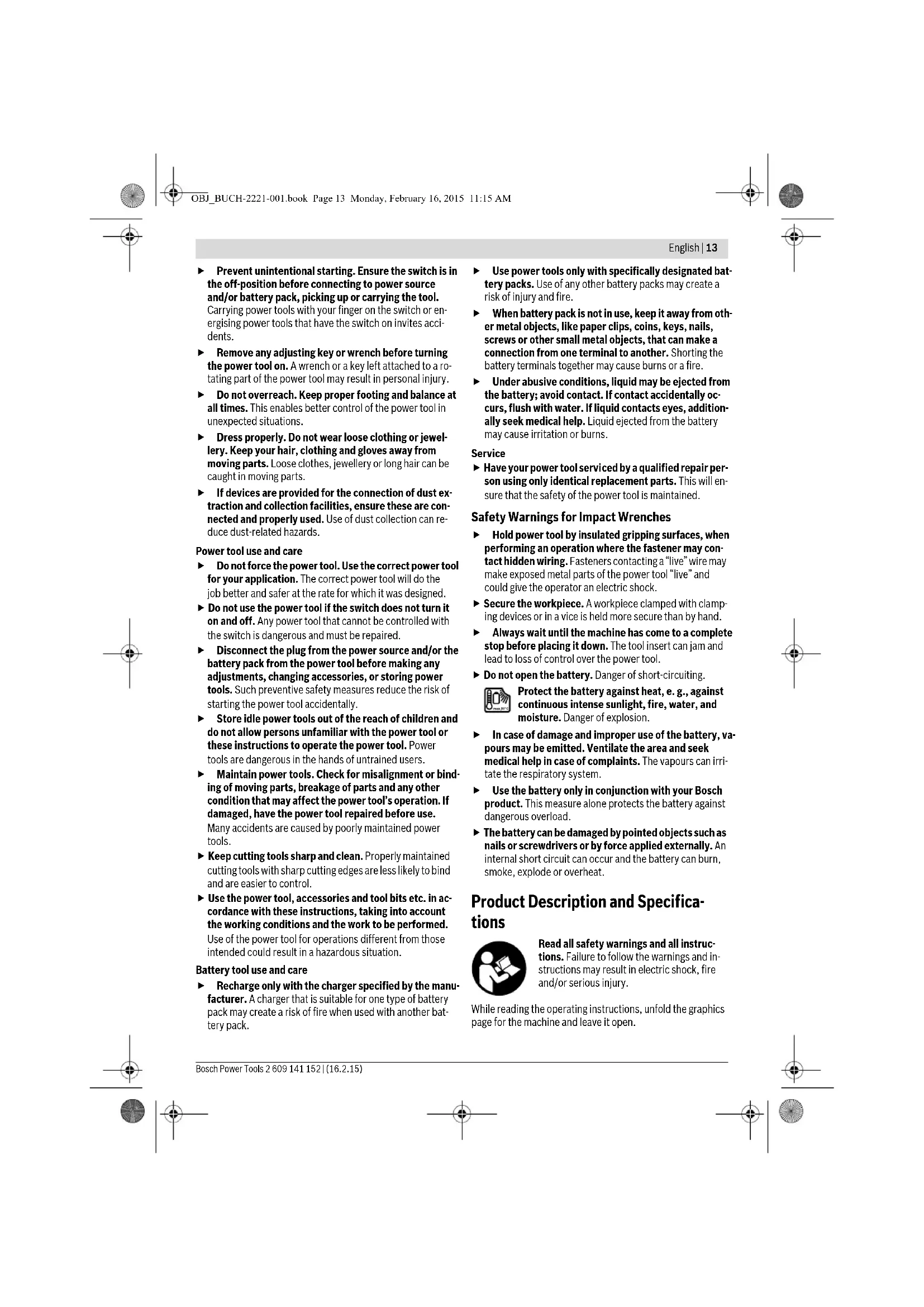

English | 13
▶ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
▶ Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
▶ Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
Power tool use and care
Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
▶ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
▶ Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
▶ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use.
Many accidents are caused by poorly maintained power tools.
▶ Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
▶ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
Battery tool use and care
▶ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
▶ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
▶ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
Service
▶ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
Safety Warnings for Impact Wrenches
Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
▶ Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand.
▶ Always wait until the machine has come to a complete stop before placing it down. The tool insert can jam and lead to loss of control over the power tool.
▶ Do not open the battery. Danger of short-circuiting.
Protect the battery against heat, e. g., against continuous intense sunlight, fire, water, and moisture. Danger of explosion.
In case of damage and improper use of the battery, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system.
▶ Use the battery only in conjunction with your Bosch product. This measure alone protects the battery against dangerous overload.
The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit can occur and the battery can burn, smoke, explode or overheat.
Product Description and Specifications
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
While reading the operating instructions, unfold the graphics page for the machine and leave it open.
14 | English
Intended Use
The machine is intended for driving in and loosening screws and bolts as well as for tightening and loosening nuts within the respective range of dimension.
The light of this power tool is intended to illuminate the power tool's direct area of working operation and is not suitable for household room illumination.
Product Features
The numbering of the product features refers to the illustration of the machine on the graphics page.
1 Tool holder
2 Locking sleeve
3 "PowerLight"
4 "PowerLight" button
5 Speed indication
6 Button for electronic speed preselection
7 Battery unlocking button
8 Battery pack
9 Rotational direction switch
10 On/Off switch
11 Battery charge-control indicator
12 Handle (insulated gripping surface)
13 Double bit*
14 Universal bit holder*
15 Screwdriver bit*
16 Application tool (e. g. an impact socket)*
17 Belt clip*
18 Colour clip*
*Accessories shown or described are not part of the standard delivery scope of the product. A complete overview of accessories can be found in our accessories program.
Technical Data
| Cordless Impact Screwdriver GDR 10,8 V-EC GDS 10,8 V-EC | |||
| Article number | 3 601 JE0 0.. 3 601 JE0 1.. | ||
| Rated voltage | V= 10.8 10.8 | ||
| No-load speed | |||
| - Setting 1 | min ^-1 | 0 - 1200 | 0 - 1200 |
| - Setting 2 | min ^-1 | 0 - 2600 | 0 - 2600 |
| Impact rate | |||
| - Setting 1 | min ^-1 | 0 - 2700 | 0 - 2700 |
| - Setting 2 | min ^-1 | 0 - 3100 | 0 - 3100 |
| Maximum torque, hard screwdriving application according to ISO 5393 | Nm 110 115 | ||
| Bolt size | mm | M4 - M12 | M4 - M12 |
| Max. screw dia. | mm | 8 | 8 |
| Tool holder | ^1/4 hexagon socket | ■ 3/8" | |
| Weight according to EPTA-Procedure 01/2003 | kg | 0.9 | 0.9 |
| Permitted ambient temperature | |||
| - during charging | °C | 0...+45 | 0...+45 |
| - during operation * and during storage | °C | -20...+50 | -20...+50 |
| Recommended batteries | GBA 10,8V ... | GBA 10,8V ... | |
| Recommended chargers | AL 11.. | AL 11.. | |
| *Limited performance at temperatures <0 °C | |||
Noise/Vibration Information
Sound emission values determined according to EN 60745-2-2.
Typically the A-weighted noise levels of the product are: Sound pressure level 87 dB(A); Sound power level 98 dB(A). Uncertainty K=3 dB.
Wear hearing protection!
Vibration total values a_n (triax vector sum) and uncertainty K determined according to EN 60745-2-2: Impact tightening of fasteners of the maximum capacity of the tool: a_n=10.5 m/s^2 , K=1.5m/s ^2 .
The vibration level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.
The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or insertion tools or is poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.
An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may sig-
English | 15
nificantly reduce the exposure level over the total working period.
Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.
Declaration of Conformity CE
We declare under our sole responsibility that the product described under "Technical Data" is in conformity with all relevant provisions of the directives 2009/125/EC (Regulation 1194/2012), 2011/65/EU, until 19 April 2016:
2004/108/EC, from 20 April 2016 on: 2014/30/EU, 2006/42/EC including their amendments and complies with the following standards: EN 60745-1, EN 60745-2-2.
Technical file (2006/42/EC) at:
Robert Bosch GmbH, PT/ETM9,
70764 Leinfelden-Echterdingen, GERMANY
Henk Becker
Helmut Heinzelmann
Executive Vice President
Head of Product Certification
Engineering
PT/ETM9
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
16.02.2015
Assembly
Removing the Battery (see figure A)
▶ Use only the battery chargers listed on the accessories page. Only these battery chargers are matched to the lithium-ion battery of your power tool.
Note: The battery supplied is partially charged. To ensure full capacity of the battery, completely charge the battery in the battery charger before using your power tool for the first time. The lithium-ion battery can be charged at any time without reducing its service life. Interrupting the charging procedure does not damage the battery.
The lithium-ion battery is protected against deep discharging by the "Electronic Cell Protection (ECP)". When the battery is empty, the machine is switched off by means of a protective circuit: The inserted tool no longer rotates.
▶ Do not continue to press the On/Off switch after the machine has been automatically switched off. The battery can be damaged.
To remove the battery 8 press the unlocking buttons 7 and pull out the battery downwards. Do not exert any force. Observe the notes for disposal.
Changing the Tool
Before any work on the machine itself (e.g. maintenance, tool change, etc.) as well as during transport and storage, remove the battery from the power tool. There is danger of injury when unintentionally actuating the On/Off switch.
▶ Regularly clean the power tool's air vents. The motor's fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.
GDR 10,8 V-EC:
Inserting (see figure B)
Pull the locking sleeve 2 forward, push the insert tool to the stop into the tool holder 1 and release the locking sleeve 2 to lock the insert tool.
Screwdriver bits 15 can be inserted using a universal bit holder with ball lock 14.
Removing
Pull the locking sleeve 2 forward and remove the insert tool.
GDS 10,8 V-EC: (see figure C)
When working with an application tool, pay attention that the application tool is connected securely on the tool holder. When the application tool is not securely connected with the tool holder, it can come off during application.
Slide the application tool 16 onto the square drive of the tool holder 1.
With this system, there will be a slight amount of play around the application tool 16 after connecting securely to the tool holder 1; this has no influence on the function/safety.
Operation
Method of Operation
The tool holder 1 with the tool is driven by an electric motor via a gear and impact mechanism.
The working procedure is divided into two phases:
Screwing in and tightening (impact mechanism in action).
The impact mechanism is activated as soon as the screwed connection runs tight and thus load is put on the motor. In this instance, the impact mechanism converts the power of the motor to steady rotary impacts. When loosening screws or nuts, the process is reversed.
Starting Operation
Inserting the battery
Set the rotational direction switch 9 to the centre position to protect the power tool against accidental starting. Insert the charged battery 8 from the front into the base of the power tool until the battery is securely locked.
Reversing the rotational direction (see figure D)
The rotational direction switch 9 is used to reverse the rotational direction of the machine. However, this is not possible with the On/Off switch 10 actuated.
Right rotation: For driving in screws and tightening nuts, press the rotational direction switch 9 through to the left stop.
Left Rotation: For loosening and unscrewing screws and nuts, press the rotational direction switch 9 through to the right stop.
16 | English
Switching On and Off
To start the machine, press the On/Off switch 10 and keep it pressed.
To switch off the machine, release the On/Off switch 10.
To save energy, only switch the power tool on when using it.
Adjusting the Speed
The speed of the switched-on power tool can be variably adjusted, depending on how far the On/Off switch 10 is pressed.
Light pressure on the On/Off switch 10 results in a low rotational speed. Further pressure on the switch results in an increase in speed.
Preselecting the Speed/Impact Frequency
With the button 6 you can preselect the required speed/impact rate in 2 stages. Press the button 6 repeatedly until the desired setting appears in the speed indicator 5. The selected setting will be saved.
The required speed/impact frequency depends on the material and the working conditions, and can be determined through practical testing.
Switching the "PowerLight" On/Off
To switch the "PowerLight" 3 on, press button 4. To switch the "PowerLight" 3 off, press button 4 again.
Battery Charge-control Indication
The battery charge-control indicator 11 consists of three green LEDs, and indicates the charge condition of the battery for a few seconds when the On/Off switch 10 is pressed halfway or fully.
LED Capacity
| Continuous lighting 3 x green ≥ 2/3 |
| Continuous lighting 2 x green ≥ 1/3 |
| Continuous lighting 1 x green < 1/3 |
| Flashing light 1 x green Reserve |
Temperature Dependent Overload Protection
In normal conditions of use, the power tool cannot be overloaded. If the power tool is overloaded or not kept within the permitted battery temperature range, the power output is reduced or the power tool is switched off. The power tool will not run at full power output again until the permitted battery temperature has been reached.
Working Advice
▶ Apply the power tool to the screw/nut only when it is switched off. Rotating tool inserts can slip off.
The torque depends on the impact duration. The maximum achieved torque results from the sum of all individual torques achieved through impact. The maximum torque is achieved after an impact duration of 6–10 seconds. After this duration, the tightening torque is increased only minimally.
The impact duration is to be determined for each required tightening torque. The actually achieved tightening torque is always to be checked with a torque wrench.
Screw Applications with Hard, Spring-loaded or Soft Seat
A test in which the achieved torques in an impact series are measured and transferred to a diagram will produce the curve of a torque characteristic. The height of the curve corresponds with the maximum reachable torque, and the steepness indicates the duration in which this is achieved.
A torque gradient depends on the following factors:
– Strength properties of the screws/nuts
- Type of backing (washer, disc spring, seal)
– Strength properties of the material being screwed/bolted together
– Lubrication conditions at the screw/bolt connection
The following application cases result accordingly:
- A hard seat is given for metal-to-metal screw applications with the use of washers. After a relatively short impact duration, the maximum torque is reached (steep characteristic curve). Unnecessary long impact duration only causes damage to the machine.
- A spring-loaded seat is given for metal-to-metal screw applications, however with the use of spring washers, disc springs, studs or screws/nuts with conical seat as well as when using extensions.
- A soft seat is given for screw applications, e. g., metal on wood or when using lead washers or fibre washers as backing.
For a spring-loaded seat as well as for a soft seat, the maximum tightening torque is lower than for a hard seat. Also, a clearly longer impact duration is required.
Reference Values for Maximum Screw/Bolt Tightening Torques
Calculated from the tensional cross-section; utilization of the yield point 90% (with friction coefficient _total = 0.12 ). As a control measure, always check the tightening torque with a torque wrench.
| Property Classes according to DIN 267 | Standard Screws/Bolts High-strength Bolts | ||||||||||
| 3.6 | 4.6 | 5.6 | 4.8 | 6.6 | 5.8 | 6.8 | 6.9 | 8.8 | 10.9 | 12.9 | |
| M 6 | 2.71 | 3.61 | 4.52 | 4.8 | 5.42 | 6.02 | 7.22 | 8.13 | 9.7 | 13.6 | 16.2 |
| M 8 | 6.57 | 8.7 | 11 | 11.6 | 13.1 | 14.6 | 17.5 | 19.7 | 23 | 33 | 39 |
| M 10 | 13 | 17.5 | 22 | 23 | 26 | 29 | 35 | 39 | 47 | 65 | 78 |
| M 12 | 22.6 | 30 | 37.6 | 40 | 45 | 50 | 60 | 67 | 80 | 113 | 135 |
| M 14 | 36 | 48 | 60 | 65 | 72 | 79 | 95 | 107 | 130 | 180 | 215 |
| M 16 | 55 | 73 | 92 | 98 | 110 | 122 | 147 | 165 | 196 | 275 | 330 |
2 609 141 152 | (16.2.15) Bosch Power Tools
Tips
Before screwing larger, longer screws into hard materials, it is advisable to predrill a pilot hole with the core diameter of the thread to approx. 23 of the screw length.
Note: Pay attention that no metal particles enter the power tool.

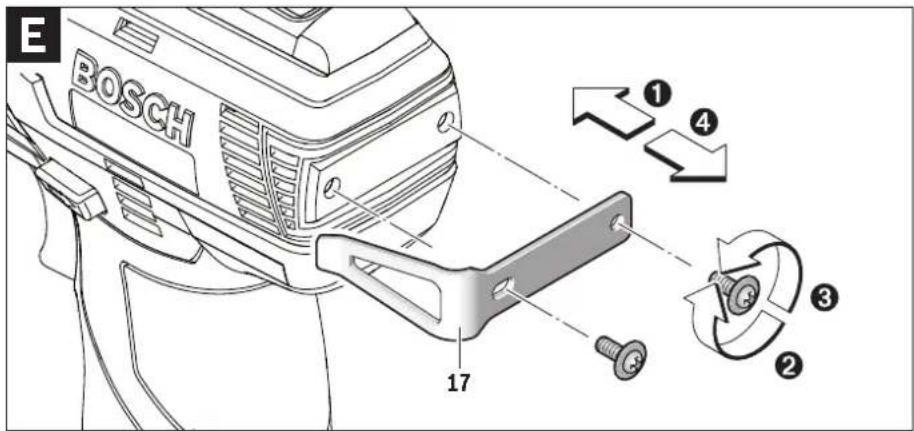

Belt Clip (see figure E)
With the belt clip 17, the machine can be hung onto a belt. The user has both hands free and the machine is always at hand.

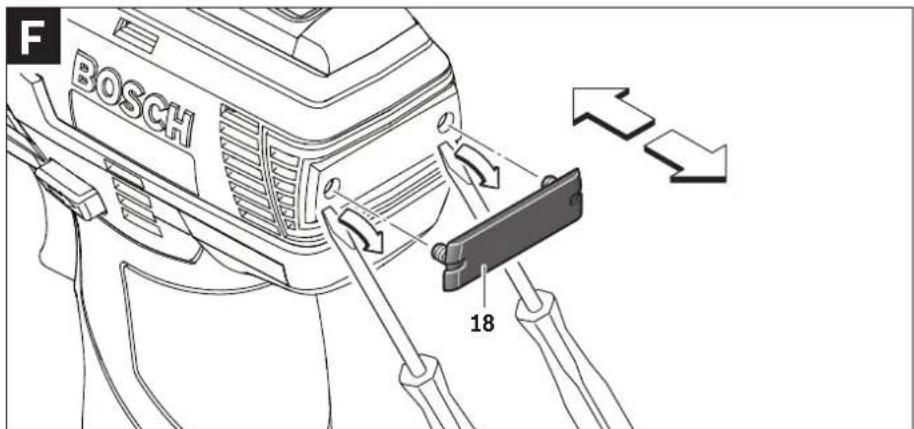

Colour clip (see figure F)
You can use the colour clip 18 to individually label the power tool.
Recommendations for Optimal Handling of the Battery
Protect the battery against moisture and water.
Store the battery only within a temperature range between -20^ and 50^ . As an example, do not leave the battery in the car in summer.
Occasionally clean the venting slots of the battery using a soft, clean and dry brush.
A significantly reduced working period after charging indicates that the battery is used and must be replaced.
Observe the notes for disposal.
Maintenance and Service
Maintenance and Cleaning
Before any work on the machine itself (e.g. maintenance, tool change, etc.) as well as during transport and storage, remove the battery from the power tool. There is danger of injury when unintentionally actuating the On/Off switch.
▶ For safe and proper working, always keep the machine and ventilation slots clean.
After-sales Service and Application Service
Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under:
www.bosch-pt.com
Bosch's application service team will gladly answer questions concerning our products and their accessories.
In all correspondence and spare parts order, please always include the 10-digit article number given on the type plate of the machine.
Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham
Uxbridge
UB 9 5HJ
At www.bosch-pt.co.uk you can order spare parts or arrange
the collection of a product in need of servicing or repair.
Tel. Service: (0344) 7360109
E-Mail: boschservicecentre@bosch.com
Ireland
Origo Ltd.
Unit 23 Magna Drive
Magna Business Park
City West
Dublin 24
Tel. Service: (01) 4666700
Fax: (01) 4666888
Australia, New Zealand and Pacific Islands
Robert Bosch Australia Pty. Ltd.
Power Tools
Locked Bag 66
Clayton South VIC 3169
Customer Contact Center
Inside Australia:
Phone: (01300) 307044
Fax: (01300) 307045
Inside New Zealand:
Phone:(0800)543353
Fax: (0800) 428570
Outside AU and NZ:
Phone: +61 3 95415555
www.bosch.com.au
Republic of South Africa
Customer service
Hotline: (011) 6519600
Gauteng - BSC Service Centre
35 Roper Street, New Centre
Johannesburg
Tel.: (011) 4939375
Fax: (011) 4930126
E-Mail: bsctools@icon.co.za
KZN - BSC Service Centre
Unit E, Almar Centre
143 Crompton Street
Pinetown
Tel.: (031) 7012120
Fax: (031) 7012446
E-Mail: bsc.dur@za.bosch.com
Western Cape - BSC Service Centre
Democracy Way, Prosperity Park
Milnerton
Tel.: (021) 5512577
Fax: (021) 5513223
E-Mail: bsc@zsd.co.za
18 | Français
Bosch Headquarters
Midrand, Gauteng
Tel.: (011) 6519600
Fax: (011) 6519880
E-Mail: rbsa-hq.pts@za.bosch.com
Transport
The contained lithium-ion batteries are subject to the Dangerous Goods Legislation requirements. The user can transport the batteries by road without further requirements.
When being transported by third parties (e.g.: air transport or forwarding agency), special requirements on packaging and labelling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required.
Dispatch batteries only when the housing is undamaged. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging. Please also observe possibly more detailed national regulations.
Disposal
The machine, rechargeable batteries, accessories and packaging should be sorted for environmental-friendly recycling.
Do not dispose of power tools and batteries/rechargeable batteries into household waste!
Only for EC countries:
According to the European Guideline 2012/19/EU, power tools that are no longer usable, and according to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.
Batteries no longer suitable for use can be directly returned at:
Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham
Uxbridge
UB 9 5HJ
At www.bosch-pt.co.uk you can order spare parts or arrange
the collection of a product in need of servicing or repair.
Tel. Service: (0344) 7360109
E-Mail: boschservicecentre@bosch.com
Battery packs/batteries:
Li-ion:
Please observe the instructions in section "Transport", page 18.
Subject to change without notice.
Français
Executive Vice President Engineering
Helmut Heinzelmann
Head of Product Certification PT/ETM9
i.v. k=m
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY 16.02.2015
Montage
Robert Bosch (France) S.A.S.
Executive Vice President Engineering
Head of Product Certification PT/ETM9
Aur Beo
i.v. h=w
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY 16.02.2015
28 | Español
Montaje
Executive Vice President
Head of Product Certification
Engineering
PT/ETM9
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY 16.02.2015
Montagem
Retirar o acumulador (veja figura A)
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
16.02.2015
Italiano | 41
Montaggio
Executive Vice President Engineering
Head of Product Certification PT/ETM9
Ppa
i.v. k=m
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
16.02.2015
48 | Nederlands
Montage
Executive Vice President Engineering
Head of Product Certification PT/ETM9
jue 3e0 i.v. h.w.
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY 16.02.2015
Montering
Akku tages ud (se Fig. A)
Bosch Service Center
Telegrafvej 3
2750 Ballerup
På www.bosch-pt.dk kan der online bestilles reservedele eller oprettes en reparations ordre.
Tlf. Service Center: 44898855
Fax: 44898755
E-Mail: vaerktoej@dk.bosch.com
Transport
Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY 16.02.2015
Montage
Bosch Service Center
Telegrafvej 3
2750 Ballerup
Danmark
Tel.: (08) 7501820 (inom Sverige)
Fax: (011) 187691
Transport
Executive Vice President Engineering
Helmut Heinzelmann Head of Product Certification PT/ETM9
i.v. h-w
Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY 16.02.2015
Montering
4 "Power Light"-lampun painike
5 Kierroslukunäyttö
Executive Vice President
Head of Product Certification
Engineering
PT/ETM9
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
16.02.2015
Asennus
Executive Vice President Engineering
Helmut Heinzelmann
Head of Product Certification PT/ETM9
juk 300 i.v. h:m
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
16.02.2015
Συναρμολόγηση
Executive Vice President Engineering
Helmut Heinzelmann
Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
16.02.2015
Montaj
Bosch San. ve Tic. A.S.
Ahi Evran Cad. No:1 Kat:22
Polaris Plaza
80670 Maslak/Istanbul
Bosch Uzman Ekibi +90 (0212) 367 18 88
Işıklar LTD.ŞTİ.
Kizilay Cad. No: 16/C Seyhan
Adana
Tel.: 0322 3599710
Tel.: 0322 3591379
Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY 16.02.2015
Montaż
Robert Bosch Sp. z o.o.
Executive Vice President
Head of Product Certification
Engineering
PT/ETM9
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
16.02.2015
Montáž
Bosch Service Center PT
K Vápence 1621/16
692 01 Mikulov
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
16.02.2015
Montáž
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
16.02.2015
Összeszerelés
Executive Vice President
Head of Product Certification
Engineering
PT/ETM9
i.v. k=ml
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
16.02.2015
Русский|115
Сборка
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
16.02.2015
Монтаж
Executive Vice President Engineering
Helmut Heinzelmann
Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
16.02.2015
Жинау
Executive Vice President Engineering
Helmut Heinzelmann
Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
16.02.2015
Montare
Tel. service scule electrice: (021) 4057540
Fax: (021) 4057566
E-Mail: infoBSC@ro.bosch.com
Executive Vice President Head of Product Certification
Engineering PT/ETM9
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
16.02.2015
Монтиране
Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY 16.02.2015
Монтажа
Executive Vice President
Head of Product Certification
Engineering
PT/ETM9
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
16.02.2015
Montaža
Executive Vice President Engineering
Head of Product Certification PT/ETM9
PPa
JwR Zeo i.V. H.W.
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
16.02.2015
Montaža
Executive Vice President Engineering
Helmut Heinzelmann
Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY 16.02.2015
Montaža
14 Universaaladapter*
15 Kruvikeeramistarvik*
16 Tarvik (nt kruvikeeramisotsak)*
17 Vööklamber*
18 Värviline klemm*
Executive Vice President
Head of Product Certification
Engineering
PT/ETM9
PPa
Jawr Ben i.v. h.w.
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
16.02.2015
Montaž
Aku eemaldamine (vt joonist A)
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification PT/ETM9
i.v. h=mc
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
16.02.2015
178 | Latviešu
Montāža
Executive Vice President Engineering
Helmut Heinzelmann Head of Product Certification PT/ETM9
i.v. k=m
Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY 16.02.2015
Montavimas
Executive Vice President
Head of Product Certification
Engineering
PT/ETM9
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
16.02.2015
نصب
2 609 141 152 | (16.2.15) Bosch Power Tools
GBA 10,8 V ...
202

