IXO 4 Upgrade Full - Screwdriver BOSCH - Free user manual and instructions

Product type	Cordless screwdriver
Brand	Bosch
Model	IXO 4 Upgrade Full
Dimensions (L x W x H)	200 x 50 x 50 mm
Weight	0.3 kg
Power supply	Lithium-ion battery 3.6 V, rechargeable via USB-C
Battery capacity	1.5 Ah
Charging time	Approximately 3 hours
Maximum torque	5 Nm
No-load speed	0 – 200 rpm
Chuck	Hexagonal 6.35 mm (1/4 inch)
Rotation direction	Reversible (left/right)
Lighting	Integrated LED to illuminate work area
Main functions	Screwing and light drilling
Maintenance and cleaning	Clean with a dry, soft cloth. Do not use abrasive products.
Safety	Anti-start safety lock, automatic shutdown in case of overload or jamming
Spare parts and repairability	Replaceable battery, bits available in kit
Warranty	2 years

Frequently Asked Questions - IXO 4 Upgrade Full BOSCH

What is the battery life of the Bosch IXO 4 Upgrade Full?

Battery life depends on usage, but with a 1.5 Ah battery, you can screw about 100 screws into softwood before needing to recharge.

How do I charge the Bosch IXO 4 screwdriver?

Use the supplied USB-C cable. Plug it into a standard USB charger (5V, 1A recommended) and connect it to the screwdriver. The LED indicator shows the charging status.

What type of chuck is used on the Bosch IXO 4?

The chuck is hexagonal 6.35 mm (1/4 inch), compatible with most standard screwdriver bits.

Can I use the IXO 4 for drilling?

Yes, for light drilling in wood, plastic, and drywall. For harder materials, it is better to use a more powerful drill.

How do I reverse the rotation direction?

A switch located above the trigger allows switching from clockwise (screwing) to counterclockwise (unscrewing).

Does the screwdriver have LED lighting?

Yes, an LED automatically turns on when you press the trigger to illuminate the work area.

What should I do if the screwdriver stops working?

First check the battery charge. If it is charged, try resetting it by removing the battery for 10 seconds. Refer to the manual for more details.

How do I clean the Bosch IXO 4 Upgrade Full?

Clean the housing with a dry, soft cloth. Do not use water or harsh chemicals.

What accessories are included with the IXO 4 Upgrade Full?

The kit usually includes a USB-C cable, a double screwdriver bit, a magnetic bit holder, and a storage case.

Where can I find spare parts?

Parts like the battery or bits are available from Bosch dealers or online. Check the exact model number.

USER MANUAL IXO 4 Upgrade Full BOSCH

OBJ BUCH-826-007.book Page 1 Tuesday, July 9, 2013 1:14 PM

WEUWEU

Illustration of a Bosch electric drill bit (no text or symbols visible)

Robert Bosch GmbH

Power Tools Division

70745 Leinfelden-Echterdingen

Germany

www.bosch-pt.com

1 609 92A 0AD (2013.07) I/194 WEU

1 609 92A 0AD

IXO

BOSCH

OBJ_BUCH-826-007.book Page 2 Tuesday, July 9, 2013 1:14 PM

2

Deutsch Seite 7

English....Page 22

Français....Page 37

OBJ_BUCH-826-007.book Page 3 Tuesday, July 9, 2013 1:14 PM

|3

Bosch Power Tools 1 609 92A 0AD | (9.7.13)

OBJ_BUCH-826-007.book Page 4 Tuesday, July 9, 2013 1:14 PM

4

B

C

1 609 92A 0AD | (9.7.13) Bosch Power Tools

OBJ_BUCH-826-007.book Page 6 Tuesday, July 9, 2013 1:14 PM

6

1 609 92A 0AD | (9.7.13) Bosch Power Tools

OBJ_BUCH-826-007.book Page 7 Tuesday, July 9, 2013 1:14 PM

Deutsch | 7

Deutsch

Sicherheitshinweise

OBJ_BUCH-826-007.book Page 8 Tuesday, July 9, 2013 1:14 PM

8|Deutsch

OBJ_BUCH-826-007.book Page 9 Tuesday, July 9, 2013 1:14 PM

Deutsch|9

OBJ_BUCH-826-007.book Page 10 Tuesday, July 9, 2013 1:14 PM

10 | Deutsch

OBJ_BUCH-826-007.book Page 11 Tuesday, July 9, 2013 1:14 PM

Deutsch | 11

OBJ_BUCH-826-007.book Page 12 Tuesday, July 9, 2013 1:14 PM

12 | Deutsch

OBJ_BUCH-826-007.book Page 13 Tuesday, July 9, 2013 1:14 PM

Deutsch | 13

OBJ_BUCH-826-007.book Page 14 Tuesday, July 9, 2013 1:14 PM

14 | Deutsch

Akku-Schrauber IXO

OBJ_BUCH-826-007.book Page 15 Tuesday, July 9, 2013 1:14 PM

Deutsch | 15

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

i.v. h=m

Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

06.09.2011

Montage

OBJ_BUCH-826-007.book Page 16 Tuesday, July 9, 2013 1:14 PM

16 | Deutsch

OBJ_BUCH-826-007.book Page 17 Tuesday, July 9, 2013 1:14 PM

Deutsch|17

OBJ_BUCH-826-007.book Page 18 Tuesday, July 9, 2013 1:14 PM

18 | Deutsch

Ein-/Ausschalten

OBJ_BUCH-826-007.book Page 19 Tuesday, July 9, 2013 1:14 PM

Deutsch | 19

OBJ_BUCH-826-007.book Page 20 Tuesday, July 9, 2013 1:14 PM

20 | Deutsch

Österreich

Tel.: [phone]

Fax: [phone]

OBJ_BUCH-826-007.book Page 21 Tuesday, July 9, 2013 1:14 PM

Deutsch | 21

OBJ_BUCH-826-007.book Page 22 Tuesday, July 9, 2013 1:14 PM

22 | English

English

Safety Notes

General Power Tool Safety Warnings

WARNING

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in

electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
  Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
  ▶ Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

▶ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
▶ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
▶ Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges

1 609 92A 0AD | (9.7.13) Bosch Power Tools

OBJ_BUCH-826-007.book Page 23 Tuesday, July 9, 2013 1:14 PM

English | 23

and moving parts. Damaged or entangled cords increase the risk of electric shock.

▶ When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
▶ If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

▶ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
▶ Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
▶ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
▶ Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
▶ Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
▶ If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

Bosch Power Tools 1 609 92A 0AD | (9.7.13)

OBJ_BUCH-826-007.book Page 24 Tuesday, July 9, 2013 1:14 PM

24 | English

Power tool use and care

▶ Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
▶ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
▶ Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
- Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
▶ Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
▶ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

Battery tool use and care

▶ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
▶ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

1 609 92A 0AD | (9.7.13) Bosch Power Tools

OBJ_BUCH-826-007.book Page 25 Tuesday, July 9, 2013 1:14 PM

English | 25

▶ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

Service

▶ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Safety Warnings for Screwdrivers

▶ Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
▶ Hold the machine with a firm grip. High reaction torque can briefly occur while driving in and loosening screws.
▶ Always wait until the machine has come to a complete stop before placing it down. The tool insert can jam and lead to loss of control over the power tool.
▶ Before any work on the machine (e.g., maintenance, tool change, etc.) as well as during transport and storage, set the rotational direction switch to the centre position. Unintentional actuation of the On/Off switch can lead to injuries.

Protect the power tool against heat, e. g., against continuous intense sunlight, fire, water, and moisture. Danger of explosion.

▶ In case of damage and improper use of the battery, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system.

Safety Warnings for Battery Chargers

Keep the battery charger away from rain or moisture. Penetration of water in the battery charger increases the risk of an electric shock.

Bosch Power Tools 1 609 92A 0AD | (9.7.13)

OBJ_BUCH-826-007.book Page 26 Tuesday, July 9, 2013 1:14 PM

26 | English

▶ Only charge Bosch lithium ion batteries or lithium ion batteries installed in Bosch products. The battery voltage must match the battery charging voltage of the charger. Otherwise there is danger of fire and explosion.
- Keep the battery charger clean. Contamination can lead to danger of an electric shock.
Before each use, check the battery charger, cable and plug. If damage is detected, do not use the battery charger. Never open the battery charger yourself. Have repairs performed only by a qualified technician and only using original spare parts. Damaged battery chargers, cables and plugs increase the risk of an electric shock.
▶ Do not operate the battery charger on easily inflammable surfaces (e.g., paper, textiles, etc.) or surroundings. The heating of the battery charger during the charging process can pose a fire hazard.
▶ Supervise children. This will ensure that children do not play with the charger.
▶ Children or persons that owing to their physical, sensory or mental limitations or to their lack of experience or knowledge, are not capable of securely operating the charger, may only use this charger under supervision or after having been instructed by a responsible person. Otherwise, there is danger of operating errors and injuries.

Products sold in GB only: Your product is fitted with a BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362).

If the plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place by an authorised customer service agent. The replacement plug should have the same fuse rating as the original plug. The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere.

Product Description and Specifications

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

1 609 92A 0AD | (9.7.13) Bosch Power Tools

OBJ_BUCH-826-007.book Page 27 Tuesday, July 9, 2013 1:14 PM

English | 27

Intended Use

The machine is intended for driving in and loosening screws.

The light of this power tool is intended to illuminate the power tool's direct area of working operation and is not suitable for household room illumination.

Product Features

The numbering of the product features refers to the illustration of the machine on the graphics page.

1 Screwdriver bit*
2 Tool holder

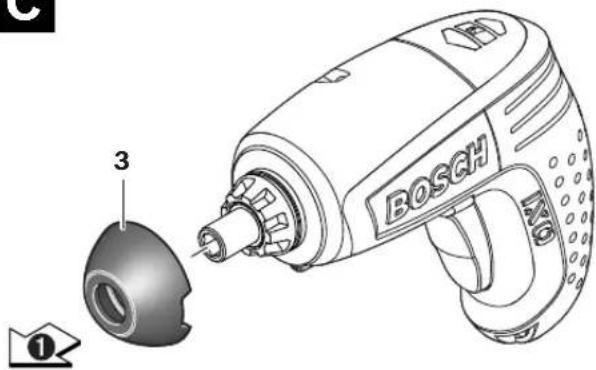

3 Rubber cap
4 Indicator for right rotation
5 Battery charge-control indicator
6 Indicator for left rotation
7 Suspension hook
8 On/Off switch
9 Rotational direction switch

10 "PowerLight"

11 Handle (insulated gripping surface)

12 Battery charger

13 Eccentric driver head*

14 Angle driver head*

15 Torque attachment*

16 Torque presetting ring*

17 Torque-setting mark*

18 Release ring*

*Accessories shown or described are not part of the standard delivery scope of the product. A complete overview of accessories can be found in our accessories program.

Bosch Power Tools 1 609 92A 0AD | (9.7.13)

OBJ_BUCH-826-007.book Page 28 Tuesday, July 9, 2013 1:14 PM

28 | English

Technical Data

Cordless Screwdriver IXO
Article number		3 603 J81 0..
Rated voltage	V= 3.6
No-load speed	min-1	215
Max. torque for hard/soft screwdriving application according to ISO 5393 Nm 4.5/3
Max. screw dia.	mm	5
Weight according to EPTA-Procedure 01/2003	kg 0.3
Battery		Li-Ion
Capacity	Ah 1.3
Number of battery cells		1
Battery Charger
Article number 2 607 225 809 (EU)		2 607 225 811(UK/SMA)2 607 225 813 (AU)
Charging time min 330
Protection class		☐/II

Noise/Vibration Information

Measured sound values determined according to EN 60745.

Typically the A-weighted sound pressure level of the product is less than

70 dB(A). Uncertainty K = 3 dB.

The noise level when working can exceed 80 dB(A).

Wear hearing protection!

Vibration total values a_h (triax vector sum) and uncertainty K determined according to EN 60745:

Screwdriving without impact: a_h<2.5m/s^2, K<1.5m/s^2 .

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be

1 609 92A 0AD | (9.7.13) Bosch Power Tools

OBJ_BUCH-826-007.book Page 29 Tuesday, July 9, 2013 1:14 PM

English | 29

used to compare one tool with another. It may be used for a preliminary assessment of exposure.

The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep hands warm, organise work patterns.

Declaration of Conformity

We declare under our sole responsibility that the product described under "Technical Data" is in conformity with the following standards or standardisation documents: EN 60745 (cordless tool) and EN 60335 (battery charger) according to the provisions of the directives 2009/125/EC (Regulation 1194/2012), 2011/65/EU, 2006/95/EC, 2004/108/EC, 2006/42/EC.

Technical file (2006/42/EC) at: Robert Bosch GmbH, Postfach 10 01 56, D-70745 Leinfelden-Echterdingen

CE 11

Henk Becker

Helmut Heinzelmann

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

i.v. h=w

Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

06.09.2011

Bosch Power Tools 1 609 92A 0AD | (9.7.13)

OBJ_BUCH-826-007.book Page 30 Tuesday, July 9, 2013 1:14 PM

30 | English

Assembly

▶ Before any work on the machine (e.g., maintenance, tool change, etc.) as well as during transport and storage, set the rotational direction switch to the centre position. Unintentional actuation of the On/Off switch can lead to injuries.

Battery Charging (see figure A)

▶ Do not use other battery chargers. The supplied battery charger is designed for the Lithium-Ion battery in your machine.
▶ Observe the mains voltage! The voltage of the power supply must correspond with the data given on the nameplate of the battery charger. Battery chargers marked with 230 V can also be operated with 220 V.

Note: The battery is supplied partially charged. To ensure full capacity of the battery, completely charge the battery in the battery charger before using your power tool for the first time.

The lithium ion battery can be charged at any time without reducing its service life. Interrupting the charging procedure does not damage the battery.

The Lithium-Ion battery is protected against deep discharging. When the battery is discharged, the machine is automatically switched off by a protective circuit: The inserted tool no longer moves and a slight whistling noise can be heard.

▶ Do not continue to press the On/Off switch after the machine has been automatically switched off. The battery can be damaged.

When the battery charge-control indicator 5 lights up red while the On/Off switch 8 is depressed half way, then the battery has less than 30% of its capacity and should be charged.

The charging procedure starts as soon as the main plug of the battery charger is inserted into the socket and the cordless screwdriver is afterwards placed on the battery charger 12.

The battery charge-control indicator 5 indicates the charging progress. The indicator lights up green during the charging process. When the battery charge-control indicator 5 is no longer lit, the battery is fully charged.

During the charging procedure, the handle of the machine warms up. This is normal.

1 609 92A 0AD | (9.7.13) Bosch Power Tools

OBJ_BUCH-826-007.book Page 31 Tuesday, July 9, 2013 1:14 PM

English | 31

Disconnect the battery charger from the mains supply when not using it for longer periods.

The power tool cannot be used during the charge procedure; it is not defective when inoperative during the charging procedure.

▶ Protect the battery charger against moisture!

Observe the notes for disposal.

Changing the Tool (see figure B)

▶ Do not use double-sided screwdriver blades that are longer than 25 mm.

Insert the screwdriver bit 1 directly into the tool holder 2.

Eccentric Driver Head/Angle Driver Head/Torque Attachment (see figures C-F)

The eccentric driver head 13 enables screwdriving close to edges.

The angle driver head 14 enables screwdriving at hard to reach locations.

With the torque presetting ring 16 on the torque attachment 15, the requested torque can be preset in 10 steps. With the correct setting, the tool bit is stopped as soon as the screw is driven flush into the material or when the set torque is reached.

Assembly (see figures C-D)

For assembly of the attachments, pull the rubber cap 3 off toward the front. Afterwards the attachments can be mounted. The attachments can be mounted offset by 45°.

Dismounting (see figures E-F)

To dismount the attachments, turn the release ring 18 in rotation direction ① and pull the attachment off toward the front. Afterwards, mount the rubber cap 3 again.

Bosch Power Tools 1 609 92A 0AD | (9.7.13)

OBJ_BUCH-826-007.book Page 32 Tuesday, July 9, 2013 1:14 PM

32 | English

Operation

Starting Operation

Reversing the rotational direction

The rotational direction switch9 is used to reverse the rotational direction of the machine. However, this is not possible with the On/Off switch 8 actuated.

Right rotation: For driving in screws, push the rotational direction switch 9 left to the stop.

The indicator for right rotation 4 lights up when the On/Off switch 8 is actuated and the motor is running.

Left Rotation: For loosening or unscrewing screws, push the rotational direction switch 9 right to the stop.

The indicator for left rotation 6 lights up when the On/Off switch 8 is actuated and the motor is running.

Switching On and Off

To start the machine, press the On/Off switch 8 and keep it pressed.

The power light 10 lights up when the On/Off switch 8 is slightly or completely pressed, and allows the work area to be illuminated when lighting conditions are insufficient.

To switch off the machine, release the On/Off switch 8.

Fully automatic spindle locking (Auto-lock)

The drill spindle is locked when the On/Off switch 8 is not pressed.

This enables screws to be screwed in, even when the battery is empty and allows for the machine to be used as a screwdriver.

When the drilling spindle is locked, do not press the On/Off switch 8 for more than 15 seconds. Otherwise the power tool can be damaged.

Working Advice

▶ Apply the power tool to the screw only when it is switched off. Rotating tool inserts can slip off.

Up to 13 screwdriver bits can be stored on the side of the battery charger 12. The fixture that holds the screwdriver bits can be removed.

1 609 92A 0AD | (9.7.13) Bosch Power Tools

OBJ_BUCH-826-007.book Page 33 Tuesday, July 9, 2013 1:14 PM

English | 33

Maintenance and Service

Maintenance and Cleaning

▶ Before any work on the machine (e.g., maintenance, tool change, etc.) as well as during transport and storage, set the rotational direction switch to the centre position. Unintentional actuation of the On/Off switch can lead to injuries.
▶ For safe and proper working, always keep the machine and ventilation slots clean.

When the battery is no longer operative, please refer to an authorised after-sales service agent for Bosch power tools.

If the replacement of the supply cord is necessary, this has to be done by Bosch or an authorized Bosch service agent in order to avoid a safety hazard.

If the machine should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for Bosch power tools.

In all correspondence and spare parts order, please always include the 10-digit article number given on the type plate of the machine.

After-sales Service and Application Service

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under:

www.bosch-pt.com

Bosch's application service team will gladly answer questions concerning our products and their accessories.

Bosch Power Tools 1 609 92A 0AD | (9.7.13)

OBJ_BUCH-826-007.book Page 34 Tuesday, July 9, 2013 1:14 PM

34 | English

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 9 5HJ

Tel. Service: [phone]

Fax: [phone]

E-Mail: [e-mail]

Ireland

Origo Ltd.

Unit 23 Magna Drive

Magna Business Park

City West

Dublin 24

Tel. Service: [phone]

Fax: [phone]

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: [phone]

Inside New Zealand:

Phone: [phone]

Fax: [phone]

Outside AU and NZ:

Phone: [phone]

www.bosch.com.au

1 609 92A 0AD | (9.7.13) Bosch Power Tools

OBJ_BUCH-826-007.book Page 35 Tuesday, July 9, 2013 1:14 PM

English | 35

Republic of South Africa

Customer service

Hotline: [phone]

Gauteng - BSC Service Centre

35 Roper Street, New Centre

Johannesburg

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

KZN - BSC Service Centre

Unit E, Almar Centre

143 Crompton Street

Pinetown

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Western Cape - BSC Service Centre

Democracy Way, Prosperity Park

Milnerton

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Bosch Headquarters

Midrand, Gauteng

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Transport

The contained lithium ion batteries are subject to the Dangerous Goods Legislation requirements. The user can transport the batteries by road without further requirements.

When being transported by third parties (e.g.: air transport or forwarding agency), special requirements on packaging and labelling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required.

Bosch Power Tools 1 609 92A 0AD | (9.7.13)

OBJ_BUCH-826-007.book Page 36 Tuesday, July 9, 2013 1:14 PM

36 | English

Disposal

The machine, rechargeable batteries, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of power tools and batteries/rechargeable batteries into household waste!

Only for EC countries:

According to the European Guideline 2012/19/EU, power tools that are no longer usable, and according to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.

Batteries no longer suitable for use can be directly returned at:

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 9 5HJ

Tel. Service: [phone]

Fax: [phone]

E-Mail: [e-mail]

Battery packs/batteries:

Li-ion:

Please observe the instructions in section "Transport", page 35.

▶ Integrated batteries may only be removed for disposal. Opening the housing shell can damage or destroy the power tool.

1 609 92A 0AD | (9.7.13) Bosch Power Tools

OBJ_BUCH-826-007.book Page 37 Tuesday, July 9, 2013 1:14 PM

Français | 37

When removing the battery from the machine, actuate the On/Off switch 8 until the battery is completely discharged. Unscrew the screw in the casing and take off the casing shell. Disconnect the connections on the battery and remove the battery.

Subject to change without notice.

Français

OBJ_BUCH-826-007.book Page 38 Tuesday, July 9, 2013 1:14 PM

38 | Français

Sécurité électrique

OBJ_BUCH-826-007.book Page 39 Tuesday, July 9, 2013 1:14 PM

Français | 39

OBJ_BUCH-826-007.book Page 40 Tuesday, July 9, 2013 1:14 PM

40 | Français

OBJ_BUCH-826-007.book Page 41 Tuesday, July 9, 2013 1:14 PM

Français | 41

OBJ_BUCH-826-007.book Page 42 Tuesday, July 9, 2013 1:14 PM

42 | Français

OBJ_BUCH-826-007.book Page 43 Tuesday, July 9, 2013 1:14 PM

Français | 43

OBJ_BUCH-826-007.book Page 44 Tuesday, July 9, 2013 1:14 PM

44 | Français

Visseuse sans fil IXO

OBJ_BUCH-826-007.book Page 45 Tuesday, July 9, 2013 1:14 PM

Français | 45

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 06.09.2011

i.v. h=mc

Montage

OBJ_BUCH-826-007.book Page 46 Tuesday, July 9, 2013 1:14 PM

46 | Français

OBJ_BUCH-826-007.book Page 47 Tuesday, July 9, 2013 1:14 PM

Français | 47

OBJ_BUCH-826-007.book Page 48 Tuesday, July 9, 2013 1:14 PM

48 | Français

OBJ_BUCH-826-007.book Page 49 Tuesday, July 9, 2013 1:14 PM

Français | 49

OBJ_BUCH-826-007.book Page 50 Tuesday, July 9, 2013 1:14 PM

50 | Français

France

Robert Bosch (France) S.A.S.

OBJ_BUCH-826-007.book Page 51 Tuesday, July 9, 2013 1:14 PM

Français | 51

OBJ_BUCH-826-007.book Page 52 Tuesday, July 9, 2013 1:14 PM

52 | Español

Español

OBJ_BUCH-826-007.book Page 53 Tuesday, July 9, 2013 1:14 PM

Español | 53

OBJ_BUCH-826-007.book Page 54 Tuesday, July 9, 2013 1:14 PM

54 | Español

OBJ_BUCH-826-007.book Page 55 Tuesday, July 9, 2013 1:14 PM

Español | 55

OBJ_BUCH-826-007.book Page 56 Tuesday, July 9, 2013 1:14 PM

56 | Español

OBJ_BUCH-826-007.book Page 57 Tuesday, July 9, 2013 1:14 PM

Español | 57

OBJ_BUCH-826-007.book Page 58 Tuesday, July 9, 2013 1:14 PM

58 | Español

10 Bombilla "Power Light"

OBJ_BUCH-826-007.book Page 59 Tuesday, July 9, 2013 1:14 PM

Español | 59

OBJ_BUCH-826-007.book Page 60 Tuesday, July 9, 2013 1:14 PM

60 | Español

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

Liu Joo

i.v. h=mc

Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

06.09.2011

1 609 92A 0AD | (9.7.13) Bosch Power Tools

OBJ_BUCH-826-007.book Page 61 Tuesday, July 9, 2013 1:14 PM

Español | 61

Montaje

OBJ_BUCH-826-007.book Page 62 Tuesday, July 9, 2013 1:14 PM

62 | Español

OBJ_BUCH-826-007.book Page 63 Tuesday, July 9, 2013 1:14 PM

Español | 63

Operación

Puesta en marcha

OBJ_BUCH-826-007.book Page 64 Tuesday, July 9, 2013 1:14 PM

64 | Español

OBJ_BUCH-826-007.book Page 65 Tuesday, July 9, 2013 1:14 PM

Español | 65

OBJ_BUCH-826-007.book Page 66 Tuesday, July 9, 2013 1:14 PM

66 | Español

Chile

Robert Bosch S.A.

OBJ_BUCH-826-007.book Page 67 Tuesday, July 9, 2013 1:14 PM

Español | 67

OBJ_DOKU-28030-003.fm Page 68 Wednesday, July 10, 2013 12:48 PM

68 | Português

Português

OBJ_DOKU-28030-003.fm Page 69 Wednesday, July 10, 2013 12:48 PM

Português | 69

OBJ_DOKU-28030-003.fm Page 70 Wednesday, July 10, 2013 12:48 PM

70 | Português

OBJ_DOKU-28030-003.fm Page 71 Wednesday, July 10, 2013 12:48 PM

Português | 71

OBJ_DOKU-28030-003.fm Page 72 Wednesday, July 10, 2013 12:48 PM

72 | Português

OBJ_DOKU-28030-003.fm Page 73 Wednesday, July 10, 2013 12:48 PM

Português | 73

OBJ_DOKU-28030-003.fm Page 74 Wednesday, July 10, 2013 12:48 PM

74 | Português

OBJ_DOKU-28030-003.fm Page 75 Wednesday, July 10, 2013 12:48 PM

Português | 75

OBJ_DOKU-28030-003.fm Page 76 Wednesday, July 10, 2013 12:48 PM

76 | Português

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

i.v. h=m

Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

06.09.2011

Montagem

OBJ_DOKU-28030-003.fm Page 77 Wednesday, July 10, 2013 12:48 PM

Português | 77

OBJ_DOKU-28030-003.fm Page 78 Wednesday, July 10, 2013 12:48 PM

78 | Português

OBJ_DOKU-28030-003.fm Page 79 Wednesday, July 10, 2013 12:48 PM

Português | 79

OBJ_DOKU-28030-003.fm Page 80 Wednesday, July 10, 2013 12:48 PM

80 | Português

OBJ_DOKU-28030-003.fm Page 81 Wednesday, July 10, 2013 12:48 PM

Português | 81

Brasil

Robert Bosch Ltda.

Caixa postal 1195

13065-900 Campinas

Tel.: [phone]

OBJ_BUCH-826-007.book Page 82 Tuesday, July 9, 2013 1:14 PM

82 | Italiano

OBJ_BUCH-826-007.book Page 83 Tuesday, July 9, 2013 1:14 PM

Italiano | 83

OBJ_BUCH-826-007.book Page 84 Tuesday, July 9, 2013 1:14 PM

84 | Italiano

OBJ_BUCH-826-007.book Page 85 Tuesday, July 9, 2013 1:14 PM

Italiano | 85

OBJ_BUCH-826-007.book Page 86 Tuesday, July 9, 2013 1:14 PM

86 | Italiano

OBJ_BUCH-826-007.book Page 87 Tuesday, July 9, 2013 1:14 PM

Italiano | 87

OBJ_BUCH-826-007.book Page 88 Tuesday, July 9, 2013 1:14 PM

88 | Italiano

OBJ_BUCH-826-007.book Page 89 Tuesday, July 9, 2013 1:14 PM

Italiano | 89

OBJ_BUCH-826-007.book Page 90 Tuesday, July 9, 2013 1:14 PM

90 | Italiano

OBJ_BUCH-826-007.book Page 91 Tuesday, July 9, 2013 1:14 PM

Italiano | 91

Henk Becker

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

i.v. h=mc

Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

06.09.2011

Montaggio

OBJ_BUCH-826-007.book Page 92 Tuesday, July 9, 2013 1:14 PM

92 | Italiano

OBJ_BUCH-826-007.book Page 93 Tuesday, July 9, 2013 1:14 PM

Italiano | 93

OBJ_BUCH-826-007.book Page 94 Tuesday, July 9, 2013 1:14 PM

94 | Italiano

OBJ_BUCH-826-007.book Page 95 Tuesday, July 9, 2013 1:14 PM

Italiano | 95

OBJ_BUCH-826-007.book Page 96 Tuesday, July 9, 2013 1:14 PM

96 | Italiano

Trasporto

OBJ_BUCH-826-007.book Page 97 Tuesday, July 9, 2013 1:14 PM

Nederlands | 97

OBJ_BUCH-826-007.book Page 98 Tuesday, July 9, 2013 1:14 PM

98 | Nederlands

OBJ_BUCH-826-007.book Page 99 Tuesday, July 9, 2013 1:14 PM

Nederlands | 99

OBJ_BUCH-826-007.book Page 100 Tuesday, July 9, 2013 1:14 PM

100 | Nederlands

OBJ_BUCH-826-007.book Page 101 Tuesday, July 9, 2013 1:14 PM

Nederlands | 101

OBJ_BUCH-826-007.book Page 102 Tuesday, July 9, 2013 1:14 PM

102 | Nederlands

OBJ_BUCH-826-007.book Page 103 Tuesday, July 9, 2013 1:14 PM

Nederlands | 103

OBJ_BUCH-826-007.book Page 104 Tuesday, July 9, 2013 1:14 PM

104 | Nederlands

OBJ_BUCH-826-007.book Page 105 Tuesday, July 9, 2013 1:14 PM

Nederlands | 105

OBJ_BUCH-826-007.book Page 106 Tuesday, July 9, 2013 1:14 PM

106 | Nederlands

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

Lwr Joo

i.v. h=w

Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

06.09.2011

Montage

OBJ_BUCH-826-007.book Page 107 Tuesday, July 9, 2013 1:14 PM

Nederlands | 107

OBJ_BUCH-826-007.book Page 108 Tuesday, July 9, 2013 1:14 PM

108 | Nederlands

OBJ_BUCH-826-007.book Page 109 Tuesday, July 9, 2013 1:14 PM

Nederlands | 109

In- en uitschakelen

OBJ_BUCH-826-007.book Page 110 Tuesday, July 9, 2013 1:14 PM

110 | Nederlands

OBJ_BUCH-826-007.book Page 111 Tuesday, July 9, 2013 1:14 PM

Nederlands | 111

OBJ_BUCH-826-007.book Page 112 Tuesday, July 9, 2013 1:14 PM

112 | Dansk

Dansk

OBJ_BUCH-826-007.book Page 113 Tuesday, July 9, 2013 1:14 PM

Dansk | 113

OBJ_BUCH-826-007.book Page 114 Tuesday, July 9, 2013 1:14 PM

114|Dansk

OBJ_BUCH-826-007.book Page 115 Tuesday, July 9, 2013 1:14 PM

Dansk | 115

OBJ_BUCH-826-007.book Page 116 Tuesday, July 9, 2013 1:14 PM

116 | Dansk

OBJ_BUCH-826-007.book Page 117 Tuesday, July 9, 2013 1:14 PM

Dansk | 117

OBJ_BUCH-826-007.book Page 118 Tuesday, July 9, 2013 1:14 PM

118 | Dansk

Skruning: a_h<2,5m/s^2,K=1,5m/s^2 .

1 609 92A 0AD | (9.7.13) Bosch Power Tools

OBJ_BUCH-826-007.book Page 119 Tuesday, July 9, 2013 1:14 PM

Dansk|119

Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9

Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 06.09.2011

Bosch Power Tools 1 609 92A 0AD | (9.7.13)

OBJ_BUCH-826-007.book Page 120 Tuesday, July 9, 2013 1:14 PM

120 | Dansk

Montering

OBJ_BUCH-826-007.book Page 121 Tuesday, July 9, 2013 1:14 PM

Dansk | 121

OBJ_BUCH-826-007.book Page 122 Tuesday, July 9, 2013 1:14 PM

122 | Dansk

OBJ_BUCH-826-007.book Page 123 Tuesday, July 9, 2013 1:14 PM

Dansk | 123

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Tlf. Service Center: 44898855

Fax: [phone]

E-Mail: [e-mail]

Transport

OBJ_BUCH-826-007.book Page 124 Tuesday, July 9, 2013 1:14 PM

124 | Dansk

Bortskaffelse

OBJ_BUCH-826-007.book Page 125 Tuesday, July 9, 2013 1:14 PM

Svenska|125

Svenska

OBJ_BUCH-826-007.book Page 126 Tuesday, July 9, 2013 1:14 PM

126 | Svenska

OBJ_BUCH-826-007.book Page 127 Tuesday, July 9, 2013 1:14 PM

Svenska | 127

OBJ_BUCH-826-007.book Page 128 Tuesday, July 9, 2013 1:14 PM

128 | Svenska

OBJ_BUCH-826-007.book Page 129 Tuesday, July 9, 2013 1:14 PM

Svenska|129

OBJ_BUCH-826-007.book Page 130 Tuesday, July 9, 2013 1:14 PM

130 | Svenska

Illustrerade komponenter

OBJ_BUCH-826-007.book Page 131 Tuesday, July 9, 2013 1:14 PM

Svenska|131

OBJ_BUCH-826-007.book Page 132 Tuesday, July 9, 2013 1:14 PM

132 | Svenska

Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9

ppa. fuw 3e0 i.v. h: w.

Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 06.09.2011

Montage

OBJ_BUCH-826-007.book Page 133 Tuesday, July 9, 2013 1:14 PM

Svenska|133

OBJ_BUCH-826-007.book Page 134 Tuesday, July 9, 2013 1:14 PM

134 | Svenska

OBJ_BUCH-826-007.book Page 135 Tuesday, July 9, 2013 1:14 PM

Svenska|135

In- och urkoppling

OBJ_BUCH-826-007.book Page 136 Tuesday, July 9, 2013 1:14 PM

136 | Svenska

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Danmark

Tel.: [phone] (inom Sverige)

Fax: [phone]

Transport

OBJ_BUCH-826-007.book Page 137 Tuesday, July 9, 2013 1:14 PM

Svenska | 137

OBJ_BUCH-826-007.book Page 138 Tuesday, July 9, 2013 1:14 PM

138 | Norsk

Norsk

OBJ_BUCH-826-007.book Page 139 Tuesday, July 9, 2013 1:14 PM

Norsk|139

OBJ_BUCH-826-007.book Page 140 Tuesday, July 9, 2013 1:14 PM

140 | Norsk

OBJ_BUCH-826-007.book Page 141 Tuesday, July 9, 2013 1:14 PM

Norsk|141

OBJ_BUCH-826-007.book Page 142 Tuesday, July 9, 2013 1:14 PM

142 | Norsk

OBJ_BUCH-826-007.book Page 143 Tuesday, July 9, 2013 1:14 PM

Norsk|143

Formålsmessig bruk

OBJ_BUCH-826-007.book Page 144 Tuesday, July 9, 2013 1:14 PM

144 | Norsk

Tekniske data

Akku-skrutrekker IXO
Produktnummer		3 603 J81 0..
Nominell spenning	V= 3,6
Tomgangsturtall	min-1	215
Max. dreiemoment for hard/myk skru-ing jf. ISO 5393 Nm 4,5/3
Max. skrue-∅	mm	5
Vekt tilsvarende EPTA-Procedure01/2003	kg 0,3
Batteri		Li-ioner
Kapasitet	Ah 1,3
Antall battericeller		1
Ladeapparat
Produktnummer 2 607 225 809 (EU)
		2 607 225 811 (UK/SMA)
		2 607 225 813 (AU)
Oppladingstid	min 330
Beskyttelsesklasse		☐ /II

OBJ_BUCH-826-007.book Page 145 Tuesday, July 9, 2013 1:14 PM

Norsk|145

Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9

Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 06.09.2011

Bosch Power Tools 1 609 92A 0AD | (9.7.13)

OBJ_BUCH-826-007.book Page 146 Tuesday, July 9, 2013 1:14 PM

146 | Norsk

Montering

OBJ_BUCH-826-007.book Page 147 Tuesday, July 9, 2013 1:14 PM

Norsk|147

OBJ_BUCH-826-007.book Page 148 Tuesday, July 9, 2013 1:14 PM

148 | Norsk

OBJ_BUCH-826-007.book Page 149 Tuesday, July 9, 2013 1:14 PM

Norsk|149

OBJ_BUCH-826-007.book Page 150 Tuesday, July 9, 2013 1:14 PM

150|Suomi

Kun for EU-land:

OBJ_BUCH-826-007.book Page 151 Tuesday, July 9, 2013 1:14 PM

Suomi | 151

OBJ_BUCH-826-007.book Page 152 Tuesday, July 9, 2013 1:14 PM

152|Suomi

Henkilöturvallisuus

OBJ_BUCH-826-007.book Page 153 Tuesday, July 9, 2013 1:14 PM

Suomi | 153

OBJ_BUCH-826-007.book Page 154 Tuesday, July 9, 2013 1:14 PM

154|Suomi

OBJ_BUCH-826-007.book Page 155 Tuesday, July 9, 2013 1:14 PM

Suomi | 155

OBJ_BUCH-826-007.book Page 156 Tuesday, July 9, 2013 1:14 PM

156 | Suomi

OBJ_BUCH-826-007.book Page 157 Tuesday, July 9, 2013 1:14 PM

Suomi | 157

OBJ_BUCH-826-007.book Page 158 Tuesday, July 9, 2013 1:14 PM

158 | Suomi

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

06.09.2011

Asennus

OBJ_BUCH-826-007.book Page 159 Tuesday, July 9, 2013 1:14 PM

Suomi | 159

OBJ_BUCH-826-007.book Page 160 Tuesday, July 9, 2013 1:14 PM

160|Suomi

OBJ_BUCH-826-007.book Page 161 Tuesday, July 9, 2013 1:14 PM

Suomi | 161

OBJ_BUCH-826-007.book Page 162 Tuesday, July 9, 2013 1:14 PM

162|Suomi

OBJ_BUCH-826-007.book Page 163 Tuesday, July 9, 2013 1:14 PM

Ελληνικά | 163

Akut/paristot:

Litiumioni:

OBJ_BUCH-826-007.book Page 164 Tuesday, July 9, 2013 1:14 PM

164 | Ελληνικά

OBJ_BUCH-826-007.book Page 165 Tuesday, July 9, 2013 1:14 PM

Ελληνικά | 165

Ασφάλεια προσώπων

OBJ_BUCH-826-007.book Page 166 Tuesday, July 9, 2013 1:14 PM

166 | Ελληνικά

OBJ_BUCH-826-007.book Page 167 Tuesday, July 9, 2013 1:14 PM

Ελληνικά | 167

OBJ_BUCH-826-007.book Page 168 Tuesday, July 9, 2013 1:14 PM

168 | Ελληνικά

OBJ_BUCH-826-007.book Page 169 Tuesday, July 9, 2013 1:14 PM

Ελληνικά | 169

OBJ_BUCH-826-007.book Page 170 Tuesday, July 9, 2013 1:14 PM

170 | Ελληνικά

12 Φορτιστής

13'Εκκεντρη κεφαλή*

14 Γωνιοκεφαλή*

OBJ_BUCH-826-007.book Page 171 Tuesday, July 9, 2013 1:14 PM

Ελληνικά | 171

OBJ_BUCH-826-007.book Page 172 Tuesday, July 9, 2013 1:14 PM

172 | Ελληνικά

Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9

ppa jus Bao i.v. u.w.

Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 06.09.2011

Συναρμολόγηση

OBJ_BUCH-826-007.book Page 173 Tuesday, July 9, 2013 1:14 PM

Ελληνικά | 173

OBJ_BUCH-826-007.book Page 174 Tuesday, July 9, 2013 1:14 PM

174 | Ελληνικά

OBJ_BUCH-826-007.book Page 175 Tuesday, July 9, 2013 1:14 PM

Ελληνικά | 175

OBJ_BUCH-826-007.book Page 176 Tuesday, July 9, 2013 1:14 PM

176 | Ελληνικά

OBJ_BUCH-826-007.book Page 177 Tuesday, July 9, 2013 1:14 PM

Ελληνικά | 177

Μεταφορά

OBJ_BUCH-826-007.book Page 178 Tuesday, July 9, 2013 1:14 PM

178 | Türkçe

OBJ_BUCH-826-007.book Page 179 Tuesday, July 9, 2013 1:14 PM

Türkçe | 179

OBJ_BUCH-826-007.book Page 180 Tuesday, July 9, 2013 1:14 PM

180 | Türkçe

OBJ_BUCH-826-007.book Page 181 Tuesday, July 9, 2013 1:14 PM

Türkçe | 181

OBJ_BUCH-826-007.book Page 182 Tuesday, July 9, 2013 1:14 PM

182 | Türkçe

OBJ_BUCH-826-007.book Page 183 Tuesday, July 9, 2013 1:14 PM

Türkçe | 183

10 "Power Light" lambasi

OBJ_BUCH-826-007.book Page 184 Tuesday, July 9, 2013 1:14 PM

184 | Türkçe

OBJ_BUCH-826-007.book Page 185 Tuesday, July 9, 2013 1:14 PM

Türkçe | 185

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

i.v. h=w

Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

06.09.2011

Bosch Power Tools 1 609 92A 0AD | (9.7.13)

OBJ_BUCH-826-007.book Page 186 Tuesday, July 9, 2013 1:14 PM

186 | Türkçe

Montaj

OBJ_BUCH-826-007.book Page 187 Tuesday, July 9, 2013 1:14 PM

Türkçe | 187

OBJ_BUCH-826-007.book Page 188 Tuesday, July 9, 2013 1:14 PM

188 | Türkçe

OBJ_BUCH-826-007.book Page 189 Tuesday, July 9, 2013 1:14 PM

Türkçe | 189

Bosch San. ve Tic. A.S.

Ahi Evran Cad. No:1 Kat:22

Polaris Plaza

80670 Maslak/Istanbul

Bosch Uzman Ekibi [phone]

Işıklar LTD.ŞTİ.

Kızılay Cad. No: 16/C Seyhan

Adana

Tel.: [phone]

Tel.: [phone]

OBJ_BUCH-826-007.book Page 190 Tuesday, July 9, 2013 1:14 PM

190 | Türkçe

Bulsan Elektrik

OBJ_BUCH-826-007.book Page 191 Tuesday, July 9, 2013 1:14 PM

Türkçe | 191

Onarım Bobinaj

Raifpaşa Cad. No: 67 İskenderun

Hatay

Tel.: [phone]

Günşah Otomotiv

Beylikdüzü Sanayi Sit. No: 210 Beylikdüzü

Istanbul

Tel.: [phone]

Aygem

10021 Sok. No: 11 AOSB Çiğli

İzmir

Tel.: [phone]

Sezmen Bobinaj

OBJ_BUCH-826-007.book Page 192 Tuesday, July 9, 2013 1:14 PM

192 | Türkçe

OBJ_BUCH-826-007.book Page 193 Tuesday, July 9, 2013 1:14 PM

193

2 609 255 723

2 609 256 968

2 609 256 969

Bosch Power Tools 1 609 92A 0AD | (9.7.13)
