Product type	Cordless screwdriver
Brand	Bosch
Model	IXO Christmas Set
Rated voltage	3.6 V
Battery type	Integrated lithium-ion
Battery capacity	1.5 Ah
Max torque	5 Nm
No-load speed	240 rpm
Chuck	Hexagonal 6.35 mm
Weight	0.3 kg
Dimensions (L x W x H)	180 x 50 x 50 mm
Power supply	USB charger (micro-USB)
Charging time	Approximately 3 hours
Main functions	Screwing and unscrewing, integrated LED light
Box contents	Screwdriver, 10 bits, USB charger, micro-USB cable, case
Care and cleaning	Clean with a dry cloth, no water or solvent
Safety	Disconnect before cleaning, do not immerse, keep out of reach of children
Spare parts and repairability	Parts available through Bosch after-sales service
General information	Special Christmas edition, domestic use

Frequently Asked Questions - IXO Christmas Set BOSCH

How to charge the Bosch IXO Christmas Set screwdriver?

Connect the supplied micro-USB cable to the screwdriver and to a USB power adapter (not included) or a computer. Full charging takes about 3 hours. The LED indicator turns off when the battery is charged.

Which bits are included in the set?

The set contains 10 standard screwdriver bits (Phillips, slotted, etc.) suitable for the 6.35 mm hexagonal chuck.

What is the battery runtime?

The runtime depends on usage, but with a 1.5 Ah Li-Ion battery, you can drive about 50 screws into soft wood before needing to recharge.

How to use the LED function?

The integrated LED lights up automatically when you press the trigger and illuminates the work area. It turns off after a few seconds when you release.

Can I use the screwdriver for drilling?

No, the Bosch IXO is designed only for screwing and unscrewing. It has no hammer function and is not suitable for drilling.

How to reverse the direction of rotation?

A rotation direction switch is located just above the trigger. Push it left to screw in, right to unscrew.

What to do if the screwdriver does not start?

First check that the battery is charged. If it is charged but the tool does not work, contact Bosch service for diagnosis. Do not attempt to open it yourself.

Can I use the screwdriver continuously?

Yes, but to avoid overheating, it is recommended not to stall the motor for more than 5 seconds and to allow it to cool down after 20 intensive screwdriving operations.

Where to find spare parts?

Spare parts (bits, charger, etc.) are available from Bosch after-sales service or on the official website. Always use original accessories.

Is the screwdriver under warranty?

Yes, Bosch offers a 2-year warranty for manufacturing defects. Keep the invoice and register your product on the Bosch website for a possible extension.

USER MANUAL IXO Christmas Set BOSCH

Robert Bosch GmbH

Power Tools Division

70764 Leinfelden-Echterdingen

GERMANY

www.bosch-pt.com

1 609 92A 0W7 (2014.10) I/228 WEU

1 609 92A 0W7

IXO

BOSCH

Bosch Power Tools 1 609 92A 0W7 | (17.10.14)

1 609 92A 0W7 | (17.10.14) Bosch Power Tools

OBJ_BUCH-2249-001.book Page 6 Friday, October 10, 2014 4:26 PM

6

1 609 92A 0W7 | (10.10.14) Bosch Power Tools

Deutsch | 7

Deutsch

Sicherheitshinweise

Executive Vice President Head of Product Certification

Engineering PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

15.10.2014

Montage

General Power Tool Safety Warnings

WARNING

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

• Keep work area clean and well lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges

and moving parts. Damaged or entangled cords increase the risk of electric shock.

When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

▶ Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

▶ If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

Power tool use and care

▶ Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. ▶ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. ▶ Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. - Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. - Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. ▶ Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. ▶ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

Battery tool use and care

▶ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. ▶ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. ▶ When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

▶ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

Service

Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Safety Warnings for Screwdrivers

Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock. Hold the machine with a firm grip. High reaction torque can briefly occur while driving in and loosening screws. Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand. Always wait until the machine has come to a complete stop before placing it down. The tool insert can jam and lead to loss of control over the power tool. Before any work on the machine (e.g., maintenance, tool change, etc.) as well as during transport and storage, set the rotational direction switch to the centre position. Unintentional actuation of the On/Off switch can lead to injuries.

Protect the power tool against heat, e.g., against continuous intense sunlight, fire, water, and moisture. Danger of explosion.

In case of damage and improper use of the battery, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system.

Safety Warnings for Battery Chargers

This charger is not intended for use by children and persons with physical, sensory or mental limitations or a lack of experience or knowledge. This charger can be used by children aged 8 and by persons who have physical, sensory or mental limitations or a lack of experience or knowledge if a person responsible for their safety supervises them or has instructed them in the safe operation of the charger and they understand the associated dangers. Otherwise, there is a danger of operating errors and injuries.

• Supervise children. This will ensure that children do not play with the charger.
• Cleaning and user maintenance of the battery charger shall not be made by children without supervision.

Keep the battery charger away from rain or moisture. Penetration of water in the battery charger increases the risk of an electric shock.

Charge the power tool only with the supplied charger. Keep the battery charger clean. Contamination can lead to danger of an electric shock. Before each use, check the battery charger, cable and plug. If damage is detected, do not use the battery charger. Never open the battery charger yourself. Have repairs performed only by a qualified

technician and only using original spare parts. Damaged battery chargers, cables and plugs increase the risk of an electric shock.

Do not operate the battery charger on easily inflammable surfaces (e.g., paper, textiles, etc.) or in surroundings. The heating of the battery charger during the charging process can pose a fire hazard.

Products sold in GB only: Your product is fitted with a BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362). If the plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place by an authorized customer service agent. The replacement plug should have the same fuse rating as the original plug. The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere.

Product Description and Specifications

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Intended Use

The machine is intended for driving in and loosening screws. The light of this power tool is intended to illuminate the power tool's direct area of working operation and is not suitable for household room illumination.

Product Features

The numbering of the product features refers to the illustration of the machine on the graphics page.

1 Screwdriver bit* 2 Tool holder 3 Rubber cap 4 Battery charge-control indicator 5 Rotational direction switch 6 Suspension hook 7 On/Off switch

Bosch Power Tools 1 609 92A 0W7 | (16.10.14)

30 | English

8 Point lens 9 Dispersing lens 10 Worklight 11 Handle (insulated gripping surface) 12 Socket for charge connector 13 Charge connector 14 Battery charger 15 Eccentric driver head* 16 Angle driver head* 17 Torque attachment* 18 Torque presetting ring* 19 Torque-setting mark* 20 Release ring*

*Accessories shown or described are not part of the standard delivery scope of the product. A complete overview of accessories can be found in our accessories program.

Technical Data

Cordless Screwdriver IXO
Article number		3 603 JA8 0..
Rated voltage	V=3.6
No-load speed	min -1	215
Max. torque for hard/soft screwdriving application according to ISO 5393	Nm 4.5/3
Max. screw dia.	mm	5
Weight according to EPTA-Procedure 01/2003	kg 0.3
Permitted ambient temperature
– during charging	°C	0...+45
– during op and during storage	°C	-20...+50
* Limited performance at temperatures <0 °C
* The overheating protection stops the power tool at temperatures > +65 °C.

1 609 92A 0W7 | (16.10.14) Bosch Power Tools

Cordless Screwdriver IXO

Battery		Li-Ion
Capacity	Ah 1.5
Energy	Wh 5.4
Number of battery cells		1

Battery Charger

Article number 2 609 120 420 (EU)
	1 600 A00 3RK (EU)
	2 609 120 421 (UK)
	1 600 A00 48V (UK)
	2 609 120 430 (AUS)
	1 600 A00 48U (AUS)

Charging time	h	3
Protection class		/II

* Limited performance at temperatures <0 °C * The overheating protection stops the power tool at temperatures > +65 °C.

Noise/Vibration Information

Sound emission values determined according to EN 60745-2-2.

Typically the A-weighted sound pressure level of the product is less than 70 dB(A). Uncertainty K = 3 dB.

The noise level when working can exceed 80 dB(A).

Wear hearing protection!

Vibration total values a_h (triax vector sum) and uncertainty K determined according to EN 60745:

Screwdriving without impact: a_h<2.5\ m/s² , K=1.5 m/s ² .

The vibration level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.

The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or insertion tools or is poorly maintained, the vibration emission

may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Declaration of Conformity CE

We declare under our sole responsibility that the product described under “Technical data” is in conformity with all relevant provisions of the directives 2009/125/EC (Regulation 1194/2012), 2011/65/EU, 2014/35/EU, 2014/30/EU, 2006/42/EC. including their amendments and complies with the following standards: EN 60745-1, EN 60745-2-2 (battery powered product), EN 60335-1, EN 60335-2-29 (battery charger).

Technical file (2006/42/EC) at: Robert Bosch GmbH, PT/ETM9, 70764 Leinfelden-Echterdingen, GERMANY

Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9

Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY 15.10.2014

Assembly

Before any work on the machine (e.g., maintenance, tool change, etc.) as well as during transport and storage, set the rotational direction switch to the centre position. Unintentional actuation of the On/Off switch can lead to injuries.

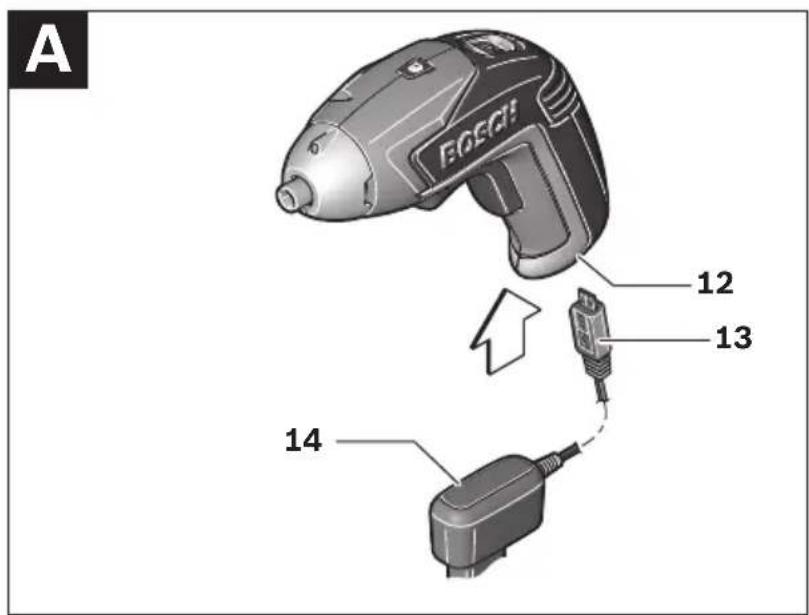

Battery Charging (see figure A)

Do not use other battery chargers. The supplied battery charger is designed for the Lithium-Ion battery in your machine. Observe the mains voltage! The voltage of the power supply must correspond with the data given on the nameplate of the battery charger. Battery chargers marked with 230 V can also be operated with 220 V.

Note: The battery supplied is partially charged. To ensure full capacity of the battery, completely charge the battery in the battery charger before using your power tool for the first time.

The lithium-ion battery can be charged at any time without reducing its service life. Interrupting the charging procedure does not damage the battery.

The lithium-ion battery is protected against deep discharging. When the battery is discharged, the machine is automatically switched off by a protective circuit: The inserted tool no longer moves and a slight whistling noise can be heard.

Do not continue to press the On/Off switch after the machine has been automatically switched off. The battery can be damaged.

When the battery charge-control indicator 4 lights up red while the On/Off switch 7 is depressed half way, then the battery has less than 30% of its capacity and should be charged.

The charging procedure begins as soon as the mains plug of the battery charger is plugged into a socket outlet and the charge connector 13 is plugged into the socket 12 on the bottom of the handle.

The charging process is interrupted when the On/Off switch 7 is fully pressed.

The battery charge-control indicator 4 indicates the charging progress. The indicator lights up green during the charging process. When the battery charge-control indicator 4 is no longer lit, the battery is fully charged.

During the charging procedure, the handle of the machine warms up. This is normal.

Disconnect the battery charger from the mains supply when not using it for longer periods.

The power tool cannot be used during the charge procedure; it is not defective when inoperative during the charging procedure.

Protect the battery charger against moisture!

Observe the notes for disposal.

Changing the Tool (see figure B)

▶ Do not use double-sided screwdriver bits that are longer than 25 mm.

Insert the screwdriver bit 1 directly into the tool holder 2.

Adjusting the Worklight (see figure C)

By turning the rubber cap 3, you can set focused or diffused light for the work area 10, if required. ① Pull the rubber cap forward and off and ② place this with the appropriate lens back on the tool holder 2.

Eccentric Driver Head/Angle Driver Head/Torque Attachment (see figures C - F)

The eccentric driver head 15 enables screwdriving close to edges.

The angle driver head 16 enables screwdriving at hard to reach locations.

With the torque presetting ring 18 on the torque attachment 17, the requested torque can be preset in 10 steps. With the correct setting, the tool bit is stopped as soon as the screw is driven flush into the material or when the set torque is reached.

Assembly (see figures C-D)

For assembly of the attachments, pull the rubber cap 3 off toward the front. Afterwards the attachments can be mounted. The attachments can be mounted offset by 45°.

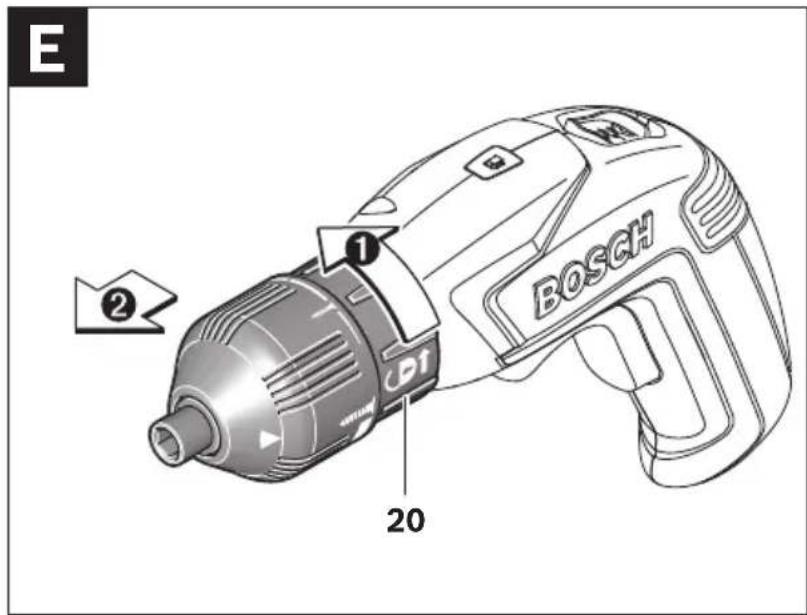

Dismounting (see figures E-F)

To dismount the attachments, turn the release ring 20 in rotation direction ① and pull the attachment off toward the front. Afterwards, mount the rubber cap 3 again.

Operation

Starting Operation

Reversing the rotational direction

The rotational direction switch 5 is used to reverse the rotational direction of the machine. However, this is not possible with the On/Off switch 7 actuated.

Operate the rotational direction switch 5 only when the power tool is not in use. Otherwise it may become damaged.

Right rotation: To drive in screws, slide the rotational direction switch 5 forward to the stop.

Left rotation: To loosen or unscrew screws, slide the rotational direction switch 5 to the back.

Switching On and Off

To start the machine, press the On/Off switch 7 and keep it pressed.

The work light 10 illuminates when the On/Off switch 7 is lightly or fully pressed and allows the illumination of the work area in poor lighting conditions.

To switch off the machine, release the On/Off switch 7.

To save energy, only switch the power tool on when using it.

Fully automatic spindle locking (Auto-lock)

The spindle is locked when the On/Off switch 7 is not pressed.

This enables screws to be screwed in, even when the battery is empty and allows for the machine to be used as a screwdriver.

When the spindle is locked, do not press the On/Off switch 7 for more than 15 seconds. Otherwise the power tool can be damaged.

Working Advice

Apply the power tool to the screw only when it is switched off. Rotating tool inserts can slip off.

Maintenance and Service

Maintenance and Cleaning

Before any work on the machine (e.g., maintenance, tool change, etc.) as well as during transport and storage, set the rotational direction switch to the centre position. Unintentional actuation of the On/Off switch can lead to injuries. For safe and proper working, always keep the machine and ventilation slots clean.

When the battery is no longer operative, please refer to an authorised after-sales service agent for Bosch power tools.

If the replacement of the supply cord is necessary, this has to be done by Bosch or an authorized Bosch service agent in order to avoid a safety hazard.

If the machine should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for Bosch power tools.

In all correspondence and spare parts order, please always include the 10-digit article number given on the type plate of the machine.

After-sales Service and Application Service

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under:

www.bosch-pt.com

Bosch's application service team will gladly answer questions concerning our products and their accessories.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 9 5HJ

At www.bosch-pt.co.uk you can order spare parts or arrange the collection

of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

Ireland

Origo Ltd.

Unit 23 Magna Drive

Magna Business Park

City West

Dublin 24

Tel. Service: [phone]

Fax: [phone]

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: [phone]

Inside New Zealand:

Phone: [phone]

Fax: [phone]

Outside AU and NZ:

Phone: [phone]

www.bosch.com.au

Bosch Power Tools 1 609 92A 0W7 | (16.10.14)

38 | English

Republic of South Africa

Customer service

Hotline: [phone]

Gauteng - BSC Service Centre

35 Roper Street, New Centre

Johannesburg

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

KZN - BSC Service Centre

Unit E, Almar Centre

143 Crompton Street

Pinetown

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Western Cape - BSC Service Centre

Democracy Way, Prosperity Park

Milnerton

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Bosch Headquarters

Midrand, Gauteng

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Transport

The contained lithium-ion batteries are subject to the Dangerous Goods Legislation requirements. The user can transport the batteries by road without further requirements.

When being transported by third parties (e.g.: air transport or forwarding agency), special requirements on packaging and labelling must be observed.

For preparation of the item being shipped, consulting an expert for hazardous material is required.

Disposal

The machine, rechargeable batteries, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of power tools and batteries/rechargeable batteries into household waste!

Only for EC countries:

According to the European Guideline 2012/19/EU, power tools that are no longer usable, and according to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.

Batteries no longer suitable for use can be directly returned at:

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 9 5HJ

Battery packs/batteries:

Li-ion:

Please observe the instructions in section "Transport", page 38.

▶ Integrated batteries may only be removed for disposal by qualified personnel. Opening the housing shell can destroy the power tool.

To remove the battery from the power tool, press the On/Off switch 7 until the battery is fully discharged. Unscrew the screws on the housing and remove the housing shell in order to remove the battery. To prevent a short

40 | Français

circuit, disconnect the connectors on the battery one at a time and then isolate the poles. Even when fully discharged, the battery still contains a residual capacity, which can be released in case of a short circuit.

Subject to change without notice.

Français

Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9

Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY 15.10.2014

Bosch Power Tools 1 609 92A 0W7 | (16.10.14)

50 | Français

Montage

Robert Bosch (France) S.A.S.

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

i.v. h=w

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

15.10.2014

Assembly

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

i.v. h=mc

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

15.10.2014

Assembly

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

15.10.2014

Assembly

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

15.10.2014

1 609 92A 0W7 | (16.10.14) Bosch Power Tools

Dutch | 117

Assembly

Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9

Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY 15.10.2014

Assembly

Bosch Service Center

Telegrafvej 3

2750 Ballerup

At www.bosch-pt.dk you can order spare parts online or create a repair order.

Service Center phone: [phone]

Fax: [phone]

E-Mail: [e-mail]

Transport

Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9

Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY 15.10.2014

Assembly

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Denmark

Tel.: [phone] (within Sweden)

Fax: [phone]

Transport

Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9

Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY 15.10.2014

Assembly

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

i.v. h=w

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

15.10.2014

Assembly

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

15.10.2014

Assembly

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

15.10.2014

Assembly

Bosch San. ve Tic. A.S.

Ahi Evran Cad. No:1 Kat:22

Polaris Plaza

80670 Maslak/Istanbul

Bosch Expert Team [phone]

Işıklar LTD.ŞTİ.

Kızılay Cad. No: 16/C Seyhan

Adana

Tel.: [phone]

Tel.: [phone]

Batteries:

Lithium-ion:

Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9

PPa. JwR Bao i.V. H.W.C

Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY 15.10.2014

219

2 609 120 420 (EU) 1 600 A00 3RK (EU) 2 609 120 421 (UK) 1 600 A00 48V (UK) 2 609 120 430 (AUS) 1 600 A00 48U (AUS)

Item number

3 months warranty

Protection class /II

1 600 A00 1YA

1 600 A00 1Y5

1 600 A00 1Y8

Bosch Power Tools 1 609 92A 0W7 | (13.10.14)
