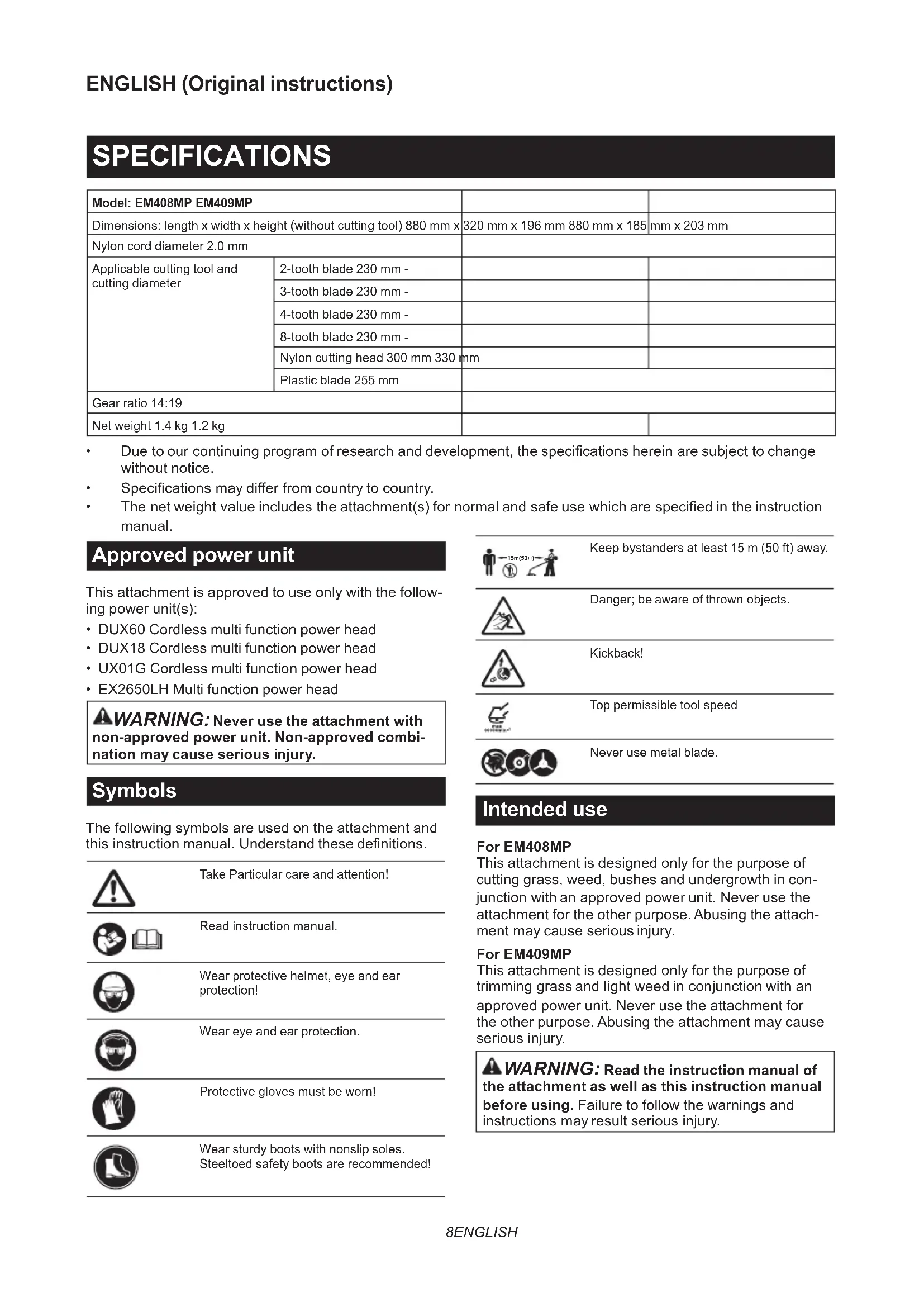

USER MANUAL EM409MP MAKITA

Grass Trimmer Attachment

• Specicationsmaydi󰀨erfromcountrytocountry.

• Thenetweightvalueincludestheattachment(s)fornormalandsafeusewhicharespeciedintheinstruction manual. Approved power unit This attachment is approved to use only with the follow- ing power unit(s):

• DUX60 Cordless multi function power head

• DUX18 Cordless multi function power head

• UX01G Cordless multi function power head

• EX2650LH Multi function power head

WARNING: Never use the attachment with

non-approved power unit. Non-approved combi- nation may cause serious injury. Symbols The following symbols are used on the attachment and thisinstructionmanual.Understandthesedenitions. Take Particular care and attention! Read instruction manual. Wear protective helmet, eye and ear protection! Wear eye and ear protection. Protective gloves must be worn! Wear sturdy boots with nonslip soles. Steeltoed safety boots are recommended! 15m(50

Keep bystanders at least 15 m (50 ft) away. Danger;beawareofthrownobjects. Kickback! Top permissible tool speed Never use metal blade. Intended use For EM408MP This attachment is designed only for the purpose of cutting grass, weed, bushes and undergrowth in con- junctionwithanapprovedpowerunit.Neverusethe attachment for the other purpose. Abusing the attach- mentmaycauseseriousinjury. For EM409MP This attachment is designed only for the purpose of trimminggrassandlightweedinconjunctionwithan approved power unit. Never use the attachment for the other purpose. Abusing the attachment may cause seriousinjury.

WARNING: Read the instruction manual of

the attachment as well as this instruction manual before using. Failure to follow the warnings and instructionsmayresultseriousinjury.9 ENGLISH EU Declaration of Conformity For European countries only We as the manufacturers: Makita Europe N.V., Business address: Jan-Baptist Vinkstraat 2 3070 Kortenberg BELGIUM. Authorize Kazuhisa Makino forthecompilationofthetechnicalleanddeclare under our sole responsibility that the product(s); Designation: Grass Trimmer Attachment. Designation of Type(s): EM408MP / EM409MP. Fulllsalltherelevantprovisionsof2006/42/EC and alsofulllsalltherelevantprovisionsofthefollowing EC/EU Directives: 2000/14/EC and are manufactured in accordance with the following Harmonised Standards: EN ISO 11806-1:2022, EN 62841-1:2015+A11:2022. Place and date of declaration: Kortenberg, Belgium.

Responsible person: Kazuhisa Makino, Director - Makita Europe N.V. Declaration of Conformity (For UK) For UK only We as the manufacturers: Makita Europe N.V., Business address: Jan-Baptist Vinkstraat 2 3070 Kortenberg BELGIUM. Authorize Kazuhisa Makino forthecompilationofthetechnicalleanddeclare under our sole responsibility that the product(s); Designation: Grass Trimmer Attachment. Designation of Type(s): EM408MP / EM409MP. FulllsalltherelevantprovisionsofS.I. 2008/1597 (as amended)andalsofulllsalltherelevantprovisions of the following UK Regulations: S.I. 2001/1701 (as amended) and are manufactured in accordance with the following Designated Standards: EN ISO 11806- 1:2022, EN 62841-1:2015+A11:2022. Place and date of declaration: Kortenberg, Belgium.

WARNING: Read all safety warnings,

instructions, illustrations and specications pro- vided with this machine. Failure to follow all instruc- tionslistedbelowmayresultinreand/orserious injurytotheoperatorand/orbystanders. Save all warnings and instruc- tions for future reference. The term “grass trimmer” and “machine” in the warnings and precautions refer to the combination of the attach- ment and the power unit. The term “motor” in the warnings and precautions refers to the engine or electric motor of the power unit. General safety

1. First-time or inexperienced operator should

ask the dealer for training in all operation of the machine. Never allow children, persons with reduced physical, sensory or mental capabilities or lack of experience and knowl- edge or people unfamiliar with the instructions to use the machine.

2. It is recommended only to lend the machine

to people who have proven to be experienced. Always hand over the instruction manual.

3. Stay alert, watch what you are doing and use

common sense when operating the machine. Do not use the machine while you are tired, ill, or under the inuence of drugs, alcohol or medication. A moment of inattention while oper- ating the machine may result in serious personal injury.

4. Avoid using the machine in bad weather

conditions especially when there is a risk of lightning.

5. Follow your national and local regulation for

use of outdoor power machines. Intended use of machine This machine is only intended for cutting grass, weeds, bushes and undergrowth. Never use the machine for any other purpose such as edging or hedge cutting. Use for unintended purpose may result inseriousinjury. Personal protective equipment

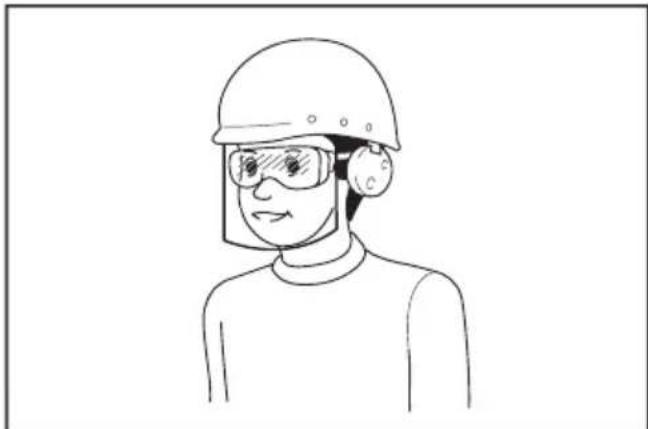

1. Always wear heavy, long pants, sturdy boots,

gloves, and a long-sleeve shirt. Do not wear loose clothing, jewelry, short pants, sandals, or go barefoot. Secure hair so it is above shoulder level.

2. Always wear a helmet where there is a risk of

3. Always wear protective goggles to protect

your eyes from injury when using the machine. The goggles must comply with ANSI Z87.1 in the USA, EN 166 in Europe, or AS/NZS 1336 in Australia/New Zealand. In Australia/New Zealand, it is legally required to wear a face shield to protect your face, too.10 ENGLISH It is an employer's responsibility to enforce the use of appropriate safety protective equip- ments by the tool operators and by other per- sons in the immediate working area.

4. Wear ear protection, such as ear mu󰀨s.

Exposure to noise can cause hearing loss.

5. Always wear sturdy shoes with a non-slip

sole.Thisprotectsyourfeetagainstinjuriesand ensures a good footing.

6. Wear a dust mask as necessary.

7. Use personal protective equipment. Always

wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions willreducepersonalinjuries. Preparation before use

1. Before use, always check the machine is safe

for operation: — Check for fuel leaks. — Make sure all fasteners are in place and secure. — Replace damaged parts. — Make sure the cutting tool is properly installed and securely fastened. — Make sure the cutting tool guard is prop- erly attached in the position as described in this manual. — Check the throttle trigger, lock-o󰀨 lever and other control switch for smooth action and proper function. — Clean the handles for proper control of the machine. — Make sure the handles are installed as described in this manual. Failure to follow those instructions may cause seriousinjury.

2. Use a sharp blade. Discard blades that are

bent, warped, cracked, broken, chipped or damaged in any way. A dull blade is more likely to snag and kickback.

3. Always use all required parts for xing the

blade properly.Improperxingpartscancause thebladetoyo󰀨andseriouslyinjuretheoperator and/or bystanders. Electrical and battery safety

1. Do not expose the machine, battery, or charger

to rain or wet conditions. Water entering the tool will increase the risk of electric shock.

2. Do not charge battery in rain, or in wet

3. Do not replace the battery in the rain.

1. Stop the engine before refueling. Keep away

from open ames and sparks. Never smoke during refueling.Otherwisereand/orexplosion may result.

2. Refuel outdoors. Refueling in a closed room can

cause explosion of fuel vapor.

3. Avoid contact with fuel or engine oil. Do not

inhale fuel vapor. If fuel or oil spills, wipe it o󰀨 from the machine and/or ground immediately. If fuel spills on your clothes, change it immedi- ately to prevent it from catching re.

4. After refueling, carefully tighten the fuel tank

cap and check for fuel leak. Move at least 3 m (10 feet) away from the fueling source and site before starting engine.

5. Only transport and store fuel in approved con-

tainers. Keep children away from the stored fuel. Starting up the machine

1. Keep children, bystanders and pets at least 15

m (50 feet) away, when starting up or using the machine. Additionally, bystanders should wear eye protection, as there is still a risk of injury from thrown objects. Otherwise bystanders' unexpected action or blade kickback may cause seriousinjurytotheoperatorand/orbystanders.

2. Start and operate the machine only outdoors

in a well ventilated area.Operationinaconned or poorly ventilated area can result in death due to su󰀨ocationorcarbonmonoxidepoisoning.

3. Before starting, make sure that the cutting

tool has no contact with hard objects such as branches, stones etc. as the cutting tool will revolve when starting.

4. If the cutting tool rotates at idle, adjust the idle

speed so that it stops at idle. Otherwise uninten- tional contact with moving cutting tool may result inseriousinjury.

5. Stop the motor immediately if you notice any

6. Make sure there are no electrical cables, water

pipes, gas pipes etc. that could cause a hazard if damaged by use of the machine. Transportation

1. Stop the motor during transport. Otherwise

unintentionalstart-upmaycauseinjury.

2. When transporting the machine, always attach

the cover to the cutting blade. Contact with bare bladesresultsininjury.

3. Ensure safe position of the machine during car

transportation to avoid fuel leakage.

4. Lift the entire machine from the ground when

carrying the machine. Dragging the machine causes fuel tank damage and fuel leakage, result- inginre.11 ENGLISH Operation

1. Only use the machine in good light and visi-

bility. Use in the dark or poor visibility area may cause unexpected accident.

2. Avoid using the machine when it is hard to

keep your balance, for example, working on a steep surface or windy day.

3. During operation, never stand on an unstable

or slippery surface or a steep slope. During the cold season, beware of ice and snow and always ensure secure footing.

4. If you are approached, stop the motor.

Otherwise the rotating cutting tool may hit the bystanderandresultinseriousinjury.

5. Clear the working area before operation.

Remove all objects such as rocks, broken glass, nails, wire, or string, which can be thrown or become entangled in the cutting attachment. Foreign particles may damage the cutting tool and can cause dangerous kickback.

6. To control the machine steadily, do the follow-

ing during operation: — Hold the machine with both hands rmly on your right side. — Hang the machine on your shoulder(s) with the shoulder harness. — Ensure a safe footing. Never work on a ladder or in a tree. — Avoid over-reach. — Keep cutting tool below waist level. — Keep all parts of your body away from the rotating cutting tool and hot surface. Thoseactionreducestheriskofinjury.

7. If weeds or branches get caught between the

cutting tool and guard, always stop the motor before clearing. Otherwise unintentional blade rotationmaycauseseriousinjury.

8. Never drop or throw the machine, unless an

emergency. If the machine drops or hits some- thing, immediately check for fuel leakage, safety devices and other damages. Operating anmalfunctionedmachinemaycauseinjuryand/ orre.

9. Inspect the cutting tool frequently, or immedi-

ately after it hits a stone or other hard objects. If the cutting tool breaks during operation, the brokenpiecemayyandcauseinjury.

10. Stop the motor when inspecting, cleaning or

replacing the cutting tool. Otherwise the cutting tool may rotate unexpectedly and result in serious injury.

11. Maintain proper control until the cutting tool

stops completely, when stopping the motor or releasing the throttle trigger. A coasting blade cancauseinjury.

12. Before starting the cutting operation, wait until

the cutting tool attains enough speed for cut- ting. It reduces the risk of kickback and entangling weeds.

13. Take a rest to prevent loss of control caused

by fatigue. We recommend to take a 10 to 20-minute rest every hour.

14. Stop the motor and place it in safe location,

when resting or leaving the machine. It pre- vents unexpected accident.

15. Do not touch the engine and its mu󰀪er or do

not put them onto combustible materials, while the engine runs or just after stopping it, as they are hot.Burnand/orremayresult.

16. Do not operate the tool in bad weather or if

there is a risk of lightning. Cutting Tools

1. Use a suitable cutting tool for your work.

— Nylon cutting heads (string trimmer heads) are suitable for trimming lawn grass. — Metal blades are suitable for cutting weeds, high grasses, bushes, shrubs, underwood, thicket, and the like. Always use the cutting tool guard properly suited for the cutting tool used.

2. When using a nylon cutting head, use only

exible, nonmetallic line recommended in this manual. Never use wire or wirerope. They can breako󰀨andbecomeadangerousprojectile.

4. When handling the metal blade, always wear

gloves and put the blade cover on the blade. The blade can cut bare hands.

5. When using metal blades, avoid “kickback”

and always prepare for an accidental kickback. See the section Kickback. Kickback (blade thrust) Kickback (blade thrust) may occur when the spin- ning blade contacts an object that it does not imme- diately cut. It can be violent enough to cause the unit and/or operator to be propelled in any direc- tion, and possibly lose control of the unit, resulting in serious injury. Kickback can occur without warn- ing if the blade snags, stalls or binds and is more likely to occur in areas where it is di󰀩cult to see the material being cut. Kickback occurs particularly when applying the blade segment between 12 and 2 o’clock to solids, bushes and trees with 3 cm or larger diameter. ►Fig.1 To avoid kickback:

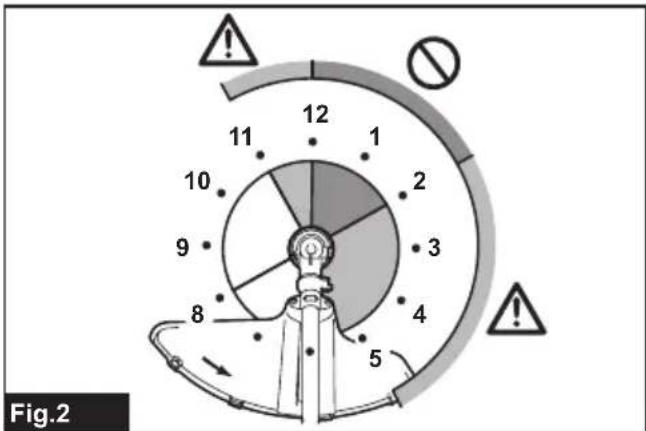

1. Apply the segment between 8 and 11 o’clock.

2. Swing the tool evenly in half-circle from right

to left, like using a scythe. This allows the proper segment of blade to contact plants to be cut.

3. Never apply the segment between 12 and 2

4. Never apply the segment between 11 and 12

o’clock and between 2 and 5 o’clock, unless the operator is well trained and experienced and does it at his/her own risk. ►Fig.2

5. Never use cutting blades close to solids, such

as fences, walls, tree trunks and stones.

6. Never use cutting blades vertically, for such

operations as edging and trimming hedges.12 ENGLISH

7. Avoid using the tool in areas where it is di󰀩-

cult to see the object being cut. Vibration Exposing to excessive vibration injures blood ves- sels or nervous system of the operator and causes the following symptoms in the ngers, hands or wrists: “Falling asleep” (numbness), tingling, pain, stabbing sensation, or alteration of skin color or of the skin. If any of these symptoms occur, see a physician. To reduce the risk of “white nger disease”, keep your hands warm during operation and well main- tain the machine and accessories. Maintenance

1. Have your machine serviced by our authorized

service center using only identical replace- ment parts. Use only identical spare parts and accessories supplied by MAKITA. Incorrect repair and poor maintenance can shorten the life of the machine and increase the risk of accidents.

2. Never alter or remove any components of the

machine.Itmaycausereand/orseriousinjury.

3. After use, clean the machine and check all

screws and nuts for tightness.

4. Check the condition of the cutting tool, cutting

tool guard and shoulder harness. The cutting blade must be sharp. Never straighten or weld damaged cutting tools. Storage

1. Before storing the machine, perform full clean-

ing and maintenance. Remove the battery cartridge. Empty the fuel tank. Attach the cover to the cutting blade.

2. Store the machine in a dry and high or locked

location out of reach of children.

3. Do not prop the machine against something,

such as a wall. Otherwise it may fall suddenly andcauseaninjury. Other instructions

1. Pay attention to the environment. Avoid unnec-

essary throttle operation for less pollution and noise emissions. Adjust the carburetor correctly.

2. Do not operate the engine with faulty exhaust

1. In case of accident make sure that a rst-aid

box is available in the vicinity of the cutting operations. Immediately replace any item taken from the rst aid box.

2. When asking for help, give the following

information: — Place of accident — What happened — Number of injured persons — Kind of injuries — Your name Additional safety instructions

1. To avoid accident, leave more than 15m (50

ft) distance between operators when two or more operators work in one area. Also, arrange a person to observe the distance between operators. If someone or an animal enter the working area, immediately stop the operation.

2. Only use the cutting tools that are marked with

a speed equal or higher than the speed marked on the tool.

3. Be sure to remove the cover on the cutting

WARNING: Before assembling or adjusting

the equipment, switch o󰀨 the motor and remove the spark plug cap or battery cartridge. Otherwise the cutting tool or other parts may move and result in seriousinjury.

WARNING: Before handling cutting blade,

wear protective gloves. During the assembly or adjustment,yourngersmaycontactwiththecutting bladeanditmaycauseseriousinjury.

WARNING: When assembling or adjusting

the equipment, always put it down. Assembling or adjustingtheequipmentinanuprightpositionmay resultinseriousinjury.

WARNING: Follow the warnings and precau-

tions in the chapter “SAFETY WARNINGS” and the instruction manual of the power unit. Correct combination of the cutting tool and the protector CAUTION: Always use the correct combination of cutting tool and protector. The wrong protector may notprotectyoufromyingdebrisandstones.Itcanalsoa󰀨ectthebalanceofthetoolandresultinseriousper- sonalinjury.13 ENGLISH Model Cutting tool Protector EM408MP Metal blade (with nut, cup, and clamp washer) Protector (universal type) Nylon cutting head / Plastic blade Protector (universal type) with protector extension EM409MP Nylon cutting head / Plastic blade Protector (narrow type) Installing the protector (cutting tool guard)

WARNING: Do not use a cutting tool without

an appropriate protector at any time.

WARNING: Always use the cutting tool

with the correct combination of the protector. Otherwise contact with a cutting tool may cause seriousinjury. NOTICE: Periodically tighten the bolts on the protector. Tighten the right and left bolts evenly so that the gap between the clamp and the protec- tor is constant. Protector (universal type) CAUTION: Make sure to push in the protec- tor extension until it is fully inserted. Otherwise the protector extension may fall and result in personal injury. CAUTION: Be careful not to injure your- self with the cutter mounted on the protector extension. Fix the protector to the clamp with bolts. ►Fig.5: 1. Clamp 2. Protector To install the protector extension, insert the protector extension to the protector and then snap the clips on. Makesurethatthetabsontheprotectorextensiont into the slots on the protector. ►Fig.6: 1. Protector (universal type) 2. Clip

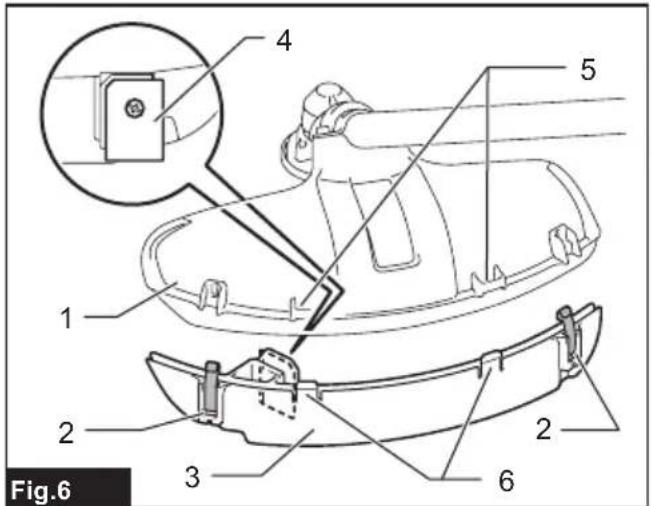

To remove the protector extension from the protector, unclasp the clips and pull the protector extension out. NOTE: The cutter on the protector extension keeps the nylon cord best length for cutting. Protector (narrow type) CAUTION: Be careful not to injure yourself with the cutter mounted on the protector. Attach the protector to the clamp using bolts. ►Fig.7: 1. Clamp 2. Protector 3. Cutter NOTE: The cutter on the protector keeps the nylon cord best length for cutting. Installing the cutting tool CAUTION: Be sure to use genuine MAKITA cutting tools. CAUTION: Be sure to remove the hex wrench after installation. NOTE: When installing the cutting tool, turn the tool upside down for ease of the procedure. Installing the metal blade For EM408MP CAUTION: When handling the metal blade, always wear gloves and put the blade cover on the blade. CAUTION: The outside diameter of the metal blade must be 230 mm (9″). Never use any blades larger than 230 mm (9″) in outside diameter. CAUTION: The metal blade must be well polished, free of cracks or breakage. If the metal blade hits against a stone during operation, stop the motor and check the blade immediately. CAUTION: Polish or replace the metal blade every three hours of operation. CAUTION: Always use the supplied wrench(es) to remove or to install the blade.14 ENGLISH Applicable blade Metal blade (2-tooth) Metal blade (3-tooth) Metal blade (4-tooth) Metal blade (8-tooth)

1. Make sure that the receive washer is attached to

2. Insert the hex wrench through the hole in the gear

case to lock the shaft. Rotate the shaft until the hex wrench is fully inserted.

3. Mount the metal blade onto the receive washer.

4. Install the clamp washer and cup, and then tighten

the nut securely. Tightening torque: 16 - 23 N•m

5. Remove the hex wrench.

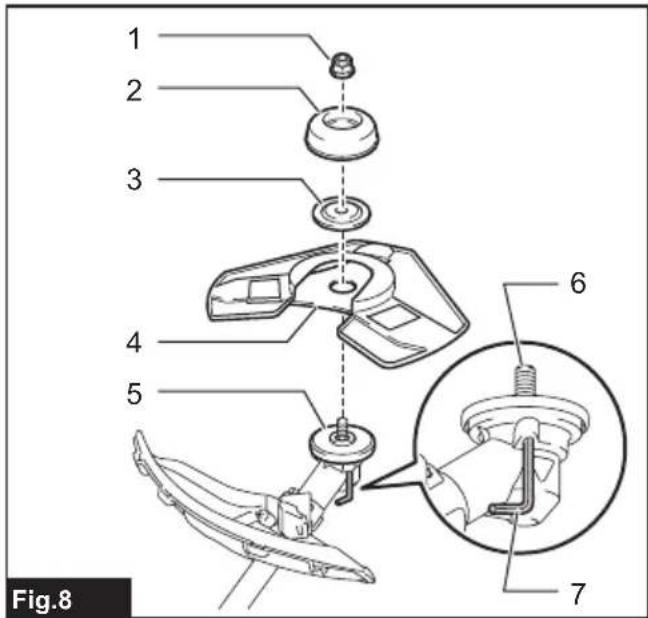

►Fig.8: 1. Nut 2. Cup 3. Clamp washer 4. Metal blade

5. Receive washer 6. Shaft 7. Hex wrench

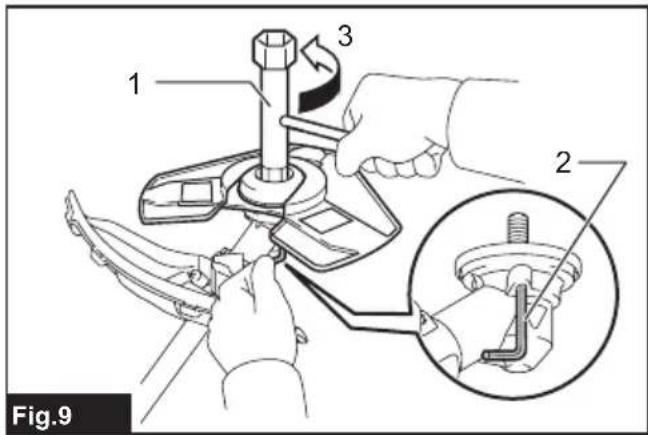

►Fig.9: 1. Socket wrench 2. Hex wrench 3. Tighten Make sure that the arrows on the blade and protector indicate the same way. ►Fig.10: 1. Arrow To remove the metal blade, follow the installation proce- dure in reverse. NOTE: The resin part on the blade fastening nut wears out in course of time. Replace the nut if there appears any wear or deformation. Installing the nylon cutting head CAUTION: If the nylon cutting head hits against a stone during operation, stop the motor and check the nylon cutting head immediately. ►Fig.11: 1. Nylon cutting head 2. Receive washer

3. Shaft 4. Hex wrench 5. Tighten

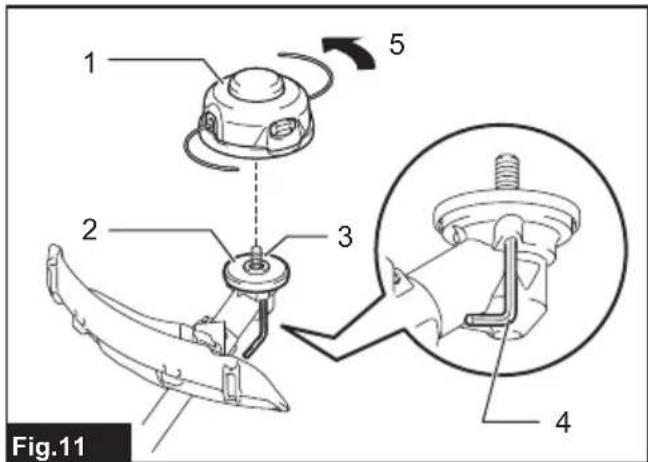

1. Make sure that the receive washer is attached to

2. Insert the hex wrench through the hole in the gear

3. Screw the nylon cutting head onto the shaft.

4. After installing nylon cutting head, remove the hex

wrench. To remove the nylon cutting head, turn it clockwise while holding the receive washer with the hex wrench. Installing plastic blade Optional accessory CAUTION: If the plastic blade accidentally impacts a rock or hard object during operation, stop the tool and inspect for any damage. If the plastic blade is damaged, replace it immediately. Use of a damaged cutting tool could result in serious personalinjury. CAUTION: Be sure to remove the hex wrench after installation. NOTICE: Be sure to use genuine Makita plastic blade. ►Fig.12: 1. Plastic blade 2. Receive washer 3. Shaft

4. Hex wrench 5. Tighten

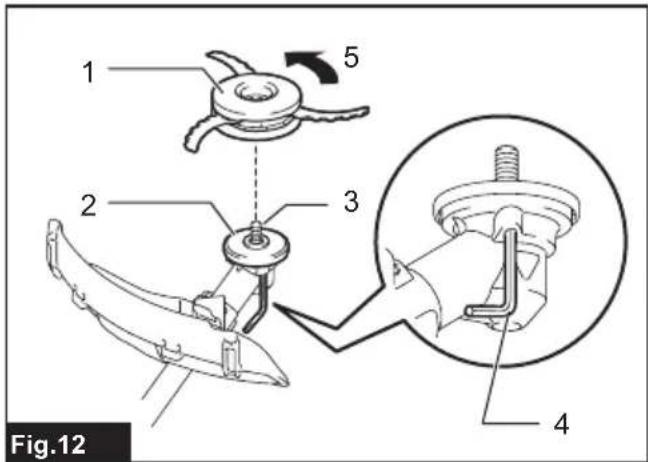

1. Make sure that the receive washer is attached to

2. Insert the hex wrench through the hole on the gear

case and rotate the spindle until the spindle is locked.

3. Place the plastic blade onto the threaded spindle

directly and tighten.

4. Remove the hex wrench.

To remove the plastic blade, turn it clockwise while hold- ing the receive washer with the hex wrench. Mounting the attachment pipe CAUTION: Always check that the attach- ment pipe is secured after installation. Improper installationmaycausetheattachmentfallingo󰀨from thepowerunitandcausepersonalinjury. Mount the attachment pipe to the power unit.

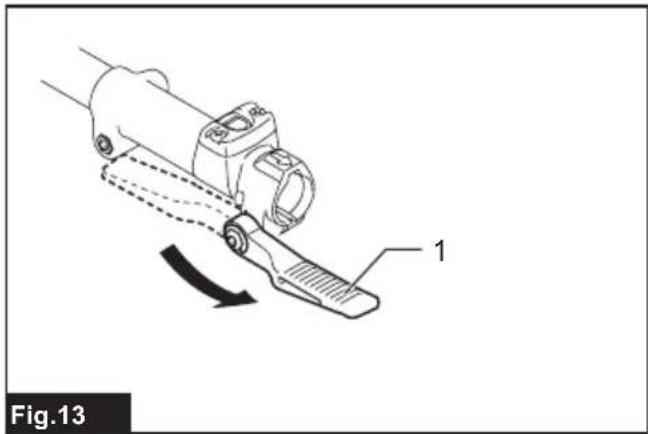

1. Turn the lever of the power unit toward the attach-

ment side. ►Fig.13: 1. Lever

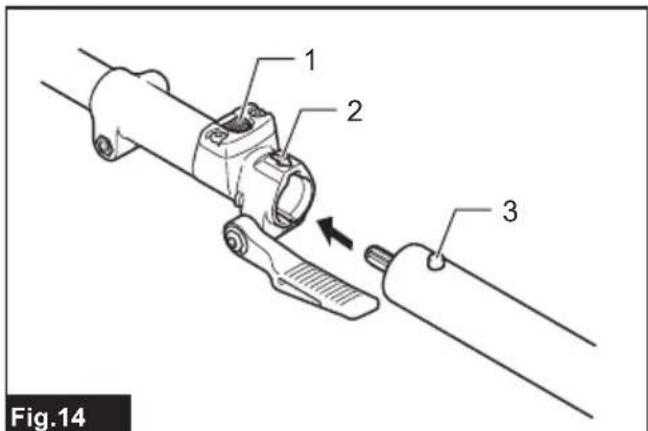

2. Remove the cap of the attachment. Align the pin

with the arrow mark and insert the attachment pipe until the release button pops up. ►Fig.14: 1. Release button 2. Arrow mark 3. Pin

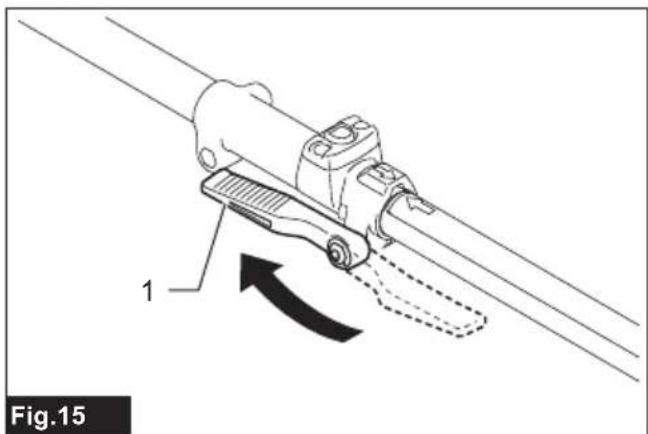

3. Turn the lever toward the power unit side.

►Fig.15: 1. Lever Make sure that the surface of the lever is parallel to the pipe. To remove the pipe, turn the lever toward the attach- ment side and pull the pipe out while pressing down the release button. ►Fig.16: 1. Release button 2. Lever 3. Pipe15 ENGLISH OPERATION

WARNING: Follow the warnings and precau-

tions in the chapter “SAFETY WARNINGS” and the instruction manual of the power unit.

WARNING: If the cutting tool moves at

idle, adjust the idle speed of the engine down. Otherwise you cannot stop the cutting tool by throttle o󰀨anditmaycauseseriousinjury. Adjusting the hanger position and shoulder harness For DUX60 Cordless multi function power head, EX2650LH Multi function power head

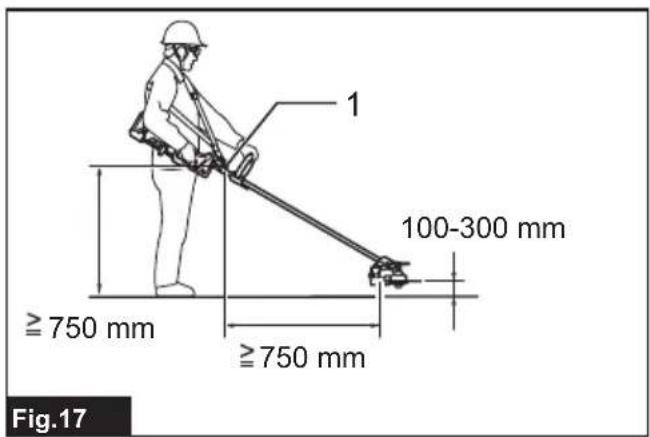

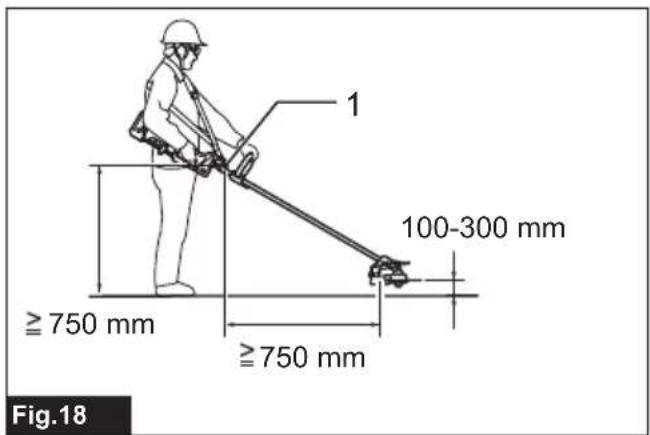

WARNING: Do not use the tool if you cannot

adjust the hanger position and shoulder harness length within the range as illustrated. Using the tool with improper weight balance may bring the cuttingtoolupwardandresultinpersonalinjury. When replacing an accessory with another, the weight balance of the equipment may change. In such case, adjustthehangerpositionandshoulderharnesslength as follows. ►Fig.17: 1. Hanger Tochangethehangerposition,loosenthexingscrew on the hanger and then move the hanger. Adjustthehangerpositionandshoulderharnesslength so that:

• the hanger positions 750 mm or higher from the ground,

• the cutting tool positions 100 mm to 300 mm high from the ground and,

• the unguarded part of cutting tool is horizontally 750 mm or further away from the hanger. Afteradjustingthehangerposition,tightenthescrew with a wrench or screwdriver (depending on the power unit) securely. Adjusting the shoulder harness For DUX18/UX01G Cordless multi function power head

WARNING: Do not use the tool if you cannot

adjust the shoulder harness length within the range as illustrated. Using the tool with improper weight balance may bring the cutting tool upward and resultinpersonalinjury. When replacing an accessory with another, the weight balance of the equipment may change. In such case, adjusttheshoulderharnesslengthasfollows. ►Fig.18: 1. Hanger Adjusttheshoulderharnesslengthsothat:

• the hanger positions 750 mm or higher from the ground,

• the cutting tool positions 100 mm to 300 mm high from the ground and,

• the unguarded part of cutting tool is horizontally 750 mm or further away from the hanger. Using a nylon cutting head During operation, use the tip of the nylon cutting cord for cut. As the nylon cutting cord is worn and shortened with the cutting operation, the operator needs to feed it manually. To feed the nylon cutting cord, tap the nylon cutting head against the ground while rotating. NOTE: If the nylon cutting cord does not feed out, rewind it. Refer to the chapter “MAINTENANCE.” MAINTENANCE

WARNING: Before inspecting or maintaining

the equipment, switch o󰀨 the motor and remove the spark plug cap or battery cartridge. Otherwise the cutting tool or other parts may move and result in seriousinjury.

WARNING: When inspecting or maintaining

the equipment, always put it down. Assembling or adjustingtheequipmentinanuprightpositionmay resultinseriousinjury.

WARNING: Follow the warnings and precau-

tions in the chapter “SAFETY WARNINGS” and the instruction manual of the power unit. NOTICE: Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result. To maintain product SAFETY and RELIABILITY, repairs,anyothermaintenanceoradjustmentshould be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. Overall inspection

• Tighten loose bolts, nuts and screws.

• Check for damaged parts and blades. Ask our authorized service center to replace them if necessary. Resharpening the cutting tool

WARNING: Do not resharpen cutting blades

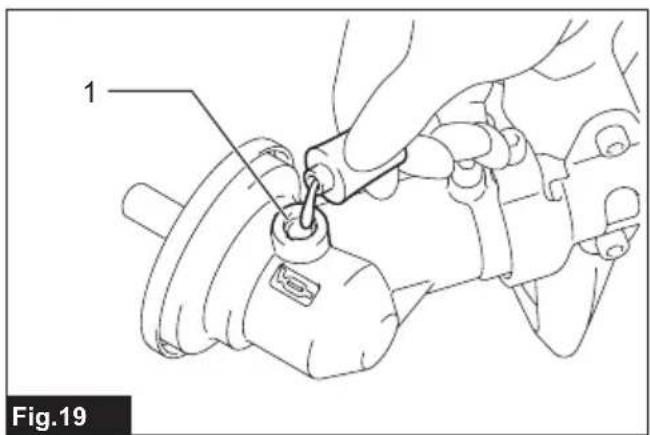

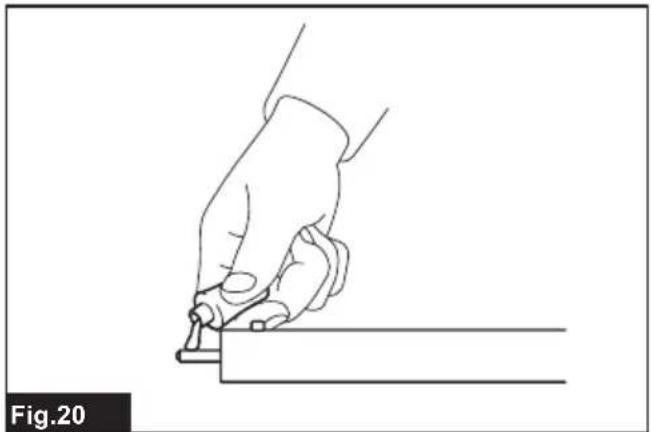

by yourself. Manual resharpening unbalances a cutting blade and it can cause vibrations and damage to the equipment. Ask Makita authorized service center to resharpen and rebalance blunt cutter blades. Lubricating moving parts NOTICE: Follow the instruction of the fre- quency and amount of grease supplied. Otherwise insu󰀩cientlubricationmaydamagemovingparts.16 ENGLISH Gear case: CAUTION: Do not apply grease when the gear case is hot. Hot gear case can cause burn injury. Apply grease (Shell Alvania 1 or 2, or equivalent) to the gear case through the grease hole approximately every 30 working hours. ►Fig.19: 1. Grease hole Drive axle: Apply grease (Shell Alvania 1 or 2, or equivalent) to the drive axle approximately every 30 working hours. ►Fig.20 NOTE: Genuine Makita grease may be purchased from your local Makita dealer. Replacing the nylon cord

WARNING: Use only the nylon cord with

diameter specied in this instruction manual. Never use heavier line, metal wire, rope or the like. Failure to do so may cause damage to the tool andresultinseriouspersonalinjury.

WARNING: Always remove the nylon cutting

head from the tool when replacing the nylon cord.

WARNING: Make sure that the cover of the

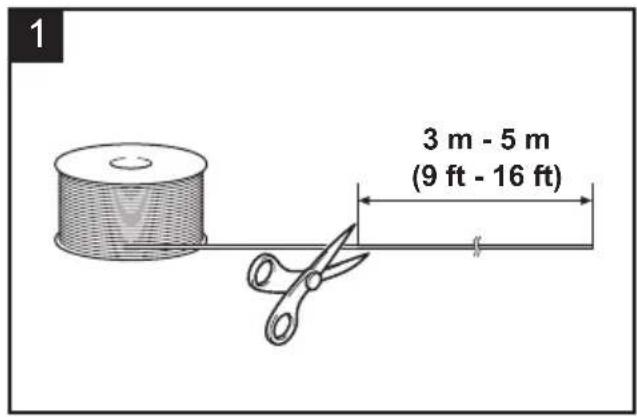

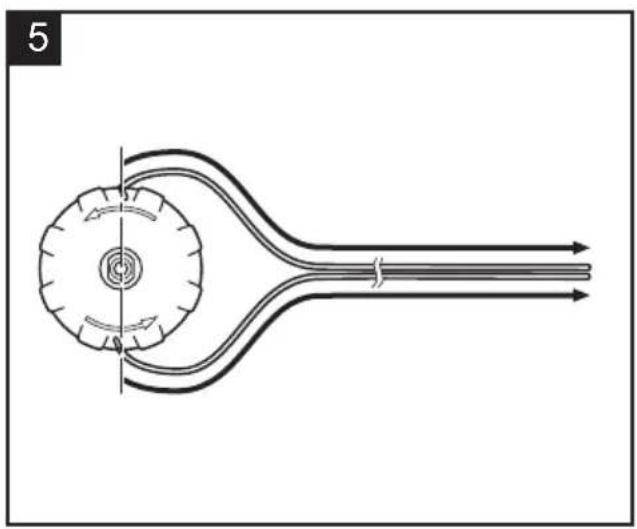

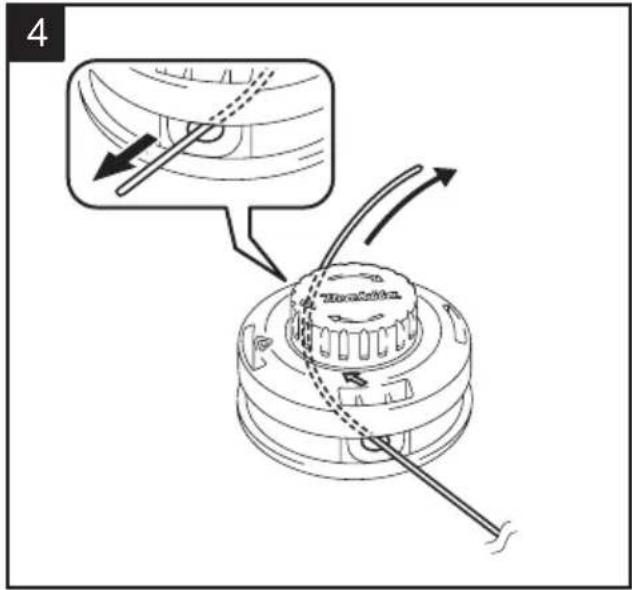

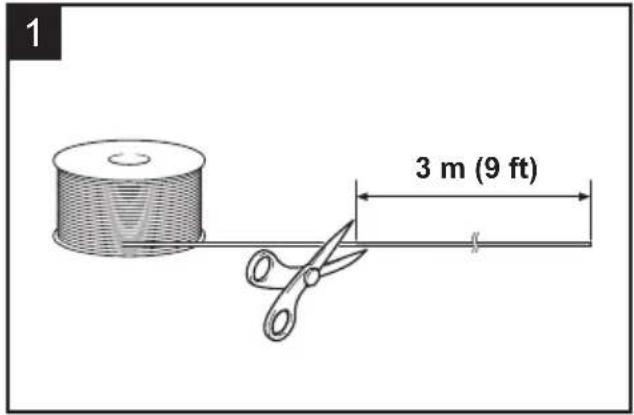

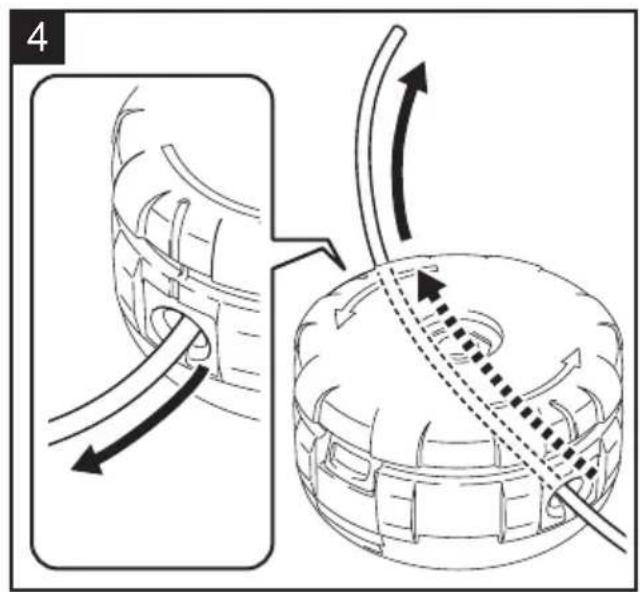

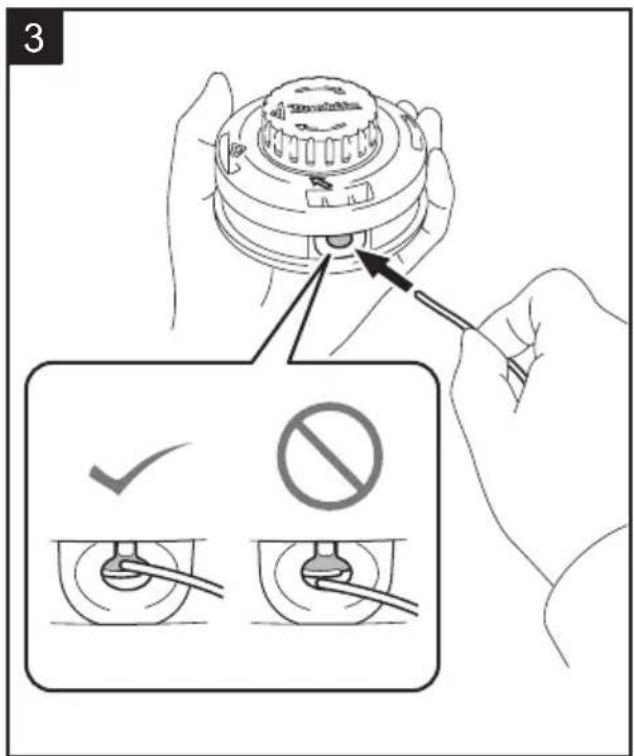

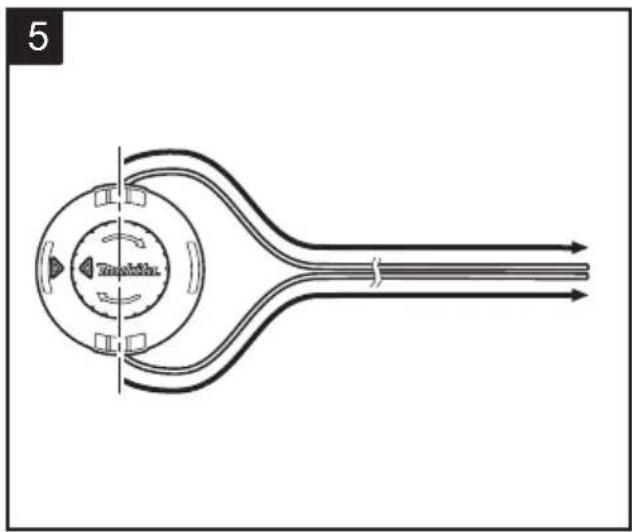

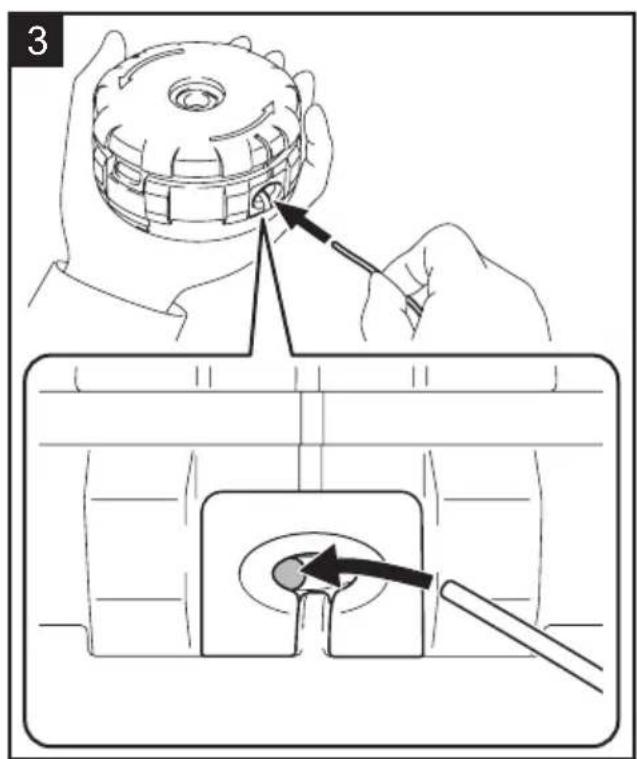

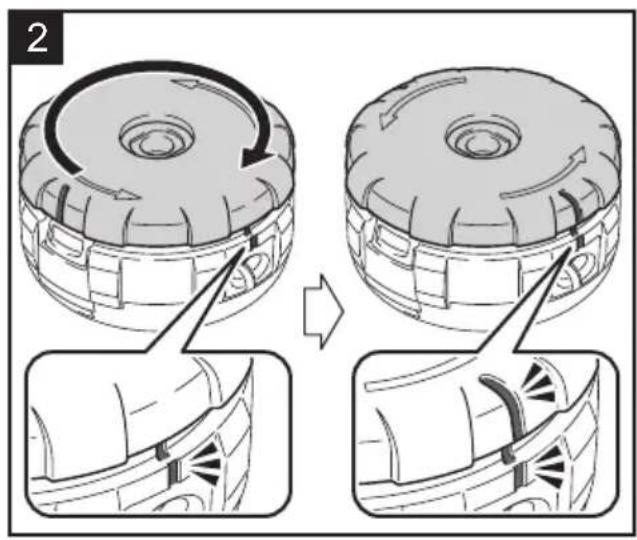

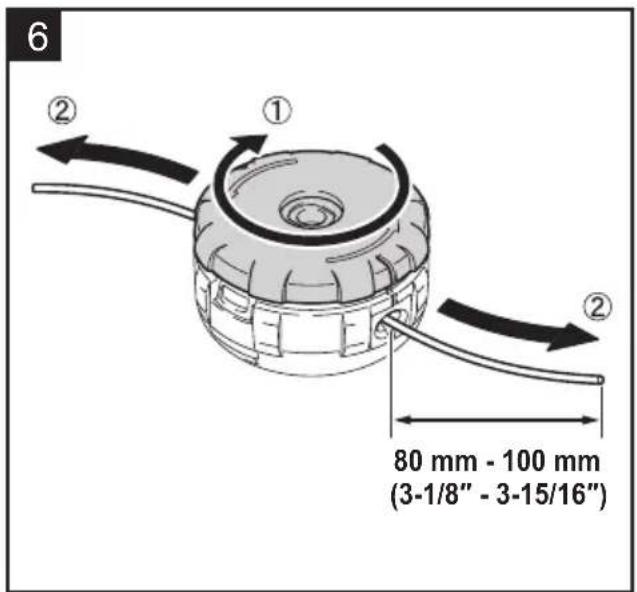

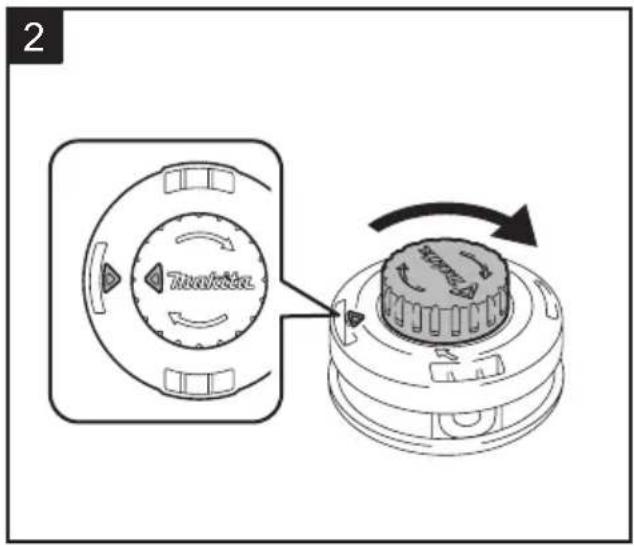

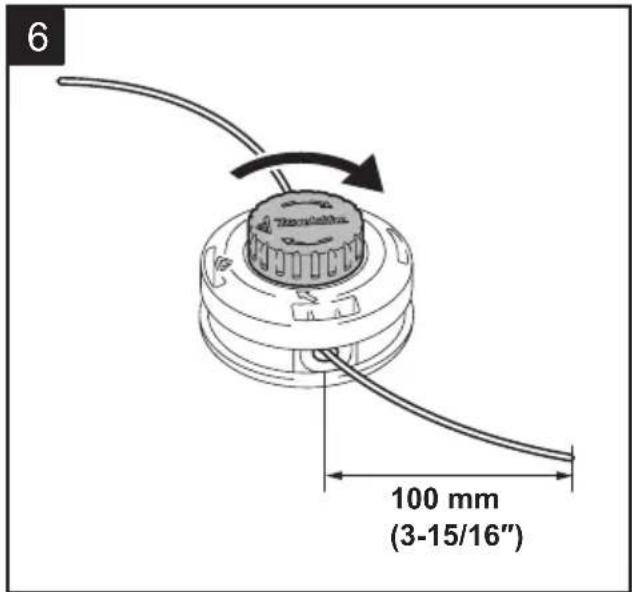

nylon cutting head is secured to the housing properly as described in this instruction manual. Failure to properly secure the cover may cause the nyloncuttingheadtoyapartresultinginserious personalinjury. Replace the nylon cord if it is not fed any more. The method of replacing the nylon cord varies depending on the type of the nylon cutting head. After replacing the nylon cord, pull both ends with your handstoremoveanyslackandadjustittothespecied length. 96-M10L ►Fig.21 98-M10L ►Fig.22 Replacing the plastic blade Replace the blade if it is worn out or broken. ►Fig.23 When installing the plastic blade, align the direction of the arrow on the blade with that of the protector. Storage

WARNING: Follow the warnings and precau-

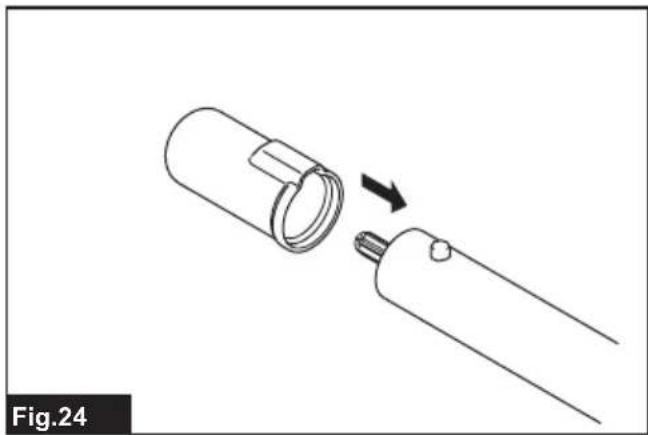

tions in the chapter “SAFETY WARNINGS” and the instruction manual of the power unit. When storing the attachment separated from the power unit, put the cap onto the end of the shaft. ►Fig.24 Interval of inspection and maintenance Operating hour Before Operation Daily (10h) 30h Whole unit Visually inspect for damaged parts

Gear case Supply grease - - Drive axle Supply grease - - Cutter blade Visually inspect for damage

Power unit Refer to the instruction manual of the power unit TROUBLESHOOTING Beforeaskingforrepairs,conductyourowninspectionrst.Ifyoundaproblemthatisnotexplainedintheman- ual, do not attempt to dismantle the machine. Instead, ask Makita Authorized Service Centers, always using Makita replacement parts for repairs. State of abnormality Probable cause (malfunction) Remedy Motor does not start. - Refer to the instruction manual of the power unit.17 ENGLISH State of abnormality Probable cause (malfunction) Remedy Motor stops soon. - Refer to the instruction manual of the power unit. Motor speed does not increase. - Refer to the instruction manual of the power unit. Cutting tool does not rotate. Stop the motor immediately. Loose attachment of the cutting tool Tighten securely. Cutting tool caught a twig. Remove foreign matter Abnormal drive system Contact an authorized service center for repairs. Main unit vibrates abnormally. Stop the motor immediately. Broken, bent or worn cutting tool Replace the cutting tool. Loose attachment of the cutting tool Tighten securely. One end of nylon cutting cord has been broken and the nylon cutting head got unbalanced. Feed the nylon cutting cord with tapping the nylon cutting head on the ground. Irregular attachment of cutting tool Attach properly. Abnormal drive system Contact an authorized service center for repairs. Cutter blade does not stop imme- diately. Stop the motor immediately. The power unit does not work properly. Refer to the instruction manual of the power unit. The nylon cutting cord does not feed. The cord is used up or tangled in the spool. Rewind the cord. Thenyloncuttingcordisnotcuto󰀨at the correct length. The cord cutter on the protector is damaged or missing. Contact an authorized service center for repairs. The cord extends past the protector. Rewind the cord.18 FRANÇAIS FRANÇAIS (Instructions originales) SPÉCIFICATIONS Modèle : EM408MP EM409MP Dimensions : longueur x profondeur x hauteur (sans l’outil de coupe) 880 mm x 320 mm x 196 mm 880 mm x 185 mm x 203 mm Diamètre du cordon en nylon 2,0 mm Outil de coupe applicable et diamètre de coupe Lame à 2 dents 230 mm - Lame à 3 dents 230 mm - Lame à 4 dents 230 mm - Lame à 8 dents 230 mm - Têtedecoupeàlnylon 300 mm 330 mm Lame en plastique 255 mm Rapport d’engrenage 14:19 Poids net 1,4 kg 1,2 kg

3. Nunca aplique o segmento entre as 12 e as 2

4. Nunca aplique o segmento entre as 11 e as

5. Retire a chave hexagonal.

4. Retire a chave hexagonal.
