GAMH-E 40 Li OA - Lawn mower Gardol - Free user manual and instructions

Brand	Gardol
Model	GAMH-E 40 Li OA
Category	Lawn mower
Voltage	40 V (DC)
Working width	30 cm
Hook diameter	20 cm
No-load rotation speed	140 rpm
Number of blades	4
Sound pressure level	73.3 dB(A)
Sound power level	93 dB(A)
Vibration emission value	2.5 m/s² (uncertainty K=1.5 m/s²)
Protection class	III
Power supply type	Li-ion battery (Power-X-Change compatible)
Battery compatibility	20 V, 1.5 Ah / 3.0 Ah / 4.0 Ah (Power-X-Change series)
Recommended charger	Power-X charger (200-250 V~, 50-60 Hz, output 21 V / 3.0 A)
Safety	Two-hand safety switch, safety plug, automatic stop when releasing the lever
Maintenance	Clean after each use, oil metal parts, check fasteners
Storage	Dry, dark, frost-free place, between 5 and 30 °C
Wear parts	Grinding knife, battery

Frequently Asked Questions - GAMH-E 40 Li OA Gardol

How to charge the battery of the Gardol GAMH-E 40 Li OA mower?

The device is supplied without battery or charger. Only use Li-ion batteries from the Power-X-Change series (20 V) with the Power-X charger. Plug the charger into a 200-250 V~ socket, insert the battery. The green LED flashes while charging. Full charging takes about 40 to 100 minutes depending on capacity. Never completely discharge the battery.

How to assemble the Gardol GAMH-E 40 Li OA mower?

Assembly is done without special tools: insert the brake spur, attach the transport wheels with the supplied screws and washers, mount the lower and then the upper handlebar with the star nuts and screws, and secure the cable with the fixing clips. See figures 3a to 3g in the manual.

What are the important safety instructions?

Wear safety glasses and hearing protection. Do not use the device in rain or on wet ground. Always disconnect the safety plug before any maintenance. Keep children and animals at a distance. The blades continue to rotate after stopping: wait until they have come to a complete stop.

What to do if the engine does not start?

First check that the safety plug is properly connected and that the battery is correctly inserted. If the battery is empty, recharge it. Reduce the working depth if it is too high. If the problem persists, contact customer service.

How to clean and maintain the mower?

Clean the device after each use with a damp cloth and a little mild soap. Do not use harsh chemicals or water inside. Oil metal parts to prevent rust. Regularly check the tightness of screws and nuts.

How to replace the chopping knives?

For safety reasons, have the knives replaced by an approved professional. Wear work gloves. Only use original spare parts. Always disconnect the safety plug before any intervention.

What is the maximum working depth?

The manual does not specify an exact maximum depth, but it is recommended not to force it too much to avoid overloading the motor. Adjust the depth according to the hardness of the soil. If the motor struggles, reduce the depth.

How to store the mower in winter?

Store the device in a dry, dark, frost-free place at an ideal temperature between 5 and 30 °C. Fold the handlebar by loosening the star nuts. Remove the battery and charge it to about 50% before storage. Keep the original packaging if possible.

Why is the LED blinking during charging?

The blinking green light indicates an adaptation charge (slow charge). This can occur if the battery is deeply discharged or if its temperature is not between 10 °C and 45 °C. Let the process finish; the battery is still usable.

How to obtain spare parts?

To order spare parts, provide the device type, article number, identification number, and the part number. Check www.isc-gmbh.info for prices and availability. Common wear parts are the knives and the battery.

USER MANUAL GAMH-E 40 Li OA Gardol

GB Original operating instructions Cordless Hoe

Close-up of a mechanical assembly with metal rods and bolts (no visible text or symbols)

3c 3d C 10

Close-up of a mechanical component with a tire and handle, no visible text or symbols

3e 2 8 3 9

1 8 2 9

3g 48 7 7

A B C

4b 2122 A

Close-up of a mechanical device with a curved cable and arrow indicating a component (no visible text or symbols)

Close-up of a robotic device with open lid and mechanical components (no visible text or symbols)

5 5 A

6 A B

Close-up of a toy car's wheel assembly with labeled parts A and B (no text or symbols beyond labels)

Black-and-white photo of a small agricultural sprayer with visible blades and wheels (no text or symbols)

9 1 2 3 4 5 6 7

DE

Gefahr!

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet.

Danger!

Read all safety regulations and instructions. Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

Explanation of the warning signs on the equipment (see Fig. 9)

1. Danger! Note the instructions for use!
2. Danger! Never use the equipment in damp locations.
3. Caution! Danger from catapulted parts; keep a safe distance.
4. Danger! Rotating tool.
5. Caution! Wear goggles and ear defenders.
6. Danger! Pull the safety plug out before carrying out maintenance, cleaning and repair work.
7. Use only batteries which are charged to the same level.

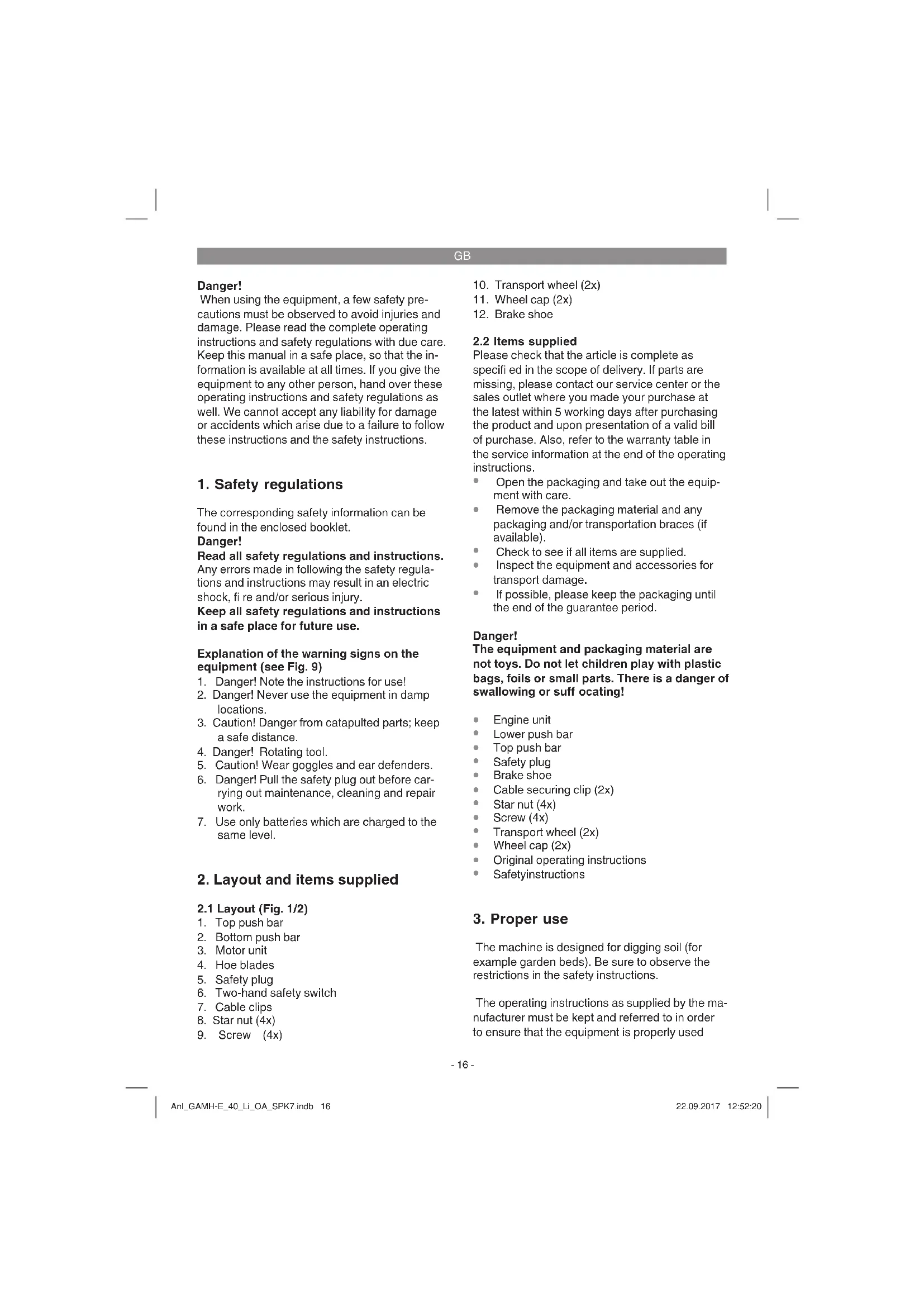

2. Layout and items supplied

2.1 Layout (Fig. 1/2)

1. Top push bar
2. Bottom push bar
3. Motor unit
4. Hoe blades
5. Safety plug
6. Two-hand safety switch
7. Cable clips
8. Star nut (4x)
9. Screw (4x)

10. Transport wheel (2x)

1. Wheel cap (2x)

2. Brake shoe

2.2 Items supplied

Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if available).
• Check to see if all items are supplied.
• Inspect the equipment and accessories for transport damage.
• If possible, please keep the packaging until the end of the guarantee period.

Danger!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating!

• Engine unit
  • Lower push bar
• Top push bar
• Safety plug
• Brake shoe
  • Cable securing clip (2x)
  Star nut (4x)
• Screw (4x)
  • Transport wheel (2x)
• Wheel cap (2x)
  • Original operating instructions
  • Safetyinstructions

3. Proper use

The machine is designed for digging soil (for example garden beds). Be sure to observe the restrictions in the safety instructions.

The operating instructions as supplied by the manufacturer must be kept and referred to in order to ensure that the equipment is properly used

GB

and maintained. The instructions contain valuable information on operating, maintenance and servicing conditions.

For safety reasons, the machine may not be used as a drive unit for other work tools or tool sets of any kind.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

4. Technical data

Protectionclass....III

Voltage 40 Vd.c.

Working width 30 cm

Hoe diameter 20 cm

Idle speed: 140 min ^1

Number of blades ....4 pieces

Danger!

Sound and vibration

L_pA sound pressure level 73.3 dB(A)

K_pA uncertainty 3 dB

L_WA sound power level 93 dB(A)

K_WA uncertainty ....3 dB

Wear ear-muff s.

The impact of noise can cause damage to hearing.

Total vibration values (vector sum of three directions) determined in accordance with EN 786.

Vibration emission value a_h ≤ 2.5 m/s^2

K uncertainty = 1.5 m/s ^4

The specified vibration value was established in accordance with a standardized testing method. It may change according to how the electric equipment is used and may exceed the specified value in exceptional circumstances.

The specified vibration value can be used to compare the equipment with other electric power tools.

The specified vibration value can be used for initial assessment of a harmful effect.

The equipment is supplied without batteries and without a charger is allowed to be used only with the lithium-ion batteries of the Power-X-Change series!

Power-X-Change

• 20 V, 1.5 Ah, 5 lithium-ion cells
• 20 V, 3.0 Ah, 10 lithium-ion cells
• 20 V, 4.0 Ah, 10 lithium-ion cells

The lithium-ion batteries of the Power-X-Change series are allowed to be charged only with the Power-X charger.

Power-X-Charger

Input voltage: 200-250 V \~ 50-60 Hz

Output voltage: 21 V DC

Output current: 3.0 A

Protection class: .....II /☐

Keep the noise emissions and vibrations to a minimum.

• Only use appliances which are in perfect working order.
  • Service and clean the appliance regularly.
  • Adapt your working style to suit the appliance.
  • Do not overload the appliance.
• Have the appliance serviced whenever necessary.
  • Switch the appliance off when it is not in use.
  • Wear protective gloves.

Caution!

Residual risks

Even if you use this electric power tool in accordance with instructions, certain residual risks cannot be rules out. The following hazards may arise in connection with the equipment's construction and layout:

1. Lung damage if no suitable protective dust mask is used.
2. Damage to hearing if no suitable ear protection is used.
3. Health damage caused by hand-arm vibrations if the equipment is used over a prolonged period or is not properly guided and maintained.

GB

5. Before starting the equipment

Important!

The equipment is supplied without batteries and without a charger is allowed to be used only with the lithium-ion batteries of the Power-X-Change series!

Power-X-Change

• 20 V, 1.5 Ah, 5 lithium-ion cells
• 20 V, 3.0 Ah, 10 lithium-ion cells
• 20 V, 4.0 Ah, 10 lithium-ion cells

The lithium-ion batteries of the Power-X-Change series are allowed to be charged only with the Power-X charger.

Warning!

Always pull out the safety plug before performing any adjusting, repair, maintenance or cleaning work on the equipment.

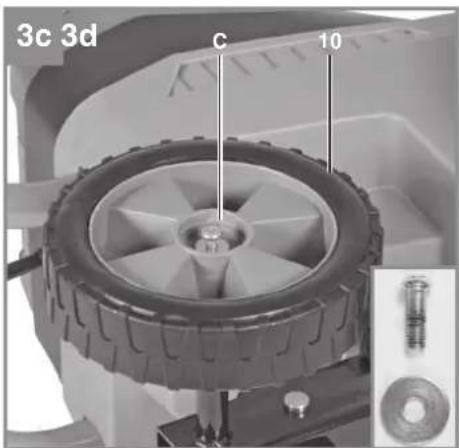

Assembly (Figs. 3a-3g)

• Pull out the split pin (Fig. 3a/Item A) and remove the pin (Fig. 3a/Item B). Push the brake shoe (Fig. 3b/Item 12) into the mount and fix it in position with the pin and split pin previously removed.
• Undo the eight Philips screws (Fig. 3b/Pos. C) with washers on both sides of the axle. On both sides, push the transport wheel as shown in Fig. 3c onto the axle and secure with the Philips screws and washers (see Fig. 3c inset).
• Press the wheel caps (Fig. 3d/Item 11) onto the transport wheels.
• Push the lower push bar as shown in Fig. 3e onto the motor unit (Fig. 3e/Item 3) and secure with the screws (Fig. 3e/Item 9) and the star nuts (Fig. 3e/Item 8).
• Push the upper push bar (Fig. 3f/Item 1) onto the lower push bar (Fig. 3f/Item 2) and secure with the screws (Fig. 3f/Item 9) and the star nuts (Fig. 3f/Item 8).
• Secure the cable to the push bars with 2 cable clips (Fig. 3g/Item 7).

Charging the battery (Fig. 4a/4b)

The equipment is supplied without batteries and without a charger!

1. Take the battery pack out of the equipment. Do this by pressing the pushlock buttons. (Fig. 4a/Item C)
2. Check that your mains voltage is the same as

that marked on the rating plate of the battery charger. Insert the power plug of the charger into the socket outlet. The green LED will then begin to flash.

1. Insert the battery pack into the battery charger.

2. In the section entitled „Charger indicator“ you will find a table with an explanation of the LED indicator on the charger.

The battery pack can become a little warm during the charging. This is normal.

If the battery pack fails to charge, check:

• whether there is voltage at the socket outlet
- whether there is good contact at the charging contacts

If the battery pack still fails to charge, send

• the charging unit
• and the battery pack

to our customer service center.

To ensure that the battery pack provides long service, you should take care to recharge it promptly. You must recharge the battery pack when you notice that the performance of the device drops. Never allow the battery pack to become fully discharged. This will cause it to develop a defect.

Installing the battery (Fig. 4c-4d)

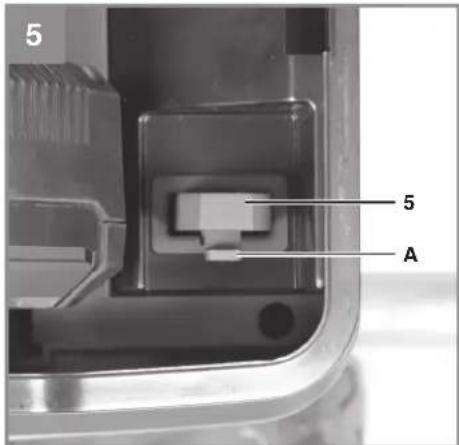

Open the battery cover. This is done by pressing the lock (A) as shown in Fig. 4c and swinging up the cover. Then insert the two batteries in the mounts as shown in Fig. 4d and push them forward until the batteries audibly latch into place.

Note!

Use only batteries which are charged to the same level. Never combine full and half-full batteries. Always charge the two batteries simultaneously. The equipment's operating time depends on the battery with the lower charge level. The two batteries must always be fully charged before use. Close the battery cover by swinging it down, and make sure that it latches in place correctly.

Battery capacity indicator (Fig. 4a)

Press the switch for the battery capacity indicator (Fig. 4a/Item A). The battery capacity indicator (Fig. 4a/Item B) shows the charge status of the battery using 3 LEDs.

All 3 LEDs are lit:

The battery is fully charged.

GB

2 or 1 LED(s) are lit:

The battery has an adequate remaining charge.

1 LED fl ashes:

The battery is empty, recharge the battery.

All LEDs flash:

The battery pack has undergone exhaustive discharge and is defective. Do not use or charge a defective battery pack.

6. Operation

Caution!

The device is equipped with a safety switch to prevent unauthorized use. Immediately before using the device, insert the safety plug (Fig. 5/Item 5). Remove the safety plug again when interrupting or terminating your work. To do so, press the lug (Fig. 5/Item A).

Danger! To prevent accidental start-up of the machine, the push-bar is equipped with a two-point switch (Fig. 10/Item A) which must be pressed before the lever switch (Fig. 10/Item B) can be pressed. If the lever switch is released, the machine switches off.

Repeat this process several times so that you are sure that your machine functions properly. Before you perform any repair or maintenance work on the machine, ensure that the hoe blades are not rotating and that the power supply is disconnected.

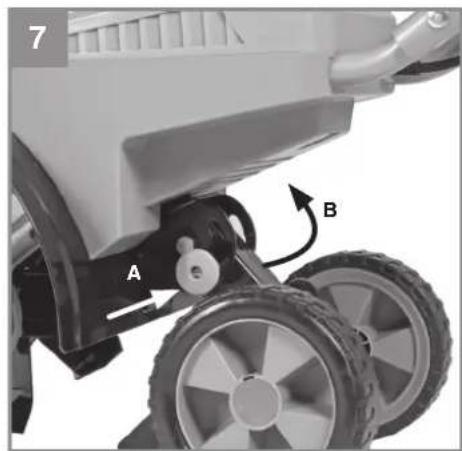

The equipment must be moved into operating position before you begin with your work. First pull the locking pin (Fig. 7/Item A) in the direction of the arrow as shown in Fig. 7 and swing up the wheel unit until the locking pin engages again in position B. Proceed in reverse order to move the equipment into transport position.

Always ensure that a safe distance (provided by the long handles) is maintained between the machine and the user. Be especially careful when changing direction on slopes and inclines.

Maintain a solid footing and wear sturdy, non-slip footwear and long trousers. Always work along the incline (not up and down).

Use special caution when backing up and pulling the machine (tripping hazard).

Tips for proper working

Place the machine in front of the area you wish to hoe and hold it securely on the push bar before

you switch on the machine. Guide the hoe blades over the area.

To achieve cleanly hoed soil always ensure that you guide the machine in straight lines wherever possible. Insodoing, the aeration swaths should always overlap each other by a few centimeters in order to avoid bare strips.

Switch off the motor promptly when you arrive at the end of the area you wished to hoe. The motor must be switched off when you raise the machine (for example to change direction).

Keep the underside of the machine clean and remove soil deposits. Deposits make it more difficult to start the machine and decrease the working depth. Work perpendicular to the slop on inclined areas. The machine must be switched off and the mains cable disconnected before you make any checks on the hoe blades.

Warning!

The hoe blades will continue to rotate for a few seconds after the motor is switched off. Never attempt to manually stop them. In the event that the rotating hoe blade strikes an object, immediately switch off the machine and wait for the hoe blades to come to a complete stop. Then inspect the condition of the hoe blades. Replace any parts that are damaged.

7. Cleaning, maintenance and ordering of spare parts

Danger!

Always pull out the safety plug before making adjustments or carrying out maintenance, cleaning and repair work on the equipment. Make sure that the blade shaft is not turning.

7.1 Cleaning

- Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.

• We recommend that you clean the device immediately each time you have finished using it.

- Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.

GB

7.2 Replace the hoe blades

For safety reasons, we recommend having the hoe blades replaced by an authorized professional (see address on warranty certifi cate).

Warning!

Wear working gloves. Use only genuine spare parts since otherwise the function and safety of the machine cannot be guaranteed.

7.3 Maintenance

Ensure that all mounting components (i.e. screws, bolts, nuts etc.) are always tightened so that the machine can be safely operated at all times. Store the device in a dry room. All the metal parts should be cleaned and then oil to ensure that they provide a long life. For best results, clean the plastic parts of the machine with a brush or rag. Do not use any solvents to remove dirt. For space saving storage undo the star nuts (Fig. 3e 3f /Item 8) and fold together the push bars as shown in Fig. 8. Ensure that you do not damage the cable. At the end of the season, perform a general inspection of the machine and remove any deposits which may have accumulated. At the start of each season, ensure that you check the condition of the machine. If repairs are necessary, please contact one of our customer service centers (see address on warranty certifi cate).

7.4 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

• Type of machine
• Article number of the machine
• Identification number of the machine
• Replacement part number of the part required

For our latest prices and information please go to www.isc-gmbh.info

8. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.

9. Storage

Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 °C. Store the electric tool in its original packaging.

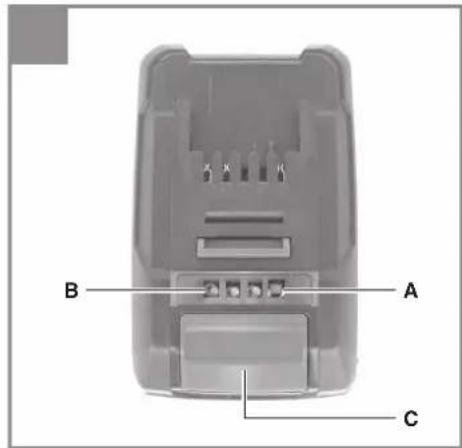

10. Charger indicator

Indicator status		Explanations and actions
Red LED Green LED
Off	Flashing	Ready for useThe charger is connected to the mains and is ready for use; there is no battery pack in the charger
On Off Charging		The charger is charging the battery pack in quick charge mode.
Off On The battery is 85% charged and ready for use.(Charging time for 1.5 Ah battery: 30 min)(Charging time for 3.0 Ah battery: 60 min)(Charging time for 4.0 Ah battery: 80 min)The unit then changes over to gentle charging mode until the battery is fully charged.(Total charging time for 1.5 Ah battery: approx. 40 min)(Total charging time for 3.0 Ah battery: approx. 75 min)(Total charging time for 4.0 Ah battery: approx. 100 min)Action:Take the battery pack out of the charger. Disconnect the charger from the mains supply.
Flashing Off	Adapted charging	The charger is in gentle charging mode.For safety reasons the charging is performed less quickly and takes more than 1 hour. The reasons can be:- The battery pack has not been used for a very long time or an already fl at battery was further discharged (exhaustive discharge).- The battery pack temperature is outside the ideal range (between 10^ C and 45^ C).Action:Wait for the charging to be completed; you can still continue to charge the battery pack.
Flashing Flashing Fault		Charging is no longer possible. The battery pack is defective.Action:Never charge a defective battery pack.Take the battery pack out of the charger.
On On Temperature fault		The battery pack is too hot (e.g. due to direct sunshine) or too cold (below 0^ C).Action:Remove the battery pack and keep it at room temperature (approx. 20^ C) for one day .

GB

11. Troubleshooting guide

Fault Possible causes Remedy
Motor does not start	- Safety plug is not inserted- Battery is not correctly inserted- Motor terminals or capacitor disconnected- Excessive working depth- Battery empty	- Insert the safety plug (see 6.)- Remove the battery and reinsert (see 5.)- By customer service workshop- Reduce the working depth- Charge the battery (see 5.)
Motorperformance drops	-Soiltoohard- Blades badly worn	-Correctworkingdepth- Replace hoe blades

Notice! For protection, the motor is equipped with a thermal switch which cuts out when the motor is overloaded and switches on again automatically after a short cooling period.

GB

For EU countries only

Never place any electric power tools in your household refuse.

To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the return request:

As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH.

Subject to technical changes

GB

Service information

We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Category Example
Wear parts* cultivator blade, battery
Consumables*
Missing parts

* Not necessarily included in the scope of delivery!

In the effect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.

FR

Danger!

Negotovost K_pA ......3 dB

Nivo zvočne moči L _WA 93 dB (A)

Negotovost K_WA 3 dB

Svetle sve 3 LE diode:

Sapma K _pA 3 dB

Spenning: 40 V likestrøm

Utgangsspenning: 21 V likestrøm

Utgangsstrøm: 3,0 A

Sikkerhetsklasse:....II /☐

Óvissa K _nA ....3dB

• 20 V, 4,0 Ah 10 Li-lon rafhlöður

Útgangsstraumur: 3,0 A

X 2006/42/EC
Annex IV
Notified Body:
Notified Body No.:
Reg. No.

X 2000/14/EC\_2005/88/EC

□ Annex V

X Annex VI

Noise: measured L_pp = 86.78 dB (A); guaranteed L_pp = 93 dB (A)

P = KW; L/∅ = 30 cm

Notified Body: SNCH S.A.R.L. (NB0499)

□2012/46/EU

Emission No.:

Standard references: EN 60335-1; EN 709, EN 55014-1; EN 55014-2

Subject to change without notice

Archive-File/Record: NAPR016926

Documents registrar: Alexander Scheifl

Wiesenweg 22, D-94405 Landau/Isar

EH 09/2017 (01)
