Product type	Petrol scarifier
Brand	Gardol
Model	GBV-E-40EV
Engine type	1-cylinder, 4-stroke
Displacement	212 cc
Maximum power	4.2 kW / 5.7 HP
Working speed	3600 rpm
Fuel	Petrol (E10)
Tank capacity	Approx. 3.6 l
Engine oil capacity	Approx. 0.6 l
Spark plug	LG F6TC
Number of blades	18
Blade diameter	163 mm
Depth adjustment range	-15 to +5 mm
Working width	400 mm
Sound pressure level (LpA)	81.5 dB(A) (K=2 dB)
Sound power level (LWA)	97.49 dB(A)
Vibration (ahw)	3.86 m/s² (K=1.5 m/s²)
Weight	32 kg
Collection basket	Yes
Engine brake	Yes
Warranty	60 months

Frequently Asked Questions - GBV-E-40EV Gardol

How to start the Gardol GBV-E-40EV scarifier?

Before starting, check the oil level and fill the fuel tank. Open the fuel valve, set the choke to 'CHOKE' if the engine is cold, then place the throttle in the middle. Engage the engine brake lever and pull the starter cord vigorously until the engine starts. Let it warm up, then set the choke to 'RUN'.

What type of engine oil to use and how to check the level?

Use a quality 4-stroke engine oil (SAE 30 or 10W-40). To check the level, place the unit on a level surface, unscrew the dipstick, wipe it, reinsert it without screwing, then remove it. The level should be between the marks. Never run the engine without oil or with insufficient level.

How to adjust the scarifying depth?

Press the depth adjustment lever slightly away from the unit (figure 8), select the desired depth between -15 mm and +5 mm, then lock the lever. For transport, set the lever to the highest position.

When and how to empty the collection basket?

As soon as cut grass remains during work, empty the collection bag. Stop the engine and wait until the roller stops completely. Lift the ejection flap with one hand and remove the bag with the other hand.

How to clean the air filter?

The air filter should be checked every 50 operating hours. Remove the filter as shown (figures 11-13), clean it with compressed air or by tapping. Never use petrol or flammable solvents. Reassemble in reverse order.

How often should the engine oil be changed?

It is recommended to change the oil once a year, before the start of the season, with the engine warm. Place a container under the drain plug, open the filler cap, then the drain plug. Let the old oil drain out, close, and fill with new oil to the correct level.

What to do if the engine does not start?

Check that the engine brake lever is engaged, the tank has fuel, the fuel valve is open, and the spark plug is clean and functional. If the plug is worn, replace it with an LG F6TC.

How to maintain the spark plug?

Check the spark plug after 10 hours of service, then every 50 hours. Remove the cap and plug with a spark plug wrench. Clean the electrodes with a brass wire brush. Check the gap (0.7-0.8 mm). Replace if necessary.

What are the important safety instructions?

Read the instruction manual carefully. Wear eye and hearing protection. Keep people and animals at a safe distance. Never remove the collection basket while the engine is running. Before any maintenance, remove the spark plug cap. The roller continues to rotate for a few seconds after stopping.

How to store the unit in winter?

Empty the fuel tank using a siphon pump. Run the engine until the remaining fuel is consumed. Drain the engine oil while hot. Remove the spark plug, pour about 20 ml of oil into the cylinder and pull the starter cord slowly to distribute. Replace the plug. Clean the unit and store it in a dry, ventilated place.

USER MANUAL GBV-E-40EV Gardol

Close-up of bundled cables with labeled connection point 11, no visible text or symbols beyond label '4b'

5 5 6

6 1 7

7 C B A

Mechanical assembly diagram showing a motor with labeled parts and directional arrows (no readable text or symbols)

9 A B

10 min. max.

Close-up of a motorcycle front panel with a mounted battery and rack, showing no visible text or symbols.

Close-up of a mechanical device with an upward arrow indicating motion, showing internal components and a car (no text or symbols visible)

Close-up of a robotic device with a hand holding a cylindrical component and an upward arrow indicating motion (no visible text or symbols)

Close-up of a mechanical device with a mounted component and a grid-like structure, no visible text or symbols.

Close-up of a kitchen appliance with a square stove and metal grater (no visible text or symbols)

16

1 2 3 4 5 6 7 ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! !

8

DE

Inhaltsverzeichnis

1. Safety regulations
2. Layout and items supplied
3. Proper use
4. Technical data
5. Before starting the equipment
6. Operation
7. Cleaning, maintenance, storage, transport and ordering of spare parts
8. Cleaning, maintenance and ordering of spare parts
9. Troubleshooting guide

GB

Danger!

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet.

Danger!

Read all safety regulations and instructions. Any errors made in following the safety regulations and instructions may result in an electric shock, fi re and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

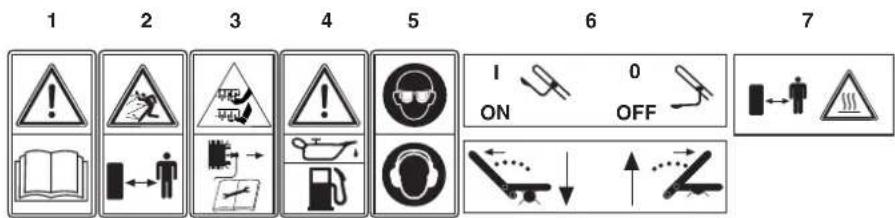

Explanation of the warning signs on the equipment (Fig. 16)

1. Important. Read the instructions before using for the first time.
2. Keep other persons (and animals) away from the danger zone.
3. Sharp tools – do not cut your fingers or toes – remove the spark plug before starting any maintenance work.
4. Fill with oil and fuel before starting
5. Wear goggles and ear muff s.
6. Engine start / Engine stop lever (I = Engine On / 0 = Engine Off)
7. Important. Hot parts.
8. Scarifi er roller depth adjustment

2. Layout and items supplied

2.1 Layout (Fig. 1/2)

1. Engine start/stop lever – engine brake
2. Top push bar
3. Bottom push bar
4. Scarifying depth
5. Ejector fl ap
6. Grass basket

7. Throttle lever

8. 2 fastening nuts for top push bar

9. 4 fastening screws for bottom push bar
10. 4 fastening nuts for bottom push bar
11. 2 cable securing clips
12. 2 fastening screws for top push bar

2.2 Items supplied

Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if available).
  • Check to see if all items are supplied.
• Inspect the equipment and accessories for transport damage.
• If possible, please keep the packaging until the end of the guarantee period.

Danger!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!

• Original operating instructions
- Safetyinstructions

3. Proper use

The equipment is designed for scarifying lawned areas. The scarifying process is designed for ripping moss and weeds - complete with their roots - out of the soil and for loosening the soil. As a result your lawn can absorb nutrients better and is cleaned. We recommend you to scarify your lawn in the spring (April) and autumn (October).

GB

Important! Due to the high risk of bodily injury to the user, the equipment may not be used to grind up branch or hedge clippings. Moreover, the equipment may not be used as a power cultivator to level out high areas such as mole hills.

For safety reasons, the equipment may not be used as a drive unit for other work tools or tool sets of any kind.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

4. Technical data

Engine type: 1 cylinder, 4-stroke

Displacement 212 cc

Max. engine output 4.2 kW / 5.7 hp

Working speed 3,600 rpm

Fuel: petrol (E10)

Tank capacity: .... approx. 3.6 l

Engine oil: .... approx. 0.6 l

Spark plug: ....LG F6TC

Blades (number) 18

Blade diameter 163 mm

Depth setting -15 - +5 mm

Working width: 400 mm

LpA sound pressure level 81,5 dB(A), K = 2dB (A)

LWA sound power level 97,49 dB(A)

Vibration ahw ....3,86 m/s ^2 , K = 1,5 m/s ^2

Weight: 32 kg

5. Before starting the equipment

The equipment is delivered unassembled. The grass basket and the complete push bar must be assembled and mounted before using the equipment. Follow the operating instructions step-by-step and use the pictures provided as a visual guide to easily assemble the equipment.

Fitting the top push bar holder (Fig. 4a)

Position the upper push bar (Fig. 4a / Item 2) such that its holes line up with the holes of the lower bar. Screw the tubes together, using the screws (Fig. 4a / Item 12) and nuts (Fig. 4a / Item 8) supplied. Use the supplied cable clips (Fig. 4b / Item 11) to secure the throttle cable and the engine Start / Stop cable to the lower push bar.

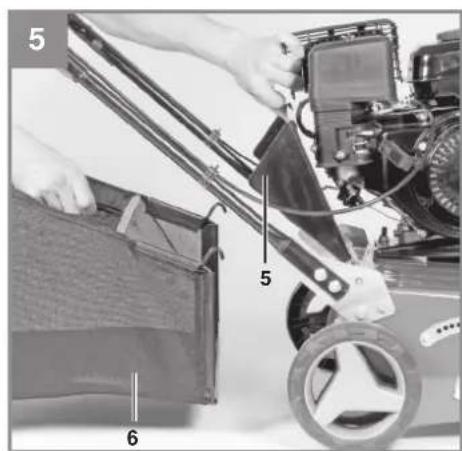

Fitting the debris box (Fig. 5)

Lift the ejector flap (Fig. 5 / Item 5) with one hand and attach the debris box (Fig. 5/Item 6) to the handle from above using your other hand.

Important: Before you attach the debris box you must ensure that the engine is switched off and the roller is not rotating.

6. Operation

Important!

The engine does not come with oil in it.

Therefore, be sure to add oil before starting the engine. The oil level in the engine must be checked each time before carrying out any work.

Starting the equipment (Fig. 6 - 7)

In order to avoid any unintentional start-ups of the engine, it comes equipped with an engine brake (Fig. 6/Item 1) which must be pressed at all times whilst the device is in use, otherwise the engine will stop.

Important: When the engine brake lever is released it must return to its initial position and the engine must stop. If this is not the case, do not use the equipment again.

GB

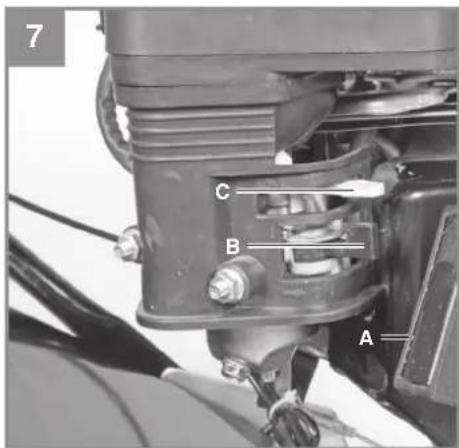

1. Open the petrol cock (Fig. 7 / Item B). Set the cock to "ON" for this purpose.
2. Set the choke lever (Fig. 7/Item C) to the "Choke" position.
   Note: Normally the choke is not required to restart a warm engine.

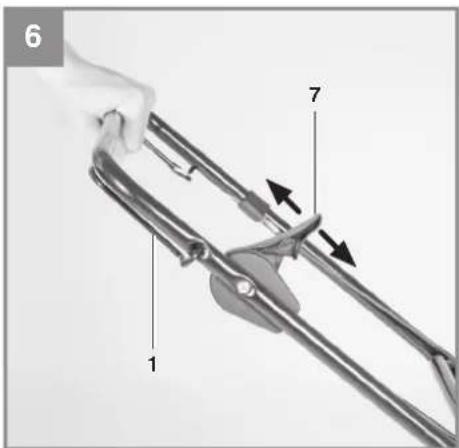

3. Move the throttle lever (Fig. 6 / Item 7) to the center position.
4. Press the engine brake lever (Fig. 6 / Item 1) and pull the starter cable (Fig. 7 / Item A) forcefully until the engine starts.
5. Allow the engine to warm up briefly and then set the choke lever (Fig. 7 / Item B) to the "RUN" Position.
6. The speed of the cutter unit can be controlled using the throttle lever (Fig. 6 / Item 7) (tortoise = slow / rabbit = fast).

Important: Always pull the starter cable slowly until you feel the initial resistance before you then pull it quickly to start the engine. Do not allow the starter cable to whip back of its own accord.

Important: The scarifier roller begins to rotate as soon as the engine is started.

Important! Never open the ejector flap when the motor is running. A rotating cutting unit can cause injuries.

Always fasten the ejector flap carefully. The flap fl ips back to the "Closed" position by the tension springs!

Always ensure that a safe distance (provided by the long handles) is maintained between the user and the housing. Be especially careful when scarifying and changing direction on slopes and inclines. Maintain a solid footing and wear sturdy, non-slip footwear and long trousers. Always scarify along the incline (not up and down).

For safety reasons, the scarifi er may not be used to scarify inclines whose gradient exceeds 15 degrees.

Use special caution when backing up and pulling the scarifi er (tripping hazard)!

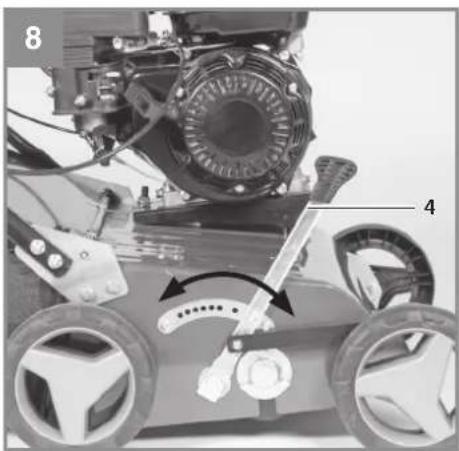

Adjusting the working depth (Fig. 8)

To set the working depth, push the lever for setting the depth (Fig. 8 / Item 4) gently away from the device, set the required depth and then lock the lever back into position.

Important. For transport move the lever for setting the depth to the highest position.

Tips for proper working

It is recommended that you overlap scarifying paths a little. Try to scarify in straight lines for a nice, clean look. Insodoing, the aeration swaths should always overlap each other by a few centimeters in order to avoid bare strips.

As soon as grass clippings start to trail the scarifier, it is time to empty the grass basket.

Important! Before taking off the grass basket, switch off the motor and wait until the roller has come to a stop.

To remove the grass basket, lift up the ejector flap with one hand, while unhooking the basket with the other.

How frequently you should scarify your lawn is determined primarily by the speed at which the grass grows and the hardness of the soil.

Keep the underside of the equipment clean and remove soil and grass build-up. Deposits make it more difficult to start the aerator and decrease the quality of the scarifying.

Always scarify along inclines (not up and down). Switch off the motor before doing any checks on the roller.

Important!

The roller rotates for a few seconds after the motor is switched off. Never attempt to stop the roller. In the event that the rotating roller strikes an object, immediately switch off the equipment and wait for the roller to come to a complete stop. Then inspect the condition of the roller. Replace any parts that are damaged.

7. Cleaning, maintenance, storage, transport and ordering of spare parts

Important:

Never work on or touch conducting parts on the ignition unit with the engine running. Always pull the spark plug boot from the spark plug before starting any work of care or maintenance. Never perform any work on the machine while it is running. Any work not described in these Operating Instructions must be performed by an authorized service workshop only.

GB

7.1 Cleaning

The scarifi er should be cleaned thoroughly every time after it has been used. This particularly applies to its underside and the blades. To do so tip the scarifi er slightly on to its side and remove the dirt.

Important. Before you tip the equipment, the petrol tank must be emptied to prevent petrol leaking out. Ideally you should use a conventional petrol extraction pump for this purpose.

7.2 Servicing

Checking the oil level

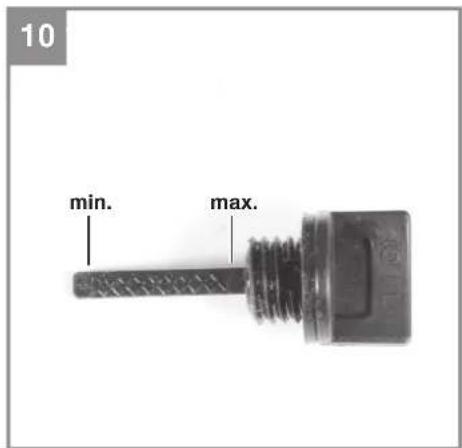

Set the equipment down on a flat, level surface. Unscrew the oil dipstick by turning it anti-clockwise. The oil level must be as shown in Figure 10.

Important: Never run the engine with no or too little oil. This can cause serious damage to the engine.

Changing the oil

• Change the engine oil every year before the start of the season (in addition to the information in the petrol service manual) when the engine is warm.
  • Use only recommended engine oil.
• Place a suitable oil drip tray beneath the oil drain screw.

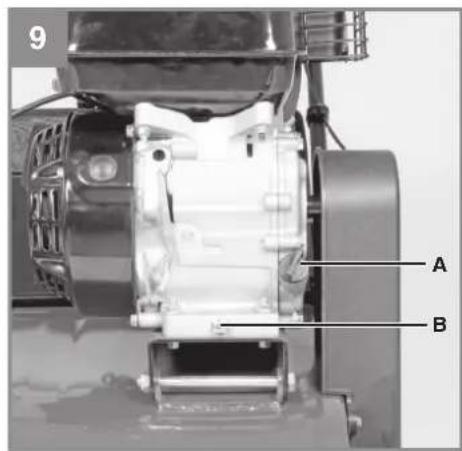

• Remove the oil filler screw (Fig. 9 / Item A).
• Undo the oil drain screw (Fig. 9 / Item B) and drain the oil into a suitable container.
• Close the drain screw again when all the used oil has been drained.
• Pour engine oil into the equipment as shown in Figure 10.
• Dispose of the used oil in accordance with applicable regulations.

Care and adjustment of the cables

Oil the cables at regular intervals and check that they move easily.

Servicing the air fi Iter

Soiled air fi Iters reduce the engine output by supply too little air to the carburetor.

Regular checks are therefore essential. The air fi liter should be checked after every 50 hours of use and cleaned if necessary. If the air contains a lot of dust, the air fi liter should be checked more frequently.

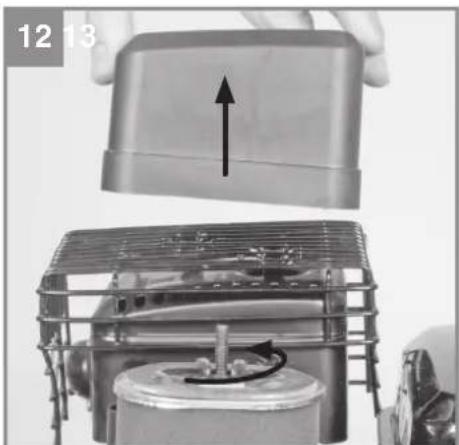

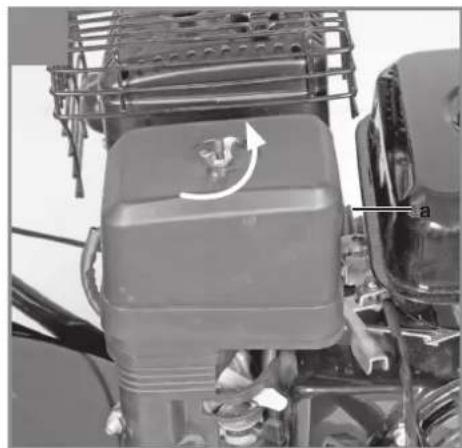

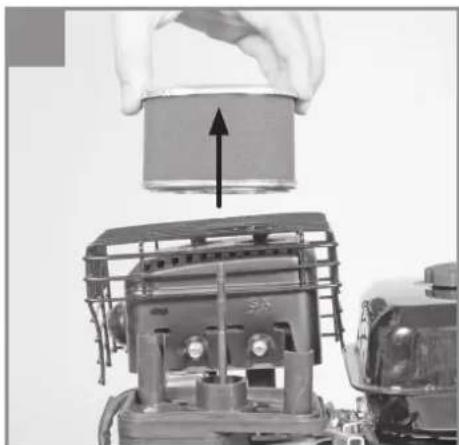

• Remove the air filter as shown in Fig. 11-13.
• Clean the air filter only with compressed air or by tapping it.
  • Assemble in reverse order
  Important: Never clean the air filter with petrol or infl ammable solvents.

Servicing/Replacing the spark plug

Check the spark plug for dirt and grime after 10 hours of operation and if necessary clean it with a copper wire brush. Thereafter service the spark plug after every 50 hours of operation.

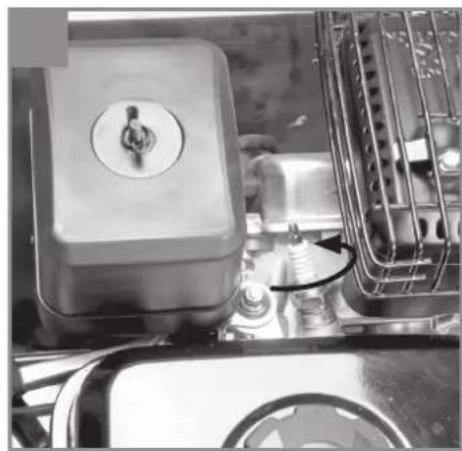

• Pull off the spark plug boot (Fig. 14) with a twist.

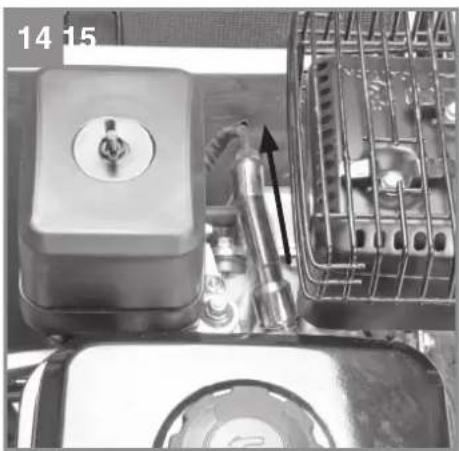

• Remove the spark plug using a spark plug wrench (Fig. 15).
  • Assemble in reverse order.

7.3 Preparing the equipment for storage

Caution: Do not empty the petrol tank in enclosed areas, near fi re or when smoking. Petrol fumes can cause explosions and fi re.

1. Empty the petrol tank with a petrol suction pump.
2. Start the engine and let it run until any remaining petrol has been used up.
3. Change the oil at the end of every season. To do so, remove the used engine oil from a warm engine and refi ll with fresh oil.
4. Remove the spark plug from the cylinder head. Fill the cylinder with approx. 20 ml of oil from an oil can. Slowly pull back the starter handle, which will bathe the cylinder wall with oil. Screw the spark plug back in.
5. Clean the cooling fins of the cylinder and the housing.
6. Be sure to clean the entire machine to protect the paint.
7. Store the machine in a well-ventilated place.

7.4 Preparing the device for transport

1. Drain the petrol tank using a petrol extraction pump.
2. Always let the engine run until it has used up the remainder of petrol in the tank.
3. Empty the engine oil from the warm engine.
4. Remove the spark plug boot from the spark plug.
5. Clean the cooling fins of the cylinder and the housing.
6. Remove the push bars if necessary. Ensure that the cables are not kinked.

GB

7.5 Ordering replacement parts

Please quote the following data when ordering replacement parts:

• Type of machine
  • Article number of the machine
  • Identification number of the machine
• Replacement part number of the part required For our latest prices and information please go to www.isc-gmbh.info

8. Cleaning, maintenance and ordering of spare parts

The unit is supplied in packaging to prevent its being damaged in transit. This packaging is raw material and can therefore be reused or can be returned to the raw material system.

The unit and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.

GB

9. Troubleshooting guide

Fault Possible causes Remedy
The motor does not start	- Engine brake lever not pressed- Spark plug defective- Fuel tank empty- Petrol cock closed	- Press the engine brake lever- Replace spark plug- Top up fuel- Open petrol cock
Engine does not run smoothly	-Airfi lter dirty- Spark plug worn- Choke open	- Clean the air fi lter- Clean/Replace the spark plug- Set choke lever to “Run” position
Theequipment does not operate smoothly and vibrates intensively	- Blades imbalanced - Have the blades replaced by a customer service workshop.
Motorisrunning, roller is not rotating	- V-belt torn - Have the V-belt replaced by a customer service workshop.

GB

Service information

We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Category Example
Wear parts*	Spark plug, air filter, V-belt, petrol filter, blade (roller)
Consumables*
Missing parts

* Not necessarily included in the scope of delivery!

In the effect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.

GB

Warranty certifi cate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card or the sales outlet from where you bought the device. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms apply to consumers only, i.e. natural persons intending to use this product neither for their commercial activities nor for any other self-employed activities. These warranty terms regulate additional warranty services, which the manufacturer mentioned below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.
2. The warranty services cover only defects due to material or manufacturing faults on a product which you have bought from the manufacturer mentioned below and are limited to either the rectification of said defects on the product or the replacement of the product, whichever we prefer. Please note that our devices are not designed for use in commercial, trade or professional applications. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

4. Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by exposing the device to abnormal environmental conditions or by lack of care and maintenance.

5. Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for example by dropping it).

6. Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

7. The guarantee is valid for a period of 60 months starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies if an on-site service is used.

8. To make a claim under the guarantee, please register the defective device at: www.isc-gmbh.info. Please keep your bill of purchase or other proof of purchase for the new device. Devices that are returned without proof of purchase or without a rating plate shall not be covered by the guarantee, because appropriate identification will not be possible. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement.

Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions.

FR

Sommaire

X 2006/42/EC
□ Annex IV Notified Body: Reg. No.:

X 2000/14/EC_2005/88/EC

X Annex V

Annex VI

Noise: measured L_mn = 97.49 dB (A); guaranteed L_mn = 98 dB (A)
P = 4,2 kW; L/∅ = cm

Notified Body:

X 2012/46/EU_(EU)2016/1628

Emission No.: e24*2016/1628*2016/1628SYA1/P*0019*00 (V)

Standard references: EN 13684; EN ISO 14982

Subject to change without notice

Archive-File/Record: NAPR019244

Documents registrar: Hofner Felix

Wiesenweg 22, D-94405 Landau/Isar

EH 09/2019 (01)
