Product type	Electric scarifier (lawn mower)
Brand	AL-KO
Model	32.5 Basic Care Classic
Power supply	230 V / 50 Hz, rubber cable H05RN-F 3x1.5 mm²
Rated power	Not specified in the manual
Cutting width	32.5 cm (indicated by model)
Working depth	5 positions (1-5), adjustable
Collection bag	Yes, with rear flap
Weight	Approx. 12 kg (estimate)
Dimensions (L x W x H)	Not specified
Sound power level	98 dB(A) measured / 99 dB(A) guaranteed
Motor type	Electric motor with circuit breaker-protector
Cutting system	Multiple knife shaft (removable)
Safety devices	Safety switch, safety bar, visual lock indicator, circuit breaker-protector
Use	Domestic, short-cut dry grass
Maintenance	Clean after use, no water, replace knives in full sets
Warranty	Legal, wear parts excluded

Frequently Asked Questions - 32.5 Basic Care Classic AL-KO

How to start the AL-KO 32.5 Basic Care Classic scarifier?

Press and hold the safety switch button, then pull the safety bar against the handlebar. The motor starts. Release the button, but keep the bar pressed for the entire work duration.

What to do if the motor does not run?

Check the power cable and the protective circuit breaker. Make sure the safety bar is fully pushed against the handlebar. Try a lower working depth.

How to adjust the working depth?

Stop the motor and wait for the shaft to stop. Tilt the scarifier backwards, press the rotary switch and set it to the desired position (1 to 5). New knives must be set at most to position 2.

What are the mandatory safety equipment?

Wear safety glasses, hearing protection, long trousers and sturdy shoes. Keep hands and feet away from the cutting system.

How to clean the scarifier after use?

Unplug the device, wait for the shaft to stop. Clean with a cloth or a scraper. Do not spray with water to avoid damaging the motor and the switch.

Can I use the scarifier on wet grass?

No. The device is designed for use on dry, short-cut grass. Wet grass can cause overload and damage the device.

How to replace worn knives?

Disassemble the knife shaft according to the manual, then unscrew the hexagon head bolt. Remove the knives and replace them in full sets to avoid imbalance. Reassemble in reverse order.

What to do if the device vibrates abnormally?

Stop the motor immediately and unplug. Check if the knives are damaged or unbalanced. If the problem persists, take the device to an authorized service center.

What type of power cable to use?

Use a rubber cable type H05RN-F, section 3x1.5 mm², conforming to DIN/VDE 0282. The connector and housing must be made of rubber.

Can I use the scarifier for commercial purposes?

No. Use is strictly domestic. Commercial or municipal use is considered non-conforming and voids the warranty.

USER MANUAL 32.5 Basic Care Classic AL-KO

Line drawing of a grass lawn mower with attached frame and wheels (no text or symbols)

DE

EN

NL

FR

ES

PT

IT

SL

HR

SR

PL

CS

SK

HU

DA

SV

NO

FI

ET

LV

LT

RU

UK

BG

RO

EL

MK

TR

EN: Operating instructions....13

32.5 VE Basic Care Classic Art. Nr. 113242
	1100 x 990 x 500 mm 1 kW
	ca. 13 kg		3000 min-1
	5 x		LPA=78 dB (A)K=1 dB(A)
	320 mm		LWA=99 dB (A)
	230 V~/ 50 Hz		avhw=8 m/s2ISO 20643K=1,5 m/s2
	min. 10 A ca. 45 l

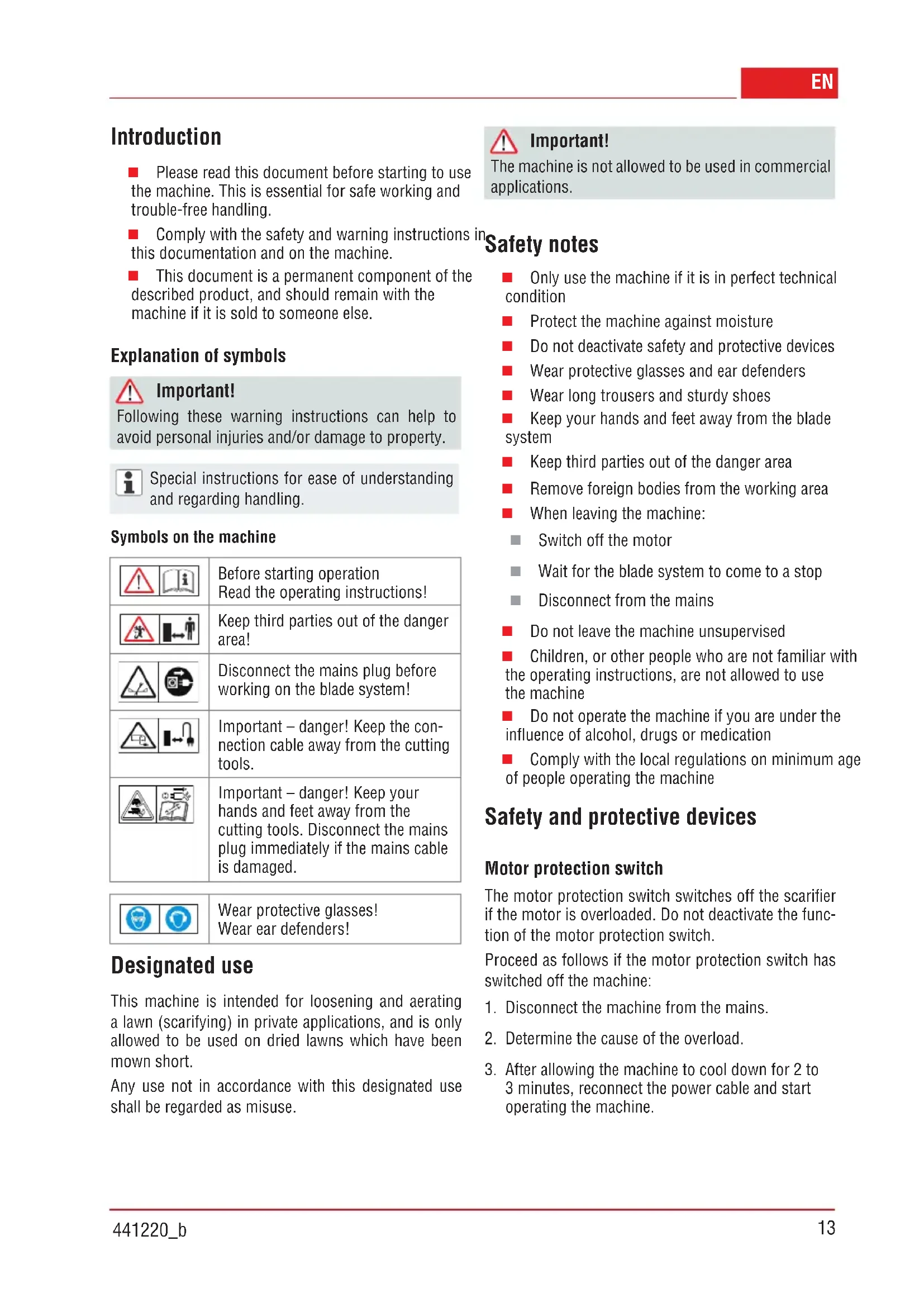

Einleitung

Wolfgang Hergeth, Managing Director

Garantie

■ Please read this document before starting to use the machine. This is essential for safe working and trouble-free handling.
■ Comply with the safety and warning instructions in this documentation and on the machine.
This document is a permanent component of the described product, and should remain with the machine if it is sold to someone else.

Explanation of symbols

Important!

Following these warning instructions can help to avoid personal injuries and/or damage to property.

Special instructions for ease of understanding and regarding handling.

Symbols on the machine

	Before starting operationRead the operating instructions!
	Keep third parties out of the danger area!
	Disconnect the mains plug before working on the blade system!
	Important – danger! Keep the connection cable away from the cutting tools.
	Important – danger! Keep your hands and feet away from the cutting tools. Disconnect the mains plug immediately if the mains cable is damaged.

Designated use

This machine is intended for loosening and aerating a lawn (scarifying) in private applications, and is only allowed to be used on dried lawns which have been mown short.

Any use not in accordance with this designated use shall be regarded as misuse.

Important!

The machine is not allowed to be used in commercial applications.

'Safety notes

■ Only use the machine if it is in perfect technical condition
■ Protect the machine against moisture
■ Do not deactivate safety and protective devices
■ Wear protective glasses and ear defenders
■ Wear long trousers and sturdy shoes
- Keep your hands and feet away from the blade system
- Keep third parties out of the danger area
■ Remove foreign bodies from the working area
■ When leaving the machine:

■ Switch off the motor
■ Wait for the blade system to come to a stop
■ Disconnect from the mains

■ Do not leave the machine unsupervised
Children, or other people who are not familiar with the operating instructions, are not allowed to use the machine
Do not operate the machine if you are under the influence of alcohol, drugs or medication
■ Comply with the local regulations on minimum age of people operating the machine

Safety and protective devices

Motor protection switch

The motor protection switch switches off the scarifier if the motor is overloaded. Do not deactivate the function of the motor protection switch.

Proceed as follows if the motor protection switch has switched off the machine:

1. Disconnect the machine from the mains.
2. Determine the cause of the overload.
3. After allowing the machine to cool down for 2 to 3 minutes, reconnect the power cable and start operating the machine.

Operator presence control

The machine is equipped with an operator presence control which stops the machine when it is released.

Danger!

Do not deactivate the function of the operator presence control.

Rear flap

The machine is equipped with a rear flap.

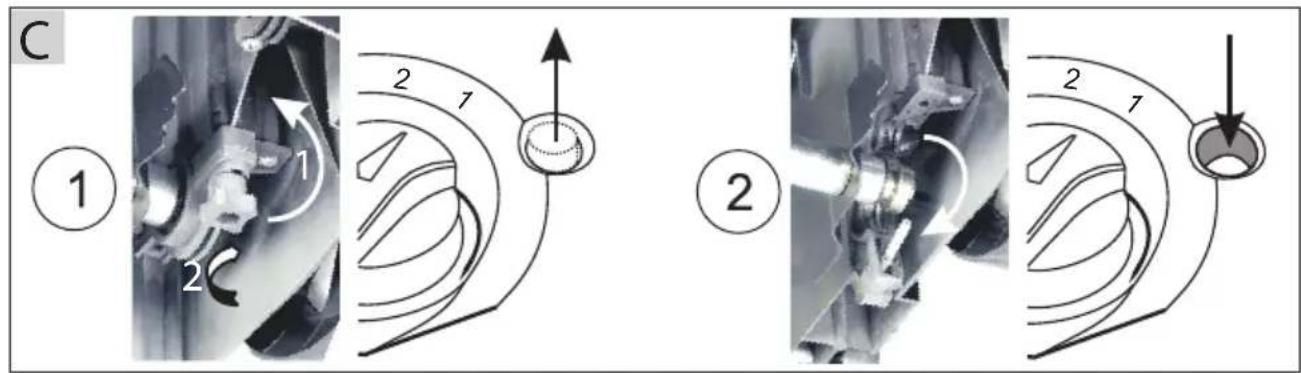

Visual safety indicator (Fig. C, Fig. H)

The visual safety indicator displays when the work shaft is secured. The work shaft is secured correctly when the green mark is visible (5 mm).

Assembly

Assemble the machine in accordance with the illustrations (Figs. A, B).

Important!

The machine is not allowed to be operated unless it has been fully assembled.

Startup

Important!

Always perform a visual check prior to startup. Do not operate the machine if the blade system and/or the fastening parts are loose, damaged or worn.

■ Comply with working time regulations in force in your country

Power cable safety

■ Only use rubber-sheathed cables with quality H05RN-F acc. to DIN/VDE 0282 with a conductor cross section of 3 phases per x 1.5 mm²
The type designation must be marked on the power cable. The plug and coupling socket must be made from rubber or sheathed in rubber, and be in accordance with DIN/VDE 0620
■ Only use a power cable with sufficient length
■ The power cable, plug and coupling socket must be protected against splash water

■ Repairs on the power cable, plug and coupling socket are only allowed to be carried out by authorised specialist companies. A defective power cable (e.g. with cracks, cuts, crushed or kinked points in the insulation) is not allowed to be used
■ Protect the plug connections against moisture

Danger!

Do not damage or cut the power cable.

If the power cable is damaged, immediately disconnect it from the mains.

Electrical requirements

230 V/50 Hz alternating current
■ Minimum cross section
■ Power cable = 1.5 mm ^4
■ Minimum fusing of mains connection = 10 A
■ Residual-current circuit breaker (RCCB)
■ Maximum tripping current = 30 mA.

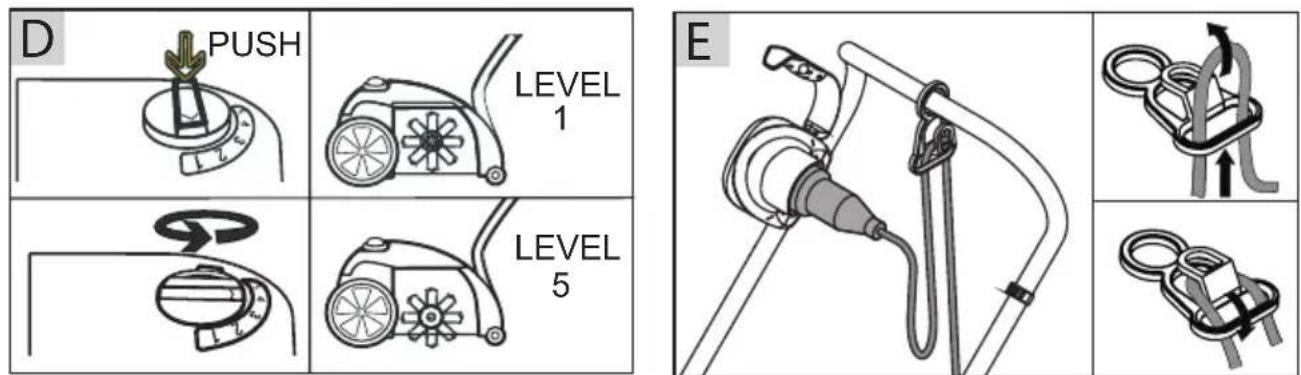

Establishing the mains connection (Fig. E)

1. Connect the coupling part of the power cable to the plug on the safety pushbutton switch.
2. Coil the power cable into a loop and hook it into the cable strain relief. Leave the loop long enough for the cable strain relief to be able to slide from one side to the other.

Danger!

Never operate the machine from mains sockets which do not have a residual-current circuit breaker.

Setting the working depth (Fig. D)

Important!

Only set the working depth if the motor is switched off and the blade shaft is stopped.

Set the working depth of the blade shaft at the dial selector.

1. Tilt the scarifier backwards with the handlebar.
2. Push the twist switch down and turn it to level "2".

Positions on the dial selector:

1 - 5 = Setting the working depth (Fig. D)

With new blades, set the dial selector to position 2 at most!

The correct working depth depends on:

■ the condition of the lawn
■ the wear on the blades

If the working depth is incorrect:

■ the scarifier will stop
the motor will stall

In this case, move the dial selector back to a shallower working depth.

Always mow the lawn before scarifying.

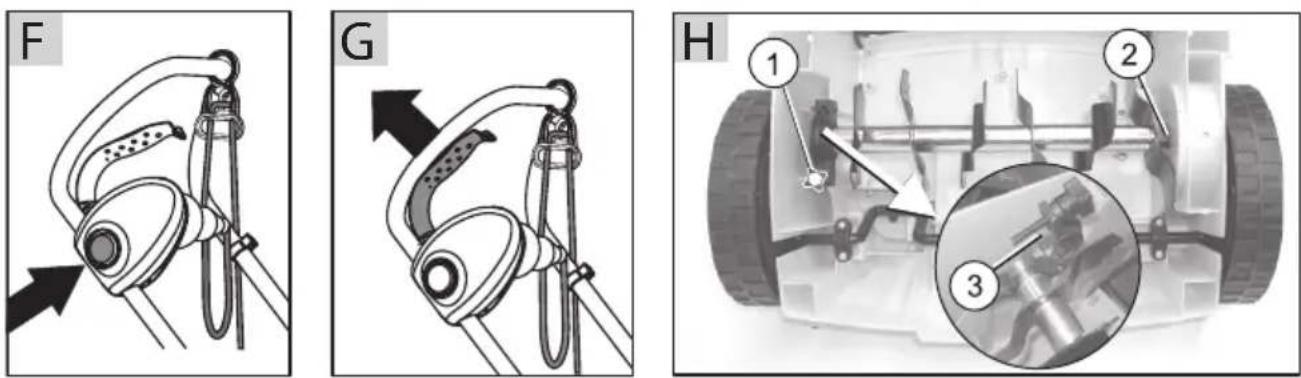

Starting the motor (Fig. F, G)

1. Push and hold the button of the safety pushbutton switch.
2. Pull the operator presence control against the handlebar. The motor starts.

The operator presence control does not lock in place. It must be held in place all the time.

1. Release the button of the safety pushbutton switch.

Switching off the motor

1. Release the operator presence control. It automatically returns to its initial position. The motor is switched off.

Danger of lacerations!

The blade shaft keeps turning under its own momentum! After switching off, do not reach under the machine straight away.

Hooking in/unhooking the grass catcher

1. Switch off the motor before hooking in/unhooking the grass catcher.
2. Wait for the blade shaft to come to a stop

General notes on operation

The blade system must be able to turn entirely freely in order for the machine to be started

- Keep the power cable out of the working area

Do not place your hands and feet close to any rotating parts

■ Only control the machine using the handlebar. This ensures the necessary safety clearance.

- The blade system must be able to turn entirely freely in order for the machine to be started - Keep the power cable out of the working area - Do not place your hands and feet close to any rotating parts - Only control the machine using the handlebar. This ensures the necessary safety clearance.

■ Be particularly careful when turning the scarifier or if you are pulling the machine behind you
■ Make sure you can stand securely on slopes
■ Always scarify across the slope
■ Never scarify on steep slopes
■ Always scarify at walking pace
■ Never tilt or transport the machine when the motor is running
■ Have the machine checked by a specialist if the following events occur:
■ After running into an obstacle
If the motor stops suddenly
If a blade is bent
If the blade shaft is bent
If the V-belt is defective

Maintenance and care

Danger!

Risk of injury on the blade shaft.

Wear protective gloves!

The user cannot open the motor enclosure for maintenance, such maintenance must be done by an authorised specialist workshop.

■ Disconnect the mains plug before any maintenance and cleaning work! Wait for the shaft to come to a stop.
■ Only use genuine spare parts.
■ Only renew worn or damaged implements and pins as a set, in order to avoid imbalances.
Do not spray the machine with water! Water ingress can cause irreparable damage to the motor and the safety pushbutton switch.
■ Clean the machine after each use (scraper, cloth, etc.).

Removing the blade shaft (Fig. H)

1. Unscrew and remove the screw (1) of the bearing.
2. Fold up the bearing half (2).
3. Lift the blade shaft out of the lower bearing half and pull it out of the drive side (3).

Install in the reverse sequence.

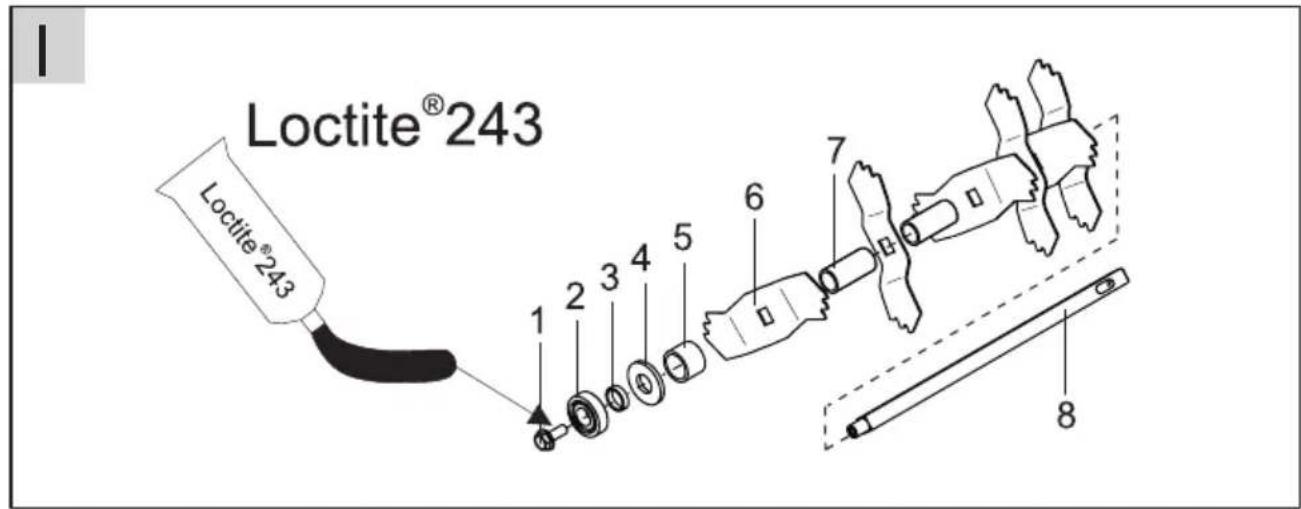

Removing the blades (Fig. I)

Before removing the blades, check their installation position!

1. Unscrew and remove the hexagon bolt (1).
2. Carefully pull the ball bearing (2) off the shaft (8).
3. Pull the thrust ring (3), washer (4) and short spacer tube (5) off the shaft.
4. Pull off the blades (6) and long spacer tubes one after another.

Install in the reverse sequence.

Disposal

Do not dispose of worn-out machines or spent batteries (including rechargeable batteries) in domestic waste!

The packaging, machine and accessories are made from recyclable materials and must be disposed of accordingly.

Help in case of malfunctions

Malfunction Help
Motor does not run	Check the power cable and the residual-current circuit breakerPush the operator presence control towards the top handlebar.Select a lower working depth.
Shaft does not rotate	Select a lower working depth.Clear the blades.Contact a customer service workshop.
The motor is losing power	Select a lower working depth.Renew worn blades.Clean the housing.Mow the lawn (grass is too long).
Poor scarifying performance	Select a lower working depth.Renew worn blades.
Machine is not running smoothlyMachine is vibrating	Damaged blades.Contact a customer service workshop.

Malfunctions that cannot be rectified using this table must be attended to by an authorised specialist workshop.

EC declaration of conformity EN

We hereby declare that this product, in the form in which it is marketed, meets the requirements of the harmonised EU guidelines, EU safety standards, and the product-specific standards.

Product

Scarifier

Serial number

G1401405

Manufacturer

AL-KO Geräte GmbH

Ichenhauser Str. 14

89359 KOETZ

DEUTSCHLAND

Executive Officer

Andreas Hedrich

Ichenhauser Str. 14

89359 KOETZ

DEUTSCHLAND

Model

32.5 VE Basic Care Classic

EU directives

2006/42/EG

2014/30/EU

2000/14/EG

2011/65/EU

2014/35/EU

Harmonised standards

EN 60335-1:2002+A1+A11+A12+A2+A13

EN 13684+A3

EN 60335-2-92

Sound power level measured / guaranteed

EN ISO 3744

98 / 99 dB(A)

Conformity evaluation

2000/14/EG

Appendix V

Kötz, 01.07.2016

Moby Luyon

Wolfgang Hergeth, Managing Director

Warranty

If any material or manufacturing defects are found during the statutory customer protection period, we will either repair or replace the equipment, whichever we consider the more appropriate. This statutory period may vary according to the legislation in force in the country where the equipment was purchased.

Our warranty is valid only if: The warranty is no longer valid if:

■ The equipment has been used properly

■ The operating instructions have been followed

■ Genuine replacement parts have been used

■ The equipment has been tampered with

■ Technical modifications have been made

The trimmer was not used for its intended purpose (for example, used for commercial or communal applications)

The following are not covered by warranty:

■ Paint damage due to normal wear
■ Wear parts identified by a border XXXX (X) on the spare parts list

Combustion motors – these are covered by a separate warranty from the manufacturer concerned

To make a claim under warranty, please take this statement of warranty and proof of purchase to the nearest authorised customer service centre. This warranty does not affect the usual statutory rights of the customer relative to the seller.

Inleiding

Wolfgang Hergeth, Managing Director

Garantie

Wolfgang Hergeth, Managing Director

Garantie

Wolfgang Hergeth, Managing Director

Garantía

Wolfgang Hergeth, Managing Director

Garantia

Wolfgang Hergeth, Managing Director

Garanzia

Wolfgang Hergeth, Managing Director

Garancija

Wolfgang Hergeth, Managing Director

Jamstvo

Eventualne greške na materijalu ili greške pri proizvodnji koje se pojave na uređaju otklanjamo za vrijeme zakonskog jamstvenog roka za zahtjeve u slučaju nedostatak po našem izboru u vidu popravke ili zamjenske isporuke. Jamstveni rok određuje se prema zakonu zemlje u kojoj je uređaj kupljen.

Naše jamstvo vrijedi samo u slučaju: Pravo na jamstvo gubi se u slučaju:

Wolfgang Hergeth, Managing Director

Гаранција

Wolfgang Hergeth, Managing Director

Gwarancja

Wolfgang Hergeth, Managing Director

Záruka

Wolfgang Hergeth, Managing Director

Záruka

Wolfgang Hergeth, Managing Director

Garancia

Wolfgang Hergeth, Managing Director

Garanti

Wolfgang Hergeth, Managing Director

Garanti

Wolfgang Hergeth, Managing Director

Garanti

Wolfgang Hergeth, Managing Director

Takuu

Wolfgang Hergeth, Managing Director

Garantii

Wolfgang Hergeth, Managing Director

Garantija

Wolfgang Hergeth, Managing Director

Garantija

Wolfgang Hergeth, Managing Director

Гарантия

Wolfgang Hergeth, Managing Director

Гарантія

Wolfgang Hergeth, Managing Director

Гаранция

Wolfgang Hergeth, Managing Director

Garantie

Wolfgang Hergeth, Managing Director

Εγγύηση

Wolfgang Hergeth, Managing Director

Гаранција

Wolfgang Hergeth, Managing Director

Garanti

a b c

b

c

d

e

f

Country	Company	Telephone	Fax
A	AL-KO KOBER Ges.m.b.H.	(+43)3578/2515-100	(+43)3578/2515-31
AUS	AL-KO INTERNATIONAL Pty. Ltd.	(+61)3/9767-3700	(+61)3/9767-3799
B / L	Eurogarden NV	(+32)16/805427	(+32)16/805425
BG	Valerii S&M Group SJ	([phone]	([phone]
CH	AL-KO KOBER AG	(+41)56/418-31 53	(+41)56/4183160
CZ	AL-KO KOBER Spol. S.R.O.	(+420)382/210381	(+420)382/212782
D	AL-KO GERÄTE GmbH	(+49)8221/203-0	(+49)8221/97-8199
DK	AL-KO GINGE A/S	([phone]	([phone]
EST/LT/LV	SIA AL-KO KOBER	(+371)67/627-326	((+371)67/807-018
F	AL-KO S.A.S.	(+33)3/8576-3500	(+33)3/8576-3581
GB	Rochford Garden Machinery Ltd.	(+44)1963/828050	(+44)1963/828052
H	AL-KO KFT	(+36)29/5370-50	(+36)29/5370-51
HR	Brun.ko.-prom d.o.o.	([phone]	([phone]
I	AL-KO KOBER GmbH / SRL	(+39)039/9329-311	(+39)039/9329-390
IN	AGRO-COMMERCIAL	([phone]	([phone]
IQ	Avro Gulistan Com	([phone]
IRL	Cyril Johnston & Co. Ltd.	([phone]	([phone]
LY	ASHOFAN FOR AGRICULT. ACC.	([phone]	([phone]
MA	BADRA Sarl	([phone]	([phone]
MK	Techno Geneks	([phone]	([phone]
N	AL-KO GINGE A/S	(+47)64/86-2550	(+47)64/86-2554
NL	O.DE LEEUW GROENTECHNIEK	(+31)38/444 6160	(+31)38/444 6358
PL	AL-KO KOBER Sp. z.o.o.	(+48)61/816-1925	(+48)61/816-1980
RO	SC PECEF TEHNICA SRL	([phone]	([phone]
RUS	OOO AL-KO KOBER	(+7)499/16708-42	(+7)499/96600-00
RUS	ZAO AL-KO St. Petersburg GmbH	(+7)812/446-1084	(+7)812/446-1084
S	GINGE Svenska AB	(+46)31/57-3580	(+46)31/57-5620
SK	AL-KO KOBER Slovakia Spol. S.R.O.	(+421)2/4564-8267	(+421)2/4564-8117
SLO	Darko Opara s.p.	([phone]	([phone]
SRB	Agromarket d.o.o.	([phone]	([phone]
TR	ZIMAS A.S.	([phone]	([phone]
UA	TOV AL-KO KOBER	(+380)44/392-07-08	(+380)44/392-07-09
