USER MANUAL Klang sub1 LOEWE

for choosing a Loewe product. We are happy to have you as a customer. At Loewe, we combine the highest standards of technology, design and user friendliness. This applies equally for TV, video, audio and accessories. Neither technology nor design accomplishes an end in itself, but together should facilitate the highest possible audio and visual experience for our customer.

Our design has not even been guided by shortterm, fashionable trends. Because after all, you have purchased a piece of high-quality equipment, that you want to enjoy tomorrow and the next day.

Content

Scope of delivery 7

Position of the rating plate 7

Important safety instructions. 8

Subwoofer parts description 9

Loewe klang sub1 transmitter parts description 9

Setting up the subwoofer. 9

Connecting to the TV. 10

Technical data 11

Scope of delivery

Carefully unpack the device and make sure all accessories are present:

Subwoofer
Power cable
3.5mm audio cable
- User guide
USB Bluetooth Transmitter
- USB extension cable

Position of the rating plate

Labels with model number and operating voltage can be found on the bottom of the product.

1Importantsafety instructions

Attention: Read this page carefully to ensure safe operation of the device.

Follow all safety and operating instructions when using this product.

You should keep the safety and operating instructions for future reference.

You should strictly follow all warnings provided on the product and listed in the operating instructions.

Explanation of symbols

Double Insulated (Class II) Equipment. This electrical appliance has been designed in such a way that it does not require a safety connection to electrical earth (ground).

This symbol indicates risks caused by high voltages.

This symbol is to alert the user to other, more specific risks.

This symbol indicates dangers caused by the development of fire.

1.1Installation

1.1.1 Placement

Place the unit on a stable, even surface.

1.1.2Cables

Lay the power cable in such a way that it cannot be damaged. The power cable may not be kinked or laid over sharp edges, stood on or exposed to chemicals; the latter also applies to the system as a whole. A power cable with damaged insulation can cause electric shocks and poses a fire risk. As such, it must be changed before the unit is used again.

1.1.3 Do not use this device near water

The device should never be exposed to water droplets or water splashes, such as those found near a bathtub, wash basin, kitchen sink, washing machine, wet basement or swimming pool. Never place containers filled with liquids, such as e.g. flower vases, on the device.

1.1.4Ventilation

Slots and openings in the housing are used to ventilate the device to ensure reliable operation of the device and to protect the device from overheating. Do not block the ventilation holes. Install the device according to the manufacturer's instructions. Never block the ventilation holes by placing the device on a bed, sofa, rug, or similar soft surfaces. This device should not be installed in a bookshelf or built-in wardrobe unless adequate ventilation is ensured.

1.1.5Heat

Do not install the device near hot surfaces, such as radiators, fan heaters, stoves or other devices (including amplifiers) that can be hot. Never place objects with open flame, such as candles or lanterns, on or near the device.

1.1.6Accessories

Use only the accessories specified by the manufacturer.

1.2Usage

1.2.Intendeduse

This device is intended exclusively for the reception and playback of sound signals.

1.2.2Overload

Never overload mains sockets, extension cords or multiple sockets, otherwise there is a risk of fire or electric shock.

1.2.3Thunderstorm

The device should be disconnected from the mains during thunderstorms and if it is not used for a long time,

1.2.4 Penetration of foreign material and liquid

Be careful not to allow foreign material or liquid to enter this device through ventilation holes, otherwise it may come into contact with high voltage components or short circuit resulting in a fire or electric shock. Never spill liquids of any kind on this device.

1.2.5 Risks associated with high volume

The device is not designed for listening with headphones. To prevent possible hearing damage, do not listen at high volume for long periods.

1.2.6 Disconnection from power supply

To completely disconnect the device from the mains, unplug the mains cable from the socket.

The mains plug must be easily accessible so that the unit can be disconnected from the mains at any time.

1.3 Maintenance

1.3.1Devicemaintenance

Never attempt to carry out the maintenance of this device yourself, because live parts can be exposed through the openings or by removing covers, contacting which can be hazardous. Leave all maintenance to qualified service personnel.

1.3.2 Clean only with a dry cloth!

Unplug the mains adapter of this device from the mains socket before cleaning this product. Never use liquid cleaning detergents or cleaning sprays. Use only a damp cloth for cleaning.

1.4Repair

1.4.1 Damages requiring repair

Maintenance and repair work should only be carried out by a qualified customer service. Maintenance/repair is required if the device has been damaged (e.g., the mains adapter) if liquid has entered the device, if objects have entered the device, if the device has been exposed to rain or moisture, when it stops working properly or has fallen down.

1.4.2 To minimize the risk of electric shock, fire, etc.

Do not remove screws, covers or body parts.

EU Declaration of Conformity

Hereby, Loewe Technology GmbH declares that the radio equipment type Loewe Klang sub1 complies with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following Internet address: https://www.loewe.lv/inl/support

Disposal

Disposal of used electrical and electronic equipment and batteries.

The crossed-out wheeled bin symbol on the product or its packaging indicates that this product must not be treated as normal household waste, but must be returned to a collection point for the recycling of electrical and electronic equipment and batteries. By helping to properly dispose of this product, you are protecting the environment and the health of your fellow human beings. Improper or incorrect disposal encangers the environment and health. For more information about the recycling of this product, please contact your local authority or your municipal waste disposal service.

Licenses

Bluetooth

The Bluetooth® word mark and logos are registered trademarks of Bluetooth SIG Inc. and any use of such marks by Loewe Technology GmbH takes place under license. Other trademarks and trade names are those of their respective owners.

2Subwooferparts description

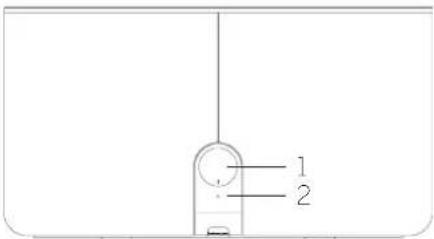

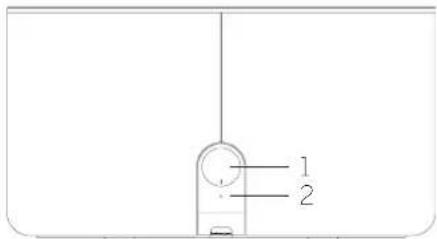

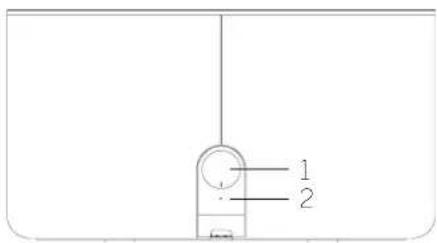

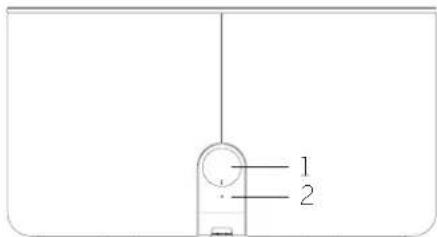

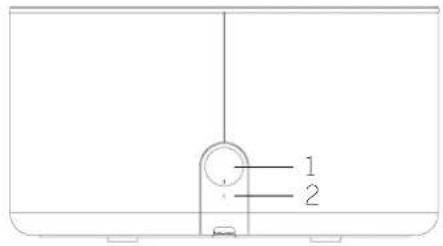

2.1 Rear view of klang sub1

1. Volume knob
2. LED indicator

2.1.1 Volume knob operation

Rotate left - Decrease volume.

Rotate right - Increase volume.

Press and hold for at least 3 seconds - The unit will go into Bluetooth pairing mode.

2.1.2 LEDindicatorstates

Subwoofer state LED indicator state
Standby mode LED is off
On, but not connected to any source	LED flashes slowly
Bluetooth pairing LED flashes fast
Bluetooth connected LED is on
Line in audio signal detected	LED is on

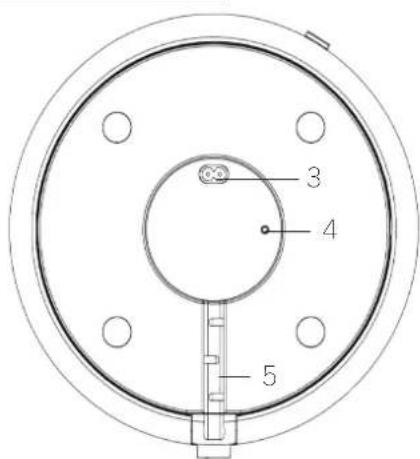

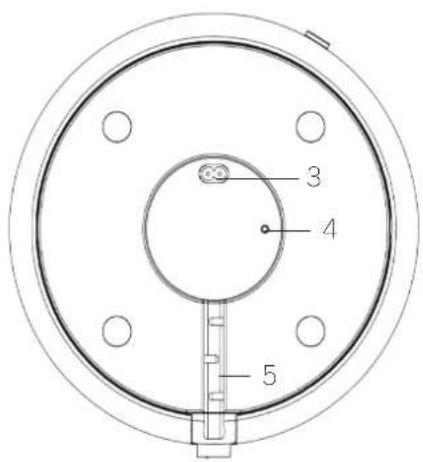

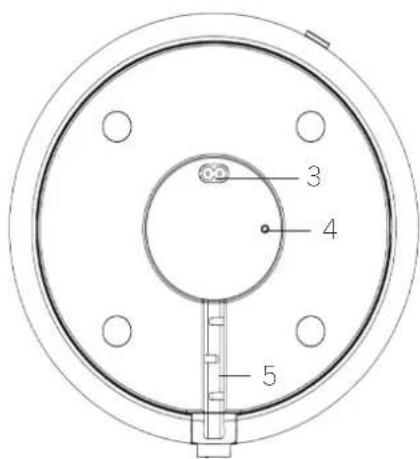

2.2 Bottom view of klang sub1

1. Power plug socket
2. 3.5mm line in jack
3. Cable management compartment

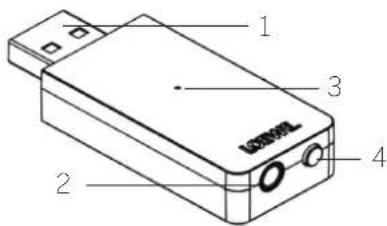

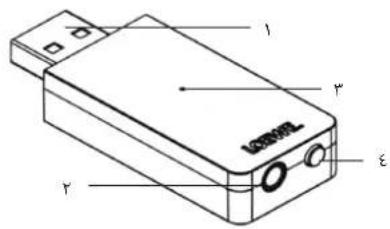

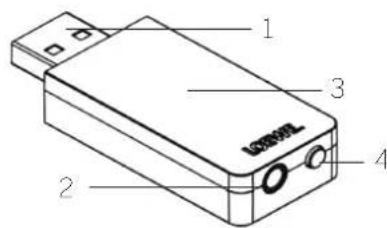

3 Loewe klang sub1 transmitter parts description

1. USB plug
2. 3.5 mm line input jack
3. LEDindicator
4. Pairing button

3.1 Transmitter LED indicator states

Transmitter state	LED indicator state
Not connected	LED flashes slowly
Connected	LED is on
Bluetooth pairing	LED flashes fast

3.2 Transmitter pairing button operation

Note: The subwoofer and transmitter are paired from the factory. Follow the instructions for connecting to the TV and use this button only in case of problems.

Long press-Starts Bluetooth pairing mode with an external device.

Note: Bluetooth pairing expires after 2 minutes if no external Bluetooth device is found. Press and hold the button again to restart pairing.

Short press - Reconnects to the last paired device.

4 Setting up the subwoofer

You can position the subwoofer anywhere on the floor.

To use a wireless connection, do not place the subwoofer further than 3m from the Bluetooth transmitter. You can place the subwoofer further than 3m from the transmitter, but we do not guarantee trouble-free operation.

Connect the power cable to the bottom of the subwoofer. Secure the cable to the cable management compartment. Finally, plug the power cable to the mains socket.

The subwoofer powers on automatically and enters the Bluetooth pairing mode.

Important: Never obstruct the air vents on the subwoofer. Make sure it is at least 10 cm from the wall.

5 Connecting to the TV

5.1TVcompatibility

Loewe klang sub1 is compatible with all Loewe TV sets with SL3, SL4, SL5, SL7 chassis and all other TV sets with variable audio line-out. This means that the TV must support changing the line-out volume synchronously with the volume of the TV speakers.

5.2 Connection via Bluetooth transmitter

1. Connect the supplied USB extension cable to the TV.
2. Connect the Bluetooth transmitter to the other end of the USB extension cable.
3. Use 3.5mm audio cable to connect transmitter to the 'AUDIO OUT' connector on the TV.

Note: If you want to use a different audio cable than the one included in the package, use only an audio cable with ground loop isolator.

The subwoofer and transmitter are paired from the factory.

If you have a Loewe TV, proceed to chapter "5.4 Additional settings for Loewe TV". For TVs of other brands, make sure to set the "Variable" audio output.

5.3 Connection via audio cable

It is possible to connect a TV with the subwoofer directly with 3.5 mm audio cable.

1. Connect 3.5 mm audio cable to "LINE IN" jack on the bottom of the subwoofer. Use only a cable with a right-angle 3.5 mm stereo plug for this connection.
2. Secure the cable to the cable management compartment.
3. Connect the other end of the cable to the "AUDIO OUT" jack on the TV.
4. Rotate the volume knob on the subwoofer to adjust the sound level.

Note: In case when both Bluetooth and wired connections are established, sound will be reproduced via Bluetooth.

5.4 Additional settings for Loewe TV

If you are connecting subwoofer with Loewe TV, you will need to set it up in the TV menu.

Settings for TVs with SL3, SL4, SL5 chassis

1. Press the HOME button to open the Home screen and then select [System

settings] - [Connections] - [Sound Components].

1. Select [Speaker System (AUDIO OUT)].
2. Select the correct speaker setting option and adjust the subwoofer volume using the TV menu.

Settings for TVs with SL7 chassis

Before changing your TV's settings, make sure your TV's software is updated to the latest version.

1. Press the (menu) button and then select [Sellings] - [Sound] - [Headphone] - [Headphone Mode].

2. Select [Audio Out with Speakers].

5.5 Pairing the subwoofer with the Bluetooth transmitter

The subwoofer and transmitter are paired from the factory.

Only take these steps in the unlikely event that you do not hear sound from the subwoofer after you have completed all connections and set up your TV.

1. Press and hold the pairing button on the transmitter until LED indicator on it will start flashing quickly.
2. Press and hold volume knob of the subwoofer for at least 3 seconds to enter pairing mode.
3. Your TV and the subwoofer will now be connected by the transmitter: the LED indicator on the transmitter will stop flashing.

5.6AutoStandby

The subwoofer automatically switches to stand by mode to save power in the following cases:

1. When Bluetooth is disconnected for 9 minutes.

The subwoofer automatically wakes up when it detects an incoming Bluetooth signal.

If the subwoofer does not wake up automatically, briefly press the pairing button of the transmitter to reconnect to the last paired device.

1. If no line-in input signal is present for 10 minutes.

The subwoofer automatically wakes up again when it detects an incoming signal.

Apps

Scan the QR code below with your phone and download the recommended app.

"My Loewe" is an entry point to The Loewe world and gives you access to all user manuals for your Loewe products.

Technical data

Loewe device type: klang sub1
Part number: 60610D10
Power supply: AC 100 V - 240 V/50 - 60 Hz
Power consumption in standby mode:	<0.5W
Audio output power:	100 W
Speaker equipment: 2 x 4 inch woofer + 4 x 4 inch passive speaker
Frequency response (electrical): 20 - 300 Hz
Frequency response (acoustical): 40 - 100 Hz
Bluetooth version:	V5.0
Bluetooth power/frequency range: Maximum power <10 mW at 2402 - 2480 MHz
Bluetooth protocols:	A2DP, AVRCP, aptX Low Latency
Device dimensions (W x H x D): 287 x 287 x 158 mm
Device weight:	4.7kg
Ambient temperature: 5°C - 35°C
Relative humidity (non-condensing):	20 - 80%
Connections Bluetooth, Line in (3.5mm)
