M18 CHX502X - Drill MILWAUKEE - Free user manual and instructions
Find the device manual for free M18 CHX502X MILWAUKEE in PDF.
| Product type | Cordless hammer drill (rotary hammer) |
| Voltage | 18 V |
| No-load speed | 0 - 1400 min⁻¹ |
| Impact rate | 0 - 5100 min⁻¹ |
| Impact energy (EPTA 05/2009) | 2.5 J |
| Drilling capacity in concrete | 25 mm |
| Drilling capacity in steel | 13 mm |
| Drilling capacity in wood | 28 mm |
| Core drill diameter (concrete/brick) | 65 mm |
| Clamp collar diameter | 43 mm |
| Weight (with Li-Ion battery 4.0 Ah) | 3.6 kg |
| Sound pressure level (K=3 dB(A)) | 90.7 dB(A) |
| Sound power level (K=3 dB(A)) | 101.7 dB(A) |
| Vibration - hammer drilling (concrete) | 12.4 m/s² (uncertainty 1.5 m/s²) |
| Vibration - chiseling | 9.5 m/s² (uncertainty 1.5 m/s²) |
| Power supply | Interchangeable lithium-ion 18 V battery (M18 system) |
| Battery protection | Against overloads (humming for 2 seconds then shutdown) |
| Routine maintenance | Clean ventilation slots; replace worn brushes |
| Recommended protective equipment | Hearing protection, safety glasses, dust mask, gloves |
| Spare parts and service | Use only Milwaukee accessories; have serviced by an authorized center |
Frequently Asked Questions - M18 CHX502X MILWAUKEE
User questions about M18 CHX502X MILWAUKEE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Drill in PDF format for free! Find your manual M18 CHX502X - MILWAUKEE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. M18 CHX502X by MILWAUKEE.

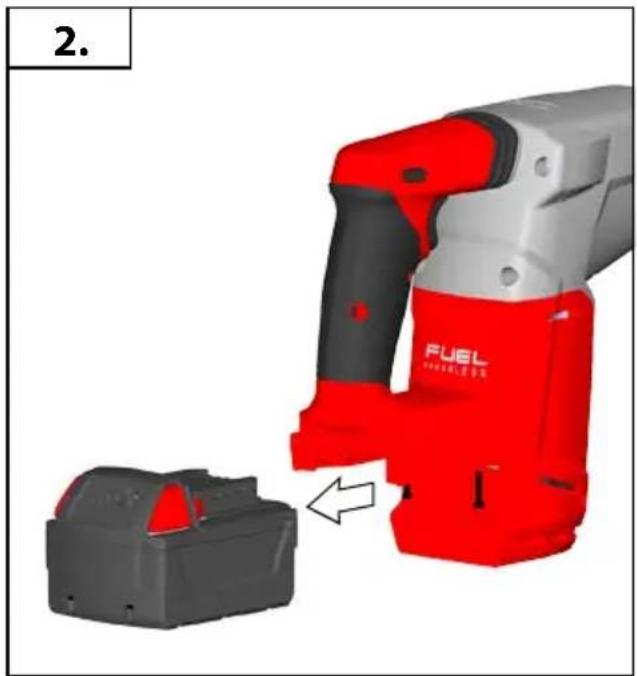

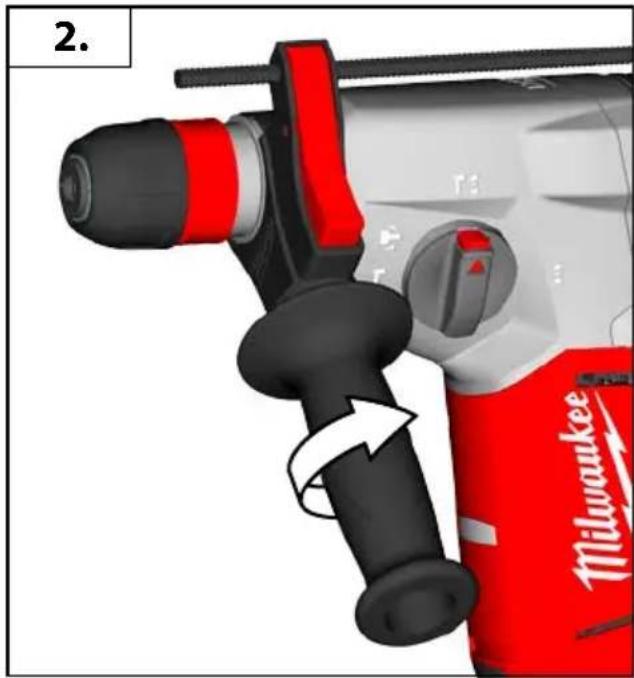

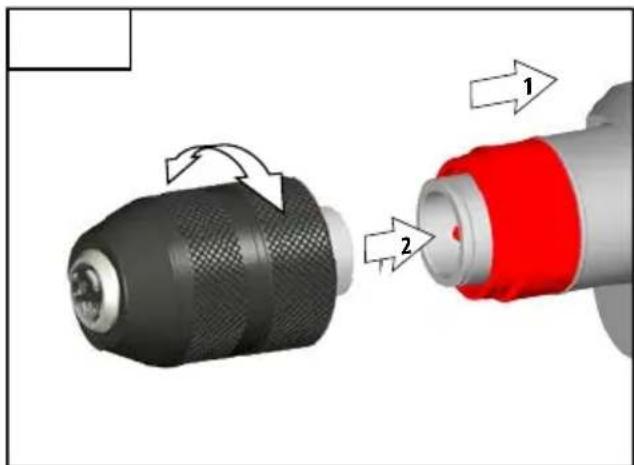

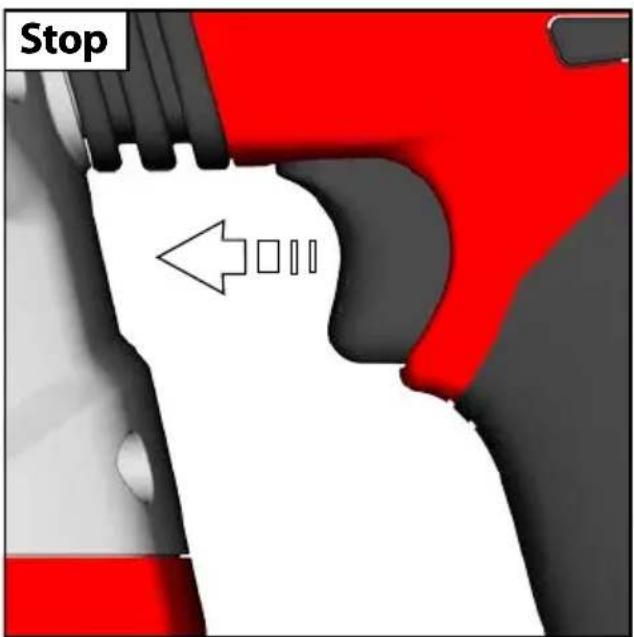

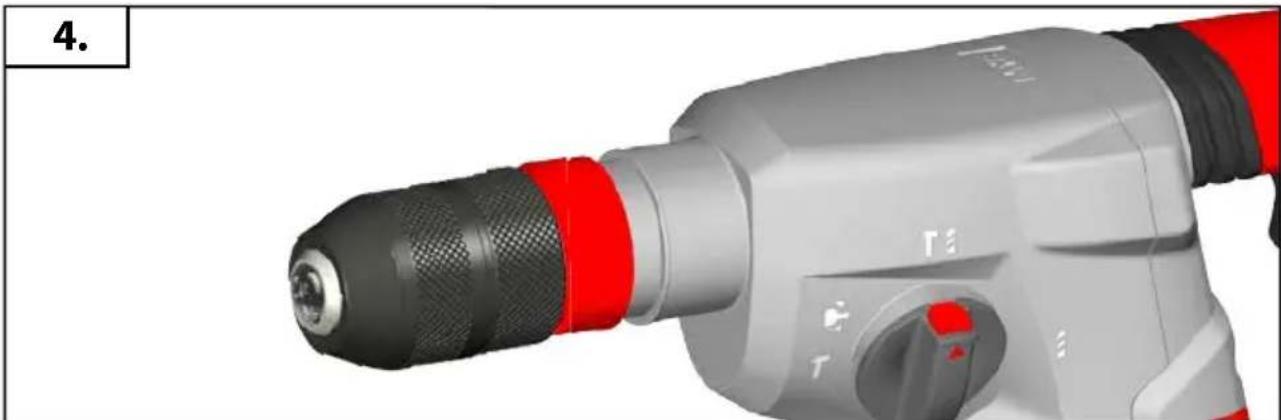

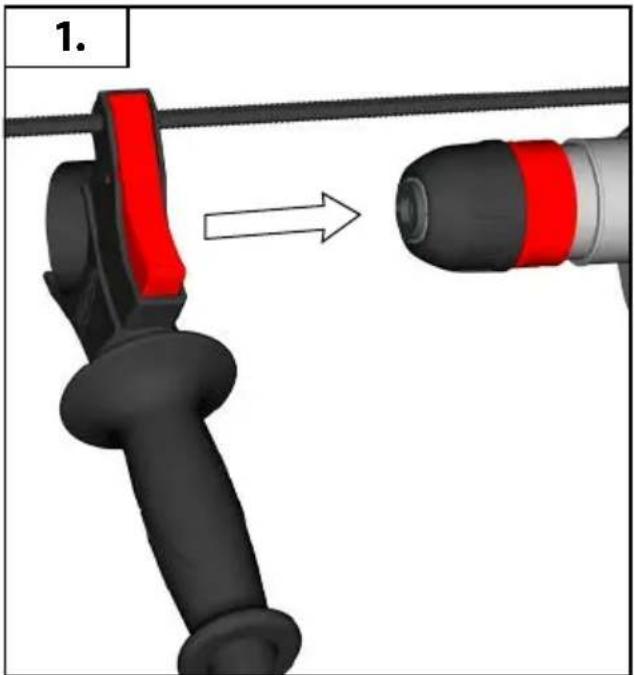

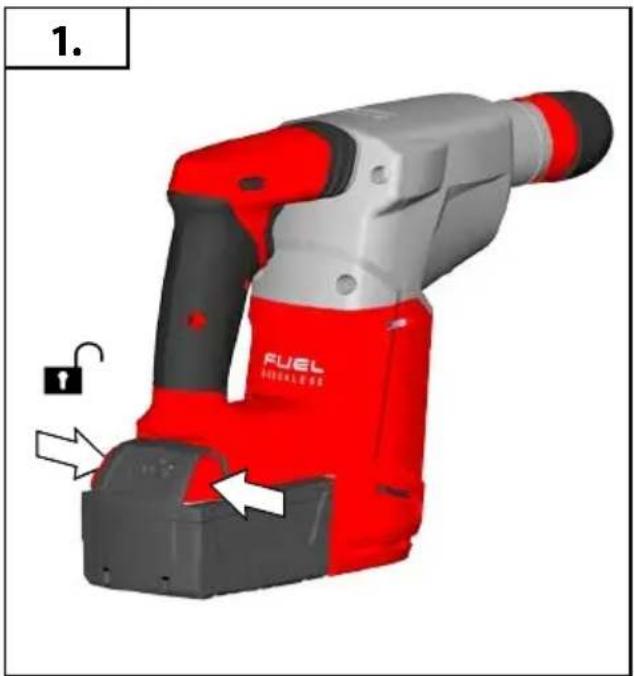

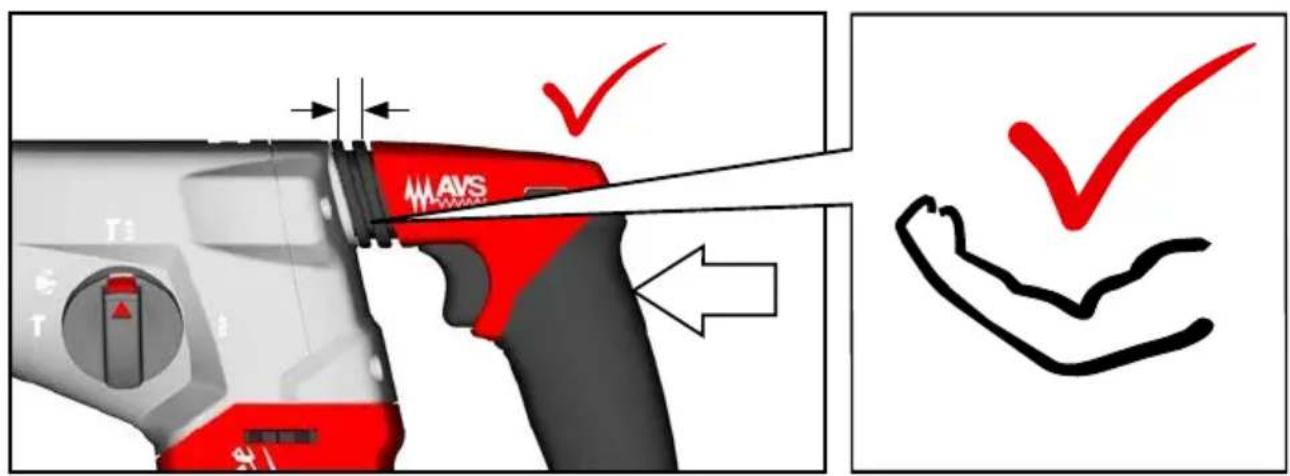

USER MANUAL M18 CHX502X MILWAUKEE

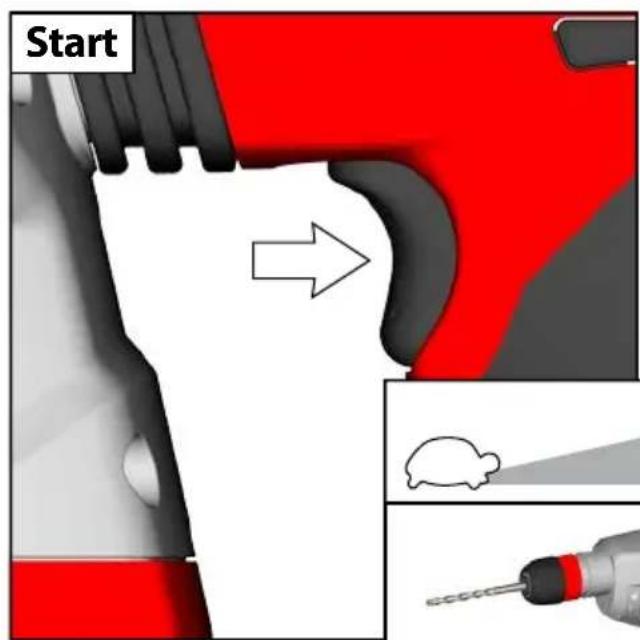

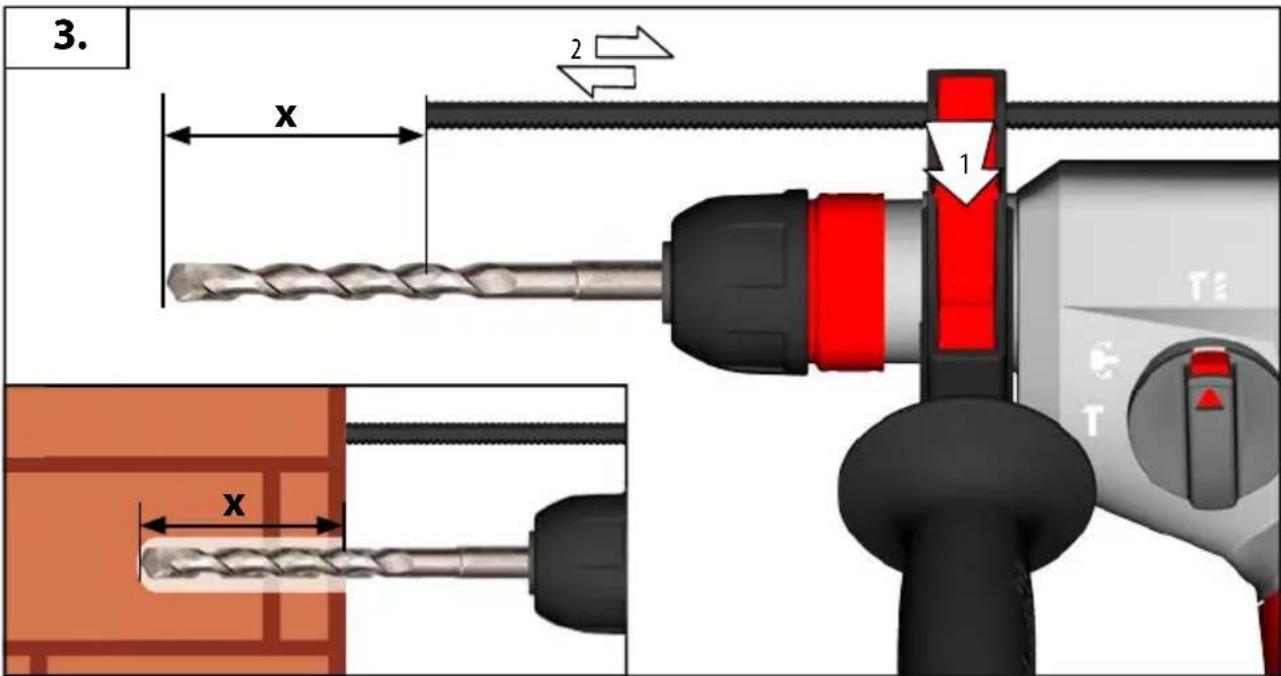

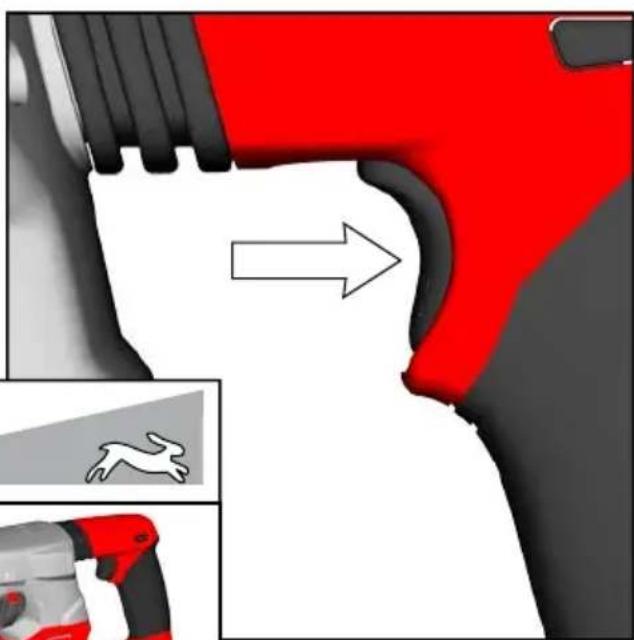

Original instructions


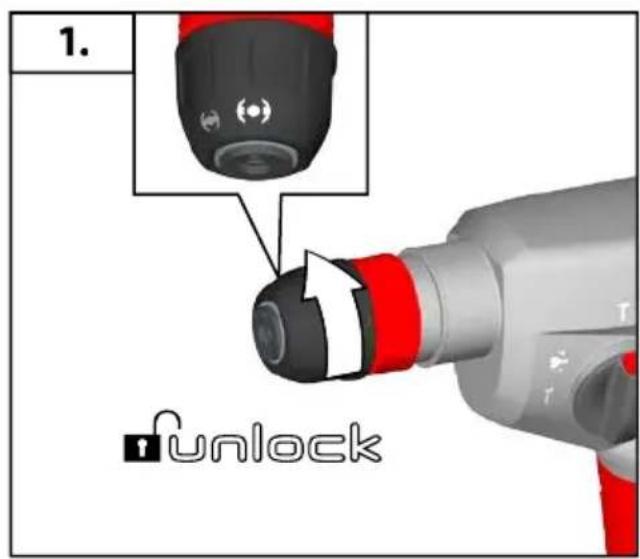

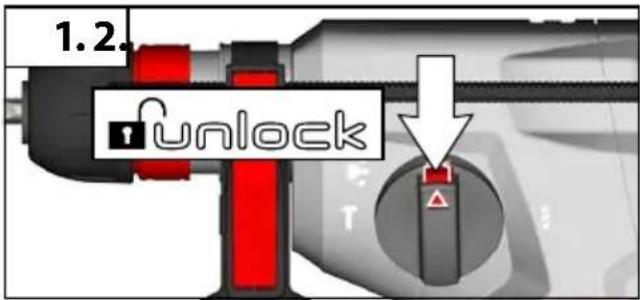

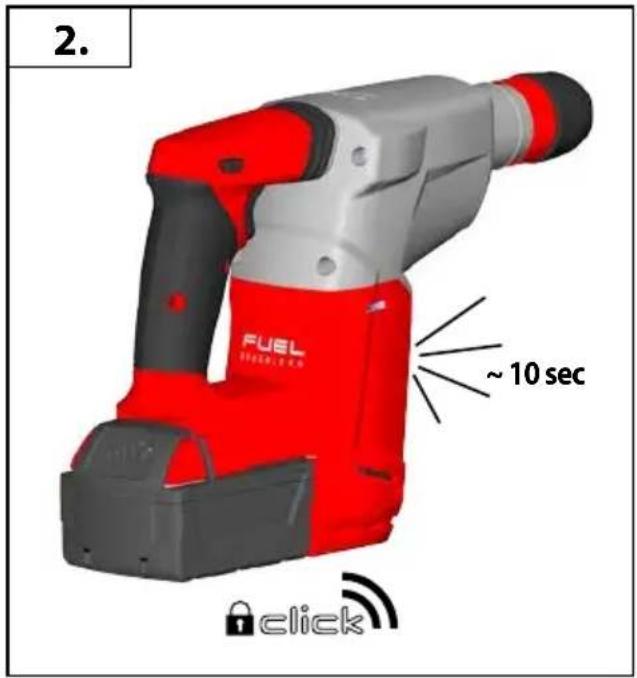

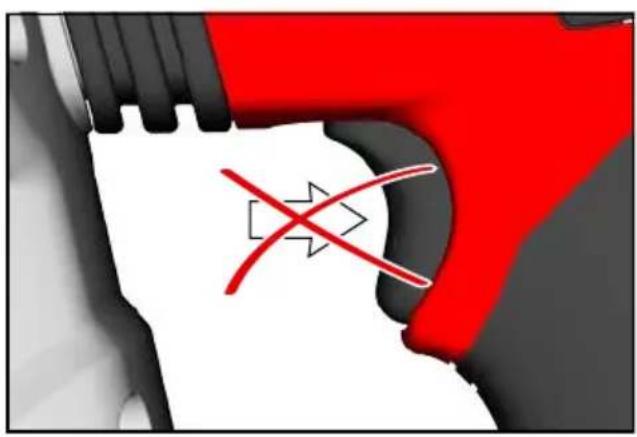

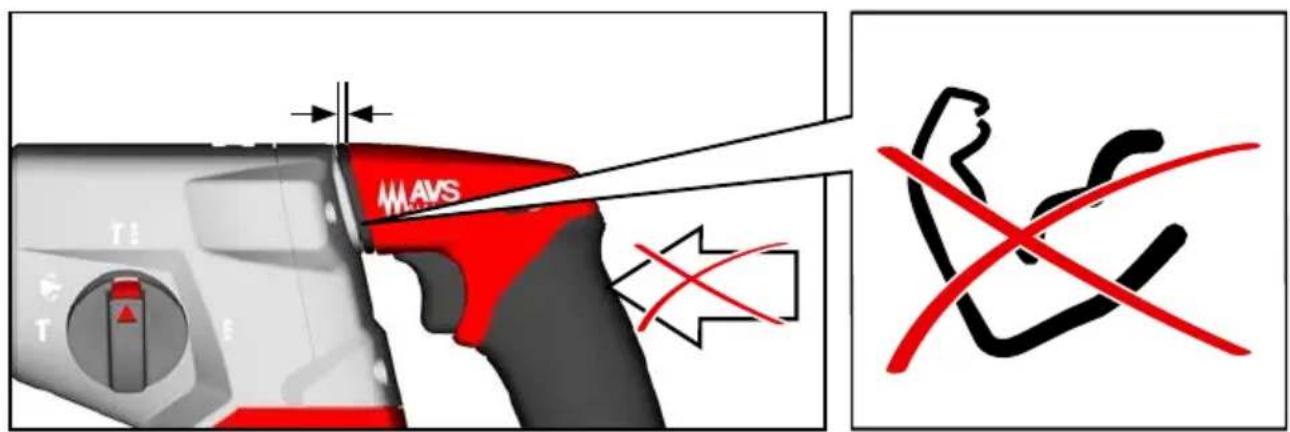

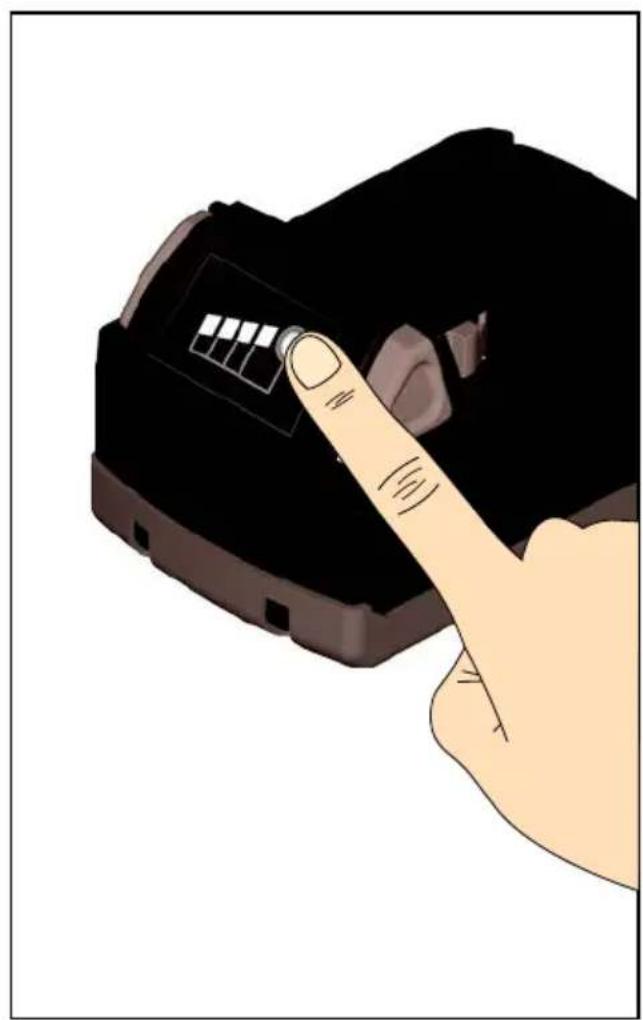

Illustration of a hand pointing at a device with a small screen (no text or symbols visible)
bar

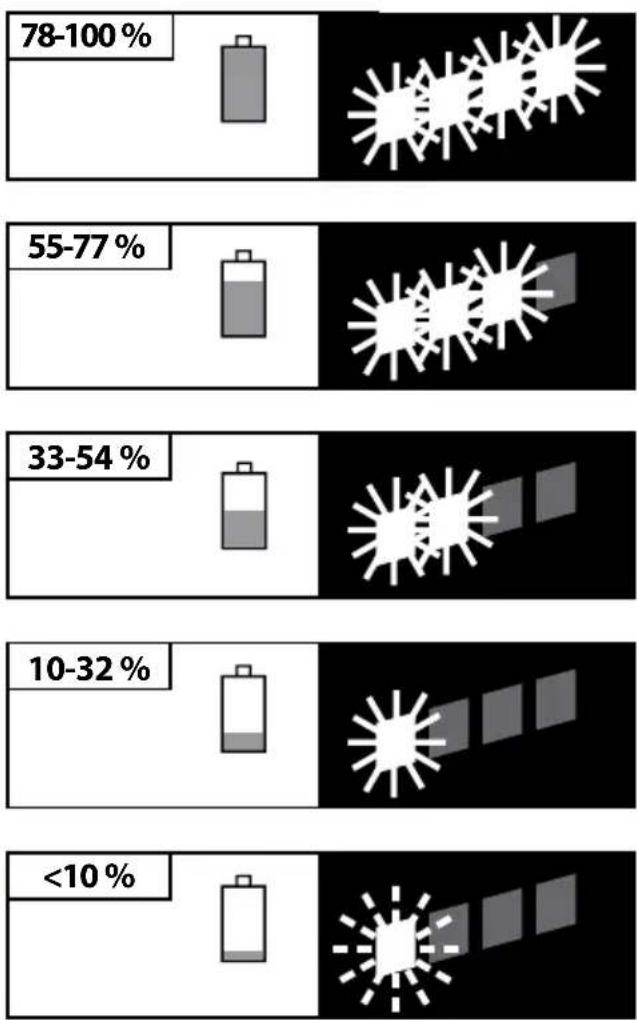

| Category | Percentage (%) | | :--- | :--- | | 78-100% | (unlabeled) | | 55-77% | (unlabeled) | | 33-54% | (unlabeled) | | 10-32% | (unlabeled) | | <10% | (unlabeled) |


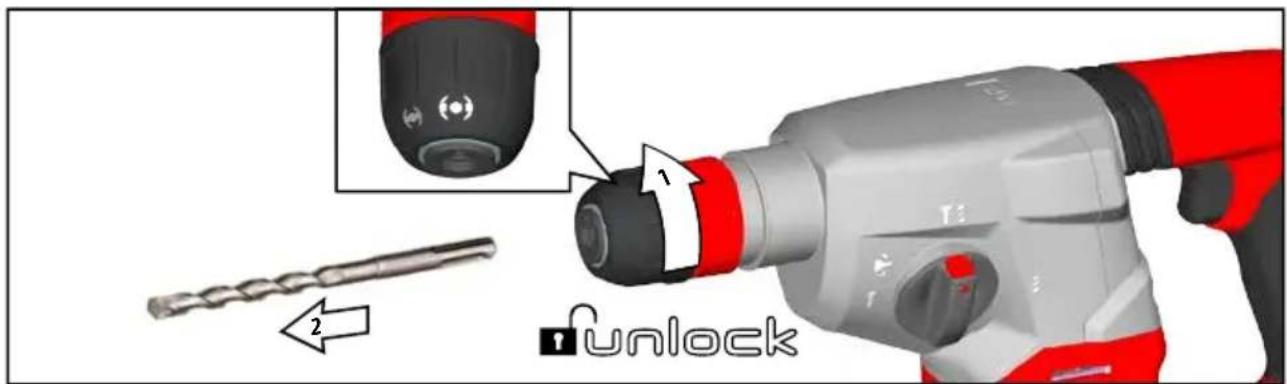

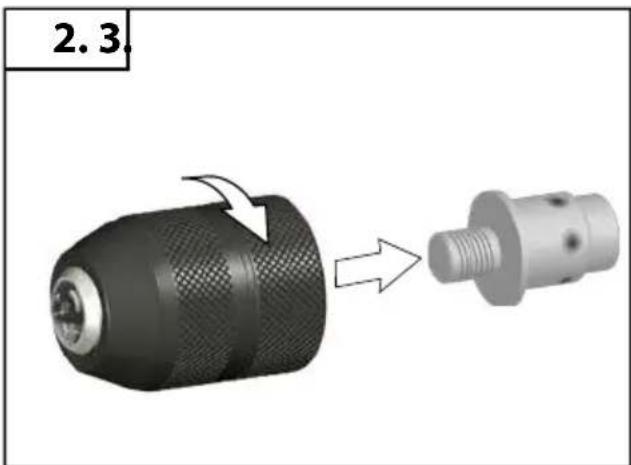

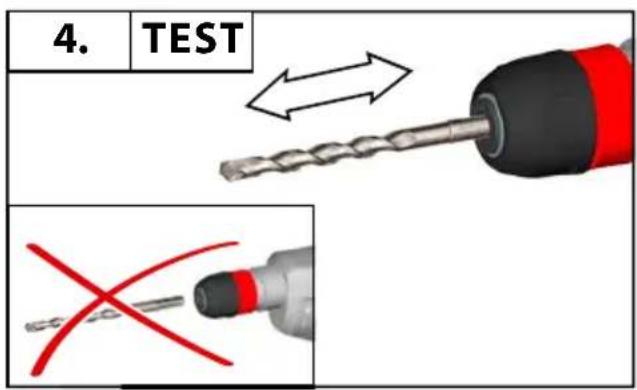

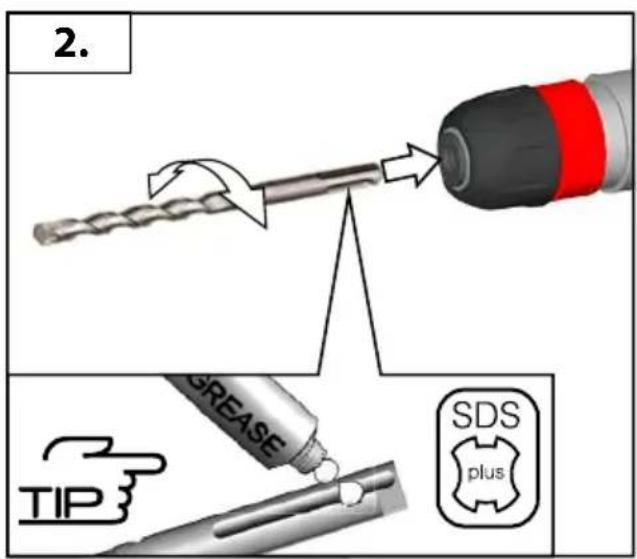

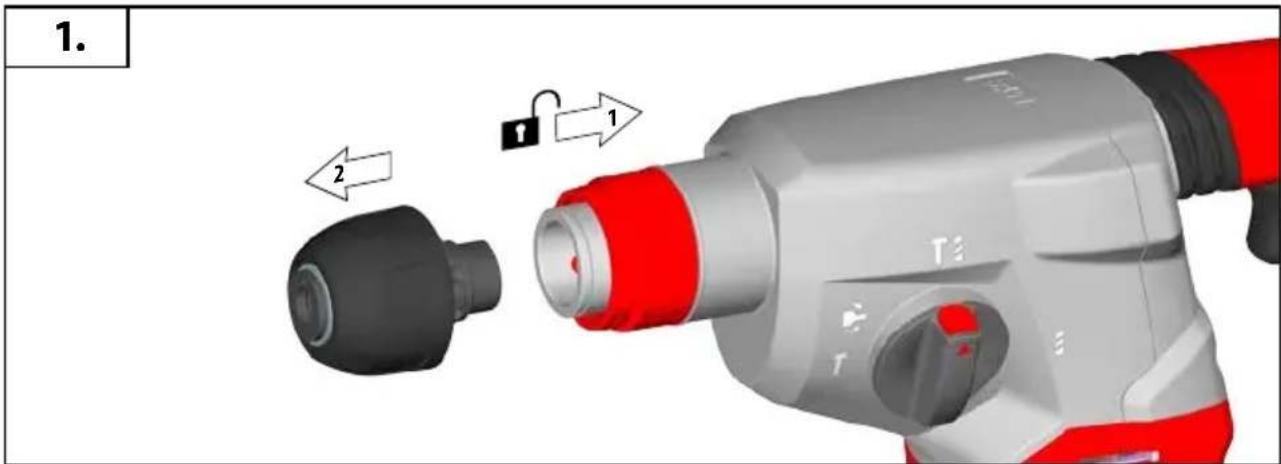

Close-up of a gray and red handheld drill bit with black and red cap (no visible text or symbols)


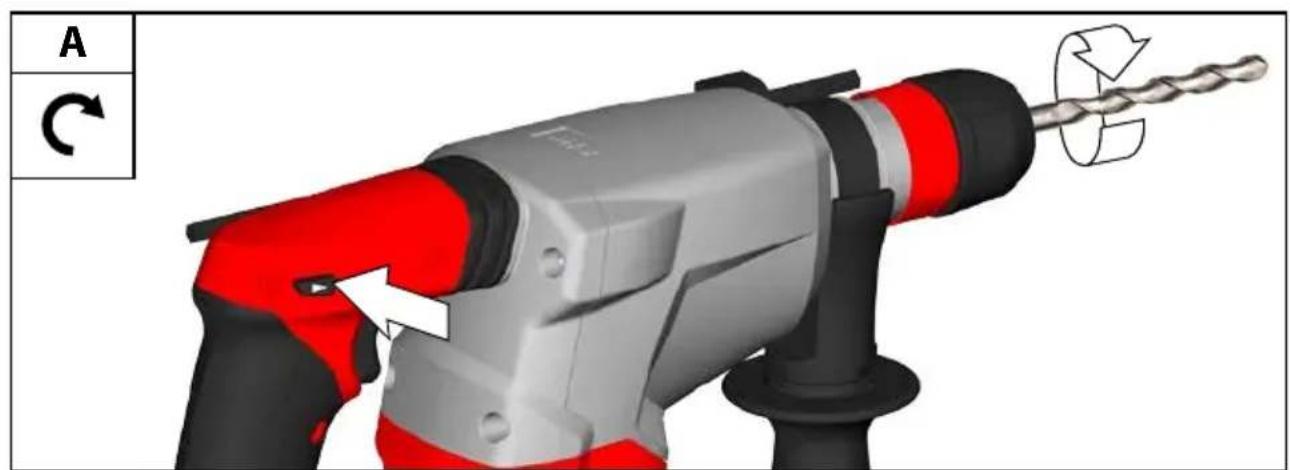

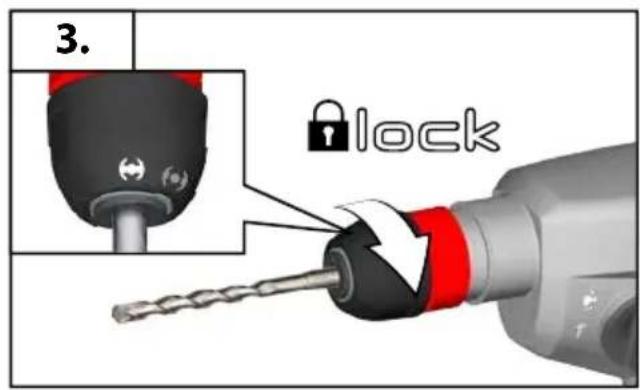

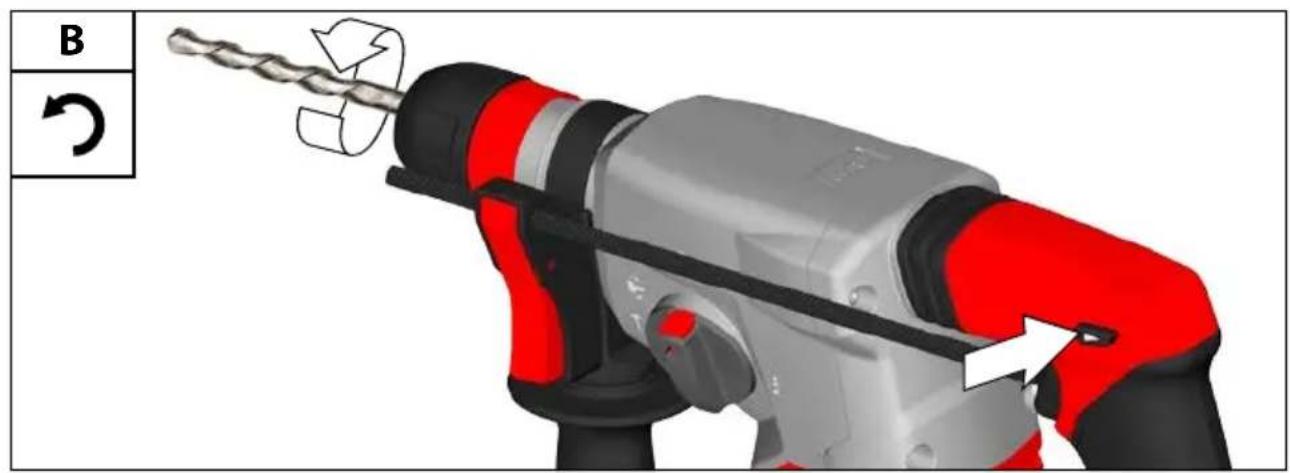

Close-up of a red and black object with a white arrow indicating rotation (no visible text or symbols)


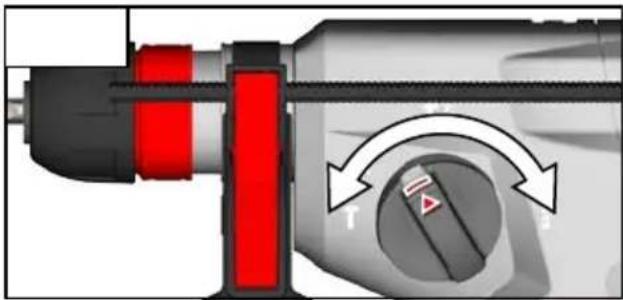

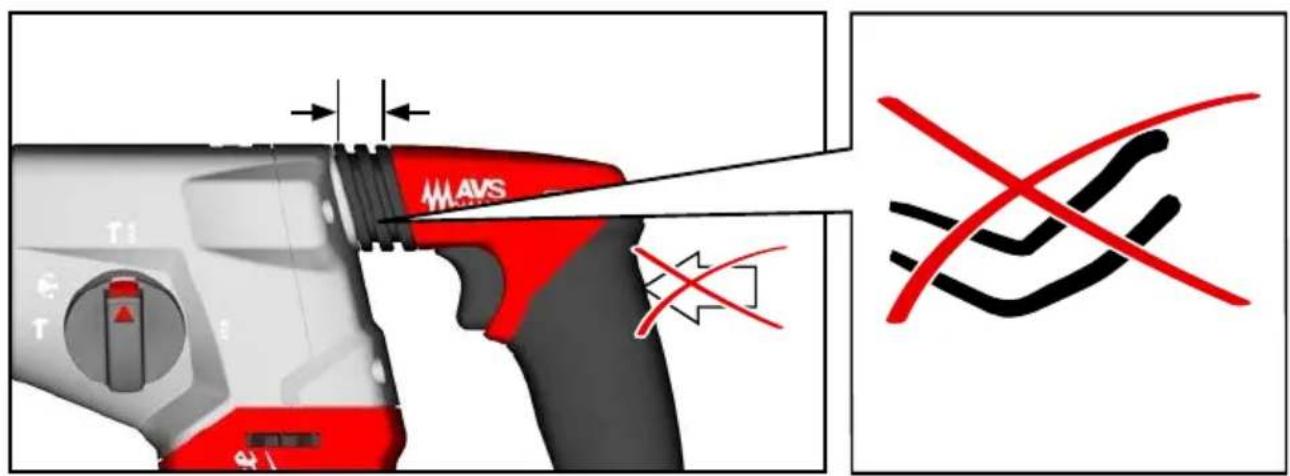

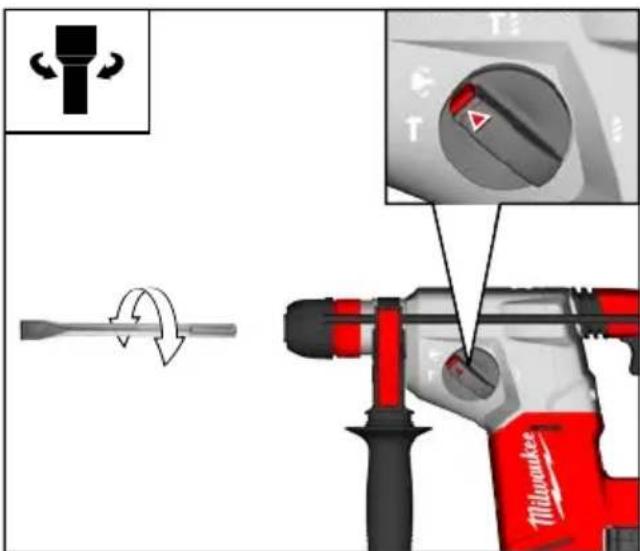

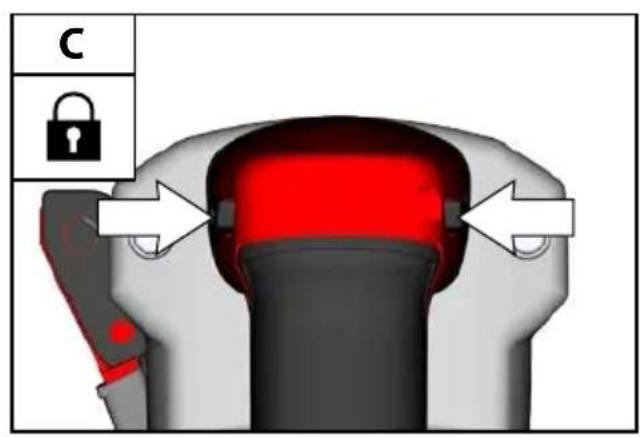

Mechanical assembly diagram showing a lever mechanism with red and black components, no text or symbols present


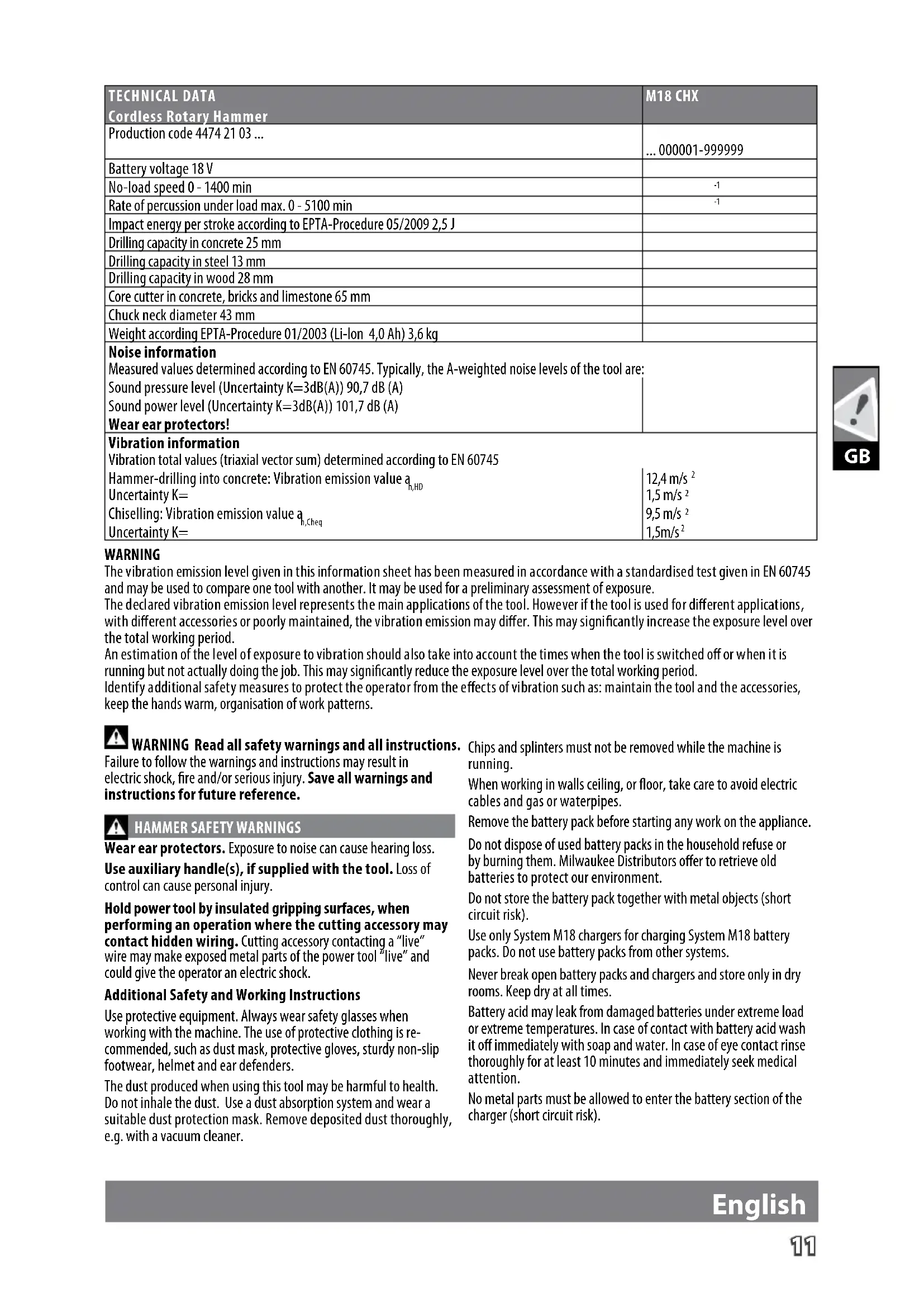

| TECHNICAL DATACordless Rotary Hammer | M18 CHX |
| Production code 4474 21 03 ... | ... 000001-999999 |
| Battery voltage 18 V | |
| No-load speed 0 - 1400 min | -1 |
| Rate of percussion under load max. 0 - 5100 min | -1 |
| Impact energy per stroke according to EPTA-Procedure 05/2009 2,5 J | |
| Drilling capacity in concrete 25 mm | |
| Drilling capacity in steel 13 mm | |
| Drilling capacity in wood 28 mm | |
| Core cutter in concrete, bricks and limestone 65 mm | |
| Chuck neck diameter 43 mm | |
| Weight according EPTA-Procedure 01/2003 (Li-Ion 4,0 Ah) 3,6 kg | |
| Noise informationMeasured values determined according to EN 60745. Typically, the A-weighted noise levels of the tool are:Sound pressure level (Uncertainty K=3dB(A)) 90,7 dB (A)Sound power level (Uncertainty K=3dB(A)) 101,7 dB (A)Wear ear protectors! | |
| Vibration informationVibration total values (triaxial vector sum) determined according to EN 60745Hammer-drilling into concrete: Vibration emission value a_n,HD Uncertainty K=Chiselling: Vibration emission value a_h,Cheq Uncertainty K= | 12,4 m/s ^2 1,5 m/s ^2 9,5 m/s ^2 1,5m/s ^2 |

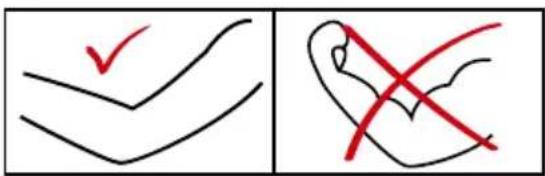

WARNING
The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.
The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.
An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period. Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.
WARNING Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
HAMMER SAFETY WARNINGS
Wear ear protectors. Exposure to noise can cause hearing loss. Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
Additional Safety and Working Instructions
Use protective equipment. Always wear safety glasses when working with the machine. The use of protective clothing is recommended, such as dust mask, protective gloves, sturdy non-slip footwear, helmet and ear defenders.
The dust produced when using this tool may be harmful to health. Do not inhale the dust. Use a dust absorption system and wear a suitable dust protection mask. Remove deposited dust thoroughly, e.g. with a vacuum cleaner.
Chips and splinters must not be removed while the machine is running.
When working in walls ceiling, or floor, take care to avoid electric cables and gas or waterpipes.
Remove the battery pack before starting any work on the appliance.
Do not dispose of used battery packs in the household refuse or by burning them. Milwaukee Distributors offer to retrieve old batteries to protect our environment.
Do not store the battery pack together with metal objects (short circuit risk).
Use only System M18 chargers for charging System M18 battery packs. Do not use battery packs from other systems.
Never break open battery packs and chargers and store only in dry rooms. Keep dry at all times.
Battery acid may leak from damaged batteries under extreme load or extreme temperatures. In case of contact with battery acid wash it off immediately with soap and water. In case of eye contact rinse thoroughly for at least 10 minutes and immediately seek medical attention.
No metal parts must be allowed to enter the battery section of the charger (short circuit risk).
WARNING! To reduce the risk of fire, personal injury, and product damage due to a short circuit, never immerse your tool, battery pack or charger in fluid or al-low a fluid to flow inside them. Corrosive or conductive fluids, such as seawater, certain industrial chemicals, and bleach or bleach containing products, etc., Can cause a short circuit. Use only System M18 chargers for charging System M18 battery packs. Do not use battery packs from other systems. Never break open battery packs and chargers and store only in dry rooms. Keep dry at all times.
SPECIFIED CONDITIONS OF USE

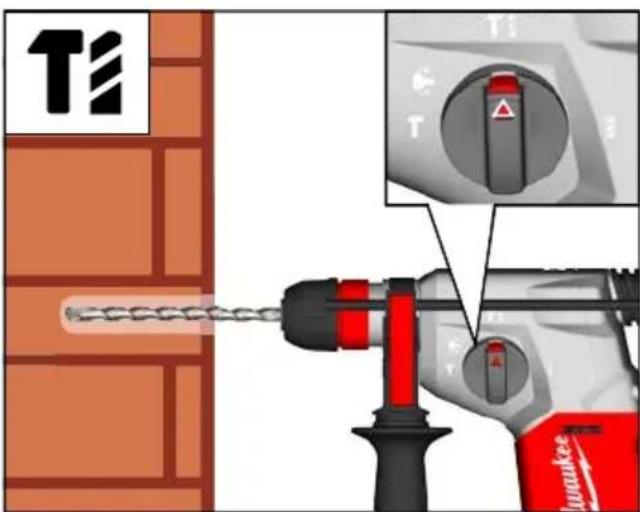

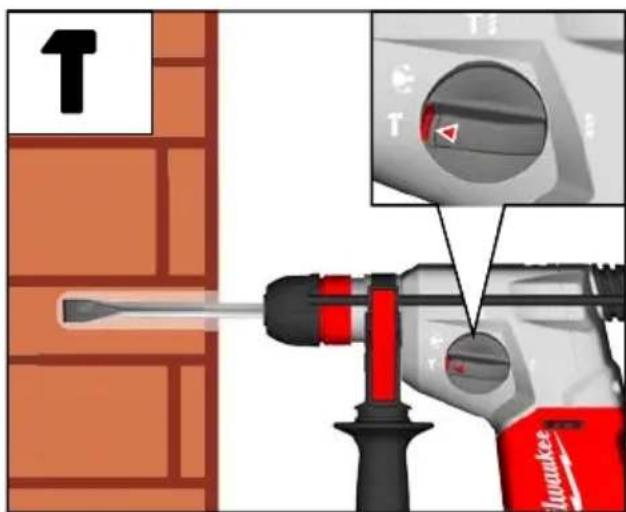

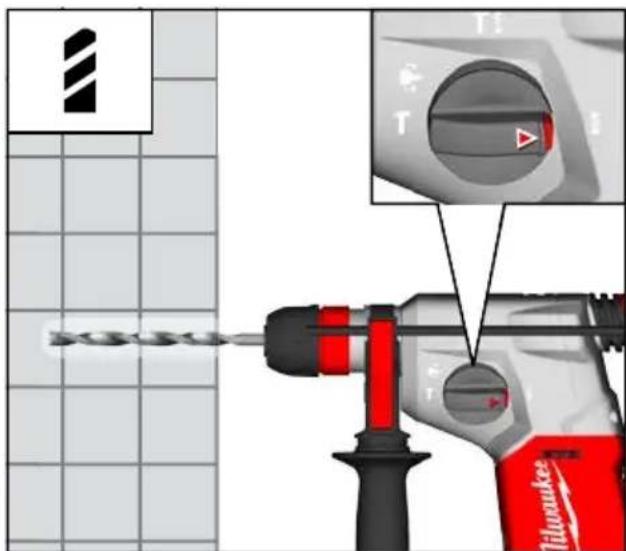

The battery rotary pneumatic hammer can be used for hammer drilling and drilling in wood, metal as well as plastic for independent use away from mains supply.
EC-DECLARATION OF CONFORMITYEC-DECLARATION OF CONFORMITY
We declare under our sole responsibility that the product described under "Technical Data" fulfills all the relevant provisions of the directives
2011/65/EU (RoHS), 2006/42/EC, 2014/30/EU
and the following harmonized standards have been used.
EN 60745-1:2009 + A11:2010
EN 60745-2-6:2010
EN 55014-1:2006 + A1:2009 + A2:2011
EN 55014-2:2015
EN 50581:2012
Winnenden, 2017-11-30
Alexander Krug / Managing Director
Authorized to compile the technical file
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany

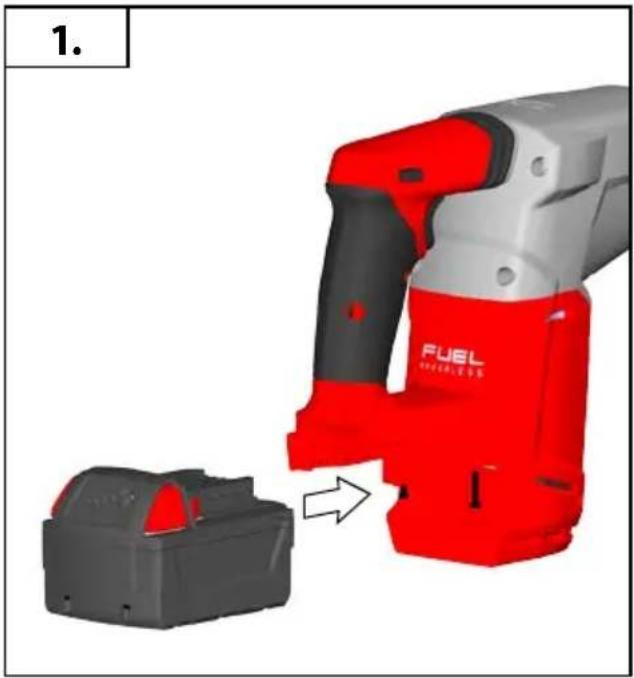

BATTERIES
Battery packs which have not been used for some time should be recharged before use.
Temperatures in excess of 50^ C ( 122^ F) reduce the performance of the battery pack. Avoid extended exposure to heat or sunshine (risk of overheating).
but
For an optimum life-time, the battery packs have to be fully charged, after use.
To obtain the longest possible battery life remove the battery pack from the charger once it is fully charged.
For battery pack storage longer than 30 days: Store the battery pack where the temperature is below 27^ C and away from moisture. Store the battery packs in a 30% - 50% charged condition Every six months of storage, charge the pack as normal.
BATTERY PACK PROTECTION
In extremely high torque, binding, stalling and short circuit situations that cause high current draw, the tool will vibrate for about 2 seconds and then the tool will turn OFF.
To reset, release the trigger.
Under extreme circumstances, the internal temperatur of the battery could become to high. If this happens, the battery will shut down.
Place the battery on the charger to charge and reset it.
TRANSPORTING LITHIUM BATTERIES
Lithium-ion batteries are subject to the Dangerous Goods Legislation requirements.
Transportation of those batteries has to be done in accordance with local, national and international provisions and regulations.
The user can transport the batteries by road without further requirements.
Commercial transport of Lithium-Ion batteries by third parties is subject to Dangerous Goods regulations. Transport preparation and transport are exclusively to be carried out by appropriately trained persons and the process has to be accompanied by corresponding experts.
When transporting batteries:
Ensure that battery contact terminals are protected and insulated to prevent short circuit.
Ensure that battery pack is secured against movement within packaging.
Do not transport batteries that are cracked or leak.
Check with forwarding company for further advice
MAINTENANCE
The ventilation slots of the machine must be kept clear at all times. Important note! If the carbon brushes are worn, in addition to exchanging the brushes the tool should be sent to after-sales service. This will ensure long service life and top performance.
Use only Milwaukee accessories and Milwaukee spare parts. Should components need to be replaced which have not been described, please contact one of our Milwaukee service agents (see our list of guarantee/service addresses).
If needed, an exploded view of the tool can be ordered. Please state the Article No. as well as the machine type printed on the label and order the drawing at your local service agents or directly at: Techtronic Industries GmbH, Max-Eyth-Straße 10, 71364 Winnenden, Germany.
