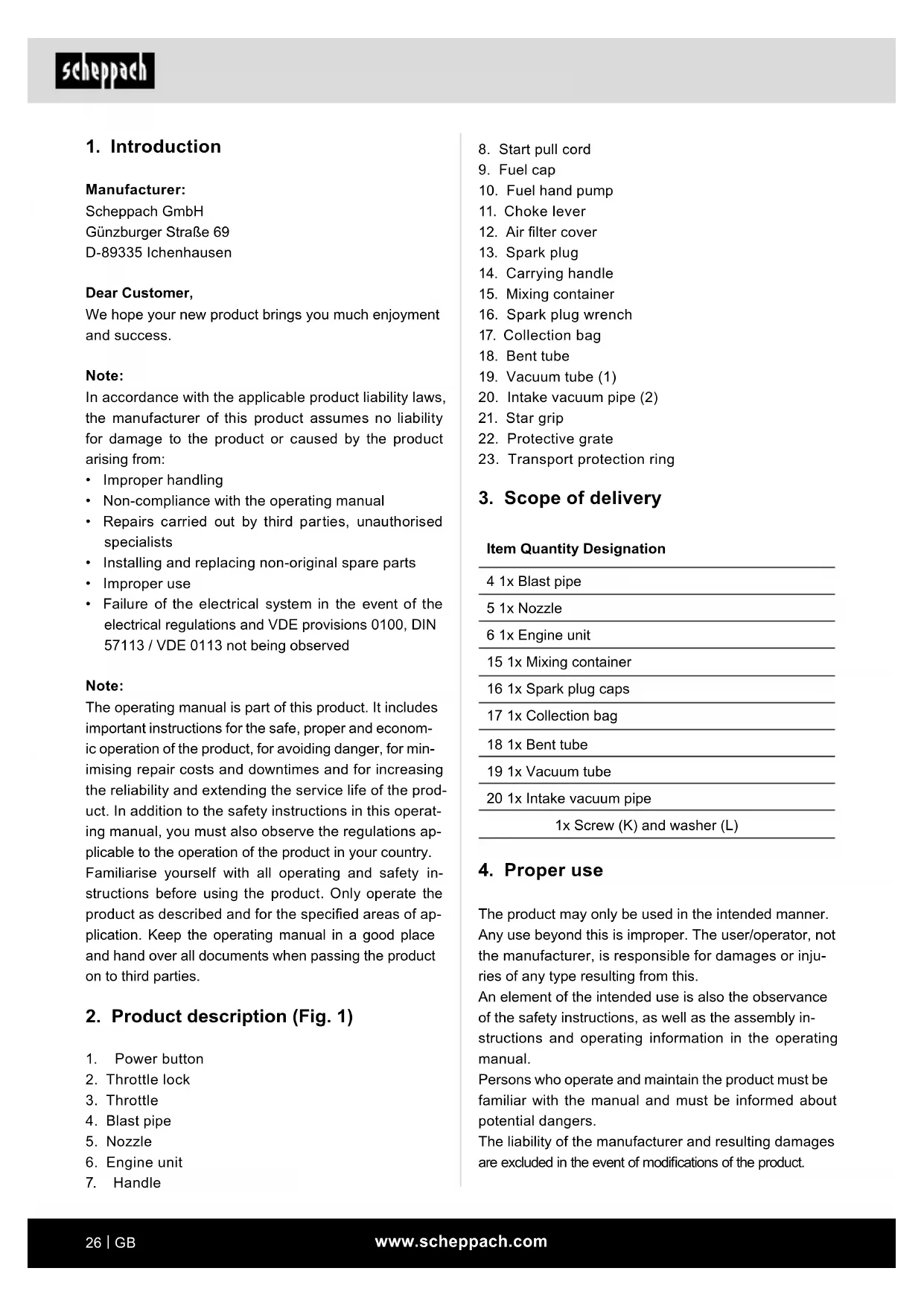

LBH2600P - Blower SCHEPPACH - Free user manual and instructions

USER MANUAL LBH2600P SCHEPPACH

Petrol leaf vacuum/blowerTranslation of original instruction manual

Explanation of the symbols on the product Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompa- nying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures. Before commissioning, read and observe the operating manual and safety instructions! Use safety goggles! Warning! Non-adherence poses a risk of death, danger of injury or the risk of damage to the tool. Attention: Risk of injury! Never have your hands near the blades. Guaranteed sound power level Attention! Risk of injury due to workpieces being thrown away. Attention! The exhaust pipe and other parts of the engine become very hot during operation, do not touch. Keep bystanders at a distance. Use hearing protection! The product complies with the applicable European directives. The product complies with the applicable Serbian directives.www.scheppach.com

Attention ammable substances. Fire, naked ames and smoking prohibited! Press the fuel pump button. Tank contents Symbol for the “40:1 petrol/oil mixing ratio” to be lled in on the tank cover. Wear work gloves! Wear sturdy footwear! Attention! Risk of injury due to rotating cutting roller! Keep hands and feet outside of the openings when the machine is running. Start lever (choke) “Cold start” Start lever (choke) “Warm start and working”www.scheppach.com

3. Scope of delivery

The product may only be used in the intended manner. Any use beyond this is improper. The user/operator, not the manufacturer, is responsible for damages or inju- ries of any type resulting from this. An element of the intended use is also the observance of the safety instructions, as well as the assembly in- structions and operating information in the operating manual. Persons who operate and maintain the product must be familiar with the manual and must be informed about potential dangers. The liability of the manufacturer and resulting damages are excluded in the event of modications of the product.

Manufacturer: Scheppach GmbH Günzburger Straße 69 D-89335 Ichenhausen Dear Customer, We hope your new product brings you much enjoyment and success. Note: In accordance with the applicable product liability laws, the manufacturer of this product assumes no liability for damage to the product or caused by the product arising from:

• Non-compliance with the operating manual

• Repairs carried out by third parties, unauthorised specialists

• Installing and replacing non-original spare parts

• Failure of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 57113 / VDE 0113 not being observed Note: The operating manual is part of this product. It includes important instructions for the safe, proper and econom- ic operation of the product, for avoiding danger, for min- imising repair costs and downtimes and for increasing the reliability and extending the service life of the prod- uct. In addition to the safety instructions in this operat- ing manual, you must also observe the regulations ap- plicable to the operation of the product in your country. Familiarise yourself with all operating and safety in- structions before using the product. Only operate the product as described and for the specied areas of ap- plication. Keep the operating manual in a good place and hand over all documents when passing the product on to third parties.

• Any use beyond this is improper use. The manufac- turer is not responsible for the resultant damages, the user bears this risk alone.

• The machine must not be used for commercial, tech- nical or industrial applications.

• If you are not sure whether working conditions are safe or unsafe, do not work with the machine. WARNING! For your own safety, please thoroughly read this manual and the general safety instruc- tions before turning the device on. If you give the device to third parties, always include these usage instructions. Please note that our products were not designed with the intention of use for commercial or industrial purpos- es. We assume no guarantee if the product is used in commercial or industrial applications, or for equivalent work. The manufacturer is not liable for damage caused by improper use or incorrect operation. Explanation of the signal words in the operating manual m DANGER Signal word to indicate an imminently hazardous situation which, if not avoided, will result in death or serious injury. m WARNING Signal word to indicate a potentially hazardous situation which, if not avoided, could result in death or serious injury. m CAUTION Signal word to indicate a potentially hazardous situation which, if not avoided, could result in minor or moderate injury. The product may only be operated with original parts and original accessories from the manufacturer. The safety, operating and maintenance specications of the manufacturer, as well as the dimensions speci- ed in the technical data, must be observed. The machine complies with the applicable EC ma- chinery directive.

• Before starting any work, all protective and safety de- vices must be in place.

• The leaf blower/blower is only approved for leaves and garden waste such as grass and small branches. Any other use is not permitted.

• The leaf blower/blower may only be used for dry leaves, grass, etc.

• The machine has been designed to be operated by one person.

• The operator is responsible for third parties in the area of operations.

• Observe all safety information and danger notices on the machine.

• Ensure that all of the safety information and danger notices on the machine are complete and in legible condition.

• Only use the machine when in a technically faultless condition, appropriately and in compliance with the operating manual and with full knowledge of safety and hazards!

• In particular, rectify malfunctions that could impair safety immediately (or commission rectication works accordingly)!

• The safety, operating and maintenance specications of the manufacturer, as well as the dimensions speci- ed in the technical data, must be observed.

• Relevant accident prevention regulations and other generally recognized safety and technical rules must also be observed.

• The machine may only be used, maintained or re- paired by competent persons who are familiar with it and have been informed of the dangers. The manu- facturer shall not be liable for damage resulting from unauthorised changes to the machine.

• Only use the device in suction mode when the dust bag is tted.

• Do not vacuum any combustible, smouldering or smoking materials (e.g. cigarettes, embers, etc.), vapours or easily ignitable, toxic or explosive sub- stances.

• The machine may only be operated with original ac- cessories and original tools from the manufacturer.www.scheppach.com

• Do not wear loose clothing or jewellery. Wear log trousers to protect your legs. Use a head covering if you have long hair. Loose clothes, jewellery and long hair can be caught in moving parts. Wear suit- able sturdy, close-tting work clothing.

• Always switch o󰀨 the device's engine when putting the machine down and before working on the device.

• Wear safety goggles when working.

• Operating personnel with respiratory problems or performing dust-generating work should wear a respirator.

• Never use the device with damaged protective de- vices or shields Work area safety

• Keep your work area clean and well-lit. Cluttered or dark areas invite accidents.

• Do not work with the device in an explosive environ- ment where ammable liquids, gases or dusts may be located. The device creates sparks which may ignite the dust or vapours.

• Keep children and other people away while using the tool. Distractions may cause you to lose control of the device. Personal safety

• Stay alert, watch what you are doing and use com- mon sense when operating the tool. Do not use a tool if you are tired or under the inuence of drugs, alcohol or medication. A moment of carelessness when using the tool can result in serious injuries.

• Wear personal protective equipment and always safety goggles. Protective equipment such as a dust mask, non-skid safety shoes, safety helmet or hearing protection depending on the nature and use of the tool, will reduce personal injuries.

• Prevent unintentional starting. Carrying tools with your nger on the switch on invites accidents.

• Remove any adjusting tools or spanners before turning the tool on. A tool or spanner that is locat- ed in a rotating device part may result in injuries.

• Avoid abnormal postures. Keep proper footing and balance at all times. This enables better control of the tool in unexpected situations.

• Wear suitable clothing. Do not wear loose clothing or jewellery.

• Keep hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. ATTENTION Signal word to indicate a potentially hazardous situation which, if not avoided, could result in product or property damage.

5. General safety instructions

m WARNING - Read all safety information, in- structions, illustrations and technical data for this product. Failure to follow all instructions listed below may result in electric shock, re and/or serious injury. Save all warnings and instructions for future reference. m WARNING Read all safety information and in- structions. Failure to observe safety information and instructions can result in re and/or serious injuries. Use only the fuels recommended in this manual (see chapter: Fuel and lubricants). Do not use fuel that has not been correctly mixed with 2-stroke engine oil. This can lead to a total loss and the supplier's warranty will be forfeited. Save all warnings and instructions for future ref- erence. Brieng

• Read through this operating manual carefully. Fa- miliarise yourself with the controls and the proper use of the device.

• People who are unable to use the device safely due to their physical, sensory or mental capabilities, or due to their inexperience or lack of knowledge, must not use this device without supervision or instruc- tions from a responsible person. Children should not be left unattended, to ensure they do not play with the device.

• Never let children operate the device.

• Never permit other persons who are not familiar with these operating instructions to use the device. Local regulations may stipulate a minimum age for users.

• Never operate the device whilst other persons, in particular children or animals, are nearby.

• The user is responsible for accidents or hazards that happen to third parties or to their property.www.scheppach.com

• Move at least three meters away from the refuelling area before starting the device.

• To reduce the risk of re, keep the engine and si- lencer free of cutting waste, leaves and lubricants!

• Keep the handles dry, clean and free of fuel mix.

• Never refuel when the engine is running or hot.

The product has been built according to state-of-the- art and the recognised technical safety rules. However, individual residual risks can arise during operation. Even when used as intended, there may still be residual risks due to the design determined by the intended use, despite compliance with all relevant safety regulations. Thoughtfulness and caution reduce the risk of person- al injury and damage.

• Injury due to ejected parts.

• Breakage and ejection of knife pieces.

• Risk of carbon monoxide poisoning if the device is used in enclosed or poorly ventilated areas.

• Risk of burns when touching hot components.

• Impairment of hearing with prolonged work without hearing protection. Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain. Residual risks can be minimised if the "Safety Instruc- tions" and the "Intended Use" together with the oper- ating manual as a whole are observed.

Rated engine power 0.7 kW Idle speed 3500 ± 300 rpm Fuel tank volume 650 cm

output 1443 g/kWh Type of engine 2-stroke engine, air-cooled Leaf blower weight 4.7 kg Leaf vacuum weight 5.9 kg Total weight 6.4 kg Subject to technical changes! Device use and care

• Do not overload the device. Use the correct tool for your application. The correct tool will do the job bet- ter and safer at the rate for which it was designed.

• Do not use a tool that has a defective switch. Any tool that cannot be switched on or o󰀨 is dangerous and must be repaired.

• Store idle tools out of the reach of children. Do not let people use the device if they are not familiar with it or if they have not read these instructions. Tools are dangerous in the hands of untrained users.

• Take care of tools. Check for misalignment or bind- ing of moving parts, breakage of parts and any other condition that may a󰀨ect the tool’s operation. Have damaged parts repaired before using the device. Many accidents are caused by poorly maintained tools.

• Use the device, accessories and tool bits etc. in accordance with these instructions. Take into ac- count the working conditions and the work to be performed. Using devices for operations other than those intended can lead to hazardous situations. Safe use of fuels Fuels and fuel vapours are ammable and can cause serious damage if they are inhaled or come into con- tact with the skin. You should therefore exercise cau- tion when handling fuel, and ensure good ventilation.

• Switch o󰀨 the engine and allow the device to cool down before refuelling it.

• Do not smoke when refuelling and avoid naked ames (Fig. 2).

• Wear gloves when refuelling.

• Do not refuel in enclosed areas (risk of explosion).

• Be careful not to spill fuel or oil. Clean the device immediately, if fuel or oil is spilled. If fuel or oil is spilled over it, change your clothing immediately.

• Make sure that no fuel gets into the soil.

• After refuelling, carefully close the fuel cap again and ensure that it does not come open during op- eration.

• Make sure that the ller cap and fuel lines are leak- tight. Do not use the device if there are leaks.

• Fuels may only be transported and stored in con- tainers which are labelled and approved for this purpose.

• Keep fuel away from children.

• Do not transport or store fuels in the vicinity of com- bustible or highly ammable materials/substances, or near sparks or naked ames.www.scheppach.com

m WARNING! The product and the packaging material are not children's toys! Do not let children play with plas- tic bags, lms or small parts! There is a danger of choking or su󰀨ocating!

9. Assembly and operation

ATTENTION! Before cleaning, inspecting, servicing, or performing any other work on the device, always switch o󰀨 the device. ATTENTION! Remove the transport protection ring (23) Fig. 1. Leaf blower Blast pipe installation: (Fig. 7-9) m WARNING INFORMATION: The device must nev- er be switched on or used before it has been fully assembled.

• Remove the screw (K) and its washer (L) from the air outlet.

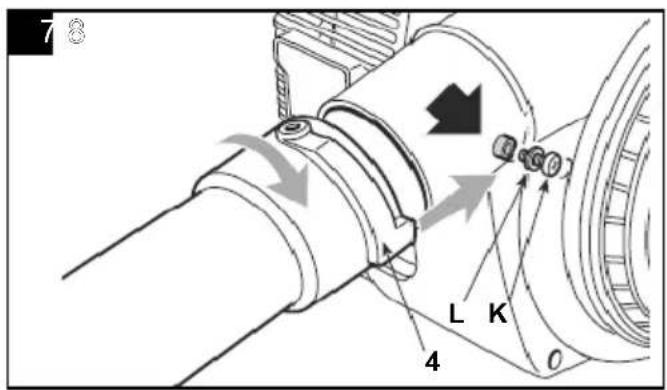

• Align the blast pipe (4) with the protruding air outlet, push the hose together and turn it 90° clockwise to secure it permanently.

• Secure the blast pipe (4) to the air outlet using the screw (K) and washers (L).

• Align the nozzle (5) with the protrusion (P) of the blast pipe, push the nozzle and pipe together and turn 90° clockwise to secure it permanently.

m Warning! Only use original spare parts and ac- cessories from the manufacturer. Failure to do so can reduce performance, result in injuries and void your warranty. Never use the machine without the protec- tion assembled! Leaf vacuum Assembly: (Fig. 6 - 10) m WARNING INFORMATION: The device must nev- er be switched on or used before it has been fully assembled. Suction pipe assembly (Fig. 10-14)

• Remove the screw (K) and the washer (L).

• Align the pipe (18) with the protrusion of the air out- let, then slide the pipe over the air outlet and turn it 90° anti-clockwise to secure it in place. Noise and vibration m Warning: Noise can have serious e󰀨ects on your health. If the machine noise exceeds 85 dB, please wear suitable hearing protection. Information on noise level per ISO 11094:1991 Noise data Sound power level L

Sound pressure level L

Keep the noise level and vibration to a minimum!

• Only use faultless devices.

• Maintain and clean the device at regular intervals.

• Adapt your working methods to the device.

• Do not overload the device.

• Have the device checked if necessary.

• Switch the device o󰀨 if it is not in use.

• Wear gloves. We have marked points in these operating instruc- tions that impact your safety with this symbol: m

• Open the packaging and carefully remove the product.

• Remove the packaging material, as well as the pack- aging and transport safety devices (if present).

• Check whether the scope of delivery is complete.

• Check the product and accessory parts for transport damage. In the event of complaints the carrier must be informed immediately. Later claims will not be recognised.

• If possible, keep the packaging until the expiry of the warranty period.

• Familiarise yourself with the product by means of the operating manual before using for the rst time.

• With accessories as well as wearing parts and re- placement parts use only original parts. Spare parts can be obtained from your specialist dealer.

• When ordering please provide our article number as well as type and year of manufacture for the product.www.scheppach.com

Attention: Use only designated and approved vessels for the transport and storage of fuel. Put the correct amount of petrol and 2-stroke oil in- to the enclosed mixing bottle. Then shake the ves- sel well. Never use oil for 4-stroke engines or water-cooled 2-stroke engines. This can cause the spark plug to become fouled, the exhaust part to become blocked or the piston ring to become stuck. Fuel mixtures that have not been used for one month or longer can clog the carburettor or impair engine op- eration. Put unused fuel in an airtight vessel and store it in a dark, cool room. Fuel mixing table Mixing process: 40 parts petrol to 1 part oil Example: 1 l petrol : 0,025 l 2-stroke oil 5 l petrol : 0,125 l 2-stroke oil Warning! Pay attention to the exhaust gases. Always switch o󰀨 the engine before refuelling. Never add petrol to the device while the engine is running or it is hot. There is a risk of re! Only fuel the unit outdoors or in well-ventilated rooms. Make sure that no fuel gets into the soil (environmental protection). Use a suitable surface. Fill up petrol Danger of injury! Petrol is explosive! Switch o󰀨 the engine and allow it to cool!

• Wear protective gloves!

• Avoid skin and eye contact!

• It is essential to observe the “Safety Instructions“ section.

• Only refuel the tank outdoors or in su󰀩ciently ven- tilated rooms.

• Clean the area surrounding the lling area. Impuri- ties in the tank lead to operational faults. Shake the container with the fuel mixture again before lling it into the tank.

• Carefully open the fuel cap so that any possible overpressure can be relieved.

• Carefully ll the petrol mixture up to the lower edge of the ller neck.

• Close the fuel cap again. Ensure that the fuel cap is tightly sealed.

• Clean the fuel cap and the surroundings.

• Check the tank and fuel lines for leaks.

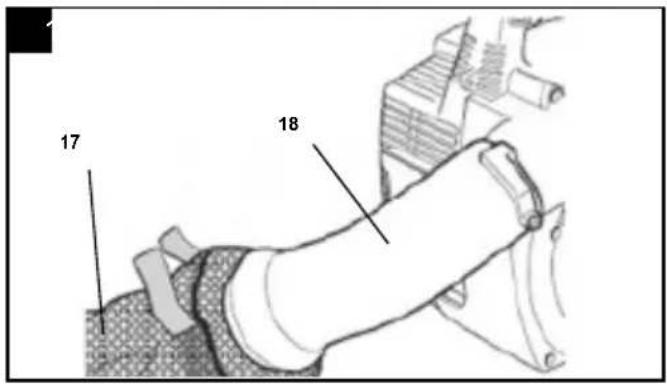

• Insert the end of the pipe (18) into the catch bag (17) and close the opening with the Velcro tape provided.

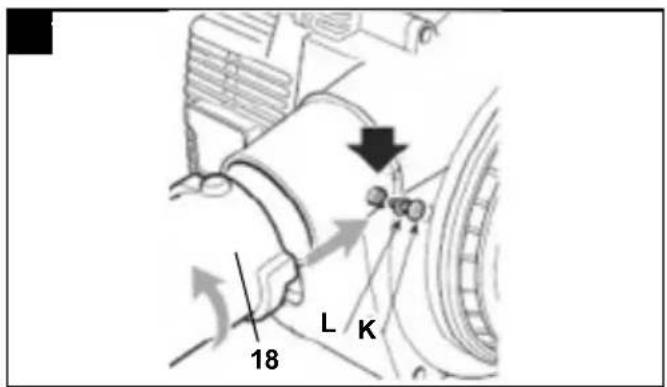

• Secure the pipe (18) to the air outlet using the screw (K) and washers (L).

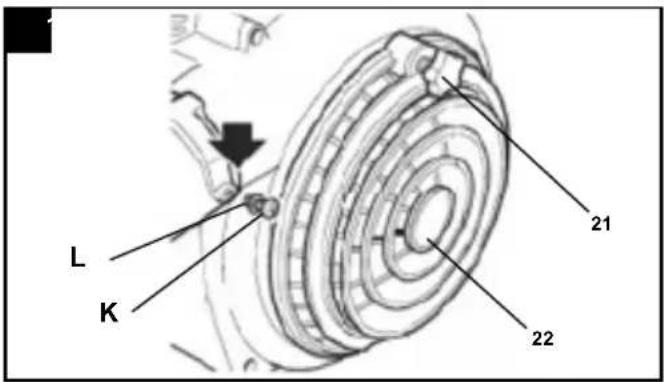

• Loosen the star grip (21) and open the protective grate (22).

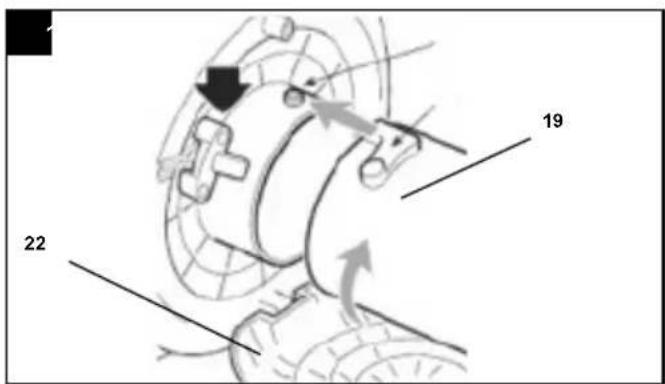

• Align the intake pipe (19) with the protrusion of the inlet, push the pipe towards the protrusion and turn it 90° clockwise to secure it permanently.

• Align the second intake pipe (20) with the protrusion of the rst pipe (19), push the two pipes together and turn them 90° clockwise to x them permanent- ly in place.

• Hang the bag over your shoulder and adjust the height with the strap. Note: Please note that after xing to the device, the two suction pipes are rmly connected to each other and must not be dismantled again! Operation of the device m Attention! Always make sure the product is fully assembled before commissioning! Work preparation Before each commissioning, check the device for the following:

• Check the fuel system for leakage.

• Faultless condition and completeness of the guards and the cutting device.

• All screw connections are tight.

• Smooth running of all moving parts.

• A closed protective ap (E) and that all safety switches (F) are activated (Fig. 15). Fuel and oil Recommended fuels Use only a mixture of unleaded petrol and special 2-stroke engine oil. Mix the fuel mixture as per the fuel mixing table. Attention: Do not use a fuel mixture that has been stored for more than 90 days. Attention: Do not use 2-stroke oil that recommends a mixing ratio of 40:1. The engine guarantee of the man- ufacturer becomes invalid in the event of damage to the engine due to insu󰀩cient lubrication.www.scheppach.com

MACHINE INSPECTION Before you start working, please:

• Check that all screws on the machine are tight.

• When using the vacuum collector, ensure that the bag is positioned correctly and that the zip is closed.

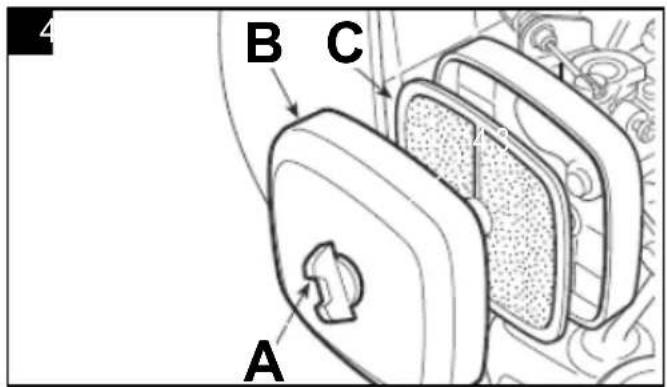

• Check that the air lter is clean.

• Check that the handles are securely xed.

• Prepare the accessories according to the type of work (as a blower or vacuum collector) and ensure that they are correctly assembled. Starting (Fig. 6) Once the device is properly assembled, start the en- gine as follows:

1. Press the engine switch (1) to the on position (I).

2. Set the choke lever (11) to the position .

3. Press the fuel pump (10) more than 5 times (G).

4. Pull the handle of the starter cable (8) 3 to 5 times

to start the engine.

5. Once the engine is running, wait a short time and

then set the choke lever (11) to the “” position

6. If problems occur, switch the engine switch (1)

to “0” immediately so that the engine stops. At- tention, the machine can keep turning for a few seconds.

7. To start the engine when warm (up to 15 mins),

move the choke lever to the “Warm start and work- ing” position. Note: If the engine does not start up after several at- tempts, see the “Troubleshooting” section. Note: Always pull the start pull cord out straight. If it is pulled out at an angle, friction will occur on the lug. This friction causes the cord to wear through and wear out faster. Always hold the starter handle when the cord retracts. Never let the cord snap back from its extended state. Operating modes Leaf blower operation Attention: During operation, the machine must always be held rmly with the right hand on the upper handle. The engine speed should be adapted to the type of material to be removed: Use the engine at low speed for light material on the lawn;

• Move at least three meters away from the refuelling area before starting the engine. Drain the petrol Only empty the tank outdoors or in well-ventilated rooms. Make sure that no fuel gets into the soil (envi- ronmental protection). Use a suitable surface.

• Hold a collection bucket under the petrol drain plug.

• Unscrew the fuel cap and remove it.

• Drain the petrol/oil mixture completely.

• Screw the tank cap back on by hand. Check before use!

• Check that the device is in a safe condition.

• Check the device for leaks.

• Check the device for visible damage.

• Check that all parts of the device are securely at- tached.

• Check that all safety devices are in good condition. Putting the device into operation

• Before starting up the device, make sure that the pipe intermediate piece has been tted correctly.

• Follow the engine start instructions as described in the manual.

• Make sure that nothing covers the exhaust pipe, as this generates heat.

• Hold the handle with your right hand and swing the blast pipe back and forth so that the desired area is cleared of contamination.

• The throttle and the on/o󰀨 switch are integrated in- to the handle.

• The throttle lock can be used to lock the engine at full throttle without constantly pressing the accel- erator pedal. Attention: Before switching o󰀨 the de- vice, push the throttle lock back to idle. The machine can be used both as a blower and as a vacuum collector. For both applications, it is necessary to correctly in- stall the appropriate accessories included in the scope of delivery.

Warning: The assembly should be unpacked and as-

sembled on a at, stable surface with su󰀩cient space to move the machine and its packaging. IMPORTANT The safety systems prevent the en- gine from starting if the vacuum or blast pipe is not tted correctly.www.scheppach.com

• Empty the bag if you have used the machine as a vacuum collector. Adjusting the idle speed (Fig. 5) Idling speed adjustment is necessary when the engine tends to die o󰀨 or when no signicant speed di󰀨erenc- es are detected when using the throttle. Adjustment is made after starting the engine using a screwdriver on screw (D). Let the engine idle for a few minutes before making the adjustment.

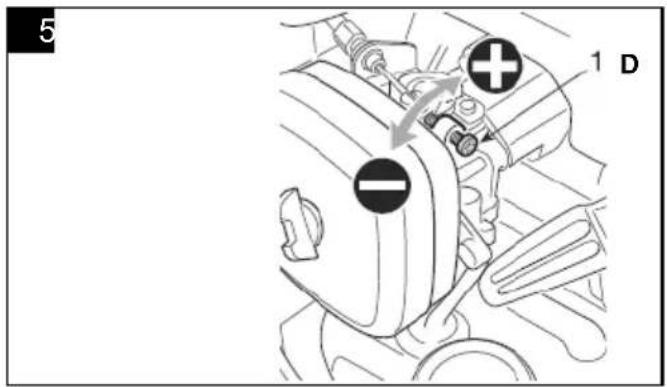

• Turn clockwise to increase the engine speed;

• Turn anti-clockwise to reduce the engine speed. When adjusted, the engine should run smoothly at idle speed without any irregularities or pauses. Shutting the engine o󰀨 Emergency stop procedure:

• If it is necessary to stop the blower immediately, turn the ignition switch to “OFF”. Normal procedure:

• To switch o󰀨 the engine, push back the throttle lock so that the engine runs at idle speed. Then turn the on/o󰀨 switch to “OFF”.

• Do not smoke when lling the fuel or operating the device.

• Keep your hands or body parts away from the ex- haust pipe and ignition cables.

• The power tool produces toxic exhaust gases as soon as the engine is running. Never work in en- closed or poorly ventilated spaces.

• Use tools only in daylight or with su󰀩cient arti- cial lighting.

• Do not underestimate the power. Always maintain a secure footing and balance.

• If possible, avoid operating the device on wet grass.

• Make sure to have a secure footing, especially on slopes.

• Always walk, never run.

• Always keep the ventilation opening clean.

• Never point the blowing opening at people or animals.

• The machine must only be operated at reasonable times - not early in the morning or late at night when others may be disturbed. The times listed with the local authorities must be followed.

• The machine shall be operated at the lowest possi- ble engine speed to carry out the work. Use the engine at average speed to move grass and light leaves on asphalt or rm ground; Use the engine at high speed for heavier materials such as fresh snow or dirt.

Warning: Always make sure that no objects or dust

are blown in the direction of people or animals and make sure that objects will not be damaged. Always observe the wind direction and never work against the wind. Operating the leaf vacuum

Warning: The machine must always be held with

both hands during work. Place your left hand on the upper handle and your right hand on the lower handle. Lift the lower handle so that the bag is on the right side of the operator. When used as a vacuum collector, it is best to operate the engine at medium/high speed. During collection, hold the rounded end of the tube a few centimetres above the oor. The bag also func- tions as a lter similar to a standard household vacuum cleaner. For this reason it is best:

• Do not ll the leaf collection bucket completely

• To remove bulky objects immediately. To empty the collection bucket:

• Switch o󰀨 the engine.

• Open the zip (11) and empty the bag without discon- necting it from the connecting tube.

• IMPORTANT When using the vacuum collector, do not collect damp grass or leaves, as this may cause the rotor or bag to become blocked. IMPORTANT When using the machine as a vacuum collector, there is a risk of sucking in objects that could block the machine and the rotor. In this case:

• Switch o󰀨 the engine immediately - remove the spark plug connector.

• Disassemble the vacuum tubes.

• Remove the foreign object from the vacuum inlet.

• Make sure that nothing is blocking the rotor before using the machine again. IMPORTANT If the bag is too full this reduces the e󰀩ciency of the machine and can cause the en- gine to overheat. When you have nished your work:

• Switch o󰀨 the engine as described above.www.scheppach.com

• Never clean or splash the device with water. Only clean the engine housing with a damp cloth and never use cleaning agents or solvents! This could damage the plastic parts of the device. Finally, dry the engine housing carefully.

• After nishing work, remove the collection bag, turn it inside out and clean it thoroughly to prevent mould and unpleasant odours from developing.

• A heavily soiled collection bag can be washed with soap and water.

• If the zip is di󰀩cult to operate, rub the zip teeth with a dry soap bar.

• Clean the suction/blast pipe with a brush if it is dirty.

• Contamination from the material being drawn in may impair the movement of the toggle lever (blow/ suction). In this case, switching between suction and blowing several times will restore the toggle lever's functionality.

• Only use original accessories and spare parts.

Store the product and its accessories in a dark, dry and frost-free place that is inaccessible to children. The op- timum storage temperature lies between 5 and 30 ˚C. Store the product in its original packaging. Cover the product to protect it from dust or moisture. Store the operating manual with the product. Caution: Never stow the device for longer than 30 days without carrying out the following steps: Storing the device If you stow the device for longer than 30 days, it must be prepared ahead of time. Otherwise, the remaining fuel in the carburettor will evaporate and leave a rub- bery sediment behind. This could make it di󰀩cult to start and result in expensive repair work.

• Slowly remove the fuel tank cap to release any pressure in the tank. Carefully empty the tank. Only empty the tank outdoors or in well-ventilated rooms. Make sure that no fuel gets into the soil (en- vironmental protection). Use a suitable surface.

• Start the engine and let it run until it stops in order to remove the fuel from the carburettor.

• Allow the engine to cool down (approx. 5 minutes).

• Remove the spark plug.

• Add 1 teaspoon of clean 2-stroke oil to the combus- tion chamber. Pull the starter cord slowly several times to coat the internal components. Re-insert the spark plug.

• Before starting to blow, loosen foreign objects with a rake and broom.

• In dusty conditions, lightly moisten the surface or use an irrigation attachment if available.

• The entire blower nozzle attachment must be used so that the airow can work close to the ground.

• Watch out for children, pets, open windows and blow away foreign objects safely.

• If the device makes abnormal noises or has unu- sually strong vibrations, it must then be checked. Unusually strong vibrations can injure the operator and cause damage to the device.

• The device must not be operated with faulty or miss- ing protective devices.

• Do not place the hot engine near easily ammable objects/materials.

• Use the blower to blow o󰀨 residual material from the patio, paths and walkways, lawn, bushes and edges.

• Do not place the hot engine near easily ammable objects/materials. Blowing and sucking

• Always check the working range before starting work. Remove any objects or debris that can be thrown up or that can get caught in the device and clog it.

• Check the collection bag regularly for wear or damage.

• Alternatively, guide the device just above the ground and move it from side to side, stepping forward and pointing the nozzle at the working range to remove the remaining material.

• Blow the leftover material into a convenient pile.

Attention! Disconnect the spark plug connector before cleaning. Never immerse the device in water or other liquids for cleaning. Store the device in a secure and dry place and out of reach of children. Cleaning

• Keep the ventilation slots on the device clean in or- der to prevent the engine overheating.

• Clean the housing of the device regularly with a soft cloth, if possible after each use.

• Keep the ventilation slots free of dirt and dust.

• If the dirt does not come o󰀨, please use a soft cloth moistened with soapy water.

• Check the device at regular intervals and before starting work.www.scheppach.com

• Wash the lter element in warm soapy water, rinse and allow to air dry. Attention: Never clean the air lter with petrol or com- bustible solvents. In order to prolong the service life of the engine, a damaged air lter must be replaced immediately. Warning! Never leave the engine running if the air lter ele- ment is not inserted. FUEL FILTER Inside the fuel tank there is a lter that prevents im- purities from entering the engine. The lter should be replaced once a year by your dealer. We have designed our machines to run for a long period of time with a minimum of maintenance. Prop- er functioning depends on regular maintenance and cleaning of the machine. Always ensure that all nuts, bolts and screws are tight and well seated so that the device is in a safe operat- ing condition.

• Replace worn or defective parts.

• Use only original spare parts and accessories.

• Always store the device in a dry place. The user is responsible for all damage caused by failure to observe the instructions given in this user manual. This also applies to unauthorised modications to the device, use of unauthorised spare parts, attachments, work tools, use other than intended and use for oth- er than the intended purpose, consequential damage caused by the use of defective components. Warning! Only use original spare parts and accessories from the manufacturer. Failure to do so can reduce perfor- mance, result in injuries and void your warranty.

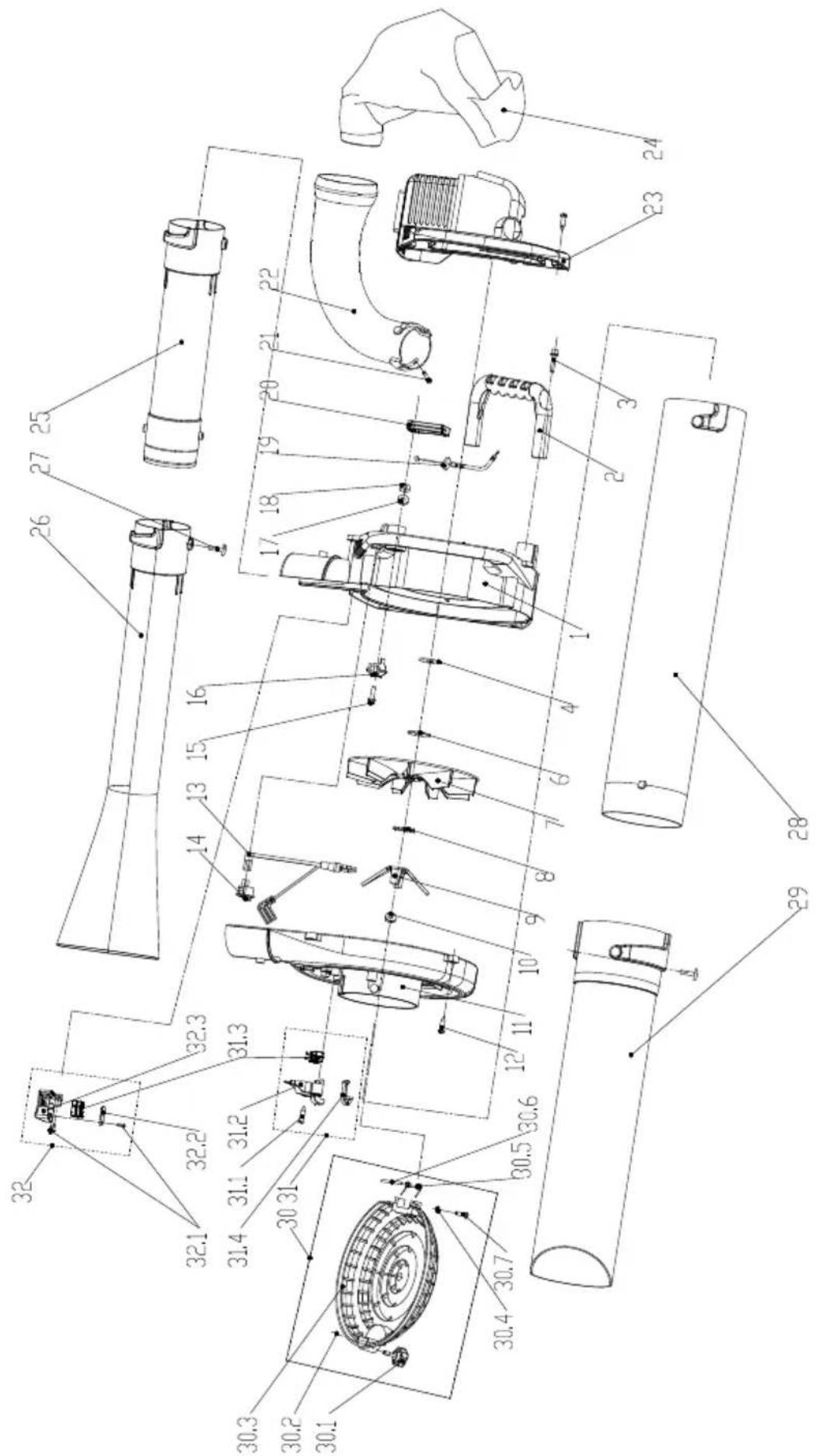

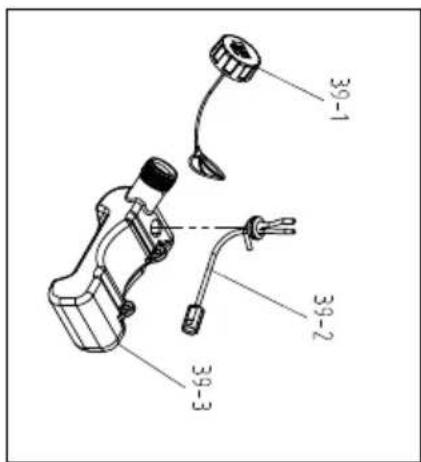

14. Repair & ordering spare parts

After repairs or maintenance, make sure that all safe- ty-related parts are installed and are in perfect con- dition. All parts which may cause injury must be kept where they are inaccessible to children or others. Attention: According to the German Product Liability Act, no liability is accepted for damage caused by im- proper repairs or by not using original spare parts. Note: Store the device in a dry location, far away from potential sources of ignition, such as furnaces, hot wa- ter boilers with gas, gas dryers, etc. Recommissioning

• Remove the spark plug.

• Pull the starter cord quickly to remove excess oil from the combustion chamber.

• Clean the spark plug and check that the electrode gap on the spark plug is correct is correctly set, or in- sert a new spark plug with the correct electrode gap.

• Prepare the device for operation.

Replace and clean the spark plug (Fig. 3) Check the electrode gap of the spark plug at least once a year or regularly if starting is poor. The correct distance between the ignition ag and ig- nition contact is 0.63 mm/0.25”.

• Wait until the engine has cooled down completely.

• Pull the spark plug connector o󰀨 the spark plug and unscrew the spark plug with the supplied spark plug wrench.

• If the electrode is worn excessively or if it is very encrusted, the spark plug must be replaced with one of the same type.

• Heavy incrustation on the spark plug can be caused by: Too high a proportion of oil in the petrol mixture, poor oil quality, outdated petrol mixture, or blocked air lter.

• Screw the spark plug into the thread completely by hand. Avoid tilting the spark plug.

• Tighten the spark plug with the supplied spark plug wrench.

• When using a torque wrench, the tightening torque is 12-15 Nm.

• Push the spark plug connector onto the spark plug properly. Clean the air lter (Fig. 4) Fouled air lters diminish the engine output due to reduced air supply to the carburettor. Dust and pollen clog the pores of the foam lter. Regular inspection is therefore essential.

• Loosen (A) the air lter cover (B) and remove the sponge lter element (C).

• Replace the air lter cover (B) so that nothing falls into the air duct.www.scheppach.com

Such work should be performed by a customer service centre or an authorised specialist. The same applies to accessory parts. Spare parts and accessories can be obtained from our Service Centre. To do this, scan the QR code on the front page. Important note in the case of repairs: For return delivery of the product for repair, please en- sure for safety reasons that it is free of oil and fuel when it is sent to the service centre.

With this product, it is necessary to note that the fol- lowing parts are subject to natural or usage-related wear, or that the following parts are required as con- sumables. Wearing parts*: Spark plug, air lter, fuel lter, col- lection bag

• may not be included in the scope of delivery!

15. Disposal and recycling

Notes for packaging The packaging materials are recy- clable. Please dispose of packag- ing in an environmentally friendly manner. You can nd out how to dispose of the disused device from your local authority or city adminis- tration. Fuels and oils

• Before disposing of the device, the fuel tank and the engine oil tank must be emptied!

• Fuel and engine oil do not belong in household waste or drains, but must be collected or disposed of separately!

• Empty oil and fuel tanks must be disposed of in an environmentally friendly manner.www.scheppach.com

The following table shows fault symptoms and describes remedial measures in the event of your product failing to work properly. If you cannot localise and rectify the problem with this, please contact your service workshop. Fault Possible cause Remedy The device does not start up • Air lter dirty

• Fault in the fuel line

• Starter unit is defective

• Spark plug connector not plugged

• Carburettor defective

• Blast/suction pipe not fully tted

• Check the fuel line for kinks or damage

• Contact the service point

• Remove spark plug, clean and dry; then pull the starter cable several times; re-install the spark plug

• Check the spark plug connector is seated properly

• Clean or replace spark plug / check ignition cable for damage

• Contact the service point

• Contact the service point

• Fit the 2-part blast/suction pipe The device runs and dies Incorrect carburettor setting (idle speed) Contact the service point Device works with interruptions (stutters)

• Carburettor is incorrectly adjusted

• On/o󰀨 switch defective

• Contact the service point

• Clean or replace the spark plug

• Contact the service point Smoke is produced • Incorrect fuel mixture

• Carburettor is incorrectly adjusted

• Use two-stroke mixture with the mixing ratio of 40:1

• Contact the service point Device does not work at full power

• Air lter is contaminated

• Carburettor is incorrectly adjusted

• Collection bag is full

• Collection bag is contaminated

• Selector switch in wrong position

• Device clogged or blocked by foreign objects

• Clean or replace the air lter

• Contact the service point

• Set the selector switch to the Suction symbol

• Remove blockages and obstructions (see chapter Cleaning and maintenance)www.scheppach.com

• Startvoorziening is defect

• Forbered apparatet for drift.

EU Declaration of Conformity Translation of the original Declaration of Conformity We declare under our sole responsibility that the product described here com-plies with the applicable directives and standards.The object of the declaration described here fulls the regulations of the direc-tive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment. *Technical documentation available at: ** Item number*** Item designation: Petrol leaf vacuum/blower - LBH2600P Brand****

17. Declaration of conformity
