LB5200BP - Blower SCHEPPACH - Free user manual and instructions

Product type	Backpack thermal leaf blower
Brand / Model	Scheppach / LB5200BP
Engine type	2-stroke air-cooled engine
Displacement	51.7 cm³
Rated power	1.4 kW
Max. speed	8000 rpm
Idle speed	3500 ± 300 rpm
Max. air speed	295 km/h
Max. air volume	18 m³/min
Fuel tank	1 liter
Fuel/oil mixture	40:1 (unleaded 95 min + 2T oil JASO FD/ISO-LEGD)
Dimensions (L × W × H)	1380 × 400 × 450 mm
Total nozzle length	1180 mm
Weight	7.84 kg
Sound pressure level	95.2 dB(A) (uncertainty 3.0 dB)
Guaranteed sound power level	114 dB(A)
Vibrations (front handle)	1.79 m/s²
Vibrations (rear handle)	2.3 m/s²
CO₂ emissions	1069 g/kWh
Wear parts	Spark plug, air filter
Intended use	Blowing leaves and light garden debris
Cleaning / Maintenance	Clean air filter with soapy water; spark plug every 50h
Safety	Goggles, hearing protection, gloves, sturdy shoes
Warranty	Statutory warranty – defective parts replaced free of charge

Frequently Asked Questions - LB5200BP SCHEPPACH

What type of fuel to use?

Use a mixture of unleaded gasoline (ROZ 95 min) and 2-stroke engine oil (JASO FD/ISO-LEGD) in a ratio of 40:1. Never use pure gasoline.

How to start the engine cold?

Set the choke lever to 'closed', turn the On/Off switch to 'I', press the primer bulb 7 times, then pull the starter cord 3 to 5 times. After starting, move the choke to 'open'.

How to start the engine hot?

Set the choke to 'open', turn the switch to 'I' and pull the starter cord. If the engine does not start after a few attempts, check the fuel supply and spark plug.

What is the tank capacity?

The fuel tank has a capacity of 1 liter.

How to adjust the idle?

After starting the engine, let it run idle for a few minutes. Turn the idle adjustment screw (located near the carburetor) clockwise to increase speed, counterclockwise to decrease, until the engine runs steadily.

What regular maintenance is required?

Clean the air filter every 10 operating hours (with soapy water). Check and clean the spark plug after 10 hours, then every 50 hours. Check the electrode gap (0.6 mm).

The blower does not start, what to do?

Check the fuel level, that the mixture is correct, the air filter is clean, the spark plug is dry and connected. If no spark, check the ignition cable and spark plug. If the problem persists, contact customer service.

Can I use the blower to vacuum leaves?

No, this model is a blower only. It does not have a vacuum function.

What safety equipment to wear?

Always wear safety glasses, hearing protection, gloves, sturdy shoes, and long pants. Keep people and animals at least 15 meters away.

How to store the device?

Empty the fuel tank, let the engine cool down, clean it, and store it in a dry, frost-free place out of reach of children.

USER MANUAL LB5200BP SCHEPPACH

Technical line drawing of a mechanical device with hoses and connectors (no text or symbols)

https://www.scheppach.com/de/service scheppach

Made in P.R.C.

LB5200BP

GB Backpack leafblower | Translation of the original operating instructions.... 23

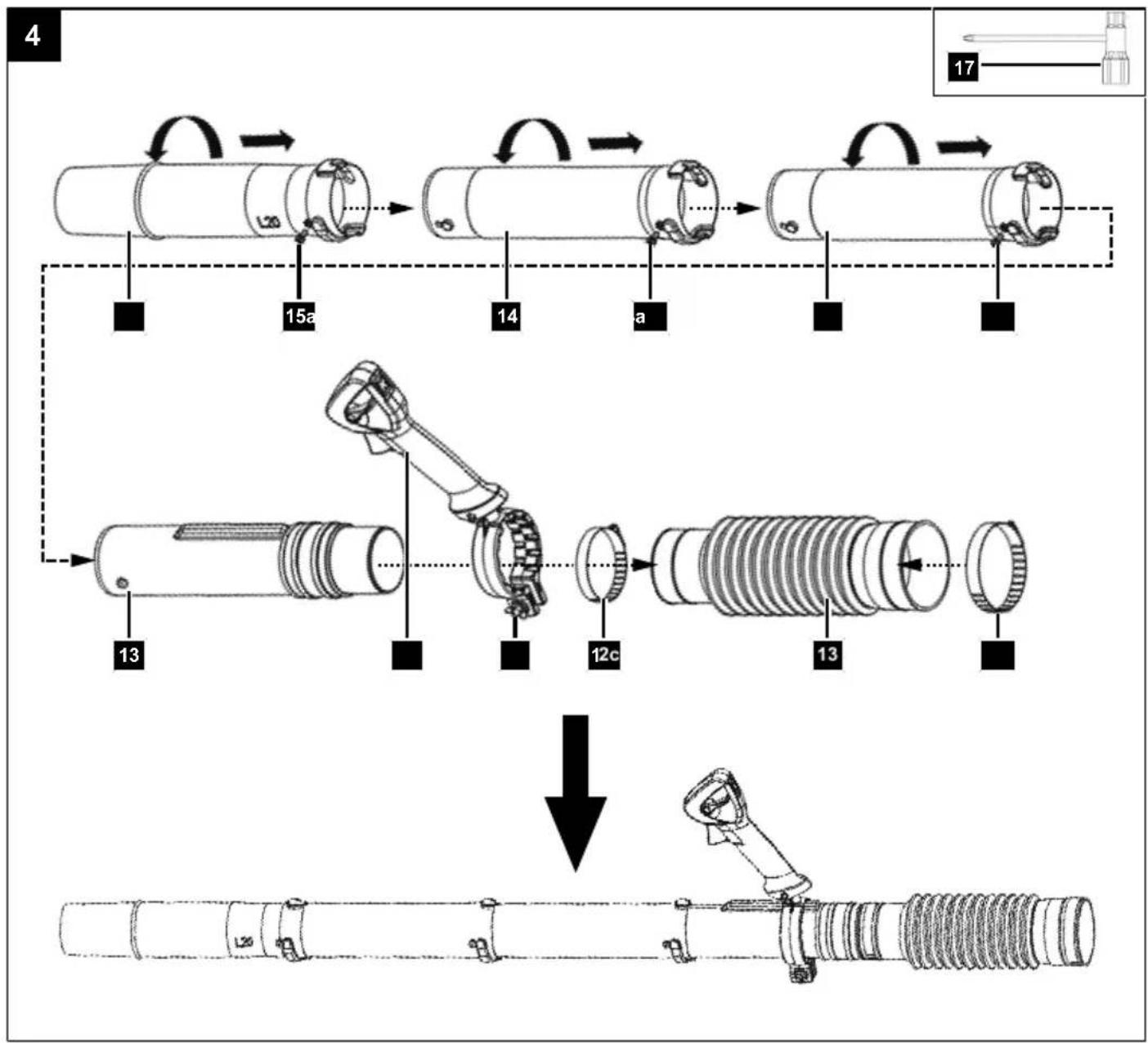

Technical diagram of a mechanical device with numbered parts labeled for identification.

2

12 5 12b 16 19 20 21

3 4 12 12c 12a 12a 12c 17 2 13 2a

5 16 8 9

6 3 3a

7 6

8 1 11a 11 2

9 17 5 0,6 mm 5a

10 10 a

10b 10 10b 10

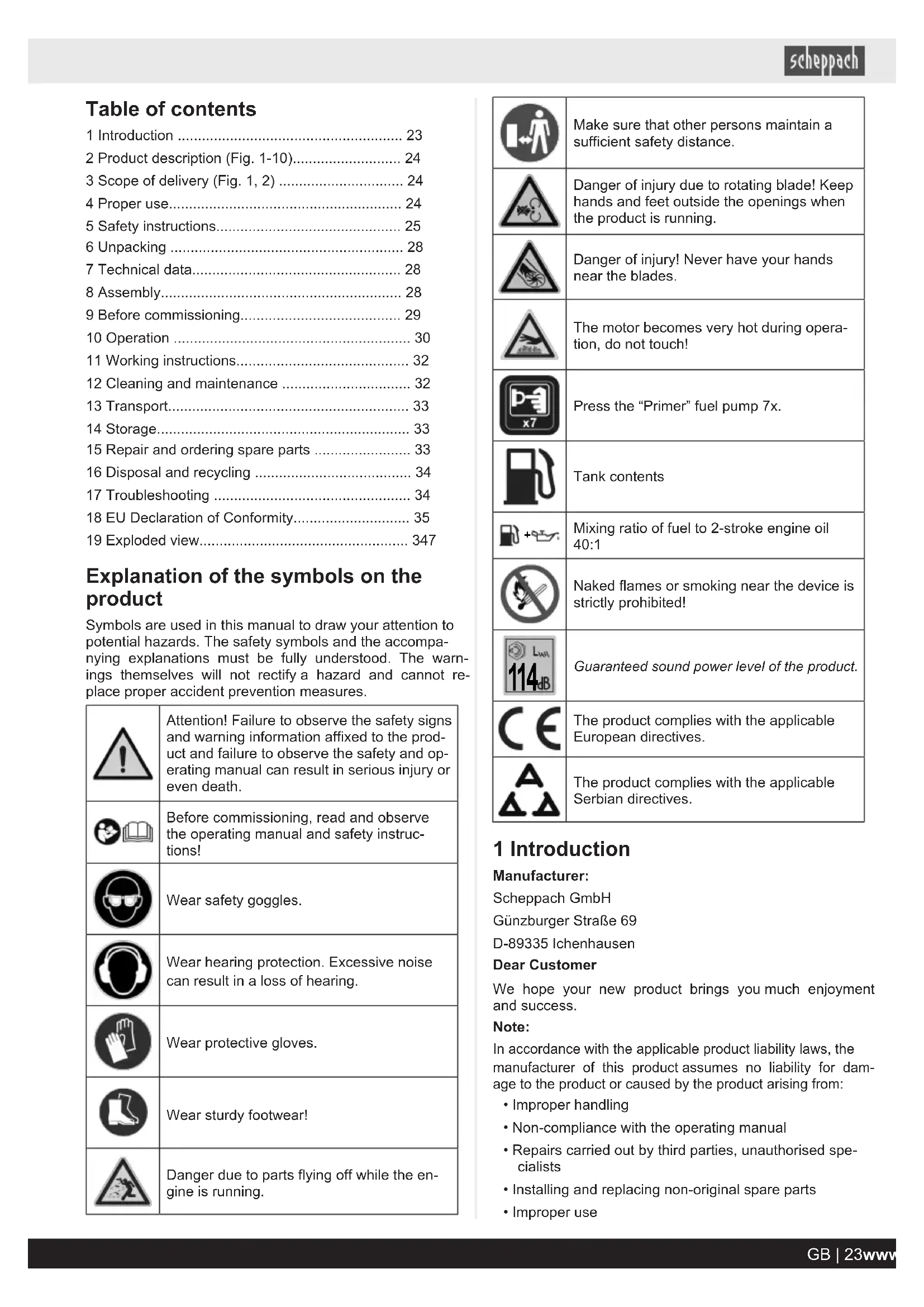

Inhaltsverzeichnis

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde

• Gabelschlüssel SW 8/10 mm (18)

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Head of Project Management

Garantiebedingungen

Revisionsdatum 26.11.2021

https://www.scheppach.com/de/service

https://www.scheppach.com/de/service scheppach

Explanation of the symbols on the product

Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.

	Attention! Failure to observe the safety signs and warning information affixed to the product and failure to observe the safety and operating manual can result in serious injury or even death.
	Before commissioning, read and observe the operating manual and safety instructions!
	Wear safety goggles.
	Wear hearing protection. Excessive noise can result in a loss of hearing.
	Wear protective gloves.
	Wear sturdy footwear!
	Danger due to parts flying off while the engine is running.

	Make sure that other persons maintain a sufficient safety distance.
	Danger of injury due to rotating blade! Keep hands and feet outside the openings when the product is running.
	Danger of injury! Never have your hands near the blades.
	The motor becomes very hot during operation, do not touch!
	Press the “Primer” fuel pump 7x.
	Tank contents
	Mixing ratio of fuel to 2-stroke engine oil 40:1
	Naked flames or smoking near the device is strictly prohibited!
	Guaranteed sound power level of the product.
	The product complies with the applicable European directives.
	The product complies with the applicable Serbian directives.

1 Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer

We hope your new product brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this product assumes no liability for damage to the product or caused by the product arising from:

• Improper handling
  • Non-compliance with the operating manual
  • Repairs carried out by third parties, unauthorised specialists
  • Installing and replacing non-original spare parts
• Improper use

Note:

The operating manual is part of this product.

It includes important instructions for the safe, proper and economic operation of the product, for avoiding danger, for minimising repair costs and downtimes and for increasing the reliability and extending the service life of the product. In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the product in your country.

Familiarise yourself with all operating and safety instructions before using the product. Only operate the product as described and for the specified areas of application. Keep the operating manual in a good place and hand over all documents when passing the product on to third parties.

2 Product description (Fig. 1-10)

1. On/off switch
2. Handle
   2a. Fixing screw

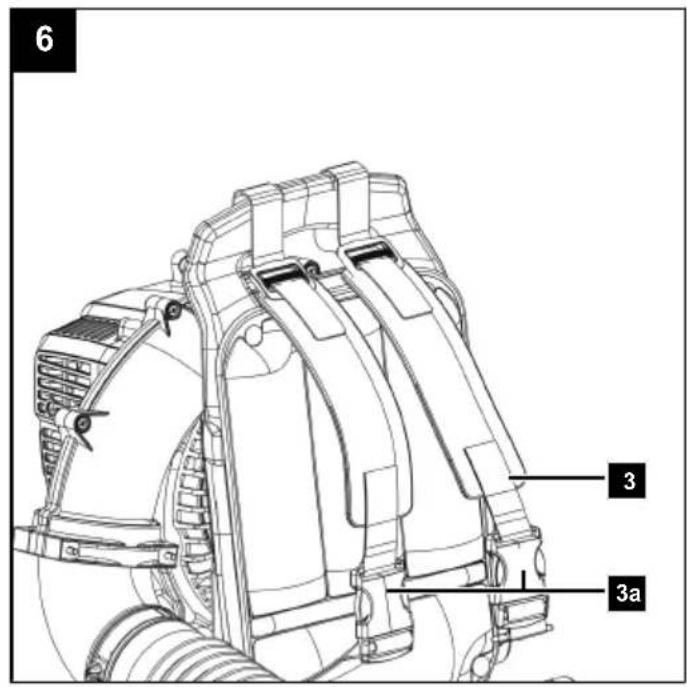

3. Carrying strap
   3a. Buckles
4. Engine unit
5. Spark plug connector
   5a. Spark plug
6. Choke lever
7. Pull starter
8. Fuel filler cap
9. Fuel tank

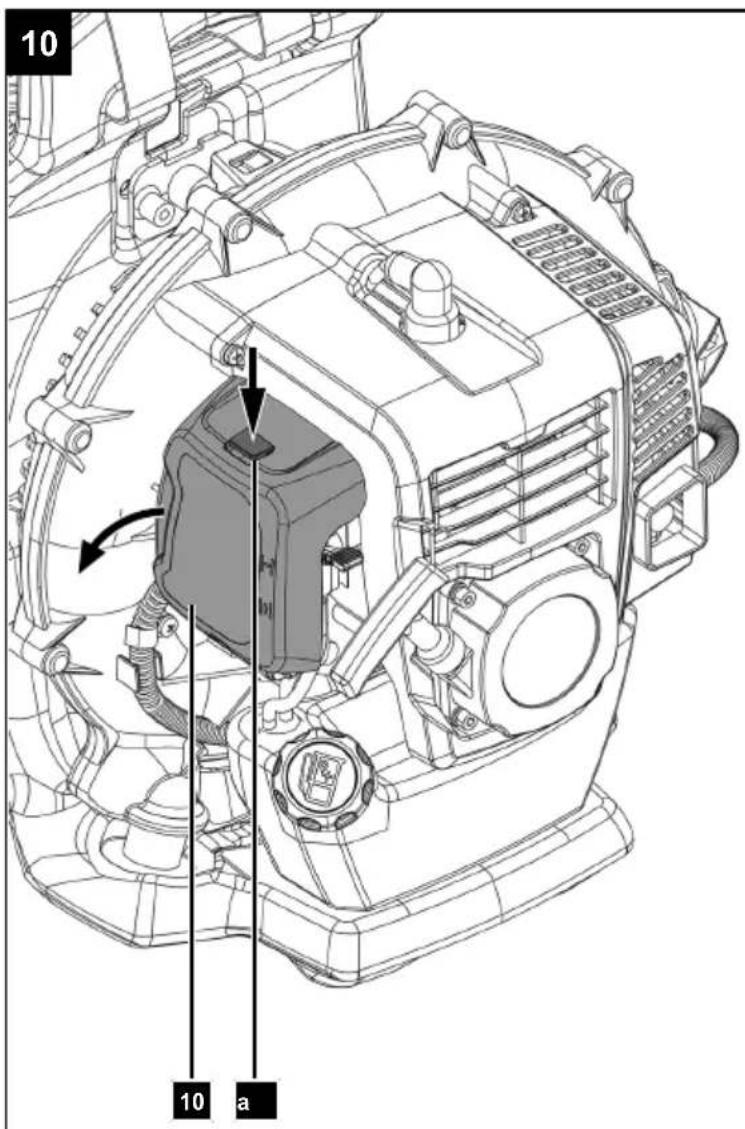

10. Air filter cover
    10a. Locking mechanism
    10b. Air filter

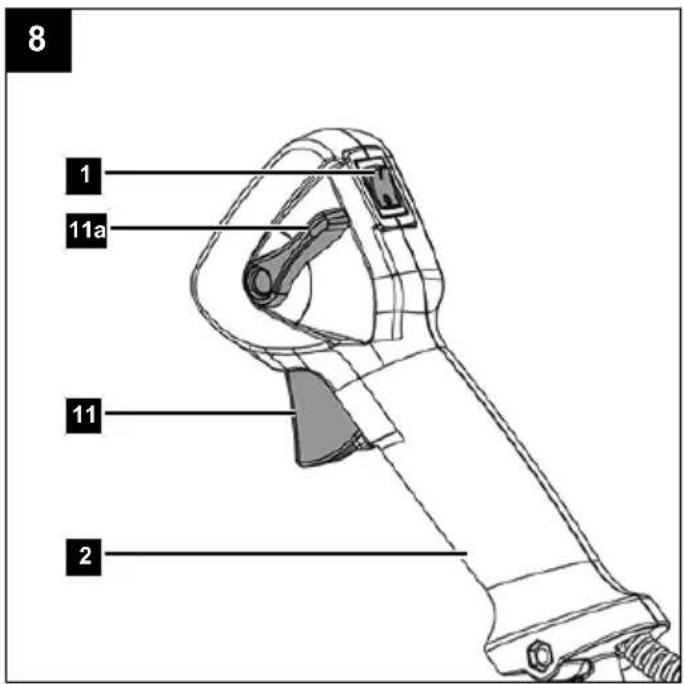

11. Throttle
    11a. Locking lever
12. Flexible tube
    12a. Guide bar
    12b. Hose clamp (large)
    12c. Hose clamp (small)
13. Top tube
14. Bottom tube
    14a. Fillister head screw
15. Nozzle
    15a. Fillister head screw
16. Oil-petrol mixing bottle
17. Installation spanner
18. Allen key, 4 mm
19. Allen key, 5 mm
20. Cable ties
21. Primer

22. Adjusting screw (idling)

23. Open-ended spanner, AF 8/10 mm

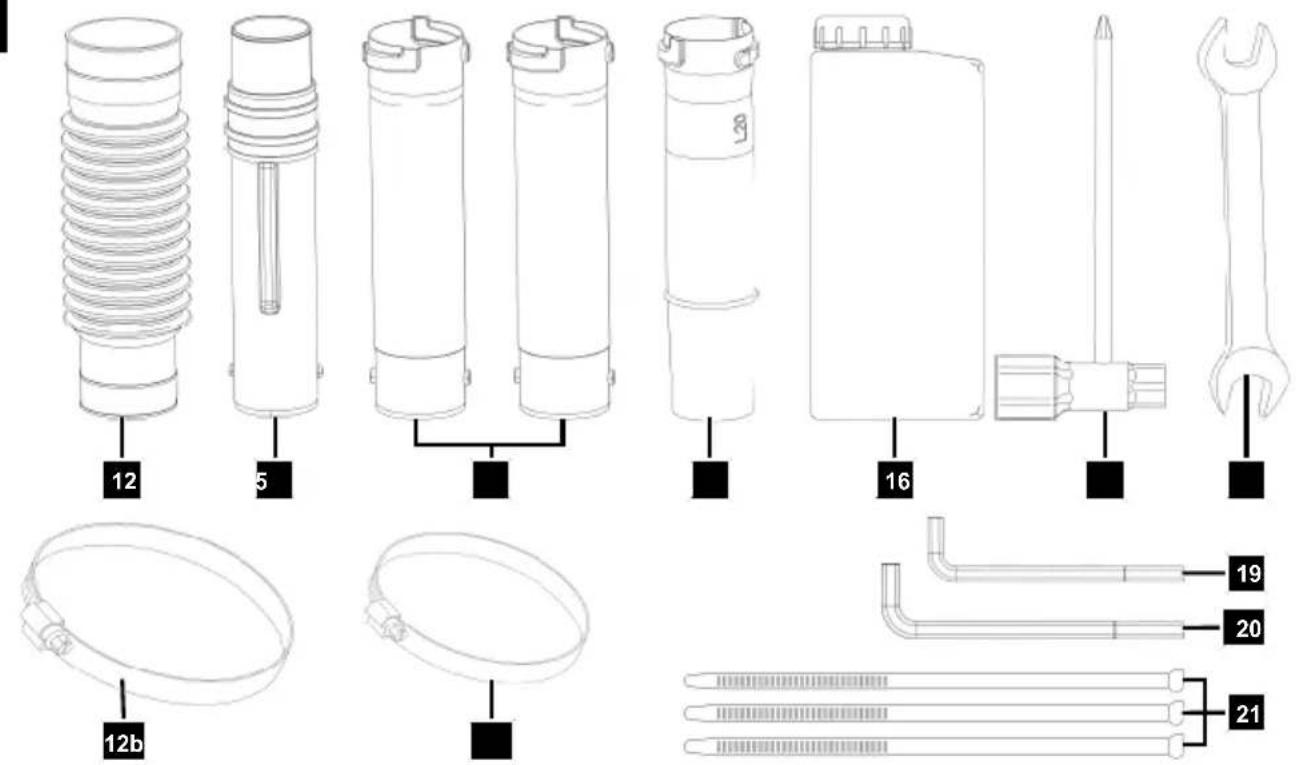

3 Scope of delivery (Fig. 1, 2)

Item QuantityDesignation

1. 1 x Engine unit

2. 1 x Flexible tube

12b. 1 x Hose clamp (large)

12c. 1 x Hose clamp (small)

1. 1 x Top tube

2. 2 x Bottom tube

14a. 2 x Fillister head screw

1. 1 x Nozzle

15a. 1 x Fillister head screw

1. 1 x Oil-petrol mixing bottle

2. 1 x Installation spanner

3. 1 x Open-ended spanner, AF 8/10 mm

4. 1 x Allen key, 4 mm
5. 1 x Allen key, 5 mm
6. 3 x Cable ties
   1 x Backpack leafblower
   1 x Operating manual

4 Proper use

Only use the cordless leaf blower for the following purposes:

- For collecting leaves or general garden waste such as prunings or for removing them from hard-to-reach places.

The product may only be used in the intended manner. Any use beyond this is improper. The user, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual.

Persons who operate and maintain the product must be familiar with the manual and must be informed about potential dangers.

The liability of the manufacturer and resulting damages are excluded in the event of modifications of the product.

The product may only be operated with original parts and original accessories from the manufacturer.

The safety, operating and maintenance specifications of the manufacturer, as well as the dimensions specified in the technical data, must be observed.

Please note that our products were not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the product is used in commercial or industrial applications, or for equivalent work.

Explanation of the signal words in the operating manual

DANGER

Signal word to indicate an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in minor or moderate injury.

ATTENTION

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in product or property damage.

5 Safety instructions

General safety instructions

WARNING

For your own safety, please thoroughly read this manual and the general safety instructions before turning the product on. If you give the product to third parties, always include these usage instructions.

WARNING

Use only the fuels recommended in these instructions.

WARNING

Do not use fuel that has not been correctly mixed with 2-stroke oil. This may cause permanent engine damage and will void the manufacturer's warranty on this product. Never use a fuel mixture that has been stored for more than 90 days.

Keep all safety information and instructions for future reference!

5.1 Briefing

• Read the entire operating manual before using the product.
• Familiarise yourself with the controls and the proper use of the product.
• Learn how to turn off the product in an emergency.

• Only use the product as intended for:

• The movement and accumulation of leaves and grass of various, but limited, weight and of small size, by blowing.

• Vacuum collection of leaves and grass, various wastes of limited weight and small size, excluding liquids of any kind.
• The product must not be used for collecting flammable or explosive products, hot embers, ashes, burning cigarettes and pieces of branches, sharp objects, metal objects, stones and other objects that could be dangerous for the operator. This can result in injuries and can damage the product.

• Children may not work with this product.
- The product shall not be operated by persons (including children) with reduced physical, sensory or mental abilities or who have inadequate experience or knowledge.
- Never operate the product while people, especially children, or animals are nearby.
- Never permit other persons who are not familiar with these operating instructions to use the product. Local regulations may stipulate a minimum age for users.
- Do not use the product while tired or under the influence of drugs, alcohol or medication. Do not use products if you are tired.
- If the device is passed on to a third party then pass all of the documentation on with it.
- Note that the user is responsible for accidents or hazards to other people or their property.

- Always carry out a visual inspection before use to check that the shredder, the bolts of the shredder and other fasteners are secured, that the housing is undamaged and that the guards and shields are in place. Replace worn or damaged components in sets to maintain balance. Replace damaged or illegible labelling.

5.2 General information

• Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
• Tie long hair back in a hair net.
• Always wear safety gloves, safety goggles, hearing protection, sturdy shoes and long trousers when working with this product.
  • Always switch off the engine of the product when you put the product down and before working on the product.
• Check the covers and protective devices for damage and correct seating. Replace them if necessary.
• Never operate the product with defective guards or without safety devices.

WARNING

Fuel is highly flammable:

• Store fuel in tanks specifically designed for this purpose.
• Before refuelling, switch off the combustion engine and let it cool down.
• Refuel outdoors only and do not smoke while refueling.
• Open the fuel cap carefully and slowly. Wait for the pressure to equalise and only then remove the fuel filler cap completely.
• Use a suitable funnel or filler pipe for refuelling so that no fuel can spill onto the combustion engine and housing.

Do not overfill the fuel tank!

• Fuel must be filled before starting the engine. While the engine is running or immediately after switching off the product, do not open the fuel filler cap or add fuel.
• If fuel overflows, no attempts should be made to start the engine. Instead, the product must be removed from the area contaminated with fuel. Do not try to start the engine until the fuel vapours have evaporated.
  • Always wipe up spilled fuel immediately.
• Start the product at a distance of at least 3 m from the fuel filling point.
• If fuel has got on clothing, it must be changed.
• The tank cover must be properly screwed on and tightened after each refuelling operation. The product must not be put into operation without the original tank cover screwed on.
• Replace defective silencers.

• Always carry out a visual inspection before using of the product. Check in particular:

- The throttle lever must move freely and should return to the neutral position independently and quickly.

- The on/off switch must be easy to operate.

- All electrical cables such as spark plug cables and the spark plug connector must be in perfect condition to avoid sparks. The spark plug connector must be firmly seated on the spark plug.

- Keep the handle dry, clean and free of oil and grease. Handles and guards must be undamaged.

– The fan must be undamaged.

- The collection bag must be undamaged.

- Before starting work, always remove any objects lying on the ground that

– could be thrown when operating the product (when using as a blower)

– could jam the vacuum tube (when using as a leaf vacuum)

– could represent a hazard (stones, sticks, wire, bones, etc.)

5.3 Operation

- Keep hands and feet away from the rotating parts.

- Do not run the combustion engine in closed rooms in which hazardous carbon monoxide can collect.

- Do not fit any products or accessories to the product that are not provided by or approved by the manufacturer.

- Keep your work area clean and well-lit. Cluttered or dark areas invite accidents.

- Do not use a product that has a defective switch. Any product that cannot be switched on or off is dangerous and must be repaired.

- Never use the product:

- Without having mounted all accessories intended for the respective use (when used as a leaf vacuum or blower)

- Whilst other persons, in particular children or animals, are nearby.

- In enclosed spaces, in an explosive environment, where flammable liquids, gases or dusts may be located.

• Always ensure that you have a safe and firm footing so that you can control the product and maintain your working posture even in the event of unexpected movements.

- If possible, avoid working on wet or slippery ground. Avoid working on uneven or steep ground that does not guarantee the operator a safe working posture.

- Move slowly, do not run. Pay attention to the ground conditions and any obstacles.

• Make sure the product is fully assembled before starting it.

- Start the product at a distance of at least 3 m from the fuel filling point.

- People should keep a safe distance of at least 15 metres from the work area.

- Do not point the silencer and thus the exhaust gases at combustible materials.

- Do not make any modifications to the engine.

- Do not overload the product. Use the correct tool for your application. The correct tool will do the job better and safer at the rate for which it was designed.

- Make sure that the product does not come into contact with foreign bodies or with foreign bodies and dust that may be stirred up by the air.

- Never point the air stream at people or animals.

- Never insert objects into the openings of the product and avoid sucking in large objects that could damage the fan.

- Keep your hands away from the intake grille and the air outlet during use and never block the fan.

- Stop the engine:

- When converting the product from a leaf vacuum to a leaf blower.

- When you are leaving the product unattended.

- Before refuelling.

- When you move to a different working area.

- Stop the engine and disconnect the spark plug connector:

– Before cleaning and maintenance work.

- If a foreign body is sucked in. Check the product for damage before operating it again.

- If the product starts to produce unusual vibrations.

- When you are not using the product.

- Do not leave the product on leaves, dry grass or other combustible material when the engine is hot. Fire hazard!

- Do not work with the product in an explosive environment where flammable liquids, gases or dusts may be located. The product creates sparks which may ignite the dust or vapours.

- Warning! Do not work near open windows. Watch out for children, pets and blow away foreign objects safely.

- Keep children and other people away while using the product. Distractions may cause you to lose control of the product.

- Avoid abnormal postures. Keep proper footing and balance at all times. This enables better control of the tool in unexpected situations.

- Stay alert, watch what you are doing and use common sense when operating the tool. Do not use any tool while you are tired or under the influence of drugs, alcohol or medication. A moment of carelessness when using the tool can result in serious injuries.

- Prevent unintentional starting. Carrying tools with your finger on the switch on invites accidents.

- Remove any adjusting tools or spanners before turning the tool on. A tool or spanner that is located in a rotating device part may result in injuries.

- It is recommended to operate the product only at reasonable times - not early in the morning or late at night when others may be disturbed.

- Before starting to blow, loosen foreign objects with a rake and broom.

- In dusty conditions, lightly moisten the surface or use an irrigation attachment if available.

- It is recommended to use the entire nozzle attachment so that the airflow can work close to the ground.

5.4 Maintenance and storage

- Take care of tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the tool's operation. Have damaged parts repaired before using the device. Many accidents are caused by poorly maintained tools.

- Do not carry out any work on the product that is not described in this manual.

- Never store the product with fuel in the tank inside a building in which fuel vapours may come into contact with naked flames or sparks.

- Allow the engine to cool down before maintenance and cleaning work, as well as before storage.

- Keep the engine, silencer and fuel tank free of dust, branches and leaves. Fire hazard!

- Only empty the tank outdoors or in well-ventilated rooms.

- Wear gloves when carrying out maintenance tasks.

- For safety reasons, never operate the product with worn or damaged parts. Damaged parts must be replaced or repaired. Only use original spare parts. Defective parts can cause injuries or damage the product.

- Remove all tools used for maintenance before operating or storing the product.

- Store the product out of the reach of children.

5.5 Transport

• If the product is to be worn, you must:

- Switch off the engine and disconnect the spark plug connector.

- Carry the product by the handles. Do not lift the product by the tube.

- When transporting in a vehicle, remove the tubes and load the product in such a way that there is no danger to persons. The product should be secured to prevent it toppling during transport in vehicles in order to ensure that fuel does not escape and to prevent damage and injuries.

5.6 Environmental protection

• Make sure that no fuel gets into the soil.

- Dispose of packaging and waste materials in accordance with applicable local laws.

- Fuel residues, oils and liquids used for cleaning must be disposed of in an environmentally friendly manner!

- Dispose of the product properly in accordance with the regulations in force in your country.

5.7 Safe use of fuels

WARNING

Fuels and fuel vapours are flammable and can cause serious damage if they are inhaled or come into contact with the skin. You should therefore exercise caution when handling fuel, and ensure good ventilation.

- Before refuelling, switch off the combustion engine and let it cool down.

- Refuel outdoors only and do not smoke while refuelling. Avoid naked flames (danger of explosion!).

- Wear gloves when refuelling.

- Be careful not to spill fuel or oil.

- If fuel overflows, no attempts should be made to start the engine. Instead, the product must be removed from the area contaminated with fuel. Do not try to start the engine until the fuel vapours have evaporated. If fuel or oil is spilled over it, change your clothing immediately.

• Make sure that no fuel gets into the soil.

- The tank cover must be properly screwed on and tightened after each refuelling operation. The product must not be put into operation without the original tank cover screwed on.

- For safety reasons, check fuel line, fuel tank, fuel cap and connections regularly for damage, ageing (brittleness), tight fit and leaks and replace if necessary.

- Only transport and store fuel in containers (canisters) designed for this purpose.

- Keep fuel away from children.

- Do not transport or store fuels in the vicinity of combustible or highly flammable materials/substances, or near sparks or naked flames.

- Start the product at a distance of at least 3 m from the fuel filling point.

- Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

- Before refuelling, switch off the combustion engine and let it cool down.

5.8 Residual risks

The product has been built according to state-of-the-art and the recognised technical safety rules. However, individual residual risks can arise during operation.

- Residual risks can be minimised if the "Safety Instructions" and the "Intended Use" together with the operating manual as a whole are observed.

- Use the product in the way that is recommended in this operating manual. This is how to ensure that your product provides optimum performance.

- Prevent the product being unintentionally started up.

- Keep your hands away from the working area when the product is in operation.

• Comply with the stipulated maintenance and safety instructions in the operating manual.
  • Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.

WARNING

In case of extended working periods, the operating personnel may suffer circulatory disturbances in their hands (vibration white finger) due to vibrations.

Raynaud's syndrome is a vascular disease that causes the small blood vessels on the fingers and toes to cramp in spasms. The affected areas are no longer supplied with sufficient blood and therefore appear extremely pale. The frequent use of vibrating products can cause nerve damage in people whose circulation is impaired (e.g. smokers, diabetics).

If you notice unusual adverse effects, stop working immediately and seek medical advice.

6 Unpacking

WARNING

The product and the packaging material are not children's toys!

Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

• Open the packaging and carefully remove the product.
• Remove the packaging material, as well as the packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the product and accessory parts for transport damage. Immediately report any damage to the transport company that delivered the Product. Later claims will not be recognised.
• If possible, keep the packaging until the expiry of the warranty period.
• Familiarise yourself with the product by means of the operating manual before using for the first time.
• With accessories as well as wearing parts and replacement parts use only original parts. Spare parts can be obtained from your specialist dealer.
• When ordering please provide our article number as well as type and year of manufacture for the product.

7 Technical data

Type of motor 2-stroke engine, air-cooled
Idle speed 3500 ± 300 rpm
Max. engine speed 8000 rpm
Rated engine power 1.4 kW
Displacement 51.7 cm	3
Dimensions L x W x H	1380 x 400 x 450 mm
Blowpipe total length 1180 millimeters
Max. air speed	295 km/h
Max. air flow	18 m3/min
Fuel tank volume	1 litres

CO2 output	1069 g/kWh
Weight	7.84 kg

Subject to technical changes!

Noise and vibration

WARNING

Noise can have serious effects on your health. If the machine noise exceeds 85 dB, please wear suitable hearing protection for you and persons in the vicinity.

Noise data

Sound pressure level L_pA	95.2 dB
Measurement uncertainty K_pA	3.0 dB
Sound power level L_wA	110.9 dB
Guaranteed sound power level L_wA	114 dB
Measurement uncertainty K_wA	3.0 dB

If necessary, adhere to rest periods and limit the duration of work to the bare minimum.

Vibration parameters (hand/arm vibration)

Vibration a_nv
Front handle	1.79 m/s ^2
Rear handle	2.3 m/s ^2
Measurement uncertainty K_h	1.5 m/s ^2

Keep the noise level and vibration to a minimum!

• Only use faultless products.
• Maintain and clean the product at regular intervals.
• Adapt your working methods to the product.
• Do not overload the product.
• Have the product checked if necessary.
• Switch the product off if it is not in use.
• Wear gloves.

Observe the following information to reduce hazards:

• Keep your body and especially your hands warm in cold weather.
  • Take regular breaks and move your hands to promote circulation.
• Ensure as little vibration as possible of the product via regular maintenance and stable parts on the product.

8 Assembly

Note:

Place the product on a level, even surface.

Tool required:

• Installation spanner (17)

8.1 Assembling the blowpipe (Fig. 3, 4)

1. Attach the hose clamps (12b/12c) to the flexible tube (12).
2. Slide the flexible tube (12) over the connection on the motor unit (4) and tighten the hose clamp (12b). Use an installation spanner (17).

3. Put the handle (2) over the top tube (13) and align the handle (2) and the guide.

4. Screw the handle (2) to the top tube (13) by turning the fastening screw (2a) clockwise by hand until it is tight.

5. Slide the top tube (13) with the handle (2) into the flexible tube (12) and fix it with the hose clamp (12c). Use an installation spanner (17).
6. Fix the cable to the flexible tube (12) using the guide bracket (12a).
7. Slide the bottom tube (14) over the top tube (13) and lock it by turning it clockwise. Then secure the connection with the pan head screw (14a). Use an installation spanner (17) for this.
8. Bring the second bottom tube (14) over the already fitted bottom tube (14) and also lock it by turning it clockwise. Then secure the connection with the pan head screw (14a). Use an installation spanner (17).
9. Slide the nozzle (15) over the bottom tube (14) and lock it by turning it clockwise. Then secure the connection with the pan head screw (15a). Use an installation spanner (17) for this.

9 Before commissioning

ATTENTION

Always make sure the product is fully assembled before commissioning!

ATTENTION

Always carry out assembly and adjustments on the product with the engine switched off and disconnect the spark plug connector.

ATTENTION

The product is delivered without fuel/oil mixture. It is therefore essential to fill with fuel/oil mixture before commissioning. Use only a mixture of unleaded fuel (min. RON 95) and special 2-stroke engine oil (JASO FD/ISO – L - EGD).

WARNING

Do not use fuel that has not been correctly mixed with 2-stroke oil. This may cause permanent engine damage and will void the manufacturer's warranty on this product. Never use a fuel mixture that has been stored for more than 90 days.

WARNING

Health hazard!

Inhalation of fuel / lubricating oil vapours and exhaust gases can cause serious damage to health, unconsciousness and in extreme cases death.

• Do not breathe fuel / lubricating oil vapours and exhaust gases.
• Operate the product outdoors only.

WARNING

Fuels and fuel vapours are flammable and can cause serious damage if they are inhaled or come into contact with the skin. You should therefore exercise caution when handling fuel, and ensure good ventilation.

WARNING

Petrol and the fuel-oil mixture are highly flammable!

WARNING

Danger of injury!

If you direct the airflow at people, animals or objects, this can cause injury and damage.

• Direct the air flow away from you.
  – Never direct the airflow at other people, animals or objects.
• Do not blow away hard objects such as stones or branches.

WARNING

Danger of injury

Objects hurled away and rotating parts can cause severe injuries.

• Make sure that other persons maintain a sufficient safety distance.
• Keep uninvolved persons away from the product.
  – Hold the product in front of you.
• Never point the product at yourself, other people or animals.
  – Always make sure that no objects or dust are blown in the direction of people or animals and make sure that objects will not be damaged.
• Always observe the wind direction and never work against the wind.

Notes:

• Place the product on a level, even surface.
• Familiarise yourself with the product by means of the operating manual before using for the first time.

It is mandatory to carefully check the product for any damage before each use or after it has been dropped. If damage is identified, it must be rectified immediately by you or an authorised service centre.

Before starting up each time, check the product for the following:

• Leak-tightness of the fuel system
• All screw connections are tight.
• Smooth running of all moving parts.

Tool required:

• Rag/cloth*
  * = may not be included in the scope of delivery!

9.1 Mixing fuel (Fig. 5)

WARNING

Avoid direct skin contact with fuel and inhalation of fuel vapours.

1. The engine must be operated with a fuel mixture of fuel and engine oil.
2. Use only a mixture of unleaded fuel (min. RON 95) and special 2-stroke engine oil (JASO FD/ISO - L - EGD).
3. Mix the fuel mixture as per the fuel mixing table.
4. Put the correct amount of fuel and 2-stroke oil into the enclosed oil-petrol mixing bottle (16).
5. Then shake the oil-petrol mixing bottle (16) well.

9.1.1 Fuel mixture

Note:

Do not mix the fuel mixture in the tank.

Add the 2-stroke oil in accordance with the fuel mixture table.

Fuel 2-stroke engine oil (1:40)
0.5 litres 12.5 ml

9.2 Filling in fuel (Fig. 5)

DANGER

Risk of fire and explosion!

Only fill the fuel when the engine is switched off and has cooled down. Do not smoke when refuelling the product.

DANGER

Risk of fire and explosion!

When filling, fuel may ignite and even explode. This can lead to severe burns or death.

Keep containers for fuel and fuel-oil mixture separate to avoid misfuelling with normal petrol.

• Always use fresh fuel/oil mixture.
- Keep heat, flames and sparks away.
- Only fill up with fuel outdoors.
- Wear protective gloves.
- Avoid contact with skin and eyes.
- Start the product at a distance of at least 3 m from the fuel filling point.
- Watch out for leaks. If fuel is leaking, do not start the engine.
- Use a suitable funnel or filler pipe for refuelling so that no fuel can spill onto the combustion engine and housing.

Do not overfill the fuel tank!

1. Mix the fuel as described in 9.1.

2. Clean the area surrounding the filling area. Impurities in the fuel tank (9) lead to operational faults. Shake the oil-petrol mixture bottle (16) with the fuel mixture again before filling it into the fuel tank (9).

3. Carefully open the tank cover (8) so that any possible overpressure can be relieved.

4. Pour the fuel mixture into the fuel tank. Do not spill fuel when refuelling and do not fill the fuel tank to the brim.
5. Always wipe up spilled fuel immediately.
6. Turn the tank cover (8) clockwise to close it.

9.3 Fitting the carrying strap (3) (Fig. 6)

1. Put the product on your back like a backpack.
2. Close the buckles (3a) and tighten the straps (3) by pulling on their ends.

9.4 Loosening the carrying strap (3) (Fig. 6)

1. Lift the clamping sliders of the buckles (3a) to loosen the carrying straps (3).

2. Open the buckles (3a).

10 Operation

ATTENTION

Always make sure the product is fully assembled before commissioning!

WARNING

Please observe the legal provisions from the noise protection ordinance.

WARNING

Move at least 3 m away from the refuelling area before starting the engine.

WARNING

Danger of injury!

If you direct the airflow at people, animals or objects, this can cause injury and damage.

– Direct the air flow away from you.
- Never direct the airflow at other people, animals or objects.
- Do not blow away hard objects such as stones or branches.

WARNING

Danger of injury

Objects hurled away and rotating parts can cause severe injuries.

• Make sure that other persons maintain a sufficient safety distance.
• Keep uninvolved persons away from the product.
  – Hold the product in front of you.
• Never point the product at yourself, other people or animals.
• Always make sure that no objects or dust are blown in the direction of people or animals and make sure that objects will not be damaged.
• Always observe the wind direction and never work against the wind.

10.1 Start the engine (Fig. 7)

DANGER

Danger of poisoning!

Only use the product outdoors and never in closed or poorly ventilated rooms.

ATTENTION

• Always pull the pull starter out straight.
• Hold the handle of the pull starter firmly when the pull starter winds back in.
• Do not let the pull starter whip back in. This can result in damage.
• Do not pull the pull starter all the way out. This prevents the starter cable breaking.
• In case of cool weather, it may be necessary to repeat the starting process numerous times.

Notes:

• Set the product down on a solid surface before starting the engine.
• Only use the fuel pump "primer" when the engine is cold!
• If the engine is being started for the first time, several tries are required to start until the fuel has been delivered from the tank to the engine.

10.1.1 Starting with a cold engine (Fig. 7, 8)

When the engine is "cold":

1. Set the choke lever (6) to the "position."
2. Press the on/off switch (1) to the on position.
3. Press the primer (22) 7 times.
4. Pull the pull starter (7) 3 to 5 times to start the engine.
5. Once the engine is running, wait a short time and then set the choke lever (6) to the '↑↓ position.
6. Use the throttle (11) to control the speed of the engine and thus the air flow.

With high outside temperatures, it may be necessary to start the engine without the choke even when the engine is cold!

10.1.2 Starting with a warm engine (Fig. 7, 8)

The product was stopped for less than 15-20 minutes.

When the engine is "warm":

1. Set the choke lever (6) to the "1" position. closed.

2. Press the on/off switch (1) to the on position.

3. Pull the pull starter (7) to start the engine.
4. Use the throttle (11) to control the speed of the engine and thus the air flow.

Note:

- If the engine does not start even after several attempts, read the 17 chapter.

10.2 Adjusting the idle speed (Fig. 7)

Idling speed adjustment is necessary when the engine tends to die off or when no significant speed differences are detected when using the choke lever (6). The adjustment is made after starting the engine at the adjusting screw (23).

Let the engine idle for a few minutes before making the adjustment.

1. Turn the adjusting screw (23) clockwise to increase the idle speed.
2. Turn the adjusting screw (23) anticlockwise to reduce the idle speed.

When adjusted, the engine should run smoothly at idle speed without any irregularities or pauses.

10.3 Switch off the engine (Fig. 7, 8)

1. Separately, operate the locking lever (11a) to set the engine in neutral.
2. Set the ON/OFF switch (1) to "0".

10.3.1 Emergency stop procedure

1. If it is necessary to stop the product immediately, switch the on/off switch (1) to "0".

10.3.2 After use

• Always switch the product off before placing it down and wait until the product has come to a standstill.
• Allow the product to cool.
• When the product is not in use, remove the spark plug connector from the spark plug.

10.4 Continuous operation (Fig. 7,8)

1. Start the motor as described in 10.1.
2. Press the throttle (11) down completely.
3. Lock the throttle (11) by moving the locking lever (11a).
4. The throttle (11) can now be released.
5. Separately, release the locking lever (11a) to stop continuous operation.

11 Working instructions

Notes:

• Some noise pollution from this product is unavoidable. Postpone noisy work to approved and designated times. If necessary, adhere to rest periods and limit the duration of work to the bare minimum.
• For your personal protection and the protection of nearby persons, wear suitable hearing protection.

The product may only be used for the following purposes:

- As a blower for piling up dry foliage or blowing it away from hard-to-reach places.

Any other use may result in damage to the product and pose a danger to the user.

• Before switching on the product, make sure that it is not directed towards people or animals.
• Lightly dampen surfaces in dusty conditions.
• You will achieve optimum results when using the blower at a distance of 5 - 10 cm from the ground.
• Point the air jet forward and move slowly to blow leaves or garden waste together or remove them from hard-to-reach places.
• Use rakes and brooms to loosen up waste before blowing.
• Start work with the highest blowing power to quickly collect the leaves lying around. Select a lower blowing power to compact the previously collected pile of leaves.
  • Always observe the wind direction and never work against the wind.

12 Cleaning and maintenance

WARNING

Have maintenance and repair tasks that are not described in this operating manual, carried out by a specialist workshop. Use only original spare parts.

WARNING

Improper maintenance or cleaning work can cause injuries!

WARNING

The product may start unexpectedly and cause injuries and burns during cleaning, repair and maintenance work.

• Switch the product off.
• Remove the spark plug connector from the spark plug.
• Allow the product to cool.

12.1 Cleaning

Note:

The product should be thoroughly cleaned after each use.

• Keep protective devices, air vents and the motor housing as free of dust and dirt as possible. Rub the product clean with a clean cloth* or blow it off with compressed air* at low pressure. We recommend that you clean the product directly after every use.
• To reduce the risk of fire, regularly clean the cooling fins of the engine with compressed air. Clear the silencer area of dust, leaves or other foreign objects.
• Ventilation openings must always be free.
• Clean the product at regular intervals using a damp cloth* and a little soft soap. Do not use any cleaning products or solvents; they could attack the plastic parts of the product. Make sure that no water can penetrate the product interior.
• Never immerse the product in water or other liquids for cleaning.

12.2 Maintenance

Note:

Maintain the product carefully. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the product's operation. Have damaged parts repaired before using the product.

Regular, careful servicing is required to guarantee the safety level and performance of the product.

Remove all tools used for maintenance before operating or storing the product.

All protective and safety equipment must be reassembled immediately after repair and maintenance work is completed.

Tool required:

• Installation spanner (17)
- Open-ended spanner, AF 8/10 mm (18)
• Copper wire brush*

* = may not be included in the scope of delivery!

12.2.1 Replace and clean the spark plug (5a) (Fig. 9)

Electrode gap = 0.6 mm (distance between the electrodes, between which the ignition spark is generated). Check the spark plug for dirt for the first time after 10 operating hours and clean it with a copper wire brush if necessary.

Then service the spark plug every 50 operating hours.

1. Pull the spark plug connector (5) off the spark plug (5a) and turn the spark plug (5a) out using the installation spanner (17) provided.

2. Clean the spark plug (5a) with a copper wire brush*.

3. If the electrode is worn excessively or if it is very encrusted, the spark plug (5a) must be replaced with one of the same type.

4. Heavy incrustation on the spark plug (5a) can be caused by: Too high a proportion of oil in the fuel mixture, poor oil quality, outdated fuel mixture, or blocked air filter (10b).

5. Screw the spark plug (5a) into the thread completely by hand. Avoid tilting the spark plug (5a).

6. Tighten the spark plug (5a) with the supplied installation spanner (17) provided.

12.2.2 Clean the air filter (10b) (Fig. 10)

ATTENTION

Fouled air filters diminish the engine output due to reduced air supply to the carburettor. Regular inspection is therefore essential.

ATTENTION

Never clean the air filter with petrol or combustible solvents.

1. Press down the locking mechanism (10a) and open the air filter cover (10).
2. Remove the air filter (10b).
3. Close the air filter cover (10) again to prevent foreign objects from entering the intake duct.
4. Wash the air filter (10b) in warm soapy water.
5. Give the air filter (10b) a good rinse and let it air dry.
6. Open the air filter cover (10) and reinsert the air filter (10b).
7. Close the air filter cover (10).

13 Transport

WARNING

Switch off the product and remove the spark plug connector from the spark plug!

ATTENTION

Danger of burning!

Keep the hot silencer away from your body. There is a risk of burns!

WARNING

Danger of injury!

Unintended and unexpected start-up of the product may lead to injuries.

- Switch off the product before any transport, even over short distances. Secure the product against tipping over during transport (including in vehicles) to prevent fuel loss, damage or injury.

14 Storage

DANGER

Risk of fire and explosion!

Storing the product near potential sources of ignition can result in a fire or an explosion. This can lead to severe burns or death.

- Eliminate possible sources of ignition, such as furnaces, hot water boilers with gas, gas dryers, etc.

Store the product and its accessories in a dark, dry and frost-free place that is inaccessible to children.

The optimum storage temperature is between 5^ C and 30^ C.

Store the product in its original packaging.

Cover the product to protect it from dust or moisture. Store the operating manual with the product.

14.1 Preparation for storage

• Never store the product with fuel in the tank inside a building in which fuel vapours may come into contact with naked flames or sparks.
• Allow the engine to cool down before parking the product in enclosed spaces.
• Clean and maintain the product before storage.
• In order to avoid fire hazards, keep the engine, exhaust pipe and the area around the fuel tank free of grass, leaves and leaking grease (oil).
• Outdoor storage is not advisable. Also secure the product from unauthorised access.

Tool required:

- Collection bucket*

- Fuel extraction pump*

14.1.1 Drain fuel with a petrol extraction pump (Fig. 5)

In case of storage over a longer period of time, the fuel must be drained.

1. Hold a collection bucket under the hose on the fuel extraction pump.
2. Unscrew and remove the fuel filler cap (8).
3. Push the fuel extraction pump's hose into the fuel tank (9) and use the fuel extraction pump to drain the fuel completely.
4. Retighten the fuel filler cap (8).

15 Repair and ordering spare parts

After repairs or maintenance, make sure that all safety-related parts are installed and are in perfect condition. All parts which may cause injury must be kept where they are inaccessible to children or others.

ATTENTION

According to the German Product Liability Act, no liability is accepted for damage caused by improper repairs or by not using original spare parts.

Such work should be performed by a customer service centre or an authorised specialists. The same applies to accessory parts.

Spare parts and accessories can be obtained from our Service Centre. To do this, scan the QR code on the front page.

NOTE

Important note in the case of repairs

When returning the product for repair, for safety reasons, ensure that it is free of oil and fuel when it is sent to the service centre.

15.1 Ordering spare parts

Please provide the following information when ordering spare parts:

• Model designation
• Item number
• Type plate data

15.2 Service information

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.

Wearing parts*: Spark plug, air filter

* = may not be included in the scope of delivery!

16 Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

You can find out how to dispose of the disused device from your local authority or city administration.

Fuels and oils

• Before disposing of the product, the fuel tank and the engine oil tank must be emptied!
• Fuel and engine oil do not belong in household waste or drains, but must be collected or disposed of separately!
• Empty oil and fuel tanks must be disposed of in an environmentally friendly manner.

17 Troubleshooting

The following table shows fault symptoms and describes remedial measures in the event of your product failing to work properly. If you cannot localise and rectify the problem with this, please contact your service workshop.

Fault Possible cause Remedy
The product cannot be started Air filter dirty.	Dirty. Clean/replace the air filter.
	Missing fuel supply. Check that there is sufficient fuel in the tank and refuel if necessary.
	Fault in the fuel line. Check the fuel line for kinks or damage.
	Contaminated spark plug that is too wet due to excess fuel.	Remove spark plug, clean and dry; then pull the starter cable several times; reinsert the spark plug.
	Spark plug connector not plugged in.	Check that the spark plug connector is properly seated.
	No ignition spark.	Check that the spark plug connector is properly seated.
		Check the spark plug for dirt and the correct electrode gap.
		Check ignition cable for damage.
		Contact the service point.
	Engine defective.	Contact the service point.
	Carburettor defective.	Contact the service point.
The product starts up and then immediately shuts down.	Incorrect carburettor setting (idle speed).	Setting the idling speed
		Contact the service point.
Engine runs unsteadily	Incorrect carburettor setting.	Setting the idling speed
		Contact the service point.
	Air filter dirty	Clean or replace the air filter.
	Spark plug dirty	Clean or replace the spark plug.
Smoke is produced	Incorrect fuel mixture.	Use two-stroke mixture with the mixing ratio of 40:1.
	Incorrect carburettor setting.	Contact the service point.
Product does not work at full power	Air filter dirty. Clean or replace the air filter.
	Spark plug dirty	Clean or replace the spark plug.
	Incorrect carburettor setting.	Contact the service point.

18 EU Declaration of Conformity

Translation of the original Declaration of Conformity

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

We declare under our sole responsibility that the product described here complies with the applicable directives and standards.

Brand: SCHEPPACH

Art. designation: Backpack leafblower – LB5200BP

Item No. 5911103903

EU directives:

2014/30/EU, 2006/42/EC, 2000/14/EG_2005/88/EC, 2016/1628/EU, 2011/65/EU*,

* The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Applied standards:

EN 15503:2009+A2:2015, EN ISO 14982:2009

2016/1628/EU

Emission. No: e24*2016/1628*2017/656SHB1/P*0101*00

Documentation authorised representative:

Andreas Pecher

Günzburger Str. 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Sommaire

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Günzburger Straße 69

D-89335 Ichenhausen

2014/30/UE, 2006/42/UE, 2000/14/CE_2005/88/CE, 2016/1628/UE, 2011/65/EU*,

Division Manager Product Center

Head of Project Management

Indice

Günzburger Straße 69

D-89335 Ichenhausen, Germania

Egregio cliente,

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Inhoudsopgave

Günzburger Straße 69

D-89335 Ichenhausen

Geachte klant,

10.2 Stationair instellen (afb. 7)

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Índice

Günzburger Straße 69

Günzburger Straße 69

D-89335 Ichenhausen

2014/30/UE, 2006/42/UE, 2000/14/CE_2005/88/CE, 2016/1628/UE, 2011/65/UE*,

Division Manager Product Center

Andreas Pecher

Head of Project Management

Índice

Günzburger Straße 69

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Obsah

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazníku,

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Obsah

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazník,

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Tartalomjegyzék

Günzburger Straße 69

D-89335 Ichenhausen

Tisztelt Ügyfelünk!

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Spis treści

Günzburger Straße 69

D-89335 Ichenhausen

Szanowny Kliencie

Günzburger Straße 69

D-89335 Ichenhausen

2014/30/UE, 2006/42/UE, 2000/14/WE_2005/88/WE, 2016/1628/UE, 2011/65/UE*,

Division Manager Product Center

Andreas Pecher

Head of Project Management

Popis sadržaja

1 Uvod.... 160
2 Opis proizvoda (sl. 1-10).... 161
3 Opseg isporuke (sl. 1, 2).... 161
4 Namjenska uporaba.... 161
5 Sigurnosne napomene.... 162
6 Raspakiravanje 165
7 Tehnički podatci 165
8 Montaža 165
9 Prije stavljanja u pogon.... 166
10 Rukovanje 167
11 Napomene za rad.... 169
12 Čišćenje i održavanje.... 169
13 Transport.... 170
14 Skladištenje.... 170
15 Popravak i naručivanje rezervnih dijelova..... 170
16 Zbrinjavanje i recikliranje.... 171
17 Otklanjanje neispravnosti.... 171
18 EU izjava o sukladnosti.... 172
19 Povećani crtež.... 347

Günzburger Straße 69

D-89335 Ichenhausen

Poštovani kupče

Želimo vam mnogo zadovoljstva i uspjeha prilikom rada s novim proizvodom.

Napomena:

Prema važećem njemačkom Zakonu o odgovornosti za proizvode, proizvođač ovog proizvoda ne odgovara za štete koje nastanu na ovom proizvodu ili koje ovaj proizvod uzrokuje u slučaju:

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Kazalo

1 Uvod.... 173
2 Opis izdelka (sl. 1–10).... 174
3 Obseg dostave (sl. 1, 2).... 174
4 Namenska uporaba.... 174
5 Varnostni napotki 175
6 Razpakiranje 178
7 Tehnični podatki.... 178
8 Montaža 178
9 Pred zagonom.... 179
10 UPRAVLJANJE.... 180
11 Delovna navodila.... 181
12 Čiščenje in vzdrževanje 182
13 Prevoz.... 183
14 Skladiščenje.... 183
15 Popravila in naročanje rezervnih delov ..... 183
16 Odlaganje med odpadke in reciklaža.... 183
17 Pomoč pri motnjah 184
18 EU izjava o skladnosti.... 185
19 Eksplozijska risba.... 347

Razlaga simbolov na izdelku

Günzburger Straße 69

D-89335 Ichenhausen

Spoštovani kupec,

Želimo vam veliko veselja in uspeha pri delu z vašim novim izdelkom.

Napotek:

Proizvajalec tega izdelka skladno z veljavnim zakonom o odgovornosti za izdelke ne jamči za poškodbe na tem izdelku ali poškodbe s tem izdelkom, do katerih pride pri:

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Sisukord

Günzburger Straße 69

D-89335 Ichenhausen

Austatud klient!

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Turinys

Günzburger Straße 69

D-89335 Ichenhausen

Gerbiamas kliente,

Günzburger Straße 69

D-89335 Ichenhausen

2014/30/ES, 2006/42/EB, 2000/14/EB_2005/88/EB, 2016/1628/ES, 2011/65/ES*,

Division Manager Product Center

Andreas Pecher

Head of Project Management

Satura rādītājs

Günzburger Straße 69

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Günzburger Straße 69

D-89335 Ichenhausen

Bästa Kund!

Günzburger Straße 69

Division Manager Product Center

Andreas Pecher

Head of Project Management

Sisällysluettelo

Günzburger Straße 69

D-89335 Ichenhausen

Arvoisa asiakas

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Indholdsfortegnelse

Günzburger Straße 69

D-89335 Ichenhausen, Tyskland

Kære kunde

Günzburger Straße 69

D-89335 Ichenhausen, Tyskland

Division Manager Product Center

Andreas Pecher

Head of Project Management

Innholdsfortegnelse

Günzburger Straße 69

D-89335 Ichenhausen

Kjære kunde

Fare for forgiftning!

10.2 Stille inn tomgang (fig. 7)

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Head of Project Management

Съдържание

Günzburger Straße 69

D-89335 Ichenhausen, Германия

Уважаеми клиенти,

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Head of Project Management

Günzburger Straße 69

D-89335 Ichenhausen

Αξιότιμε πελάτη

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Cuprins

Günzburger Straße 69

D-89335 Ichenhausen

Stimate client

Günzburger Straße 69

D-89335 Ichenhausen

2014/30/UE, 2006/42/UE, 2000/14/CE_2005/88/CE, 2016/1628/UE, 2011/65/UE*,

Division Manager Product Center

Andreas Pecher

Head of Project Management

Sadržaj

1 Uvod....321
2 Opis proizvoda (sl. 1-10).... 322
3 Opseg isporuke (sl. 1, 2).... 322
4 Namenska upotreba.... 322
5 Sigurnosne napomene.... 323
6 Raspakivanje....326
7 Tehnički podaci 326
8 Montaža 327
9 Pre stavljanja u pogon.... 327
10 Rukovanje 329
11 Radna uputstva.... 330
12 Čišćenje i održavanje.... 330
13 Transport.... 331
14 Skladištenje.... 331
15 Popravka i naručivanje rezervnih delova ...... 332
16 Odlaganje na otpad i reciklaža.... 332
17 Pomoć za otklanjanje smetnji.... 332
18 EU izjava o usaglašenosti.... 333
19 Znak eksplozije 347

Günzburger Straße 69

D-89335 Ichenhausen

Poštovani kupče

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

İçindekiler

Günzburger Straße 69

D-89335 Ichenhausen

İthalatçı:

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

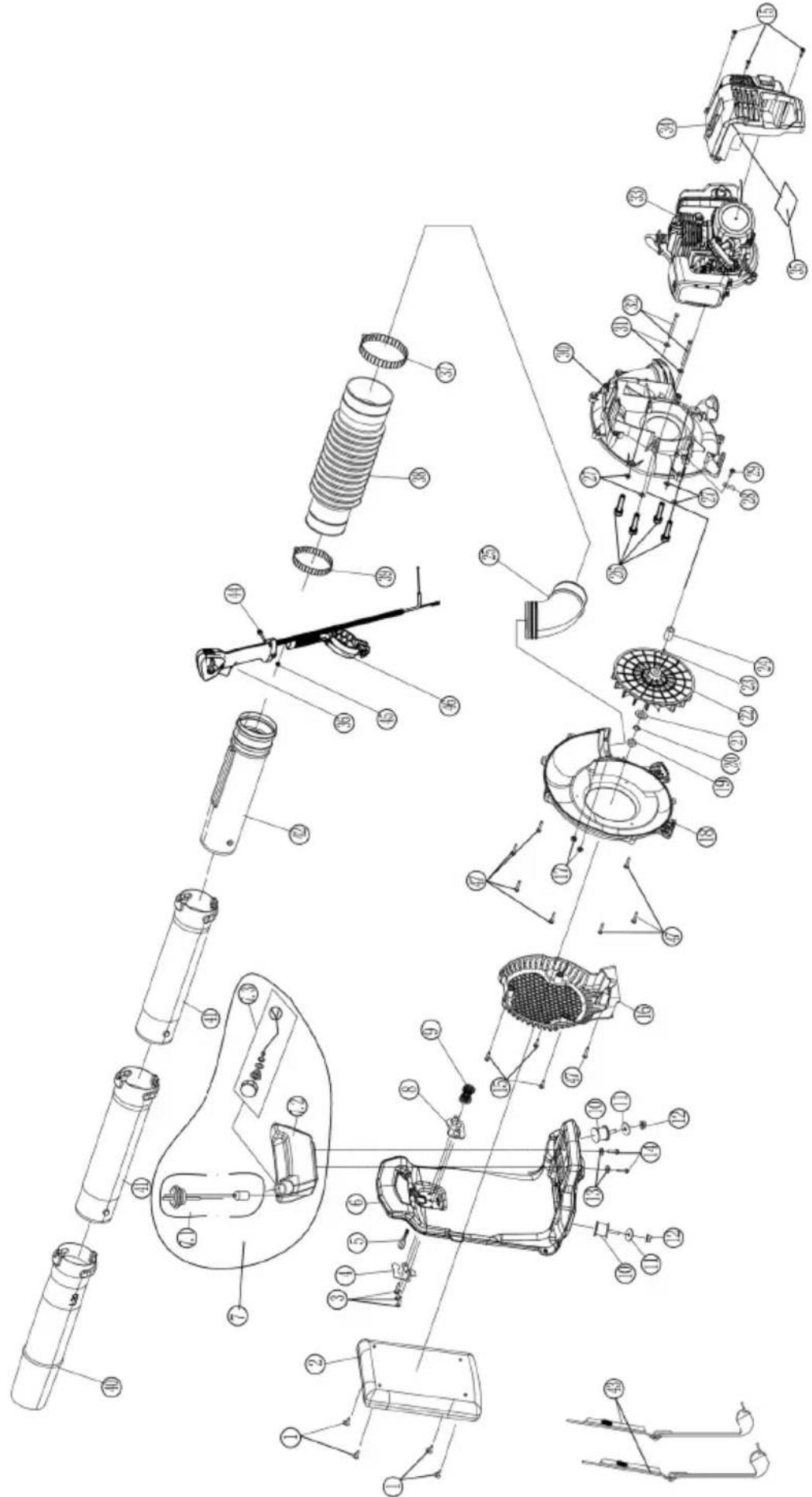

Exploded view diagram of a mechanical assembly with numbered components and exploded views

Exploded view diagram of a mechanical assembly with numbered parts for identification

Garantie DE

Obvious defects must be reported within 8 days after receipt of the goods, otherwise the purchaser loses all claims due to such defects. We guarantee our machines, if handled correctly, for the duration of the statutory warranty period from handover in such a way that we will replace free of charge any machine part that demonstrably becomes unusable within this period as a result of material or manufacturing defects. For parts that we do not manufacture ourselves, we only provide a warranty to the extent that we are entitled to warranty claims against the upstream suppliers. The purchaser shall bear the costs of fitting the new parts. Claims for conversion and reduction and other claims for damages are excluded.

Garantie FR
