Product type	Battery charger for Husqvarna Li-ion batteries
Brand	Husqvarna
Model (charger)	40-C80 / QC250
Compatible battery models	BLi10, BLi20, BLi30
Input voltage	100–240 V
Frequency	50–60 Hz
Output voltage	36 V
Output power	80 W (model 40-C80) / 250 W (QC250)
Battery type	Li-ion 36 V
LED indicator	Yes, for charge status and warnings
Protection	Against overheating, overcharging and short circuits
Operating temperature (charger)	5 °C to 40 °C
Operating temperature (battery)	−10 °C to 40 °C
Weight (approx.)	Approximately 0.5 kg
Dimensions (approx.)	Approximately 15 x 8 x 5 cm
Main features	Fast charging, status indicator, Husqvarna Connect compatibility
Maintenance and cleaning	Clean terminals with a dry cloth, keep dry
Safety instructions	Do not expose to water, do not use damaged battery, keep out of reach of children
General information	Use only with chargers 40-C80 or QC250; software-coded battery

Frequently Asked Questions - BLi30 HUSQVARNA

How to charge the Husqvarna BLi30 battery?

Connect the charger to a power outlet (100-240 V). Insert the battery into the charger. The charging LED lights up. Once the battery is fully charged (all indicators lit), remove it from the charger. Unplug the charger by pulling on the plug, not the cable.

What do the LEDs on the battery mean?

The BLi30 battery has 4 LEDs: 4 lit = 76-100%, 3 = 51-75%, 2 = 26-50%, 1 = 6-25%, 1 flashing = 0-5%. The warning LED flashes in case of too high/low temperature or empty battery.

What is the ideal charging temperature?

The charger must be used between 5 °C and 40 °C. The battery will not charge if its temperature exceeds 50 °C. Use the battery between -10 °C and 40 °C.

Can I leave the battery on the charger permanently?

No, remove the battery from the charger when fully charged. Do not store it in the charger to avoid any risk of degradation.

How to clean the battery and charger?

Clean the terminals with a clean, dry cloth. Keep the battery and charger clean and dry. Do not expose them to water or rain.

What to do if the battery warning LED flashes?

This indicates a temperature deviation: the battery is too cold or too hot. Let it cool down or warm it to room temperature (5-40 °C). If the LED stays on continuously, it is a permanent error; contact your dealer.

How to store the battery and charger for an extended period?

Remove the battery from the product and the charger. Charge it between 30% and 50%. Store it away from frost, humidity and direct sunlight, between 5 °C and 25 °C. Store the charger in a dry, enclosed room between 5 °C and 45 °C.

Which Husqvarna batteries are compatible with this charger?

This charger (40-C80 or QC250) is compatible with original Husqvarna batteries BLi10, BLi20 and BLi30 (36 V Li-ion). Do not use other batteries.

How to dispose of the battery and charger?

Do not dispose of them in household waste. Take them to a collection point for electrical and electronic equipment (store, recycling center). Follow local regulations.

What to do in case of malfunction of the charger or battery?

Consult the troubleshooting guide in the manual: check the temperature, cleanliness of terminals, and charge status. If the problem persists, contact a Husqvarna authorized service center. Do not attempt to repair yourself.

USER MANUAL BLi30 HUSQVARNA

EN Operator's manual 4-9

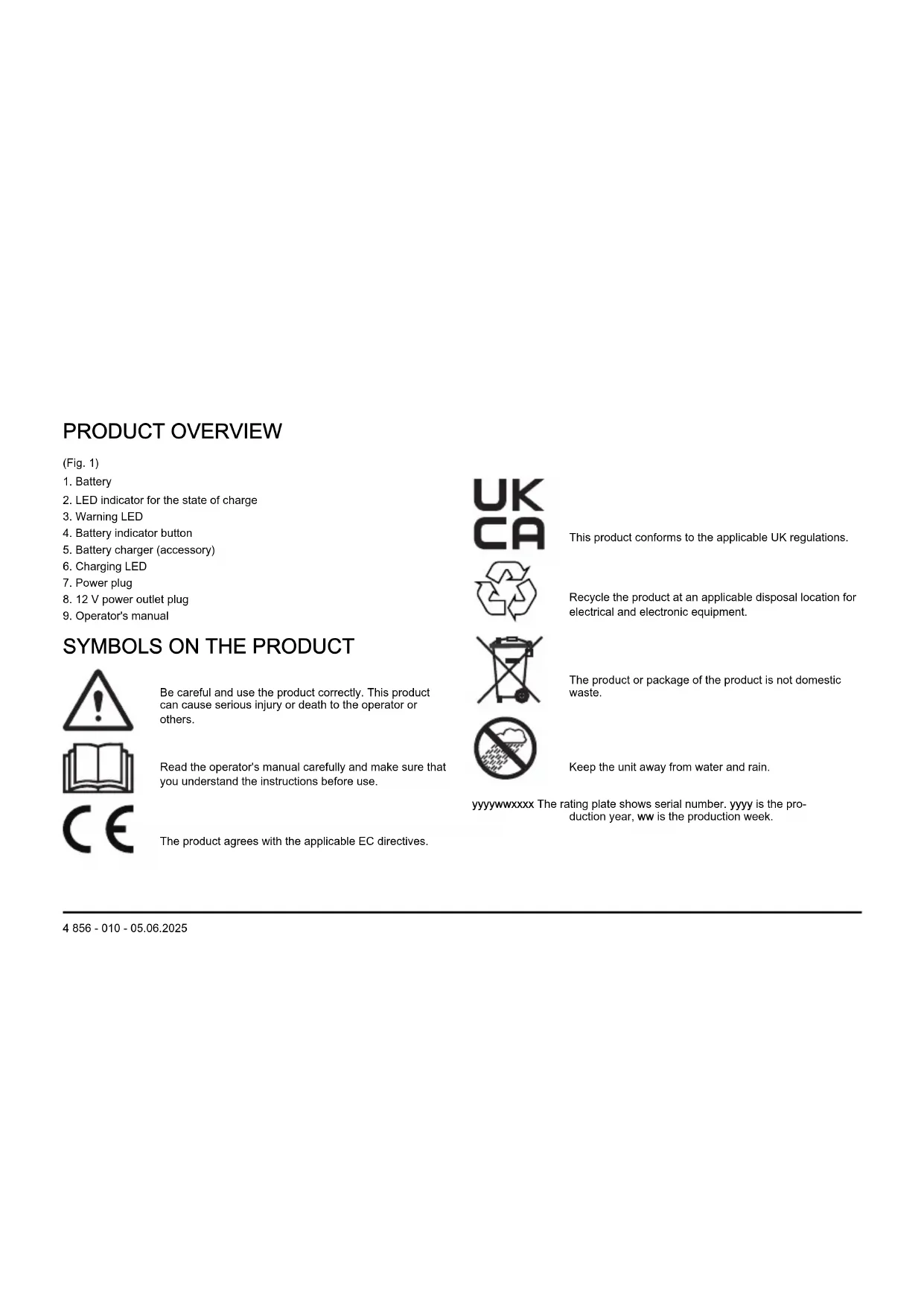

1. Battery
2. LED indicator for the state of charge
3. Warning LED
4. Battery indicator button
5. Battery charger (accessory)
6. Charging LED
7. Power plug
8. 12 V power outlet plug
9. Operator's manual

SYMBOLS ON THE PRODUCT

! CE

Be careful and use the product correctly. This product can cause serious injury or death to the operator or others.

Read the operator's manual carefully and make sure that you understand the instructions before use.

The product agrees with the applicable EC directives.

This product conforms to the applicable UK regulations.

Recycle the product at an applicable disposal location for electrical and electronic equipment.

The product or package of the product is not domestic waste.

Keep the unit away from water and rain.

yyyyMMddxxxx The rating plate shows serial number. yyyy is the production year, ww is the production week.

Note: Other symbols/decals on the product refer to certification requirements for some commercial areas.

Product damage

We are not responsible for damages to our product if:

• the product is incorrectly repaired.
- the product is repaired with parts that are not from the manufacturer or not approved by the manufacturer.
- the product has an accessory that is not from the manufacturer or not approved by the manufacturer.
- the product is not repaired at an approved service center or by an approved authority.

Support

For support about the product, go to the Support section on to access instructions, troubleshooting guides, or to use the Husqvarna Self-Service and the Product Assistant (if available in your market). For more support about the product, speak to your Husqvarna servicing dealer.

SAFETY DEFINITIONS

Warnings, cautions and notes are used to point out specially important parts of the manual.

WARNING: Used if there is a risk of injury or death for the operator or bystanders if the instructions in the manual are not obeyed.

CAUTION: Used if there is a risk of damage to the product, other materials or the adjacent area if the instructions in the manual are not obeyed.

Note: Used to give more information that is necessary in a given situation.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: Read all safety warnings and all instructions. Failure to obey the warnings and instructions may result in electrical shock, fire and/or serious injury.

Note: Save all warnings and instructions.

• Only use the battery chargers, 40-C80 or QC250 to charge Husqvarna original batteries. The batteries are software encrypted.
• Only use the BLi10, BLi20, BLi30 batteries as a power supply for the related Husqvarna products. To prevent injury, do not use the battery as a power supply for other devices.
• Do not try to disassemble or repair the battery. All repairs is to be done by an approved dealer only.
• Keep the battery away from sunlight, heat or open flame. The battery can cause burns and/or chemical burns.
• Do not use a damaged battery or battery charger.
• Do not cause mechanical shock to the battery.

• Do not remove the battery from its package until you are to use it.

• Do not let battery acid touch your skin. Battery acid causes injuries to the skin, corrosion and burns. If you get battery acid in your eyes, do not rub but flush with water for a minimum of 15 minutes. If battery acid has touched your skin, you must clean the skin with a large quantity of water and soap. Get medical aid.

• Keep the battery away from children.
• Keep the battery clean and dry.
• Clean the battery terminals with a clean dry cloth if they become dirty.
• Do not keep the battery in the battery charger when it is fully charged.
• Remove the battery from the product when you do not use it and during transportation.
• Keep batteries in storage away from metal objects such as nails, screws or jewelry.

OPERATION

• The battery must be charged before you use it for the first time. Always use Husqvarna 40-C80 or QC250 battery charger.
• Use the battery only when the ambient temperature is between -10^ (14°F) and 40^ (104°F).
• Use the battery charger only when the ambient temperature is between 5^ (41°F) and 40^ (104°F).
• The battery will not charge if the battery temperature is more than 50^ C (122 ° F).
• Push the battery indicator button to get information of the state of charge of the battery.

To charge the battery

CAUTION: Make sure that the battery, the battery charger and the terminals on the battery are clean and dry. Do not put the battery in the battery charger if it is dirty or wet.

1. Connect the battery charger to a power outlet. The charging LED flashes 1 time.

CAUTION: Only connect the battery charger to a power outlet with the voltage and frequency specified on the rating plate.

1. Connect the battery to the battery charger. The charging LED comes on.
2. Remove the battery from the battery charger when it is fully charged. Push the battery indicator button for battery status. When all the LED indicators come on, the battery is fully charged.
3. Pull the power plug to disconnect the battery charger from the power outlet. Do not pull the power cord.

Battery LED indicator

The display shows the state of charge and if there are problems with the battery.

LED indicator Battery status (state of charge)
	BLi10, BLi20 BLi30
4 LED lights are on N/A The battery is 76% -	100% charged.
3 LED lights are on The battery is 76% - 100%	charged. The battery is 51% - 75% charged.
2 LED lights are on The battery is 51% - 75%	charged. The battery is 26% - 50% charged.
1 LED light is on The battery is 26% - 50% charged.	The battery is 6% - 25% charged.
1 LED light flashes The battery is 0% - 25% charged.	The battery is 0% - 5% charged.

Husqvarna Connect

Husqvarna Connect is a free app for your mobile device. The Husqvarna Connect app gives extended functions for your Husqvarna product.

• Extended product information.
  • Information about, and help with, product parts and servicing.

To start to use Husqvarna Connect

1. Download the Husqvarna Connect app on your mobile device.

2. Register in the Husqvarna Connect app.

3. Follow the instruction steps in the Husqvarna Connect app to connect and register the product.

Note: Husqvarna Connect app is not available for download in all markets. Speak to your servicing dealer for more information.

TROUBLESHOOTING

Condition Possible faults Possible procedure
The battery warning LED flashes. Temperature deviation, the battery is too cold or too hot to use.		Let the battery cool down or move it indoors to warm it up. When the battery has the correct temperature, it can be used again. The battery will not charge if the battery temperature is more than 50 °C (122 °F).
		Use the battery in ambient temperatures between -10 °C (14 °F) and 40 °C (104 °F).
		Use the battery charger in ambient temperatures between 5 °C (41 °F) and 40 °C (104 °F).
		The battery is empty. Charge the battery.
The battery warning LED comes on. Permanent battery error. Speak to your dealer.

Transportation and storage

• The supplied Li-ion batteries obey the Dangerous Goods Legislation requirements.
• Obey the special requirement on package and labels for commercial transportation, including by third parties and forwarding agents.
• Speak to a person with special training in dangerous material before you send the product. Obey all applicable national regulations.
• Use tape on open contacts when you put the battery in a package. Put the battery in the package tightly to prevent movement.

• Remove the battery for storage or transportation.

• Put the battery and the battery charger in a space that is dry and free from moisture and frost.

• Do not keep the battery in an area where static electricity can occur. Do not keep the battery in a metal box.
• Put the battery in storage where the temperature is between 5^ / 41^ and 25^ / 77^ and away from open sunlight.
• Put the battery charger in storage where the temperature is between 5 °C/41 °F and 45°C/113°F and away from open sunlight.
• Use the battery charger only when the surrounding temperature is between 5^ / 41^ and 40^ / 104^ .

• Charge the battery 30% to 50% before you put it in storage for long periods.

• Put the battery charger in storage in a space that is closed and dry.

• Keep the battery away from the battery charger during storage. Do not let children and other not approved persons to touch the equipment. Keep the equipment in a space that you can lock.
• Clean the product and do a full servicing before you put the product in storage for a long time.
• Use the transportation guard on the product to prevent injuries or damage on the product during transportation and storage.
• Attach the product safely during transportation.

Disposal

The symbol means that the product is not domestic waste. Recycle it through your local collection system for electrical and electronic equipment.

This contributes to proper end of life waste management. Contact local authorities, domestic waste services, your dealer or retailer for information. Incorrect disposal may have potential negative effects on the environment and human health, due to the potential presence of hazardous substances.

(Fig. 1)

Note: The symbol shows on the product or package of the product.

TECHNICAL DATA

For technical data, refer to the rating plate of the battery.

Approved battery chargers

Battery charger 40-C80 QC250
Voltage, V 36 36
Input voltage, V 100-240 100-240
Frequency, Hz 50-60 50-60
Power, W 80 250
