Product type	Battery charger
Brand	Husqvarna
Model	Aspire P4A 18-C50
Compatible battery system	POWER FOR ALL 18 V (capacity ≥ 1.5 Ah)
Charging voltage	14.4 – 18 V (automatic detection)
Charging current	2.0 A
Protection class	II (double insulation)
Weight	0.21 kg (according to EPTA)
Charging temperature range	0 – 45 °C
LED indicators	Flashing green LED (charging in progress), steady green LED (battery charged or ready)
Smart functions	Automatic voltage detection, temperature- and battery state-optimized charging, charge maintenance
Usage	Indoor only, do not expose to moisture
Maintenance	Clean contacts, keep ventilation slots clear
Safety	Do not open, have repairs done by Husqvarna or an authorized service center, use original parts
Charging time (example)	Battery 1.5 Ah ≈ 49 min; 5.0 Ah ≈ 154 min
Power cable	Mains, with connector

Frequently Asked Questions - Aspire P4A 18-C50 HUSQVARNA

What types of batteries can I charge with the Aspire P4A 18-C50 charger?

This charger is designed to charge rechargeable batteries of the POWER FOR ALL 18 V system with a capacity of at least 1.5 Ah. Never charge non-rechargeable batteries.

What does the flashing green LED mean?

The flashing green LED indicates that the charging process is in progress. The battery is being charged.

What does the steady green LED mean?

A steady green LED means that the battery is fully charged or that its temperature is outside the allowed range (0–45 °C). Without a battery, it indicates that the charger is ready for use.

Why is my battery not charging?

Possible causes: battery not inserted properly, dirty contacts, temperature out of range (0–45 °C), defective battery or defective charger. Check insertion, clean contacts, wait for temperature to return, or contact customer service.

Can I leave the battery in the charger after charging?

Yes, the charger maintains the battery at maximum charge level without overcharging thanks to the intelligent electronics.

How to clean the charger?

Disconnect the charger and clean it with a dry cloth. Ensure that the ventilation slots and contacts are free of dirt. Do not use water.

Can I use the charger outdoors?

No, the charger must only be used in indoor areas and must not be exposed to rain or moisture.

What to do if the charger overheats?

Do not cover the ventilation slots. Heating during normal use is harmless. If the charger becomes very hot, unplug it and let it cool down. If the problem persists, contact customer service.

What is the charging time for a 5.0 Ah battery?

The approximate charging time for a 5.0 Ah battery is about 154 minutes.

Where can I get my charger repaired?

Repairs must be carried out by Husqvarna or an authorized service center. Do not open the charger yourself.

USER MANUAL Aspire P4A 18-C50 HUSQVARNA

P4A 18-C50

EN Operator's ManualBattery Charger		CS Návod k obsluzeNabíječka akumulátorů
DE BetriebsanleitungLadegerät		SK Návod na obsluhuNabíjačka akumulátorov
FR Mode d'emploiChargeur de batterie		HU Használati utasításAkkumulátortöltő
ES Instrucciones de empleoCargador de batería		KK Оператор нускаулығыЗарядтағыш құрылғы
PT Manual de instruçõesCarregador de bateria		RO Instructiuni de utilizareÎncărcător de acumulatori
IT Istruzioni per l’usoCaricabatterie		BG Инструкция за експлоатацияЗарядно устройство за акумулаторни батерии
NL GebruiksaanwijzingAcculader		MK Упатство за ракувањеПолнач за батерии
DA BrugsanvisningAccu-oplader		SR Uputstvo za radPunjač za baterije
SV BruksanvisningBatteriladdare		SL Navodilo za uporaboPolnilnik akumulatorjev
NO BruksanvisningBatterilader		HR Upute za uporabuPunjač baterije
FI KäyttöohjeAkkulaturi		ET KasutusjuhendAkulaadija
EL Однүгес хрінсФортіотнє μπαταρίας		LT Eksploatavimo instrukcijaAkumuliatoriaus kroviklis
TR Kullanma KilavuzuAkü Şarj Cihazi		LV Lietošanas instrukcijaAkumulatoru lădētājs
PL Instrukcja obsługiŁadowarka akumulatorów		JA 取掇説明書取掇説明書バッテリー充電器
		UK Посібник оператораЗарядний пристрій

P4A 18-C50

English Page 4 Deutsch Seite 12 Français Page 20 Español ......Página 28 Português ......Página 36 Italiano ......Pagina 43 Nederlands....Pagina 51 Dansk Side 58 Svenska....Sidan 64 Norsk....Side 71 Suomi....Sivu 78 Ελληνικά...... Σελίδα 84 Türkçe...... Sayfa 92 Polski ...... Strona 99 Čeština ...... Stránka 107 Slovenčina ...... Stránka 114 Magyar....Oldal 122 Κασακ...... Бет 129 Română ...... Pagina 138 Български ......Страница 145 Македонски......Страница 153 Srpski....Strana 160 Slovenščina ...... Stran 168 Hrvatski....Stranica 175 Eesti......Lehekülg 182 Latviešu .... Lappuse 189 Lietuvių k. ...... Puslapis 196 日本……ページ 204 українська. Сторінки 211

English

Safety instructions

Read all the safety

and general instructions. Failure to observe the safety and general instructions may result in electric shock, fire and/or serious injury.

Store these instructions in a safe place.

Only use the charger if you can fully evaluate all functions and carry them out without restrictions, or if you have received corresponding instructions.

This charger is not intended for use by children or persons with physical,

sensory or mental limitations or a lack of experience or knowledge. This charger can be used by children aged 8 or older and by persons who have physical, sensory or mental limitations or a lack of experience or knowledge if a person responsible for their safety supervises them or has instructed them in the safe operation of the charger and they understand the associated dangers.

Otherwise, there is a risk of operating errors and injuries.

Supervise children during use, cleaning and maintenance.

This will ensure that children do not play with the charger.

Only charge 18V POWER FOR ALL system batteries with a capacity of 1.5 Ah and above. The battery voltage must match the battery charging voltage of the charger. Do not charge any non-rechargeable batteries. Otherwise there is a risk of fire and explosion.

Only use the charger in enclosed spaces and do not expose it to wet conditions. Water entering a charger increases the risk of electric shock.

Keep the charger clean. Dirt poses a risk of electric shock. Always check the charger, including the cable and plug, before use. Stop using the charger if you discover any damage. Do not open the charger yourself, and have it repaired only by Husqvarna or by an authorized after-sales service center using only original replacement parts. Damaged chargers, cables, and plugs increase the risk of electric shock.

Do not operate the charger on an easily ignited surface (e.g., paper, textiles, etc.) or in

a flammable environment. There is a risk of fire due to the charger heating up during operation.

Do not cover the ventilation slots of the charger. Otherwise, the charger may overheat and no longer function properly. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. In case of damage and improper use of the battery, vapors may also be emitted. Ensure the

area is well-ventilated and seek medical attention should you experience any adverse effects. The vapors may irritate the respiratory system.

Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help.

Liquid ejected from the battery may cause irritation or burns.

Products sold in GB only:

Your product is fitted with a BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362). If the plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in

its place by an authorized customer service agent. The replacement plug should have the same fuse rating as the original plug. The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere.

Product description and specifications

Intended use

The battery charger is intended for charging the rechargeable 18V POWER FOR ALL system batteries.

Product Features

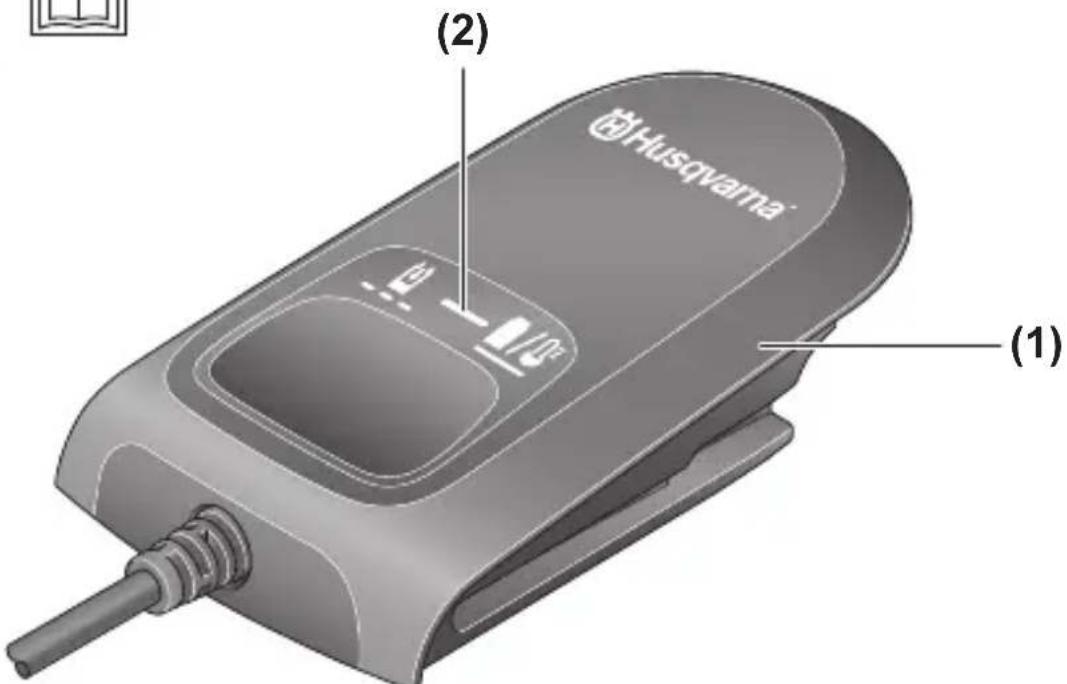

The numbering of the product features refers to the representation of the charger in the images.

(1) Charging slot (2) Green battery charge indicator

Technical Data

Battery charger P4A 18-C50
Protection class / II	☐
Charging currentA)	2,0 A
Battery charging voltage (automatic voltage detection)	14,4–18 V---
Weight according to EPTA-Procedure 01:2014	0,21 kg

A) Depends on temperature and rechargeable battery type

Charging process

▶ Pay attention to the mains voltage. The voltage of the power source must match the voltage specified on the rating plate of the charger.

Ensure that the charging bay (1) and the battery contacts are free of coarse dirt. Ensure that the battery is fully inserted.

The charging process begins as soon as the mains plug for the charger is inserted into the mains socket and the battery is inserted into the charging bay (1).

The charging process is only possible when the temperature of the battery is within the permitted charging temperature range (0–45 °C).

Thanks to the intelligent charging process, the state of charge of the battery is automatically detected and then charged up with the optimal charge current depending on battery temperature and voltage.

In this way, the battery is treated with care and remains permanently fully charged when it is stored in the battery charger. A significantly reduced operating time after charging indicates that the battery has deteriorated and must be replaced.

When the charger is used continuously, or for several consecutive charge cycles without interruption, the charger may heat up. This is, however, harmless and does not indicate that the charger has a technical defect.

Charging times

The following table displays the approximate time required in minutes in order to reach the required state of charge, depending on the battery type. The charging time depends on the battery type and the temperature.

P4A 18-C50

Rechargeable battery
1,5 Ah ≈49
2,0 Ah ≈65
2,5 Ah ≈80
3,0 Ah ≈99
4,0 Ah ≈116
4,0 Ah Power Plus ≈123
5,0 Ah ≈154
6,0 Ah ≈188

corresponds to a full state of charge

What the display elements mean

Flashing light battery charge indicator

The charging process is indicated by the flashing of the battery charge indicator (2).

Continuous light green battery charge indicator

A continuous light on the battery charge indicator (2) signals that the battery is fully charged or that the temperature of the battery is not within the permitted charging temperature range (0–45 °C), and therefore cannot be charged. The battery is charged as soon as the permitted charging temperature range is reached.

When there is no battery inserted, the continuous light of the battery charge indicator (2) signals that the mains plug is plugged into the plug socket and that the charger is ready to be used.

Troubleshooting

Battery is not being charged

Battery is not being charged and the battery charge indicator (2) is lit up continuously.

Cause: The charger has identified an internal error.

Corrective measure: Ensure that all batteries are fully inserted. Remove the mains plug and reinsert. If the error occurs again, have the charger checked by an authorized after-sales service center for Husqvarna products.

Cause: Battery temperature is outside of the charging range.

Corrective measure: Wait until the battery temperature is back within the permitted charging temperature range (0–45 °C).

Cause: Battery is not correctly inserted.

Corrective measure: Insert the battery into the charger correctly.

Cause: The battery contacts and charging contacts are dirty. Corrective measure: Clean the battery contacts and charging contacts; e.g. by inserting and removing the battery several times.

Cause: Battery defective. Corrective measure: Replace the battery.

Indicators do not light up

None of the indicators are lighting up, battery will not be charged.

Cause: Plug socket, mains cable or battery charger defective.

Corrective measure: Check the mains voltage. If necessary, have the charger checked by an authorised after-sales service centre.

Cause: Mains plug of the battery charger is not (correctly) plugged in.

Corrective measure: Plug the mains plug (fully) into the plug socket.

Maintenance and Service

Maintenance and Cleaning

In order to avoid safety hazards, if the power supply cord needs to be replaced, this must be done by Husqvarna or by an after-sales service centre that is authorised to repair Husqvarna products.

Disposal

Chargers, accessories and packaging should be recycled in an environmentally friendly manner.

Do not dispose of chargers along with household waste.

Only for EU countries:

According to the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment and its implementation into national law, chargers that are no longer usable must be collected separately and disposed of in an environmentally friendly manner.

If disposed incorrectly, waste electrical and electronic equipment may have harmful effects on the environment and human health, due to the potential presence of hazardous substances.

Only for United Kingdom:

According to The Waste Electrical and Electronic Equipment Regulations 2013 (SI 2013/3113) (as amended), products that are no longer usable must be collected separately and disposed of in an environmentally friendly manner.

German

Safety instructions

Read carefully

Read all

battery (2).

Read all

Read all safety

Read all safety

Read all safety

Read all safety

A continuous light in the battery charging indicator (2) signals that the battery is fully charged, or that the battery temperature is not within the permitted charging temperature range (0–45 °C), and therefore cannot be charged. The battery will charge as soon as the permitted charging temperature range is reached.

All safety

Read all

The charging process is indicated by the flashing of the battery charge status indicator (2).

The battery is not charging and the charge status indicator

Read all

Cause: Defective battery.

Do not dispose of

The charging process is indicated by the flashing of the battery charging indicator (2).

A continuous green light on the battery charging indicator.

A continuous light on the battery charging indicator (2) indicates that the battery is fully charged.

The battery is not charging and the battery charging indicator (2) is constantly lit.

Cause: The charger has detected an internal error.

Solution: Make sure all batteries are fully inserted. Unplug the charger from the outlet and plug it back in. If the error occurs again, take the battery to an authorized Husqvarna service center for inspection.

Cause: Battery temperature is outside the charging temperature range.

Corrective measures: Wait until the battery temperature returns to the permitted charging temperature range (0–45 °C).

Cause: Battery is not inserted correctly

Solution: Insert the battery correctly into the charger.

Cause: Battery and charger contacts are dirty

Solution: Clean the battery and charger contacts, e.g., by repeatedly inserting and removing the battery.

Cause: Battery is defective Solution: Replace the battery.

Indicators do not light up

No display lights up, the battery is not charging.

Cause: Defective socket, mains cable, or charger Solution: Check the mains voltage. An authorized customer service should check the charger if necessary.

battery (2).

The battery is not charging and the battery charging indicator (2) lights up continuously.

All safety notes and instructions must be read. Failures that may occur due to non-compliance with safety notes and instructions can cause electric shock, fire, and/or serious injuries.

Keep these instructions in a safe place.

The battery charge indicator (2) lights up continuously and signals that the battery is fully

or that the battery temperature is not within the permitted charging temperature range (0 – 45 °C) and therefore it cannot charge. The battery will start charging again once the permitted temperature range is reached.

When the battery is not inserted, the steady light of the battery charging indicator (2) signals that the power plug is connected to the socket and that the charger is ready for use.

Troubleshooting

The battery is not charging

The battery is not charging and the battery charging indicator (2) is constantly lit.

Cause: The charger has detected an internal fault.

Help: Check that all batteries are inserted fully. Pull out and reinsert the mains plug. Remove the mains plug and reinsert it. If the error persists, the charger must be checked by an authorized Husqvarna service center.

Do not dispose of chargers in household waste!

For EU countries only:

In accordance with European Directive 2012/19/EU on waste electrical and electronic equipment and its implementation in national law, unusable chargers must be collected separately and brought to an environmentally friendly recycling facility.

The battery is not being charged, and the battery charging indicator (2) is lit steadily.

Steady

Safety

and

general

notes

Read all instructions carefully.

Rechargeable battery

6.0 Ah

≈188
