IW 12" 950 18.0EC - Drill Flex - Free user manual and instructions

Product type	Cordless impact wrench
Brand	Flex
Model	IW 12" 950 18.0EC
Maximum torque	950 Nm
No-load speed (3 positions)	500 / 1000 / 2100 min⁻¹
Impact rate (3 positions)	1000 / 2000 / 2450 min⁻¹
Weight (without battery)	3.1 kg
Power source	Lithium-ion battery 18 V
Compatible batteries	AP 18.0/2.5, AP 18.0/5.0, AP 18.0/8.0 Ah
Compatible chargers	CA 10.8/18.0, CA 18.0
Sound pressure level (LpA)	83 dB(A)
Sound power level (LWA)	94 dB(A)
Vibration (screwing)	15.1 m/s² (K=1.5 m/s²)
Operating temperature	< 50 °C
Charging temperature	-10 to +40 °C
Integrated lighting	Work area LED
Torque/speed selector	3 adjustable positions
Rotation direction	Forward, stop, reverse
Motor brake	Yes
Belt clip	Included (except 3/4" models)
Bit holder	Included
Application	Professional (industry and trade)
Maintenance	Clean ventilation slots regularly
Repairs	By a Flex authorized service center
Compliance	CE (EN 62841, EU directives)

Frequently Asked Questions - IW 12" 950 18.0EC Flex

How to change the tool on the Flex IW 12" 950 18.0EC impact wrench?

To change the tool, first set the rotation direction selector to the center position (anti-start lock). Then, for models with a drive square (IW 1/2"), press the socket wrench onto the square and insert the tool. For the ID 1/4" model, pull the tool lock forward, insert the tool until it stops, then release the lock.

Which batteries are compatible with the Flex impact wrench?

The authorized batteries are the AP 18.0/2.5, AP 18.0/5.0 and AP 18.0/8.0 Ah models. Only use original Flex batteries corresponding to the 18 V voltage indicated on the rating plate.

How to select torque and speed on the impact wrench?

The impact wrench has 3 positions of torque/speed. Turn on the switch, then briefly press (approx. 0.5 s) the mode selector to switch from one position to another. The LEDs indicate the level: one LED for the lowest torque (e.g. 280 Nm at 500 min⁻¹), two LEDs for intermediate torque (700 Nm at 1000 min⁻¹), three LEDs for maximum torque (950 Nm at 2100 min⁻¹).

How to turn on the work LED light?

To turn on the LED light, set the rotation direction selector to 'forward' or 'reverse', then press the on/off switch. The light turns on and turns off automatically 10 seconds after releasing the switch.

What to do if the tool gets stuck during use?

If the installed tool gets stuck (due to overload or jamming), immediately switch off the power tool. Be prepared that high reaction torques may cause a kickback. Hold the device firmly and wait for a complete stop before removing the tool.

How to maintain the Flex impact wrench?

Regularly clean the power tool and its ventilation slots with dry compressed air. For repairs, hand over the device only to a service center authorized by Flex. Use original spare parts and follow the instructions in the manual.

Can I use this impact wrench for drilling?

This impact wrench is designed for tightening and loosening nuts and bolts, not for drilling. It is not equipped with a drill chuck. Use a suitable drill for drilling work.

What is the weight of the impact wrench without battery?

The weight of the device without battery is 3.1 kg (according to EPTA procedure 01/2003). With a 2.5 Ah battery, the total weight is approximately 3.5 kg.

How to transport the device with Lithium-ion batteries?

The equivalent lithium content of the supplied batteries is below the limits, so the device is not subject to dangerous goods regulations. In case of transporting multiple devices with batteries, inform yourself about the applicable regulations and take safety measures (appropriate packaging).

Where to find spare parts and accessories for the impact wrench?

You can find exploded views and spare parts lists on the Flex website: www.flex-tools.com. Accessories (sockets, adapters, etc.) are available in the manufacturer's catalog and from authorized dealers.

USER MANUAL IW 12" 950 18.0EC Flex

Illustration of three different types of power drillers with no visible text or symbols

de Originalbetriebsanleitung 3
en Original operating instructions 13
fr Notice d'instructions d'origine 23
it Istruzioni per l'uso originali 33
es Instrucciones de funcionamiento originales ..... 43
pt Instruções de serviço originais 53
nl Originele gebruiksaanwijzing 63
da Originale driftsvejledning 73
no Originale driftsanvisningen 83
sv Originalbruksanvisning 93
fi Alkuperäinen käyttöohjekirja 103
el Auθεντικές οδηγίες χειρισμού 113
tr Orijinal işletme kılavuzu 123
pI Instrukcja oryginalna 133
hu Eredeti üzemeltetési útmutató 143
cs Originální návod k obsluze 153
sk Originálny návod na obsluhu 163
hr Originalna uputa za rad 173
sl Izvirno navodilo za obratovanje 183
ro Instructiuni de functionare originale 193
bg Оригинално упътване за експлоатация ..... 203
ru Оригинальная инструкция по эксплуатации ..... 213
et Originaalkasutusjuhend 223
It Originali naudojimo instrukcija 233
Iv Lietošanas pamācības oriģināls 243
ar 263 ترجمة لإرشادات الأتشغيل الأصلية

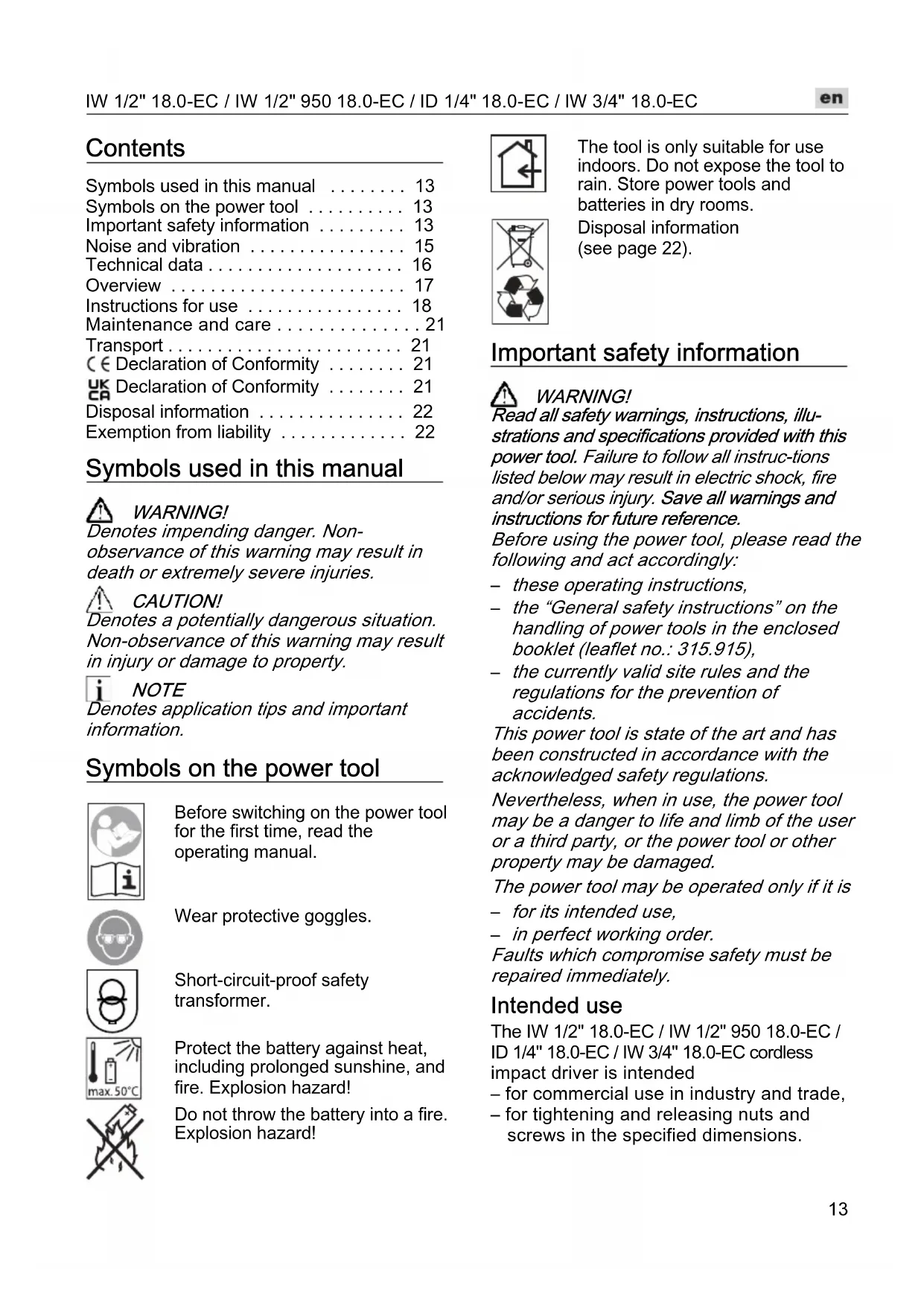

Inhalt

Verwendete Symbole 3

Symbole am Gerät 3

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 3/4" 18.0-EC IW 1/2" 950 18.0-EC

8 9 10 11 12 13 12

1 Schalter

Mechanical assembly diagram showing two views of a tool with fasteners and bolts (no text or symbols)

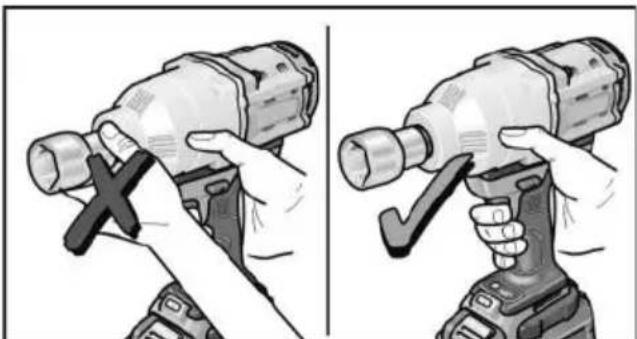

i HINWEIS

Illustration of a drill bit being inserted into a power tool, showing mechanical components and motion direction (no text or symbols)

Diagram illustrating mechanical assembly steps with labeled states and rotational indicators

Close-up of a white electric drill bit with a black plastic head and directional arrow indicator (no text or symbols on the device itself)

Gerät ausschalten:

Diagram of a drill bit being inserted into a tool, showing mechanical components and motion direction (no text or symbols)

Illustration of two hands using a drill press to adjust the drill bit (no text or symbols present)

Peter Lameli Technical Head

Bolts - y

Klaus Peter Weinper Head of Quality Department (QD)

15.12.2020

Symbols used in this manual ..... 13
Symbols on the power tool 13
Important safety information ..... 13
Noise and vibration 15
Technical data 16
Overview 17
Instructions for use 18
Maintenance and care 21
Transport 21
C ∈ Declaration of Conformity ..... 21
UK Declaration of Conformity ..... 21
Disposal information 22
Exemption from liability 22

Symbols used in this manual

WARNING!

Denotes impending danger. Non-observance of this warning may result in death or extremely severe injuries.

CAUTION!

Denotes a potentially dangerous situation. Non-observance of this warning may result in injury or damage to property.

NOTE

Denotes application tips and important information.

Symbols on the power tool

Before switching on the power tool for the first time, read the operating manual.

Wear protective goggles.

Short-circuit-proof safety transformer.

Protect the battery against heat, including prolonged sunshine, and fire. Explosion hazard!

Do not throw the battery into a fire. Explosion hazard!

The tool is only suitable for use indoors. Do not expose the tool to rain. Store power tools and batteries in dry rooms.

Disposal information (see page 22).

Important safety information

WARNING!

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

Before using the power tool, please read the following and act accordingly:

– these operating instructions,
- the "General safety instructions" on the handling of power tools in the enclosed booklet (leaflet no.: 315.915),
– the currently valid site rules and the regulations for the prevention of accidents.

This power tool is state of the art and has been constructed in accordance with the acknowledged safety regulations.

Nevertheless, when in use, the power tool may be a danger to life and limb of the user or a third party, or the power tool or other property may be damaged.

The power tool may be operated only if it is

• for its intended use,
• in perfect working order.
  Faults which compromise safety must be repaired immediately.

Intended use

The IW 1/2" 18.0-EC / IW 1/2" 950 18.0-EC / ID 1/4" 18.0-EC / IW 3/4" 18.0-EC cordless impact driver is intended

– for commercial use in industry and trade,

– for tightening and releasing nuts and screws in the specified dimensions.

Safety instructions for drills and drivers

• Hold the power tool by the insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.
  ■ Use auxiliary handles if these are supplied with the power tool. The loss of control may result in injuries.
  ■ Use suitable detectors to detect concealed power supply cables or consult your local supply company. Contact with electric cables may result in a fire and/or electric shock. A damaged gas pipe may cause an explosion. Cutting into a water pipe will cause damage to property.
  ■ Switch off the power tool immediately when the cutting accessory jams. Be prepared for high reaction torques which cause kickback. The cutting accessory jams when:

– the power tool is overloaded or

- it snags in the workpiece to be machined.

■ Maintain a firm grip on the power tool. High reaction torques can occur briefly when screws are tightened and released.
- Secure the workpiece. A workpiece is held more securely in a clamping device or vice than by hand.
■ Wait until the power tool has come to a stop before putting it down. The cutting accessory may snag, causing the operator to lose control of the power tool.
■ Use only original batteries with the voltage indicated on the type plate of your power tool. The use of other batteries, e.g. imitations, reconditioned batteries or other makes, increases the risk of injury and damage to property by exploding batteries.

Safety instructions for handling batteries

■ Do not open the battery. Short-circuiting hazard!
■ Protect the battery against heat, including prolonged sunshine, fire, water and moisture. Explosion hazard!
■ A damaged or incorrectly used battery may result in the emission of fumes. Ensure a supply of fresh air and consult a doctor in the event of any physical complications. The fumes may irritate the respiratory tracts.
- Liquid may leak out of the battery if the battery is incorrectly used. Avoid contact with such liquid. If contact accidentally occurs, rinse with water. If liquid contacts eyes, seek medical attention. Liquid discharged from the battery may cause irritation or burns.
■ Recharge batteries only with chargers recommended by the manufacturer. A charger that is suitable for one type of battery may create a fire hazard when used with another battery.
■ The battery may be damaged by pointed objects such as e.g. nails or screwdrivers or by external application of force. This may give rise to an internal short circuit, causing the battery to burn, smoke, explode or overheat.

Special safety instructions

■ Before carrying out any work on the power tool, move the direction preselector switch to the middle position.
■ Operate the direction preselector switch or torque setting turning dial only when the tool is stopped.
■ Identify the power tool with stickers only. Do not drill any holes into the housing.

Noise and vibration

NOTE

The noise and vibration values have been determined in accordance with EN 62841. The values are set out in the “Technical data” table.

WARNING!

The indicated measurements refer to new power tools. Daily use causes the noise and vibration values to change.

NOTE

The vibration emission level given in this information sheet has been measured in accordance with a measurement method standardised in EN 62841 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The specified vibration emission level represents the main applications of the tool.

However, if the tool is used for different applications, with different cutting accessories or poorly maintained, the vibration emission level may differ.

This may significantly increase the exposure level over the total working period. To make an accurate estimation of the vibration exposure level, it is also necessary to take into account the times when the tool is switched off or running but not actually in use. This may significantly decrease the exposure level over the total working period. Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the cutting accessories, keep the hands warm, organisation of work patterns.

CAUTION!

Wear ear defenders at a sound pressure above 85 dB(A).

Technical data

Tool IW 1/2"		18.0-EC	IW 1/2" 950 18.0-EC	ID 1/4" 18.0-EC	IW 3/4" 18.0-EC
Type		Impact driver	Impact driver	Impact driver	Impact driver
allowed batteries Ah		AP 18.0/2,5AP 18.0/5,0AP 18.0/8,0
allowed chargers		CA 10.8/18.0CA 18.0
Torque, max.- Hard screwdriving case Nm 250 950 225		1060
Idling speed- Stage 1- Stage 2- Stage 3	r.p.m.	150020002500	50010002100	150020002500	90010001700
Impact rate- Stage 1- Stage 2- Stage 3	r.p.m.	130028003300	100020002450	130028003300	180020002200
Weight according to “EPTA Procedure 01/2003” (without battery)	kg 1.1 3	1 1.1 3.3
Weight battery 2.5 Ah5.0 Ah8.0 Ah	kg	0.40.71.1
allowed ambient temperature- for the loading process- for operation and storage	°C -10 ...	+40<50
A-weighted sound pressure level
Sound pressure level L_pA	dB(A) 91	83	91 92.3
Sound power level L_WA	dB(A)	102 94	102	103.3
Uncertainty K	db	3.0
Overall vibration values (vector sum of three directions)
Vibration emission value a_n when ....
- screwing	m/s^2	18.5	15.1	18.5 12.4
Uncertainty K	m/s^2	1.5

Overview

Different electric power tools are described in these instructions. The illustrated electric power tool may differ in detail from the one which you purchased.

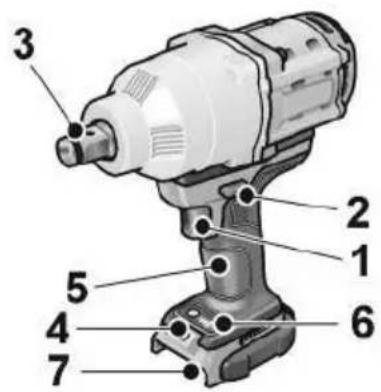

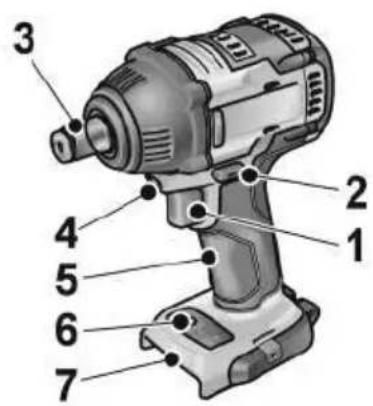

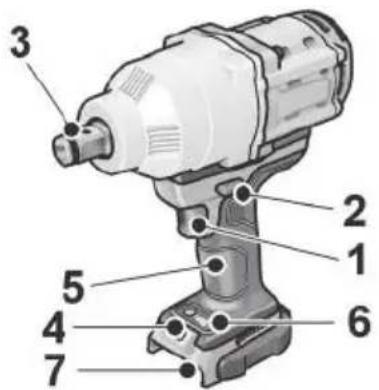

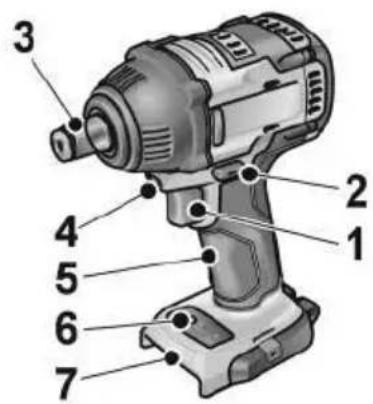

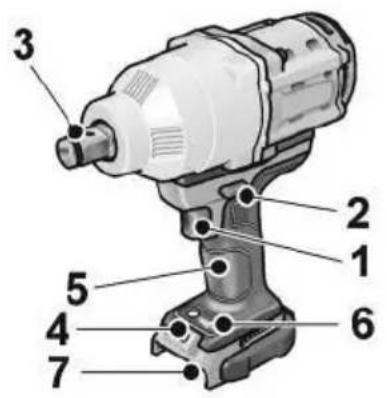

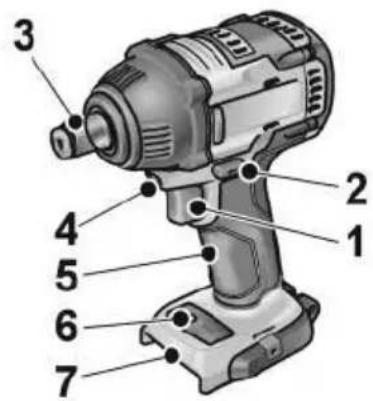

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 3/4" 18.0-EC

IW 1/2" 950 18.0-EC

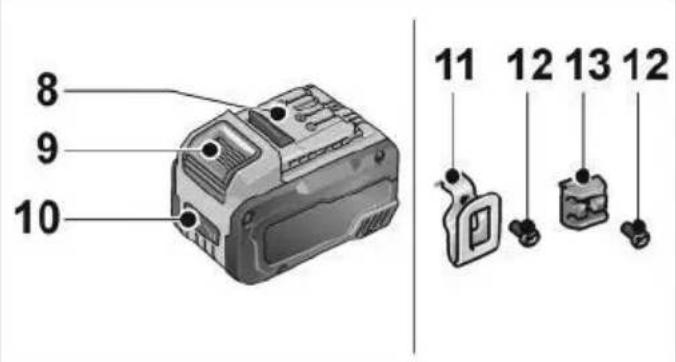

8 9 10 11 12 13 12

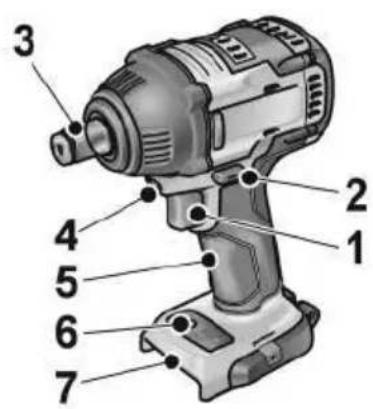

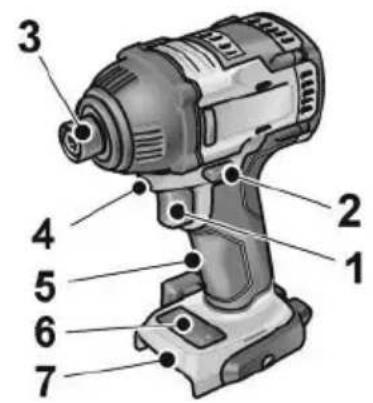

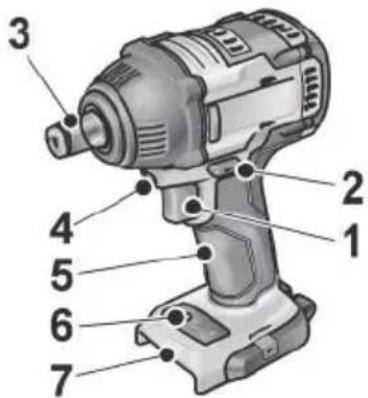

1 Trigger switch

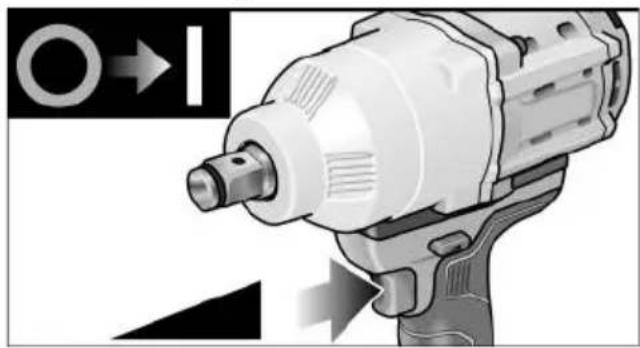

For switching on and off and for accelerating up to maximum rotational speed

2 Direction preselector switch
3 Tool holder
4 Workplace lighting
5 Handle

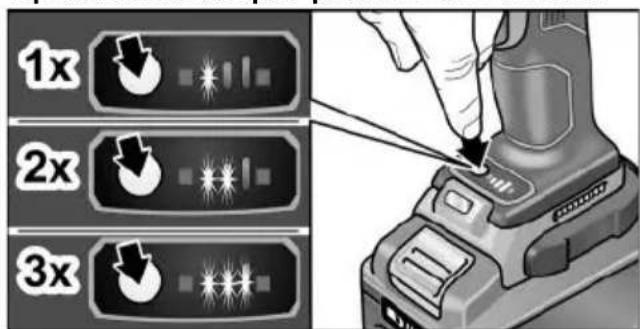

6 Speed control panel
7 Insertion slot for battery

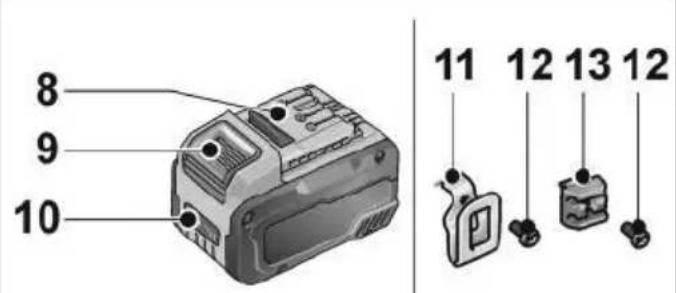

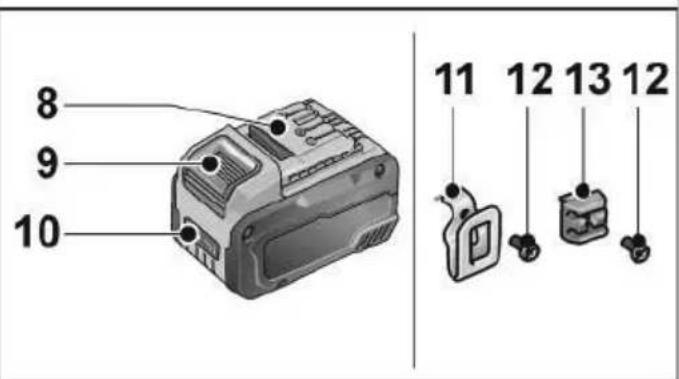

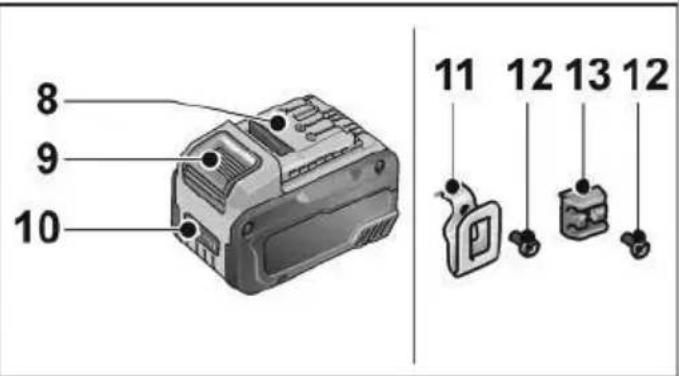

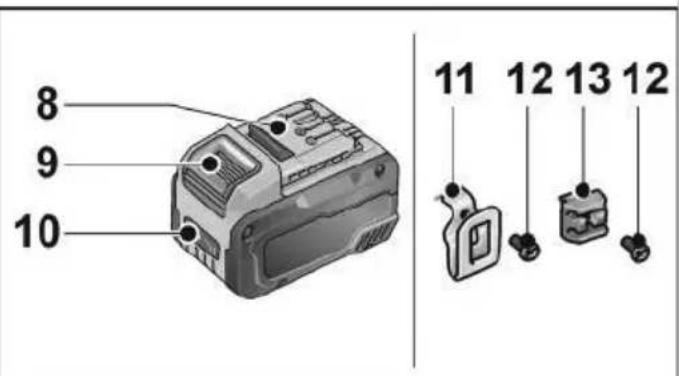

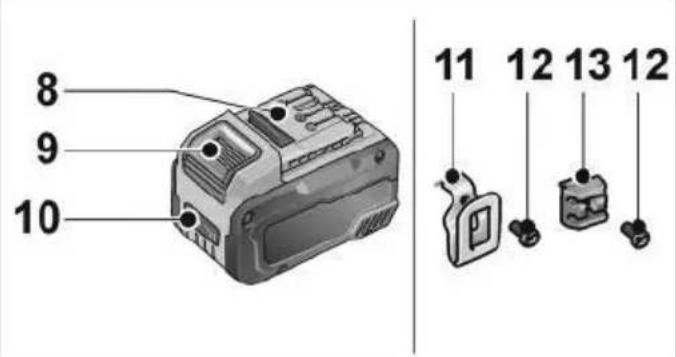

8 Li-ion battery (2.5 Ah/5.0 Ah/8.0 Ah)
9 Release button for battery
10 State of charge indicator
11 Belt clip (not for IW 3/4" 18.0-EC)
12 Fastening screw (not for IW 3/4" 18.0-EC)
13 Bit bracket (not for IW 3/4" 18.0-EC)

Instructions for use

Before initial operation

■ Unpack the power tool and accessories and check that no parts are missing or damaged.

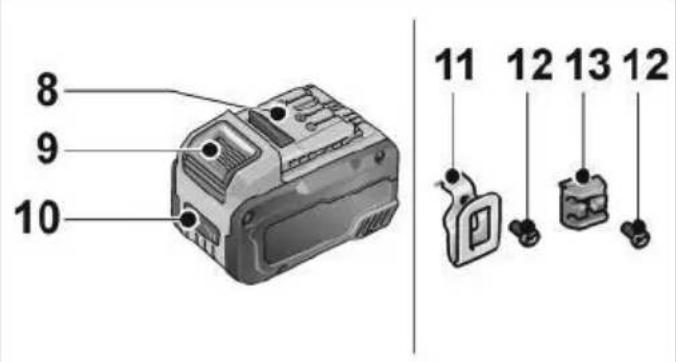

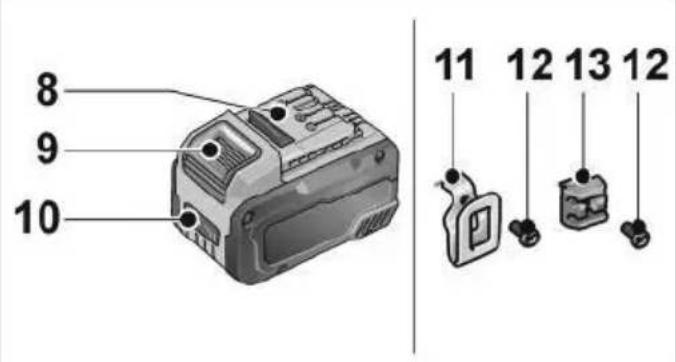

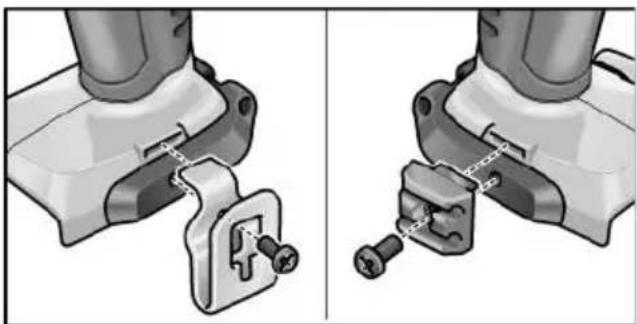

■ Attach the belt clip and bit holder with the enclosed fastening screw.

Mechanical assembly diagram showing two views of a tool with a bracket and screw base (no text or symbols)

i NOTE

The batteries are not fully charged on delivery. Prior to initial operation, charge the batteries fully. See "Charger/Charging process".

Tool change

CAUTION!

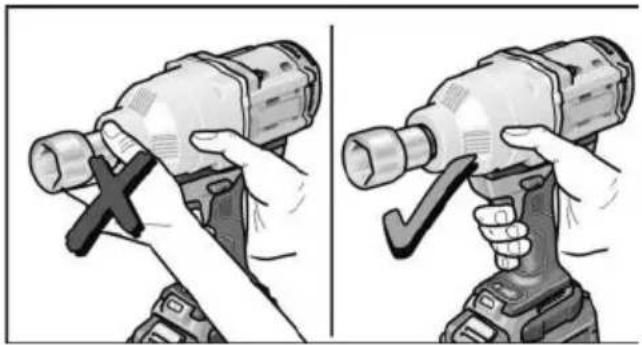

Before carrying out any work on the power tool, move the direction preselector switch (2) to the middle position.

IW 1/2" 18.0-EC / IW 1/2" 950 18.0-EC / IW 3/4" 18.0-EC:

Illustration of a drill bit being inserted into a tool, showing mechanical components and motion direction (no text or symbols)

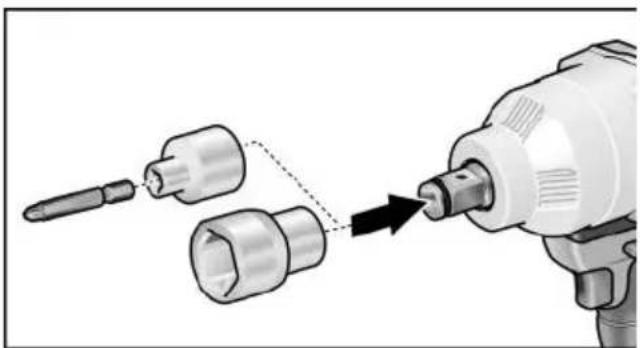

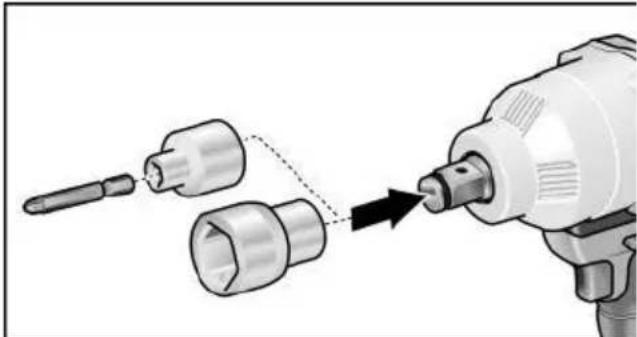

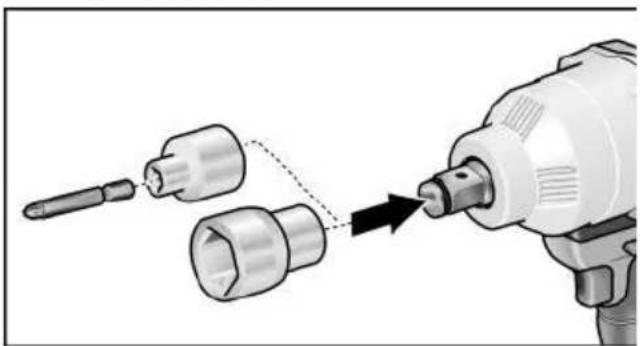

■ Push adapter on square drive of impact driver.
■ Insert tool in adapter.

ID 1/4" 18.0-EC:

1. 2. 3.

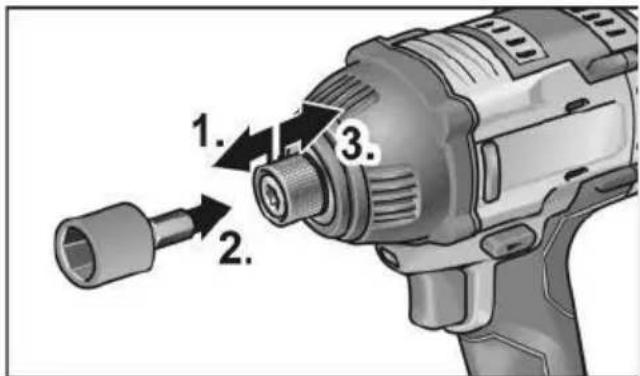

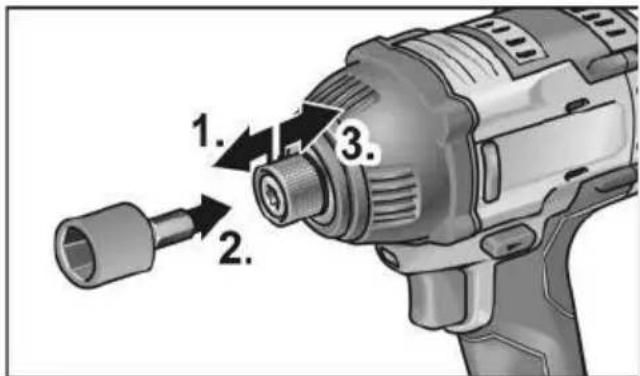

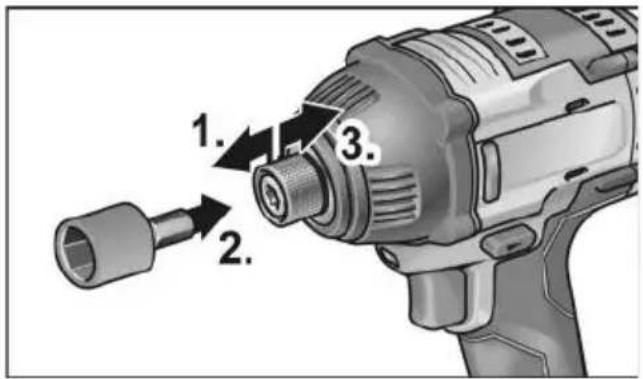

■ Pull tool lock forwards (1.) and press in the tool all the way (2.).
■ Release tool lock.
■ To remove the tool, pull tool lock backwards (3.).

Inserting/replacing the battery

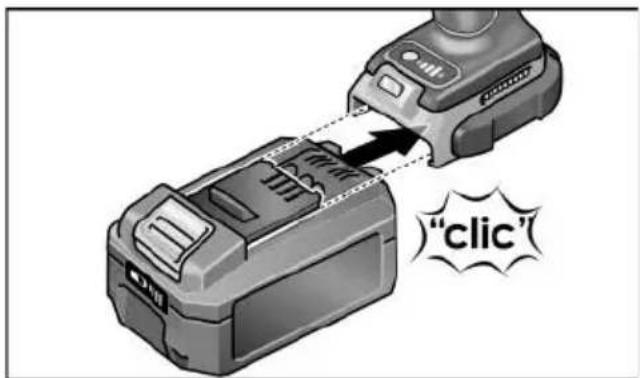

■ Press the charged battery into the power tool until it clicks into place.

"click"

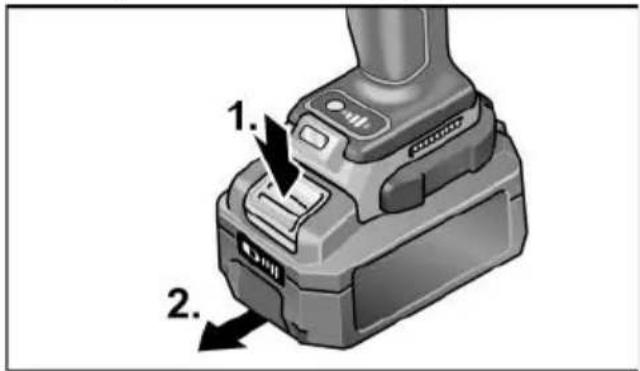

■ To remove, press the release button (1.) and pull out the battery (2.).

1. 2.

CAUTION!

Protect the battery contacts when the battery is not being used. Loose metal parts may short-circuit the contacts – Explosion and fire hazard!

Battery state of charge

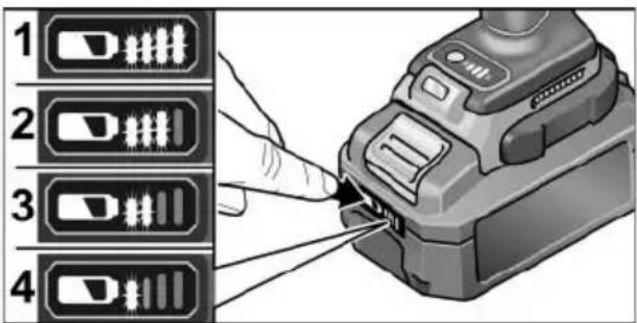

■ Press the button to check the state of charge at the state of charge indicator LEDs.

1 2 3 4

The indicator goes out after 5 seconds. If one of the LEDs flashes, the battery must be recharged. If none of the LEDs light up after the button is pressed, the battery is faulty and must be replaced.

Direction preselection

CAUTION!

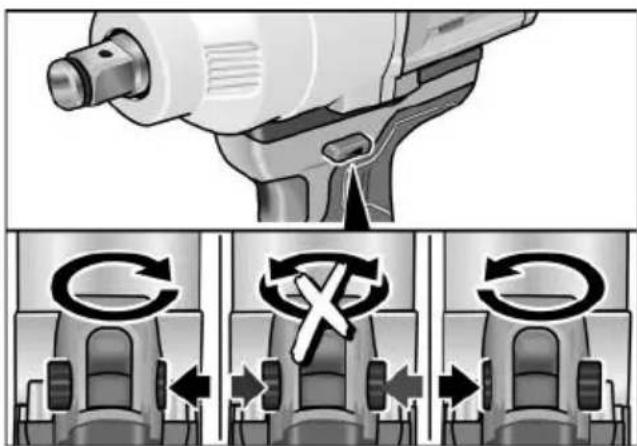

Change the direction of rotation only when the power tool is stopped.

Diagram illustrating mechanical assembly steps with labeled states and directional arrows, showing motion sequence and rotation.

■ Move the direction preselector switch to the required position:

• Left: counterclockwise (remove screws, release screws)
• Right: clockwise (drill, insert screws, tighten down screws)
• Middle: switch-on interlock (tool change, when working on the power tool)

Switching on the power tool

To switch the power tool on:

■ Press the trigger switch.

The power tool trigger switch allows the operator to increase the speed in increments up to the maximum speed.

Close-up of a white electric drill bit with a black arrow indicating tool direction (no text or symbols)

To switch the power tool off:

■ Release the trigger switch.

NOTE

• The power tool is equipped with a brake which stops the cutting accessory as soon as the trigger switch is released.
• When using the power tool continuously, the operator should work primarily with the trigger switch fully depressed.

Workplace lamp on/off switch

1. Turn direction of rotation preselector switch (2) to "Forwards" or "Reverse".
2. Press electric tool on/off switch (1)

- Workplace lamp lights up

1. Release electric tool on/off switch (1)

- Workplace lamp goes out automatically after approx. 10 sec.

Speed and torque preselector switch

1x 2x 3x

Change speed/torque

1. Activate on/off switch (1)
2. Press mode switch briefly (approx. 0.5 sec.).

- An LED lights up - torque:

IW 1/2" 18.0-EC: 1	50 Nm / 1500 rpm
IW 1/2" 95018.0-EC:	280 Nm / 500 rpm
ID 1/4" 18.0-EC: 60	Nm / 1500 rpm
IW 3/4" 18.0-EC: 30	Nm / 900 rpm

3. Press mode switch briefly

- Two LEDs light up - torque:

IW 1/2" 18.0-EC: 1	80 Nm / 2000 rpm
IW 1/2" 95018.0-EC:	700 Nm / 1000 rpm
ID 1/4" 18.0-EC: 10	5 Nm / 2000 rpm
IW 3/4" 18.0-EC:	590 Nm / 1000 rpm

4. Press mode switch briefly

- Three LEDs light up - torque:

IW 1/2" 18.0-EC: 250 Nm / 2500 rpm
IW 1/2" 95018.0-EC:	950 Nm / 2100 rpm
ID 1/4" 18.0-EC: 225 Nm / 2500 rpm
IW 3/4" 18.0-EC: 1060 Nm / 1700 rpm

5. Press mode switch briefly

- An LED lights up - torque switches back to:

IW 1/2" 18.0-EC: 150 Nm

IW 1/2" 950 18.0-EC: 280 Nm

ID 1/4" 18.0-EC: 60 Nm

IW 3/4" 18.0-EC: 300 Nm

Torque can be increased again as described.

During reverse operation of the electric tool – which only has one speed – the LEDs in the base go out automatically.

Change single impact mode to impact driver mode (ID 1/4" and IW 1/2" only)

■ Press mode switch for approx.

1.5 seconds.

• LED mode indicator lights up - single impact mode active
• LED mode indicator not lit - impact driver mode active.

Working with the power tool

CAUTION!

Before carrying out any work on the power tool, move the direction preselector switch (2) to the middle position.

NOTE

To facilitate handling of the appliance when inserting screws, the screwdriver bit can be inserted directly into the tool holder of the appliance.

Diagram of a drill bit being inserted into a tool, showing mechanical components and tool path (no text or symbols)

1. Assemble the tool head (drill chuck, angle attachment, bit holder attachment).
2. Insert the battery.
3. Insert the tool (drill bits, srewdriver bits, bit holders).
4. Set torque preselection to the required setting.
5. Set the required direction of rotation.
6. Hold the power tool with one hand on the handle and assume the working position. If the power tool is running, never actuate the direction preselector switch or torque setting turning dial.

Illustration of a hand using a drill bit to adjust the drill bit (no text or symbols present)

1. Switch on the power tool.

At the end of work:

1. Release the trigger switch.
2. Move the direction preselector switch (2) to the middle position.

Maintenance and care

Cleaning

WARNING!

If metals are worked over a prolonged period, electroconductive dust may become deposited inside the housing.

■ Clean the power tool and ventilation slots at regular intervals. Frequency of cleaning is dependent on the material machined and the duration of use.
■ Regularly blow out the housing interior and motor with dry compressed air. Keep the power tool running while doing this.

Repairs

Repairs may be carried out by an authorised customer service centre only.

Spare parts and accessories

For other accessories, in particular cutting accessories, please refer to the manufacturer's catalogues.

Exploded drawings and spare-part lists can be found on our homepage: www.flex-tools.com

Transport

The lithium equivalent content of the batteries contained in the scope of delivery is below the relevant limit values. Therefore the battery as a separate component and the power tool with its scope of delivery are not subject to national or international dangerous goods regulations. If several devices containing lithium-ion batteries are transported, these regulations may become relevant and require special safety measures (e.g. for the packaging). In this case acquaint yourself with the regulations that apply to the country of use.

CE Declaration of Conformity

We declare on our sole responsibility that the product described in “Technical data” conforms to the following standards or normative documents:

EN 62841 according to the provisions of Directives 2014/30/EU, 2006/42/EC, 2011/65/EU.

Responsible for technical documents: FLEX-Elektrowerkzeuge GmbH, R & D Bahnhofstrasse 15, D-71711 Steinheim/Murr

Peter Lameli Technical Head

Klaus Peter Weinper Head of Quality Department (QD)

15.12.2020

Declaration of Conformity

We as the manufacturer: FLEX Elektro-werkzeuge GmbH, Business address: Bahnhofstr. 15, 71711 Steinheim, Germany declare under our sole responsibility, that the product(s) described under "Technical specifications" fulfills all the relevant provisions of The Supply of Machinery (Safety) Regulations S.I. 2008/1597 and also fulfills all the relevant provisions of the following UK Regulations:

Electromagnetic Compatibility Regulations S.I. 2016/1091, The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations S.I. 2012/3032 and are manufactured in accordance with the following designated Standards: BS EN 62841-1:2015, BS EN 62841-2-2:2014, BS EN 55014-1:2017, BS EN 55014-2:2015 Place of declaration: Steinheim, Germany. Responsible person: Peter Lameli, Technical Director - FLEX-Elektrowerkzeuge GmbH

Contact details for Great Britain: FLEX Power Tools Limited, Unit 8 Anglo Office Park, Lincoln Road, HP 12, 3RH Buckinghamshire, United Kingdom.

i.v. P.Caudi Peter Lameli Technical Head Klaus Peter Weinper Head of Quality Department (QD)

19.05.2021

Disposal information

WARNING!

Render redundant power tools unusable:

• mains operated power tool by removing the power cord,
• battery operated power tool by removing the battery.

EU countries only.

Do not dispose of electric power tools in the household waste! In accordance with the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment and its incorporation into national law, used power tools must be collected separately and recycled in an environmentally friendly manner.

Raw material recovery instead of waste disposal.

Device, accessories and packaging should be recycled in an environmentally friendly manner. Plastic parts are identified for recycling according to material type.

WARNING!

Do not throw batteries into the household waste, fire or water. Do not open disused batteries.

Accumulators/batteries should be collected, recycled or disposed of in an environmentally friendly manner.

EU countries only.

In accordance with the European Directive 2006/66/EC on Waste Electrical and Electronic Equipment and its incorporation into national law, defective or used batteries must be collected separately and recycled in an environmentally friendly manner.

NOTE

Please ask your dealer about disposal options.

Exemption from liability

The manufacturer and his representative are not liable for any damage and lost profit due to interruption in business caused by the product or by an unusable product. The manufacturer and his representative are not liable for any damage which was caused by improper use of the product or by use of the product with products from other manufacturers.

Table des matières

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 3/4" 18.0-EC IW 1/2" 950 18.0-EC

8 9 10 11 12 13 12

1 Interrupteur

(2,5 Ah/5,0 Ah/8,0 Ah)

Mechanical assembly diagram showing two views of a tool with fasteners and mounting brackets (no text or symbols)

i REMARQUE

Illustration of a drill bit being inserted into a power tool, showing mechanical components and motion direction (no text or symbols)

Diagram illustrating mechanical assembly steps with labeled states and directional arrows, showing motion of a tool or device.

Close-up of a power drill with tool and directional arrow (no text or symbols)

Illustration of a drill bit being inserted into a power tool, showing mechanical components and motion direction (no text or symbols)

Illustration of two different hand-painted views of a drill press, showing tool positioning and adjustment (no text or symbols)

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

3 2 1 5 4 6 7

IW 3/4" 18.0-EC IW 1/2" 950 18.0-EC

8 9 10 11 12 13 12

1 Interruttore

Mechanical assembly diagram showing two views of a tool with fasteners and mounting brackets (no text or symbols)

i AVVERTENZA

Illustration of a drill bit being inserted into a tool, showing mechanical components and motion direction (no text or symbols)

Diagram illustrating mechanical assembly steps with labeled states C, X, and O, showing progressive deformation of a device.

Close-up of a white electric drill bit with a black plastic head and tool handle, showing motion direction (no text or symbols)

Illustration of a drill bit being inserted into a power tool, showing mechanical components and motion direction (no text or symbols)

Illustration of two hands using a drill press to lift a cylindrical tool, showing the process (no text or symbols present)

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

Labeled diagram of a power tool with numbered parts for identification

IW 3/4" 18.0-EC

IW 1/2" 950 18.0-EC

8 9 10 11 12 13 12

1 Interruptor

Mechanical assembly diagram showing a clamp and bracket component (no text or symbols visible)

Mechanical assembly diagram showing a tool interacting with a bracket and screw (no text or symbols visible)

i NOTA

Illustration of a drill bit being inserted into a power tool, showing mechanical components and tool path (no text or symbols)

Diagram showing a hand inserting a device into a device with four labeled buttons, illustrating a process or operation.

Diagram illustrating mechanical assembly steps with labeled states and directional arrows, showing motion of a tool or device.

Close-up of a white electric drill bit with a black circular icon and directional arrow (no text or symbols)

Illustration of a drill bit being inserted into a power tool, showing mechanical components and motion direction (no text or symbols)

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 3/4" 18.0-EC IW 1/2" 950 18.0-EC

8 9 10 11 12 13 12

1 Interruptor

Mechanical assembly diagram showing a tool interacting with a bracket and mounting bracket (no text or symbols visible)

Mechanical assembly diagram showing a tool interacting with a bracket (no text or symbols visible)

i INDICAÇÃO

Illustration of a drill bit being inserted into a power tool, showing mechanical components and motion direction (no text or symbols)

Diagram illustrating a mechanical device with rotation and clockwise motion, showing three sequential states of the operation.

Close-up of a white electric drill bit with a tool, showing mechanical components and motion arrows (no text or symbols)

Illustration of a drill bit being inserted into a power tool, showing mechanical components and motion direction (no text or symbols)

Illustration of a hand using a drill bit to adjust a tool, showing no text or symbols present

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

3 2 1 5 4 6 7

IW 3/4" 18.0-EC IW 1/2" 950 18.0-EC

8 9 10 11 12 13 12

1 Schakelaar

Mechanical assembly diagram showing two views of a tool with a bracket and screw base (no text or symbols)

i LET OP

Diagram showing a drill bit being inserted into a tool, with no text or symbols present.

Diagram illustrating mechanical press application and rotation mechanism in a vehicle, showing three stages of press operation with labeled arrows and a 'X' symbol.

Close-up of a power drill with tool and directional arrow (no text or symbols)

Illustration of a drill bit being inserted into a power tool, showing mechanical components and motion direction (no text or symbols)

Illustration of a hand using a drill bit to adjust the drill bit (no text or symbols present)

Peter Lameli Technical Head

B. T. - 1

Klaus Peter Weinper Head of Quality Department (QD)

15.12.2020

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 3/4" 18.0-EC

IW 1/2" 950 18.0-EC

8 9 10 11 12 13 12

1 Afbryder

Mechanical assembly diagram showing two views of a tool with fasteners and mounting brackets (no text or symbols)

i BEMAERK

Diagram showing a drill bit being inserted into a tool, with no text or symbols present.

Diagram illustrating mechanical assembly steps with labeled states and directional arrows, showing motion sequence and rotation.

Close-up of a white electric drill bit with a black arrow indicating tool direction (no text or symbols)

Slukke maskinen:

■ Slip afbryderen.

BEMAERK

- To LED'er lyser - moment:

IW 1/2" 18.0-EC:	180 Nm / 2000 min ^-1
IW 1/2" 950 18.0-EC:	700 Nm / 1000 min ^-1
ID 1/4" 18.0-EC:	105 Nm / 2000min ^-1
IW 3/4" 18.0-EC:	590 Nm / 1000 min ^-1

Illustration of a drill bit being inserted into a tool, showing mechanical components and motion direction (no text or symbols)

Illustration of two hands using a drill bit to adjust the tool (no text or symbols present)

1. Tænd maskinen.

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

3 2 1 5 4 6 7

IW 3/4" 18.0-EC IW 1/2" 950 18.0-EC

8 9 10 11 12 13 12

1 B r y t e r

8 Li-Ion-batteri (2,5 Ah/5,0 Ah/8,0 Ah)
9 Løsningstast for batteri
10 Batteritilstands-indikator
11 Belteklips (ikke for IW 3/4" 18.0-EC)
12 Festeskrue (ikke for IW 3/4" 18.0-EC)
13 Bit-holder (ikke for IW 3/4" 18.0-EC)

Bruksanvisning

Før ibruktaking

Mechanical assembly diagram showing two views of a tool with clamping mechanism (no text or symbols)

i HENVISNING

Illustration of a drill bit being inserted into a tool, showing mechanical components and motion direction (no text or symbols)

Diagram illustrating mechanical assembly steps with labeled states and directional arrows, showing a tool pressing a component before rotating and exiting.

Close-up of a white electric drill bit with a black handle, showing blade and grip mechanism (no text or symbols visible)

Illustration of a drill bit being inserted into a power tool, showing mechanical components and motion direction (no text or symbols)

Illustration of a hand using a drill bit to adjust the drill bit (no text or symbols present)

1. Apparatet slås på.

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 3/4" 18.0-EC

IW 1/2" 950 18.0-EC

8 9 10 11 12 13 12

Mechanical assembly diagram showing two views of a tool with clamping mechanism (no text or symbols)

i OBS!

Illustration of a drill bit being inserted into a power tool, showing mechanical components and tool path (no text or symbols)

Diagram illustrating mechanical assembly steps with labeled states and directional arrows, showing motion sequence and rotation.

Close-up of a white electric drill bit with a black arrow indicating motion (no text or symbols)

Illustration of a drill bit being inserted into a power tool, showing mechanical components and motion direction (no text or symbols)

Illustration of a hand using a drill bit to adjust the drill bit (no text or symbols present)

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

3 2 1 5 4 6 7

IW 3/4" 18.0-EC

IW 1/2" 950 18.0-EC

8 9 10 11 12 13 12

1 Käynnistyskytkin

Mechanical assembly diagram showing two views of a tool with fasteners and bolts (no text or symbols)

Illustration of a drill bit being inserted into a power tool (no text or symbols present)

Diagram illustrating a mechanical device with three sequential states of rotation and switch mechanism, showing progressive rotation and clockwise rotation.

Close-up of a white electric drill bit with a tool, showing mechanical components and motion arrows (no text or symbols)

Koneen pysäytys:

Illustration of a drill bit being inserted into a tool, showing mechanical components and motion direction (no text or symbols)

Illustration of a hand using a drill bit to adjust the tool (no text or symbols present)

1. Käynnistä kone.

Töiden jälkeen:

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 3/4" 18.0-EC IW 1/2" 950 18.0-EC

8 9 10 11 12 13 12

Mechanical assembly diagram showing two views of a tool with fasteners and mounting brackets (no text or symbols)

i УПОДЕІЕН

Diagram showing a drill bit being inserted into a tool, with no text or symbols present.

Diagram illustrating the mechanical process of a drill bit, showing step-by-step rotation and cycle adjustment.

Close-up of a white electric drill bit with a black plastic head and directional arrow indicator (no text or symbols)

Illustration of a drill bit being inserted into a power tool (no text or symbols present)

Illustration of a hand using a drill bit to lift a tool, showing two different states of force (no text or symbols present)

Peter Lameli Technical Head

Klaus Peter Weinper Head of Quality Department (QD)

15.12.2020

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 3/4" 18.0-EC

IW 1/2" 950 18.0-EC

8 9 10 11 12 13 12

1 \$ a l t e r

Mechanical assembly diagram showing two views of a tool with fasteners and mounting brackets (no text or symbols)

i BİLGİ

Illustration of a drill bit being inserted into a power tool, showing mechanical components and tool path (no text or symbols)

Diagram illustrating a mechanical device with rotation and clockwise motion, showing three sequential states of the mechanism.

Close-up of a white electric drill bit with a black circular indicator and directional arrow (no text or symbols on the device itself)

Illustration of a drill bit being inserted into a tool, showing mechanical components and motion direction (no text or symbols)

Illustration of a hand using a drill bit to adjust the drill bit (no text or symbols present)

1. Cihazı açın.

Çalışma sonunda:

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 3/4" 18.0-EC IW 1/2" 950 18.0-EC

8 9 10 11 12 13 12

1 Przełącznik

Mechanical assembly diagrams showing two views of a clamp or bracket device (no text or symbols present)

i WSKAZÓWKA

Illustration of a drill bit being inserted into a power tool, showing mechanical components and tool path (no text or symbols)

Diagram illustrating mechanical assembly steps with labeled states and directional arrows, showing progressive rotation and cycle behavior.

Close-up of a white electric drill bit with a black circular icon and directional arrow (no text or symbols)

Diagram of a drill bit being inserted into a power tool, showing mechanical components and motion direction (no text or symbols)

Illustration of a hand using a drill bit to press or adjust a tool, showing no text or symbols present.

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

3 2 1 5 4 6 7

IW 3/4" 18.0-EC

IW 1/2" 950 18.0-EC

8 9 10 11 12 13 12

1 Kapcsoló

Mechanical assembly diagram showing two views of a tool with fasteners and bolts (no text or symbols)

i MEGJEGYZÉS

IW 1/2" 18.0-EC / IW 3/4" 18.0-EC:

Illustration of a drill bit being inserted into a tool, showing mechanical components and motion direction (no text or symbols)

Diagram illustrating the process of a mechanical device with rotation and cycle control, showing three sequential steps.

Close-up of a white electric drill bit with a black circular indicator (no text or symbols on the device itself)

A gép kikapcsolása:

Illustration of a drill bit being inserted into a power tool (no text or symbols present)

Illustration of a hand using a drill bit to adjust the drill bit (no text or symbols present)

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 3/4" 18.0-EC IW 1/2" 950 18.0-EC

8 9 10 11 12 13 12

1 Spínač

(2,5 Ah/5,0 Ah/8,0 Ah)

Mechanical assembly diagram showing two views of a tool with a bracket and screw base (no text or symbols)

i UPOZORNĚNÍ

Diagram of a drill bit being inserted into a power tool, showing tool arrangement and motion direction (no text or symbols)

Diagram illustrating mechanical press application with labeled states and directional arrows, showing three sequential states of press movement.

Close-up of a white electric drill bit with a black arrow indicating tool direction (no text or symbols)

Vypnutí nářadí:

■ Uvolněte spínač.

UPOZORNĚNÍ

Illustration of a drill bit being inserted into a power tool, showing mechanical components and motion direction (no text or symbols)

Illustration of two hands operating a drill press, showing tool positioning and adjustment (no text or symbols)

1. Zapněte nářadí.

Po ukončení práce:

Peter Lameli Technical Head

Bolts Q -1

Klaus Peter Weinper Head of Quality Department (QD)

15.12.2020

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 3/4" 18.0-EC

IW 1/2" 950 18.0-EC

8 9 10 11 12 13 12

1 Vypínač

Mechanical assembly diagrams showing two views of a tool with fasteners and mounting brackets (no text or symbols)

i UPOZORNENIE

Illustration of a drill bit being inserted into a power tool (no text or symbols present)

Diagram illustrating the process of a mechanical device with rotation and clockwise motion, showing three sequential states of operation.

Close-up of a white electric drill bit with a black arrow indicating tool direction (no text or symbols)

Vypnutie náradia:

■ Uvoľnite vypínač.

i UPOZORNENIE

Diagram showing a drill bit being inserted into a drill bit, with no text or symbols present.

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

1. Zapnite náradie.
   Po ukončení práce:
2. Uvoľnite vypínač.
3. Nastavte prepínač predvolby smeru otáčania (2) do strednej polohy.

Peter Lameli Technical Head

Klaus Peter Weinper Head of Quality Department (QD)

15.12.2020

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 3/4" 18.0-EC IW 1/2" 950 18.0-EC

8 9 10 11 12 13 12

1 Prekidač

Za uključivanje i isključivanje, te za povećavanje do maksimalnog broja okretaja

Mechanical assembly diagram showing two views of a clamp or bracket device (no text or symbols present)

i NAPOMENA

Prilikom isporuke akumulatori nisu potpuno napunjeni. Prije prvog puštanja u rad napunite do kraja akumulatore. U tu svrhu pogledajte „Održavanje i njega/Postupak punjenja“.

Zamjena alata

OPREZ!

Prije svih radova na električnom alatu prekidač za odabir smjera okretanja (2) postavite u srednji položaj.

IW 1/2" 18.0-EC / IW 1/2" 950 18.0-EC / IW 3/4" 18.0-EC:

Illustration of a drill bit being inserted into a power tool, showing mechanical components and motion direction (no text or symbols)

■ Nasadni ključ pritisnite na četverokutni prihvat udarnog izvijača (1.).
■ Umetnite alat u nasadni ključ (2.).

ID 1/4" 18.0-EC:

1. 2. 3.

■ Aretiranje alata povucite prema naprijedl() i pritisnite alat do graničnika 2.).
■ Otpustite aretiranje alata.
■ Za vađenje alata aretiranje alata povucite prema nazad (3.).

Diagram illustrating a mechanical device with rotation and clockwise motion, showing three sequential states of the mechanism.

Close-up of a white electric drill bit with a black arrow indicating tool direction (no text or symbols)

Illustration of a drill bit being inserted into a tool, showing mechanical components and motion direction (no text or symbols)

1. Montirajte nosač alata (zamjenska stezna glava, kutni nastavak, držač nastavka).

2. Umetnite akumulator.

3. Umetnite alat (svrdlo, odvijač, držač nastavka).

4. Odabir okretnog momenta postavite na potrebni stupanj.

5. Podesite potreban smjer okretanja.

6. Električni alat primite rukom i zauzmite radni položaj. Kada je motor u radu nikada ne pritišćite prekidač za odabir smjera okretanja odn. postavku okretnog momenta!

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

1. Uključite aparat.

Nakon završetka rada:
8. Otpustite prekidač.
9. Prekidač za odabir smjera okretanja (2) postavite u srednji položaj.

Održavanje i njega

Čišćenje

POZOR!

Pri obradi metala se pri ekstremnoj uporabi vodljiva prašina može taložiti u nutarnjem prostoru kućišta.

■ Aparat i proreze za provjetravanje redovito čistiti. Učestalost je ovisna o obradjenom materijalu te o trajanju uporabe.
- Nutarnji prostor kućišta s motorom redovito ispuhivati suhim stlačenim zrakom.

Popravci

Peter Lameli Technical Head

Klaus Peter Weinper Head of Quality Department (QD)

15.12.2020

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

3 2 1 5 4 6 7

IW 3/4" 18.0-EC IW 1/2" 950 18.0-EC

8 9 10 11 12 13 12

Mechanical assembly diagram showing two views of a clamp or bracket device (no text or symbols present)

i OPOMBA

Akumulatorske baterije ob dobavi niso popolnoma napolnjene. Pred prvo uporabo akumulatorske baterije popolnoma napolnite. V ta namen glejte poglavje „Polnilnik/Polnjenje“.

Menjava orodja IW

POZOR!

Illustration of a drill bit being inserted into a power tool, showing mechanical components and motion direction (no text or symbols)

■ Nasadni ključ pritisnite na štirikotni priključek udarnega vijačnika (1.).
■ Orodje vstavite v nasadni ključ (2.).

ID 1/4" 18.0-EC:

1. 2. 3.

■ Blokado nastavka povlecite naprej (1.), nastavek pa vstavite do prislona (2.).
■ Spustite blokado nastavka.
■ Da nastavek odstranite, blokado nastavka povlecite nazaj (3.).

Vstavljanje/menjava akumulatorske baterije

Napolnjeno akumulatorsko baterijo v električno orodje potisnite tako daleč, da se popolnoma zaskoči.

"clic"

Diagram illustrating mechanical assembly steps with labeled states and directional arrows, showing motion sequence and rotation.

Close-up of a white electric drill bit with a circular head indicator and directional arrow (no text or symbols on the device itself)

Izklop orodja:

■ Spustite stikalo.

i OPOMBA

Illustration of a drill bit being inserted into a tool, showing mechanical components and motion direction (no text or symbols)

Illustration of two hands using a drill press to adjust the drill bit (no text or symbols present)

1. Vklopite orodje.
   Po končanem delu:
2. Spustite stikalo.
3. Stikalo za izbiro smeri vrtenja (2) nastavite v osrednji položaj.

Vzdrževanje in nega

Čiščenje

OPOZORILO!

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 3/4" 18.0-EC

IW 1/2" 950 18.0-EC

8 9 10 11 12 13 12

1 Comutator

Mechanical assembly diagram showing two views of a tool with fasteners and bolts (no text or symbols)

i INDICATIE

Illustration of a drill bit being inserted into a power tool, showing mechanical components and motion direction (no text or symbols)

Diagram illustrating the mechanical process of a drill bit, showing step-by-step rotation and cycle alignment.

Close-up of a white electric drill bit with a black arrow indicating tool direction (no text or symbols)

Diagram showing a tool being inserted into a drill bit, with no text or symbols present.

Illustration of two hands using a drill press to adjust the drill bit (no text or symbols present)

1. Conectați aparatul.

EN 62841 conform prevederilor Directivei 2014/30/UE, 2006/42/CE, 2011/65/UE.

Responsabili pentru documente tehnice: FLEX-Elektrowerkzeuge GmbH, R & D Bahnhofstrasse 15, D-71711 Steinheim/Murr

Peter Lameli Technical Head

B O L Q -1

Klaus Peter Weinper Head of Quality Department (QD)

15.12.2020

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 3/4" 18.0-EC

IW 1/2" 950 18.0-EC

8 9 10 11 12 13 12

1 Превключвател

Mechanical assembly diagram showing a clamp and bracket assembly (no text or symbols visible)

Close-up of a mechanical tool with a bracket and screw base (no visible text or symbols)

i УКАЗАНИЕ

Diagram showing a drill bit being inserted into a power tool, with no text or symbols present.

Diagram illustrating mechanical assembly steps with labeled states and directional arrows, showing progressive rotation and cycle changes.

Close-up of a white electric drill bit with a black arrow indicating direction (no text or symbols)

Illustration of a drill bit being inserted into a tool, showing mechanical components and motion direction (no text or symbols)

Illustration of a hand using a drill bit to adjust a cylindrical tool, showing two different states of action (no text or symbols present)

1. Включете уреда.

Peter Lameli Technical Head

Bolles Q - r

Klaus Peter Weinper Head of Quality Department (QD)

ID 1/4" 18.0-EC / IW 3/4" 18.0-EC

предназначена

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 3/4" 18.0-EC IW 1/2" 950 18.0-EC

8 9 10

11 12 13 12

1 Кнопка пуска

Mechanical assembly diagram showing a clamp and bracket component (no text or symbols visible)

Close-up of a mechanical tool with a screw and bracket assembly (no visible text or symbols)

УКАЗАНИЕ

Illustration of a drill bit being inserted into a power tool (no text or symbols present)

Diagram illustrating a mechanical device with rotation and clockwise motion, showing three sequential states of the mechanism.

Close-up of a white electric drill bit with a black circular indicator (no text or symbols visible)

Выключение прибора:

Illustration of a drill bit being inserted into a power tool, showing mechanical components and motion direction (no text or symbols)

Illustration of a hand using a drill bit to lift a cylindrical device, showing no text or symbols

Peter Lameli Technical Head

Klaus Peter Weinper Head of Quality Department (QD)

15.12.2020

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 3/4" 18.0-EC

IW 1/2" 950 18.0-EC

8 9 10 11 12 13 12

1 Lüliti

Mechanical assembly diagram showing two views of a tool with fasteners and bolts (no text or symbols)

i MÄRKUS!

Illustration of a drill bit being inserted into a power tool, showing mechanical components and tool path (no text or symbols)

Diagram illustrating mechanical assembly steps with labeled states and directional arrows, showing motion of a device.

Close-up of a white electric drill bit with a tool, showing blade and grip (no text or symbols visible)

Diagram of a drill bit being inserted into a tool, showing mechanical components and motion direction (no text or symbols)

Illustration of a hand using a drill bit to lift a cylindrical tool, showing two different states of force (no text or symbols present)

Peter Lameli Technical Head

Bolts Q -1

Klaus Peter Weinper Head of Quality Department (QD)

15.12.2020

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 3/4" 18.0-EC IW 1/2" 950 18.0-EC

8 9 10 11 12 13 12

1 Jungiklis

Mechanical assembly diagram showing two views of a tool with clamping mechanism (no text or symbols)

i NURODYMAS

Illustration of a drill bit being inserted into a drill bit, showing tool path and motion (no text or symbols)

Diagram illustrating a mechanical device with three sequential states of rotation and cycle, showing progressive changes in the interior.

Close-up of a white electric drill bit with a black plastic head and directional arrow indicator (no text or symbols on the device itself)

Illustration of a drill bit being inserted into a power tool (no text or symbols present)

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

1. Prietaiso jungimas.
   Baigus darba:
2. Jungiklj atleiskite.
3. Sukimosi krypties parinkimo jungiklj (2) nustatykite per vidurj.

Peter Lameli Technical Head
Klaus Peter Weinper Head of Quality Department (QD)

15.12.2020

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 3/4" 18.0-EC IW 1/2" 950 18.0-EC

8 9 10 11 12 13 12

1 Slēdzis

Mechanical assembly diagrams showing two views of a tool with clamping mechanism (no text or symbols)

i NORÃDE

Illustration of a drill bit being inserted into a power tool (no text or symbols present)

Diagram illustrating mechanical assembly steps with labeled states and directional arrows, showing motion sequence and rotation mechanism.

Close-up of a white electric drill bit with a black circular indicator and directional arrow (no text or symbols on the device itself)

lerīces izslēgšana:

■ Atlaidiet slēdzi.

NORĀDE

Illustration of a drill bit being inserted into a power tool, showing mechanical components and motion direction (no text or symbols)

Illustration of two hands using a drill press to lift a cylindrical device, showing no text or symbols

1. leslēdziet instrumentu.

Pēc darba beigām:

Peter Lameli Technical Head

Bolts Q - 1

Klaus Peter Weinper Head of Quality Department (QD)

Illustration of a drill bit being inserted into a power tool, showing mechanical components and tool path (no text or symbols)

Two-step illustration of a hand using a drill bit to adjust the drill bit (no text or symbols present)

Close-up of a white electric drill bit with a black plastic head, showing tool movement (no text or symbols visible)

إيقاف تشغيل الجهاز:

يتم ترك الفتح.

! تنيه

i

Diagram illustrating the process of a mechanical device with circular and linear rotation indicators, showing three sequential states.

Mechanical assembly diagram showing a motor and connector (no text or symbols visible)

Mechanical assembly diagram showing a tool interacting with a bracket and screw (no text or symbols visible)

تنبيه!

Illustration of a drill bit being inserted into a power tool, showing mechanical components and tool path (no text or symbols)

Labeled diagram of a power drill with numbered parts for identification

ID 1/4" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 1/2" 18.0-EC

Labeled diagram of a power drill with numbered parts for identification

IW 3/4" 18.0-EC
IW 1/2" 950 18.0-EC

8 9 10

11 12 13 12
