FHE 2-22 SDS-plus - Drill Flex - Free user manual and instructions

Brand	Flex
Model	FHE 2-22 SDS-plus
Product type	Hammer drill
Rated input power	710 W
No-load speed	0 - 1400 min⁻¹
No-load impact rate	0 - 4300 min⁻¹
Max. impact energy (EPTA 05/2009)	2.1 J
Tool holder	SDS-plus
Max. drilling diameter (concrete)	22 mm
Max. drilling diameter (wood)	30 mm
Max. drilling diameter (metal)	13 mm
Weight (EPTA 01/2003)	2.3 kg
Working modes	Drilling, Hammer drilling
Speed adjustment	Variable by switch
Rotation direction	Right/Left (reversing switch)
Auxiliary handle	Yes, adjustable
Depth stop	Yes, adjustable
Lock-on button	Yes, for continuous operation
Sound pressure level	91 dB(A)
Sound power level	102 dB(A)
Vibrations (hammer drilling)	a_h = 17.95 m/s², K = 1.5 m/s²
Mains supply	230 V ~ (typical)
Brush maintenance	Automatic cut-off at end of life, replacement with original parts
Cleaning	Clean the ventilation slots regularly
Warranty	Follow instructions to avoid losing warranty

Frequently Asked Questions - FHE 2-22 SDS-plus Flex

How to change an SDS-plus bit?

Pull the locking sleeve (2) back, remove the old tool, insert the new bit while turning until it locks, then pull on it to check the fixation.

How to adjust the depth stop?

Loosen the clamping screw (5) by turning counterclockwise, insert the depth stop (4), set the desired depth, then tighten the screw by turning clockwise.

How to select the drilling or hammer drilling mode?

Press the unlock button (7) and turn the mode selector (6) to the Drilling or Hammer drilling symbol. Release the button; it must pop out to confirm locking.

What to do if the power tool produces many sparks at the brushes?

Switch off the tool immediately and take it to an authorized service center. The carbon brushes are equipped with an automatic cut-off at end of life. Replace them only with original FLEX parts.

Can I drill wood or metal with this drill?

Yes, it can drill wood up to 30 mm and metal up to 13 mm. Use SDS-plus shank bits or a three-jaw chuck for bits without SDS shank.

How to clean and maintain the drill?

Unplug the device before any maintenance. Clean the ventilation slots regularly with dry compressed air. Clean the inside of the housing and the motor. Check the dust cap and replace it if damaged.

What are the essential safety precautions?

Wear safety glasses and hearing protection. Always use the auxiliary handle. Hold the device by the insulated handles. Check for absence of cables or pipes before drilling.

How to use the lock-on button for continuous operation?

Press the switch (9) and hold it, press the lock-on button (10) to lock the switch in the on position. To stop, press the switch again and release it.

Where to find spare parts and accessories?

Consult the manufacturer's catalogs at www.flex-tools.com or contact FLEX customer service. Use exclusively original parts or you may lose the warranty.

How to dispose of the device at end of life?

Cut the power cord to make it unusable. Do not throw it in household waste. In accordance with the WEEE directive (2012/19/EU), take it to a collection point for recycling.

USER MANUAL FHE 2-22 SDS-plus Flex

Illustration of a black-and-white photo of a drill bit with a cylindrical base and handle (no text or symbols)

de Originalbetriebsanleitung 3
en Original operating instructions 11
fr Notice d'instructions d'origine ..... 19
it Istruzioni per l'uso originali 27
es Instrucciones de funcionamiento originales ..... 35
pt Instruções de serviço originais 43
nl Originele gebruiksaanwijzing 51
da Originale driftsvejledning 59
no Originale driftsanvisningen 67
sv Originalbruksanvisning 75
fi Alkuperäinen käyttöohjekirja 83
el Auθεντικές οδηγίες χειρισμού 91
pI Instrukcja oryginalna 100
hu Eredeti üzemeltetési útmutató ..... 109
cs Originální návod k obsluze 117
sk Originálny návod na obsluhu 125
et Originaalkasutusjuhend 133
It Originali naudojimo instrukcija 141
Iv Lietošanas pamācības oriģināls 149
ru Оригинальная инструкция по эксплуатации .....157

Inhalt

Three circular icons representing different occupational and operational symbols: a person reading, a person wearing glasses, and a person wearing headphones, with a crossed-out trash bin below (no text or labels)

Close-up of a black industrial knob with directional arrows indicating rotation and movement (no text or symbols)

Close-up of a mechanical component with directional arrows indicating movement or force (no text or symbols)

Eckhard Rühle

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

23.07.2015

Symbols used in this manual ..... 11

Technical specifications ..... 11

Overview 12

For your safety 13

Noise and vibration 14

Instructions for use 15

Maintenance and care 15

Disposal information 17

(€-Declaration of Conformity ..... 18

Exemption from liability 18

Symbols used in this manual

WARNING!

Denotes impending danger.

Non-observance of this warning may result in death or extremely severe injuries.

CAUTION!

Denotes a possibly dangerous situation.

Non-observance of this warning may result in slight injury or damage to property.

NOTE!

Denotes application tips and important information.

Symbols on the power tool

Before switching on the power tool, read the operating manual!

Wear goggles!

Wear ear protection!

Disposal information for the old machine (see page 18)!

Technical specifications

Hammer drill FHE 2-22		SDS-plus
Rated power W 710
No-load speed	min^-1	0–1400
No-load impact rate	min^-1	0–4300
Max. single impact energy (according to “EPTA-procedure 05/2009”)	J	2.1
Tool holder SDS-plus
Max. drill diameter– Concrete– Wood– Metal	mm mm mm	22 30 13
Weight according to “EPTA Procedure 01/2003”	kg 2.3

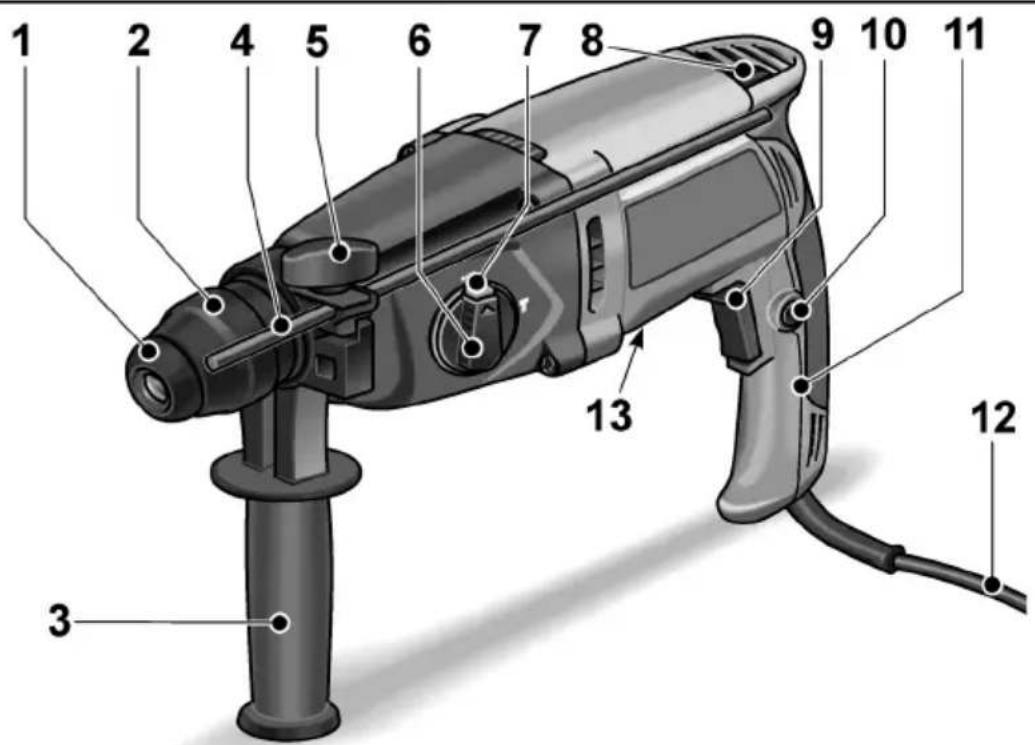

Overview

8 Lever for selecting direction of rotation

1 Dust cap
2 Locking sleeve
3 Auxiliary handle
4 Depth stop
5 Unscrew clamping screw
6 Rotary knob for operating mode
7 Release button

(Clockwise/anti-clockwise)

9 Switch

For switching on and off and for accelerating up to maximum speed/impact rate.

10 Locking button

11 Handle
12 Power cord
13 Rating plate *

For your safety

WARNING!

Read all safety instructions and other instructions. Failure to observe the safety instructions and other instructions may result in an electric shock, fire and/or serious injuries. Save all warnings and instructions for future reference.

Before using the power tool, please read and follow:

– these operating instructions,
- the "General safety instructions" on the handling of power tools in the enclosed booklet (leaflet-no.: 315.915), the currently valid site rules and the regulations for the prevention of accidents.

This power tool is state of the art and has been constructed in accordance with the acknowledged safety regulations.

Nevertheless, when in use, the power tool may be a danger to life and limb of the user or a third party, or the power tool or other property may be damaged.

The power tool may be operated only if it is

- as intended,

– in perfect working order.

Faults which impair safety must be repaired immediately.

Intended use

The hammer drill FHE 2-22 SDS-plus is designed

– for commercial use in industry and trade,
– for hammer drilling in masonry and concrete for wall plug and anchor attachments and through-holes,
– for drilling in wood and metal,
– to be used with suitable tools recommended by the manufacturer for this power tool.

Safety instructions for hammers

■ Wear ear protection. The effect of noise may result in loss of hearing.
■ Use auxiliary handles supplied with the power tool. The loss of control may result in injuries.
- Hold power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and shock the operator.

Additional safety instructions

■ Use suitable detectors to detect concealed power supply cables or consult your local supply company.
Contact with electric cables may result in a fire and/or electric shock.
A damaged gas pipe may cause an explosion. Cutting into a water pipe will cause damage to property or may cause an electric shock.

■ When working, hold the electric power tool firmly with both hands and ensure that you have a secure footing.

The electric power tool is controlled more securely if held with both hands.

■ Secure the workpiece.

A workpiece is held more securely in a clamping device than by hand.

■ Do not use the electric power tool if it has a damaged power cord.

Do not touch the damaged power cord and pull out the mains plug if the power cord is damaged during work.

Damaged power cords increase the risk of an electric shock.

■ Only use tools with SDS-plus tool holder. Pull on the insertion tool to check that it is locked properly.

■ Immediately have a damaged dust cap replaced. The dust cap prevents the ingress of dust into the tool holder.

■ Dust released from materials, such as lead paints, some types of wood, minerals and metal, may be hazardous to the operator or people in the vicinity. Inhaling or touching these dusts may result in respiratory diseases and/or allergic reactions.

• Ensure the work place is well ventilated!
• If possible, use external dust extraction.
• It is recommended to wear a respirator mask belonging to filter class P2.

■ Do not work on materials which release hazardous substances (e.g. asbestos).

■ Identify the power tool with stickers only. Do not drill any holes into the housing.

■ The mains voltage and the voltage specifications on the rating plate must correspond.

Noise and vibration

The noise and vibration values have been determined in accordance with EN 60745.

The A evaluated noise level of the power tool is typically:

– Sound pressure level: 91 dB(A);

– Sound power level: 102 dB(A);

- Uncertainty: K = 3 dB.

Total vibration value:

- when hammer drilling:

• Emission value: a _h = 17.95 m/s ^2
• Uncertainty: K = 1.5 m/s

ATTENTION!

The indicated measurements refer to new power tools. Daily use causes the noise and vibration values to change.

i NOTE!

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly decrease the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

CAUTION!

Wear ear protection at a sound pressure above 85 dB(A).

Instructions for use

Before switching on the power tool

Unpack power tool and accessories and check that no parts are missing or damaged.

Adjusting the auxiliary handle

WARNING!

Before performing any work on the electric power tool, pull out the mains plug.

CAUTION!

Use electric power tool with attached auxiliary handle only.

The auxiliary handle can be swivelled into any position to ensure safe and fatigue-free working.

■ Loosen the clamping by turning the clamping screw anti-clockwise.

■ Swivel the auxiliary handle into the required position.
■ By turning the clamping screw clockwise, fix the handle in the required position.

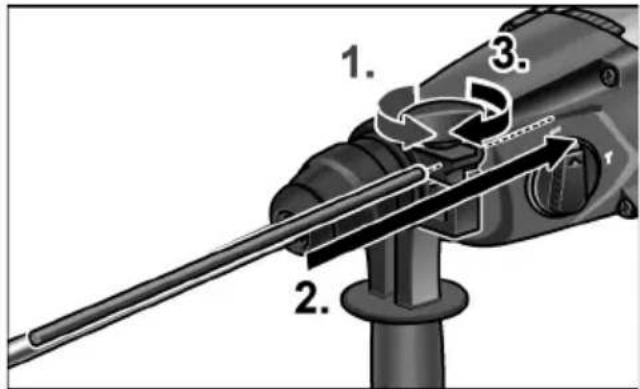

Attaching the depth stop

WARNING!

Before performing any work on the electric power tool, pull out the mains plug.

■ Loosen the clamping screw by turning it anti-clockwise.
■ Push in depth stop.
■ Set depth stop to the required drilling depth.
■ Tighten the clamping screw clockwise.

Inserting tools with SDS shank

WARNING!

Before performing any work on the electric power tool, pull out the mains plug.

CAUTION!

Used insertion tools may become hot. Wear protective gloves!

NOTE!

Tools used must have an SDS shank. If tools do not have an SDS shank (e.g. wood drill bit), a three-jaw chuck must be used.

■ Check dust cap.

– Clean dirty cap.
- Have a defective dust cap replaced.

■ Insert insertion tool (1.) and turn (2.) it until it locks.

■ Check lock by pulling on the insertion tool.

Removing the tools

WARNING!

Before performing any work on the electric power tool, pull out the mains plug.

CAUTION!

Used insertion tools may become hot. Wear protective gloves!

■ Pull locking sleeve backwards (1.).

■ Remove insertion tool (2.).

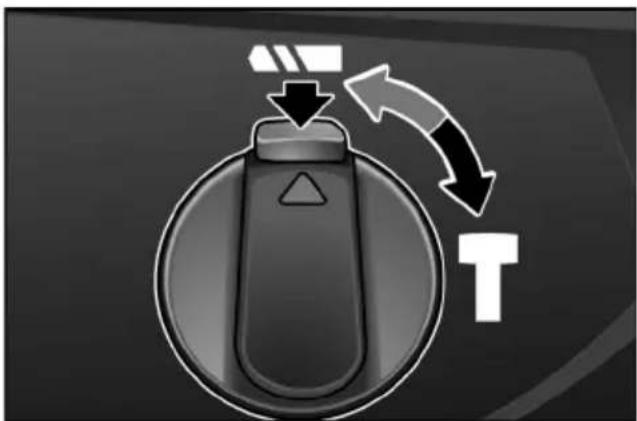

Setting operating mode

CAUTION!

Do not change operating mode until the electric power tool is at a standstill.

Close-up of a black industrial knob with directional arrows indicating rotation or movement (no text or symbols)

■ Press release button.

■ Setting rotary knob to the required operating mode:

Drilling

Hammer drilling

NOTE!

The release button must visibly lock

(jump out) in the (drilling) and (hammer drilling) positions.

Setting direction of rotation

CAUTION!

Do not change operating mode until the electric power tool is at a standstill.

■ Set switch for selecting direction of rotation to the required position:

- L counter-clockwise

-RClockwise

Switching on the power tool

Without locking the switch:

Mechanical component diagram showing a curved bracket with directional arrows indicating movement (no text or symbols)

■ Press and hold down the switch. The electric power tool switch enables the speed or impact rate to be increased slowly to the maximum value.

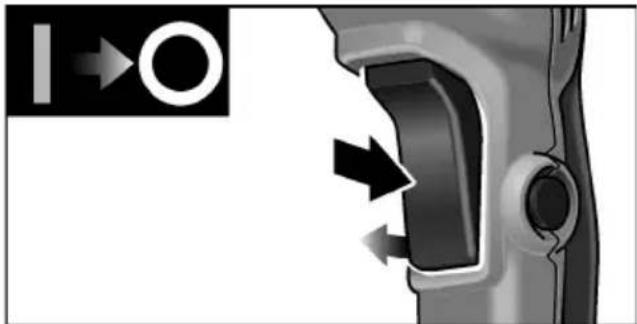

Switch off the machine:

■ Release the switch.

Locking the switch:

WARNING!

Following a power failure, the switched on electric power tool will start running again. Immediately switch off electric power tool!

■ Press and hold down switch (1.).

■ Press locking button to lock the switch (2). Switch off the machine:

Diagram of a car door handle with directional arrows indicating movement or force (no text or symbols)

■ Press and release the switch.

Operating instructions

Drilling/hammer drilling

1. Move rotary knob for operating mode to the symbol (drilling) or symbol (hammer drilling). Ensure button is locked!

2. Insert drill bit.

3. Swivel the auxiliary handle into the required position.

4. Insert mains plug.

5. Grip electric power tool with both hands and assume working position.

6. Position drill bit and switch on electric power tool.

7. Gently press electric power tool forwards.

8. After drilling, switch off the power tool.

9. Pull out the mains plug.

Other information

- The use of "sharp" insertion tools increases performance and the service life of the electric power tool.

- After work, clean the electric power tool and store in the carrying case in a dry location.

Maintenance and care

WARNING!

Before performing any work on the electric power tool, pull out the mains plug.

Cleaning

Regularly clean the power tool and ventilation slots. Frequency of cleaning is dependent on the material and duration of use.

Regularly blow out the housing interior and motor with dry compressed air.

Carbon brushes

The electric power tool features cut-off carbon brushes.

When the cut-off carbon brushes reach their wear limit, the electric power tool switches off automatically.

NOTE!

Use only original parts supplied by the manufacturer for replacement purposes. If non-original parts are used, the guarantee obligations of the manufacturer will be deemed null and void.

When the power tool is being used, the carbon brushes can be seen sparking through the rear air inlet apertures.

If the carbon brushes are sparking excessively, switch off the electric power tool immediately. Take your electric power tool to a customer service centre authorised by the manufacturer.

Gears

i NOTE!

Do not loosen the screws on the gear head during the warranty period.

Non-compliance will deem the guarantee obligations of the manufacturer null and void.

The electric power tool has grease lubrication. Have the grease changed/topped up by a customer service workshop authorised by the manufacturer.

Repairs

Repairs may be carried out by an authorised customer service centre only.

If the power cord of the electric power tool is damaged, it must be replaced with a specially prepared power cord (attachment type X). This power cord is available from FLEX customer service.

Spare parts and accessories

Other accessories, in particular insertion tools, can be found in the manufacturer's catalogues.

Exploded drawings and spare-part lists can be found on our homepage:

www.flex-tools.com

Disposal information

WARNING!

Render redundant power tools unusable by removing the power cord.

EU countries only

Do not throw electric power tools into the household waste!

In accordance with the European Directive 2012/19/EC on Waste Electrical and Electronic Equipment and transposition into national law used electric power tools must be collected separately and recycled in an environmentally friendly manner.

i NOTE!

Please ask your dealer about disposal options!

CE-Declaration of Conformity

We declare under our sole responsibility that the product described under “Technical specifications” conforms to the following standards or norma-tive documents:

EN 60745 in accordance with the regulations of the directives

2004/108/EC (until 19.04.2016),

2014/30/EU (from 20.04.2016),

2006/42/EC, 2011/65/EC.

Responsible for technical documents:

Exemption from liability

The manufacturer and his representative are not liable for any damage and lost profit due to interruption in business caused by the product or by an unusable product.

The manufacturer and his representative are not liable for any damage which was caused by improper use of the power tool or by use of the power tool with products from other manufacturers.

Table des matières

1 Coiffe anti-poussière

Close-up of a black industrial control knob with directional arrows indicating rotation and movement (no text or symbols)

Mechanical component diagram showing a door and handle with directional arrows, no text or symbols present

Mechanical component diagram showing a door with arrows indicating motion or force (no text or symbols)

Klaus Peter Weinper Head of Quality Department (QD)

Three circular icons representing people, safety gear, and a trash bin (no text or symbols)

Diagram of a device knob with directional arrows indicating motion (no text or symbols)

Mechanical component diagram showing a bracket with arrows indicating motion or force direction (no text or symbols)

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

23.07.2015

Close-up of a black industrial control knob with directional arrows indicating rotation and movement (no text or symbols)

Mechanical component diagram showing a curved bracket with directional arrows and a circular symbol (no text or labels)

Eckhard Rühle

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

23.07.2015

Three black-and-white icons representing people, safety, and a waste bin (no text or symbols)

Desmontar as ferramentas

AVISO!

Close-up of a black industrial knob with directional arrows indicating rotation or movement (no text or symbols)

■ Pressionar a tecla de desbloqueamento.

Close-up of a mechanical component with directional arrows indicating movement or flow (no text or symbols)

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

23.07.2015

De boorhamer FHE 2-22 SDS-plus is bestemd

Close-up of a black circular device with directional arrows and symbols, no readable text or labels present.

Mechanical component diagram showing a curved bracket with directional arrows, no text or symbols present

Eckhard Rühle

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

23.07.2015

Close-up of a black industrial control knob with directional arrows indicating motion (no text or symbols)

■ Tryk på oplukningsknappen.

Mechanical component diagram showing a curved bracket with directional arrows indicating motion (no text or symbols)

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

23.07.2015

Three circular icons representing people, headsets, and a trash bin (no text or symbols)

Close-up of a black industrial control knob with directional arrows indicating motion (no text or symbols)

Mechanical component diagram showing a curved bracket with directional arrows indicating motion (no text or symbols)

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

23.07.2015

1 Dammskydd

11 Handtag

2 L å s h y l s a

12 Nätkabel

3 Stödhandtag

13 Typskylt *

4 Djupanslag

5 Spännskruv

6 Funktionsknapp

7 Spärrknapp

Close-up of a black industrial control knob with directional arrows indicating rotation and movement (no text or symbols)

Mechanical component diagram showing a bracket with arrows indicating motion direction (no text or symbols)

Three circular icons showing a person reading, a helmet with glasses, and a trash bin (no text or symbols)

Close-up of a black industrial control knob with directional arrows indicating motion (no text or symbols)

Mechanical component diagram showing a curved bracket with directional arrows indicating motion (no text or symbols)

Klaus Peter Weinper Head of Quality Department (QD)

23.07.2015

Close-up of a black industrial control knob with directional arrows indicating motion (no text or symbols)

Mechanical component diagram showing a curved bracket with directional arrows indicating motion (no text or symbols)

Diagram of a car door handle with directional arrows indicating movement or force (no text or symbols)

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

Diagram of a control knob with directional arrows indicating rotation and movement (no text or symbols)

Close-up of a mechanical component with arrows indicating motion or flow, no visible text or symbols

2006/42/WE, 2011/65/WE.

Eckhard Rühle

Manager Research &

Development (R & D)

23.07.2015

Close-up of a black circular device with directional arrows indicating motion or flow (no text or symbols)

Mechanical component diagram showing a curved bracket with directional arrows indicating motion (no text or symbols)

Close-up of a car door handle mechanism with directional arrows indicating movement (no text or symbols)

Eckhard Rühle

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

Three black circular icons showing a person reading, safety goggles, and headphones, plus a crossed-out trash bin symbol (no text or labels)

Close-up of a black industrial control knob with directional arrows indicating motion (no text or symbols)

Mechanical component diagram showing a curved bracket with directional arrows, no text or symbols present

Klaus Peter Weinper Head of Quality Department (QD)

23.07.2015

Three circular icons representing human, safety, and waste management symbols (no text or labels)

Close-up of a black circular device with a handle and arrow indicator, no visible text or symbols

■ Stlačte odblokovacie tlačidlo.

Close-up of a mechanical component with directional arrows indicating movement or flow (no text or symbols)

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

23.07.2015

Close-up of a black industrial control knob with directional arrows indicating motion (no text or symbols)

■ Vajutada vabastusnuppu.

Mechanical component diagram showing a bracket with directional arrows and a circular symbol (no text or labels)

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

23.07.2015

Close-up of a black circular device with directional arrows indicating motion or change (no text or symbols)

Mechanical component diagram showing a curved bracket with directional arrows indicating motion (no text or symbols)

Eckhard Rühle

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

23.07.2015

Three circular icons representing people, safety gear, and a trash bin (no text or symbols)

Close-up of a black industrial control knob with directional arrows indicating motion (no text or symbols)

Mechanical component diagram showing a curved bracket with directional arrows and a circular symbol (no text or labels)

Eckhard Rühle

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

23.07.2015

Close-up of a black industrial control knob with directional arrows indicating motion (no text or symbols)

Mechanical component diagram showing a bracket with arrows indicating motion or flow (no text or symbols)

Diagram of a car door handle with directional arrows indicating movement or force (no text or symbols)

Klaus Peter Weinper Head of Quality Department (QD)
