Bugaboo child restraint in collaboration with Nuna meet your bugaboo turtle by Nuna Bugaboo International BV Paasheuvelweg 9 a-b 1105BE Amsterdam zuidoost The Netherlands IMG-0083C-1 child restraint collaborationBugaboo turtle by Nuna is based on the Nuna PIPA

Icon model bugaboo cameleonbugaboo fox bugaboo bee bugaboo donkey when used with additional Bugaboo adapters for designated bugaboo strollers, compatible with: nothing like a BugabooA

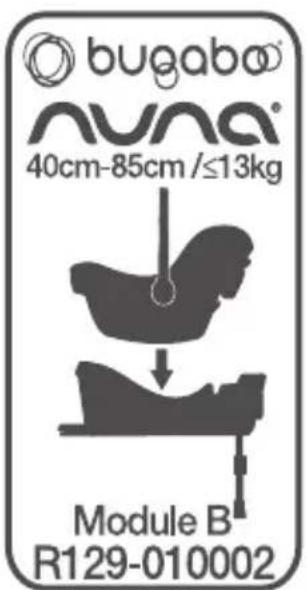

Max. 13kg 40cm-85cm with ISOFIX base

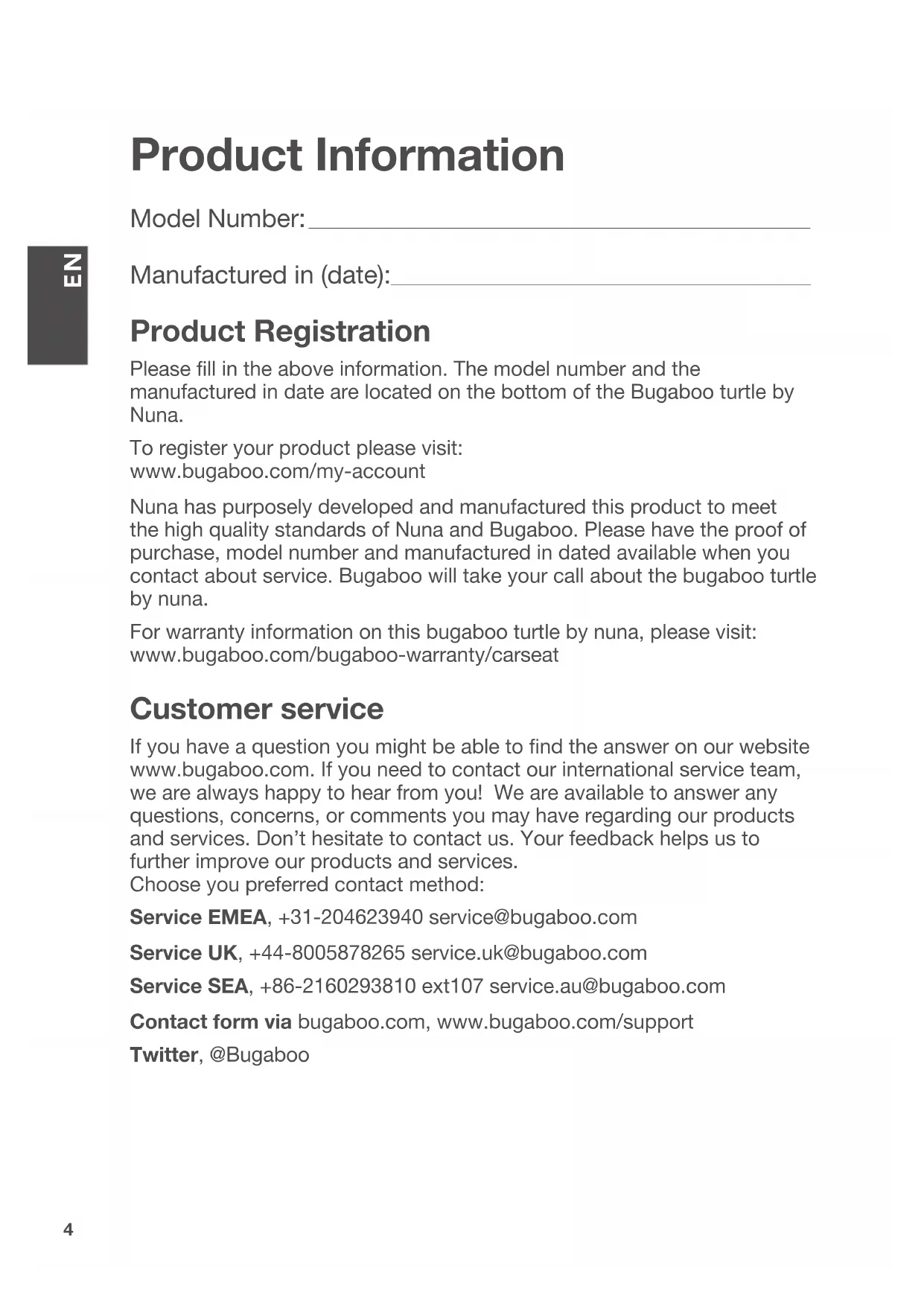

ENProduct Information Model Number: __________________________________________________________________________________________________ Manufactured in (date):__________________________________________________________________________________ Product Registration Please ll in the above information. The model number and the manufactured in date are located on the bottom of the Bugaboo turtle by Nuna. To register your product please visit: www.bugaboo.com/my-account Nuna has purposely developed and manufactured this product to meet the high quality standards of Nuna and Bugaboo. Please have the proof of purchase, model number and manufactured in dated available when you contact about service. Bugaboo will take your call about the bugaboo turtle by nuna. For warranty information on this bugaboo turtle by nuna, please visit: www.bugaboo.com/bugaboo-warranty/carseat Customer service If you have a question you might be able to nd the answer on our website www.bugaboo.com. If you need to contact our international service team, we are always happy to hear from you! We are available to answer any questions, concerns, or comments you may have regarding our products and services. Don’t hesitate to contact us. Your feedback helps us to further improve our products and services. Choose you preferred contact method: Service EMEA, +31-204623940 service@bugaboo.com Service UK, +44-8005878265 service.uk@bugaboo.com Service SEA, +86-2160293810 ext107 service.au@bugaboo.com Contact form via bugaboo.com, www.bugaboo.com/support Twitter, @Bugaboo

ENChild Usage Requirements This product is suitable for use with children who meet the following requirements: Figure for Installation Suitable for Child height 40cm-85cm/ Child weight≤13kg (approximately 1.5 years old or under) Child weight≤13kg Child age≤15 months

EN1 According to the Regulation No. 129, the enhanced child restraint with Base is a Universal ISOFIX Class C, D enhanced child restraint and should be tted using the ISOFIX connections. 2 This is an “i-Size” System. It is approved to Regulation No. 129, for use in, “i-Size compatible” vehicle seating positions as indicated by vehicle manufacturers in the vehicle users’ manual. 3 If in doubt, please consult the enhanced child restraint manufacturer or the retailer.

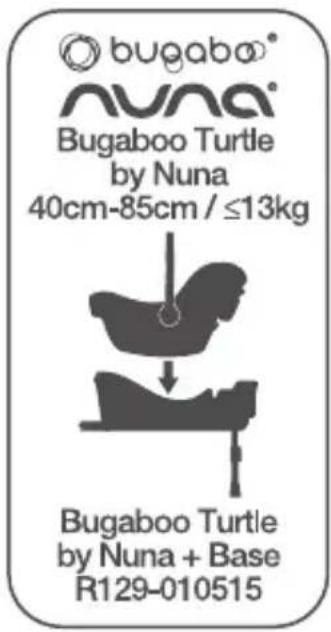

For Use with Base "i-Size" (Integral Universal ISOFIX Enhanced Child Restraint Systems) is a category of enhanced child restraint system for use in all i-Size seating position of a vehicle.This is an i-Size ISOFIX Enhanced Child Restraint System. It is approved to No. 129 series of amendments for not all vehicle manufacture's handbooks list i-Size compatibility yet. This seat and base is also approved for use in ISOFIX compatible vehicles. Please refer to the vehicle manufacturer's website or consult your dealer. It will t vehicles with positions approved as i-Size ISOFIX positions (as detailed in the vehicle handbook), depending on the category of the enhanced child restraint and of the xture. If in doubt, consult either the enhanced child restraint manufacturer or vehicle manufacturer.

ENAny straps of Bugaboo turtle by Nuna enhanced child restraint and vehicle seat should be tightened and not twisted. Always secure child in Bugaboo turtle by Nuna enhanced child restraint, even on short trips, as this is when most accidents occur. After your child is placed in this Bugaboo turtle by Nuna enhanced child restraint, the safety belt must be used correctly, and ensure that any lap strap is worn low down, so that the pelvis is rmly engaged. Be sure that the Bugaboo turtle by Nuna enhanced child restraint is installed in such a way that no part of it interferes with movable seats or in the operation of vehicle doors. Before carrying the Bugaboo turtle by Nuna enhanced child restraint by hand, ensure that the child is fastened with the safety harness, and that the handle is correctly locked in a vertical position. To use this Bugaboo turtle by Nuna enhanced child restraint with the ISOFIX connections according to the Regulation No. 129, your child must meet the following requirements Child height 40cm-85cm/Child weight≤13kg (approximately 1.5 years old or under). Consult the distributor for issues concerning maintenance, repair and part replacement. Correct Installation is only permitted by use of the ISOFIX connectors. WARNING Failure to follow these warnings and instructions could result in serious injury or death.

ENFrequently check the ISOFIX guides for dirt and clean them if nssary. Reliability can be effected by ingress of dirt, dust, food particles etc. Please keep this Bugaboo turtle by Nuna enhanced child restraint away from sunlight, otherwise it may be too hot for child’s skin. Always touch test seat before placing child in it. Remove this Bugaboo turtle by Nuna enhanced child restraint and base from the vehicle seat when it is not in regular use. To use this Bugaboo turtle by Nuna enhanced child restraint according to the Regulation No. 129, your child must meet the following requirements. Child weight≤13kg/Child age≤15 months The soft goods should not be replaced with any besides the ones recommended by the manufacturer. The soft goods constitute an integral part of the Bugaboo turtle by Nuna enhanced child restraint performance. To avoid the risk of falling out, always secure the child using the safety harness when the child is placed in Bugaboo turtle by Nuna enhanced child restraint, even when the Bugaboo turtle by Nuna enhanced child restraint is not in the vehicle. To avoid serious injury or death, NEVER place Bugaboo turtle by Nuna enhanced child restraint on elevated surface seat with child in it. The parts of this Bugaboo turtle by Nuna enhanced child restraint should not be lubricated in any way. The importance of ensuring that any lap strap is worn low down, so that the pelvis is rmly engaged, shall be stressed.

ENNO Bugaboo turtle by Nuna enhanced child restraint can guarantee full protection from injury in an accident. However, proper use of this Bugaboo turtle by Nuna enhanced child restraint will reduce the risk of serious injury or death to your child. The device should be replaced when it has been subject to violent stresses in an accident. DO NOT install this Bugaboo turtle by Nuna enhanced child restraint without following the instructions in this manual or you may put your child at serious risk of injury or death. DO NOT make any modication to this Bugaboo turtle by Nuna enhanced child restraint or use it along with component parts from other manufacturers. DO NOT use this Bugaboo turtle by Nuna enhanced child restraint if it has damaged or missing parts. DO NOT have your child in large/oversized clothes because this may prevent your child from being properly and securely fastened by the shoulder harness straps and the crotch strap between the legs. DO NOT leave this Bugaboo turtle by Nuna enhanced child restraint or other items unbelted or unsecured in your vehicle because unsecured Bugaboo turtle by Nuna enhanced child restraint can be thrown around and may injure occupants in a sharp turn, sudden stop, or collision. DO NOT place rear-facing Bugaboo turtle by Nuna enhanced child restraint on frontal seat with air bag. Death or serious injury may occur. Please reference vehicle owner’s manual for more information. DO NOT use this Bugaboo turtle by Nuna enhanced child restraint without the soft goods. DO NOT put anything other than the recommended inner cushions in this Bugaboo turtle by Nuna enhanced child restraint.

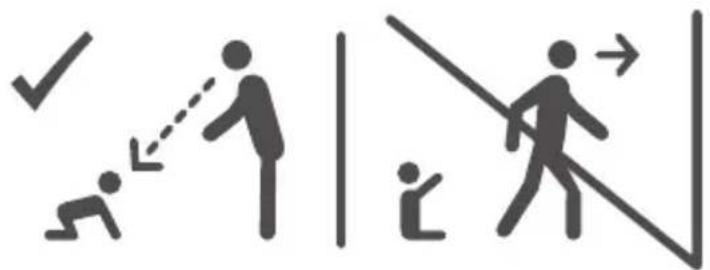

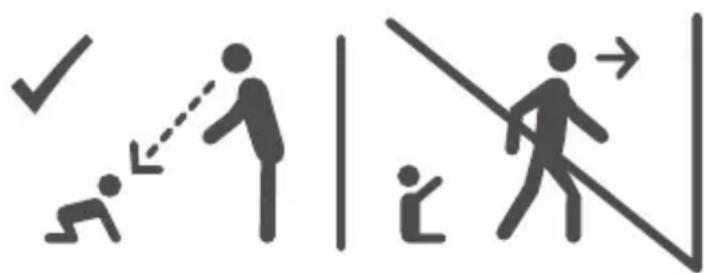

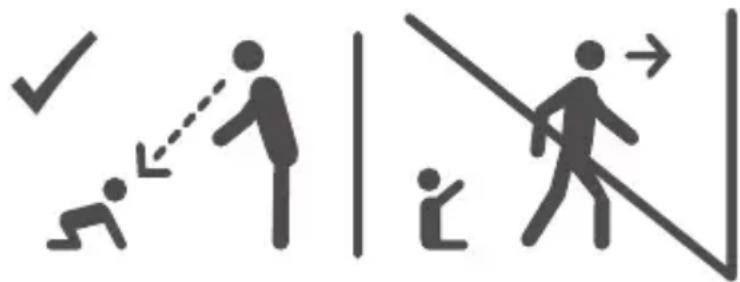

ENNEVER leave your child unattended with this Bugaboo turtle by Nuna enhanced child restraint. NEVER use a second-hand Bugaboo turtle by Nuna enhanced child restraint or an Bugaboo turtle by Nuna enhanced child restraint whose history you do not know because they may have structural damage that endangers your child’s safety. NEVER use ropes or any other substitutes to secure Bugaboo turtle by Nuna enhanced child restraint in vehicle or to secure child into Bugaboo turtle by Nuna enhanced child restraint. Using the seat as a reclined cradle Always use the restraint system. DO NOT use the seat as reclined cradle once your child can sit unaided. DO NOT use the seat if any components are broken or missing. DO NOT use accessories or replacement parts other than those approved by the manufacturer. It is dangerous to use this seat on an elevated surface, e.g. a table. NEVER leave the child unattended. This seat is not indented for prolonged periods of sleeping. This seat does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable cot or bed.

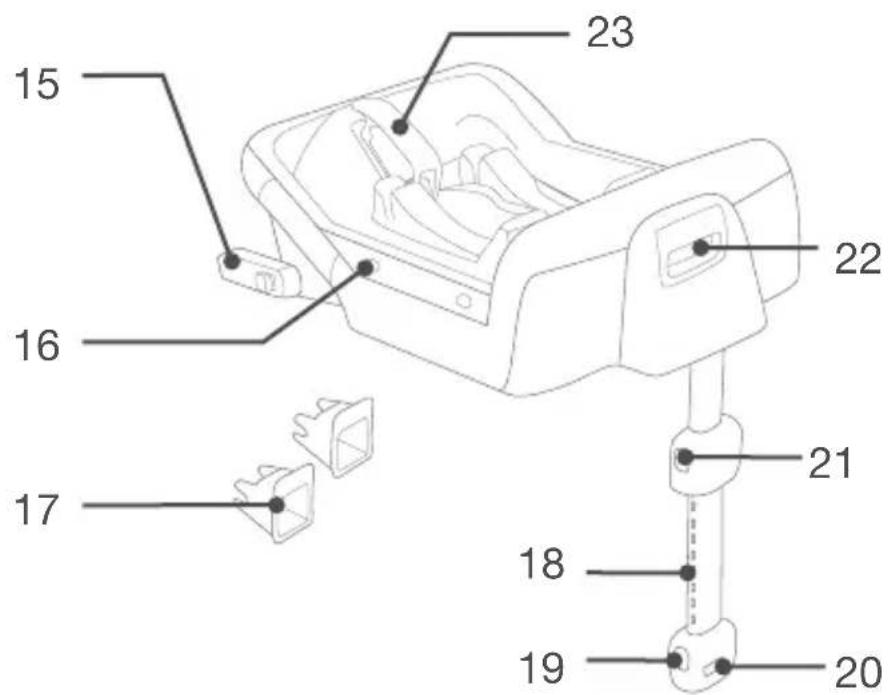

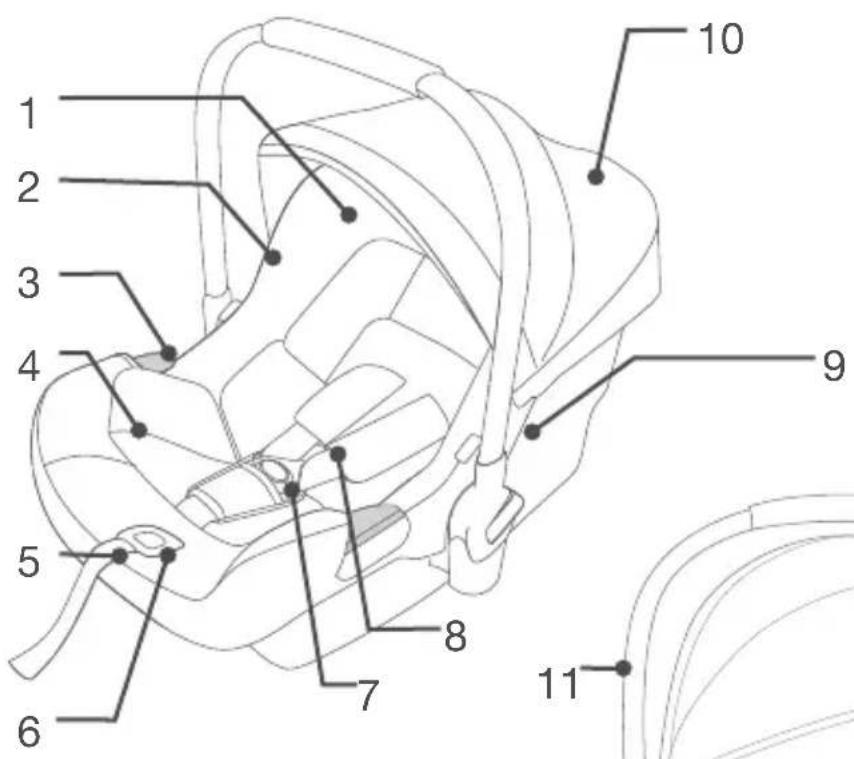

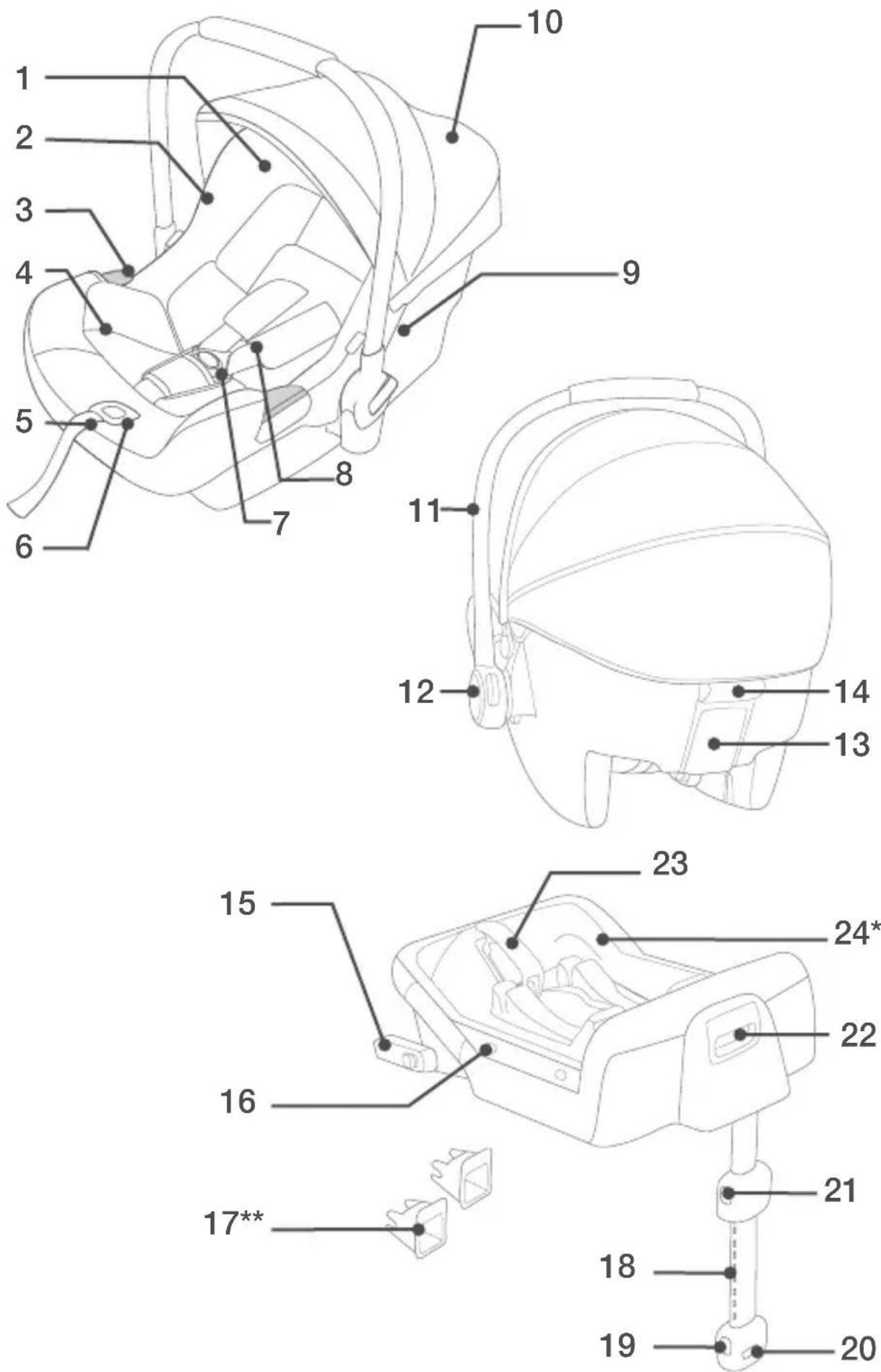

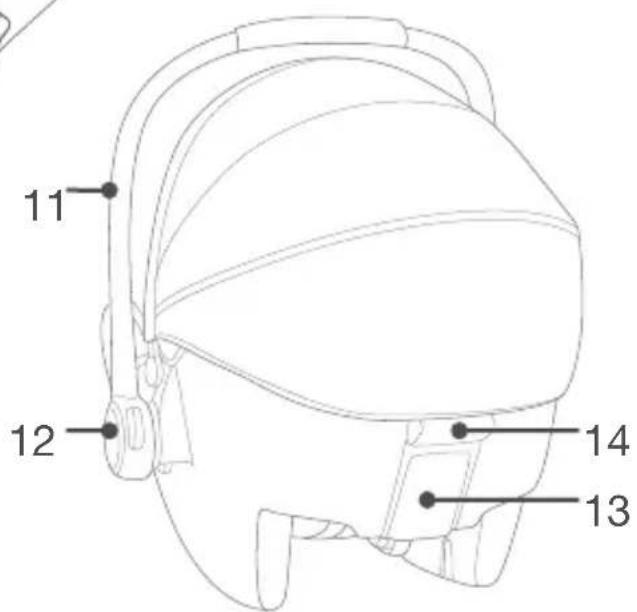

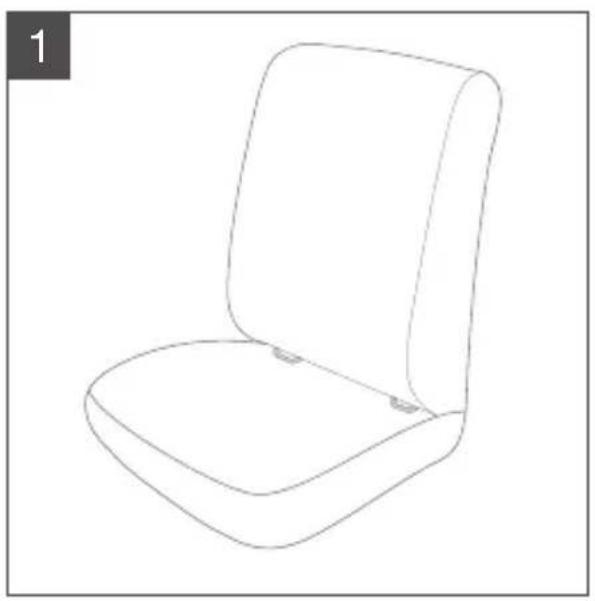

EN1 Head Support 2 Seat Pad 3 Side Guides 4 Infant Insert 5 Adjustment Webbing 6 Adjustment Button 7 Safety Buckle 8 Shoulder Harness Straps 9 Canopy Mount 10 Canopy 11 Handle 12 Handle Button 13 Rear Guide 14 Stroller Release Handle 15 ISOFIX Connector 16 Shell Indicator 17 ISOFIX Guides** 18 Load Leg 19 Load Leg Adjust Button A 20 Load Leg Indicator 21 Load Leg Adjust Button B 22 Enhanced child restraint Release Button 23 Lock-off 24 ISOFIX Base* Parts List Make sure all parts are available before assembly. If any part is missing, please contact Nuna (see page 4 for information). No tools are required for assembly. *Sold separately **Come with ISOFIX Base

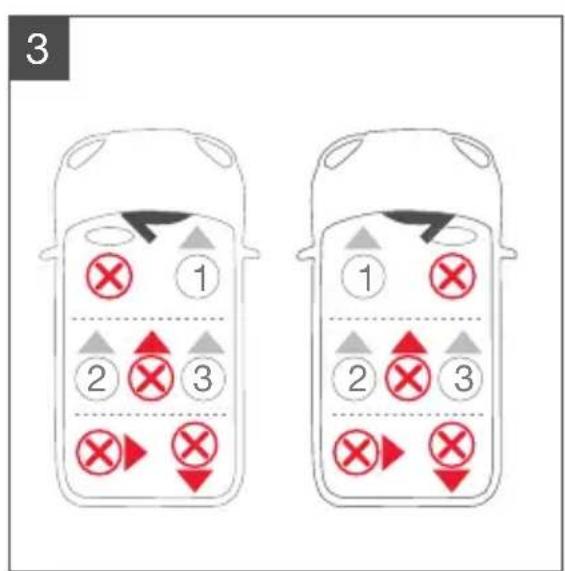

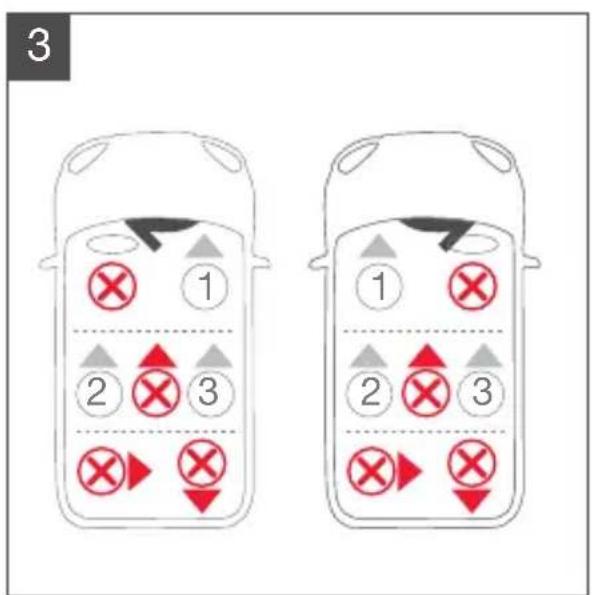

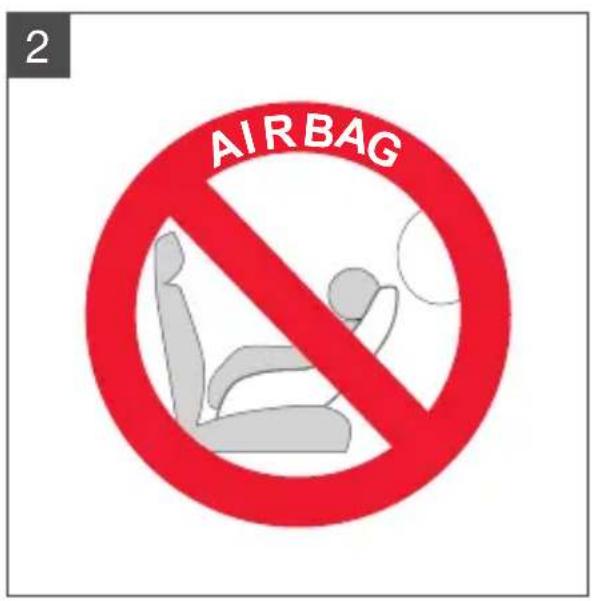

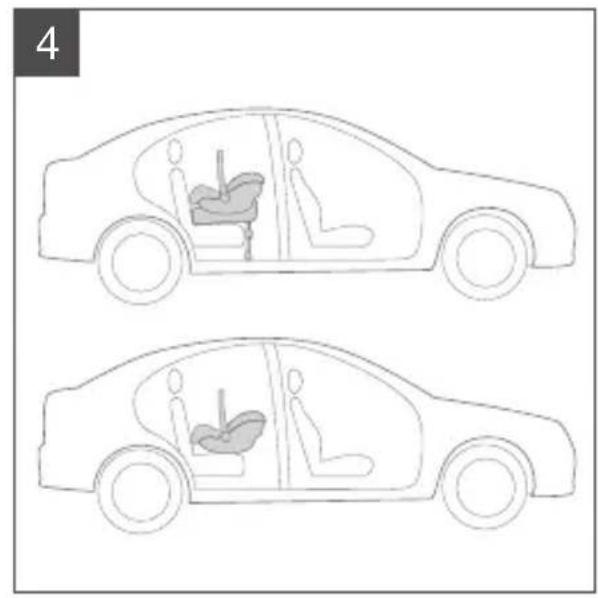

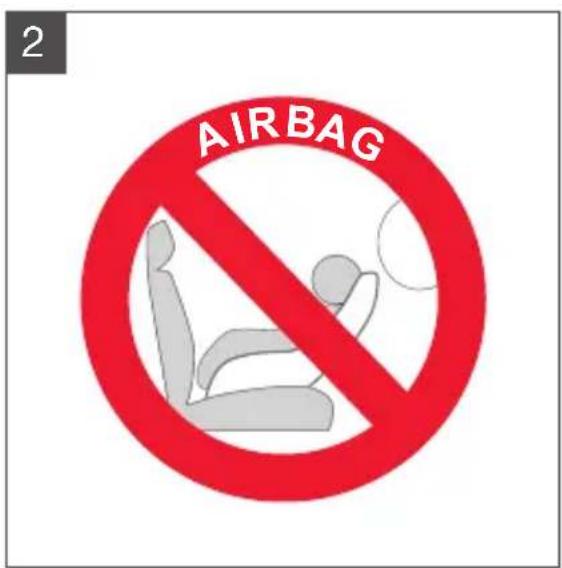

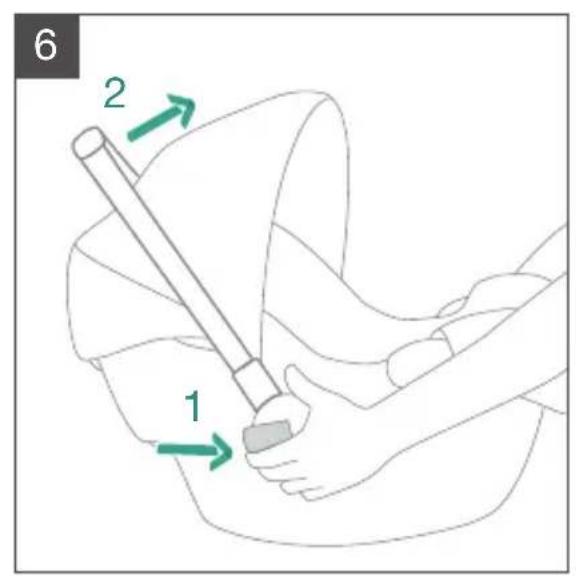

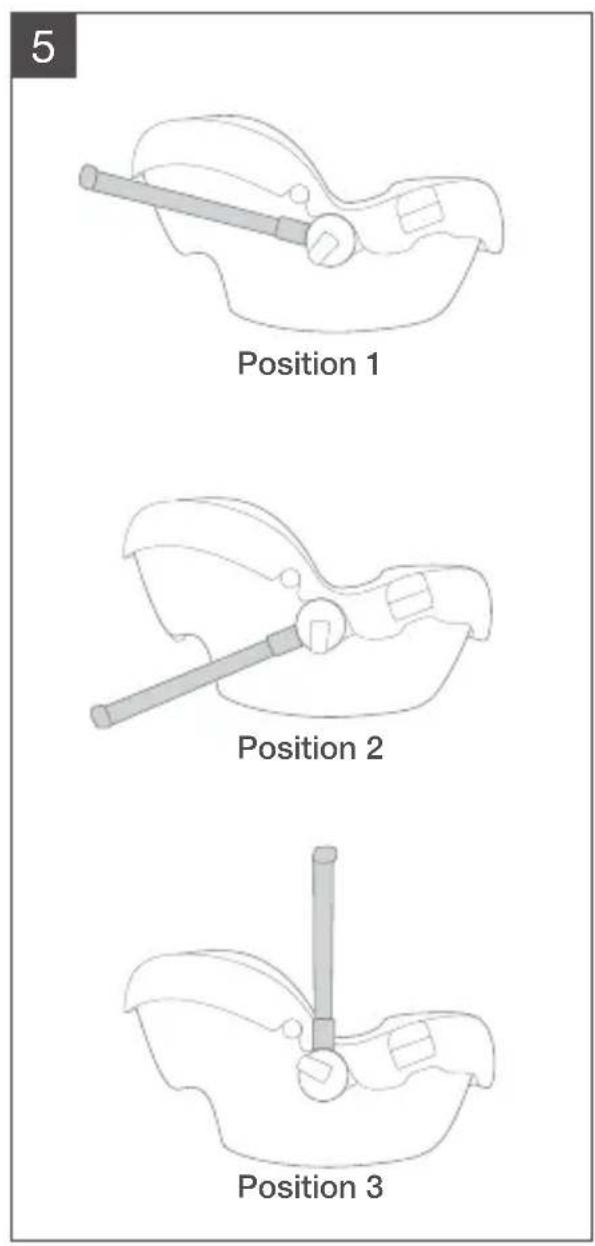

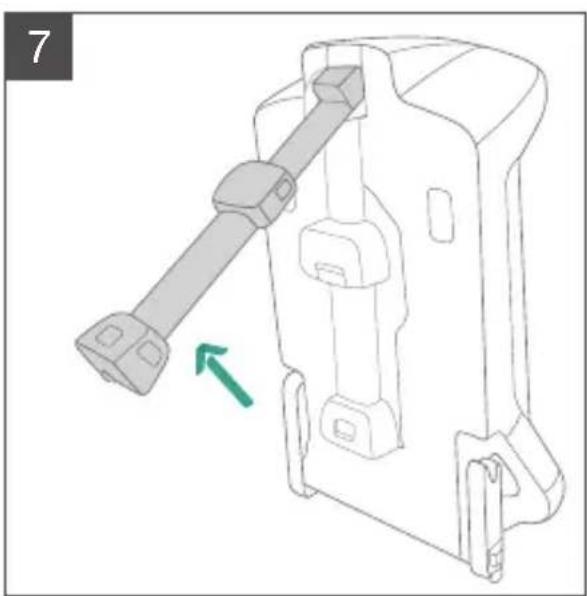

ENProduct Use Installation Concerns This Bugaboo turtle by Nuna enhanced child restraint with the Base is suitable for vehicle seats with i-Size ISOFIX anchor points. (1) DO NOT place rear-facing Bugaboo turtle by Nuna enhanced child restraint on front seat with air bag. Death or serious injury may occur. (2) Please reference vehicle owner’s manual for more information. DO NOT install this Bugaboo turtle by Nuna enhanced child restraint on vehicle seats that face sideways or rearward with respect to the moving direction of the vehicle. (3) It is recommended to install this Bugaboo turtle by Nuna enhanced child restraint on the rear vehicle seat. (4) DO NOT install this Bugaboo turtle by Nuna enhanced child restraint on vehicle seats unstable during installation. Handle Adjustment 1 The handle of the Bugaboo turtle by Nuna enhanced child restraint can be adjusted to 3 positions. Rocking position. (5) -1 Baby chair position. (5) -2 Position for car, hand or stroller transportation. (5) -3 2 To adjust the handle positon, squeeze handle buttons on both sides to release it. (6) -1 3 Rotate handle until it clicks into any of the 3 positions. (6) -2 Installation with Base 1 Unfold the load leg from storage compartment. (7) 2 Fit the ISOFIX guides with the ISOFIX anchor points. (8)The ISOFIX guides can protect the surface of the

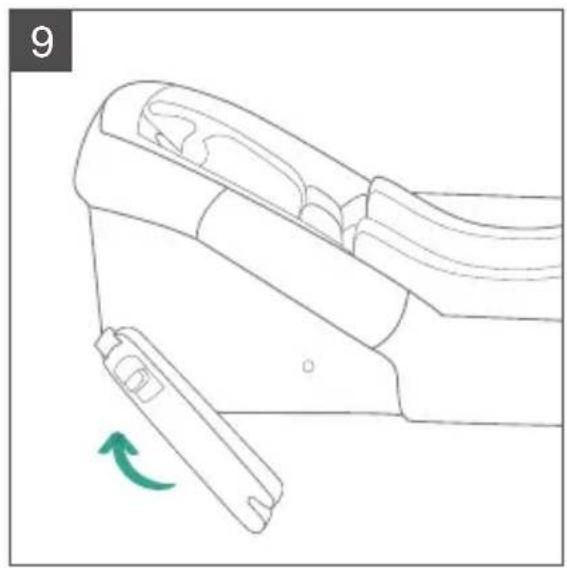

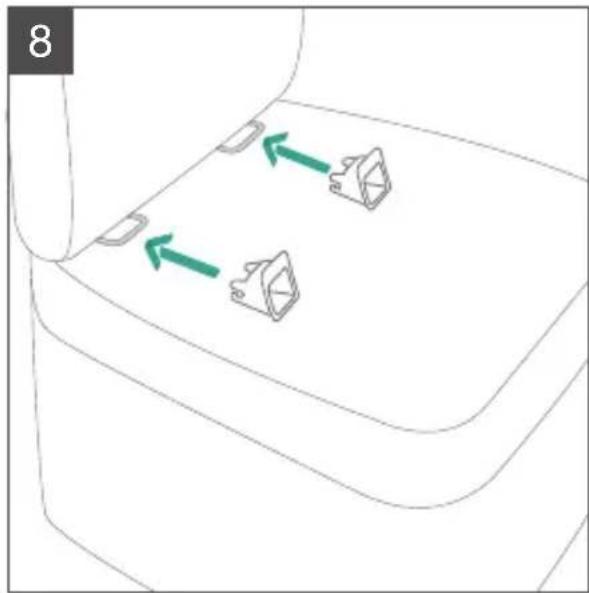

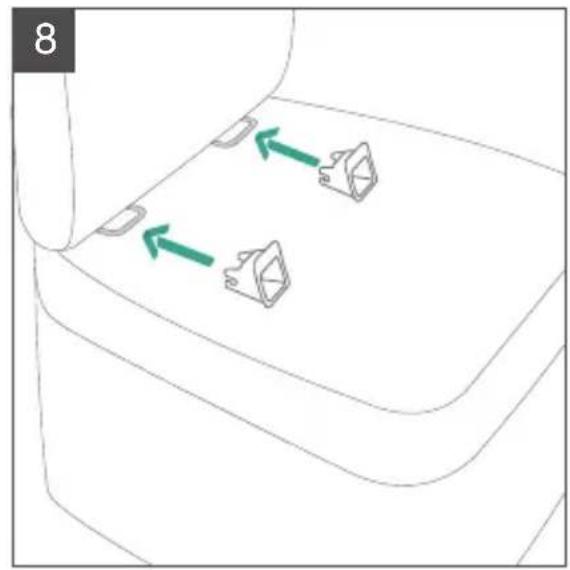

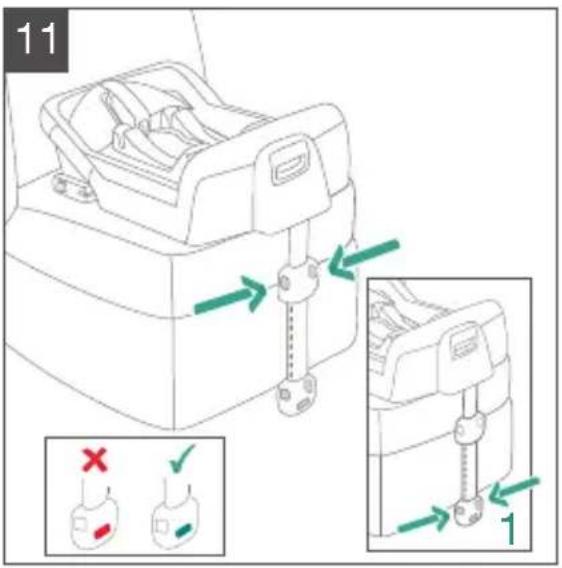

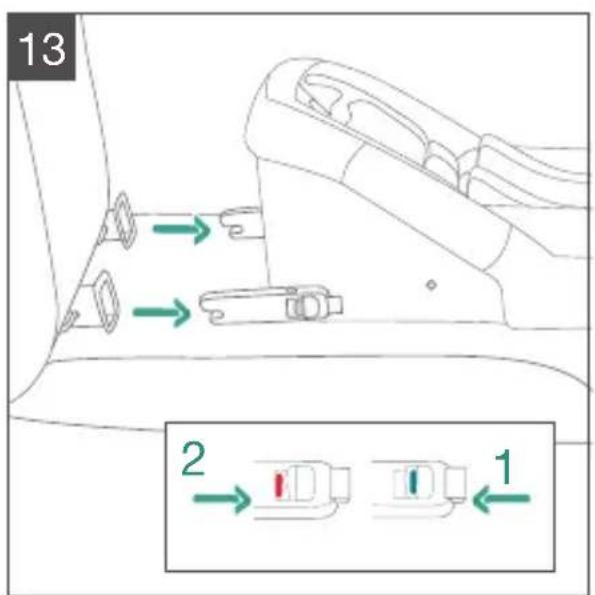

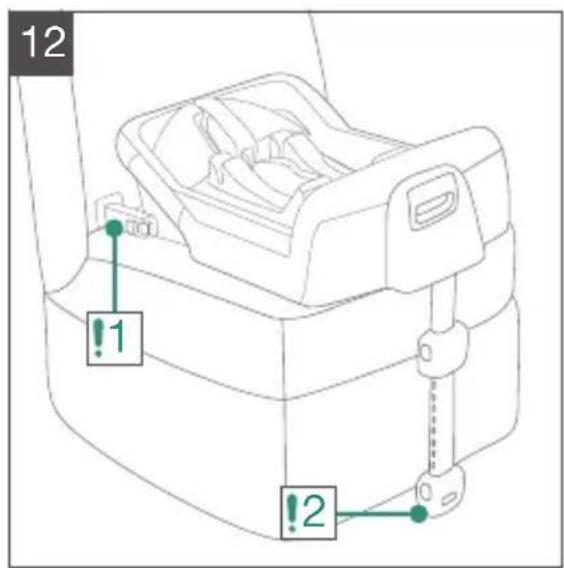

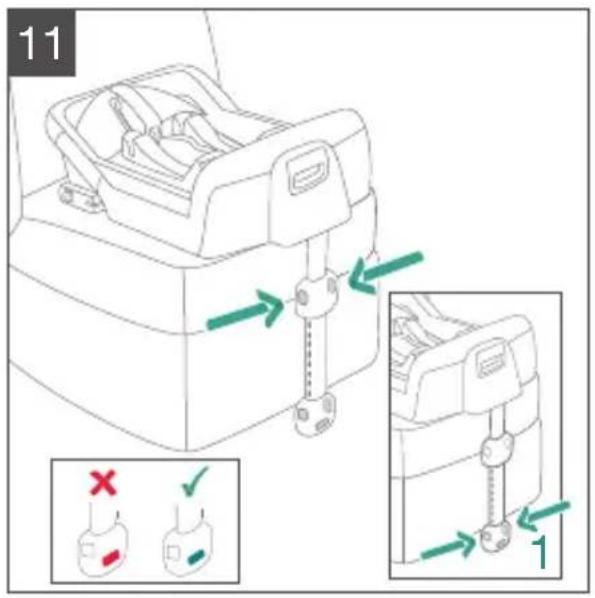

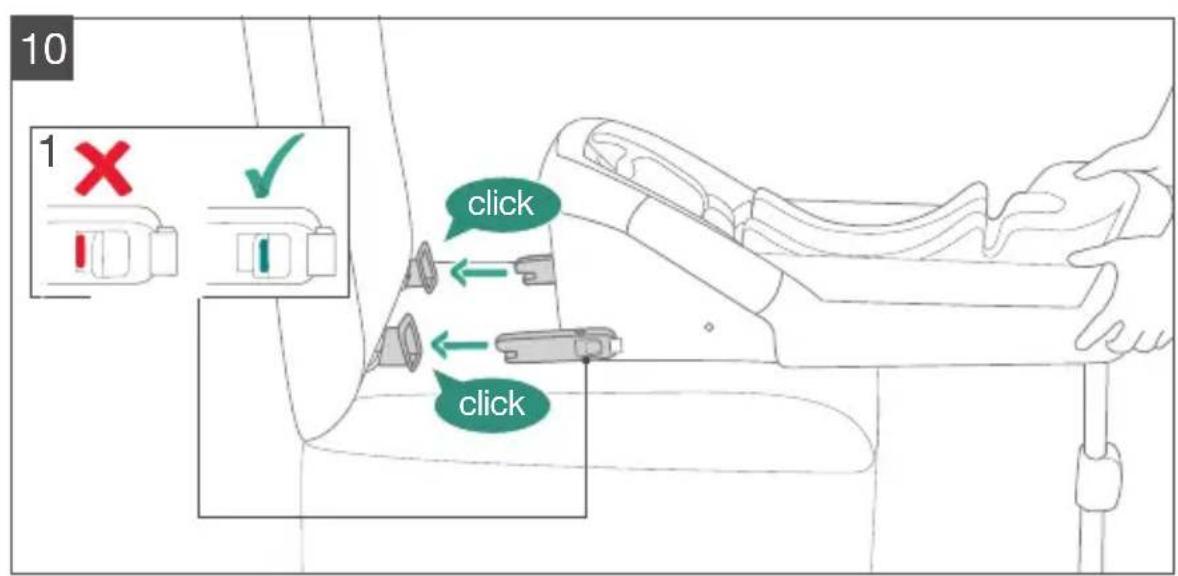

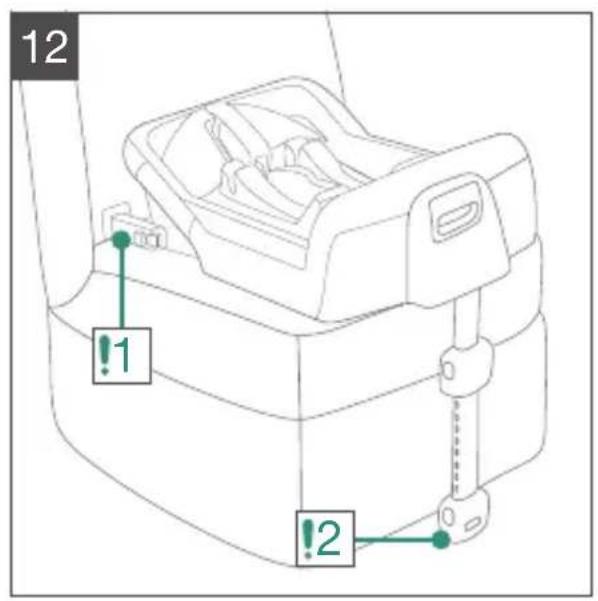

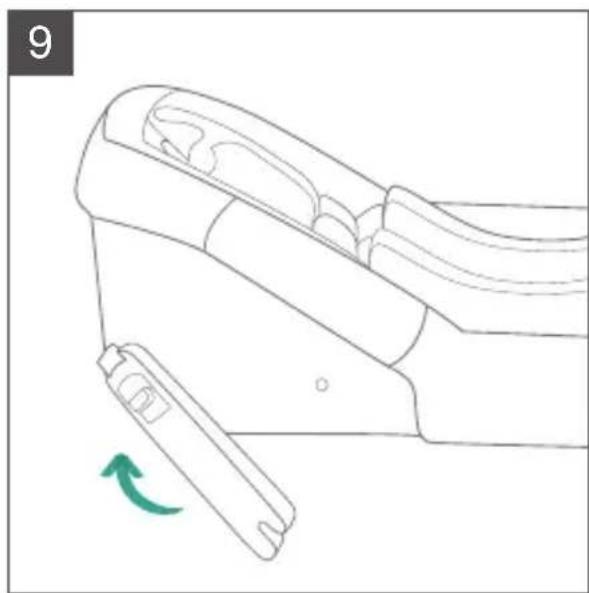

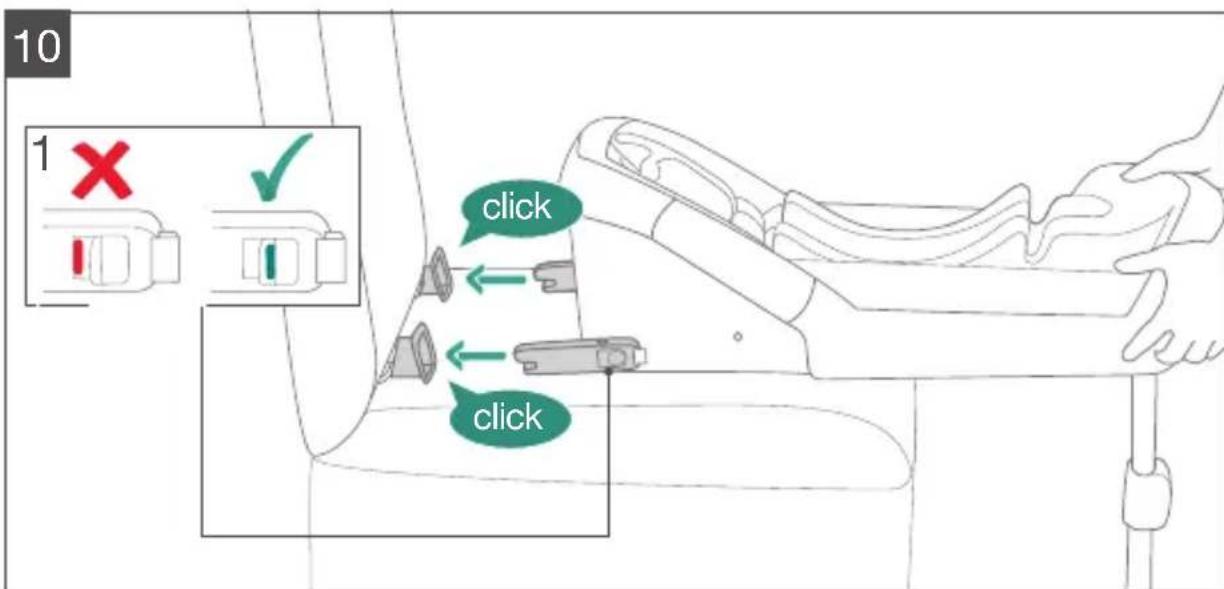

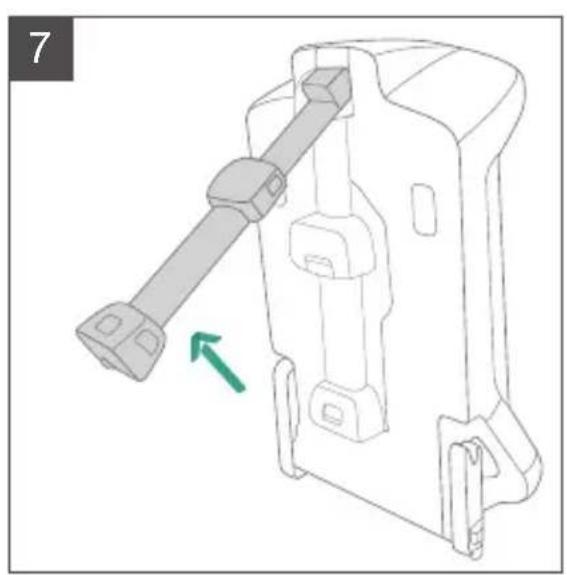

ENvehicle seat from being torn. They can also guide the ISOFIX connectors. 3 Rotate the ISOFIX connectors 180 degrees until they are pointing in the direction of the ISOFIX guides. (9) 4 Line up the ISOFIX connectors with the ISOFIX guides, and then click both ISOFIX connectors into the ISOFIX anchor points. (10) Make sure that both ISOFIX connectors are securely attached to their ISOFIX anchor points. There should be two audible clicks and the colors of the indicators on the both ISOFIX connectors should be completely green. (10) -1 Check to make sure the base is securely installed by pulling on the both ISOFIX connectors. 5 After placing the base on the vehicle seat, extend the load leg to oor (11). When the load leg indicator shows green means it is installed correctly, red means it is installed incorrectly. (11) The load leg has 24 positions. When the load leg indicator shows red this means the load leg is in the wrong position. Make sure the load leg is secure by pressing down on the front of the base. To shorten the load leg, squeeze the load leg release button and pull the load leg upwards. (11)-1 The completely assembled base is shown as (12) The ISOFIX connectors must be attached and locked onto the ISOFIX anchor points. (12)-1 The load leg must be installed correctly with green indicator. (12)-2 6 To remove the base, press the secondary lock button (13)-1 rst and then the button (13)-2 on the latch

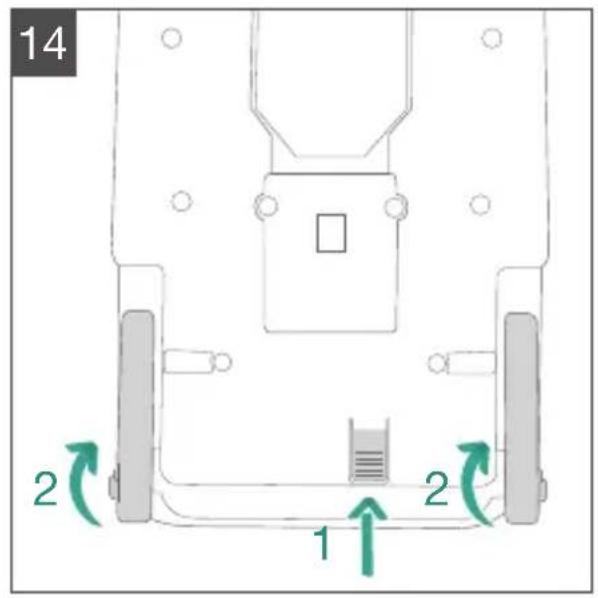

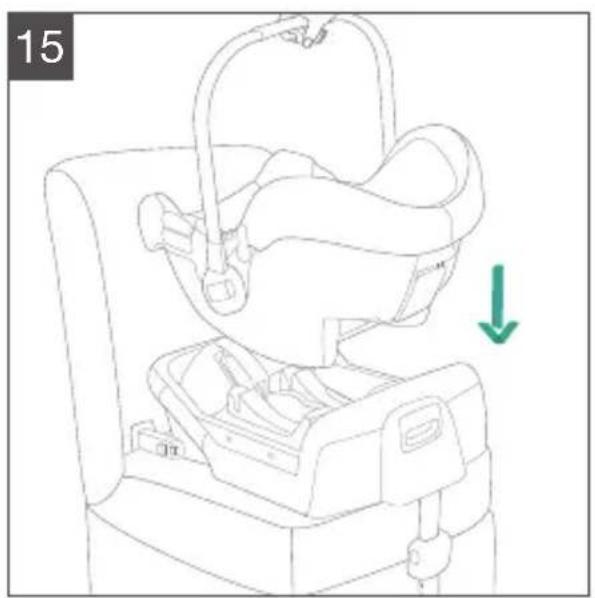

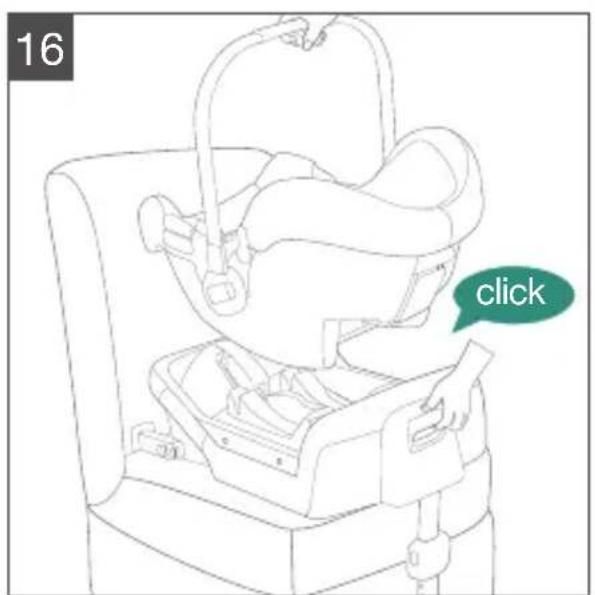

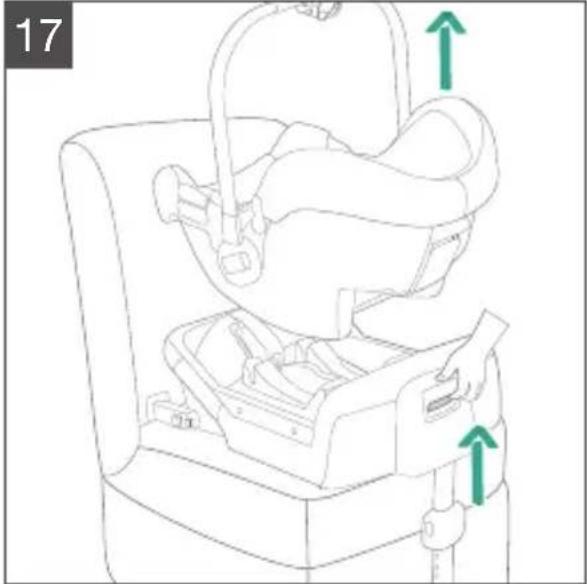

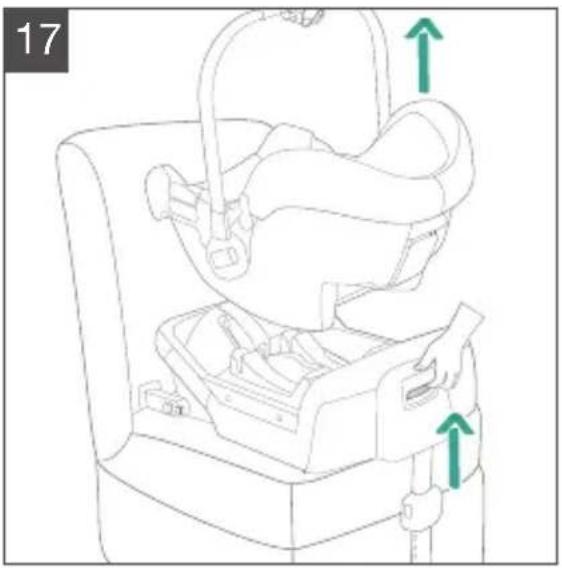

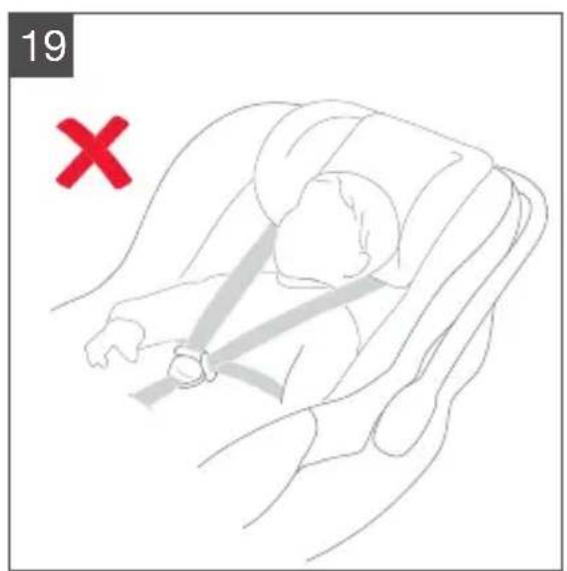

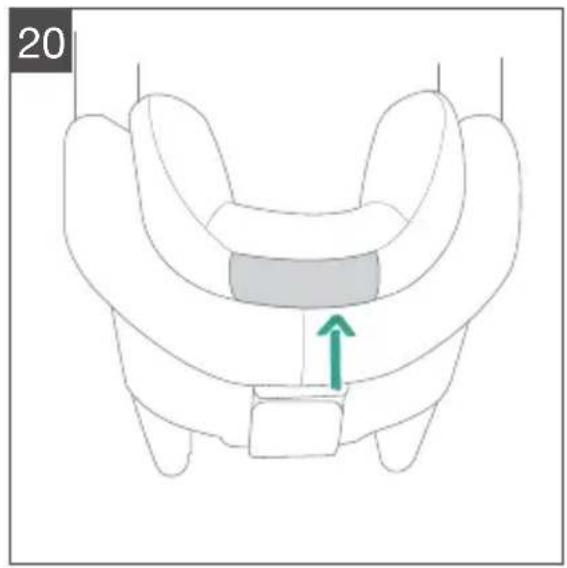

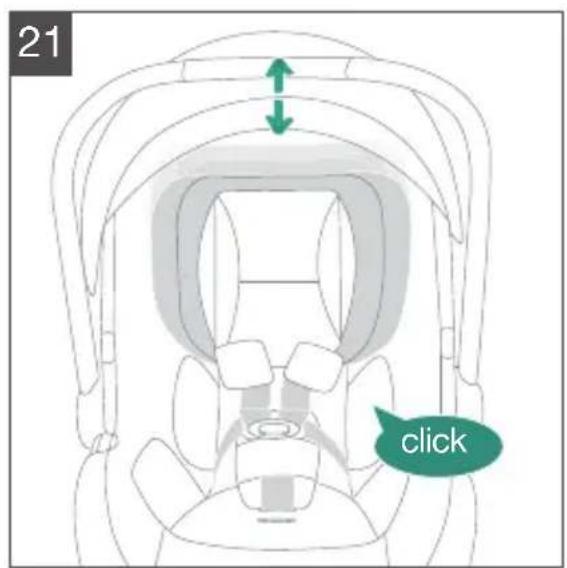

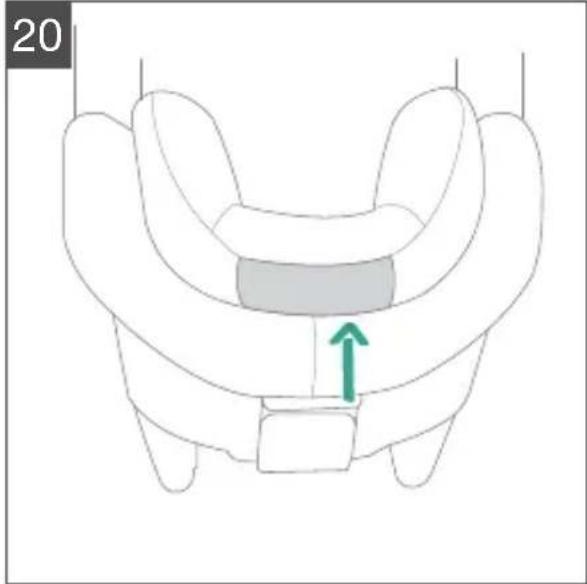

ENconnectors before removing the base from the vehicle seat. 7 Press the ISOFIX releasing button to fold the ISOFIX. (14) 8 Push the Bugaboo turtle by Nuna enhanced child restraint down into the base (15), if the Bugaboo turtle by Nuna enhanced child restraint is secure, the Bugaboo turtle by Nuna enhanced child restraint indicator shows green. (16) Pull up on the Bugaboo turtle by Nuna enhanced child restraint to be sure it is securely latched into the base. 9 To release the Bugaboo turtle by Nuna enhanced child restraint, pull the enhanced child restraint up while squeezing the Bugaboo turtle by Nuna enhanced child restraint release button. (17) Height Adjustment for Head Support and Shoulder Harnesses Check that Shoulder Harness Straps are set at the proper height. Please choose the proper pair of shoulder harness slots according to the child’s height. Shoulder Harness Straps must go into the harness slots nearest to your childs shoulders (18), but not above the shoulder line. (19) If the Shoulder Harness Straps are not at proper height, the child might be ejected the Bugaboo turtle by Nuna enhanced child restraint if there is a crash. Squeeze the head support adjustment lever (20), meanwhile pull up or push down the head support until it snaps into one of the 7 positions. The head support positions are shown as (21).

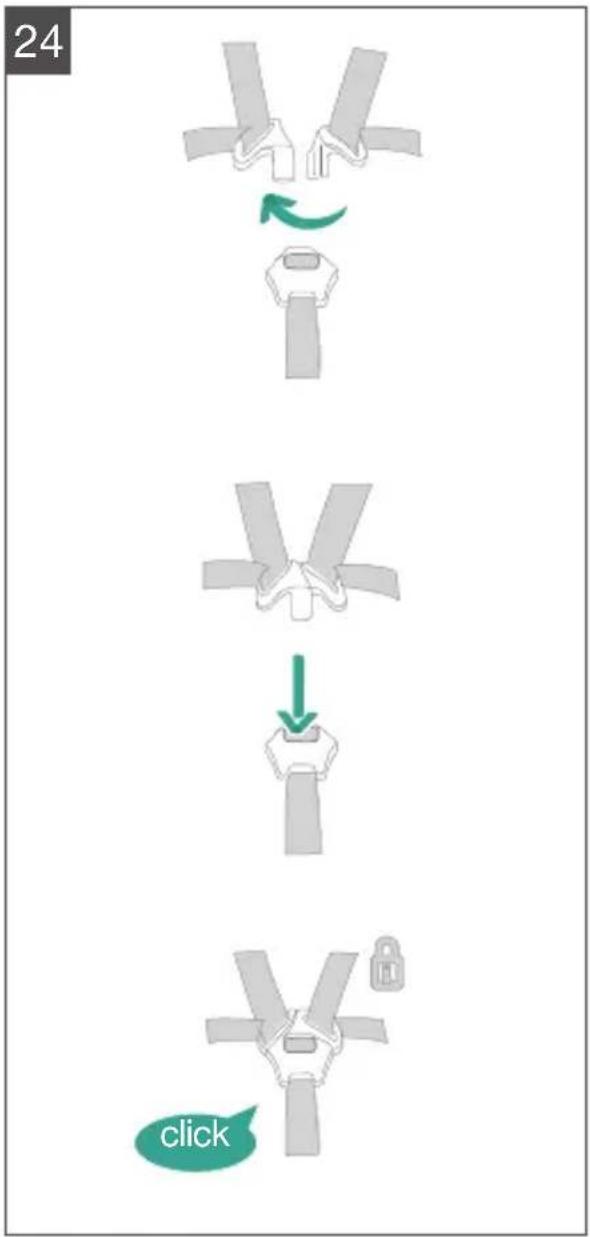

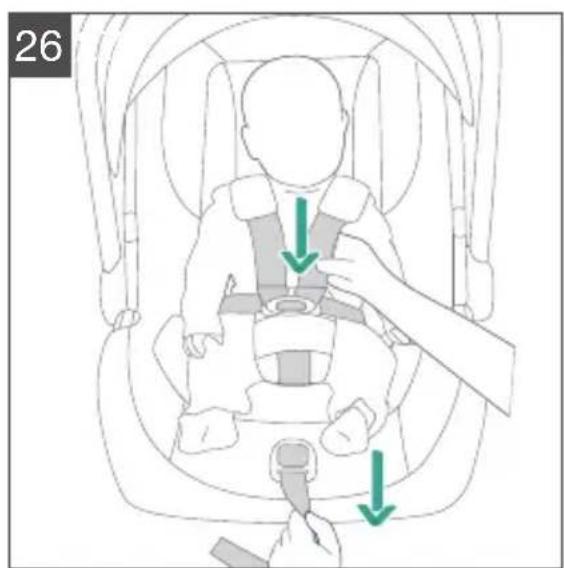

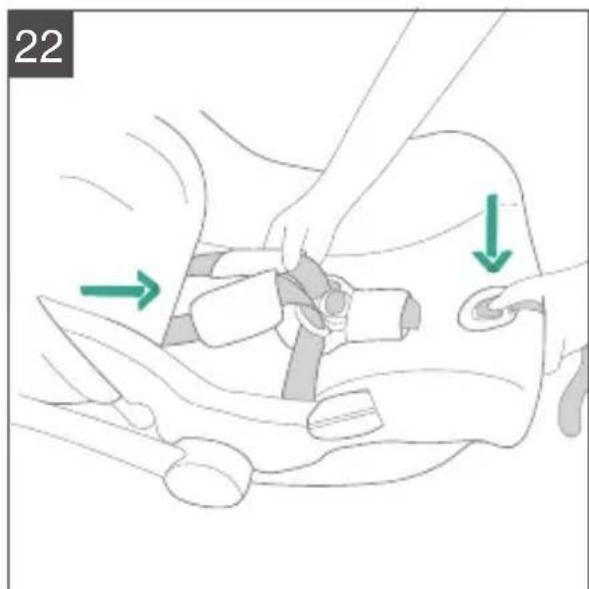

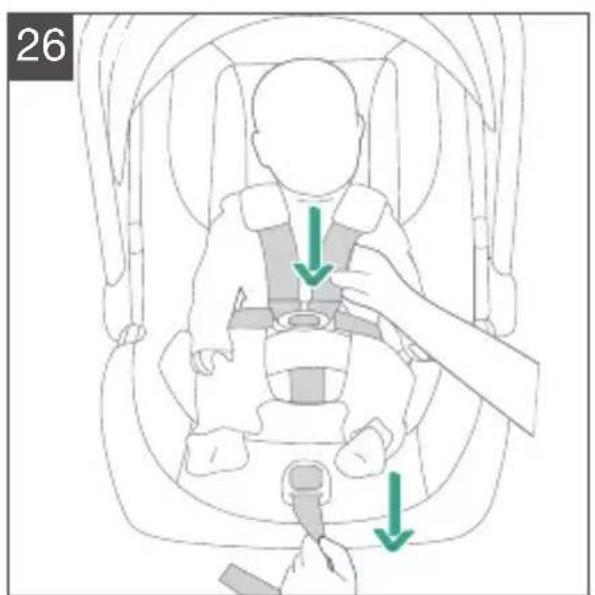

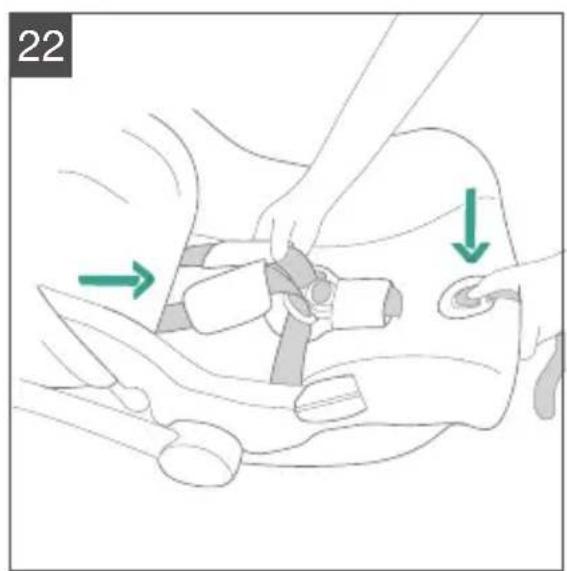

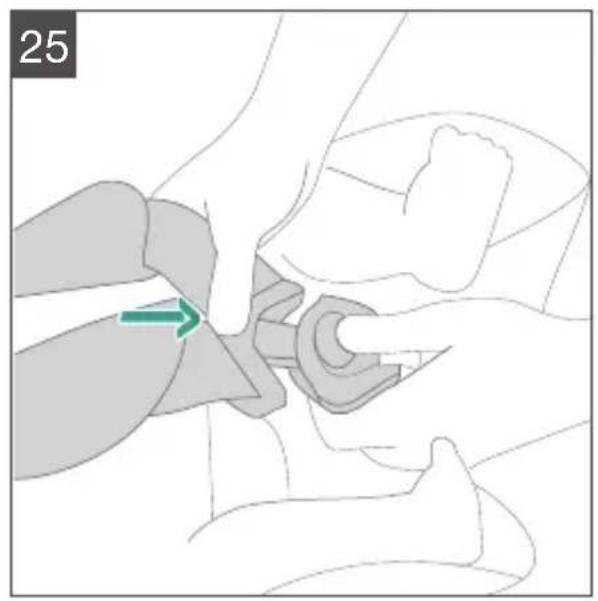

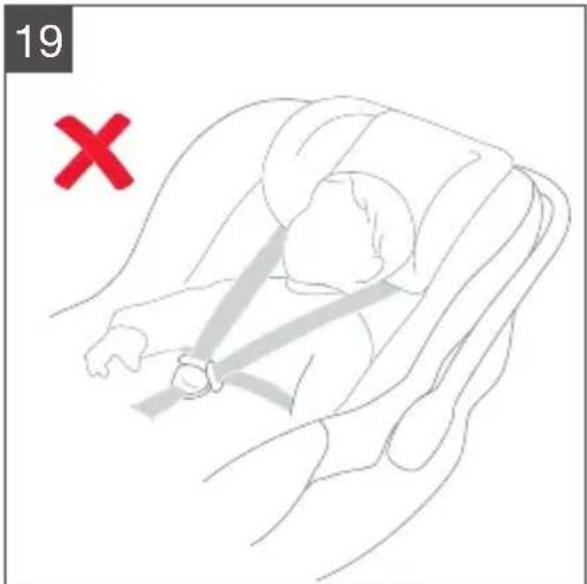

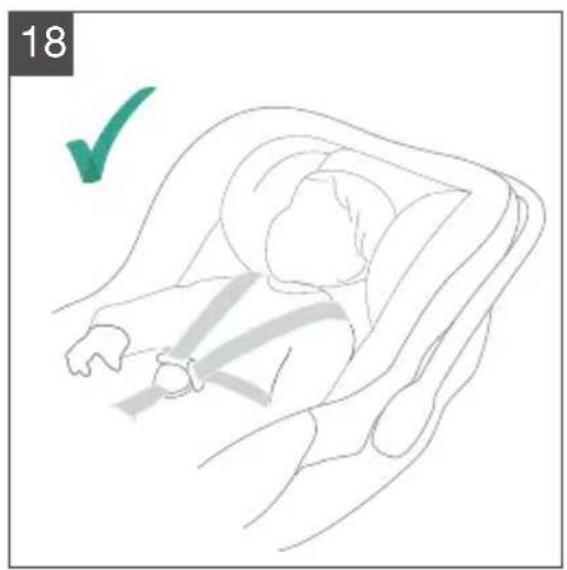

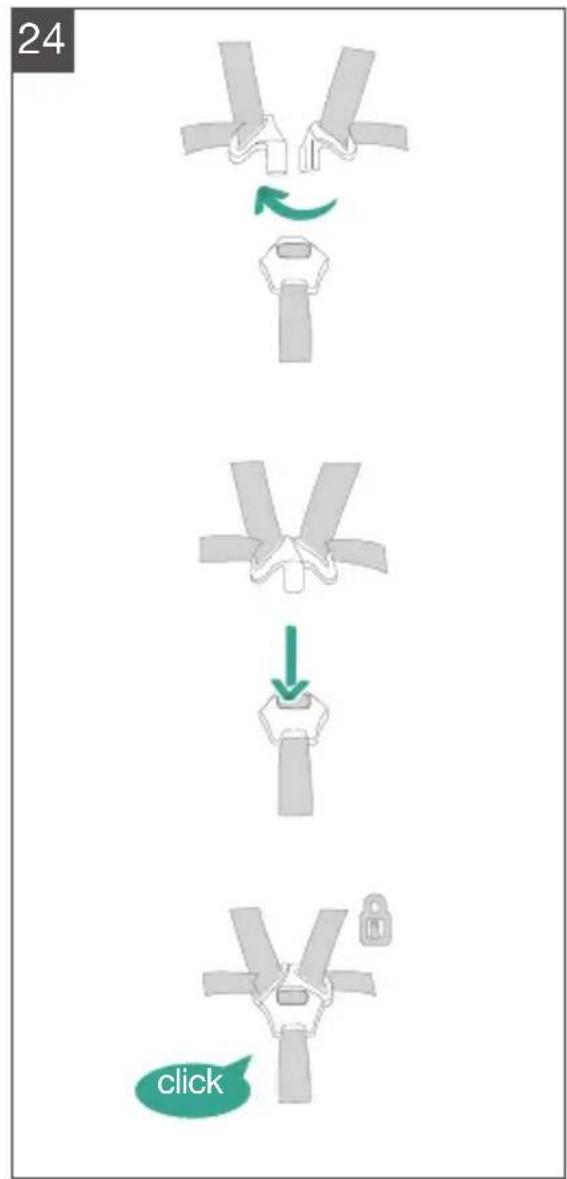

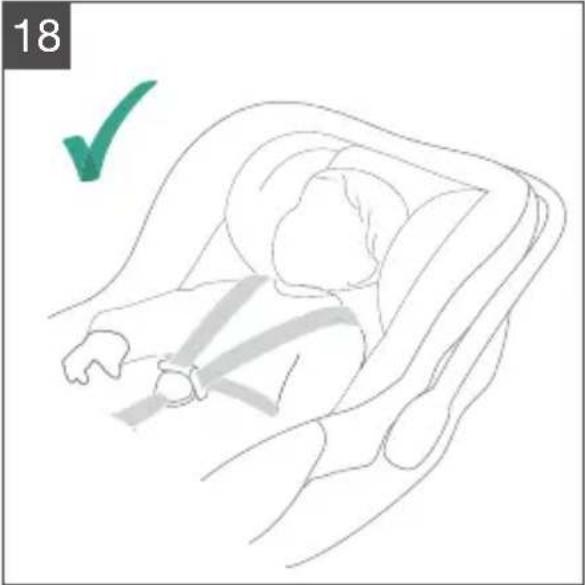

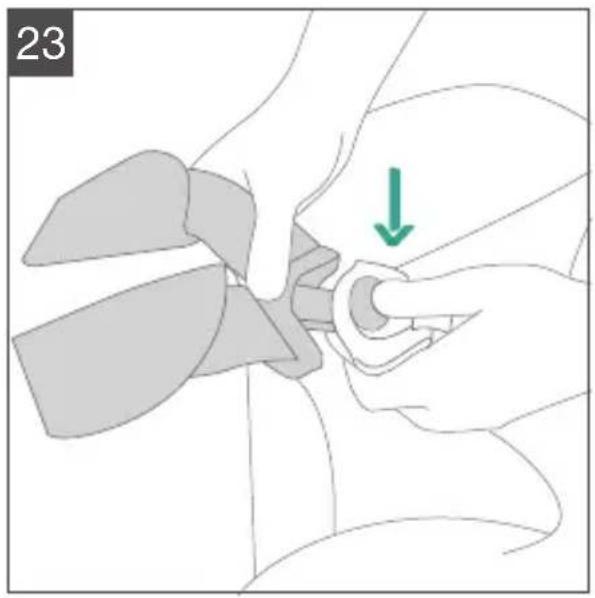

ENSecuring Child Use Infant Insert After the child is placed into the seat, check whether the Shoulder Harness Straps are at proper height. 1 While pressing the adjustment button located at the front of the Bugaboo turtle by Nuna enhanced child restraint, pull completely the two Shoulder Harness Straps of the Bugaboo turtle by Nuna enhanced child restraint. (22) 2 Unlock the buckle of the harnesses by pressing the red button. (23) 3 Place the child into the Bugaboo turtle by Nuna enhanced child restraint and lock the buckle. (25) Please refer to (24). 4 Tighten the shoulder harness straps by pulling the adjustment webbing. (26) Remove the body portion of the infant insert when the infant’s shoulders no longer fit comfortably. The cushion can be used separately without being attached to the insert to bolster the infant’s back for more comfort. Remove the infant insert cushion by detaching the velcro to allow more space when the infant does not fit comfortably.

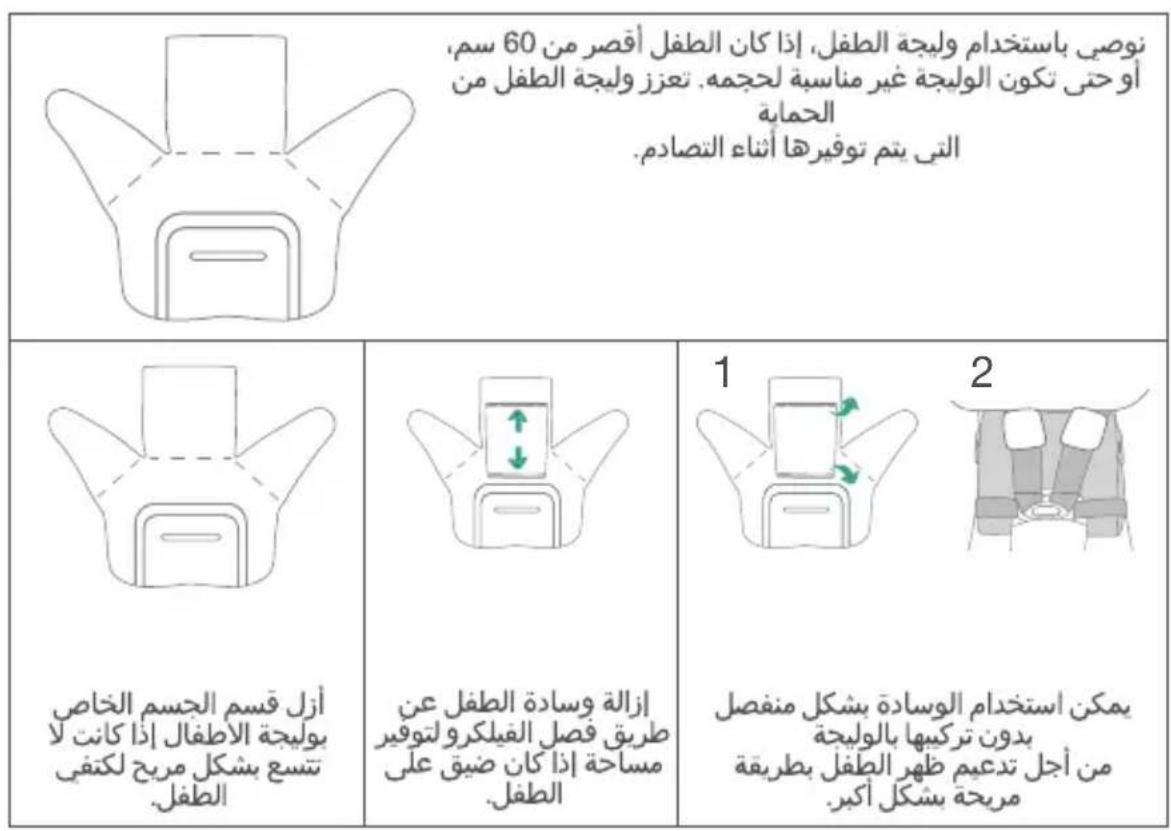

We recommend using the full infant insert while the baby is under 60 cm or until they outgrow the insert. The infant insert increases side impact protection.

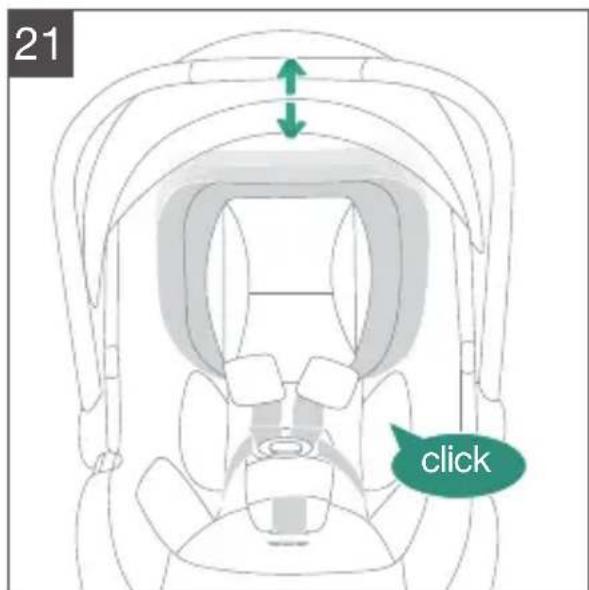

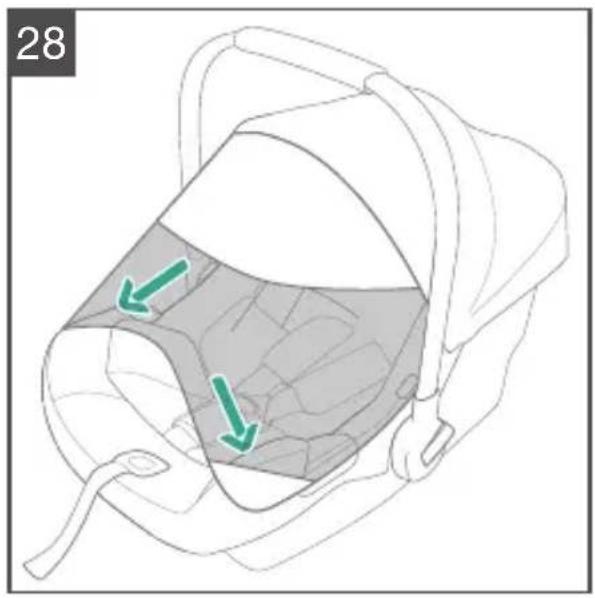

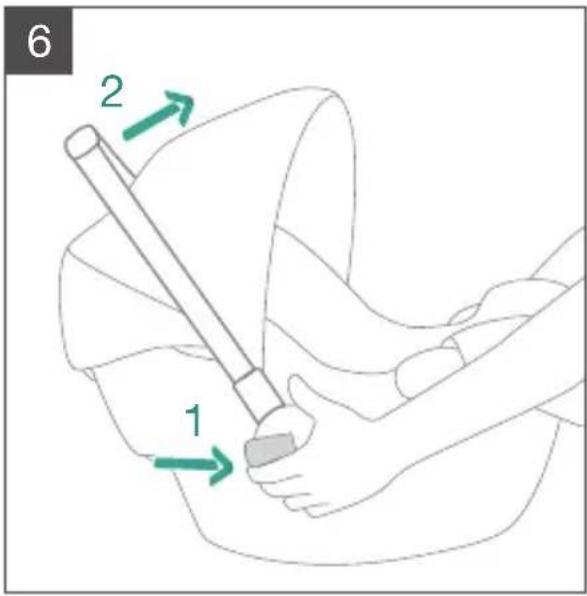

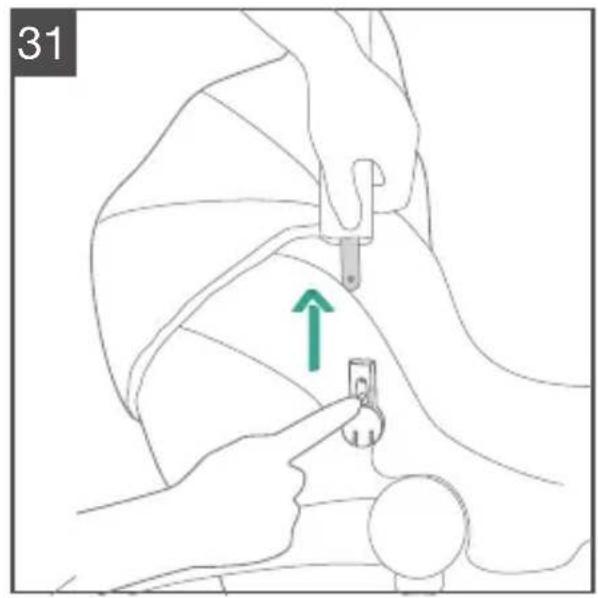

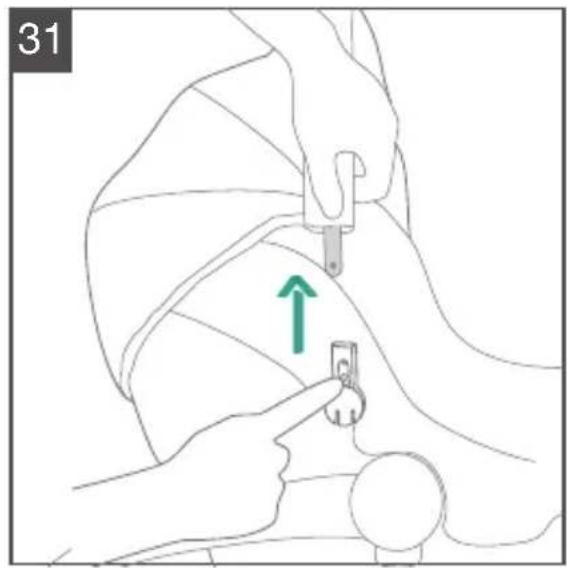

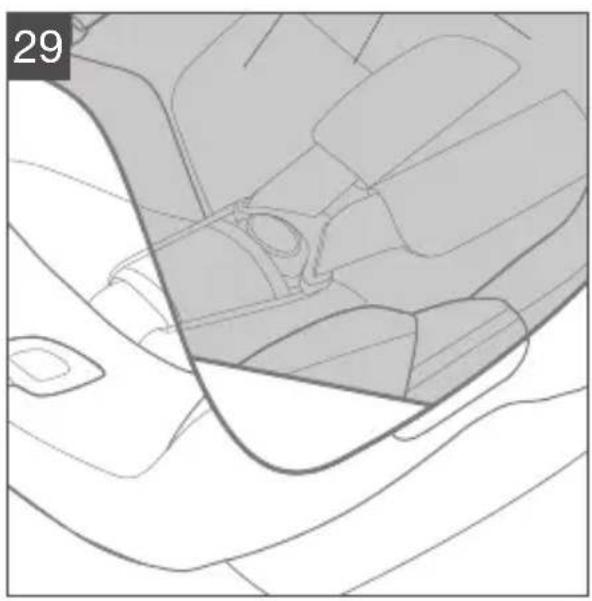

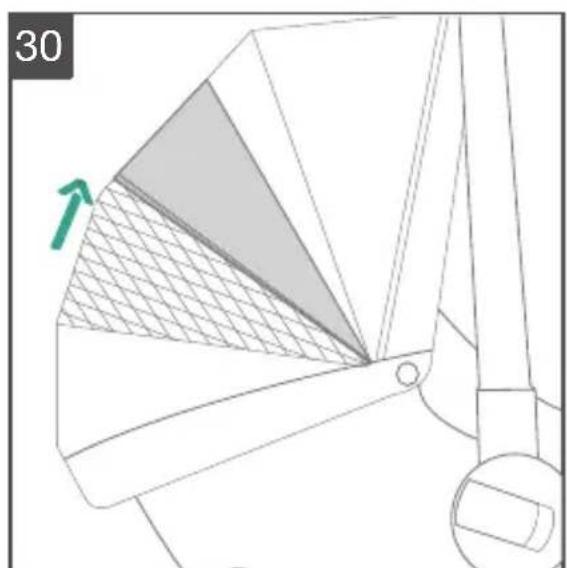

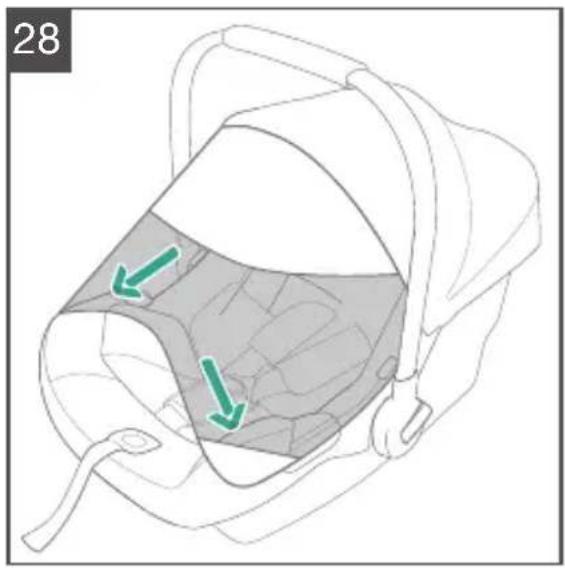

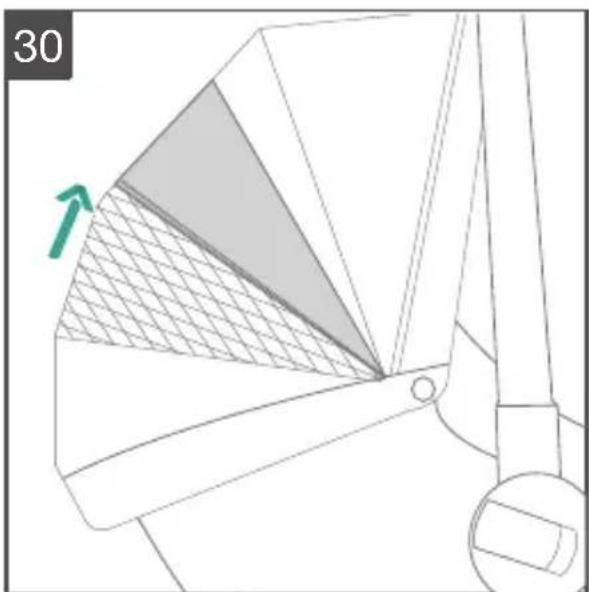

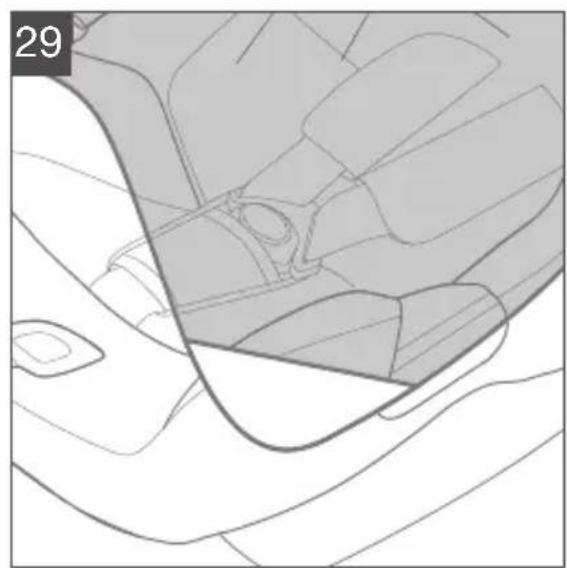

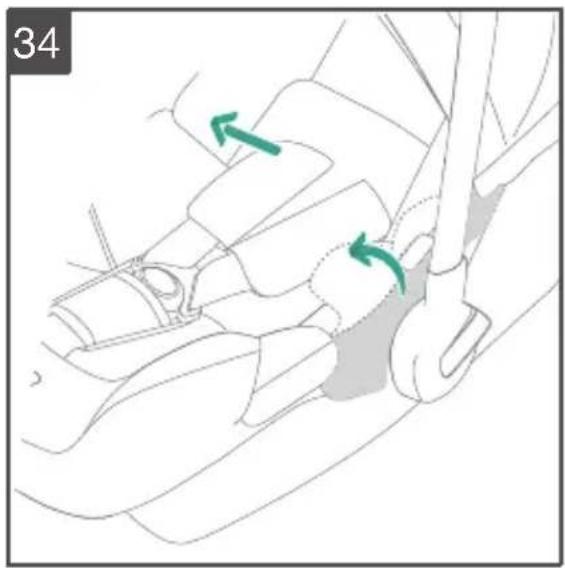

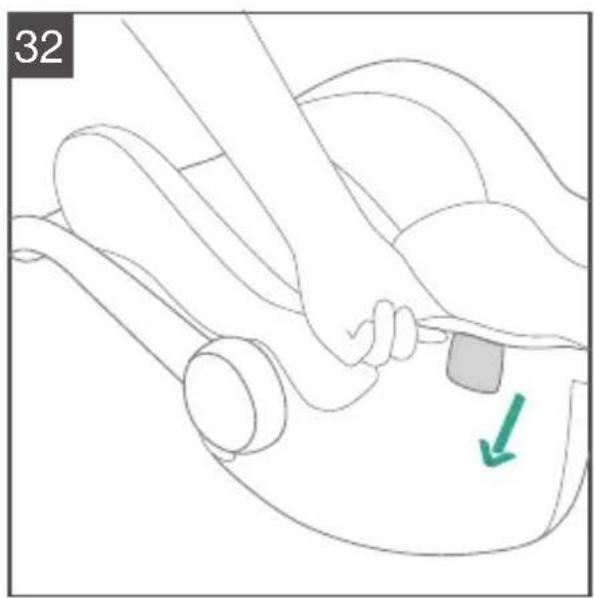

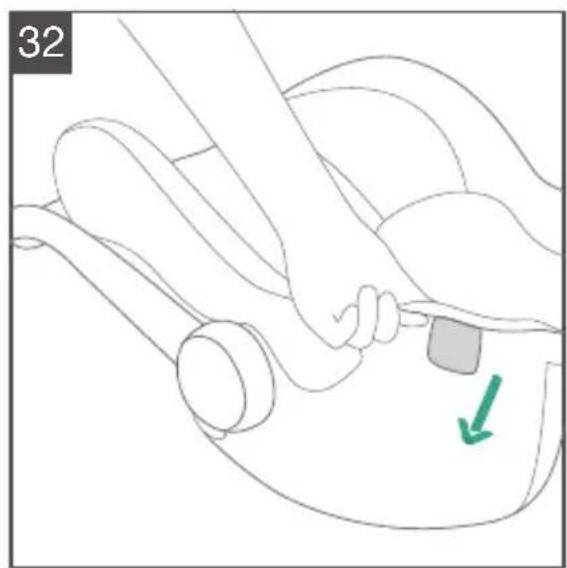

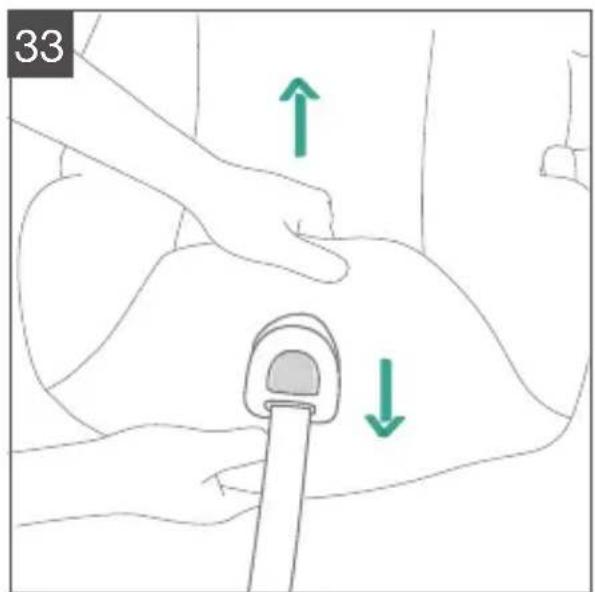

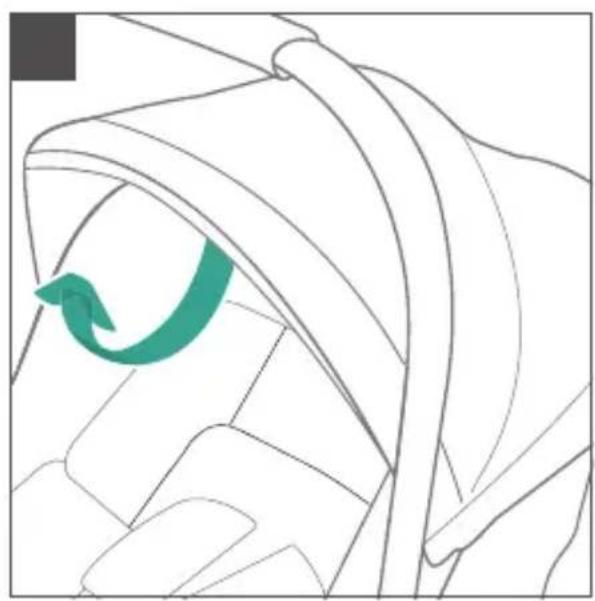

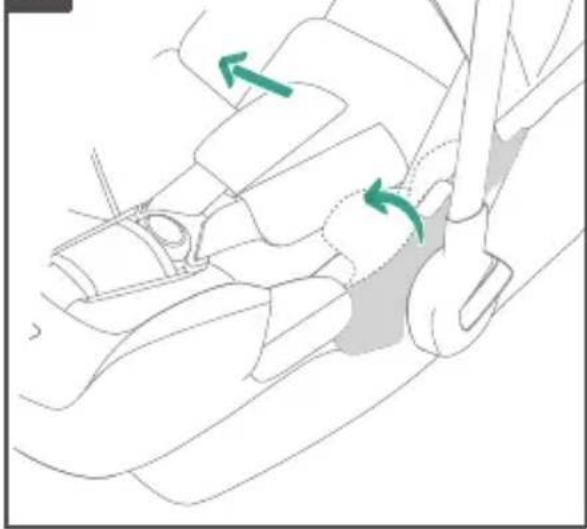

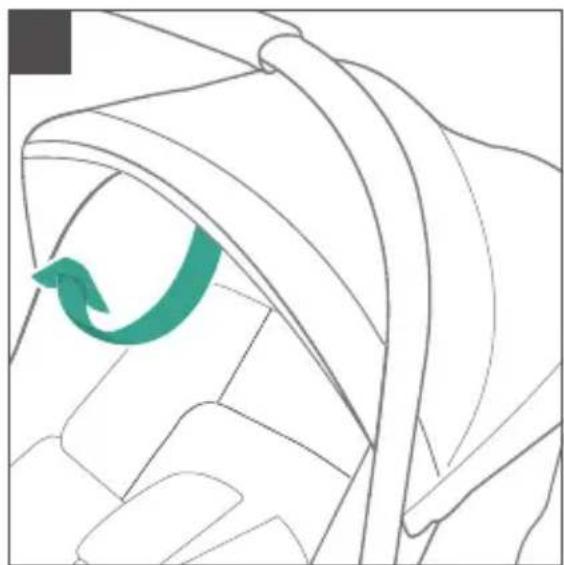

ENMake sure the space between the child and the Shoulder Harness Straps is about the thickness of one hand. Canopy 1 Flip out visor from underneath the front canopy bow (27) 2 Pull out the extendable ‘smart visor’ from in between the two visor layers (28) 3 Attach the magnets on each corner to the front of the child restraint (29) 4 The Peek-a-boo on the back can be opened for ventilation (30) Detach Canpoy Seat Pad 1 Detach the snaps to disassemble the canopy, press the button in the canopy mount and pull the canopy bow out. (31) 2 Pull the fastening pis underneath the edge of the seat out. (32) 3 Press the red button to disengage the buckle. (23) Remove the Infant Insert and crotch strap. 4 Detach the elastic band on the head support, and then remove the head support. 5 Remove the seat pad from the adjustment button as shown in. (33) 6 Remove the seat pad from the Stroller release button as shown in. (34) Installation without Base 1 DO NOT install this Bugaboo turtle by Nuna enhanced child restraint on vehicle seats with Lap Belts. (35)

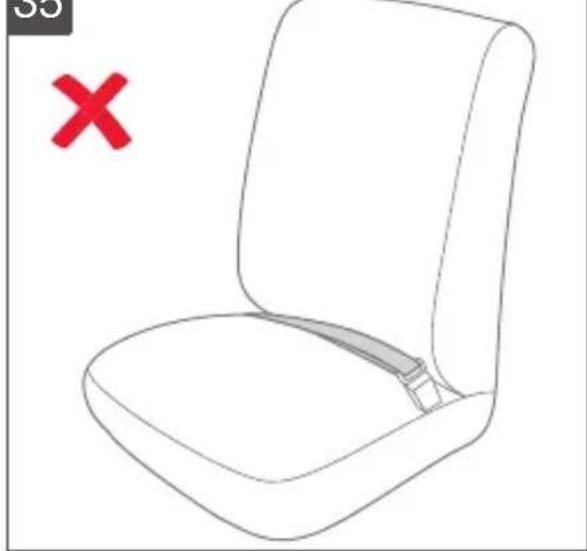

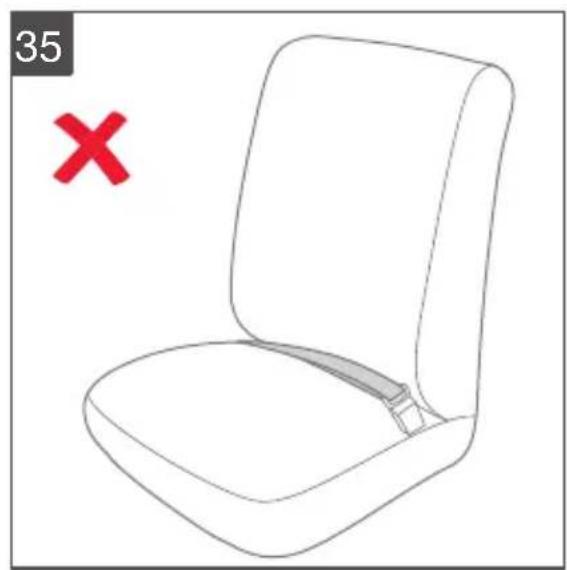

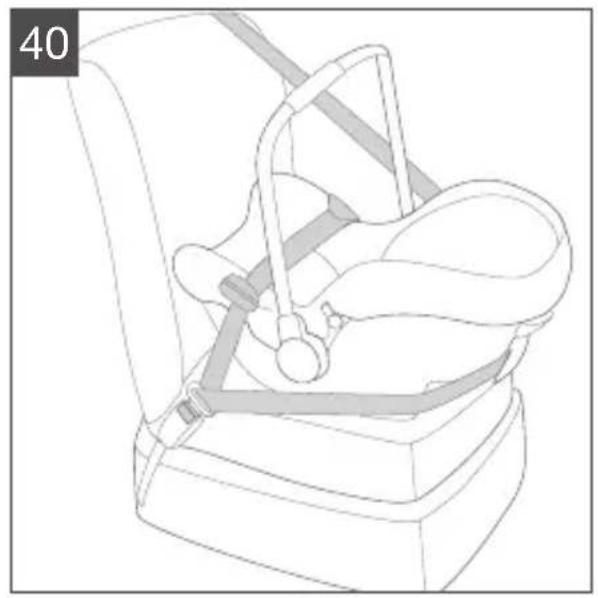

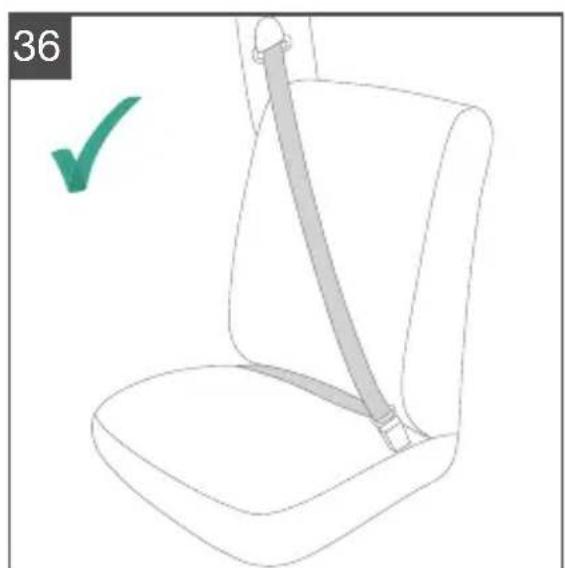

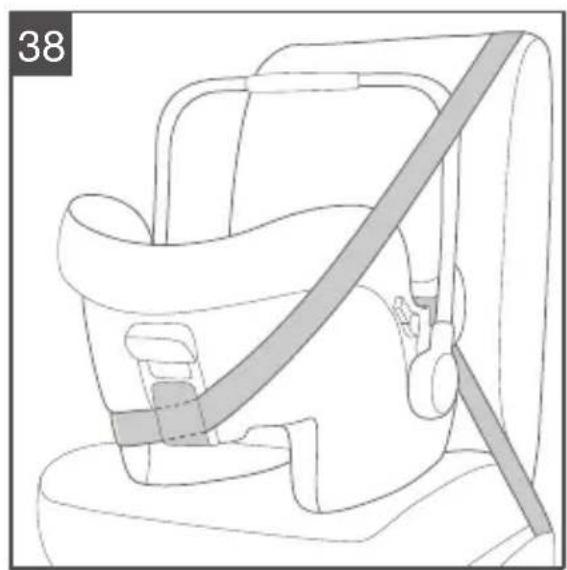

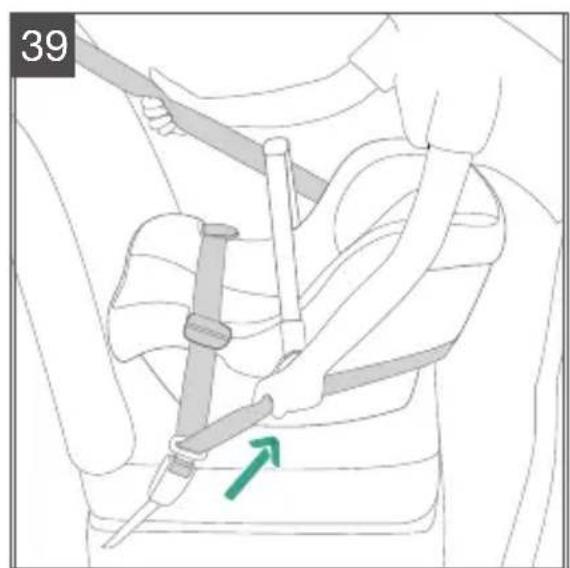

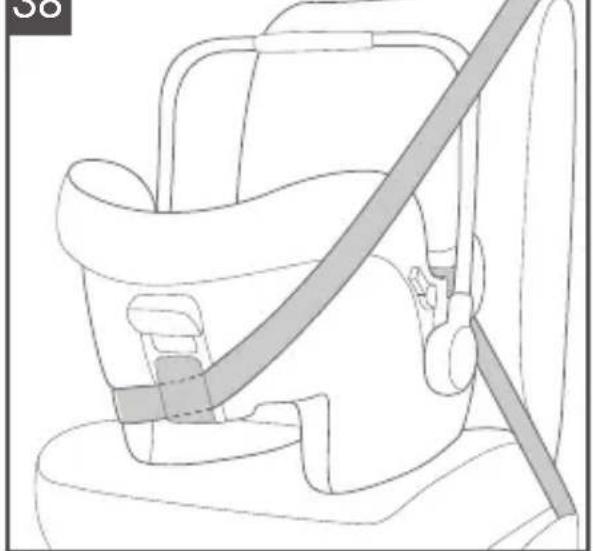

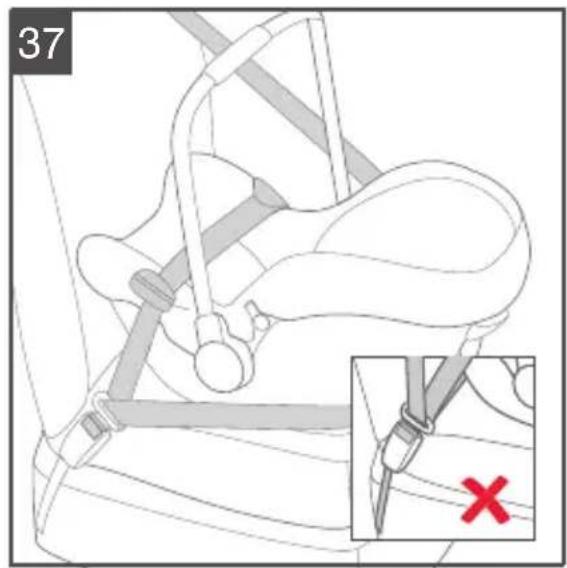

EN2 This Bugaboo turtle by Nuna enhanced child restraint is suitable for vehicle seats with a 3-point Retractor Safety Belt (without base) only. (36) 3 Place the Bugaboo turtle by Nuna enhanced child restraint onto the vehicle seat where you wish to put it. Pull the vehicle safety belt out and lock it into the vehicle buckle, sliding the vehicle lap belt into the side guides of the Bugaboo turtle by Nuna enhanced child restraint. (37) The Bugaboo turtle by Nuna enhanced child restraint can not be used if the vehicle safety belt buckle (female buckle end) is too long to anchor the Bugaboo turtle by Nuna enhanced child restraint securely. (37) 4 Slide diagonal belt into the rear guide. (38) 5 Pull the vehicle shoulder belt to fasten the Bugaboo turtle by Nuna enhanced child restraint tightly and securely. (39) 6 Level line on carrier must be level to the ground when the Bugaboo turtle by Nuna enhanced child restraint is installed. (41) Tension the vehicle safety belt as much as possible, checking that it is not loose or twisted. After installing the Bugaboo turtle by Nuna enhanced child restraint, always check that the vehicle belts are routed correctly and securely fastened into the vehicle buckle. (40) Aeroplane Installation Note that safety of the child for not complying with the installation and instruction manual is not guaranteed. Note that the installation of the infant carrier on an aircraft seat differs from the installation on a car seat. Note that 2-Point “Lap Belt” attachment is only permitted in aircraft.

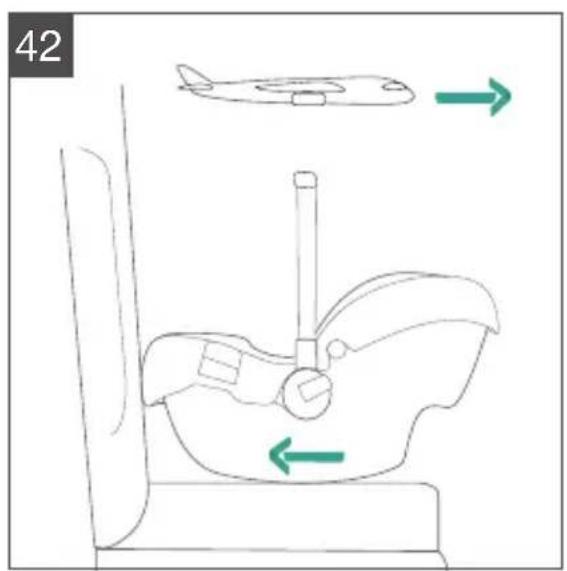

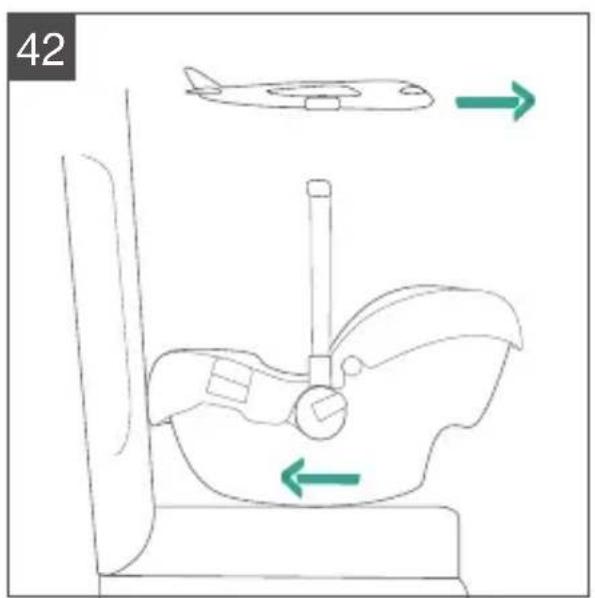

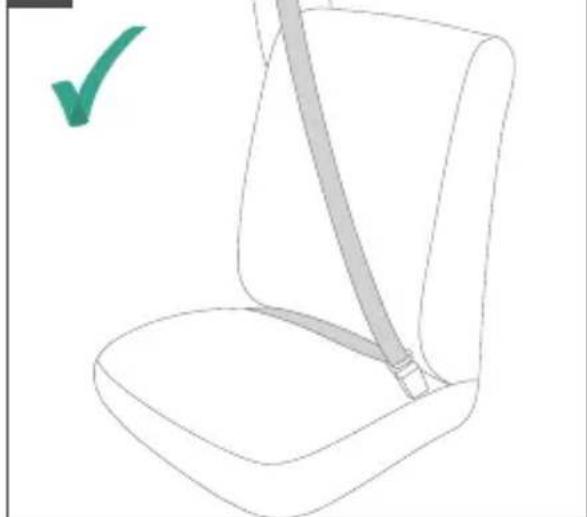

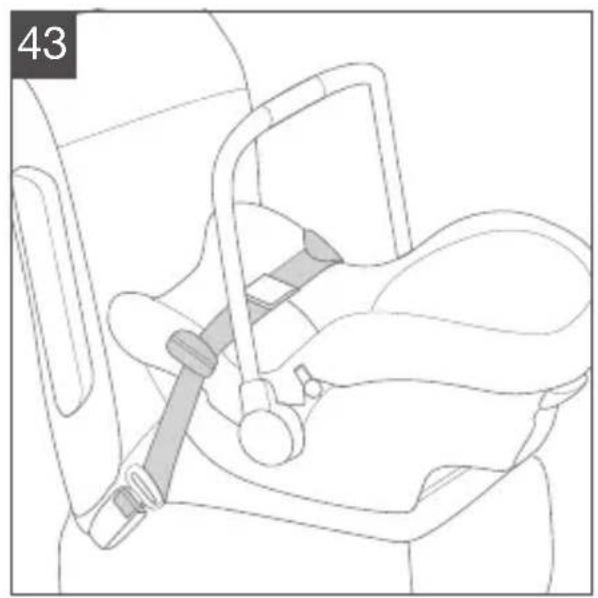

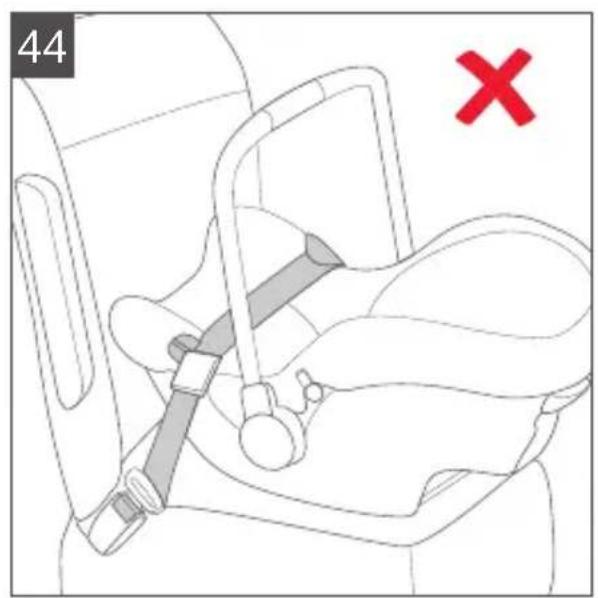

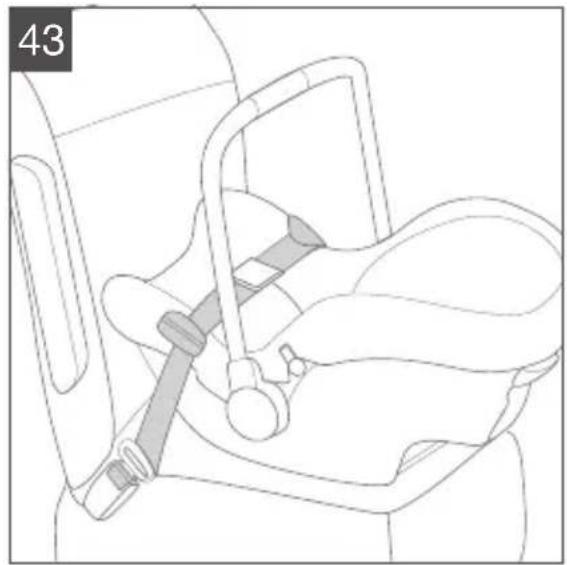

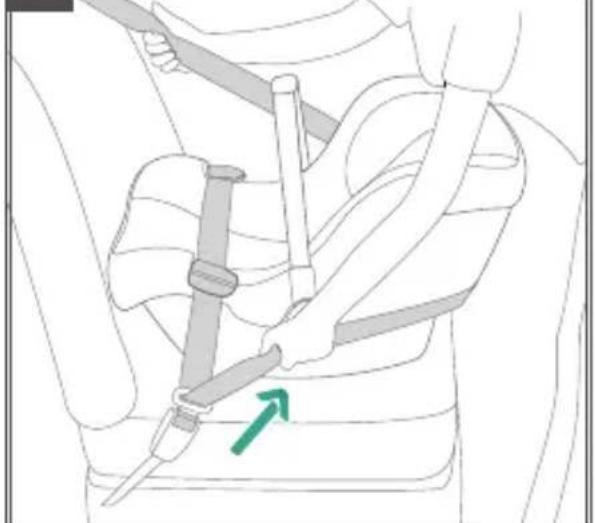

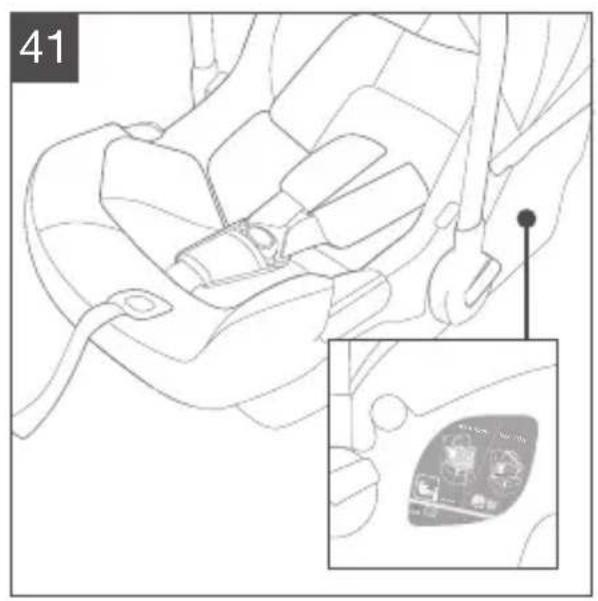

ENNote that the infant carrier must remain belted on the aircraft seat even when unoccupied. Note that the infant carrier is only for use on a passenger seat authorized by the airline. Warnings not to use the infant carrier in the area of airbag deployment. (2) Note that Rearward facing infant carrier should only be installed on forward facing passenger seats. (42) How to install the baby seat using the aircraft seat’s safety belt: 1 Place the infant carrier module opposite to the ight direction onto the passenger seat. 2 Ensure that the carry handle is in the topmost position. 3 Place the safety belt into both light blue belt guides. 4 Close the safety belt (refer to the safety instructions by the airline). 5 Tighten the safety belt by pulling the belt end. (43) The buckle of the safety belt must under no circumstances lie within the light blue belt guides. (44) Removal: Open the safety belt of the passenger seat (refer to the safety instructions by the airline). Now you can take the baby seat from the passenger seat.

ENCleaning and Maintenance Clean the frame, plastic parts, and fabric with a damp cloth, but do not use abrasives or bleach. Do not use silicon lubricants as they will attract dirt and grime. To ensure long-lasting use, wipe this product off with a soft, absorbent cloth after using it in rainy weather. Refer to the care labels attached to the soft goods for washing and drying instructions. It is normal for fabric to color from sunlight and to show wear and tear after a long period of use, even when used normally. For reasons of safety, only use original Nuna parts. Check regularly if everything functions properly. If any parts are torn, broken, or missing, stop using this product. The information contained herein is subject to change without notice. Bugaboo International BV shall not be liable for technical errors or omissions contained herein. The purchased product may differ from the product as described in this user guide. Our most rnt user guides can be requested at our service departments or at www. bugaboo.com. © 2019 Bugaboo International BV. BUGABOO, BUGABOO FOX, BUGABOO CAMELEON, BUGABOO BEE, BUGABOO DONKEY, BUGABOO BUFFALO, RUNNER, BUGABOO BOXER and the Bugaboo logos are registered trademarks. The Bugaboo® strollers are patented and design protected. ©2019 Nuna International B.V. Nuna and all associated logos are trademarks.
