Bugaboo child restraint in collaboration with Nuna Bugaboo International BV Paasheuvelweg 9 a-b 1105BE Amsterdam zuidoost The Netherlands NUNA International BV Van der Valk Boumanweg 178 C 2352JD Leiderdorp The Netherlands IMG-0119F-1 child restraint collaboration 10049699 UG Bugaboo Turtle Air by Nuna emea rv003 inv4 www.bugaboo.com meet your bugaboo turtle air by Nuna Bugaboo UG Turtle Air Cover EMEA A6 IMG-0119F-1.indd All PagesBugaboo UG Turtle Air Cover EMEA A6 IMG-0119F-1.indd All Pages 24-08-2020 13:0024-08-2020 13:00Bugaboo Turtle Air by Nuna is based on the Nuna PIPA next modelbugaboo cameleonbugaboo fox bugaboo bee bugaboo donkeywhen used with additional Bugaboo adapters for designated Bugaboo strollers, compatible with:

click nothing like a Bugaboo

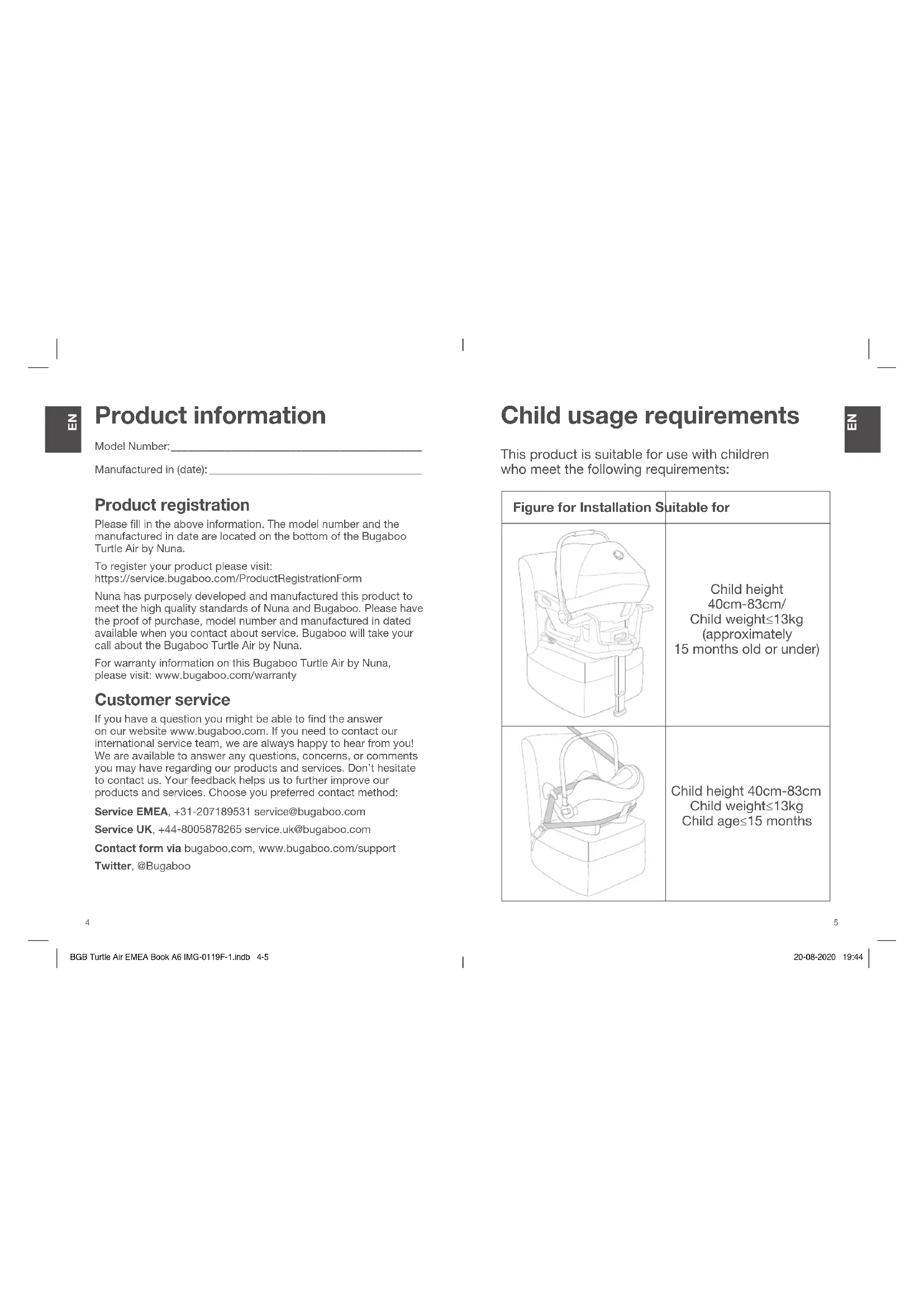

BGB Turtle Air EMEA Book A6 IMG-0119F-1.indb 7-3BGB Turtle Air EMEA Book A6 IMG-0119F-1.indb 7-3 20-08-2020 19:4420-08-2020 19:44This product is suitable for use with children who meet the following requirements: Product information Model Number: ______________________________________________ Manufactured in (date): _______________________________________ Product registration Please ll in the above information. The model number and the manufactured in date are located on the bottom of the Bugaboo Turtle Air by Nuna. To register your product please visit: https://service.bugaboo.com/ProductRegistrationForm Nuna has purposely developed and manufactured this product to meet the high quality standards of Nuna and Bugaboo. Please have the proof of purchase, model number and manufactured in dated available when you contact about service. Bugaboo will take your call about the Bugaboo Turtle Air by Nuna. For warranty information on this Bugaboo Turtle Air by Nuna, please visit: www.bugaboo.com/warranty Customer service If you have a question you might be able to nd the answer on our website www.bugaboo.com. If you need to contact our international service team, we are always happy to hear from you! We are available to answer any questions, concerns, or comments you may have regarding our products and services. Don’t hesitate to contact us. Your feedback helps us to further improve our products and services. Choose you preferred contact method: Service EMEA, +31-207189531 service@bugaboo.com Service UK, +44-8005878265 service.uk@bugaboo.com Contact form via bugaboo.com, www.bugaboo.com/support Twitter, @Bugaboo Child usage requirements Figure for Installation Suitable for Child height 40cm-83cm/ Child weight≤13kg (approximately 15 months old or under) Child height 40cm-83cm Child weight≤13kg Child age≤15 months

UN Regulation No.129/03 For use with base 1 "i-Size" (Integral Universal ISOFIX Enhanced Child Restraint Systems) is a category of Enhanced Child Restraint System primarily designed for use in all i-Size seating position of a vehicle. 2 According to the UN Regulation No.129, the Enhanced Child Restraint with base is a Universal ISOFIX Enhanced Child Restraint and should be tted using the ISOFIX connections. 3 This is an "i-Size" Enhanced Child Restraint System. It is approved according to UN Regulation No.129, for use in, i-Size compatible vehicle seating positions as indicated by vehicle manufacturers in the vehicle users’ manual. 4 This is an Universal Belted Enhanced Child Restraint System. It is approved according to UN Regulation No. 129, for use primarily in “Universal seating positions” as indicated by vehicle manufacturers in the vehicle user’s manual. 5 If in doubt, consult either the Enhanced Child Restraint System manufacturer or the retailer. Failure to follow these warnings and instructions could result in serious injury or death. Any straps holding the infant carrier module to the vehicle should be tight, that any load leg should be in contact with the vehicle oor, that any straps restraining the child should be adjusted to the child’s body, and that straps should not be twisted. Any luggage or other objects liable to cause injuries in the event of a collision shall be properly secured. Be sure that the enhanced child restraint is installed in such a way that no part of it interferes with movable seats or in the operation of vehicle doors. Before carrying the infant carrier module by hand, ensure that the child is fastened with the child harness, and that the handle is correctly locked in a vertical position. Consult the distributor for issues concerning maintenance, repair and part replacement. Correct Installation is only permitted by use of the ISOFIX connectors. WARNING

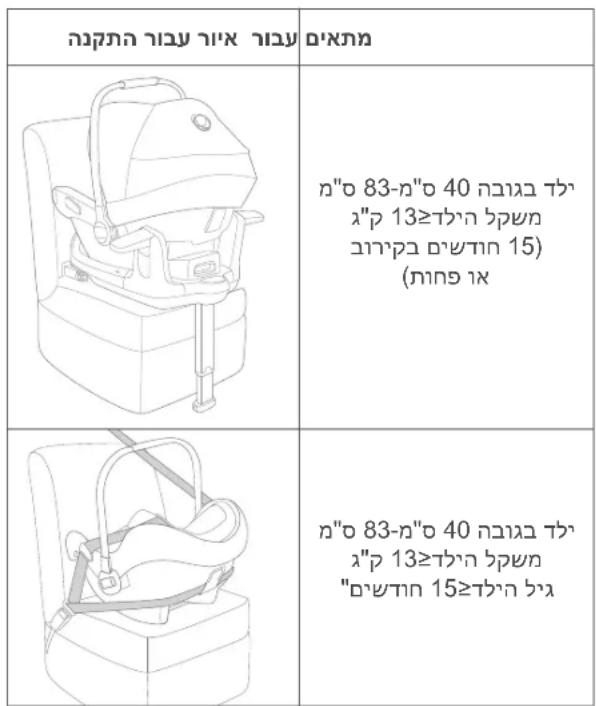

BGB Turtle Air EMEA Book A6 IMG-0119F-1.indb 6-7BGB Turtle Air EMEA Book A6 IMG-0119F-1.indb 6-7 20-08-2020 19:4420-08-2020 19:44Frequently check the ISOFIX guides for dirt and clean them if necessary. Reliability can be effected by ingress of dirt, dust, food particles etc. Please check before you purchase this enhanced child restraint to make sure it can be installed properly in your vehicle. Please keep this enhanced child restraint without a textile cover away from sunlight, because it may be too hot for child’s skin. Always touch the Enhanced Child Restraint before placing child in it. To use this enhanced child restraint with the ISOFIX connections according to UN Regulation No.129, your child must meet the following requirements. Child height 40cm-83cm/Child weight≤13kg (approximately 15 months old or under). To use this infant carrier module with vehicle belt, your child must meet the following requirements. Child height 40cm-83cm. Child weight≤13kg/Child age≤15 months The enhanced child restraint system soft goods should not be replaced with any other than the ones recommended by the manufacturer, because the soft goods constitutes an integral part of the restraint performance. To avoid the risk of falling out, always secure the child using the child harness when the child is placed in infant carrier module, even when the enhanced child restraint is not in the vehicle. To avoid serious injury or death, NEVER place infant carrier module on elevated surface seat with child in it. The parts of this enhanced child restraint should not be lubricated in any way. Remove this infant carrier module and base from the vehicle seat when it is not in regular use. ALWAYS secure child in enhanced child restraint, even on short trips, as this is when most accidents occur. NEVER leave your child unattended with this enhanced child restraint. NEVER use a second-hand enhanced child restraint or an enhanced child restraint whose history you do not know because it may have structural damage that endangers your child’s safety. NEVER use ropes or any other substitutes to secure enhanced child restraint in vehicle or to secure child into enhanced child restraint. NO enhanced child restraint can guarantee full protection from injury in an accident. However, proper use of this enhanced child restraint will reduce the risk of serious injury or death to your child. DO NOT use the rearward facing enhanced child restraint systems in seating positions where there is an active frontal airbag installed. Death or serious injury may occur. Please reference vehicle owner’s manual for more information. DO NOT place any objects in the load leg area in front of your base.

BGB Turtle Air EMEA Book A6 IMG-0119F-1.indb 8-9BGB Turtle Air EMEA Book A6 IMG-0119F-1.indb 8-9 20-08-2020 19:4420-08-2020 19:44DO NOT use any load bearing contact points other than those described in the instructions and marked on the enhanced child restraint. DO NOT continue to use this enhanced child restraint after it has suffered any type of crash, even a minor one. Replace immediately as there may be invisible, structural damage from the crash. DO NOT install this enhanced child restraint without following the instructions in this manual or you may put your child at serious risk of injury or death. DO NOT make any modication to this enhanced child restraint or use it along with component parts from other manufacturers. DO NOT use the enhanced child restraint system without the soft goods. DO NOT use this enhanced child restraint if it has damaged or missing parts. DO NOT have your child in large/oversized clothes because this may prevent your child from being properly and securely fastened by the shoulder harness straps and the crotch strap between the legs. DO NOT leave this enhanced child restraint, or other items unbelted or unsecured in your vehicle because an unsecured enhanced child restraint can be thrown around and may injure occupants in a sharp turn, sudden stop, or collision. DO NOT put anything other than the recommended inner cushions in this enhanced child restraint. Using the seat as a reclined cradle. Always use the restraint system. DO NOT use the seat as reclined cradle once your child can sit unaided. DO NOT use the seat if any components are broken or missing. DO NOT use accessories or replacement parts other than those approved by the manufacturer. It is dangerous to use this seat on an elevated surface, e.g. a table. NEVER leave the child unattended. This seat is not indented for prolonged periods of sleeping. This seat does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable cot or bed. WARNING Using the seat as a reclined cradle

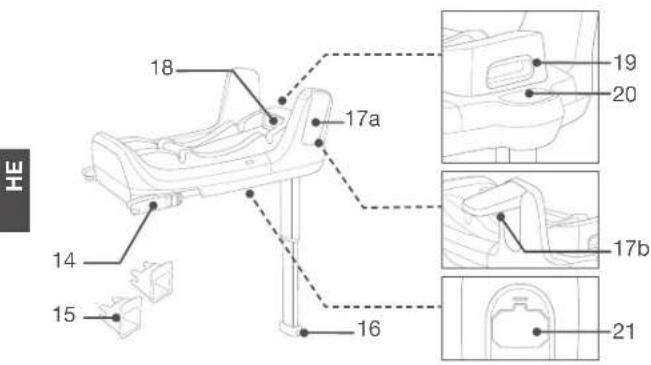

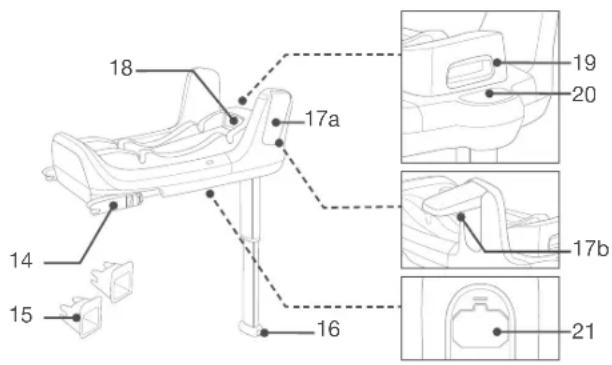

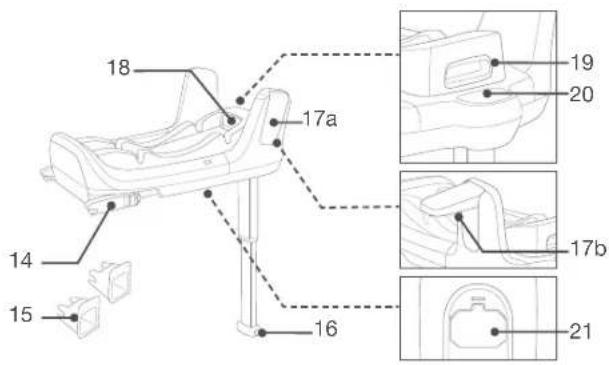

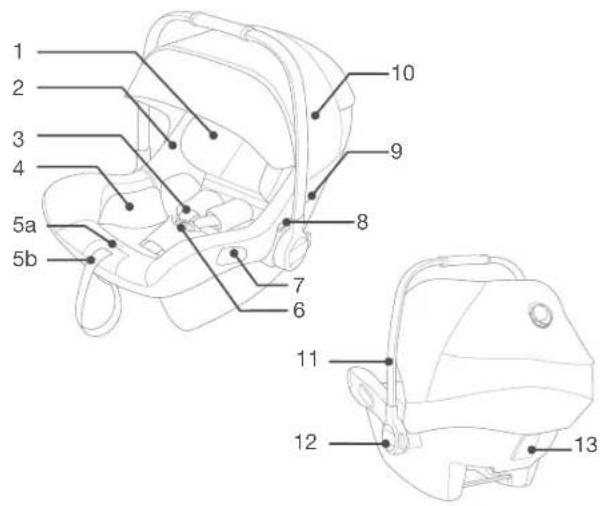

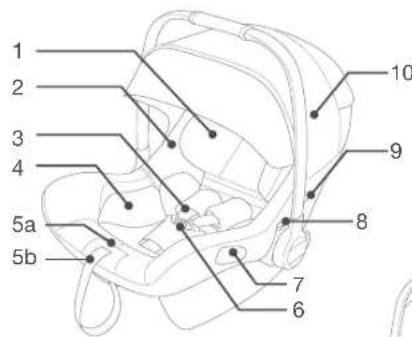

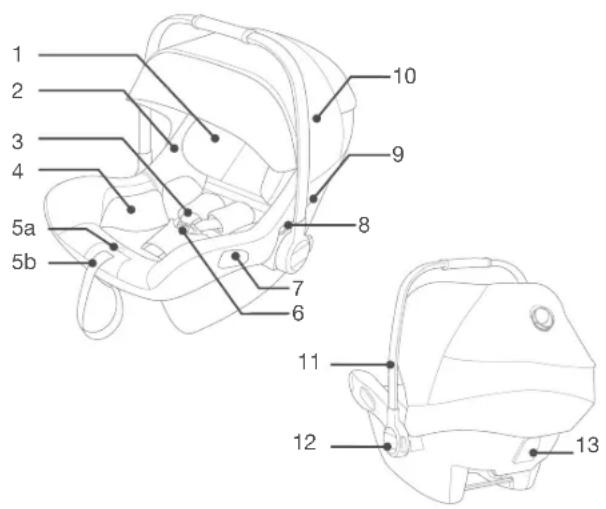

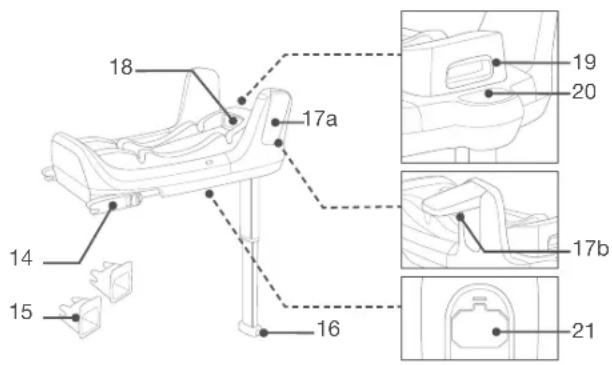

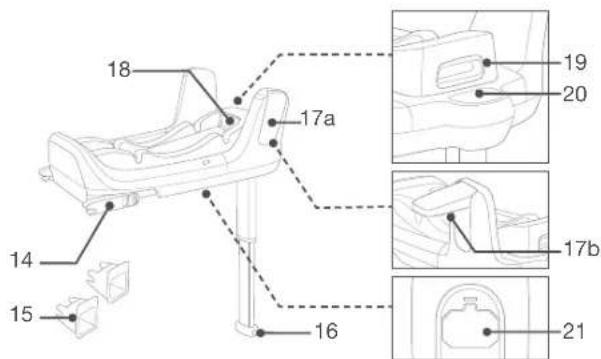

BGB Turtle Air EMEA Book A6 IMG-0119F-1.indb 10-11BGB Turtle Air EMEA Book A6 IMG-0119F-1.indb 10-11 20-08-2020 19:4420-08-2020 19:44Parts list 1 Head Support 2 Seat Pad 3 Shoulder Harness Straps 4 Infant Inlay 5a Harness Adjustment Button 5b Adjustment Webbing 6 Safety Buckle 7 Side Guides 8 Stroller Release Button 9 Canopy Mount 10 Canopy 11 Handle 12 Handle Button 13 Rear Guide 14 ISOFIX Connector 15 ISOFIX Guides 16 Load Leg Adjust Button 17a Side Impact Protection Wings 17b Wing Fold Back Button 18 ISOFIX Adjust Button 19 Infant Carrier Module Release Button 20 Load Leg Indicator 21 Instruction Manual Storage Compartment Make sure all parts are available before assembly. The infant carrier module and base can be sold separately. If any part is missing, please contact Bugaboo (see page 4 for information). No tools are required for assembly.

BGB Turtle Air EMEA Book A6 IMG-0119F-1.indb 12-13BGB Turtle Air EMEA Book A6 IMG-0119F-1.indb 12-13 20-08-2020 19:4420-08-2020 19:44Product use Installation concerns This infant carrier module is suitable for vehicle seats with i-Size ISOFIX anchor points with the Base. (1) DO NOT use the rearward facing enhanced child restraint systems in seating positions where there is an active frontal airbag installed. Death or serious injury may occur. (2) Please reference vehicle owner’s manual for more information. DO NOT install this enhanced child restraint on vehicle seats that face sideways or rearward with respect to the moving direction of the vehicle. (3) It is recommended to install this enhanced child restraint on the rear vehicle seat. (4) DO NOT install this enhanced child restraint on vehicle seats movable during installation. Handle adjustment 1 The handle of the infant carrier module can be adjusted to 3 positions. (5) Baby chair position. (5)-1 Position for placing the baby in the seat. (5)-2 Position for car, hand or stroller transportation. (5)-3 2 To adjust the handle, squeeze handle buttons on both sides to release it. (6)-1 3 Rotate handle until it clicks into any of the 3 positions. (6)-2 Installation with base 1 Unfold the load leg from storage compartment. (7) 2 Fit the ISOFIX guides with the ISOFIX anchor points. (8) The ISOFIX guides can protect the surface of the vehicle seat from being torn. They can also guide the ISOFIX connectors. 3 Press the ISOFIX Adjust Button to adjust the ISOFIX connectors. (9) 4 Line up the ISOFIX connectors with the ISOFIX guides, and then click both ISOFIX connectors into the ISOFIX anchor points. (10) Make sure that both ISOFIX connectors are securely attached to their ISOFIX anchor points. There should be two audible clicks and the colors of the indicators on the both ISOFIX connectors should be completely green. (10)-1 Check to make sure the base is securely installed by pulling on the both ISOFIX connectors. 5 After placing the base on the vehicle seat, extend the load leg to oor (11). When the load leg indicator shows green means it is installed correctly, red means it is installed incorrectly. (11)-2 The load leg has 19 positions. When the load leg indicator shows red this means the load leg is in the wrong position. Make sure the load leg is in full contact with the vehicle oor pan.

BGB Turtle Air EMEA Book A6 IMG-0119F-1.indb 14-15BGB Turtle Air EMEA Book A6 IMG-0119F-1.indb 14-15 20-08-2020 19:4420-08-2020 19:44To shorten the load leg, squeeze the load leg release button and pull the load leg upwards. (11)-1 The completely assembled base is shown as (12). The ISOFIX connectors must be attached and locked onto the ISOFIX anchor points. (12)-1 The load leg must be installed correctly with green indicator. (12)-2 6 To remove the base, press the secondary lock button (13)-1 rst and then the button (13)-2 on the latch connectors before removing the base from the vehicle seat. 7 Press the ISOFIX adjust button to fold the ISOFIX. 8 Push the infant carrier module down into the base (14), if the enhanced child restraint is secure, the side impact protection wings will be open and the enhanced child restraint indicator shows green. (15) The side impact protection wing which is away from the door can be closed as shown on (16) when not in use. Pull up on the infant carrier module to be sure it is securely latched into the base. 9 To release the infant carrier module, pull the enhanced child restraint up while squeezing the infant carrier module release button. (17) Height adjustment for head support and shoulder harnesses Check that Shoulder Harness Straps are set at the proper height. Please choose the proper pair of shoulder harness slots according to the child’s height. Shoulder Harness Straps must be nearest to your childs shoulders (18), but not above the shoulder line. (19) If the Shoulder Harness Straps are not at proper height, the child might be ejected from the enhanced child restraint if there is a crash. Pull the head support adjustment lever (20), meanwhile pull up or push down the head support until it snaps into one of the 7 positions. The head support positions are shown as (21).

BGB Turtle Air EMEA Book A6 IMG-0119F-1.indb 16-17BGB Turtle Air EMEA Book A6 IMG-0119F-1.indb 16-17 20-08-2020 19:4420-08-2020 19:44Securing child Use infant inlay We recommend using the full infant inlay while the baby is under 60 cm or until they outgrow the inlay. The infant inlay increases side impact protection. Remove the infant inlay side wings when the infant’s shoulders no longer fit comfortably. After the child is placed into the seat, check whether the Shoulder Harness Straps are at proper height. 1 While pressing the harness adjustment button, pull completely the two Shoulder Harness Straps of the enhanced child restraint. (22) 2 Unlock the buckle of the harnesses by pressing the red button. (23) 3 Place the child into the infant carrier module and lock the buckle. (25) Please refer to (24). 4 Tighten the shoulder harness straps by pulling the adjustment webbing. (26) Make sure the space between the child and the Shoulder Harness Straps is about the thickness of one hand. Canopy 1 Flip out visor from underneath the front canopy bow. (27) 2 Pull out the extendable ‘smart visor’ from in between the two visor layers. (28) 3 Attach the magnets on each corner to the front of the child seat. (29) 4 The Peek-a-boo on the back can be opened for ventilation. (30) To fold back the canopy, rst ip back the visor underneath the front canopy bow and then fold back the extendable smart visor underneath. Detach & assemble soft goods see images (31)-(40) To re-assemble the soft goods, reverse the aforementioned steps. Installation without base 1 DO NOT install this infant carrier module on vehicle seats with Lap Belts. (41) 2 This infant carrier module is suitable for vehicle seats with a 3-point Retractor Safety Belt (without base) only. (42) 3 Place the infant carrier module onto the vehicle seat where you wish to put it. Pull the vehicle

BGB Turtle Air EMEA Book A6 IMG-0119F-1.indb 18-19BGB Turtle Air EMEA Book A6 IMG-0119F-1.indb 18-19 20-08-2020 19:4420-08-2020 19:44safety belt out and lock it into the vehicle buckle, sliding the vehicle lap belt into the side guides of the infant carrier module. (43) The infant carrier module can not be used if the vehicle safety belt buckle (female buckle end) is too long to anchor the infant carrier module securely. (43)-1 4 Slide diagonal belt into the rear guide. (44) 5 Pull the vehicle shoulder belt to fasten the infant carrier module tightly and securely. (45) 6 Level line on infant carrier module must be level to the ground when the infant carrier module is installed. (46) Tension the vehicle safety belt as much as possible, checking that it is not loose or twisted. After installing the infant carrier module, always check that the vehicle belts are routed correctly and securely fastened into the vehicle buckle. (47) Aeroplane installation Note that safety of the child for not complying with the installation and instruction manual is not guaranteed. Note that the installation of the infant carrier module on an aircraft seat differs from the installation on a car seat. Note that 2-Point “Lap Belt” attachment is only permitted in aircraft. Note that the infant carrier module must remain belted on the aircraft seat even when unoccupied. Note that the infant carrier module is only for use on a passenger seat authorized by the airline. Warnings not to use the infant carrier module in the area of airbag deployment. (2) Note that Rearward facing infant carrier module should only be installed on forward facing passenger seats. (48) How to install the infant carrier module using the aircraft seat’s safety belt: 1 Place the infant carrier module opposite to the ight direction onto the passenger seat. 2 Ensure that the carry handle is in the topmost position. 3 Place the safety belt into both belt guides. 4 Close the safety belt (refer to the safety instructions by the airline). 5 Tighten the safety belt by pulling the belt end. (49) The buckle of the safety belt must under no circum- stances lie within the dark green belt guides. (50) Removal: Open the safety belt of the passenger seat (refer to the safety instructions by the airline). Now you can take the infant carrier module from the passenger seat.

BGB Turtle Air EMEA Book A6 IMG-0119F-1.indb 20-21BGB Turtle Air EMEA Book A6 IMG-0119F-1.indb 20-21 20-08-2020 19:4420-08-2020 19:44Cleaning and maintenance Clean the frame, plastic parts, and fabric with a damp cloth, but do not use abrasives or bleach. Do not use silicon lubricants as they will attract dirt and grime. To ensure long-lasting use, wipe this product off with a soft, absorbent cloth after using it in rainy weather. Refer to the care labels attached to the soft goods for washing and drying instructions. It is normal for fabric to color from sunlight and to show wear and tear after a long period of use, even when used normally. For reasons of safety, only use original Bugaboo by Nuna parts. Check regularly if everything functions properly. If any parts are torn, broken, or missing, stop using this product. The information contained herein is subject to change without notice. Bugaboo International BV shall not be liable for technical errors or omissions contained herein. The purchased product may differ from the product as described in this user guide. Our most rnt user guides can be requested at our service departments or at www.bugaboo.com. © 2019 Bugaboo International BV. BUGABOO, BUGABOO CAMELEON, BUGABOO BEE, BUGABOO DONKEY, BUGABOO FOX, BUGABOO TURTLE, BUGABOO ANT, BUGABOO LYNX, BUGABOO STARDUST and the Bugaboo logos are registered trademarks. The Bugaboo
