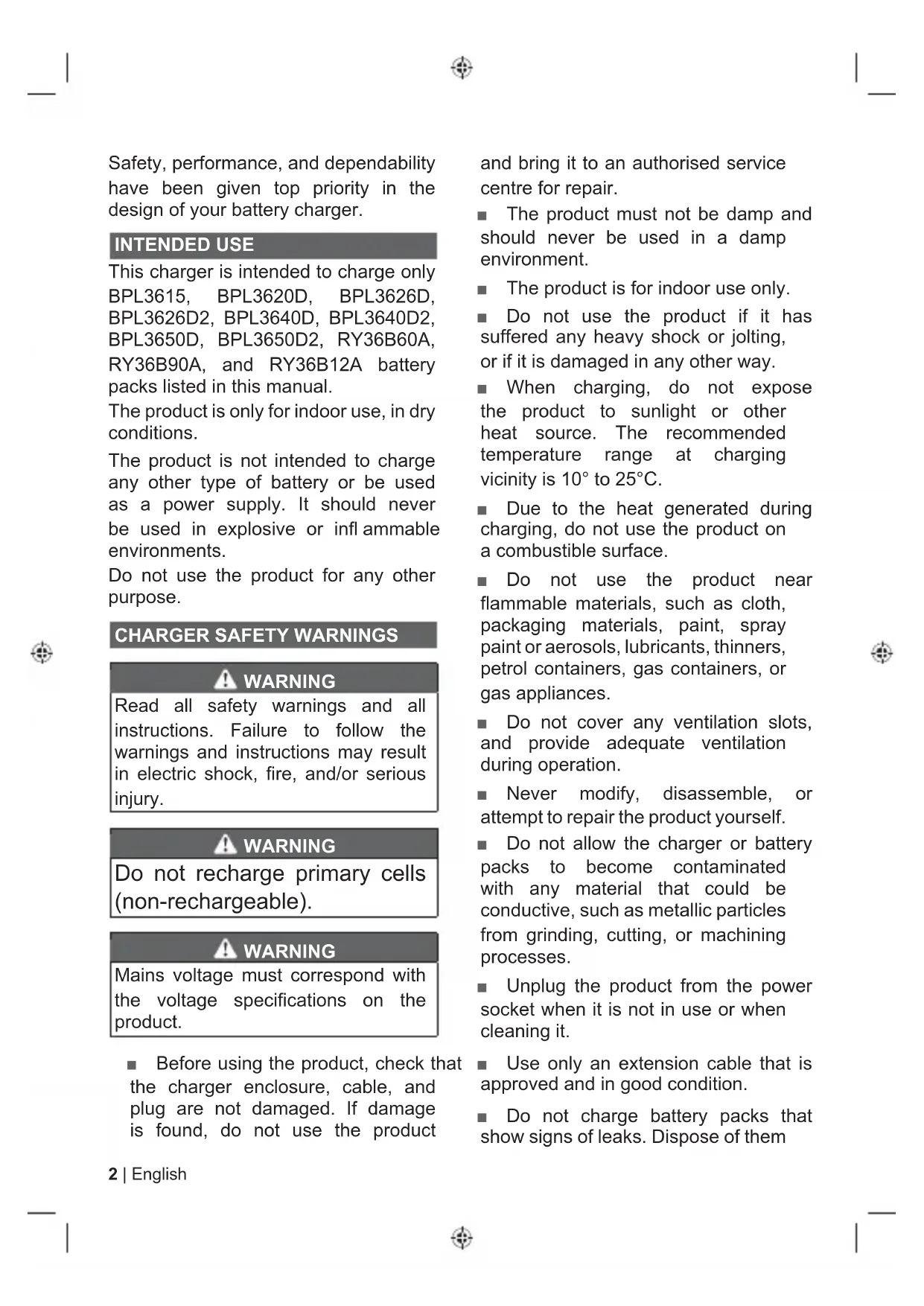

Fig.3 12 | English Safety, performance, and dependability have been given top priority in the design of your battery charger. INTENDED USE This charger is intended to charge only BPL3615, BPL3620D, BPL3626D, BPL3626D2, BPL3640D, BPL3640D2, BPL3650D, BPL3650D2, RY36B60A, RY36B90A, and RY36B12A battery packs listed in this manual. The product is only for indoor use, in dry conditions. The product is not intended to charge any other type of battery or be used as a power supply. It should never be used in explosive or infl ammable environments. Do not use the product for any other purpose.

CHARGER SAFETY WARNINGS

WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury. WARNING Do not recharge primary cells (non-rechargeable). WARNING Mains voltage must correspond with the voltage specifications on the product. ■ Before using the product, check that the charger enclosure, cable, and plug are not damaged. If damage is found, do not use the product and bring it to an authorised service centre for repair. ■ The product must not be damp and should never be used in a damp environment. ■ The product is for indoor use only. ■ Do not use the product if it has suffered any heavy shock or jolting, or if it is damaged in any other way. ■ When charging, do not expose the product to sunlight or other heat source. The recommended temperature range at charging vicinity is 10° to 25°C. ■ Due to the heat generated during charging, do not use the product on a combustible surface. ■ Do not use the product near flammable materials, such as cloth, packaging materials, paint, spray paint or aerosols, lubricants, thinners, petrol containers, gas containers, or gas appliances. ■ Do not cover any ventilation slots, and provide adequate ventilation during operation. ■ Never modify, disassemble, or attempt to repair the product yourself. ■ Do not allow the charger or battery packs to become contaminated with any material that could be conductive, such as metallic particles from grinding, cutting, or machining processes. ■ Unplug the product from the power socket when it is not in use or when cleaning it. ■ Use only an extension cable that is approved and in good condition. ■ Do not charge battery packs that show signs of leaks. Dispose of them3 English |

properly. ■ Never charge a damaged battery pack. Replace damaged battery packs immediately. ■ Before every use, examine the supply cord for damage. If there are signs of damage, it must be replaced by a qualified person at an authorised service centre to avoid a hazard.

ADDITIONAL BATTERY SAFETY

WARNINGS WARNING To reduce the risk of fi re, personal injury, and product damage due to a short circuit, never immerse your tool, battery pack or charger in fl uid or allow a fl uid to fl ow inside them. Corrosive or conductive fl uids, such as seawater, certain industrial chemicals, and bleach or bleach- containing products, etc., can cause a short circuit. ENVIRONMENTAL PROTECTION Recycle raw materials instead of disposing of as waste. The machine, accessories and packaging should be stored for environmentally friendly recycling. OPERATION

CHARGING THE BATTERY PACK

Battery packs are shipped in a low charge condition. Therefore, you should charge them before fi rst use. If the charger does not charge the battery pack under normal circumstances, bring both the battery pack and charger to an authorised service centre. Make sure that the power supply is normal household voltage, 220–240V, 50/60Hz, AC only. Make sure that the battery pack latch clicks into place and that the battery pack is secured in the charger before charging. NOTE: When the battery becomes fully charged, the green LED remains on. It is normal for the battery pack to become slightly warm to touch while charging. Do not place the charger and battery pack in an area of extreme heat or cold. They work best at normal room temperature. NOTE: When charging, the charger and battery pack should be placed in a location where the temperature is more than 10°C but less than 25°C.

1. Align the raised rib on the battery

pack with the groove in the product, and slide in the battery pack. Make sure that the battery pack latch clicks into place.

2. Connect the product to a power

1. Disconnect the product from the

power supply when the battery pack becomes fully charged.

2. Press the battery pack latch to unlock

the battery pack from the product.

3. Slide the battery pack off the product.

CHARGING A HOT BATTERY PACK

When using a tool continuously, the cells in the battery pack become hot. A hot battery pack should be allowed to cool down for approximately 30 minutes4 | English before recharging. MAINTENANCE ■ When not using or when cleaning the product, disconnect it from the power supply and remove the battery pack. ■ Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to various types of commercial solvents. Use clean cloth or soft brush to remove dirt and dust. ■ Do not, at any time, let brake fluids, gasoline, petroleum-based products, and penetrating oils come in contact with plastic parts. These products contain chemicals that can damage, weaken, or destroy plastic. WARNING Hazardous voltages are present within the product; do not disassemble. ■ If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

CLEANING THE CHARGER

WARNING Unplug the charger power cord from power supply before cleaning at any time to prevent serious personal injury. ■ Clean the charger surface (except labels) using a damp cloth with a mild detergent. ■ Do not use any strong detergents on the plastic housing. They can be damaged by certain aromatic oils such as pine and lemon, and by solvents such as kerosene. ■ Moisture can cause a shock hazard. Wipe off any moisture with a soft dry cloth. STORAGE Store your charger in a cool dry place between 10°C. and 38°C.

SYMBOLS ON THE PRODUCT

Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. Precautions that involve your safety. To reduce the risk of injury, user must read and understand user’s manual before using this product. Class II: Protection against electric shock rely on double insulation or reinforced insulation. T 10A Time-lag type fuse Indoor use only5 English |

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. CE conformity EurAsian Conformity Mark Ukrainian mark of conformity The following signal words and meanings are intended to explain the levels of risk associated with this product. DANGER Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. WARNING Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury. CAUTION Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury. CAUTION (Without Safety Alert Symbol) Indicates a situation that may result in property damage.6 | English SPECIFICATIONS Battery pack BPL3615 BPL3620D BPL3626D BPL3626D2 BPL3640D BPL3640D2 Type Lithium-ion Voltage 36 V DC Charger input 220 V–240 V, 50/60 Hz AC only Battery pack capacity

LED indicator Battery pack LED Action Red Orange Green Power Without battery pack

Ready to charge battery pack. Testing Hot battery pack

When battery pack reaches cooled temperature, charger begins fast charge mode. Cold battery pack

When battery pack reaches warmed temperature, charger begins fast charge mode. Defective Defective Flashing Flashing Battery pack or charger could be defective. ● If the LED status shows defective, reset the charger or reinsert the battery. ● If the LED status repeats a second time, try charging a different battery. ● If a different battery charges normally, dispose of the defective pack (see maintenance section). See warranty page if the battery is still within warranty. ● If a different battery also indicates "defective", the charger may be defective. Charging Fast charging Flashing — Deeply discharged Flashing Charger pre-charges battery until normal voltage is reached, then begins fast charge mode.8 | English Full — On Fast charging is complete; charger maintains charge mode.9 Français |
