Product Type	Charger for cordless tools
Brand	RYOBI
Model	Max Power RY36BC60A
Power Supply	220-240V, 50-60 Hz, AC only
Compatible Batteries	BPL3615, BPL3620D, BPL3626D, BPL3626D2, BPL3640D, BPL3640D2, BPL3650D, BPL3650D2, RY36B60A, RY36B90A, RY36B12A
Charging Time (examples)	1.5 Ah: 30 min (max), 18 min (fast); 5.0 Ah: 115 min (max), 60 min (fast); 12.0 Ah: 275 min (max), 148 min (fast)
LED Indicators	Red (power on/no battery), Orange (temperature), Green (charging complete), Flashing (problem or pre-charge)
Protection	Double insulation (Class II), time-delay fuse
Intended Use	Indoor only, dry environment
Recommended Charging Temperature	10-25 °C
Main Functions	Fast and standard charging, hot/cold battery detection, pre-charge for depleted battery
Safety	Do not use outdoors, do not charge non-rechargeable batteries, unplug before cleaning, do not expose to moisture
Maintenance and Cleaning	Unplug, clean with a slightly damp soft cloth, do not use solvents
Storage	Cool, dry place (10-25 °C)
Warranty	24 months (private use), extension possible via registration
Weight	Approx. 0.8 kg (estimated)
Dimensions (L × W × H)	Approx. 200 × 120 × 80 mm (estimated)

Frequently Asked Questions - Max Power RY36BC60A RYOBI

What types of batteries can I charge with this charger?

This charger is designed for 36 V lithium-ion batteries from the following BPL and RY36B series: BPL3615, BPL3620D, BPL3626D, BPL3626D2, BPL3640D, BPL3640D2, BPL3650D, BPL3650D2, RY36B60A, RY36B90A, RY36B12A. Do not charge other types of batteries.

How do I interpret the LED indicators on the charger?

Solid red indicates the charger is powered but no battery. Solid orange means battery too hot or too cold. Solid green indicates charging complete. Flashing red with orange signals a battery or charger fault. Refer to the full table in the manual.

Can I use this charger outdoors?

No, this charger is designed for indoor use only, in a dry environment. Do not expose it to rain or moisture.

What should I do if the battery is too hot to charge?

Let the battery cool for about 30 minutes before recharging. The orange light turns on, and the charger automatically switches to fast charging mode once the temperature returns to normal.

How do I clean the charger?

Always unplug the charger before cleaning. Use a slightly damp soft cloth with a mild detergent. Never use solvents (gasoline, kerosene, etc.) as they may damage the plastic.

The charger is not working, what should I check?

Check that the mains socket is working and the power cord is not damaged. Make sure the battery is properly inserted. If the LED flashes red/orange, try a different battery; if the problem persists, the charger is likely defective.

Can I charge a non-rechargeable battery?

No, absolutely not. This charger is intended only for rechargeable lithium-ion batteries specified in the manual. Charging primary batteries may cause fire or explosion.

What is the typical lifespan of the charger?

With proper maintenance, the charger can last several years. Follow the temperature and humidity guidelines, and avoid shocks. In case of failure, contact an authorized service center.

Can I leave the battery charging overnight?

Yes, once fully charged, the LED turns solid green and the charger switches to maintenance mode. There is no risk of overcharging, but it is recommended to unplug the charger when not in use.

Where can I find spare parts or get my charger repaired?

Consult the list of RYOBI authorized after-sales services at http://fr.ryobitools.eu/header/service-and-support/service-agents. Do not attempt to repair the charger yourself as it contains dangerous voltages.

USER MANUAL Max Power RY36BC60A RYOBI

Exterior view of a gray and black RY031 power supply unit (no visible text or symbols)

(EN) Important!

This product is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the product by a person responsible for their safety. They should be supervised while using the product. Children shall not use, clean or play with the product, which when not in use should be secured out of their reach.

(FR) Attention!

Fig.2

Fig.3

Safety, performance, and dependability have been given top priority in the design of your battery charger.

INTENDED USE

This charger is intended to charge only BPL3615, BPL3620D, BPL3626D, BPL3626D2, BPL3640D, BPL3640D2, BPL3650D, BPL3650D2, RY36B60A, RY36B90A, and RY36B12A battery packs listed in this manual.

The product is only for indoor use, in dry conditions.

The product is not intended to charge any other type of battery or be used as a power supply. It should never be used in explosive or inflammable environments.

Do not use the product for any other purpose.

CHARGER SAFETY WARNINGS

WARNING

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.

WARNING

Do not recharge primary cells (non-rechargeable).

WARNING

Mains voltage must correspond with the voltage specifications on the product.

■ Before using the product, check that the charger enclosure, cable, and plug are not damaged. If damage is found, do not use the product

and bring it to an authorised service centre for repair.

■ The product must not be damp and should never be used in a damp environment.

■ The product is for indoor use only.

■ Do not use the product if it has suffered any heavy shock or jolting, or if it is damaged in any other way.

■ When charging, do not expose the product to sunlight or other heat source. The recommended temperature range at charging vicinity is 10^ to 25^ C.

■ Due to the heat generated during charging, do not use the product on a combustible surface.

■ Do not use the product near flammable materials, such as cloth, packaging materials, paint, spray paint or aerosols, lubricants, thinners, petrol containers, gas containers, or gas appliances.

■ Do not cover any ventilation slots, and provide adequate ventilation during operation.

■ Never modify, disassemble, or attempt to repair the product yourself.

■ Do not allow the charger or battery packs to become contaminated with any material that could be conductive, such as metallic particles from grinding, cutting, or machining processes.

■ Unplug the product from the power socket when it is not in use or when cleaning it.

■ Use only an extension cable that is approved and in good condition.

■ Do not charge battery packs that show signs of leaks. Dispose of them

properly.

■ Never charge a damaged battery pack. Replace damaged battery packs immediately.
■ Before every use, examine the supply cord for damage. If there are signs of damage, it must be replaced by a qualified person at an authorised service centre to avoid a hazard.

ADDITIONAL BATTERY SAFETY WARNINGS

WARNING

To reduce the risk of fire, personal injury, and product damage due to a short circuit, never immerse your tool, battery pack or charger in fluid or allow a fluid to flow inside them. Corrosive or conductive fluids, such as seawater, certain industrial chemicals, and bleach or bleach-containing products, etc., can cause a short circuit.

ENVIRONMENTAL PROTECTION

Recycle raw materials instead of disposing of as waste. The machine, accessories and packaging should be stored for environmentally friendly recycling.

OPERATION

CHARGING THE BATTERY PACK

Battery packs are shipped in a low charge condition. Therefore, you should charge them before first use. If the charger does not charge the battery pack under normal circumstances, bring both the battery pack and charger to an authorised service centre.

Make sure that the power supply is normal household voltage, 220–240V, 50/60Hz, AC only.

Make sure that the battery pack latch clicks into place and that the battery pack is secured in the charger before charging.

NOTE: When the battery becomes fully charged, the green LED remains on. It is normal for the battery pack to become slightly warm to touch while charging.

Do not place the charger and battery pack in an area of extreme heat or cold. They work best at normal room temperature.

NOTE: When charging, the charger and battery pack should be placed in a location where the temperature is more than 10^ C but less than 25^ C.

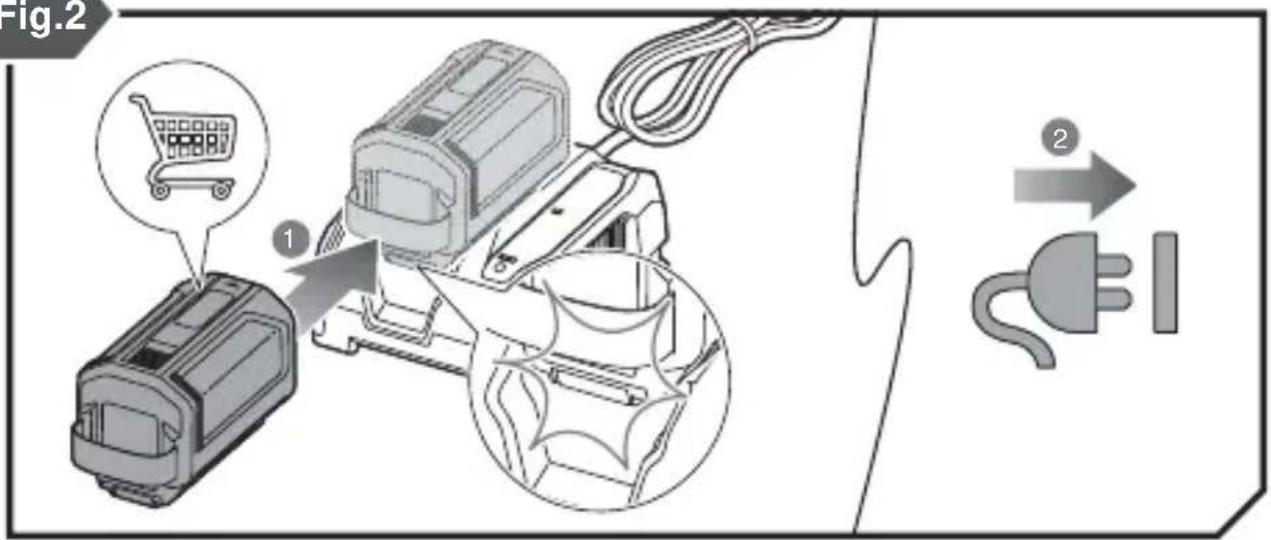

CHARGING A COOL BATTERY PACK See Fig. 2

1. Align the raised rib on the battery pack with the groove in the product, and slide in the battery pack. Make sure that the battery pack latch clicks into place.
2. Connect the product to a power supply.

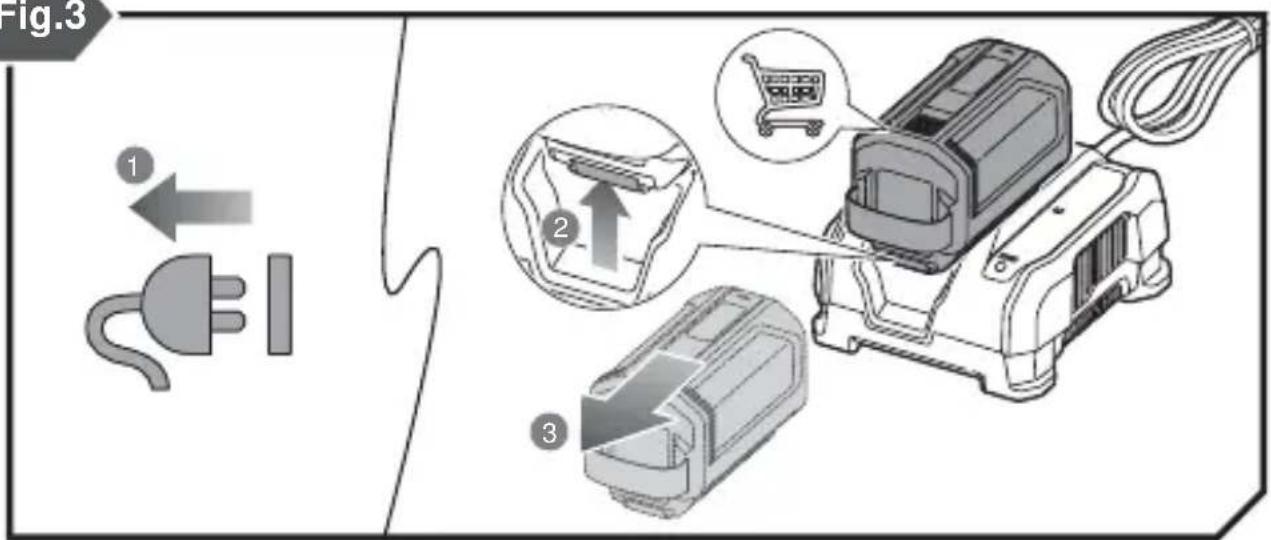

See Fig.3

1. Disconnect the product from the power supply when the battery pack becomes fully charged.
2. Press the battery pack latch to unlock the battery pack from the product.
3. Slide the battery pack off the product.

CHARGING A HOT BATTERY PACK

When using a tool continuously, the cells in the battery pack become hot. A hot battery pack should be allowed to cool down for approximately 30 minutes

before recharging.

MAINTENANCE

■ When not using or when cleaning the product, disconnect it from the power supply and remove the battery pack.
■ Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to various types of commercial solvents. Use clean cloth or soft brush to remove dirt and dust.
- Do not, at any time, let brake fluids gasoline, petroleum-based products, and penetrating oils come in contact with plastic parts. These products contain chemicals that can damage, weaken, or destroy plastic.

WARNING

Hazardous voltages are present within the product; do not disassemble.

If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

CLEANING THE CHARGER

WARNING

Unplug the charger power cord from power supply before cleaning at any time to prevent serious personal injury.

■ Clean the charger surface (except labels) using a damp cloth with a mild detergent.
■ Do not use any strong detergents on the plastic housing. They can be

damaged by certain aromatic oils such as pine and lemon, and by solvents such as kerosene.

■ Moisture can cause a shock hazard. Wipe off any moisture with a soft dry cloth.

STORAGE

Store your charger in a cool dry place between 10^ C. and 38^ C.

KNOW YOUR PRODUCT

'See Fig. 1

1. Battery port
2. LED indicator
3. Power cord
4. Key hole hanger

SYMBOLS ON THE PRODUCT

Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer.

Precautions that involve your safety.

To reduce the risk of injury, user must read and understand user's manual before using this product.

Class II: Protection against electric shock rely on double insulation or reinforced insulation.

Time-lag type fuse

Indoor use only

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

CE conformity

EurAsian Conformity Mark

Ukrainian mark of conformity

The following signal words and meanings are intended to explain the levels of risk associated with this product.

DANGER

Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.

WARNING

Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.

CAUTION

Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.

CAUTION

(Without Safety Alert Symbol) Indicates a situation that may result in property damage.

SPECIFICATIONS

Battery pack BPL3615	BPL3620D		BPL3626DBPL3626D2	BPL3640DBPL3640D2
Type Lithium-ion
Voltage 36 V DC
Charger input 220 V–240 V, 50/60 Hz AC only
Battery pack capacity	1.5 Ah 2.0	Ah 2.6 Ah 4.0	Ah
No. of cell for battery	10 10 20 20
Maximum charging time (RY36C60A)	30 min 35	min 60 min 9	0 min
Quick recharge
	18 min 20	min 32 min 5	0 min

Battery pack	BPL3650DBPL3650D2	BPL3660D	BPL3690D	BPL3612D
Type	Lithium-ion
Voltage	36 V DC
Charger input	220 V–240 V, 50/60 Hz AC only
Battery pack capacity 5.0	Ah 6.0 Ah	9.0 Ah 12.0 Ah
No. of cell for battery	20 30 30	30
Maximum charging time (RY36C60A)	115 min	138 min	206 min	275 min
Quick recharge
	60 min 74	min 11	2 min 148	min

CHARGER LED FUNCTIONS

LED indicator Battery pack		LED			Action
		Red Or	ange Green
	Power	Without battery pack	On		Ready to charge battery pack.
	Testing	Hot battery pack		On	When battery pack reaches cooled temperature, charger begins fast charge mode.
		Cold battery pack		On	When battery pack reaches warmed temperature, charger begins fast charge mode.
	Defective	Defective Flashing		Flashing	Battery pack or charger could be defective.
	If the LED status shows defective, reset the charger or reinsert the battery.If the LED status repeats a second time, try charging a different battery.If a different battery charges normally, dispose of the defective pack (see maintenance section). See warranty page if the battery is still within warranty.If a different battery also indicates "defective", the charger may be defective.
	Charging	Fast charging	Flashing —
		Deeply discharged		Flashing	Charger pre-charges battery until normal voltage is reached, then begins fast charge mode.

EN

FR

DE

ES

IT

NL

PT

DA

SV

FI

NO

RU

PL

CS

HU

RO

IV

LT

ET

HR

SL

SK

BG

UK

TR

Full

—

Fast charging is complete; charger maintains charge mode.

SYMBOLES APPLIQUÉS SUR LE PRODUIT

MACHEN SIE SICH MIT IHREM PRODUKT VERTRAUT

Siehe Abbildung 1.

SYMBOLE AUF DEM PRODUKT

VEILIGHEIDSWAARSCHUWINGEN VOOR OPLADER

WAARSCHUWING

EEN WARME ACCU OPLADEN

RENG∅RING AF OPLADEREN

ADVARSEL

SYMBOLER PÅ PRODUKTET

SYMBOLER PÅ PRODUKTEN

LATURIN MERKKIVALON TOIMINNOT

KJENN PRODUKTET DITT

Se fig. 1.

SYMBOLER PÅ PRODUKTET

LED FUNKCE NABÍJEČKY

OBOZNÁMTE SA S VAŠÍM PRODUKTOM

In addition to any statutory rights resulting from the purchase, this product is covered by a warranty as stated below.

1. The warranty period is 24 months for consumers and commences on the date when the product was purchased. This date has to be documented by an invoice or other proof of purchase. The product is designed and dedicated to consumer and private use only. So there is no warranty provided in case of professional or commercial use. This warranty applies only on new products.

2. There is a possibility to extend for a part of the range of power tools (AC/DC) the warranty period over the period described above using the registration on the www.ryobitools.eu website. The eligibility of products for extended warranty is clearly displayed in stores and / or on packaging and is contained within the product documentation. The end user is required to register his/her newly-acquired products online within 30 days from the date of purchase. The end user may register for the extended warranty in his/her country of residence if listed on the online registration form where this option is valid. Furthermore, end users must give their consent to the storage of their personal data that is required to be entered online. They must also accept the terms and conditions. The registration confirmation receipt, which is sent out by e-mail, and the original invoice showing the date of purchase will serve as proof of the extended warranty.

3. The warranty covers all defects of the product during the warranty period due to faults in workmanship or material at the purchase date. The warranty is limited to repair and/or replacement and does not include any other obligations including but not limited to incidental or consequential damages. The warranty is not valid if the product has been misused, used contrary to the instruction manual, or has been incorrectly connected to a power supply. This warranty does not apply to:

– any damage to the product that is the result of improper or lack of maintenance

– any product that has been altered or modified

– any product where original identification (trade mark, serial number) markings have been defaced, altered or removed

– any damage caused by non-observance of the instruction manual

– any product not displaying the CE approval mark on the rating plate

– any product that has been attempted to be repaired by a non-authorised warranty service centre or without prior authorisation by Techtronic Industries

– any product connected to improper power supply (amps, voltage, frequency)

– any product used with inappropriate fuel mixture (fuel, oil, ratio of oil/ fuel mixture)

– any damage caused by external influences (water, chemical, physical, shocks) or foreign substances

- normal wear and tear spare parts

– inappropriate use, overloading of the tool

– use of non-approved accessories or parts

- Accessories provided with the tool or purchased separately including but not limited to blades, saw chains, cutting lines, etc.

– Any periodic adjustments to or maintenance cleaning of carburettors

- Components (parts and accessories) subject to natural wear and tear, including but not limited to bump knobs, drive belts, clutch, blades of hedge trimmers or lawn mowers, harness, cable throttle, carbon brushes, power cord, tines, felt washers, hitch pins, blower fans, blower and vacuum tubes, vacuum bag and straps, guide bars, saw chains, hoses, connector fittings, spray nozzles, wheels, spray wands, inner reels, outer spools, cutting lines, spark plugs, air filters, gas filters, mulching blades, etc.

1. For servicing, the product must be sent or presented to a RYOBI authorised service station listed for each country in the following list of service station addresses. In some countries your local RYOBI dealer undertakes to send the product to the RYOBI service organisation. When sending a product to a RYOBI service station, the product should be safely packed without any dangerous contents such as petrol, marked with sender's address and accompanied by a short description of the fault.

2. A repair / replacement under this warranty is free of charge. It does not constitute an extension or a new start of the warranty period. Exchanged parts or products become our property. In some countries delivery charges or postage will have to be paid by the sender. Your statutory rights arising from the purchase of the product remain unaffected.

3. This warranty is valid in the European Community, Switzerland, Iceland, Norway, Liechtenstein, Turkey and Russia. Outside these areas, please contact your authorised RYOBI dealer to determine if another warranty applies.

AUTHORISED SERVICE CENTRE

To find an authorised service centre near you, visit http://uk.ryobitools.eu/header/service-and-support/service-agents.

FR RYOBI® CONDITIONS D'APPLICATION DE LA GARANTIE

EN RYOBI is a trademark of Ryobi Limited, and is used under license.

© 2019 Techtronic Cordless GP. All rights reserved.
