1.1 HOW TO READ THE MANUAL

Some paragraphs in the manual contain important information regarding safety and operation and are emphasized in this manner: NOTE or IMPORTANT These give details or further information on what has been previously indicated and aim to prevent damage to the machine or cause other damage. The symbol highlights danger. Failure to observe the warning can lead to the risk of injury to oneself and others and/or damage. The paragraphs highlighted in a square with grey spots indicate the optional characteristics not available on all models documented in this manual. Check if the characteristic is on this model. Whenever reference is made to a position on the machine "front", "back", "left" or "right" hand side, this refers to the operator's working position.

The gures in these instructions for use are numbered 1, 2, 3, etc. Components shown in the gures are marked A, B, C, etc. Reference to component C in gure 2 is indicated with the wording: “See g. 2.C” or simply “(Fig. 2.C)”. The gures are given as a guide only. The actual pieces can dier from those illustrated in this document.

The manual is divided into chapters and paragraphs. The title of paragraph “2.1 Training” is a sub-title of “2. Safety regulations". References to titles or paragraphs are marked with the abbreviation chap. or par. and the relevant number. Example: “chap. 2” or “par. 2.1. INDEX

3.1 Description of the machine and planned use.. 7

(activation / deactivation device) ................... 9

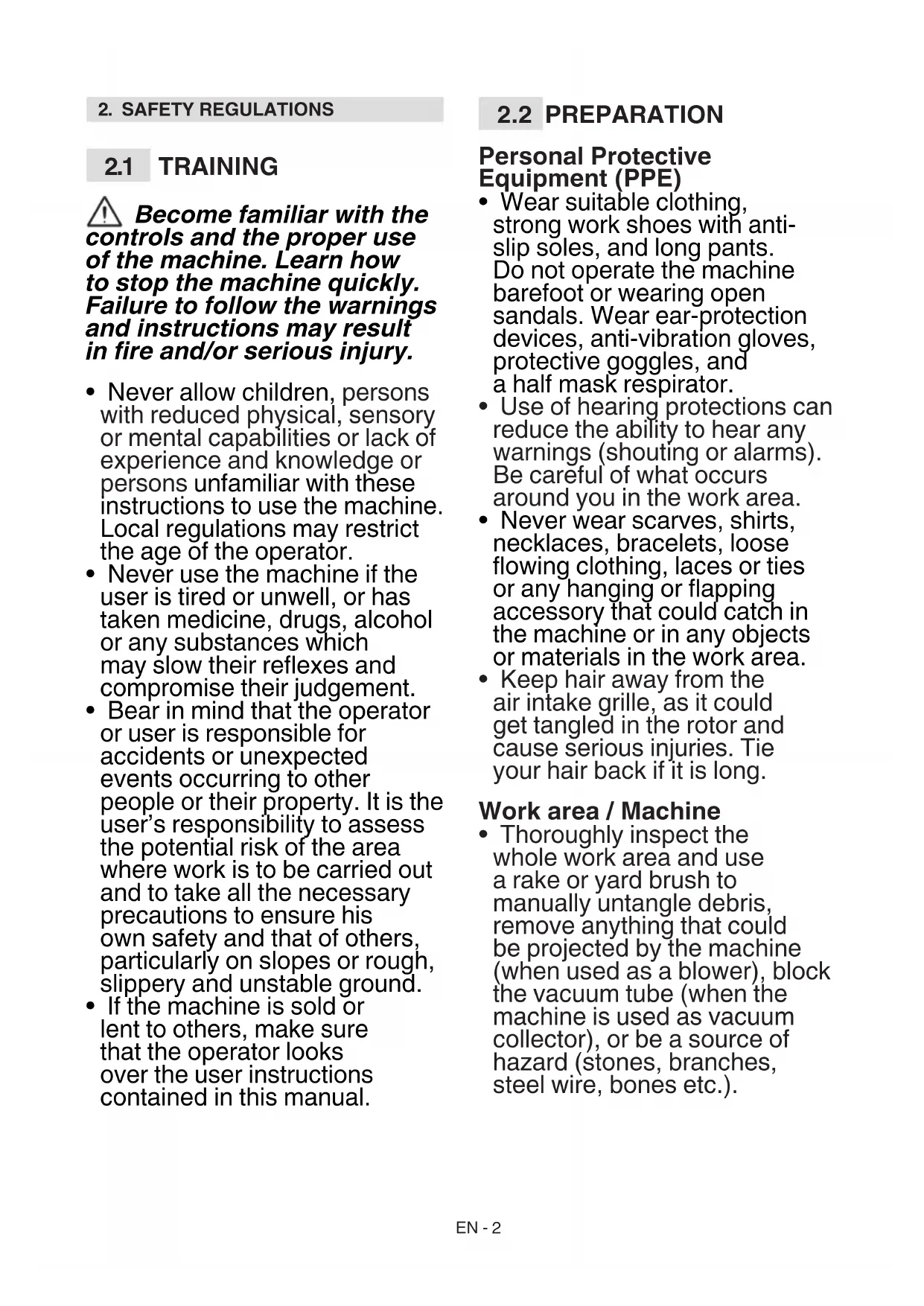

Become familiar with the controls and the proper use of the machine. Learn how to stop the machine quickly. Failure to follow the warnings and instructions may result in re and/or serious injury.

• Never allow children, persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge or persons unfamiliar with these instructions to use the machine. Local regulations may restrict the age of the operator.

• Never use the machine if the user is tired or unwell, or has taken medicine, drugs, alcohol or any substances which may slow their reexes and compromise their judgement.

• Bear in mind that the operator or user is responsible for accidents or unexpected events occurring to other people or their property. It is the user’s responsibility to assess the potential risk of the area where work is to be carried out and to take all the necessary precautions to ensure his own safety and that of others, particularly on slopes or rough, slippery and unstable ground.

• If the machine is sold or lent to others, make sure that the operator looks over the user instructions contained in this manual.

Personal Protective Equipment (PPE)

• Wear suitable clothing, strong work shoes with anti- slip soles, and long pants. Do not operate the machine barefoot or wearing open sandals. Wear ear-protection devices, anti-vibration gloves, protective goggles, and a half mask respirator.

• Use of hearing protections can reduce the ability to hear any warnings (shouting or alarms). Be careful of what occurs around you in the work area.

• Never wear scarves, shirts, necklaces, bracelets, loose owing clothing, laces or ties or any hanging or apping accessory that could catch in the machine or in any objects or materials in the work area.

• Keep hair away from the air intake grille, as it could get tangled in the rotor and cause serious injuries. Tie your hair back if it is long. Work area / Machine

• Thoroughly inspect the whole work area and use a rake or yard brush to manually untangle debris, remove anything that could be projected by the machine (when used as a blower), block the vacuum tube (when the machine is used as vacuum collector), or be a source of hazard (stones, branches, steel wire, bones etc.).EN - 3

• When operating in dry dusty soil conditions, it is recommended to moisten the surface slightly.

• To avoid the risk of re, do not leave the machine with the motor hot on leaves or dry grass.

• Do not use the machine in environments at risk of explosion, in the presence of ammable liquids, gas or powder. Power tools create sparks which may ignite the dust or fumes.

• Work only in daylight or with good articial light in good visibility conditions.

• Keep persons, children and animals away from the working area. Get another adult to keep the children under supervision. Children shall not play with the appliance.

• Check that there is nobody within at least 15 metres of the machine's range of operation.

• Avoid working with wet grass, in the rain and when there is a risk of a thunderstorm, especially lightening.

• Where possible, avoid working on wet, slippery ground or in any case on uneven or steep ground that does not guarantee stability for the operator.

• Do not expose the machine to rain or wet environments. Water entering a power tool will increase the risk of electric shock.

• Pay careful attention to uneven ground (hills, dips), slopes, hidden hazards and obstacles that could limit visibility.

• Be very careful near ravines, ditches or embankments.

• Look out for trac when using the machine near the road.

• Always assess wind direction and never work against the wind.

• Do not use of the machine near open windows.

• Do not use the machine on paved or gravel- covered surfaces, to avoid that the removed material causes injuries.

• Do not allow processed material to build up in the discharge zone; this may prevent proper discharge and can result in kickback of material through the intake opening. Behaviour

• When performing work utilising the machine as blower, the machine must always be held rmly with the right hand on the upper handgrip.

• When performing work utilising the machine as vacuum collector, the machine must always be held rmly with both hands, with the right hand on the upper handgrip and the left hand on the lower handgrip, so that the collection bag is on the operator’s left.EN - 4

• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, cookers and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

• Always use caution and take on a rm and well- balanced position.

• Do not lose your balance.

• Make sure to avoid violent impacts against foreign bodies and prevent the air low from throwing any material and dust.

• Do not direct the air jet towards persons or animals.

• When used as a blower always pay the utmost attention to prevent removed material or dust from injuring people or animals or damaging property.

• Never insert objects into the vacuum inlet (when being used as vacuum collector) and avoid the intake of large objects that could damage the rotor.

• Never run, always walk.

• Always keep your face, hands, and body away from the intake grille and air outlet and do not obstruct the airways both when starting and utilising the machine.

• The rotating parts can cause serious injuries; avoid contact with these parts while they are still rotating.

• If something breaks or an accident occurs during work, turn o the motor immediately and move the machine away to prevent further damage; if an accident occurs with injuries or third parties are injured, carry out the rst aid measures most suitable for the situation immediately and contact the medical authorities for any necessary health care. Carefully remove any debris which could cause damage or injury to persons or animals if ignored.

• Prolonged exposure to vibrations can cause injuries and neurovascular disorders (also called “Raynaud’s syndrome” or “white nger”), especially to people suering from circulation disorders. The symptoms can regard the hands, wrists and ngers and are shown through loss of sensitivity, torpor, itching, pain and discolouring of or structural changes to the skin. These eects can be worsened by low ambient temperatures and/or by gripping the hand grips excessively tightly. If the symptoms occur, the length of time the machine is used must be reduced and a doctor consulted.EN - 5 Use limitations

• Do not use the machine if you are unable to hold it with both hands or keep steady on your legs while working.

• Never use the machine with damaged, missing or incorrectly positioned guards.

• Never use the machine without having installed all the attachments required for each use (as blower or vacuum collector).

• Never disengage, deactivate, remove or tamper with the safety systems/micro switches installed.

• Do not use the power tool if the switch does not turn it on and o. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

• Do not strain the machine too much and do not use a small machine for heavy- duty work; if you use the right machine, you will reduce the risk of hazards and improve the quality of your work.

STORAGE Ensure regular maintenance and correct storage to maintain machine safety and high performance levels. Maintenance

• Never use the machine with worn or damaged parts. Faulty or worn-out parts must always be replaced and never repaired.

• Cleaning and user maintenance shall not be made by children without supervision. The noise and vibration levels shown in these instructions are the maximum levels for use of the machine. Suitable preventive measures must be adopted to eliminate possible harm caused by high noise levels and vibration- induced stresses; utilise the machine at constant speed, rmly hold the handgrip with adequate strength, utilise the machine at the minimum speed required to perform the work, wear ear-protection devices, make frequent and adequate pauses during the work. Storage

• To reduce re risks, do not leave containers with debris inside a room.

2.5 BATTERY / BATTERY

CHARGER IMPORTANT The following safety instructions are in addition to the safety requirements provided in the specic battery and battery charger manual delivered with this machine.

• Only use battery chargers recommended by the manufacturer to recharge batteries. An inadequate battery charger may cause electric shock, overheating or corrosive liquid to leak from the battery.EN - 6

• Use only batteries specically designed for your power tool. The use of other batteries may cause injuries and re risks.

• Make sure that the machine is switched o before inserting the battery. Inserting a battery in a machine which is switched on can cause a re.

• Keep all unused batteries at a distance from paper clips, coins, keys, nails, screws or other small metal objects as contact with the same can cause short circuits. Short circuits between battery contacts can lead to explosion or res.

• Never use the battery charger in environments in the presence of vapours, ammable substances or on easily ammable surfaces such as paper, fabric, etc. The battery charger heats up during recharging and may cause a re.

• When transporting batteries, make sure the contacts never come into contact with each other and never use metal containers to transport them.

PROTECTION Safeguarding the environment must be a relevant and priority aspect of machine use, of benet to the community and the environment we live in.

• Avoid being a disturbance to the neighbourhood. Use this machine at reasonable times of the day only (not early morning or late evening when the noise could cause disturbance).

• Scrupulously comply with local regulations for the disposal of packaging, deteriorated parts or any elements with a strong environmental impact; this waste must not be disposed of as normal waste, it must be separated and taken to specied waste disposal centres where the material will be recycled.

• Scrupulously comply with local regulations for the disposal of waste materials

• When the machine is withdrawn from service, do not dump it in the environment, but take it to a waste disposal facility in accordance with the local regulations in force. Do not throw electrical equipment away with domestic waste. According to the European Directive 2012/19/EU on electrical and electronic equipment waste and its implementation in compliance with national standards, old electrical equipment must be collected separately, for eco- compatible recycling. If electrical equipment is disposed of in a landll or in the ground, the harmful substances can reach the water table and enter the food chain, damaging your health and well-being.EN - 7 For further information on the disposal of this product, contact your dealer or a domestic waste collection service. At the end of their working life, dispose of batteries paying due attention to the environment. Batteries contain material classied as hazardous for you and the environment. They must be removed and disposed of separately at a facility that accepts lithium-ion batteries. Separate waste collection of the products and packaging used allows the materials to be recycled and reused. Reuse of recycled materials help to prevent environmental pollution and reduces the demand for raw materials.

Even all the safety rule are obeyed, there still can be a certain residual risk, which cannot be excluded. From the kind and construction of the tool the foreseeable potential endangerments can be:

• Hurled materials that may injure the eyes;

• Damage of the hearing, if no protection of the ears is carried.

This machine is a garden tool, specically a portable battery-powered garden blower. It basically consists in a motor that activates a rotor which is able to produce a high-speed air ow.

This machine was designed and manufactured for:

• the movement and accumulation, by blowing, of leaves, grass, debris of various limited weight and modest dimensions.

Any other usage not in keeping with the above- mentioned ones may be hazardous and harm persons and/or damage things. Examples of improper use may include, but are not limited to:

• accumulation and collection of inammable or explosive products, hot embers or combustion material without a ame, lit cigarettes, pieces of glass, sharp objects, metal objects, stones and any other object that could be dangerous to the operator and others;

• aiming the air shot towards persons and/or animals;

• allowing object to enter the suction grid;

• using the machine without the accessories specically supplied by the manufacturer for specic uses, or use of accessories in a way not intended in these instructions;

• using of the machine by more than one person. IMPORTANT Improper use of the machine will invalidate the warranty, waive the Manufacturer from all liability, and the user will consequently be liable for all and any damage or injury to himself or others.

This machine is intended for use by consumers, i.e. non-professional operators. The machine is intended for "DIY" use only.EN - 8

The machine has various symbols on it (g. 2). They are used to remind the operator of the behaviour to follow to use it with the necessary attention and caution. Meaning of symbols: WARNING! DANGER! The failure to use this machine correctly can be hazardous for oneself and others. WARNING! Read the instruction manual before using the machine. Use ear protection devices and goggles. Do not leave the machine in the rain (or in damp conditions). PROJECTION HAZARD! Pay attention to possible ying debris projected by the air ow: which may cause serious injuries to persons or damage to objects. PROJECTION HAZARD! People or pets must be kept at least 15 m away when using the machine! Mutilation hazard! Always keep the hands away from the air intake grille. The rotor in motion can cause serious injuries. Serious injury hazard! Keep loose clothing away from the air intake grille, since it could become trapped in the rotor and cause serious injuries. Serious injury hazard! Keep hair away from the air intake grille, since it could become trapped in the rotor and cause serious injuries. Tie your hair back if it is long. IMPORTANT Any damaged or illegible decals must be replaced. Order replacement decals from an Authorised Service Centre.

3.3 PRODUCT IDENTIFICATION LABEL

The product identication label provides the following data (g. 1 ):

1. Name and address of Manufacturer

4. Conformity marking

5. Power voltage and frequency

6. Year of manufacture

9. Class II; Dual insulation

Write the identication data of the machine in the specic space on the label on the back of the cover page. IMPORTANT Quote the information on the product identication label whenever you contact an Authorised Service Centre. IMPORTANT The example of the Declaration of Conformity is provided on the last pages of the manual.

The machine is composed of a series of main components that have the following functions (Fig.1 ): A. Power unit: it drives the rotor. B. Blower tube: it is the component through which the air ow is discharged. C. Handgrip: it makes it possible to control the machine. D. Battery (accessory available upon request, paragraph 14.1): device that supplies electric current to the tool; its specications and regulations for use are described in a specic manual.EN - 9 E. Battery charger (accessory available upon request, par. 14.2): device used to recharge the battery; its specications and regulations for use are described in a specic manual. Two battery charger models are available: E1 (fast battery charge); E2 (standard battery charge).

IMPORTANT The safety regulations to follow are described in chap. 2. Strictly comply with these indications to avoid serious risks or dangers. For storage and transport purposes, some components of the machine are not installed in the factory and have to be assembled after unpacking. Follow the instructions below. Unpacking and completing the assembly should be done on a at and stable surface, with enough space for machine handling and its packaging, always making use of suitable equipment. Do not use the machine until all the indications provided in the “ASSEMBLY” section have been carried out.

4.1 ASSEMBLY COMPONENTS

The packaging includes assembly components.

1. Carefully open the packaging, paying

attention not to lose components.

2. Consult the documentation in the

box, including these instructions.

4. Remove the machine from the box.

5. Dispose of the box and packaging in

compliance with local regulations. Before assembling, make sure the battery is not inserted in its housing.

4.1.2 Assembly / disassembly

2. Push the tube (Fig. 3.D) until it hooks

up rmly with the drive unit with a "click" when it locks in place. – To remove the tube, press the button (Fig. 3.A) and then slide it out. IMPORTANT Stop the machine and always remove the battery (paragraph 7.2.2) whenever the blower tube is removed.

DEACTIVATION DEVICE) Press this button (Fig. 5.A) to activate and deactivate the machine's electrical circuit; the corresponding LED comes "ON" (Fig. 5.C). Pressing the speed button (Fig.5.D) sets the air power and the 3 corresponding LEDs come "ON" (Fig. 5.F). If work is interrupted (without turning o the machine), on resumption the machine will start again at the previously set speed. LEDs o: The electrical circuit is completely deactivated. IMPORTANT Do not keep your nger on the button when moving the machine to avoid accidentally enabling the machine. The "Warning" icon (Fig. 5.E) comes ON in the event of machine fault (refer to the troubleshooting table, par. 13).

5.2 THROTTLE CONTROL LEVER

Operating the throttle control lever (Fig. 5.F) allows the machine to start / stop and simultaneously engages / disengages the cutting means. For machine start up: – press the throttle control lever. The machine stops automatically as the throttle control lever is released.EN - 10

6. USING THE MACHINE

IMPORTANT The safety regulations to follow are described in chap. 2. Strictly comply with these indications to avoid serious risks or dangers.

Before starting to work, it is necessary to carry out several checks and operations to ensure you can work eciently and in maximum safety.

6.1.1 Checking the battery

The machine is supplied without the battery. Purchase the battery with the capacity that most suits your operational requirements and fully charge it according to the instructions in the battery booklet. The list of approved batteries for this machine is found in the "Technical Data" table.

• Before each use: – check the battery charge status according to the instructions in the battery booklet.

Run the following safety checks and check that the results correspond to those outlined on the tables. Always carry out the safety checks before use.

Object Result Hand grips (Fig. 1.C.) Are clean, dry and xed rmly to the machine Screws on the machine Correctly tightened (not loose) Cooling air ducts Not clogged Blower tube (Fig. 1.B) Correctly installed. Rotor No signs of damage Guards No signs of damage Battery (Fig. 1.D.) No damage to the casing, no liquid leakage Machine No signs of damage or wear Throttle control (Fig. 5.F) It must move freely and not be forced. Test driving No abnormal vibrations. No abnormal sound

6.2.2 Machine operating test

1. Fit the battery inside its

housing (par. 7.2.3 ).

2. Switch on the machine

by pressing the button (Fig. 5.A).

3. Press the throttle

control (Fig. 5.F). The machine starts and the rotor starts rotating.

1. Release the throttle

1. The control should

return automatically and quickly to the neutral position and the machine should stop. If any of the results fail to match the indications provided in the tables below, do not use the machine! Take it to a service centre to be checked and repaired if necessary.

1. Adopt a rm and well-balanced position;

2. make sure that the blower tube is not

directed towards any bystanders or debris;

3. t the battery inside its housing

When performing work, the machine must always be held rmly with the right hand on the upper handgrip (Fig 4). NOTE During use, the battery is protected against total drainage with a protective device that switches o the machine and stops it from working. NOTE After one minute of inactivity, if turned on, the machine will automatically switch o.EN - 11

6.4.1 Adjusting the speed

it is always advisable to set the rotor speed in relation to the type of material to be removed using the button (Fig. 5.B).removed: – low blowing speed to move light material and small branches on the lawn; – medium blowing speed to move grass and light leaves on asphalt or packed soil; – high blowing speed (3 LEDs lit, Fig. 5.D) for heavier materials such as fresh snow or bulky dirt.

6.4.2 Advice for operation

Proceed slowly keeping the end of the blower tube at a suitable distance from the ground (Fig. 4). To avoid dispersing the material to be removed, direct the air ow towards the outer edges of the pile of material. Never direct the air ow to the middle of the pile.

3. wait until the cutting means stops.

It takes a few seconds for the rotor to stop after the machine has been turned o. Always stop the machine: – when moving between work areas. When moving, never leave your hand on the throttle control in order to avoid accidental start-ups.

• Remove the battery from its housing and recharge it (par. 7.2.2).

• Allow the motor to cool before storing in an enclosed space.

• Check there are no loose or damaged components. If necessary, replace the damaged components and tighten any screws and loose bolts or contact the authorised service centre. IMPORTANT Always remove the battery (par. 7.2.2) whenever the machine is unused or left unattended.

IMPORTANT The safety regulations to follow are described in chap. 2. Strictly comply with these indications to avoid serious risks or dangers. Prior to carrying out any maintenance operation, you need to:

• Remove the battery from its housing and recharge it (par. 7.2.2);

• allow the motor to cool before storing in an enclosed space;

• use suitable clothing, protective gloves and goggles;

• read the relevant instructions. Warning! Risk of injuries due to dangerous moving parts! – The frequency and types of maintenance are summarised in the "Maintenance Table" (see chapter 12). The table will help you maintain your machine’s safety and performance. It summarises the main interventions to be made and the frequency applicable to each of them. Carry out the relevant task as soon as it is scheduled to be performed. – The use of non-genuine spare parts and attachments could adversely aect machine operation and safety. The manufacturer declines all liability for any damage or injuries caused by these products. – Genuine spare parts are supplied by Au- thorised Assistance Centres and Dealers. IMPORTANT Any maintenance and adjustment operations not described in this manual must be carried out by your dealer or Authorised Service Centre.

7.2.1 Battery power reserve

Battery power reserve (and therefore the cuttable area before recharging is required) mainly depends on:EN - 12

• operator behaviour that should be avoided: – switching the machine on and o frequently whilst working; – a rotor speed not suited to the type of material to be removed (paragraph 6.4.1). To optimise battery power reserve it is always recommended to:

• set a rotor speed suited to the type of material to be removed. If the need arises to use the machine for sessions which exceed the capability of a standard battery, it is possible to:

• purchase a second standard battery to immediately replace the discharged battery, without compromising the continuity of operations;

• purchase a battery with an extended power reserve compared to the standard version (par. 14.1).

7.2.2 Battery removal and recharging

1. Press the locking button located in

the battery housing (Fig. 6.A) and remove the battery (Fig. 6.B);

2. t the battery (Fig. 7.A) in the battery

to a power socket with the voltage indicated on the rating plate;

4. fully charge the battery according

to the instructions in the battery/ battery charger booklet. NOTE The battery is equipped with a guard that inhibits recharging if the environmental temperature is not between 0 and +45 °C. NOTE The battery can be recharged at any time, even partially, with no risk of damaging it.

7.2.3 Retting the battery on the machine

When recharging is completed:

1. Remove the battery (Fig. 8.A) from the

housing in the battery charger (do not keep recharging when recharging is completed);

2. disconnect the battery charger (Fig.

8.B) from the electrical mains;

3. t the battery (Fig. 9.A) in its housing

pressing down until you hear it click rmly into position and check the electrical contact;

7.3 CLEANING THE MACHINE

To reduce re hazards, keep the machine and, in particular, the motor free of leaves, branches.

• Always clean the machine after use with a damp cloth dipped in neutral detergent.

• Remove all traces of humidity using a soft damp cloth. Humidity can generate risks of electric shocks.

• Do not use aggressive detergents or solvents to clean the plastic parts or hand grips.

• Do not spray water onto the motor and electrical components and prevent them from getting wet.

• Always keep the rotor clean and free of dust and debris, by blowing compressed air through the grille. Do not spray water on the rotor.

• To avoid overheating and damage to the motor or the battery, always keep the cooling air vents clean and free of debris.

• Keep all nuts, bolts and screws tight to be sure the equipment is in safe working condition.

• Check regularly that the handles are xed rmly.

IMPORTANT The safety regulations to follow for putting into storage are described in paragraph 2.4. Strictly comply with these instructions to avoid serious risks or hazards.

When the machine is to be stored away:

1. remove the battery from its housing

and recharge it (par. 7.2.2);

2. allow the motor to cool before

storing in an enclosed space;EN - 13

3. clean (par. 7.3);

4. make sure there are no loose or damaged

components. If necessary, replace any damaged components and tighten any screws and loose bolts or contact the authorised service centre;

5. store the machine:

– in a dry place; – protected from inclement weather; – in a place out of children's reach; – making sure that keys or tools used for maintenance are removed.

8.2 STORING THE BATTERY

The battery must be kept in a cool, shaded place without humidity. NOTE If unused for any length of time, recharge the battery every two months to prolong its working life.

9. HANDLING AND TRANSPORTATION

Whenever the machine is to be handled or transported you must: – stop the machine (par. 6.5); – remove the battery from its housing and recharge it (par. 7.2.2); – only hold the machine using the handgrips and position the tubes so that they do not case obstruction. When transporting the machine on a vehicle, always: – remove the tubes; – fasten the machine securely with cables or chains; – position it so that it can not cause a hazard for anybody.

10. ASSISTANCE AND REPAIRS

This manual provides all the necessary information to run the machine and for correct basic maintenance operations which can be performed by the user. Any regulations and maintenance operations not described herein must be carried out by your Dealer or Authorised Service Centre, which have the necessary knowledge and equipment to ensure that the work is carried out correctly, maintaining the correct degree of safety and the original operating conditions of the machine. Any operations performed in unauthorised centres or by unqualied persons will totally invalidate the warranty and all obligations and responsibilities of the manufacturer.

• Only Authorised Service Centres can carry out guaranteed repairs and maintenance.

• The Authorised Service Centres only use genuine spare parts. Genuine spare parts and attachments have been designed specically for machines.

• Non-original parts and attachments are not approved; use of non-original spare parts and attachments will jeopardise the safety of the machine and relieve the Manufacturer from all obligations or liabilities.

• It is advisable to send your machine once a year to an Authorised Service Centre for servicing, assistance and safety device inspection.

11. WARRANTY COVERAGE

The warranty covers all material and manufacturing defects. The user must follow all the instructions provided in the accompanying documentation. The warranty does not cover damage caused by:

• failure to become familiar with the documentation accompanying the machine;

• use of non-genuine spare parts;

• use of attachments not supplied or not approved by the manufacturer. The warranty does not cover:

• normal wear and tear of consumable materials;

• normal wear and tear. The purchaser is protected by his or her own national legislation. The purchaser’s rights under the national laws or his or her own country are not in any way restricted by this warranty.EN - 14

12. MAINTENANCE TABLE

Intervention Frequency Notes MACHINE Check all fasteners Before each use par. 7.4 Safety checks/check controls Before each use par. 6.2 Check the battery charge status Before each use * Recharge the battery After each use par. 7.2.2

Cleaning the machine and the motor After each use par. 7.3 Checking for any damage to the machine. If necessary, contact the authorised service centre. After each use -

• Refer to the battery/battery charger manual.

1. The machine does not

start when the throttle control is activated Battery is not inserted or is inserted incorrectly Make sure that the battery is inserted well (par. 7.2.3) Low battery Check the battery status and recharge if necessary (par. 7.2.2) Faulty throttle control or damaged blower Do not use the machine. Immediately turn o the machine, remove the battery and contact a service centre.

down whilst working Battery is not inserted correctly Make sure that the battery is inserted well (par. 7.2.3) Low battery Check the battery status and recharge if necessary (par. 7.2.2)

3. The rotor rotates, but

the air does not come out from the blower tube Blocked or clogged blower tube Stop the machine, remove the battery and remove any obstructions.

4. Excessive noise and/or

vibration is experienced whilst working Loose or damaged parts Turn o the machine remove the battery and: – inspect for damage; – check for and tighten any loose parts; – have any damaged parts replaced or repaired with parts having equivalent specications.

5. The machine gives o

smoke whilst working Damaged blower. Do not use the machine. Immediately turn o the machine, remove the battery and contact a service centre.

reserve is low Severe working conditions requiring greater current absorption Optimise operations (par. 7.2.1) Battery is insucient for operating requirements Use a second battery or extended battery (par. 14.1) Decrease in battery capacity Purchase a new batteryEN - 15

PROBLEM PROBABLE CAUSE SOLUTION

7. The battery charger

is not recharging the battery Battery is not correctly inserted in the battery charger Check it is correctly inserted (par. 7.2.3) Unsuitable environmental conditions Recharge the battery in places with suitable temperatures (see battery/ battery charger instruction manual) Dirty contacts Clean the contacts The battery charger is not energised Check it is plugged in and the power socket is energised Faulty battery charger Replace with an original spare part If the problem persists, refer to the battery/ battery charger manual

8. The LED indicator

(Fig. 5.E) remains ON in steady mode Self-check failed Do not use the machine. Immediately turn o the machine, remove the battery and contact a service centre.

9. The LED indicator

(Fig. 5.E) remains ON in ashing mode Battery communication error Do not use the machine. Immediately turn o the machine, remove the battery and contact a service centre. Rotor blocked Do not use the machine. Immediately turn o the machine, remove the battery and contact a service centre. Current overload Optimize machine usage. PCB overheated Do not use the machine. Immediately turn o the machine, remove the battery and contact a service centre. If problems persist after having performed the operations described above, contact your dealer.

Dierent capacity batteries are available to suit specic operating requirements (Fig. 10). The list of approved batteries for this machine is found in the "Technical Data" table.

1.1 KUIDAS KASUTUSJUHENDIT LUGEDA

14.1 VALINNAISET AKUT

5.1 SIKKERHETSBRYTER (INNRETNING

5. Elimine a caixa e as embalagens

INNEHÅLLSFÖRTECKNING

EC Declaration of Conformity (Machine Directive 2006/42/EC, Annex II, part A)

2. Herby declares under its own responsibility

that the machine: Hand-held garden Blower- Vacuum / blowing / suction a) Type / Base Model b) Month / Year of manufacture c) Serial number d) Motor: battery-operated

3. Conforms to directive specifications:

e) Certifying body f) EC examination of Type

4. Reference to harmonised Standards
