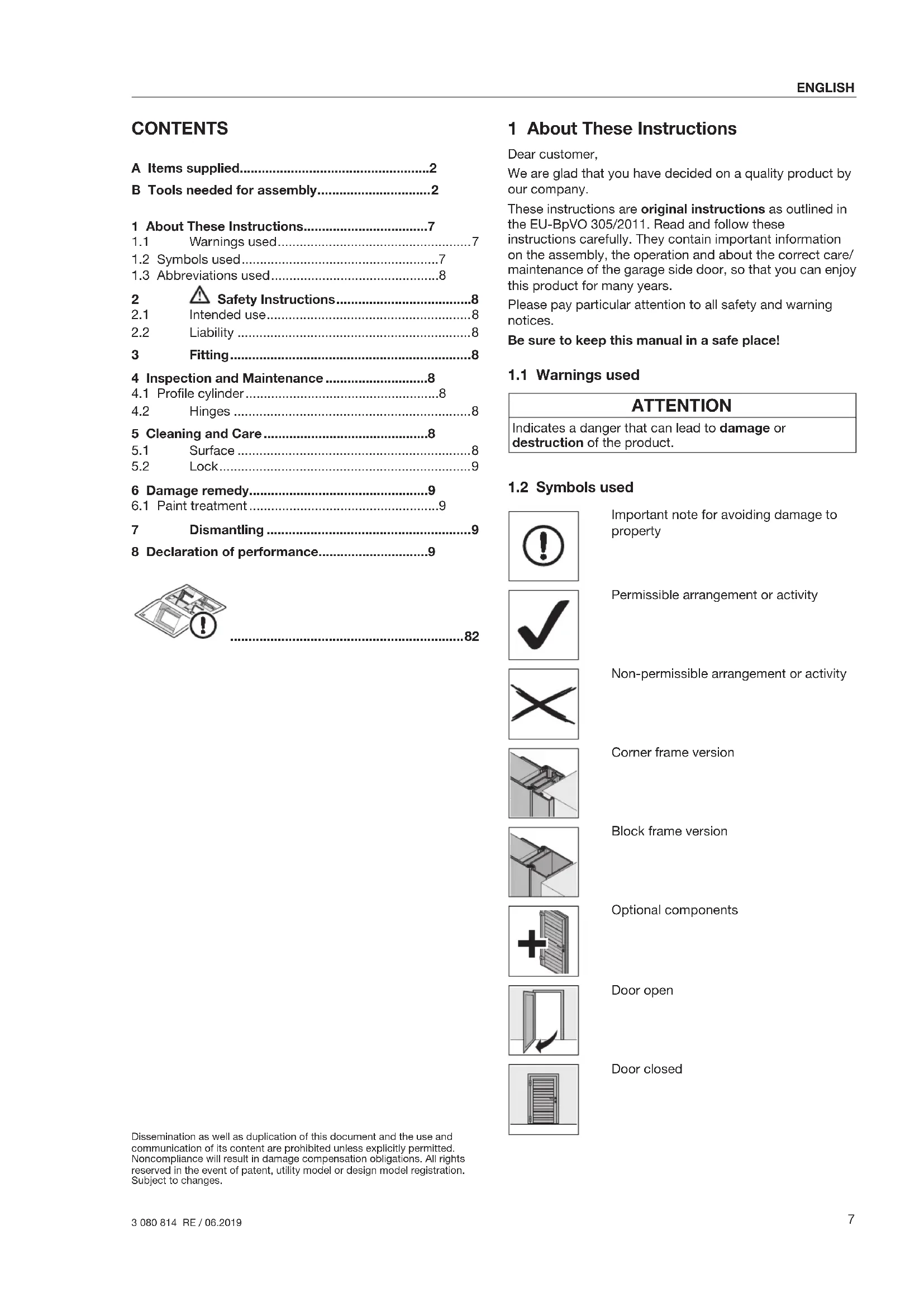

3 080 814 RE / 06.2019 DEUTSCH1 About These Instructions Dear customer, We are glad that you have decided on a quality product by our company. These instructions are original instructions as outlined in the EU-BpVO305/2011. Read and follow these instructions carefully. They contain important information on the assembly, the operation and about the correct care/ maintenance of the garage side door, so that you can enjoy this product for many years. Please pay particular attention to all safety and warning notices. Be sure to keep this manual in a safe place!

ATTENTION Indicates a danger that can lead to damage or destruction of the product.

Important note for avoiding damage to property Permissible arrangement or activity Non-permissible arrangement or activity Corner frame version Block frame version Optional components Door open Door closed 1 About These Instructions ..................................7

• 7 Dismantling p. 9
• 8 Declaration of performance p. 9
• CONTENTS Dissemination as well as duplication of this document and the use and communication of its content are prohibited unless explicitly permitted. Noncompliance will result in damage compensation obligations. All rights reserved in the event of patent, utility model or design model registration. Subject to changes. A Items supplied p. 2
• B Tools needed for assembly p. 2

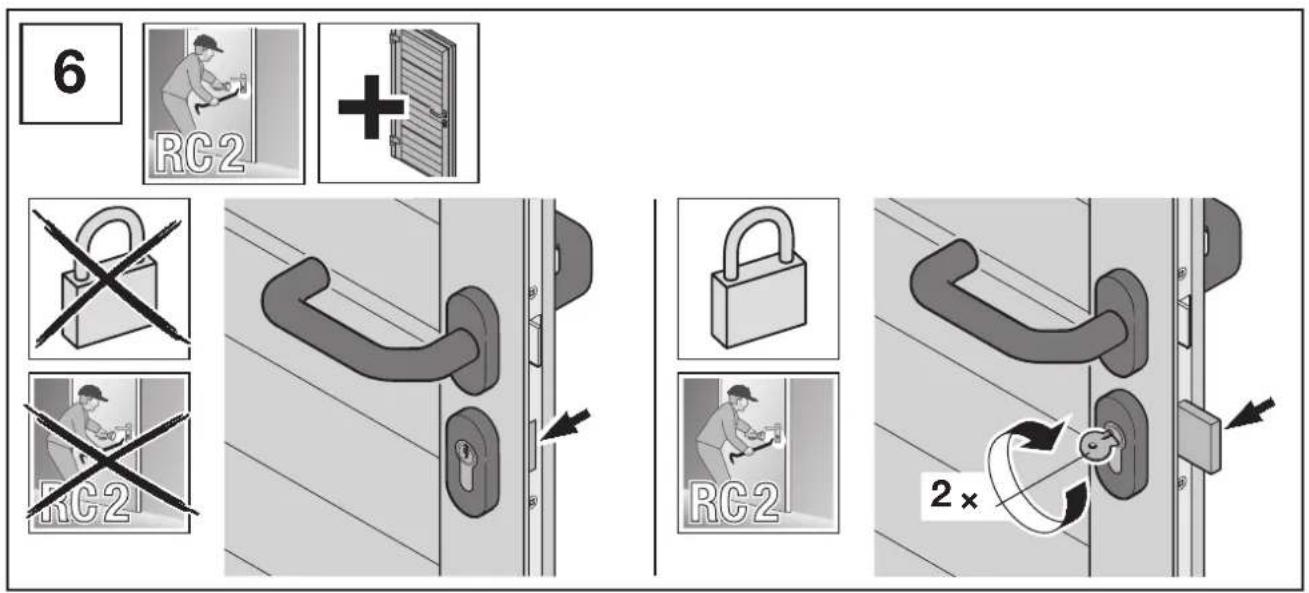

ENGLISHBreak-in-resistant component RC2 acc.toDINEN1627:2011 Dispose of component / packaging Maintenance-free Fitted at the factory

1.3 Abbreviations used

OFF Top edge of finished floor line 2 Safety Instructions

This door isdesigned andintended only forprivate useina garage. Only theexterior maybeexposed toweathering. Continuous operation is not permitted.

Failure to observe these notes and the following information releases the manufacturer from his liability. 3 Fitting WARNING Danger of injury as the result of structural modifications Changing or removing functional parts may put important safety components out of action. Uncontrolled door travel could occur and persons or objects may be trapped as a result.

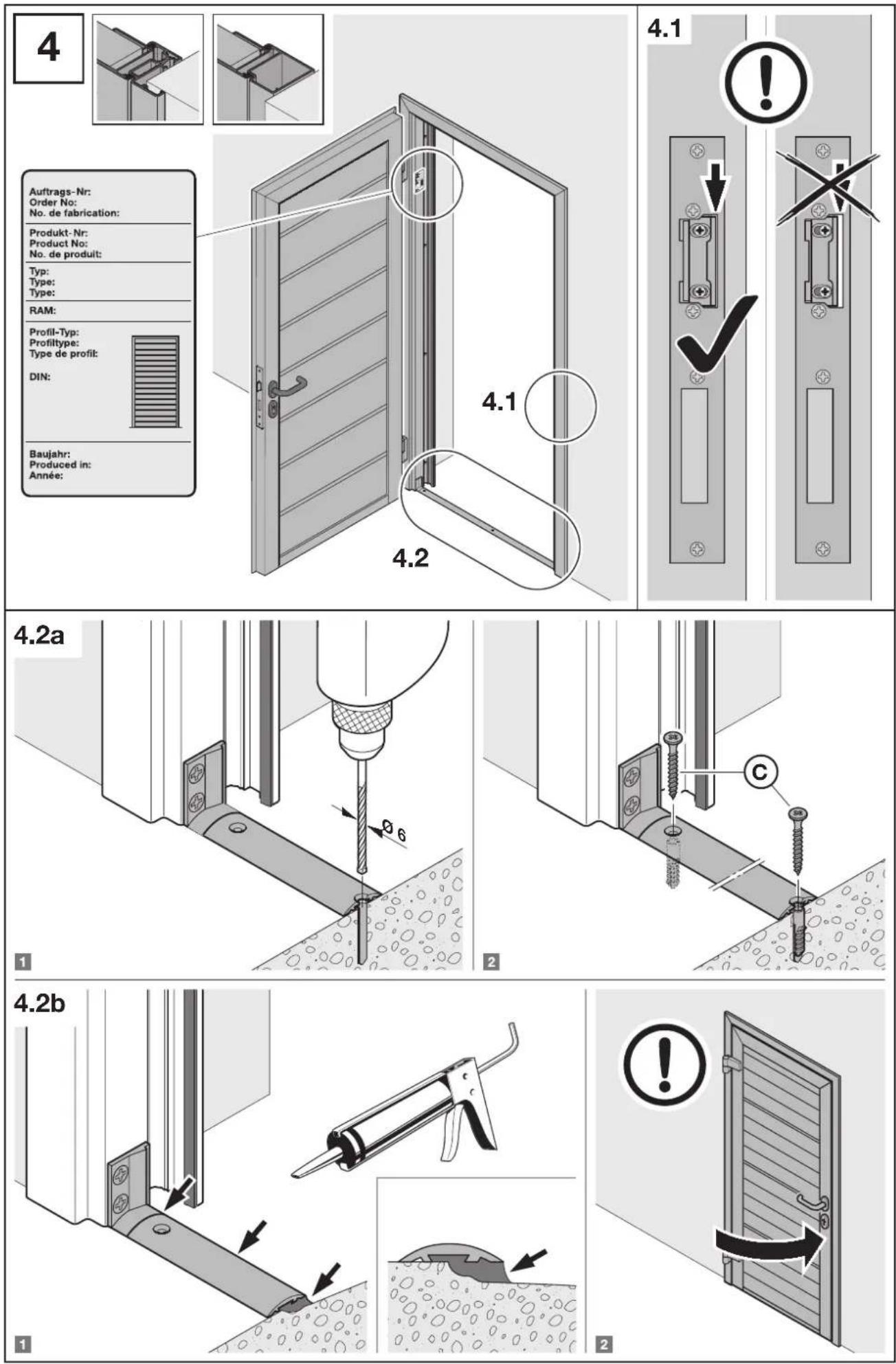

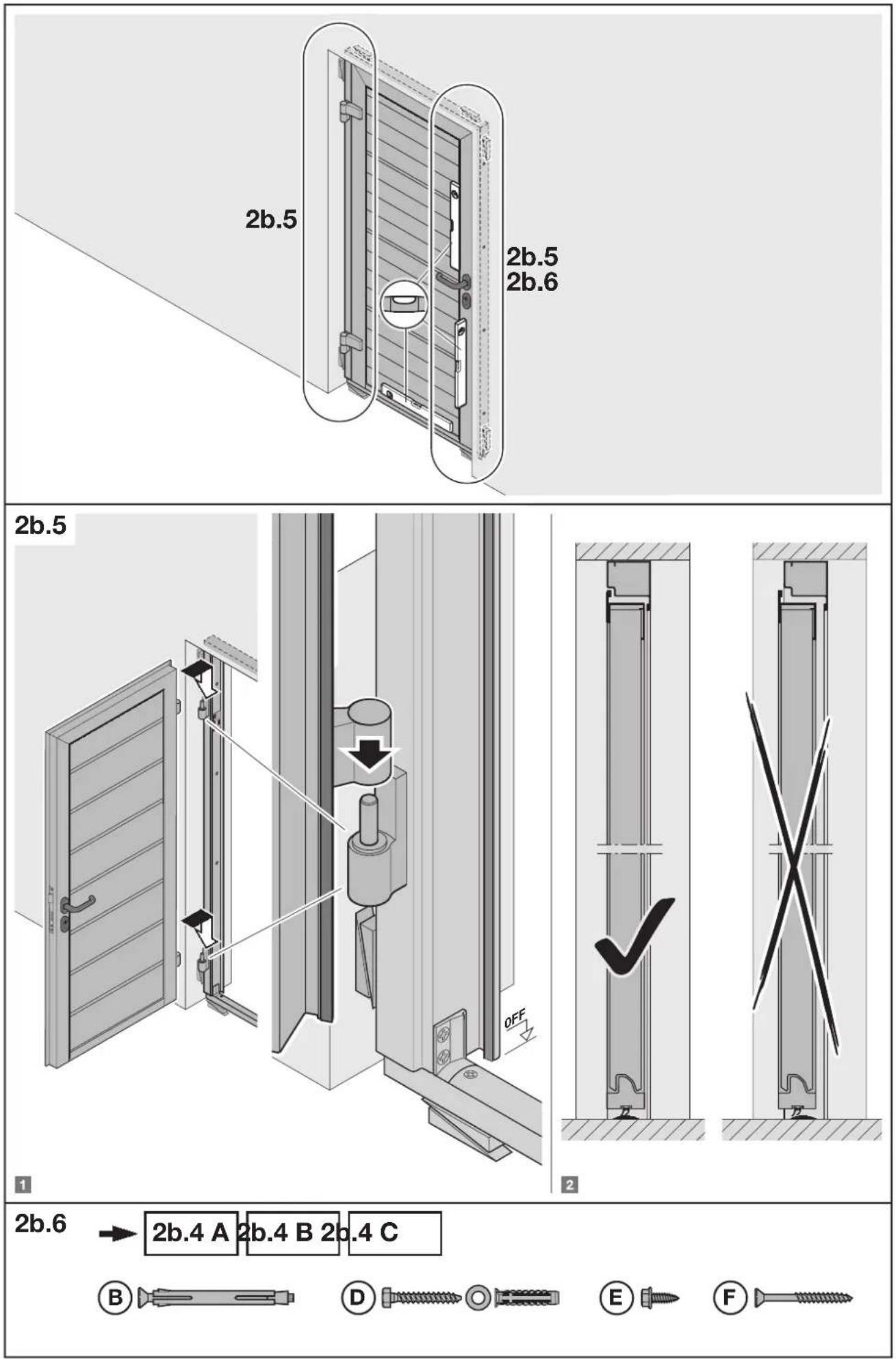

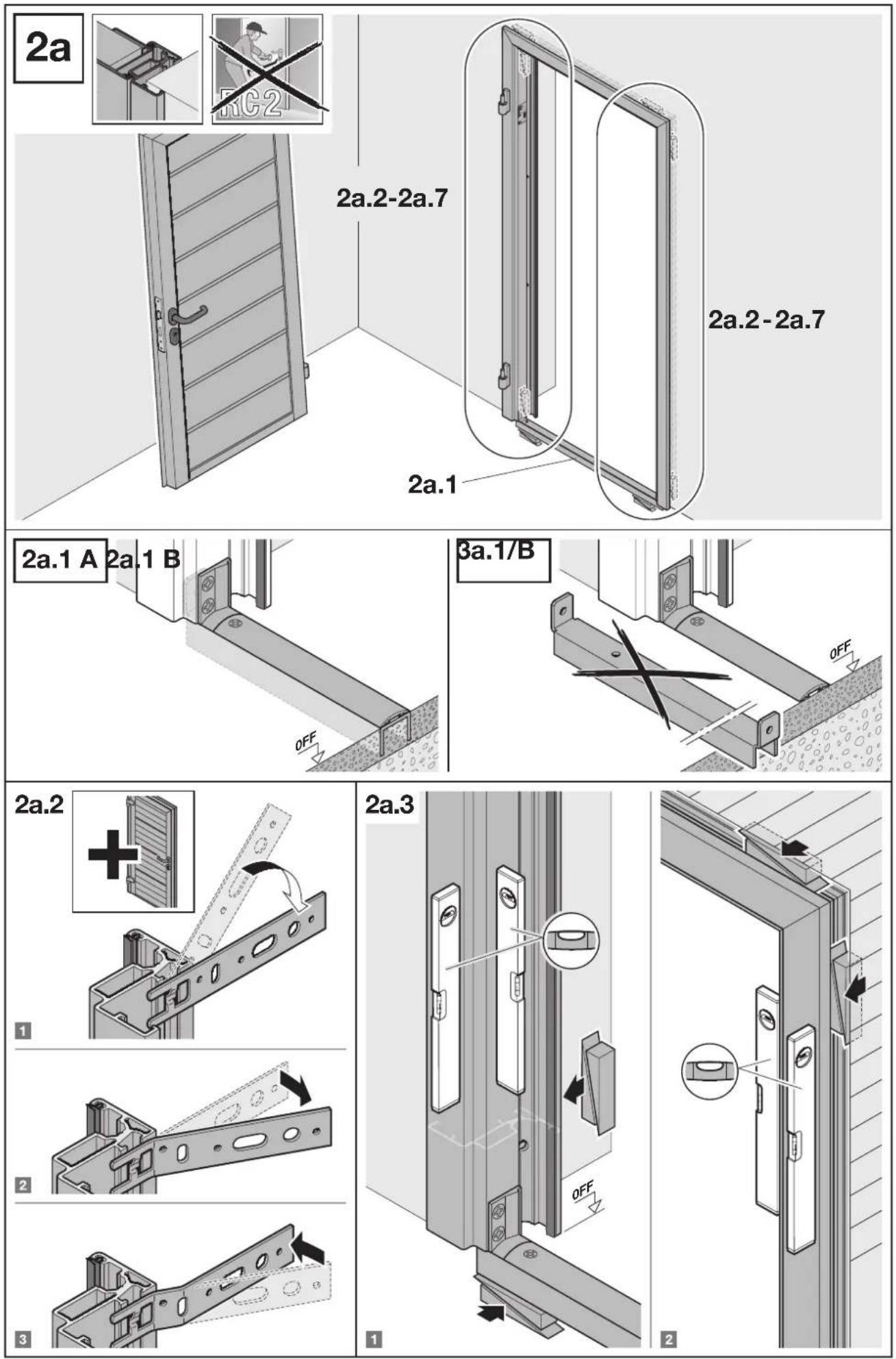

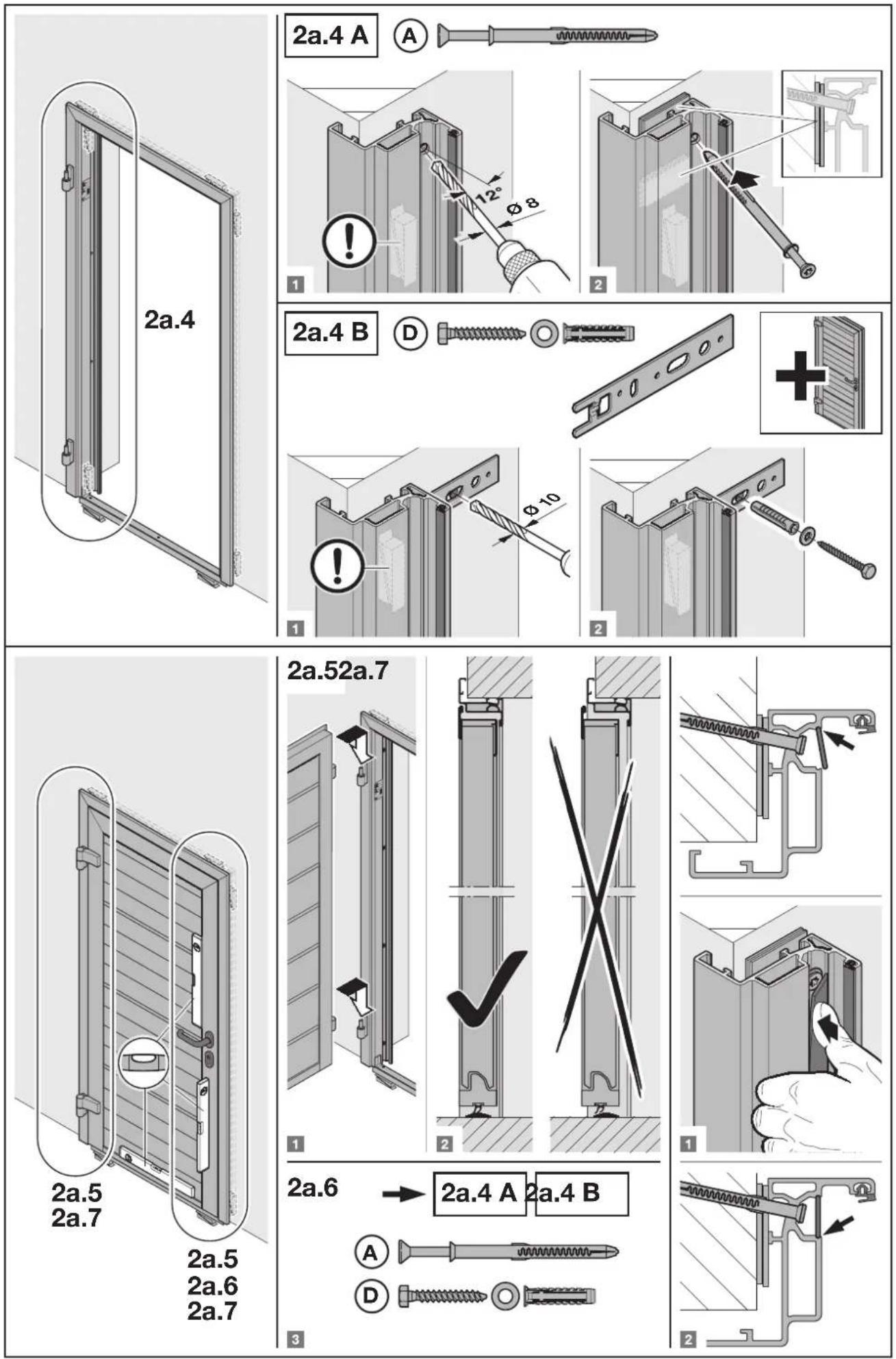

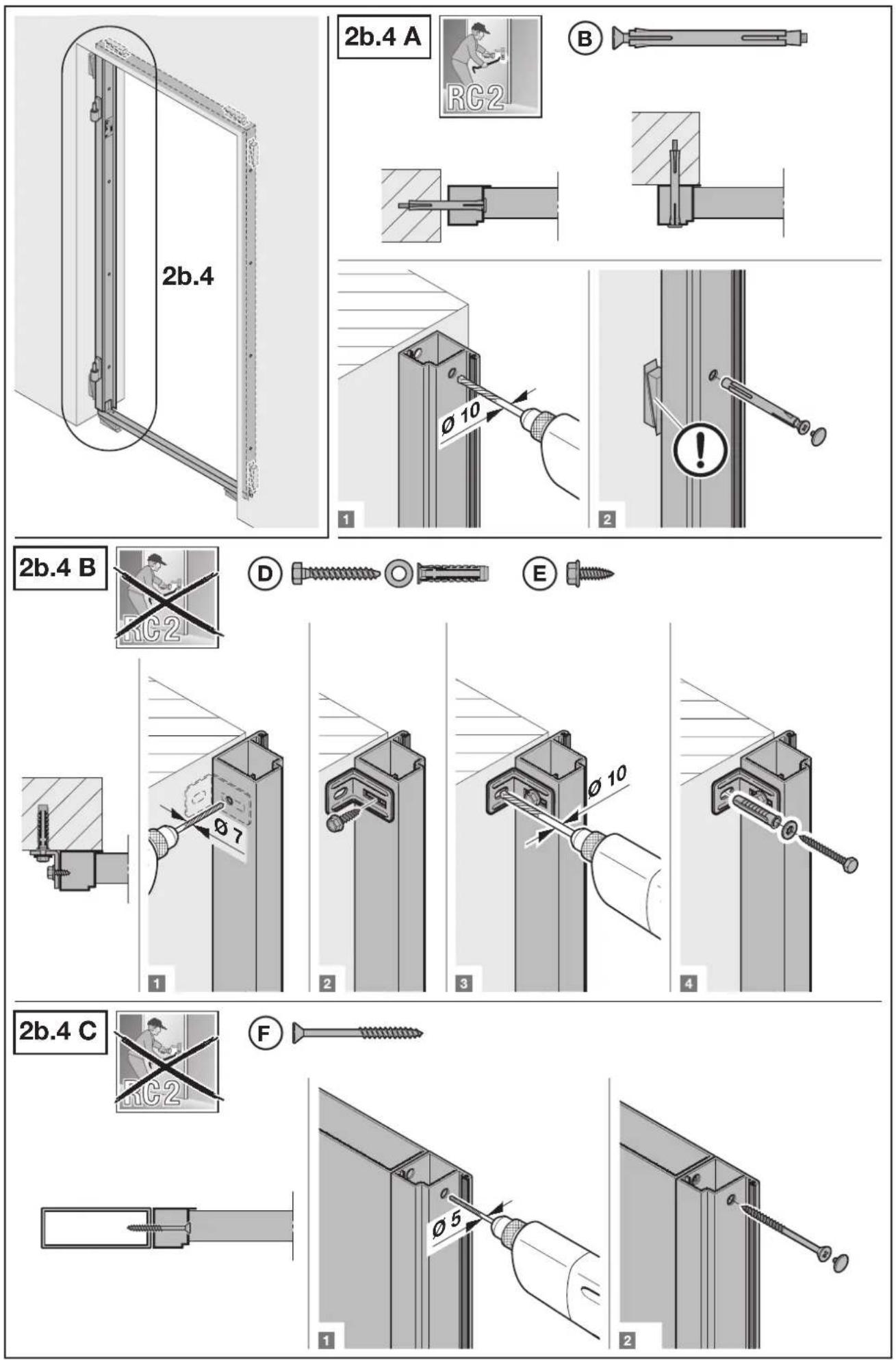

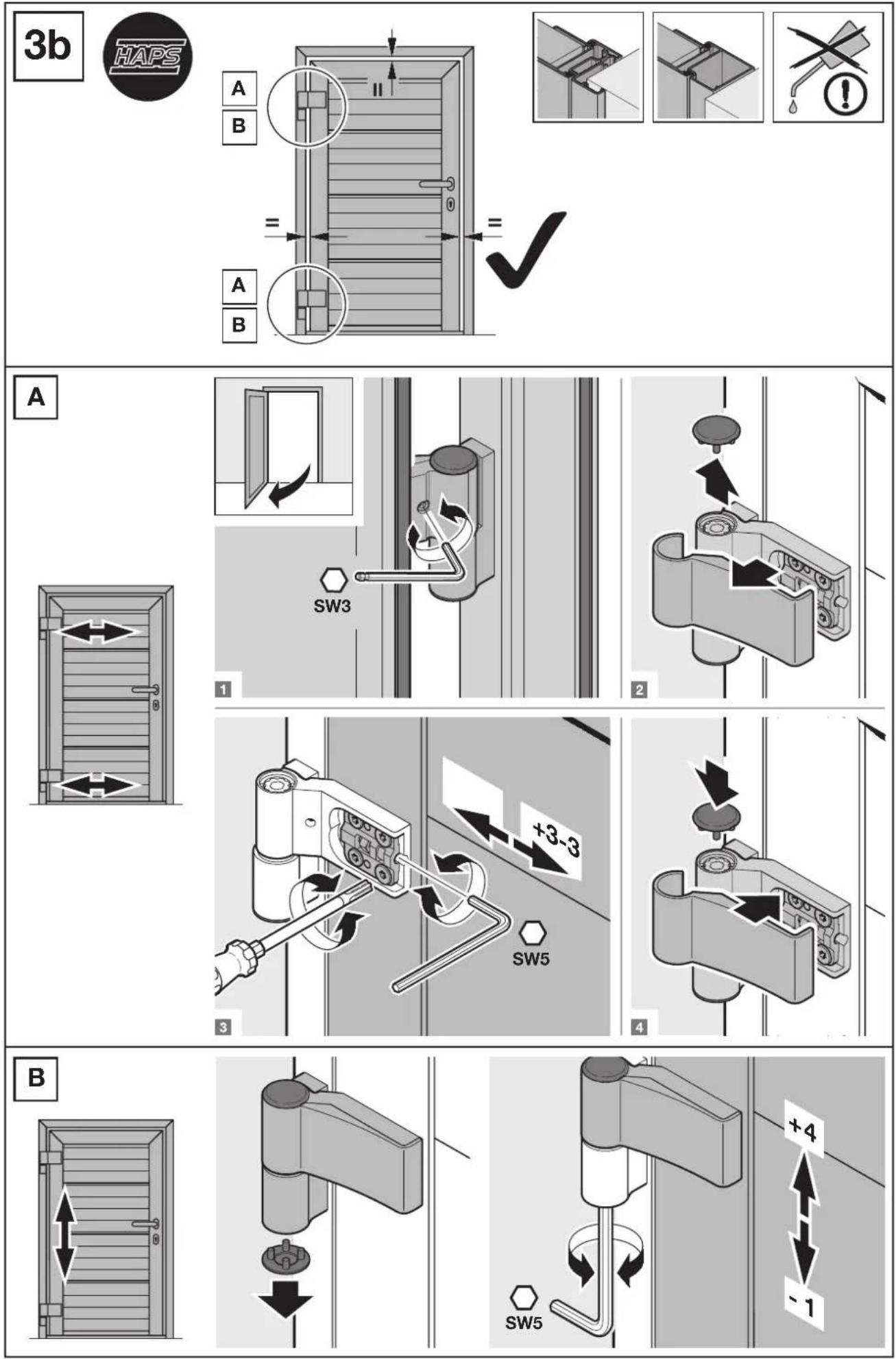

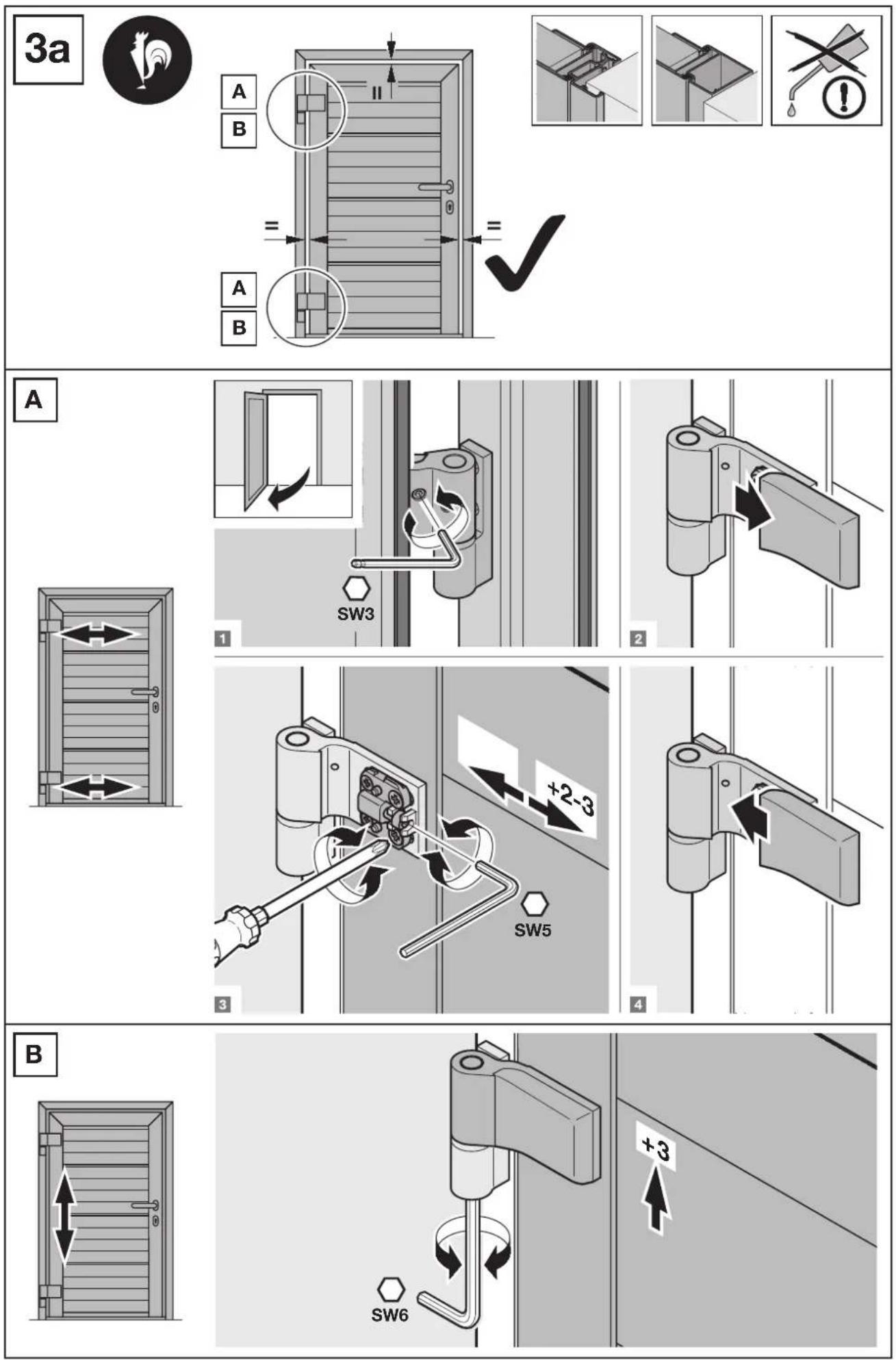

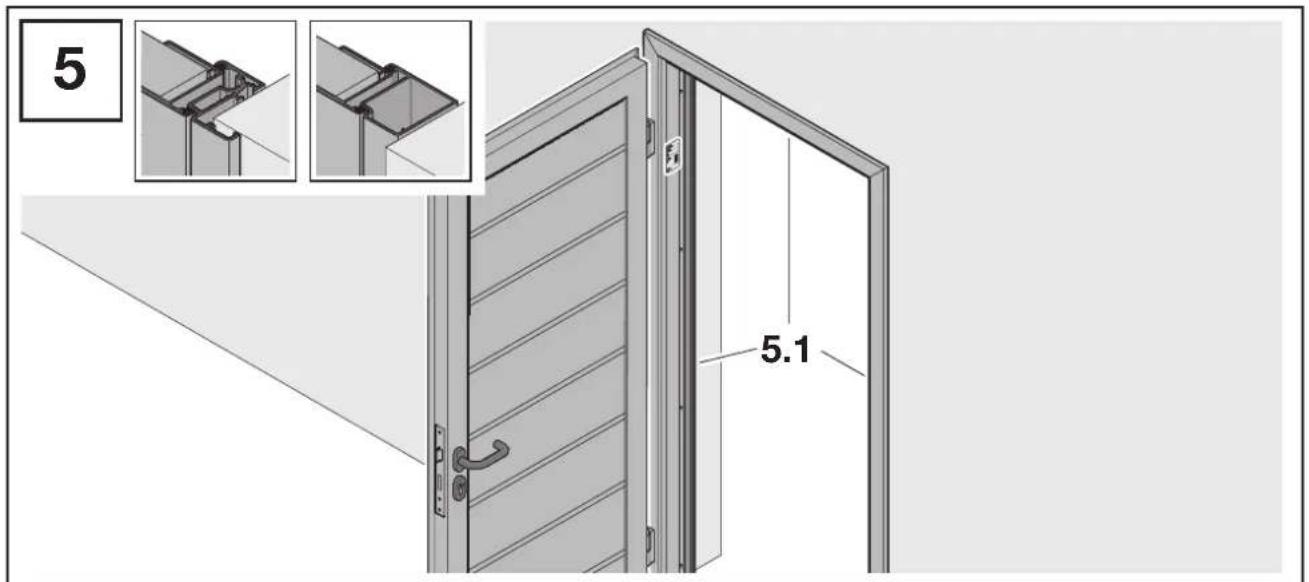

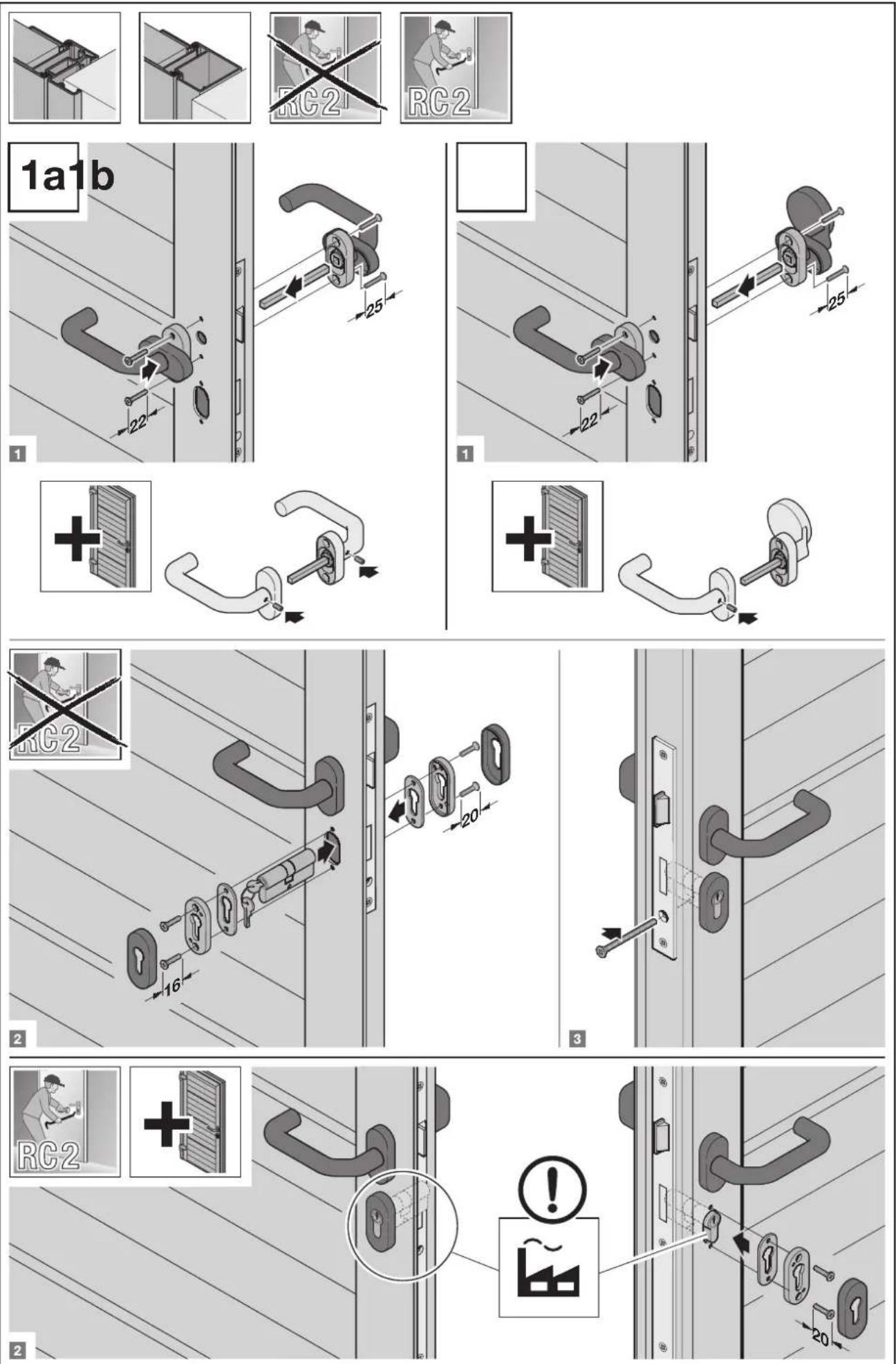

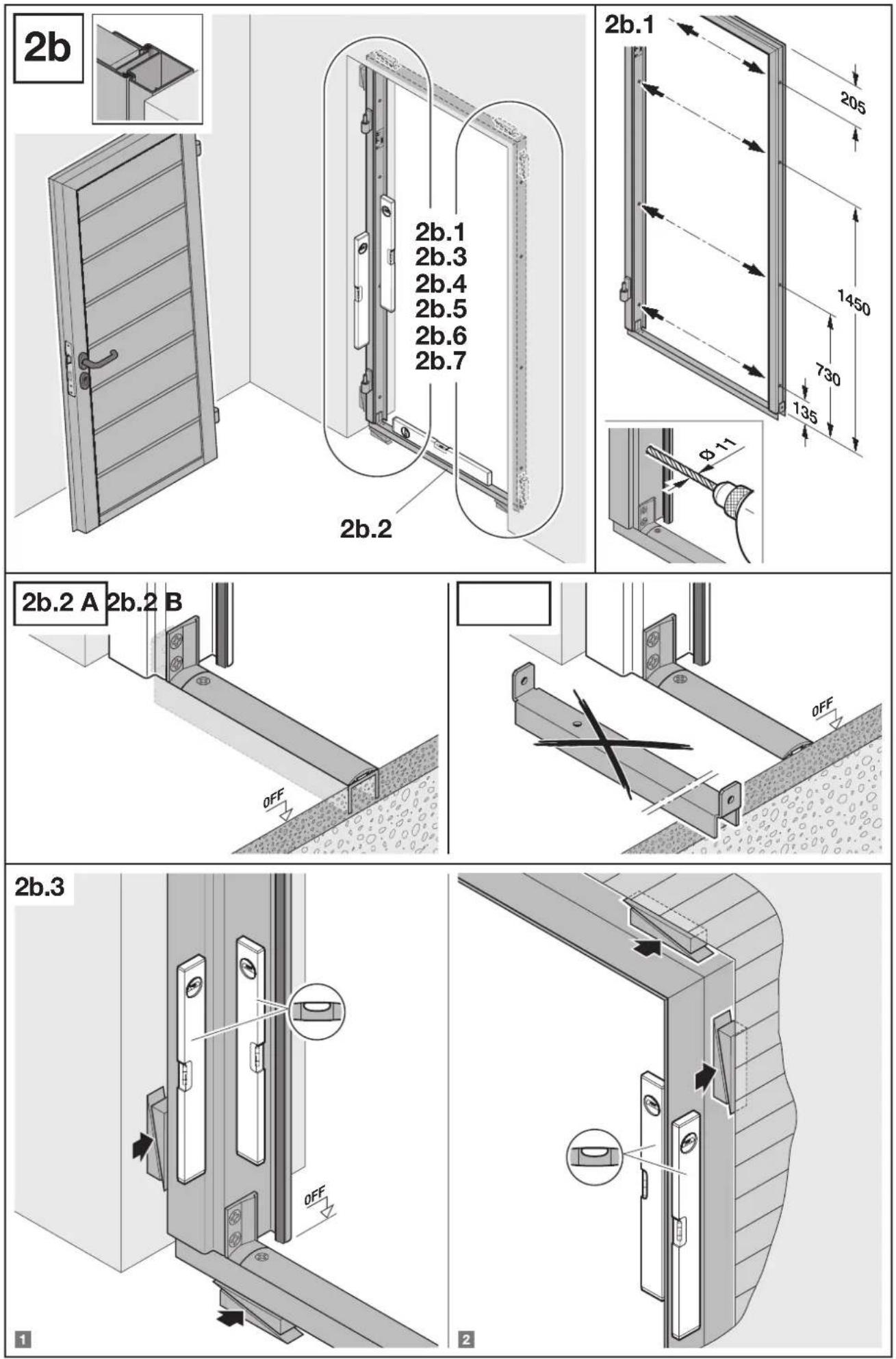

Do not attach any additional components. Additional components may overload thedoorhinges. For simple and professional fitting, carefully carry out the steps described in the illustrated section. Dowel holes in the frame are optional to choose. In the threshold area, you have the following options: Threshold rail with floor recess The bottom spacer profile later disappears in the screed. Threshold rail without floor recess Unscrew the bottom spacer profile and fasten the threshold rail profile on site. Observe the following during fitting:

• Establish a secure connection with the building structure.

• Check that the fixing materials supplied are suitable for the given structural conditions.

• Always obtain the permission of the structural engineer before fastening the side door to supporting structural elements.

• Ensure adequate water run-off in the area of the bottom seal and the frame parts, otherwise there is danger of corrosion (see Technical Manual).

• Ensure sufficient drying and ventilation in the building, otherwise there is danger of corrosion.

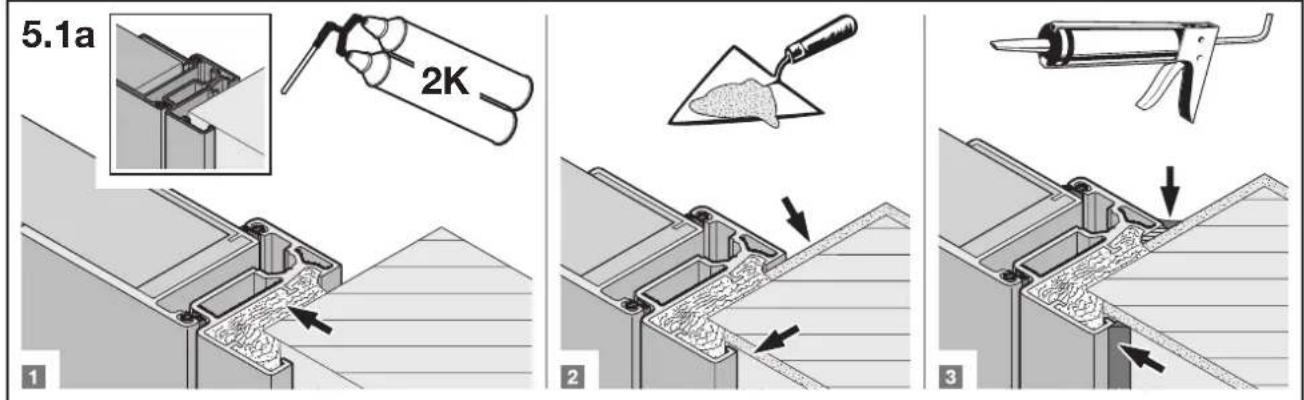

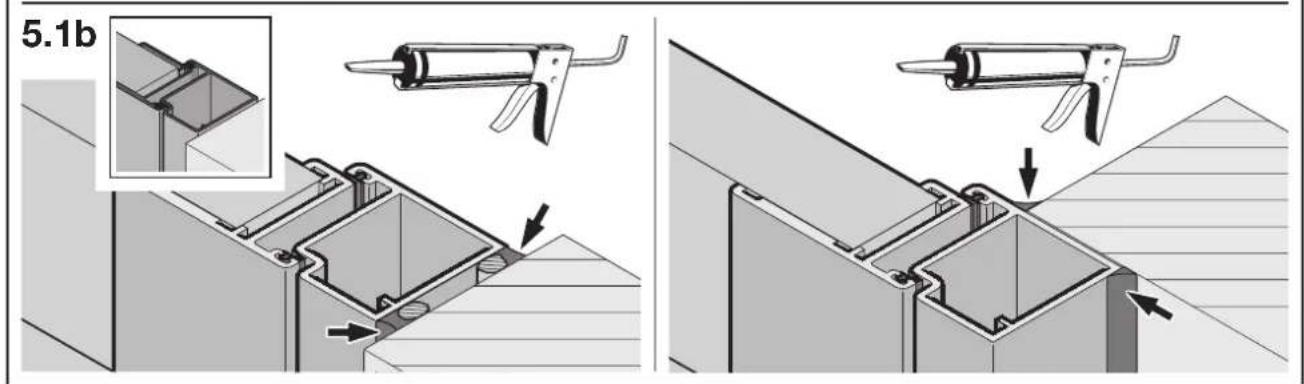

• The side door must be effectively protected before carrying out any plastering or paintwork, as splashing mortar, cement, plaster, paint, etc. may damage the surface.

• Protect the side door from caustic, aggressive substances, e.g. nitrous reactions from stones or mortar, acids, alkali solutions, de-icing salt, aggressive paints or sealants, otherwise there is a danger of corrosion. 4 Inspection and Maintenance

ATTENTION Oil on the profile cylinder The locking function of the profile cylinder can be compromised by the use of oil.

Never use oil for the profile cylinder.

The door hinges are maintenance-free. ATTENTION Greasing of the hinges If door hinges are greased, the bearings will wear out.

Never grease the door hinges. 5 Cleaning and Care

Clear water is sufficient for cleaning and care. Use warm water together with a neutral, non-abrasive cleaning agent (household detergent, pH value 7) if more heavily soiled.

Clean the surface at least every 3 months to maintain the surface properties. ATTENTION Scratches on the panes due to improper cleaning Rubbing the panes causes scratches.

Dirt and dust particles must first be thoroughly rinsed off with water. If necessary, only wash with water, apH-neutral household detergent and a soft, clean cloth.

3 080 814 RE / 06.2019 ENGLISHA wide variety of environmental effects (e.g. sea climate, acids, de-icing salt, air pollution, paint damage) may necessitate additional protective painting of the door infill (see Paint treatment on page9). ATTENTION Damage from waterless cleaning Waterless cleaning damages the surface.

Never clean the surfaces without water.

Rinse off any dirt and dust particles with clear water before rubbing off.

Perform upkeep on the lock and the lock cylinder 1 to 2 times per year, so that the door can be easily and quietly closed:

Grease the rear side of the lock latch with Vaseline.

Spray a special profile cylinder care product into the lock channel (available in specialised shops). 6 Damage remedy

The door infill comes with a polyester primer-coating. Ifyouwould like to paint the door infill in a different colour, or if renovation painting or additional protective painting isrequired:
