USER MANUAL IS 180 Digi STEINEL

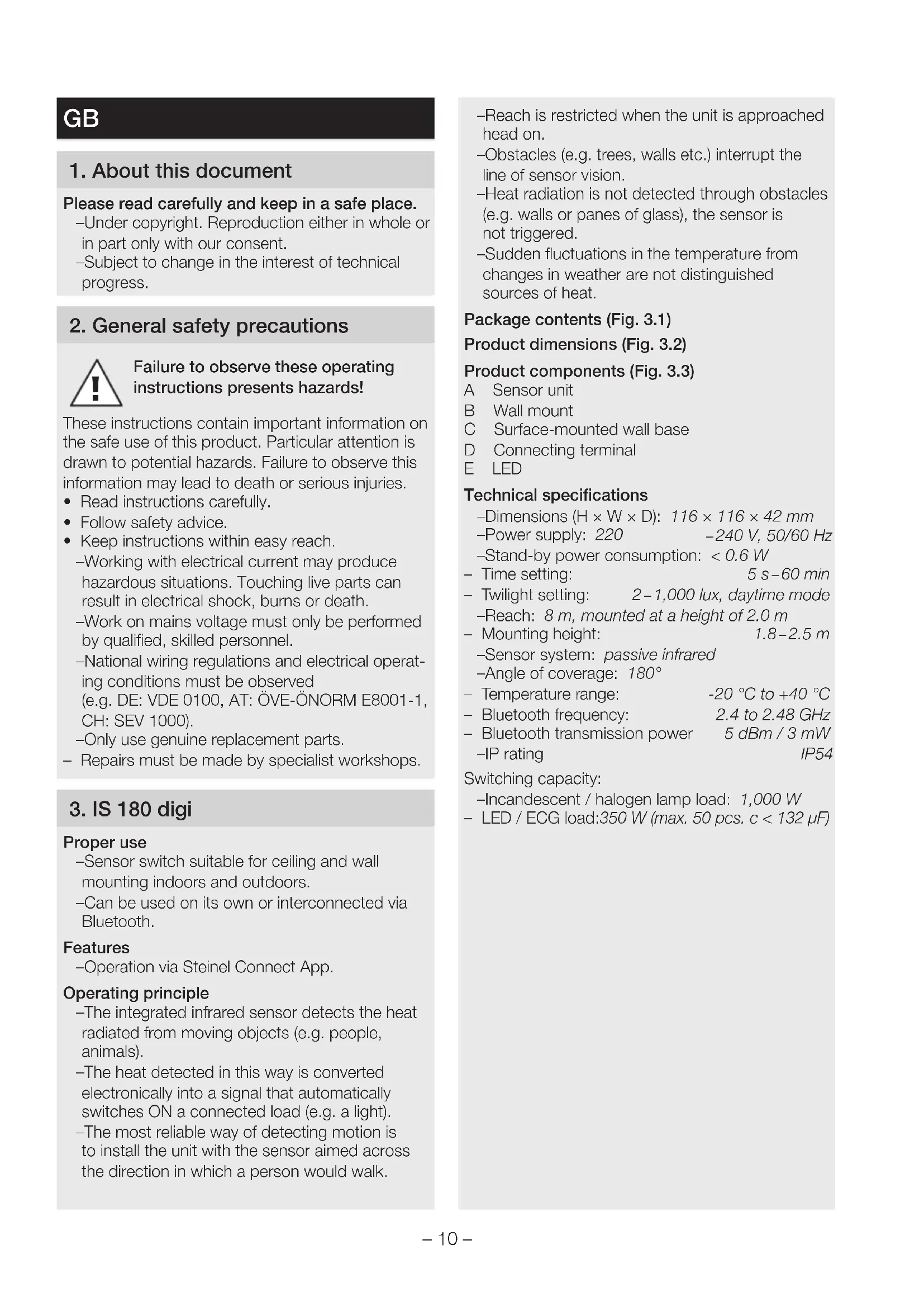

Please read carefully and keep in a safe place. – Under copyright. Reproduction either in whole or in part only with our consent. – Subject to change in the interest of technical progress.

2. General safety precautions

Failure to observe these operating instructions presents hazards! These instructions contain important information on the safe use of this product. Particular attention is drawn to potential hazards. Failure to observe this information may lead to death or serious injuries.

• Read instructions carefully.

• Follow safety advice.

• Keep instructions within easy reach. – Working with electrical current may produce hazardous situations. Touching live parts can result in electrical shock, burns or death. – Work on mains voltage must only be performed by qualified, skilled personnel. – National wiring regulations and electrical operat- ing conditions must be observed (e.g. DE: VDE 0100, AT:ÖVE-ÖNORM E8001-1, CH:SEV1000). – Only use genuine replacement parts. – Repairs must be made by specialist workshops.

Proper use – Sensor switch suitable for ceiling and wall mounting indoors and outdoors. – Can be used on its own or interconnected via Bluetooth. Features – Operation via Steinel Connect App. Operating principle – The integrated infrared sensor detects the heat radiated from moving objects (e.g. people, animals). – The heat detected in this way is converted electronically into a signal that automatically switches ON a connected load (e.g. a light). – The most reliable way of detecting motion is to install the unit with the sensor aimed across the direction in which a person would walk. – Reach is restricted when the unit is approached head on. – Obstacles (e.g. trees, walls etc.) interrupt the line of sensor vision. – Heat radiation is not detected through obstacles (e.g. walls or panes of glass), the sensor is not triggered. – Sudden fluctuations in the temperature from changes in weather are not distinguished sources of heat. Package contents (Fig. 3.1) Product dimensions (Fig. 3.2) Product components (Fig. 3.3) A Sensor unit B Wall mount C Surface-mounted wall base D Connecting terminal E LED Technical specifications – Dimensions (H×W×D): 116×116×42mm – Power supply: 220 – 240V, 50/60Hz – Stand-by power consumption: <0.6W – Time setting: 5s – 60min – Twilight setting: 2 – 1,000lux, daytime mode – Reach: 8m, mounted at a height of 2.0 m – Mounting height: 1.8 – 2.5m – Sensor system: passive infrared – Angle of coverage: 180° – Temperature range: -20°C to +40°C – Bluetooth frequency: 2.4 to 2.48GHz – Bluetooth transmission power 5dBm/3mW – IP rating IP54 Switching capacity: – Incandescent / halogen lamp load: 1,000W – LED / ECG load: 350 W (max. 50 pcs. c < 132 µF)– 11 –

4. Electrical installation

Hazard from electrical power. Touching live parts can result in electrical shock, burns or death.

• Switch OFF power and interrupt power supply.

• Using a voltage tester, check to make sure the the power supply is disconnected.

• Make sure power supply remains interrupted. Risk of damage to property! Mixing up connection leads may produce a short circuit.

• Identify connection leads.

• Re-connect connection leads. Connecting the mains power supply lead The supply lead is a 4-core cable: L = phase conductor (usually black, brown or grey) = switched phase conductor (usually black, brown or grey) N = neutral conductor (usually blue) PE = protective-earth conductor (green/yellow) Note: The sealing plugs provided are intended for a mains supply lead with an outer diameter of 5 – 10 mm. Note: The protective-earth conductor need not be connected for this product. Wiring diagram (Fig. 4.1)

Preparing for installation

• Check all components for damage. Do not use the product if it is damaged.

• Select an appropriate site to install the product. – Take reach into consideration. (Fig.5.1) – Take reach and motion detection into consid- eration. (Fig.5.2/5.3) – Vibration-free. – No obstacles in detection zone. – Not in explosive atmospheres. – Not on normally flammable surfaces. Mounting procedure

• Check to make sure the power supply is switched OFF. (Fig. 4.1)

• Unscrew retaining screw. (Fig. 5.4)

• Drill holes (Ø 6 mm) and fit wall plugs. (Fig. 5.7)

• Firmly screw wall mount into place. – Concealed version (Fig. 5.8) – Surface-mounted version with surface- mounted wall base (Fig. 5.9)

• Connect mains power supply lead according to terminal labelling. An additional external load can be connected to N and . (Fig. 5.10)

• Fit sensor switch on wall mount. (Fig. 5.11)

• Tighten retaining screw. (Fig. 5.12)

• Switch ON power supply. (Fig. 5.12)

Factory settings Time setting: 5seconds Twilight setting: (daytime mode) Reach: 100% Steinel Connect app To configure the sensor switch via smartphone or tablet, you must download the STEINEL Connect app from your app store. You will need a Blue- tooth-capable smartphone or tablet. Android iOS GB– 12 – Following functions can be set via the Steinel Connect app: – Time setting 5s – 60min – Twilight setting 2 – 1,000lux, daytime mode, lux teach, time teach – Reach adjustment – Bluetooth interconnection LED function – Initialisation: LED flashes green. – Bluetooth identification: LED slowly flashes blue. – Normal mode: LED is OFF. Time setting The time you want the sensor switch controlled light to stay ON for can be set to any period from approx. 5seconds to a maximum of 60minutes. Any movement detected before this time elapses will restart the timer. Note: After the load switches OFF, it takes approx. 1sec- ond before movement can be detected again. The load will only switch light ON again in response to movement once this period has elapsed. Twilight setting The response threshold chosen for the sensor switch can be infinitely varied from approx. 2 to 1,000 lux. Setting detection zone The area covered by the sensor can be divided into three zones (Fig. 6.1): – Each of the three zones can be activated or deactivated separately. – Reach can be set for each of the three zones. Note: It is recommended to select the shortest time for setting the detection zone. Note: The twilight setting control must be set to daylight mode when adjusting the detection zone and performing the functional test in daylight. Bluetooth interconnection (Bluetooth mesh) The sensor switch does comply with the Bluetooth mesh standard. It can be interconnected with all products complying with the Bluetooth mesh standard. The sensor switch is configured by Steinel Connect app. Appropriate network keys are saved on the smartphone or tablet the first time a connection is made between sensor switch and Steinel Connect app. The key rules out any unauthorised access to the sensor. The network key must be shared for access via another smartphone or tablet.

7. Cleaning and Maintenance

Hazard from electrical power. Contact between water and live parts can result in electrical shock, burns or death.

• Only clean tool in a dry state. Risk of damage to property! Using the wrong detergent can damage the light.

• Clean sensor switch with a moist cloth without detergent.

Unit without power. – Fuse not switched ON or faulty.

• Change faulty fuse. – Break in wiring.

• Switch ON mains switch.

• Check wiring with voltage tester. – Short circuit in mains power supply lead.

• Check connections. Unit does not switch ON. – Wrong twilight setting selected.

• Re-set brightness response threshold – Mains switch OFF.

• Switch ON mains switch. – Fuse not switched ON or faulty.

• Change faulty fuse. – Detection zone too small or incorrect.

• Check and adjust detection zone.– 13 – Unit does not switch OFF. – Continued movement within the detection zone.

• Check detection zone.

• If necessary, limit or change detection zone. Unit switches ON when it should not – Movement within the detection zone, e.g. from animals, trees or cars.

• Check detection zone.

• If necessary, limit or change detection zone. – Unit is moving as a result of gusts of wind or precipitation.

• Mount floodlight on a firm surface. No connection being set up to sensor switch from smartphone or tablet. – Smartphone too close to sensor switch.

• Distance from sensor switch at least 1.5 m. – The app is not compatible with the smartphone or tablet.

• Use dierent smartphone or tablet. – App version not up to date.

• Update Steinel Connect app in the app store. No connection with the app. – No network key on the smartphone or tablet that is being used.

• Share network key via app.

Electrical and electronic equipment, accessories and packaging must be recycled in an environ- mentally compatible manner. Do not dispose of electrical and electronic equipment as domestic waste. EU countries only: Under the current European Directive on Waste Electrical and Electronic Equipment and its imple- mentation in national law, electrical and electronic equipment no longer suitable for use must be collected separately and recycled in an environ- mentally compatible manner.

10. Declaration of Conformity

STEINEL GmbH hereby declares that the IS 180 digi sensor switch conforms to Directive 2014/53/ EU. The full wording of the EU Declaration of Conformity is available for downloading from the following Internet address: www.steinel.de

11. Manufacturer's warranty

Manufacturer’s warranty of STEINEL GmbH, Dieselstrasse 80-84, DE-33442 Herzebrock-Clarholz, Germany All STEINEL products meet the highest quality standards. For this reason, we, the manufacturer, are pleased to provide you, the consumer, with a warranty under the following terms and conditions: The warranty covers the absence of deficiencies which are proven to be the result of a material defect or fault in manufacturing and which are re- ported to us immediately after detection and within the warranty period. The warranty shall apply to all STEINEL products sold and used in Germany - excluding STEINEL Professional products. You can opt for warranty cover in the form of repair or replacement which will be provided free of charge (if applicable, in the form of a successor model of the same or higher quality) or in the form of a credit note. The warranty period for the STEINEL product you have purchased is 3 years (5 years for products from the XLED home range) in each case from the date on which the product was purchased. We shall bear the shipping costs but not the trans- port risks involved in return shipment. Statutory rights accruing from defects, gratui- tousness The warranty cover described here shall be appli- cable in addition to the statutory rights of warranty – including special consumer protection provisions – and shall not restrict or replace them. Exercis- ing your statutory rights in the event of defects is gratuitous. Exemptions from the warranty All replaceable lamps are expressly excluded from this warranty. In addition to this, the warranty shall not cover: – any wear resulting from use or any other natural wear of product parts or any deficiencies in the STEINEL product that are attributable to wear caused by use or other natural wear, – any improper or non-intended use of the product or any failure to observe the operating instruc- tions, – any unauthorised additions, alterations or other modifications to the product or any deficiencies attributable to the use of accessory, – supplementary or replacement parts which are not genuine STEINEL parts, – any maintenance or care of products that is not carried out in accordance with the operating instructions, GB– 14 – – any attachment or installation that is not in ac- cordance with STEINEL’s installation instructions, – any damage or loss occurring in transit. Application of German law The warranty shall be governed by German law ex- cluding the United Nations Convention concerning the International Sale of Goods (CISG). Making claims If you wish to make a warranty claim, please send your product complete and carriage paid with the original receipt of purchase, which must show the date of purchase and product designation, either to your retailer or directly to us at STEINEL (UK) Ltd. – 25 Manasty Road, Axis Park, Orton South- gate, GB- Peterborough Cambs PE2 6UP United Kingdom. For this reason, we recommend that you keep your receipt of purchase in a safe place until the warranty period expires. MANUFACTURER'S
