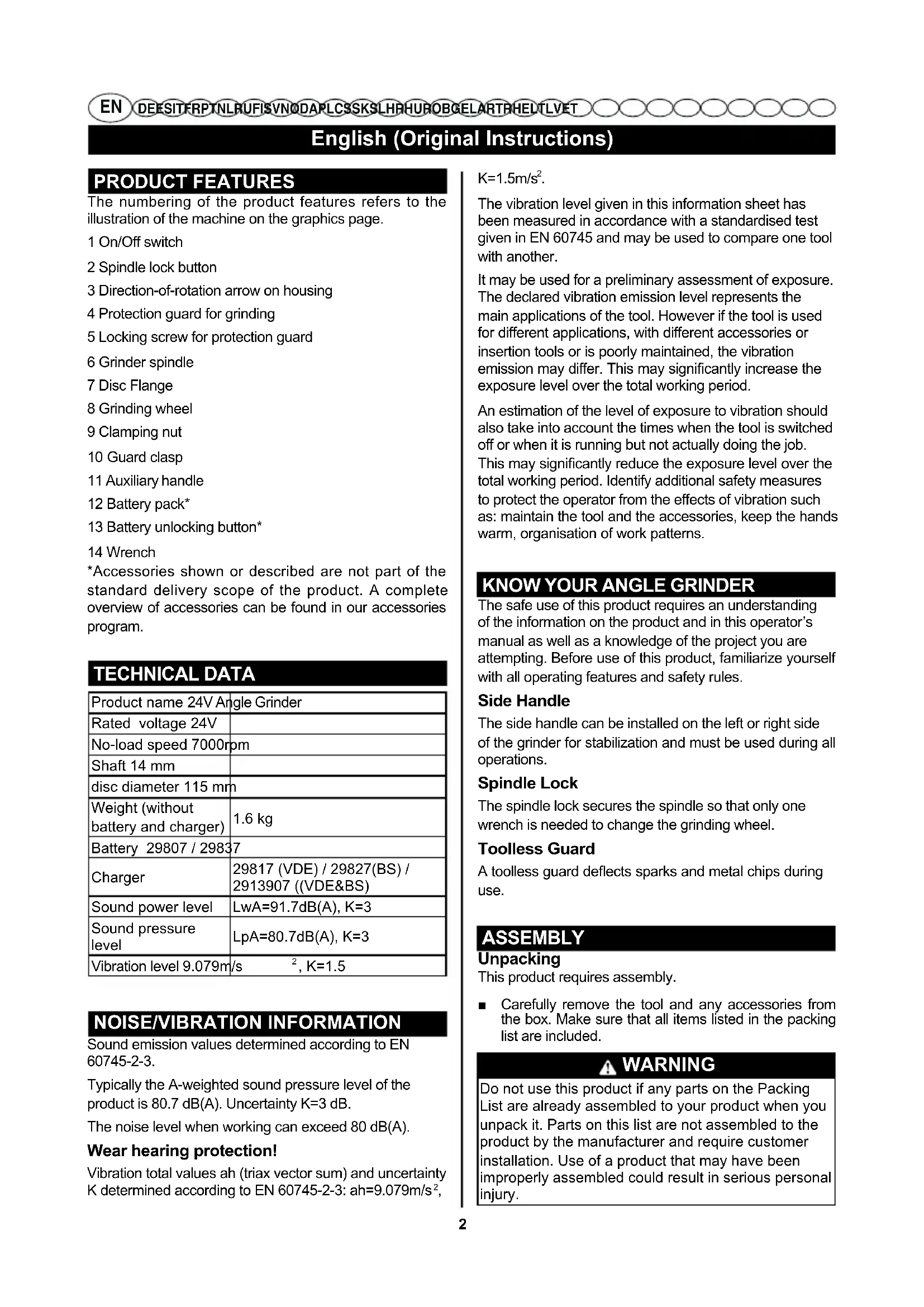

DE ES IT FR PT NL RU FI SV NO DA PL CS SK SL HR HU RO BG EL AR TR HE LT LV ET PRODUCT FEATURES The numbering of the product features refers to the illustration of the machine on the graphics page. 1 On/Off switch 2 Spindle lock button 3 Direction-of-rotation arrow on housing 4 Protection guard for grinding 5 Locking screw for protection guard 6 Grinder spindle 7 Disc Flange 8 Grinding wheel 9 Clamping nut 10 Guard clasp 11 Auxiliary handle 12 Battery pack* 13 Battery unlocking button* 14 Wrench *Accessories shown or described are not part of the standard delivery scope of the product. A complete overview of accessories can be found in our accessories program. TECHNICAL DATA Product name 24V Angle Grinder Rated voltage 24V No-load speed 7000rpm Shaft 14 mm disc diameter 115 mm Weight (without battery and charger)

Sound emission values determined according to EN 60745-2-3. Typically the A-weighted sound pressure level of the product is 80.7 dB(A). Uncertainty K=3 dB. The noise level when working can exceed 80 dB(A). Wear hearing protection! Vibration total values ah (triax vector sum) and uncertainty K determined according to EN 60745-2-3: ah=9.079m/s

The vibration level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or insertion tools or is poorly maintained, the vibration emission may differ. This may signicantly increase the exposure level over the total working period. An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may signicantly reduce the exposure level over the total working period. Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

KNOW YOUR ANGLE GRINDER

The safe use of this product requires an understanding of the information on the product and in this operator’s manual as well as a knowledge of the project you are attempting. Before use of this product, familiarize yourself with all operating features and safety rules. Side Handle The side handle can be installed on the left or right side of the grinder for stabilization and must be used during all operations. Spindle Lock The spindle lock secures the spindle so that only one wrench is needed to change the grinding wheel. Toolless Guard A toolless guard deects sparks and metal chips during use. ASSEMBLY Unpacking This product requires assembly. ■ Carefully remove the tool and any accessories from the box. Make sure that all items listed in the packing list are included. WARNING Do not use this product if any parts on the Packing List are already assembled to your product when you unpack it. Parts on this list are not assembled to the product by the manufacturer and require customer installation. Use of a product that may have been improperly assembled could result in serious personal injury.EN DE ES IT FR PT NL RU FI SV NO DA PL CS SK SL HR HU RO BG EL AR TR HE LT LV ET English (Original Instructions)

■ Inspect the product carefully to make sure no breakage or damage occurred during shipping. ■ Do not discard the packing material until you have carefully inspected and satisfactorily operated the tool. WARNING If any parts are damaged or missing do not operate this product until the parts are replaced. Use of this product with damaged or missing parts could result in serious personal injury. WARNING Do not attempt to modify this product or create accessories not recommended for use with this product. Any such alteration or modication is misuse and could result in a hazardous condition leading to possible serious personal injury. WARNING To prevent accidental starting that could cause serious personal injury, always remove the battery pack from the product when assembling parts. Battery Charging ■ Use only the chargers listed in the technical data. Only these chargers are matched to the lithium-ion battery of your power tool. Note: The battery supplied is partially charged. To ensure full capacity of the battery, completely charge the battery in the battery charger before using your power tool for the rst time. The lithium-ion battery can be charged at any time without reducing its service life. Interrupting the charging procedure does not damage the battery. The lithium-ion battery is protected against deep discharging by the “Electronic Cell Protection (ECP)”. When the battery is empty, the machine is switched off by means of a protective circuit: The inserted tool no longer rotates. ■ Do not continue to press the On/Off switch after the machine has been automatically switched off. The battery can be damaged. Observe the notes for disposal. Removing the battery (see gure A) To remove the battery, press the battery unlocking button 13 and pull the battery 12 out of the power tool toward the rear. Do not exert any force. Installing Grinding Wheel (see gure B) DANGER Never attach a wood cutting or carving blade of any type to this grinder. It is only designed for grinding and sanding. Use for any other purpose is not recommended and creates a hazard, which will result in serious injury. WARNING Thoroughly inspect a new grinding wheel before you install it on the grinder. ■ Tap lightly around the wheel using a wooden hammer. ■ Listen carefully to the resulting sounds. Places with fissures or cracks will result in a different sound. Do not use a wheel containing ssures or cracks. When you install a new grinding wheel, carry out a no load revolution test of approximately one minute with the grinding wheel facing a safe direction, i.e., away from people or objects. ■ Depress the spindle lock button and rotate the clamp nut until the spindle locks. NOTE: To prevent damage to the spindle or spindle lock, always allow motor to come to a complete stop before engaging spindle lock. ■ Loosen (fig.B.3) and remove the clamp nut from the spindle. Do not remove the disc flange. ■ Make sure the flats on the bottom of the disc flange are engaged with the flats on the spindle. ■ Place the grinding wheel over the spindle. WARNING Always install a grinding wheel with the depressed center against the disc ange. Failure to do so will cause the grinding wheel to crack when tightening the clamp nut. This could result in serious personal injury because of loose particles breaking off and being thrown from the grinder. Do not overtighten. ■ Thread the clamp nut on the spindle with the flat side of the nut facing up. ■ Fit the raised, small diameter portion of the clamp nut into the hole in the wheel and finger tighten. ■ Depress the spindle lock button and rotate the wheel clockwise (fig.B.2) until the spindle locks in position. ■ Tighten the clamp nut securely with the wrench 14 provided. Do not overtighten. Installing The Side Handle (see gure C) WARNING The side handle must always be used to help prevent loss of control and possible serious injury. The side handle can be installed on the left or right side of the grinder, depending on operator preference. ■ Insert the side handle into the desired operatingEN DE ES IT FR PT NL RU FI SV NO DA PL CS SK SL HR HU RO BG EL AR TR HE LT LV ET English (Original Instructions)

position. ■ Turn the side handle clockwise to securely tighten. OPERATION WARNING Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufcient to inict serious injury. WARNING Always remove battery pack from the tool when you are assembling parts, making adjustments, cleaning, or when not in use. Removing battery pack will prevent accidental starting that could cause serious personal injury. WARNING Always wear eye protection. Failure to do so could result in objects being thrown into your eyes resulting in possible serious injury. WARNING Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal injury. Applications You may use this product for the purpose listed below: ■ Grinding metals ■ Sanding wood or metal surfaces WARNING Battery products are always in operating condition. Therefore, the switch should always be locked when not in use or carrying at your side. Starting And Stopping The Angle Grinder (see gure D - E) ■ To start the power tool, push the On/Off switch forwards. ■ To lock the On/Off switch, press the On/Off switch down at the front until it latches. ■ To switch off the power tool, release the On/Off switch or, if it is locked, briefly push down the back of the On/Off switch and then release it. ■ To save energy, only switch the power tool on when using it. ■ Check grinding tools before using. The grinding tool must be mounted properly and be able to move freely. Carry out a test run for at least one minute with no load. Do not use damaged, out- of-centre or vibrating grinding tools. Damaged grinding tools can burst and cause injuries. Positioning The Guard (see gure F - I) ■ The guard on the grinder should be correctly positioned depending on which side the handle is mounted. Never use the grinder without the guard correctly in place. WARNING Never place the guard so that it is in front of the grinder. This could result in serious injury because sparks and loose particles thrown from the grinding wheel would be directed toward the operator. Always place the guard in the correct location as shown. To reposition the guard: ■ Remove the battery pack. ■ Unlock the guard clasp by pulling the clasp out, away from the grinder. ■ Rotate the guard to its correct position as shown. ■ Lock the guard clasp by pushing the clasp in. NOTE : Be sure the raised ridge on the guard is seated in the groove on the bearing cap. Never use the grinder without the guard in place and properly adjusted. Operating The Grinder (see gure J) Always carefully select and use grinding wheels that are recommended for the material to be ground. Make sure that the minimum operating speed of any accessory wheel selected is 6,500 r/min. or more. The grinding wheel provided with the grinder is suitable for grinding welds, preparing surfaces to be welded, grinding structural steel, and grinding stainless steel. To operate the grinder: ■ Secure all work in a vise or clamp to a workbench. DANGER Never use the grinder with the guard removed. It has been designed for use only with the guard installed. Attempting to use grinder with guard removed will result in loose particles being thrown against the operator resulting in serious personal injury. ■ Hold the grinder in front and away from you with both hands, keeping the grinding wheel clear of the workpiece. ■ Turn on the grinder and let the motor and grinding wheel build up to full speed. ■ Lower the grinder gradually until the grinding wheel contacts the workpiece. WARNING To prevent loss of control and possible serious personal injury, always operate the grinder with both hands, keeping one hand on the side handle. ■ Keep the grinder tilted at an angle from 5° to 15° and continuously moving at a steady, consistent pace. NOTE: If the grinder is held in one spot too long, it willEN DE ES IT FR PT NL RU FI SV NO DA PL CS SK SL HR HU RO BG EL AR TR HE LT LV ET English (Original Instructions)

gouge and cut grooves in the workpiece. If the grinder is held at too sharp an angle, it will also gouge the workpiece because of concentration of pressure on a small area. ■ Use just enough pressure to keep the grinder from chattering or bouncing. NOTE: Heavy pressure will decrease the grinder’s speed and put a strain on the motor. Normally the weight of the tool alone is adequate for most grinding jobs. Use light pressure when grinding jagged edges or loose bolts where there is the potential for the grinder to snag on the metal edge. ■ Lift the grinder away from the workpiece before turning off the grinder.

MAINTENANCE AND CLEANING

WARNING When servicing, use only identical replacement parts. Use of any other part could create a hazard or cause product damage. WARNING Always wear eye protection. Failure to do so could result in objects being thrown into your eyes resulting in possible serious injury. WARNING To avoid serious personal injury, always remove the battery pack from the tool when cleaning, performing any maintenance, or when storing the tool. General Maintenance Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and can be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc. WARNING Do not at any time let brake uids, gasoline, petroleum-based products, penetrating oils, etc., come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which could result in serious personal injury. Replacing The Guard WARNING Do not change or loosen guard screw. Failure to heed this warning may cause the guard to become loose during operation resulting in serious personal injury. After extended use, the guard may wear and need replacing. If you drop the grinder and damage the guard it may also be necessary for you to replace it. To replace the guard: WARNING To prevent loss of control and possible serious personal injury, always operate the grinder with both hands, keeping one hand on the side handle. ■ Remove the battery pack from the grinder. ■ Depress spindle lock and rotate clamp nut until spindle locks. ■ Loosen and remove clamp nut from spindle using the wrench provided. ■ Remove grinding wheel and disc flange. ■ Unlock the guard clasp by pulling the clasp out, away from the grinder. ■ Open clasp fully and twist guard to release it from the locking groove in the tool housing. ■ Remove guard. ■ Place the new guard on the shoulder of the bearing cap. ■ Rotate guard to the correct position. Refer to Positioning the Guard earlier in this manual. NOTE: Be sure the raised ridge on the guard is seated in the groove on the bearing cap. ■ Reassemble disc flange, grinding wheel, and clamp nut. Refer to Installing Grinding Wheel earlier in this manual. ■ Tighten the clamp nut securely with the wrench provided. Battery Pack Removal And Preparation For Recycling WARNING Upon removal, cover the battery pack’s terminals with heavy-duty adhesive tape. Do not attempt to destroy or disassemble battery pack or remove any of its components. Batteries must be recycled or disposed of properly. Also, never touch both terminals with metal objects and/or body parts as short circuit may result. Keep away from children. Failure to comply with these warnings could result in re and/or serious injury. DISPOSAL The machine, rechargeable batteries, accessories and packaging should be sorted for environmentalfriendly recycling. Do not dispose of power tools and batteries/rechargeable batteries into household waste! ENVIROMENTAL PRORENCTION Recycle raw materials instead of disposing of as waste. The machine, accessories and packaging should be sorted for environmental- friendly recycling.Deutsch (Übersetzung der originalen Anleitungen)
