Product type	Digital electronic spirit level
Brand	Laserliner
Model	DigiLevel Plus
Available lengths	240 mm, 400 mm, 600 mm
Dimensions (L x H x D) 240 mm	240 x 66 x 30 mm
Dimensions (L x H x D) 400 mm	400 x 66 x 30 mm
Dimensions (L x H x D) 600 mm	600 x 66 x 30 mm
Weight (batteries included) 240 mm	315 g
Weight (batteries included) 400 mm	495 g
Weight (batteries included) 600 mm	675 g
Power supply	2 x 1.5V AAA/LR03 batteries
Electronic measurement accuracy	±0.1° from 0° to 1° and from 89° to 90°; ±0.2° from 1° to 89°
Display accuracy	1 decimal place
Bubble levels accuracy	±1 mm/m
Main functions	360° angle measurement, incline memory, HOLD function, calibration, audible signal, backlight, temperature display
Measurement units	Degrees (°), percent (%), mm/m
Auto power-off	After 3 minutes of inactivity
Integrated magnets	Yes
Horizontal and vertical bubble levels	Yes
Operating temperature range	0 to 50°C, 80% RH non-condensing
Storage temperature range	-20 to 70°C, 80% RH non-condensing
Max. working altitude	2,000 m above mean sea level
Care and cleaning	Clean with a slightly damp cloth; do not use aggressive cleaning agents; remove batteries if storing for extended periods
Safety	Strong magnetic fields: keep more than 30 cm away from implants and sensitive devices
Repairability	Do not modify the construction; replace batteries as needed
General information	Complies with EMC directive 2014/30/EU; disposal according to WEEE directive

Frequently Asked Questions - DigiLevel Plus Laserliner

How to turn the DigiLevel Plus on and off?

Press the ON/OFF button (4) to turn the device on or off. The auto-off after 3 minutes of inactivity saves batteries.

How to change the measurement unit?

Press the button (1) to switch between degrees (°), percent (%) and mm/m.

How to perform a calibration?

Place the device on a flat surface, turn it on, then press and hold the REF button (2) until the display flashes CAL 1. An audible signal sounds, then CAL 2 appears. Turn the device 180° and place it exactly in the same spot, then press REF again until CAL 2 flashes. An audible signal finalizes the calibration.

How to use the angle reference function?

Position the device at the desired angle and press the REF button (2). The display changes to 0.0° and 'REF' flashes. The angle is stored. You can transfer this angle to other objects. To deactivate, press REF again.

How to freeze a measurement with the HOLD function?

Press the HOLD button (5) to keep the current value displayed on the screen.

How to activate or deactivate the audible signal?

Press the button (6) to activate or deactivate the audible indicator. A signal sounds at angles 0°, 45°, 90° or at the modified reference value.

How to turn on the backlight?

Press and hold the button (6) to turn the backlight on or off.

Which batteries to use and how to replace them?

Use 2 x 1.5V AAA/LR03 batteries. Open the battery compartment on the back of the device and insert the batteries, respecting polarity.

How to clean and maintain the device?

Clean with a slightly damp cloth. Do not use harsh cleaning agents. Remove batteries for extended storage and keep the device in a dry, clean place.

What are the risks related to the integrated magnets?

Strong magnets can affect medical devices (pacemakers) and magnetic mounts. Keep a distance of at least 30 cm.

USER MANUAL DigiLevel Plus Laserliner

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

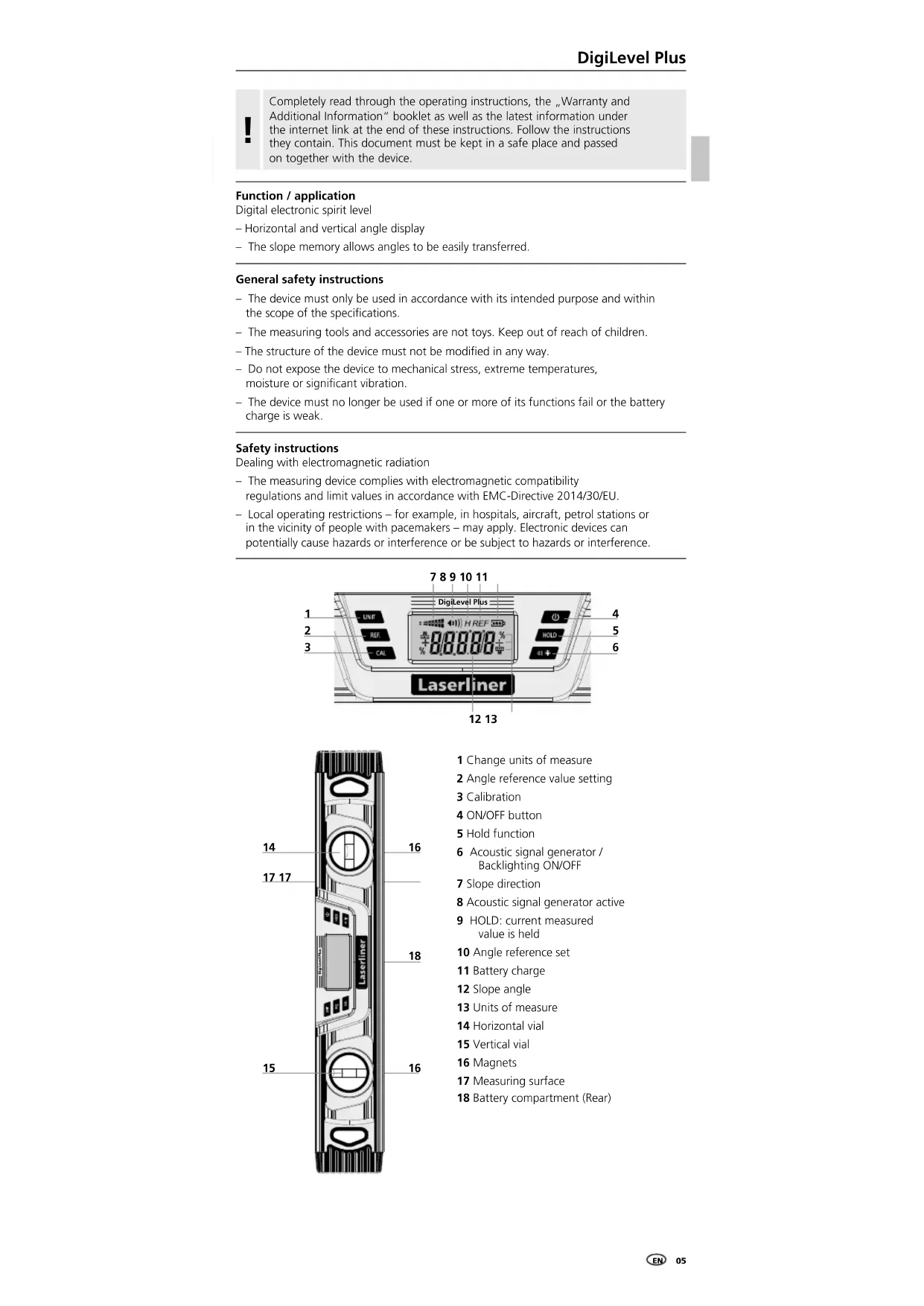

Completely read through the operating instructions, the „Warranty and Additional Information” booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and passed on together with the device.

Function / application

Digital electronic spirit level

– Horizontal and vertical angle display

- The slope memory allows angles to be easily transferred.

General safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• The measuring tools and accessories are not toys. Keep out of reach of children.
• The structure of the device must not be modified in any way.
• Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.
• The device must no longer be used if one or more of its functions fail or the battery charge is weak.

Safety instructions

Dealing with electromagnetic radiation

• The measuring device complies with electromagnetic compatibility regulations and limit values in accordance with EMC-Directive 2014/30/EU.
• Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.

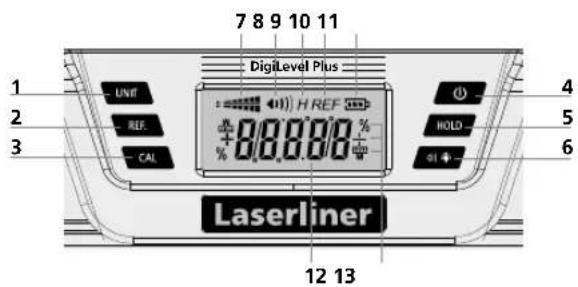

1 Change units of measure
2 Angle reference value setting
3 Calibration
4 ON/OFF button
5 Hold function
6 Acoustic signal generator / Backlighting ON/OFF
7 Slope direction
8 Acoustic signal generator active
9 HOLD: current measured value is held
10 Angle reference set
11 Battery charge
12 Slope angle
13 Units of measure

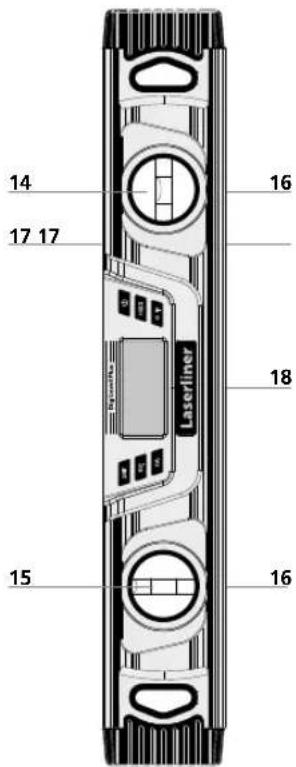

14 Horizontal vial
15 Vertical vial
16 Magnets
17 Measuring surface
18 Battery compartment (Rear)

Laserliner

1 Inserting batteries

Open the battery compartment and insert batteries according to the symbols. Be sure to pay attention to polarity.

Pure mechanical component diagram without any text, numbers, or symbols

2 Switching on and measuring

Make sure that the reference function is deactivated before measuring.

The DigiLevel Plus can measure angles continuously to 360°.

• Switch the DigiLevel Plus on using the on/off switch (4).
• The slope angle is shown in the display (8). If slopes are measured overhead, the direction of display adjusts automatically.
• The current slope direction is also shown by the symbol (7).

3 Selection of unit of measurement

Button (5) allows the desired unit of measurement to be selected (° degrees, %, mm/m).

4 Calibration

1. Place the unit with its measuring edge (17) down on a straight surface and mark the positions of the unit's ends on the underlying surface (see Fig. below). Switch the unit on (4) and press the REF button (2) until CAL 1 starts blinking. Shortly thereafter an acoustic signal will sound and CAL 2 will appear in the display.

1. Now turn the unit around horizontally (end-for-end) by 180° such that its ends are positioned opposite where they previously were but again exactly at the underlying surface marks (reverse measurement). Again press the REF button (2) until CAL 2 blinks. The subsequent acoustic signal concludes the process.

The unit is properly calibrated when it displays the same measurement value, i.e. the underlying surface's deviation from absolute level, in both positions (0° and 180°).

5 Changing the angle reference value

With button (2), it is possible to transfer angles elsewhere. To do so, set the device to the desired slope and press button (2). The display then changes to „0.0°“, „REF“ flashes on the display and the required reference angle is set. The slope can now be transferred to other objects.

Press button (2) again to deactivate the angle reference.

The angle reference is not deactivated by switching off the device.

6 °C / °F / measured value

The ambient temperature is shown in °C and °F by briefly pressing the CAL button (3). Press again to switch back to the measured value.

7 HOLD

Press the HOLD button (5) to hold the current measured value on the display.

8 Acoustic signal

The acoustic signal can be switched on or off with button (6). When the angle of slope stands at 0^ , 45^ , 90^ or the most recently stored value, this is indicated by an acoustic signal.

When working with a changed angle reference value, the acoustic signal is activated on reaching the new reference value (0°, 45°, 90° display).

9 Backlighting

The backlighting is switched ON/OFF by pressing and holding button (6).

Auto Off function

In order to preserve the batteries, the measuring device switches off automatically if it is left idle for 3 minutes.

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Remove the battery(ies) before storing for longer periods. Store the device in a clean and dry place.

Danger - powerful magnetic fields

Powerful magnetic fields can adversely affect persons with active medical implants (e.g. pacemaker) as well as electromechanical devices (e.g. magnetic cards, mechanical clocks, precision mechanics, hard disks).

With regard to the effect of powerful magnetic fields on persons, the applicable national stipulations and regulations must be complied with such as BGV B11 §14 „electromagnetic fields“ (occupational health and safety - electromagnetic fields) in the Federal Republic of Germany.

To avoid interference/disruption, always keep the implant or device a safe distance of at least 30 cm away from the magnet.

Technical data

Electronic measuring precision	± 0,1° at 0° ... 1° ± 0,1° at 89° ... 90° ± 0,2° at 1° ... 89°
Display accuracy 1 decimal place
Vial	± 1 mm/m
Operating conditions	0 ... 50°C, 80%rH, no condensation, max. working altitude 2000 m above sea level
Storage conditions	-20 ... 70°C, 80%rH, no condensation
Power supply	2 x 1.5V (type AAA/LR03)
Dimensions (W x H x D) 25 240 x 66 x 30 mm
Dimensions (W x H x D) 40 400 x 66 x 30 mm
Dimensions (W x H x D) 60	600 x 66 x 30 mm
Weight (incl. batteries) 25	315 g
Weight (incl. batteries) 40	495 g
Weight (incl. batteries) 60 675 g

Subject to technical change without notice. Rev18W21

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU.

This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.

Further safety and supplementary notices at:

http://laserliner.com/info?an=diglevpl
