USER MANUAL GLI 18 V BOSCH

Operating instructions

Illustration of a Bosch flash-type handheld device (no text or symbols visible on body)

Black and white striped pattern with no text or symbols

Uputstvo za

opsluživanje

Navodilo za uporabo

Upute za uporabu

Kasutusjuhend

Lietošanas pamācība

Naudojimo instrukcija

Deutsch.... Seite 4

English.... Page 7

Français Page 10

Diagram of a mechanical component with motion arrows indicating movement (no text or symbols)

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Protect the battery against heat, e. g., also against continuous sun irradiation and fire. There is danger of explosion.

▶ Do not open the battery. Danger of short-circuiting.
When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
▶ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

Functional Description

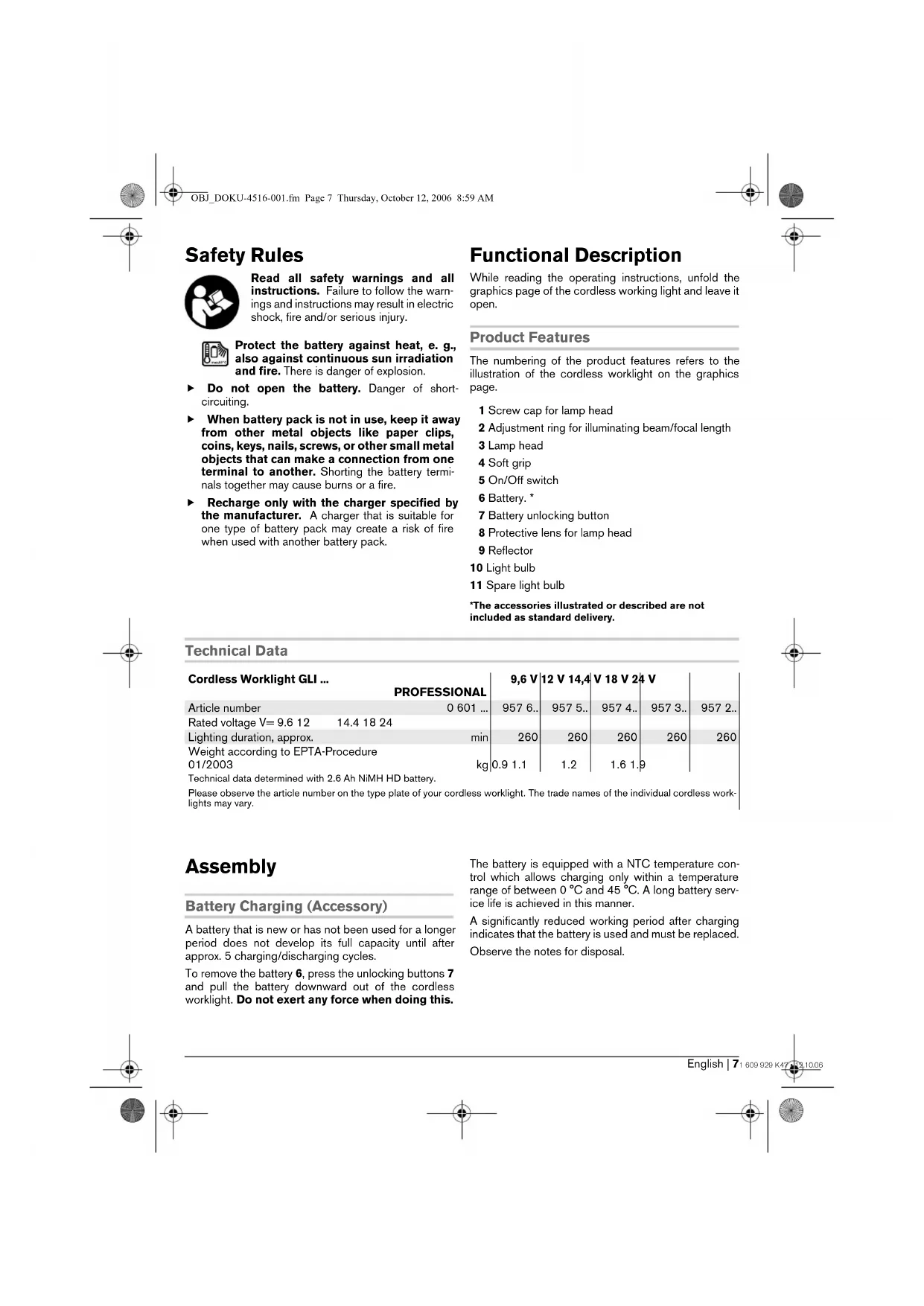

While reading the operating instructions, unfold the graphics page of the cordless working light and leave it open.

Product Features

The numbering of the product features refers to the illustration of the cordless worklight on the graphics page.

1 Screw cap for lamp head
2 Adjustment ring for illuminating beam/focal length
3 Lamp head
4 Soft grip
5 On/Off switch
6 Battery. *
7 Battery unlocking button
8 Protective lens for lamp head
9 Reflector
0 Light bulb
11 Spare light bulb

*The accessories illustrated or described are not included as standard delivery.

Technical Data

Cordless Worklight GLI ...		PROFESSIONAL	9,6 V	12 V 14,4	V 18 V 24 V
Article number	0 601 ...	957 6..	957 5..	957 4..	957 3..	957 2..
Rated voltage V= 9.6 12	14.4 18 24
Lighting duration, approx.	min	260	260	260	260	260
Weight according to EPTA-Procedure
01/2003	kg	0.9 1.1	1.2	1.6 1.9

Technical data determined with 2.6 Ah NiMH HD battery.
Please observe the article number on the type plate of your cordless worklight. The trade names of the individual cordless worklights may vary.

Assembly

Battery Charging (Accessory)

A battery that is new or has not been used for a longer period does not develop its full capacity until after approx. 5 charging/discharging cycles.

To remove the battery 6, press the unlocking buttons 7 and pull the battery downward out of the cordless worklight. Do not exert any force when doing this.

The battery is equipped with a NTC temperature control which allows charging only within a temperature range of between 0 °C and 45 °C. A long battery service life is achieved in this manner.

A significantly reduced working period after charging indicates that the battery is used and must be replaced.

Observe the notes for disposal.

Changing the Light Bulb (see figure A)

▶ Before any work on the cordless worklight, remove the battery.
Exercise caution when changing the light bulb! Do not touch the hot light bulb. Allow the light bulb to cool down for at least 10 minutes. Danger of burns from the hot light bulb.

Note: Use a soft cloth for changing the light bulb. Make sure not to touch the glass bulb with your bare fingers. Otherwise, the light bulb can become damaged.

• Turn the screw cap 1 in anticlockwise direction and remove it.
• Remove the protective lens 8 and the reflector 9.
• Turn the light bulb 10 approx. 90^ in anticlockwise direction and pull it out. A spare light bulb 11 is stored in the base of the housing.
• Insert a new light bulb 10 and turn it approx. 90^ in clockwise direction until it is locked.
• Insert the reflector 9 into the lamp head without damaging the light bulb 10.
• Insert the protective lens 8 into the screw cap 1 and screw the screw cap onto the lamp head 3. Ensure that all parts are properly seated.

Operation

Starting Operation

Inserting the Battery

▶ Use only original Bosch O-pack batteries with the voltage given on the type plate of your cordless worklight. Usage of other batteries can cause injuries and lead to danger of fire.

Insert the charged battery 6 into the handle until it can be felt to engage and faces flush against the handle.

Switching On and Off

To switch the cordless worklight on, press the On/Off switch 5 upward.

To switch the cordless worklight off, press the On/Off switch 5 downward.

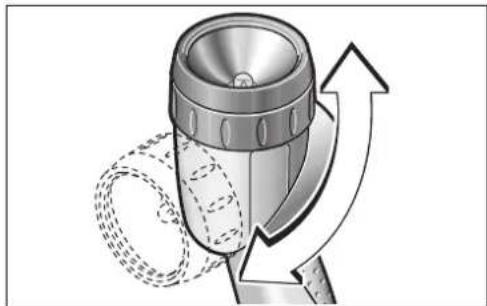

Changing the Position of the Reflector

Diagram of a mechanical component with directional arrows indicating motion or force (no text or symbols)

The lamp head 3 can be swivelled upward to a maximum of 90° by turning in anticlockwise direction.

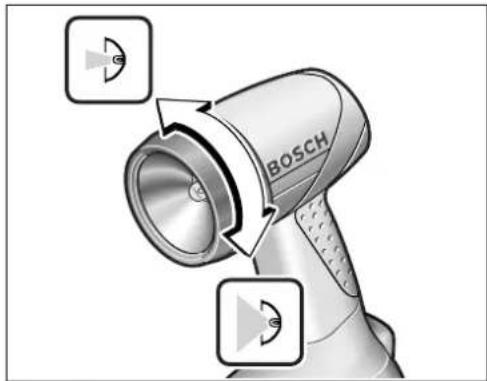

Changing the Illuminating Beam/Focal Length

BOSCH

By turning the adjustment ring 2, the illuminating beam as well as the focal length of the reflector can be changed.

Operating Instructions

At low temperatures, the luminous efficiency may be lower and the lighting duration shorter.

When using Bosch NiMH batteries, the performance capability is limited at temperatures below - 10 °C.

Soft Grip

The gripping surface 4 (soft grip) reduces the danger of slipping and thereby improves the grip on the cordless worklight and the handling.

Maintenance and Service

Maintenance and Cleaning

If the cordless worklight should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an authorized after-sales service agent for Bosch power tools.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the cordless worklight.

Service and Customer Assistance

Exploded views and information on spare parts can be found under:

www.bosch-pt.com

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham-Uxbridge

Middlesex UB 9 5HJ

⑦ Service: ..... +44 (0) 18 95 / 83 87 82

© Advice line:....+44 (0) 18 95 / 83 87 91

Fax:....[phone] / 83 87 89

Ireland

Origo Ltd.

Unit 23 Magna Drive

Magna Business Park

City West

Dublin 24

© Service: ....+353 (0)1 / 4 66 67 00

Fax:....+353 (0)1 / 4 66 68 88

Australia and New Zealand

Robert Bosch Australia Pty. Ltd.

RBAU/SPT

1555 Centre Road

P.O. Box 66

3168 Clayton/Victoria

① +61 (0)1 / 3 00 30 70 44

Fax:....+61 (0)1 / 3 00 30 70 45

www.bosch.com.au

Disposal

Cordless worklights, accessories and packaging should be sorted for environmental-friendly recycling.

Only for EC countries:

Do not dispose of cordless worklights into household waste!

According to the European Directive 2002/96/EC on waste electrical and electronic equipment and its incorporation into national law, cordless work-

lights that are no longer suitable for use must be separately collected and sent for recovery in an environmental-friendly manner.

Battery packs/batteries:

Ni-Cd: Nickel cadmium

Warning: These battery packs contain cadmium, a highly toxic heavy metal.

Ni-MH: Nickel metal hydride

Do not dispose of battery packs/batteries into household waste, fire or water. Battery packs/batteries should be collected, recycled or disposed of in an environmental-friendly manner.

Only for EC countries:

Defective or dead out battery packs/batteries must be recycled according the guideline 91/157/EEC.

Batteries no longer suitable for use can be directly returned at:

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham-Uxbridge

Middlesex UB 9 5HJ

© Service:....+44 (0) 18 95 / 83 87 82

© Advice line:....+44 (0) 18 95 / 83 87 91

Fax:....[phone] / 83 87 89

Subject to change without notice.

Diagram of a mechanical component with directional arrows indicating motion or force (no text or symbols)

Robert Bosch France S.A.S.

Service Après-vente/Outillage

Diagram of a mechanical component with directional arrows indicating motion or flow (no text or symbols)

Diagram of a mechanical component with motion arrows indicating movement (no text or symbols)

© 08 00 / 7 04 54 46

E-Mail: [e-mail]

Eliminação

Diagram of a mechanical component with motion arrows indicating movement (no text or symbols)

© +39 02 / 4 23 68 63

Fax:....+39 02 / 48 95 18 93

Svizzera

Batrec AG

3752 Wimmis BE

Diagram of a mechanical component with directional arrows indicating motion or force (no text or symbols)

Diagram of a mechanical component with directional arrows indicating motion or force (no text or symbols)

Lampehovedet 3 kan svinges max. 90° opad ved at dreje den til venstre.

Ni-Cd: Nikkel-cadmium

Diagram of a mechanical component with motion arrows indicating movement (no text or symbols)

Diagram of a mechanical component with curved arrows indicating motion or flow, no text or symbols present

Diagram of a mechanical component with motion arrows indicating movement, no text or symbols present

Diagram of a mechanical component with motion arrows indicating movement (no text or symbols)

Diagram of a mechanical component with motion arrows indicating movement (no text or symbols)

Bosch San. ve Tic. A.S.

Ahi Evran Cad. No:1 Kat:22

Polaris Plaza

80670 Maslak/Istanbul

Diagram of a mechanical component with motion arrows indicating movement (no text or symbols)

Diagram of a mechanical component with motion arrows indicating movement (no text or symbols)

Diagram of a mechanical component with directional arrows indicating motion or flow (no text or symbols)

Diagram of a mechanical component with motion arrows indicating rotation or movement (no text or symbols)

Diagram of a mechanical component with motion arrows indicating movement (no text or symbols)

Diagram of a mechanical component with motion arrows indicating movement (no text or symbols)

Diagram of a mechanical component with directional arrows indicating motion or flow (no text or symbols)

Bosch Service Center:

România

Str. Horia Măcelariu 30–34, sector 1, Bucureşti

© +40 (0)21 / 4 05 75 40

Diagram of a mechanical component with directional arrows indicating motion or flow (no text or symbols)

Diagram of a mechanical component with motion arrows indicating movement (no text or symbols)

Možete iskrenuti na gore glavu svetiljke 3 za maksimalnih 90° okrećući suprotno kazaljke na satu.

Promena svetlosnog zraka/svetlosne daljine

BOSCH

Diagram of a mechanical component with motion arrows indicating movement (no text or symbols)

Fax....[phone]

Odlaganje

Akumulatorske svetilke, pribor in embalažo oddajte v okolju prijazno ponovno predelavo.

Samo za države EU:

Diagram of a mechanical component with directional arrows indicating motion or flow (no text or symbols)

Diagram of a mechanical component with directional arrows indicating motion or force (no text or symbols)

Diagram of a mechanical component with directional arrows indicating motion or force (no text or symbols)

Diagram of a mechanical component with directional arrows indicating motion or flow (no text or symbols)

2 607 335 260 (2,0 Ah)

9,6 V (NiMH)

2 607 335 414 (2,0 Ah)

AL 1419 DV

(7,2 - 14,4 V)

2 607 224 440 (EU)

2 607 224 442 (UK)

2 607 224 444 (AUS)

12 V (NiCd)

2 607 335 262 (2,0 Ah)

2 607 335 676 (2,4 Ah)

12 V (NiMH)

2 607 335 684 (2,6 Ah)

AL 1450 DV

(7,2 - 14,4 V)

2 607 224 702 (EU)

2 607 224 704 (UK)

2 607 224 706 (AUS)

14,4 V (NiCd)

2 607 335 264 (2,0 Ah)

2 607 335 678 (2,4 Ah)

14,4 V (NiMH)

2 607 335 686 (2,6 Ah)

AL 2450 DV

(7,2 - 24 V)

2 607 225 028 (EU)

2 607 225 030 (UK)

2 607 225 032 (AUS)

18 V (NiCd)

2 607 335 266 (2,0 Ah)

2 607 335 680 (2,4 Ah)

18 V (NiMH)

2 607 335 688 (2,6 Ah)

AL 2498 FC

(7,2 - 24 V)

2 607 225 484 (EU)

2 607 225 486 (UK)

2 607 225 488 (AUS)

24 V (NiCd)

2 607 335 446 (2,0 Ah)

24 V (NiMH)

2 607 335 562 (2,6 Ah)

Illustration of a portable electronic device with cables and a connector (no text or symbols)

AL 2422 DC

(7,2 - 24 V)

2 607 224 410

(EU/UK/AUS)

OBJ BUCH-256-001.book Page 1 Thursday, October 12, 2006 8:05 AM

Black and white striped pattern with no text or symbols

BOSCH

Robert Bosch GmbH

Power Tools Division

70745 Leinfelden-Echterdingen

www.bosch-pt.com

1 609 929 K47 (2006.10) O / 86
