USER MANUAL WorkLight BOSCH

Power Tools Division

70745 Leinfelden-Echterdingen

Germany

www.bosch-pt.com

1619929K74(2012.03)T/112WEU

1619929K74

WorkLight

BOSCH

SafetyWarnings for Cordless Worklights

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Handle the cordless worklight with care. The cordless worklight generates intense heat, which leads to increased danger of fire and explosion.
Do not work with the cordless worklight in hazardous areas.
Do not continue to press the On/Off switch after the cordless worklight has been automatically switched off. The battery can be damaged.
Do not direct the light beam at persons or animals and do not stare into the light beam yourself (not even from a distance).
Use only original Bosch accessories.
- Do not cover off the lamp head while operating the cordless worklight. The lamp head heats up during operation and can cause burns when the heat accumulates.
- Do not use the cordless worklight in road traffic. The cordless worklight is not approved for illumination in road traffic.

CAUTION! Do not stare into the light beam for longer periods. The optical radiation can be harmful for your eyes.

Protect the cordless worklight against heat, e.g., against continuous intense sunlight, fire, water, and moisture. Danger of explosion.

Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritations or burns.

English | 15

In case of damage and improper use of the battery, vapours may be emitted. Provide for fresh air and seek medical help in case of complaints. The vapours can irritate the respiratory system.
- Recharge only with the charger specified by the manufacturer.
A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

SafetyWarnings for Battery Chargers

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Keep the battery charger away from rain or moisture. Penetration of water in the battery charger increases the of an electric shock.

Only charge Bosch lithium ion batteries or batteries installed in Bosch products with the voltages listed in the technical data. Otherwise there is danger of fire and explosion.
- Keep the battery charger clean. Contamination can lead to danger of an electric shock.
Before each use, check the battery charger, cable and plug. If damage is detected, do not use the battery charger. Never open the battery charger yourself. Have repairs performed only by a qualified technician and only using original spare parts. Damaged battery chargers, cables and plugs increase the risk of an electric shock.
- Do not operate the battery charger on easily inflammable surfaces (e.g., paper, textiles, etc.) or surroundings. The heating of the battery charger during the charging process can pose a fire hazard.
Supervise children. This will ensure that children do not play with the charger.
Children or persons that owing to their physical, sensory or mental limitations or to their lack of experience or knowledge, are not capable of securely operating the charger, may only use this charger under supervision or after having been instructed by a responsible person. Otherwise, there is danger of operating errors and injuries.

16 | English

• Products sold in GB only: Your product is fitted with a BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362). If the plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place by an authorised customer service agent. The replacement plug should have the same fuse rating as the original plug.

The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere.

Product Description and Specifications

Product Features

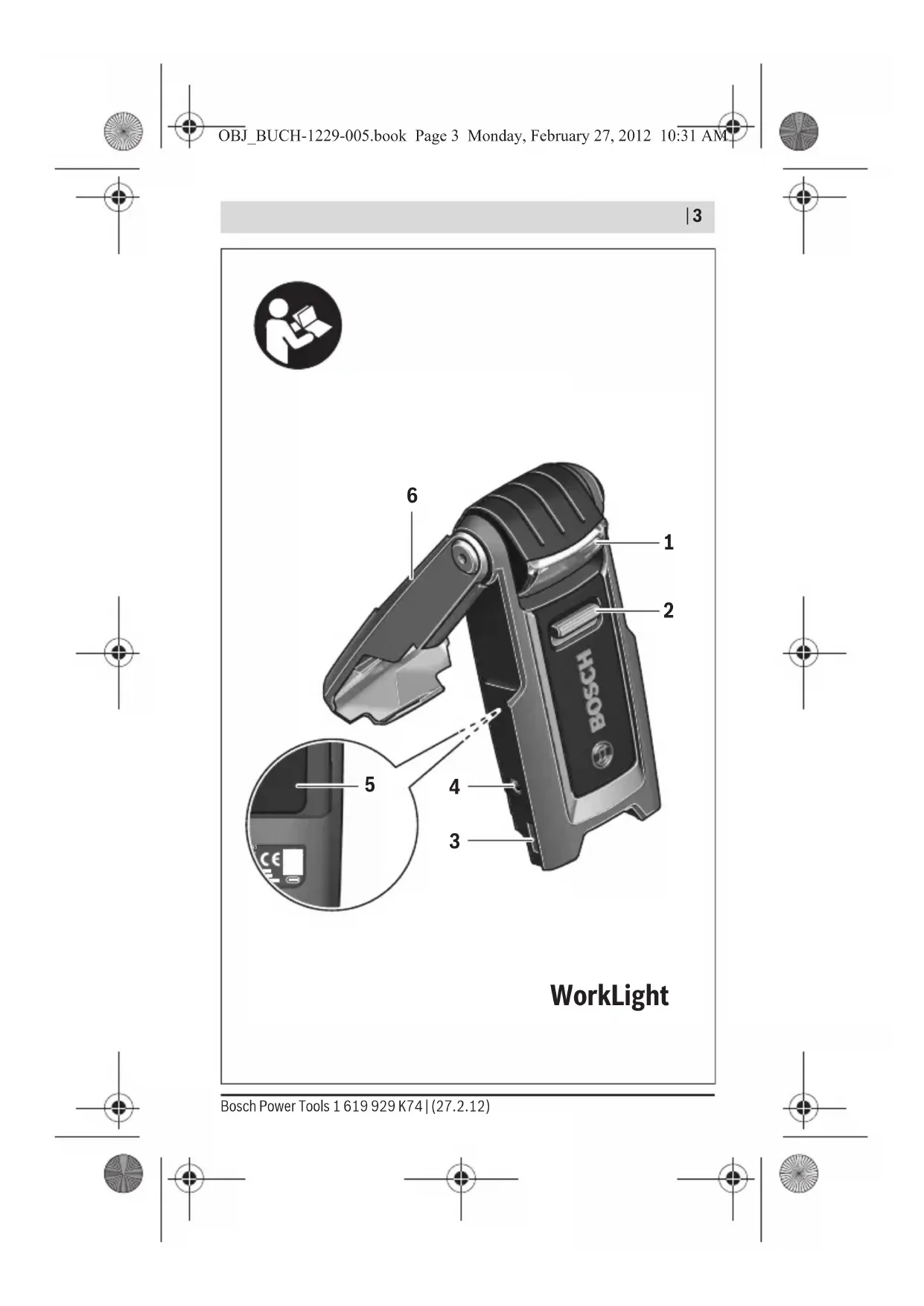

The numbering of the product features refers to the illustration of the cordless worklight on the graphics page.

1 Lamp head
2 On/Off switch
3 Battery charge-control indicator
4 Socket for charge connector
5 Soft grip
6 Multi-function clip
7 Plug connector for charger
8 Battery charger

Technical Data

Cordless Worklight WorkLight
Article number	3 603 J75 8..
Rated voltage	V= 3.6
Lighting duration, approx.	h 3.0
Operating temperature	°C -10...+40
Storage temperature	°C -15...+50
Weight according to EPTA-Procedure 01/2003	g 150
Please observe the article number on the type plate of your cordless worklight. The trade names of the individual cordless worklights may vary.

English | 17

Battery Charger
Article number
- EU	2 609 004 820
- UK	2 609 004 822
Output voltage	V=5.0
Charging current	mA 400
Allowable charging temperature range	°C 0-45
Charging time	h	4.0
Number of battery cells		1
Weight according to EPTA-Procedure 01/2003	g	66
Protection class		☐/II

Assembly

Battery Charging (see figure A)

Note: The battery is supplied partially charged. To ensure full capacity of the battery, completely charge the battery in the battery charger before using your power tool for the first time.

The cordless worklight cannot be used during the charging procedure; it is not defective, when it does not function during the charging procedure. The Lithium-lon battery can be charged at any time without reducing its service life. Interrupting the charging procedure does not damage the battery.

The lithium ion battery is protected against deep discharging by the "Electronic Cell Protection (ECP)". When the battery is empty, the cordless worklight is switched off by means of a protective circuit.

Do not continue to press the On/Off switch after the cordless worklight has been automatically switched off. The battery can be damaged.

When the battery charge-control indicator 3 lights up red, the battery capacity is below 30% and the battery should be charged.

Insert the plug connector 7 of the charger into socket 4 on the side of the cordless worklight.

Observe the mains voltage! The voltage of the power supply must correspond with the data given on the nameplate of the battery charger. Battery chargers marked with 230V can also be operated with 220V .

18 | English

When the cordless worklight is switched off, the charging procedure begins as soon as the mains plug of the charger is plugged into the power socket.

The battery charge-control indicator 3 indicates the charging progress. During the charging process, the indicator flashes green. When the battery charge-control indicator 3 lights up green continuously, the battery is fully charged.

When not using the battery charger, disconnect it from the mains supply in order to save energy.

Observe the notes for disposal.

Operation

Initial Operation

Switching On and Off

To switch on the cordless worklight, press the On/Off switch 2 upward without force.

To switch off the cordless worklight, press the On/Off switch 2 downward without force.

When not using the cordless worklight, switch it off in order to extend the battery life.

Working Advice

Applicational Possibilities (see figure B)

With the foldable multi-function clip 6, the cordless worklight offers many.
applicational possibilities.

• Hang it to a nail or similar via the aperture in the multi-function clip.
• Attach it to the top edge of a door with the special hook mount of the multi-function clip.
• Position it anywhere as a stand-alone unit with the multi-function clip slightly opened.

Swivelling the Lamp Head

Depending on application, the lamp head 1 can be swivelled to 200^ .

• As an uplight with the lamp head facing upward.
• Swivelled by 90^ as a room light.
• With the lamp head swivelled down approx. 45^ for anti-glare illumination of a workplace, e.g. a desk.

English | 19

Maintenance and Service

Maintenance and Cleaning

When the battery is no longer operative, please refer to an authorised after-sales service agent for Bosch power tools.

The cordless worklight is maintenance-free and and contains no components that must be replaced or maintained.

To avoid damage, clean the plastic lens of the cordless worklight only with a dry, soft cloth. Do not use cleaning agents or solvent.

If the cordless worklight or battery charger should fail despite the care taken in manufacture and testing, repair should be carried out by an authorised customer services agent for Bosch power tools.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the type plate of the cordless worklight or the battery charger.

After-sales Service and Customer Assistance

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under:

www.bosch-pt.com

Our customer service representatives can answer your questions concerning possible applications and adjustment of products and accessories.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O.Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB95HJ

Tel. Service: [phone]

Fax: [phone]

E-Mail: [e-mail]

20 | English

Ireland

Origo Ltd.

Unit 23 Magna Drive

Magna Business Park

City West

Dublin 24

Tel. Service: [phone]

Fax: [phone]

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: [phone]

Inside New Zealand:

Phone: [phone]

Fax: [phone]

Outside AU and NZ:

Phone: [phone]

www.bosch.com.au

Republic of South Africa

Customer service

Hotline: [phone]

Gauteng - BSC Service Centre

35 Roper Street, New Centre

Johannesburg

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

English | 21

KZN - BSC Service Centre

Unit E, Almar Centre

143 Crompton Street

Pinetown

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Western Cape - BSC Service Centre

Democracy Way, Prosperity Park

Milnerton

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Bosch Headquarters

Midrand, Gauteng

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

People's Republic of China

China Mainland

Bosch Power Tools (China) Co., Ltd.

567, Bin Kang Road

Bin Jiang District 310052

Hangzhou, P.R.China

Service Hotline: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.bosch-pt.com.cn

HK and Macau Special Administrative Regions

Robert Bosch Hong Kong Co. Ltd.

21st Floor, 625 King's Road

North Point, Hong Kong

Customer Service Hotline: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.bosch-pt.com.hk

22 | English

Indonesia

PT. Multi Mayaka

Kawasan Industri Pulogadung

Jalan Rawa Gelam III No. 2

Jakarta 13930

Indonesia

Tel.: [phone]

Fax: [phone]/6823

E-Mail: [e-mail]

www.bosch-pt.co.id

Philippines

Robert Bosch, Inc.

28th Floor Fort Legend Towers,

3rd Avenue corner 31st Street,

Fort Bonifacio Global City,

1634 Taguig City, Philippines

Tel.: [phone]

Fax: [phone]

[e-mail]

www.bosch-pt.com.ph

Bosch Service Center:

9725-27 Kamagong Street

San Antonio Village

Makati City, Philippines

Tel.: [phone]

Fax: [phone]

[e-mail]

Malaysia

Robert Bosch (S.E.A.) Sdn. Bhd.

No.8A,Jalan 13/6

G.P.O.Box 10818

46200 Petaling Jaya

Selangor, Malaysia

Tel.: [phone]

Fax: [phone]

[e-mail]

Toll-Free: 1800 880 188

www.bosch-pt.com.my

English | 23

Thailand

Robert Bosch Ltd.

Liberty Square Building

No.287,11 Floor

Silom Road, Bangrak

Bangkok 10500

Tel.: [phone] - 1888 (10 lines)

Fax: [phone]

Robert Bosch Ltd., P. O. Box 2054

Bangkok 10501, Thailand

Bosch Service - Training Centre

2869-2869/1 Soi Ban Kluay

Rama IV Road (near old Paknam Railway)

Prakanong District

10110 Bangkok

Thailand

Tel.: [phone]

Fax: [phone]

Fax: [phone]

Singapore

Robert Bosch (SEA) Pte. Ltd.

11 Bishan Street 21

Singapore 573943

Tel.: [phone]

Fax: [phone]

[e-mail]

Toll-Free: 1800 333 8333

www.bosch-pt.com.sg

Vietnam

Robert Bosch Vietnam Co. Ltd

10/F, 194 Golden Building

473 Dien Bien Phu Street

Ward 25, Binh Thanh District

84 Ho Chi Minh City

Vietnam

Tel.: [phone] ext. 413

Fax: [phone]

[e-mail]

www.bosch-pt.com

Bosch Power Tools 1619929K74|(27.2.12)

24|English

Transport

The contained lithium-ion batteries are subject to the Dangerous Goods Legislation requirements. The user can transport the batteries by road without further requirements.

When being transported by third parties (e.g.: air transport or forwarding agency), special requirements on packaging and labelling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required.

Disposal

The cordless worklight, battery packs, battery charger, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of the cordless worklight, battery packs/batteries and battery charger into household waste!

Only for EC countries:

According to the European Guideline 2002/96/EC, electrical devices/tools that are no longer usable, and according to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.

Batteries no longer suitable for use can be directly returned at:

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O.Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB95HJ

Tel. Service: [phone]

Fax: [phone]

E-Mail: [e-mail]

Francais|25

Battery packs/batteries:

• Integrated batteries may only be removed for disposal. Opening the housing shell can damage or destroy the cordless worklight. Completely discharge the battery. Unscrew all screws from the housing and open the housing shell. Disconnect the battery connections and remove the battery.

Li-ion: Please observe the instructions in section "Transport", page 24.

Subject to change without notice.

Français

Robert Bosch (France) S.A.S.

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Tlf. Service Center: [phone]

Fax: [phone]

E-Mail: [e-mail]

Transport

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Danmark

Tel.: [phone]

Fax: [phone]

Svenska|75

Transport

De litiumjonbatterier som ingar ar underkastade kraven for farligt gods. Anvandaren kanutan ytterligare forpliktelser transportera batterierna pa allman vag.

Bosch San. ve Tic. A.S.

Ahi Evran Cad. No:1 Kat:22

Polaris Plaza

80670 Maslak/Istanbul

BoschUzmanEkibi [phone]

Işkılar LTD.ŞTI.

Kizilay Cad. No: 16/C Seyhan

Adana

Tel.: [phone]

Tel.: [phone]

12.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.43.44.45.46.47.48.49.50.51.52.53.54.55.56.57.58.59.60.61.62.63.64.65.66.67.68.69.70.71.72.73.74.75.76.77.78.79.80.81.82.83.84.85.86.87.88.89.90

：

2002/96/EG 111

206/66/EG

2 + 2 = 1

1

J 1

Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus

p ÷ x = y( p - x) = y

106 1

Li-Ion

106|

a.o.1g a.l.

i1i

L 1

1 1

a a baaabw y b 5y jll lalil y jll abi

i 1

2g jll j b aN y Jnll 111 111 111 111 111 111 111

j1j10gogao

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

www.bosch-pt.com

1

1

1,2,3

1 p 1111 1111 1111 1111 1111 1111 1

y j 15000000000000000000000000000000000000000000000000000

107

45

1 1

1 3 5

3 1

S ACD = S COD + S DCE - S CDE

aal

. 1

J

J

1

2 1

Jaiy j 2 1j 1i 1i 1i 1i 1i 1i 1i

aill 1000000000000000000000000000000000000000000

J 1

(B)

y

JieeWdI Jgdlj gdlj 000000000000000

-

J 1

( x,y) = ( ab,52w)

C

.200°J 1

1

90°

111 111 111 111 111 111 111 111 111 1

.45°

Bosch Power Tools 1619929K74|(27.2.12)

108|

2609 004 820 2609 004 822		EU- UK-
5,0=	bvş	jejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejeje jejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejejeJEJ
400	jbjjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjBJ
0-45°C		jbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjBJ
4,0
1		jbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjBJ
66		EPTA-Procedure 01/2003 jbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjBJ
II/□		jbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjbjBJ

L

(A)

(2)证明： 1an + 1 - 1an < 1an - 1an

J11 J11 15 J11 11 1

Jaae Jaae Jaae Jaae Jaae Jaae Jaae Jaae Jaae Jaae

2^2 + ( 2 - x) ^2 = 1 + x^2

V. 400000000000000000000000000000000000000000

15 1

1

（ECP）

J 1

P( 1,0) .Q( -34,34) .P( 1,0)

1

假设 30% ( lg12 + 1) · 30% = 1.5( lg12 + 1) · 30% = 1.5( lg12 + 1) · 30%

4 17

y

230 1

LbV320 12y

1619929K74|(27.2.12) Bosch Power Tools

109

15g 1

a>21d>

aiee 100000000000000000000000000000000000000000

1

1

2

3

4

5

JxuNuluo 6

7

8

1

WorkLight

3603J758..

3.6 = 12 y3 y_5 = 176

3.0

- 10 + 40^ C

-15…+50°C

150 EPTA-Procedure 01/2003

y 1

S ADB = S COD + S BDO - S COD

110|

a 1

a

1

100

·s + 51 · 21·s + 1

j 1

1. 电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电

j 1 j 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

1 1

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1

a

（..）

jai jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie

jll jg 1y j JlilbJU Uu. JIbJU

J 1

J 1

.

111

Joo

p51

11 11 11 11 11 11 11 11 11 11 11 11

y 1

Jaaai Jaaai

J5

1 1

a

J 1111111111111111111111111111111

pL 1111111111111111

1 1
