GLI 24 V PROFESSIONAL

A

1809929K47·12.10.053

Sicherheitshinweise

Service +43 (0)1/61 03 80

Fax [phone]

Kundenberater.+43 (0)1/7 97 22 30 66

E-Mail:[e-mail]

Schweiz

044/8471511

Fax [phone]

Luxemburg

+32(0)70/225565

Fax [phone]

E-Mail: [e-mail]

Entsorgung

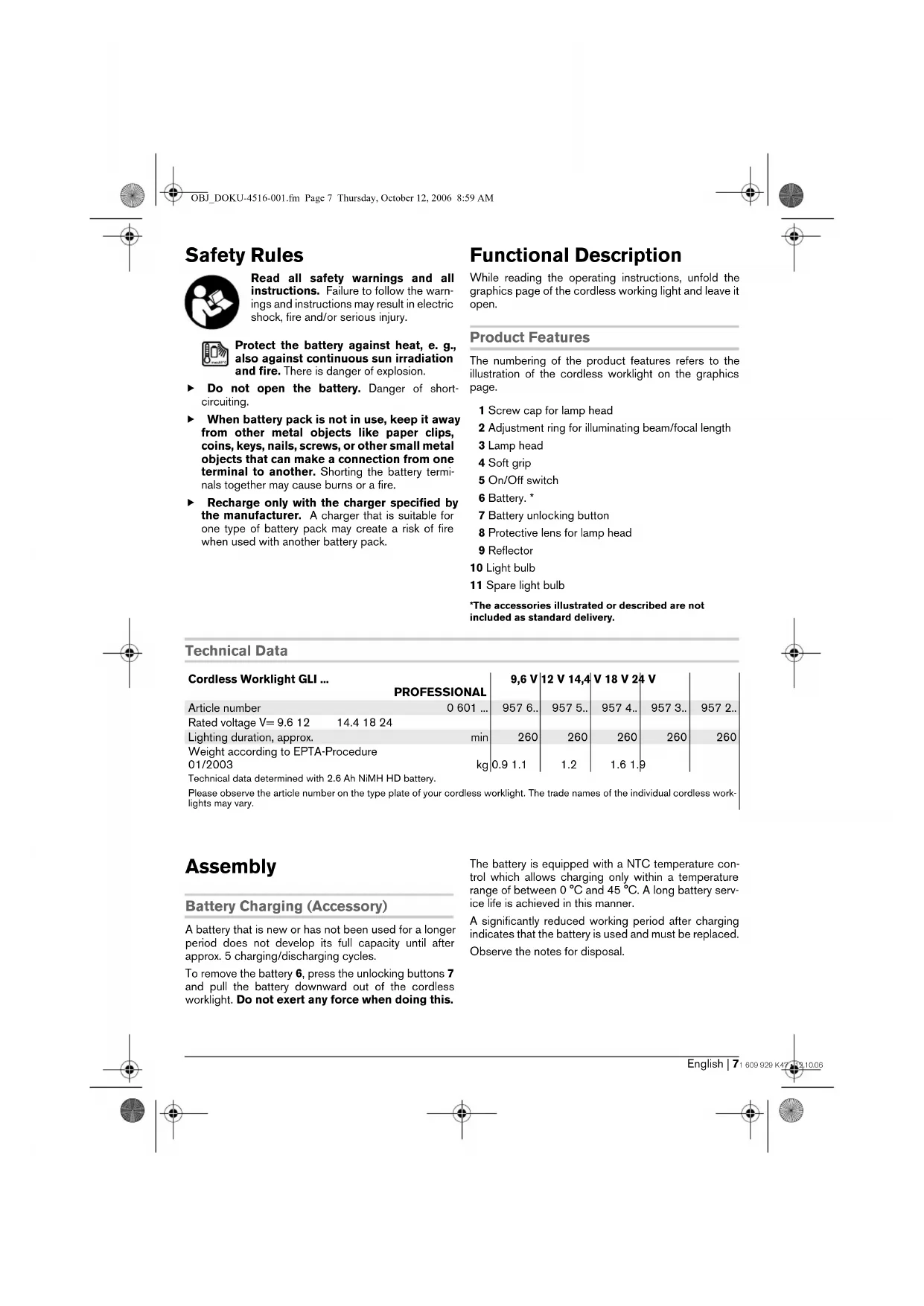

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Functional Description

While reading the operating instructions, unfold the graphics page of the cordless working light and leave it open.

Protect the battery against heat, e. g., also against continuous sun irradiation and fire. There is danger of explosion.

Product Features

Do not open the battery. Danger of short-circuiting.

The numbering of the product features refers to the illustration of the cordless worklight on the graphics page.

When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

1 Screw cap for lamp head

• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

2 Adjustment ring for illuminating beam/focal length

3 Lamp head

4 Soft grip

5 On/Off switch

6 Battery.

7 Battery unlocking button

8 Protective lens for lamp head

9 Reflector

10 Light bulb

11 Spare light bulb

The accessories illustrated or described are not included as standard delivery.

Technical Data

Cordless Worklight GLI ...		9,6 V	12 V 14,4	V 18 V 24 V
PROFESSIONAL
Article number	0 601 ...	957 6..	957 5..	957 4..	957 3..	957 2..
Rated voltage V= 9.6 12	14.4 18 24
Lighting duration, approx.	min	260	260	260	260	260
Weight according to EPTA-Procedure01/2003	kg	0.9 1.1	1.2	1.6 1.9
Technical data determined with 2.6 Ah NiMH HD battery.Please observe the article number on the type plate of your cordless worklight. The trade names of the individual cordless worklights may vary.

Assembly

Battery Charging (Accessory)

A battery that is new or has not been used for a longer period does not develop its full capacity until after approx. 5 charging/discharging cycles.

To remove the battery 6, press the unlocking buttons 7 and pull the battery downward out of the cordless worklight. Do not exert any force when doing this.

The battery is equipped with a NTC temperature control which allows charging only within a temperature range of between 0^ and 45^ . A long battery service life is achieved in this manner.

A significantly reduced working period after charging indicates that the battery is used and must be replaced.

Observe the notes for disposal.

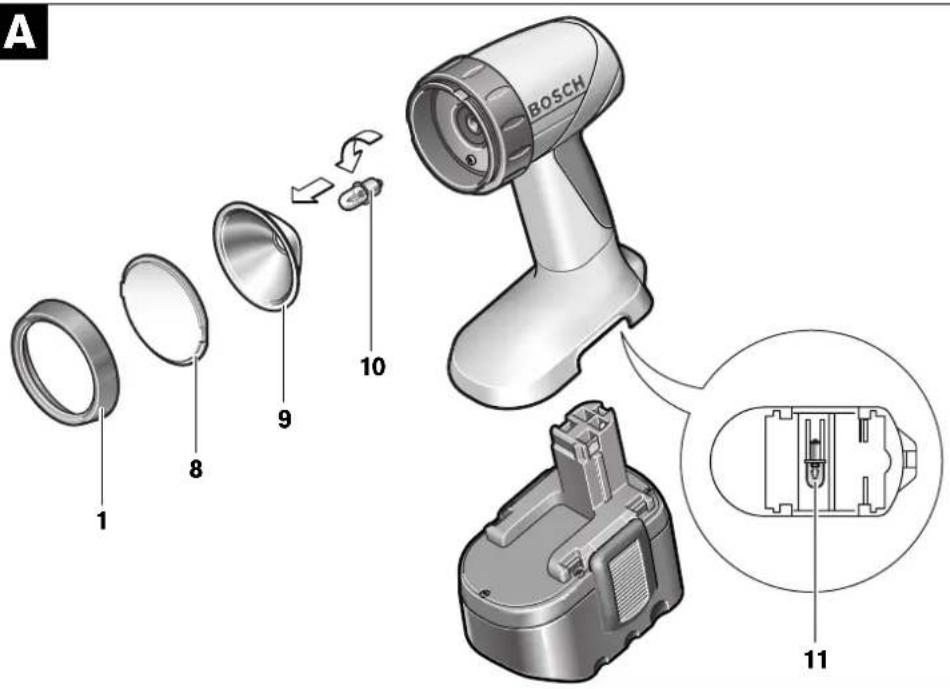

Changing the Light Bulb (see figure A)

Before any work on the cordless worklight, remove the battery.
Exercise caution when changing the light bulb! Do not touch the hot light bulb. Allow the light bulb to cool down for at least 10 minutes. Danger of burns from the hot light bulb.

Note: Use a soft cloth for changing the light bulb. Make sure not to touch the glass bulb with your bare fingers. Otherwise, the light bulb can become damaged.

• Turn the screw cap 1 in anticlockwise direction and remove it.
• Remove the protective lens 8 and the reflector 9.
• Turn the light bulb 10 approx. 90^ in anticlockwise direction and pull it out. A spare light bulb 11 is stored in the base of the housing.
• Insert a new light bulb 10 and turn it approx. 90^ in clockwise direction until it is locked.
• Insert the reflector 9 into the lamp head without damaging the light bulb 10.
• Insert the protective lens 8 into the screw cap 1 and screw the screw cap onto the lamp head 3. Ensure that all parts are properly seated.

Operation

Starting Operation

Inserting the Battery

Use only original Bosch O-pack batteries with the voltage given on the type plate of your cordless worklight. Usage of other batteries can cause injuries and lead to danger of fire.

Insert the charged battery 6 into the handle until it can be felt to engage and faces flush against the handle.

Switching On and Off

To switch the cordless worklight on, press the On/Off switch 5 upward.

To switch the cordless worklight off, press the On/Off switch 5 downward.

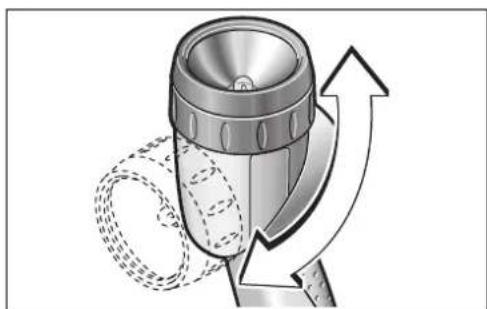

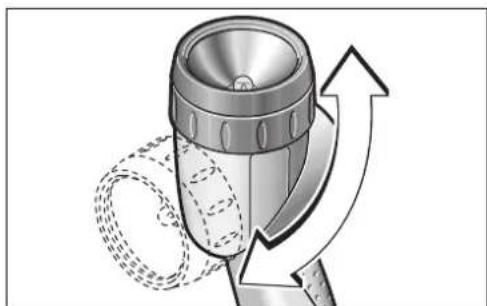

Changing the Position of the Reflector

The lamp head 3 can be swivelled upward to a maximum of 90^ by turning in anticlockwise direction.

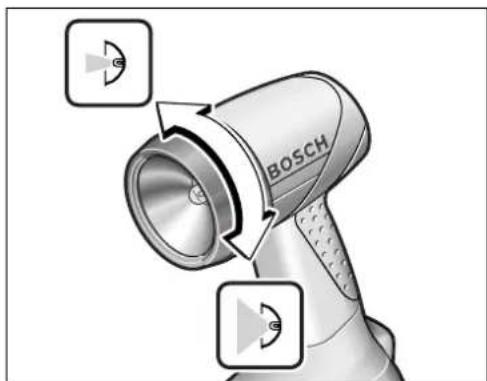

Changing the Illuminating Beam/Focal Length

By turning the adjustment ring 2, the illuminating beam as well as the focal length of the reflector can be changed.

Operating Instructions

At low temperatures, the luminous efficiency may be lower and the lighting duration shorter.

When using Bosch NiMH batteries, the performance capability is limited at temperatures below -10^ .

Soft Grip

The gripping surface 4 (soft grip) reduces the danger of slipping and thereby improves the grip on the cordless worklight and the handling.

Maintenance and Service

Maintenance and Cleaning

If the cordless worklight should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an authorized after-sales service agent for Bosch power tools.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the cordless worklight.

Service and Customer Assistance

Exploded views and information on spare parts can be found under:

www.bosch-pt.com

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O.Box 98

Broadwater Park

North Orbital Road

Denham-Uxbridge

Middlesex UB 95HJ

Service: +44 (0) 1895/838782

Advice line: +44 (0) 18 95 / 83 87 91

Fax: [phone]

Ireland

Origo Ltd.

Unit 23 Magna Drive

Magna Business Park

City West

Dublin 24

Service: +353 (0)1 / 4666700

Fax: +353 (0)1 / 4666888

Australia and New Zealand

Robert Bosch Australia Pty. Ltd.

RBAU/SPT

1555 Centre Road

P.O.Box 66

3168 Clayton/Victoria

+61(0)1/300307044

Fax: +61 (0)1 / 300 30 70 45

www.bosch.com.au

Disposal

Cordless worklights, accessories and packaging should be sorted for environmental-friendly recycling.

Only for EC countries:

Do not dispose of cordless worklights into household waste!

According to the European Directive 2002/96/EC on waste electrical and electronic equipment and its incorporation into national law, cordless work

lights that are no longer suitable for use must be separately collected and sent for recovery in an environmental-friendly manner.

Battery packs/batteries:

Ni-Cd: Nickel cadmium

Warning: These battery packs contain cadmium, a highly toxic heavy metal.

Ni-MH: Nickel metal hydride

Do not dispose of battery packs/batteries into household waste, fire or water. Battery packs/batteries should be collected, recycled or disposed of in an environmental-friendly manner.

Only for EC countries:

Defective or dead out battery packs/batteries must be recycled according the guideline 91/157/EEC.

Batteries no longer suitable for use can be directly returned at:

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O.Box 98

Broadwater Park

North Orbital Road

Denham-Uxbridge

Middlesex UB 95HJ

Service: +44 (0) 18 95 / 83 87 82

Advice line: +44 (0) 18 95 / 83 87 91

Fax: [phone]

Subject to change without notice.
