GLI VariLED Professional - Flashlight BOSCH - Free user manual and instructions

Technical Features	LED VariLED, light output up to 1,000 lumens, color temperature 5,000 K, runtime up to 10 hours.
Usage	Ideal for DIY work, construction site lighting, and outdoor activities.
Maintenance and Repair	Regularly clean the lens and housing, check battery condition and replace if necessary.
Safety	Use only with accessories recommended by the manufacturer, avoid exposure to water and extreme temperatures.
General Information	Lightweight, compact design, compatible with Bosch 18V batteries, 2-year warranty.

Frequently Asked Questions - GLI VariLED Professional BOSCH

How do I charge the BOSCH GLI VariLED Professional flashlight?

To charge the flashlight, connect the supplied charger to the power outlet and place the flashlight in the charger until the charging indicator lights up.

What is the runtime of the BOSCH GLI VariLED Professional flashlight?

The runtime depends on the lighting power used. In low mode, the flashlight can operate up to 10 hours.

How do I change the light intensity of the BOSCH GLI VariLED Professional?

Use the adjustment button on the flashlight body to switch from low to high light intensity.

Is the BOSCH GLI VariLED Professional flashlight waterproof?

Yes, the BOSCH GLI VariLED Professional has an IP54 rating, making it resistant to water and dust to some extent.

What should I do if the flashlight does not turn on?

Check if the flashlight is charged. If it still does not turn on, try resetting the flashlight by unplugging and plugging it back in.

How do I clean the flashlight lens?

Use a soft, dry cloth to clean the lens. Avoid using chemicals that could damage the glass.

Can I use the BOSCH GLI VariLED Professional with other batteries?

It is recommended to use only the batteries specified by BOSCH to ensure optimal operation and avoid damage.

Is there a warranty for the BOSCH GLI VariLED Professional?

Yes, the flashlight is generally covered by a 2-year warranty. Please refer to the manual for more details.

USER MANUAL GLI VariLED Professional BOSCH

YkpaHcbKa ..CtoiHa 144

Ka3aK... Bet 152

Romana.. .Pagina 161

Былгарск.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ... .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. . .. ... .. ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...

MaKeDoHcN. CtpaHnca 176

Srpski Strana 184

Slovenscina Stran 191

Hrvatski .Stranica 198

Eesti. Lehekulg 206

3

Latviesu Lappuse 213

www.bosch-pt.com/serviceaddresses

Transport

Safety instructions for cordless worklights

Read all the safety and general instructions. Failure to observe the safety and general instructions may result in electric shock, fire and/or serious injury.

Save all safety and general instructions for future reference.

Handle the worklight with care. The worklight produces intense heat which increases the risk of fire and explosion.
Do not work with the worklight in potentially explosive areas.

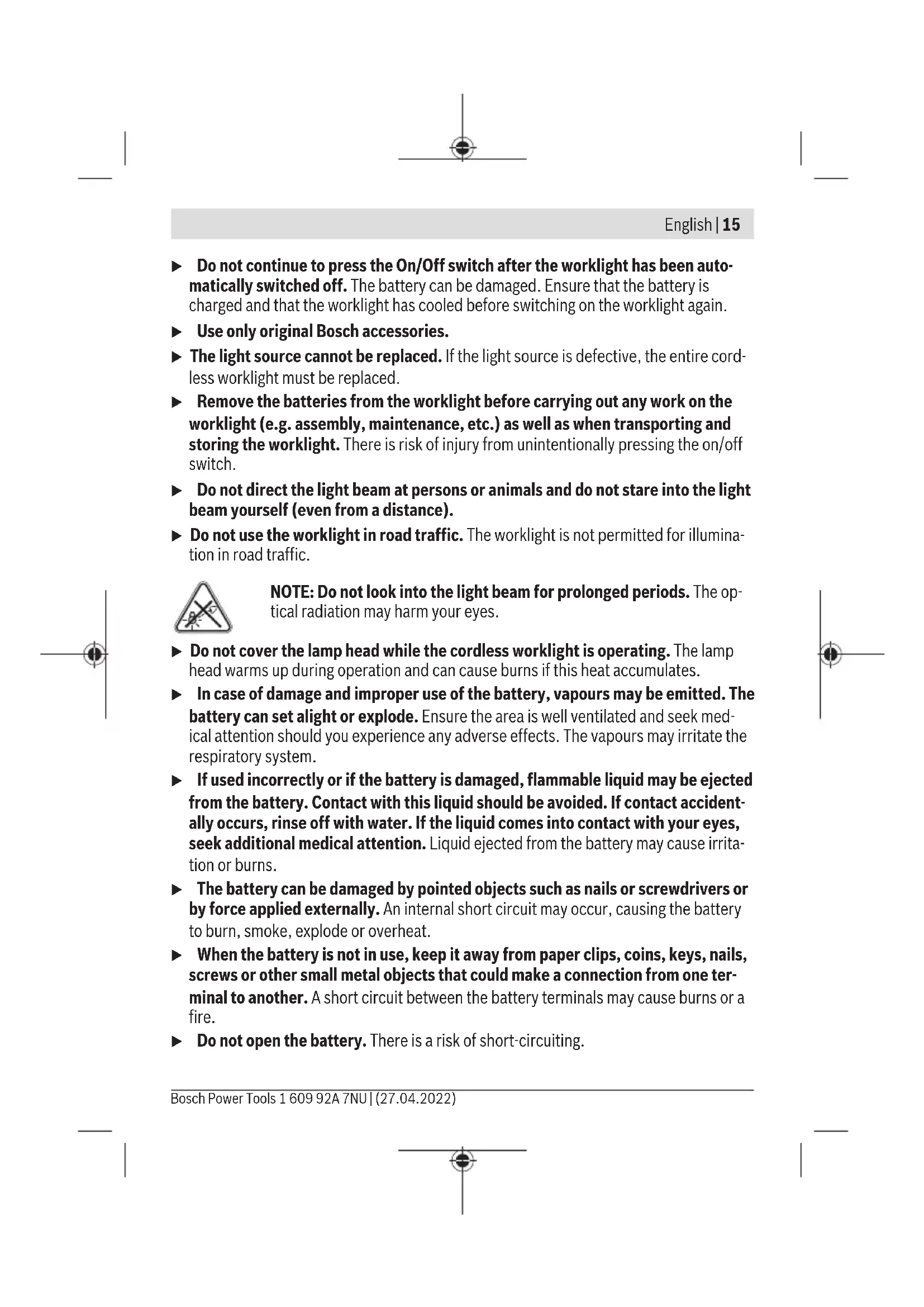

• Do not continue to press the On/Off switch after the worklight has been automatically switched off. The battery can be damaged. Ensure that the battery is charged and that the worklight has cooled before switching on the worklight again.
  Use only original Bosch accessories.
  The light source cannot be replaced. If the light source is defective, the entire cordless worklight must be replaced.
• Remove the batteries from the worklight before carrying out any work on the worklight (e.g. assembly, maintenance, etc.) as well as when transporting and storing the worklight. There is risk of injury from unintentionally pressing the on/off switch.
• Do not direct the light beam at persons or animals and do not stare into the light beam yourself (even from a distance).
• Do not use the worklight in road traffic. The worklight is not permitted for illumination in road traffic.

NOTE: Do not look into the light beam for prolonged periods. The optical radiation may harm your eyes.

• Do not cover the lamp head while the cordless worklight is operating. The lamp head warms up during operation and can cause burns if this heat accumulates.
  In case of damage and improper use of the battery, vapours may be emitted. The battery can set alight or explode. Ensure the area is well ventilated and seek medical attention should you experience any adverse effects. The vapours may irritate the respiratory system.
  If used incorrectly or if the battery is damaged, flammable liquid may be ejected from the battery. Contact with this liquid should be avoided. If contact accidentally occurs, rinse off with water. If the liquid comes into contact with your eyes, seek additional medical attention. Liquid ejected from the battery may cause irritation or burns.
  The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit may occur, causing the battery to burn, smoke, explode or overheat.
• When the battery is not in use, keep it away from paper clips, coins, keys, nails, screws or other small metal objects that could make a connection from one terminal to another. A short circuit between the battery terminals may cause burns or a fire.
  Do not open the battery. There is a risk of short-circuiting.

16 | English

• Only use the battery with products from the manufacturer. This is the only way in which you can protect the battery against dangerous overload.

Protect the battery against heat, e.g. against continuous intense sunlight, fire, dirt, water and moisture. There is a risk of explosion and short-circuiting.

• Only charge the batteries using chargers recommended by the manufacturer. A charger that is suitable for one type of battery may pose a fire risk when used with a different battery.
  Avoid dust accumulation at the workplace. Dust can easily ignite.
  This cordless worklight is not intended for use by children and persons with physical, sensory or mental limitations or a lack of experience or knowledge. This cordless worklight can be used by children aged eight or older and by persons with physical, sensory or mental limitations or a lack of experience or knowledge if a person responsible for their safety supervises them or has instructed them in the safe operation of the cordless worklight and they understand the associated dangers. Otherwise, there is a danger of operating errors and injuries.
• Do not allow children to use the cordless worklight. It is intended for professional use. Children can unintentionally blind themselves or other persons.

Product Description and Specifications

Intended Use

The cordless worklight is intended for mobile illumination of indoor areas in a limited space and for a limited time and is not suitable for general room lighting.

Product Features

The numbering of the product features refers to the diagram of the power tool on the graphics page.

(1) Lens plate
(2) On/Off switch
(3) Lamp head
(4) Battery packa)
(5) Battery unlocking buttona)

(6) Retainer opening for carrying handle
(7) Carrying handle
(8) Heat sink

a) Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range.

Technical Data

Cordless worklight GLI VariLED
Article number	3 601 D43 4..
Rated voltage V= 18
Lighting duration, approx. min/Ah 190
Total luminous flux, max. lm 420
Recommended ambient temperature dur-ing charging	°C 0 to +35
Permitted ambient temperature during op-era-tionA) and during storage	°C -20 to +50
Recommended rechargeable batteries GBA 18V...	ProCORE18V...
Recommended chargers GAL 18...	GAX 18...
	GAL 36...

A) Limited performance at temperatures < 0^ The colour rendition of illuminated objects can be distorted.

Assembly

Battery Charging (Accessory)

• Use only the chargers listed in the technical data. Only these chargers are matched to the lithium-ion battery of cordless worklight.

Note: The battery is supplied partially charged. To ensure full battery capacity, fully charge the battery in the charger before using your tool for the first time. The lithium-ion battery can be charged at any time without reducing its service life. Interrupting the charging process does not damage the battery.

18 | English

The lithium-ion battery is protected against deep discharge by the "Electronic Cell Protection (ECP)". A protective circuit switches the cordless worklight off when the battery is drained.

Do not continue to press the On/Off switch after the worklight has been automatically switched off. The battery can be damaged. Ensure that the battery is charged and that the worklight has cooled before switching on the worklight again.

To remove the battery (4), press the release button (5) and pull the battery out of the cordless worklight. Do not use force to do this.

Follow the instructions on correct disposal.

Operation

Starting Operation

Inserting the battery

Insert the charged battery (4) into lamp head (3) until it can be felt to engage and faces flush against the lamp head.

Setting up

Place the cordless worklight on a stable, level surface. Make sure it is secure.

Switching On and Off

To switch on the cordless worklight, press the on/off switch (2).

To switch off the cordless worklight, press the on/off switch (2) again.

Temperature Dependent Overload Protection

If the permissible heat sink temperature of 60^ is exceeded, the cordless worklight flashes 3 times and switches off. Let the cordless worklight cool down and then switch the cordless worklight back on.

Battery charge indicator

The green LEDs on the battery charge indicator indicate the state of charge of the battery. For safety reasons, it is only possible to check the state of charge when the power tool is not in operation.

Press the button for the battery charge indicator or to show the state of charge.

This is also possible when the battery is removed.

If no LED lights up after pressing the button for the battery charge indicator, then the battery is defective and must be replaced.

Battery model GBA 18V...

LEDs Capacity

3× continuous green light 60-100%
2× continuous green light 30 - 60%
1 × continuous green light 5 - 30 %
1 × flashing green light 0 - 5 %

Battery model ProCORE18V...

LEDs Capacity

5 × continuous green light 80 - 100 %
4 × continuous green light 60 - 80%
3 × continuous green light 40 - 60%
2× continuous green light 20 - 40%
1× continuous green light 5-20%
1× flashing green light 0 - 5%

Practical Advice

The cordless worklight lights up with reduced brightness when the remaining lighting duration is ≤ 10 minutes.

Swivelling the Lamp Head (see figure A)

You can swivel the lamp head (3) maximum 135^ in 27^ steps.

Carrying handle (see figure B)

The cordless worklight can be carried or fastened to an object with the carrying handle (7).

Maintenance and Service

Maintenance and Cleaning

• Remove the batteries from the worklight before carrying out any work on the worklight (e.g. assembly, maintenance, etc.) as well as when transporting and storing the worklight. There is risk of injury from unintentionally pressing the on/off switch.

The cordless worklight is maintenance-free and does not contain any parts that need to be replaced or maintained.

Only clean the cordless worklight's plastic lens with a dry, soft cloth to prevent damage. Do not use any detergents or solvents.

After-Sales Service and Application Service

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. You can find explosion drawings and information on spare parts at: www.bosch-pt.com

The Bosch product use advice team will be happy to help you with any questions about our products and their accessories.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the product.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O.Box 98

Broadwater Park

North Orbital Road

Denham Uxbridge

UB95HJ

At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

You can find further service addresses at:

www.bosch-pt.com/serviceaddresses

Transport

The recommended lithium-ion batteries are subject to legislation on the transport of dangerous goods. The user can transport the batteries by road without further requirements.

When shipping by third parties (e.g.: by air transport or forwarding agency), special requirements on packaging and labelling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required.

Dispatch battery packs only when the housing is undamaged. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging. Please also observe the possibility of more detailed national regulations.

Disposal

Cordless worklights, battery packs, accessories and packaging should be sorted for environmentally friendly recycling.

Do not dispose of cordless worklights and battery packs/batteries with household waste.

Only for EU countries:

According to the Directive 2012/19/EU on waste electrical and electronic equipment and its transposition into national law, cordless worklights that are no longer usable, and, according to the Directive 2006/66/EC, defective or drained batteries must be collected separately and disposed of in an environmentally correct manner.

If disposed incorrectly, waste electrical and electronic equipment may have harmful effects on the environment and human health, due to the potential presence of hazardous substances.

Only for United Kingdom:

According to Waste Electrical and Electronic Equipment Regulations 2013 (2013/3113) and the Waste Batteries and Accumulators Regulations 2009 (2009/890), cordless worklights that are no longer usable must be collected separately and disposed of in an environmentally friendly manner.

Battery packs/batteries:

Li-ion:

Please observe the notes in the section on transport (see "Transport", page 21).
