Safety Notes

Safety Warnings for Cordless Worklights

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

▶ Please read and observe all safety warnings and instructions enclosed with the battery or the power tool with which the battery was provided.
▶ Do not work with the cordless worklight in hazardous areas.
▶ Do not continue to press the On/Off switch after the cordless worklight has been automatically switched off. The battery can be damaged.
▶ Do not direct the light beam at persons or animals and do not stare into the light beam yourself (not even from a distance).
▶ Use only original Bosch accessories.
▶ Do not cover off the lamp head while operating the cordless worklight. The lamp head heats up during operation and can cause burns when the heat accumulates.
▶ Do not use the cordless worklight in road traffic. The cordless worklight is not approved for illumination in road traffic.
Before any work on the cordless worklight itself (e.g. assembling, maintenance, etc.), as well as when transporting and storing, remove the battery from the cordless worklight.
▶ Do not allow children to use the cordless worklight. It is intended for professional use. Children can unintentionally blind themselves or other persons.
▶ Do not open the battery. Danger of short-circuiting.

Protect the battery against heat, e. g., against continuous intense sunlight, fire, water, and moisture. Danger of explosion.

When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

English | 7

▶ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritations or burns.
In case of damage and improper use of the battery, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system.
▶ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
▶ Use the battery only in conjunction with your Bosch product. This measure alone protects the battery against dangerous overload.
The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit can occur and the battery can burn, smoke, explode or overheat.

Product Description and Specifications

Intended Use

The cordless worklight is intended for mobile illumination in limited space and for limited time in dry indoor and outdoor areas and is not suitable for general room lighting.

Product Features

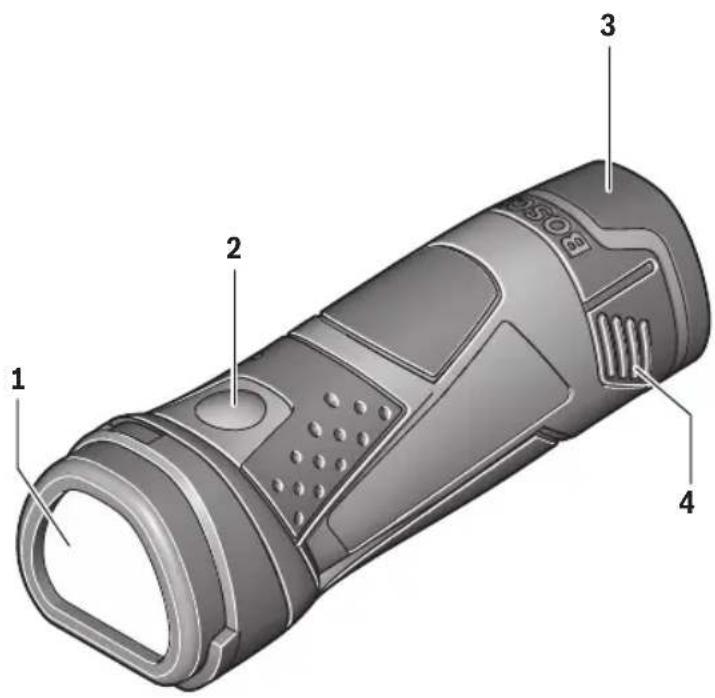

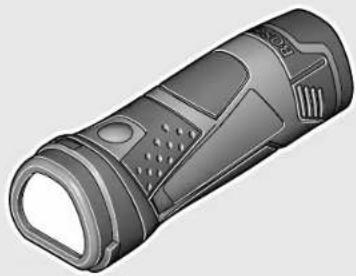

The numbering of the product features refers to the illustration of the cordless worklight on the graphics page.

1 Lamp head
2 On/Off switch
3 Battery pack*
4 Battery unlocking button*

*Accessories shown or described are not part of the standard delivery scope of the product.

A complete overview of accessories can be found in our accessories program.

Bosch Power Tools 1 609 92A 15D | (1.4.15)

8 | English

Technical Data

Cordless Worklight GLI PocketLED
Article number		3 601 D37 V..
Rated voltage	V= 10.8
Lighting duration, approx.	min/Ah 590
Luminous flux	lm 80
Weight according to EPTA-Procedure 01/2003	kg 0.3
Permitted ambient temperature
– during charging	°C	0...+45
– during operation* and during storage	°C	-20...+50
Recommended batteries		GBA 10,8 V...

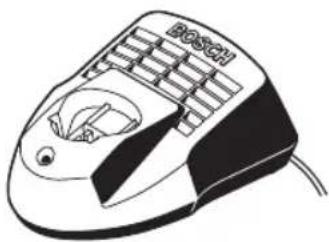

Recommended chargers		AL 11..

* Limited performance at temperatures <0 °C

The colour rendition of illuminated objects can be distorted.

Assembly

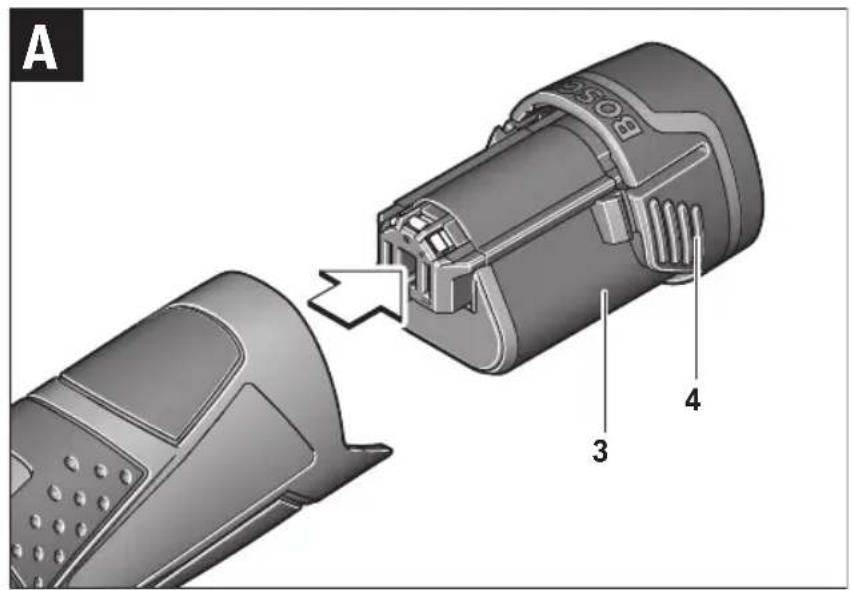

Battery Charging (Accessory) (see figure A)

▶ Use only the battery chargers listed on the accessories page. Only these battery chargers are matched to the lithium ion battery of your cordless worklight.

Note: The battery supplied is partially charged. To ensure full capacity of the battery, completely charge the battery in the battery charger before using your power tool for the first time.

The lithium-ion battery can be charged at any time without reducing its service life. Interrupting the charging procedure does not damage the battery.

The lithium-ion battery is protected against deep discharging by the “Electronic Cell Protection (ECP)”. When the battery is empty, the cordless worklight is switched off by means of a protective circuit.

▶ Do not continue to press the On/Off switch after the cordless worklight has been automatically switched off. The battery can be damaged.

To remove the battery 3, press the battery unlocking button 4 and pull the battery out of the cordless worklight toward the rear. Do not exert any force.

Observe the notes for disposal.

1 609 92A 15D | (1.4.15) Bosch Power Tools

English | 9

Operation

Starting Operation

Inserting the battery

Insert the charged battery 3 into the handle until it can be felt to engage and faces flush against the handle.

Switching On and Off

▶ The cordless worklight produces a light beam that emerges from the lamp head 1.

To start the cordless worklight, press the On/Off switch 2.

To switch off the cordless worklight, press the On/Off switch 2 again.

To save energy, only switch the cordless worklight on when using it.

Protection Against Deep Discharging

The lithium-ion battery is protected against deep discharging by the “Electronic Cell Protection (ECP)”. When the battery is empty, the cordless worklight is switched off by means of a protective circuit.

Maintenance and Service

Maintenance and Cleaning

When the battery is no longer operative, please refer to an authorised after-sales service agent for Bosch power tools.

The cordless worklight is maintenance-free and contains no components that must be replaced or maintained.

To avoid damage, clean the plastic lens of the cordless worklight only with a dry, soft cloth. Do not use cleaning agents or solvent.

After-sales Service and Application Service

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under:

www.bosch-pt.com

Bosch's application service team will gladly answer questions concerning our products and their accessories.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the product.
