EasyLamp 12 - Flashlight BOSCH - Free user manual and instructions

Product type	Battery rechargeable flashlight
Brand	Bosch
Model	EasyLamp 12
Nominal voltage	10.8 V
Lighting duration (with 1.3 Ah battery)	600 min
Lighting duration (with 1.5 Ah battery)	700 min
Operating temperature	-10 °C to +40 °C
Storage temperature	-15 °C to +50 °C
Weight (according to EPTA 01/2003)	0.3 kg
Battery type	Lithium-ion
Battery capacity (optional)	1.3 Ah or 1.5 Ah
Battery protection	Electronic Cell Protection (ECP) against deep discharge
Functions	On/off via switch, automatic safety shut-off
Maintenance	Clean with a soft, dry cloth; do not use detergents or solvents
Safety	Do not direct the beam at eyes, do not use in road traffic, avoid heat sources
Recommended accessories	Original Bosch charger and battery
Spare parts	Available through Bosch after-sales service, provide the 10-digit article number
After-sales service (France)	Tel: [phone], Email: [e-mail]
Compliance	European directives 2012/19/EU and 2006/66/EC
Recycling	Do not dispose of with household waste, follow appropriate recycling channels

Frequently Asked Questions - EasyLamp 12 BOSCH

How to charge the battery of the EasyLamp 12 lamp?

Use only the charger recommended by Bosch. Insert the battery into the charger until fully charged. Do not interrupt the process. The battery is delivered partially charged, charge it fully before first use.

How to turn the lamp on and off?

Press the On/Off switch (2) to turn on. Press again to turn off. After an automatic safety shut-off, do not press again to avoid damaging the battery.

Which battery to use with the lamp?

Use only original Bosch Lithium-ion batteries with a voltage of 10.8 V. Do not use counterfeit, modified, or other manufacturers' batteries.

Can I use the lamp outdoors in the rain?

The lamp is designed for lighting in dry places. Avoid water and humidity. Do not use in an environment with explosion risk.

What are the important safety precautions?

Do not look directly into the light beam, do not point at people or animals. Do not use in road traffic. Keep out of reach of children. Do not cover the lamp head during use.

How to clean the lamp?

Clean the plastic lens with a soft, dry cloth. Do not use detergents or solvents.

What to do if the lamp no longer turns on?

Check that the battery is charged and correctly inserted. If the problem persists, contact Bosch after-sales service.

How to remove the battery?

Press the unlocking buttons (4) and pull out the battery from the back of the lamp. Do not force.

Where to find spare parts?

Contact an authorized Bosch after-sales service. Provide the 10-digit article number of the lamp.

How to recycle the lamp and battery at end of life?

Do not dispose of with household waste. Follow local regulations for recycling electrical equipment and batteries. In Europe, according to directives 2012/19/EU and 2006/66/EC.

USER MANUAL EasyLamp 12 BOSCH

OBJ_BUCH-1802-001.book Page 2 Wednesday, February 13, 2013 10:53 AM

2

Deutsch. 5

English . Page 11

Francais Page 18

Espanol. Pagina 25

Portugues. Pagina 31

Italiano . 37

Nederlands.. 43

Dansk. Side 48

Svenska. Sida 53

Norsk. 58

Suomi . Sivu 63

EAnvika 68

Türkce. Sayfa 74

Polski. Strona 81

Cesky Strana 87

Slovensky Strana 92

Magyar Oldal 98

Pycckn CtpaHua 103

YkpaHcbka. CtopiHa 110

Kazakwa .Ber 116

Româna. . 123

BbIrapckn 128

MaKeDoHcKn CtpaHa 134

Srpski Strana 141

Slovensko Stran 146

Hrvatski. Stranica 151

Eesti Lehekulg 156

OBJ_BUCH-1802-001.book Page 5 Wednesday, February 13, 2013 10:53 AM

Deutsch|5

Deutsch

Sicherheitshinweise

OBJ_BUCH-1802-001.book Page 6 Wednesday, February 13, 2013 10:53 AM

6 | Deutsch

OBJ_BUCH-1802-001.book Page 7 Wednesday, February 13, 2013 10:53 AM

Deutsch 7

OBJ_BUCH-1802-001.book Page 8 Wednesday, February 13, 2013 10:53 AM

8 | Deutschland

OBJ_BUCH-1802-001.book Page 9 Wednesday, February 13, 2013 10:53 AM

Deutsch|9

OBJ_BUCH-1802-001.book Page 11 Wednesday, February 13, 2013 10:53 AM

English | 11

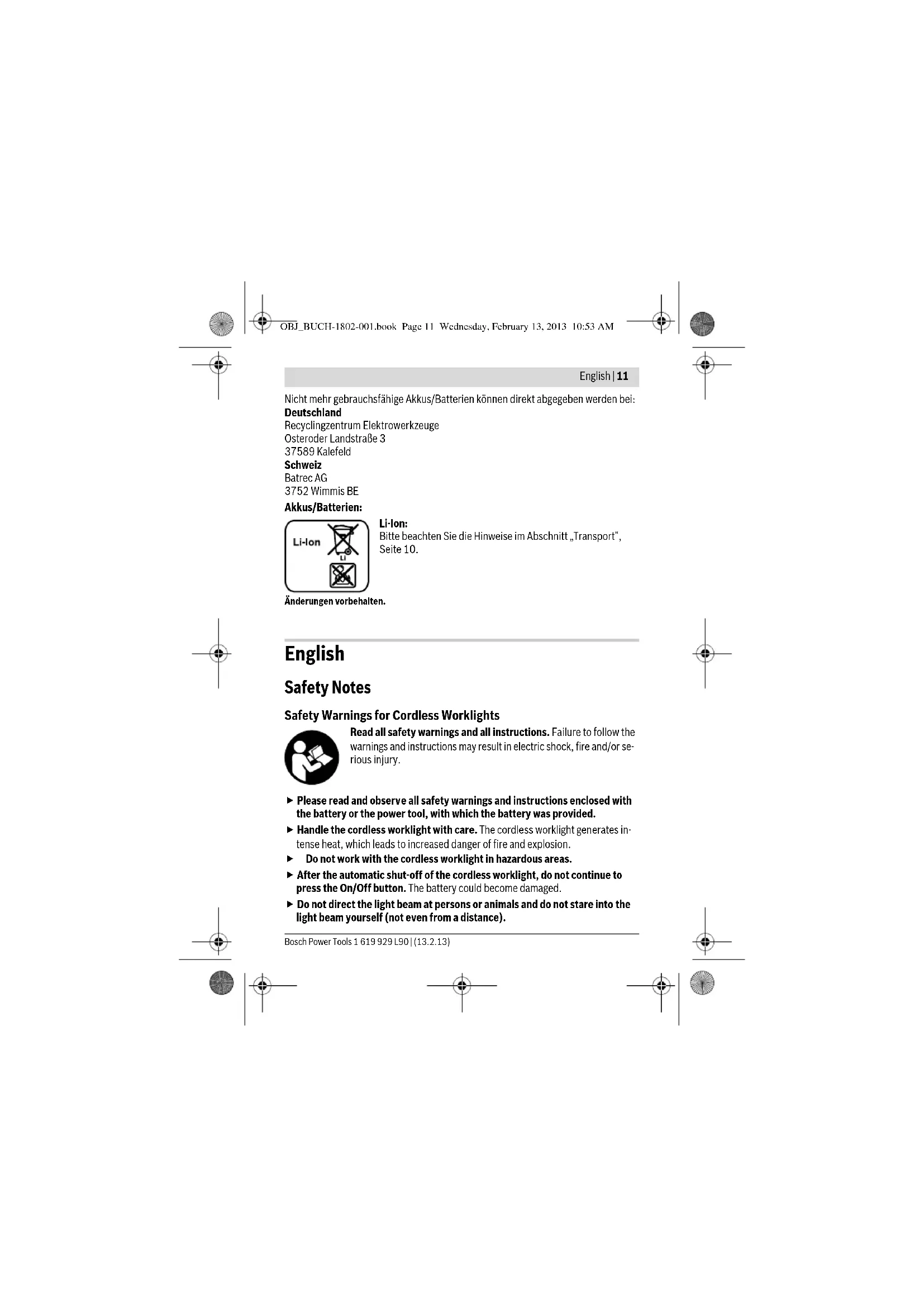

SafetyWarnings for Cordless Worklights

Read all safety warnings and all instructions. Failure to follow the

warnings and instructions may result in electric shock, fire and/or se

rious injury.

Please read and observe all safety warnings and instructions enclosed with the battery or the power tool, with which the battery was provided.
Handle the cordless worklight with care. The cordless worklight generates intense heat, which leads to increased danger of fire and explosion.
Do not work with the cordless worklight in hazardous areas.
After the automatic shut-off of the cordless worklight, do not continue to press the On/Off button. The battery could become damaged.
Do not direct the light beam at persons or animals and do not stare into the light beam yourself (not even from a distance).

Bosch Power Tools 1619 929 L90| (13.2.13)

OBJ_RUCH-1802-001.book Page 12 Wednesday, February 13, 2013 10:53 AM

12 | English

Use only original Bosch accessories.
- Do not cover off the lamp head while operating the cordless worklight. The lamp head heats up during operation and can cause burns when the heat accumulates.
Do not use the cordless worklight in road traffic. The cordless worklight is not approved for illumination in road traffic.
Before any work on the cordless worklight itself (e.g. assembling, maintenance, etc.), as well as when transporting and storing, remove the battery from the cordless worklight.
Do not allow children to use the cordless worklight. It is intended for professional use. Children can unintentionally blind themselves or other persons.

CAUTION! Do not stare into the light beam for longer periods. The optical radiation can be harmful for your eyes.

Do not open the battery. Danger of short-circuiting.

Protect the battery against heat, e.g., against continuous intense sunlight, fire, water, and moisture. Danger of explosion.

• When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
  Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritations or burns.
  In case of damage and improper use of the battery, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system.
• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
  Use the battery only in conjunction with your Bosch product. This measure alone protects the battery against dangerous overload.
  Use only original Bosch batteries with the voltage listed on the nameplate of your cordless worklight. When using other batteries, e.g. imitations, reconditioned batteries or other brands, there is danger of injury as well as property damage through exploding batteries.

1619929L90|(13.2.13) Bosch Power Tools

OBJ_RUCH-1802-001.book Page 13 Wednesday, February 13, 2013 10:53 AM

English | 13

Product Description and Specifications

Intended Use

The cordless worklight is intended for hand-guided illumination with regard to space within dry areas.

Product Features

The numbering of the product features refers to the illustration of the cordless worklight on the graphics page.

1 Lamp head
2 On/Off switch
3 Battery pack
4 Battery unlocking button
Accessories shown or described are not part of the standard delivery scope of the product. A complete overview of accessories can be found in our accessories program.

Technical Data

Cordless Worklight PLI 10,8 LI
Article number	3603 JA1 0..
Rated voltage	V= 10,8
Lighting duration, approx.
- 1, 3 A h	min	600
- 1, 5 A h	min	700
Operating temperature	°C - 10 ... +40
Storage temperature	°C - 15 ... +50
Weight according to EPTA-Procedure 01/2003	kg 0,3

Assembly

Battery Charging (Accessory) (see figure A)

• Use only the battery chargers listed on the accessories page. Only these battery chargers are matched to the lithium ion battery of your cordless worklight.

Note: The battery is supplied partially charged. To ensure full capacity of the battery, completely charge the battery in the battery charger before using your power tool for the first time.

Bosch Power Tools 1619 929 L90| (13.2.13)

OBJ_RUCH-1802-001.book Page 14 Wednesday, February 13, 2013 10:53 AM

14|English

The Lithium- ion battery can be charged at any time without reducing its service life. Interrupting the charging procedure does not damage the battery.

The lithium ion battery is protected against deep discharging by the "Electronic Cell Protection (ECP)". When the battery is empty, the cordless worklight is switched off by means of a protective circuit.

Do not continue to press the On/Off switch after the cordless worklight has been automatically switched off. The battery can be damaged.

To remove the battery 3, press the battery unlocking button 4 and pull the battery out of the cordless worklight toward the rear. Do not exert any force.

The battery is equipped with a NTC temperature control which allows charging only within a temperature range of between 0^ and 45^ . A long battery service life is achieved in this manner.

Observe the notes for disposal.

Operation

Starting Operation

Inserting the battery

• Use only original Bosch lithium ion batteries with the voltage listed on the nameplate of your cordless worklight. Using other batteries can lead to injuries and pose a fire hazard.

Insert the charged battery 3 into the handle until it can be felt to engage and faces flush against the handle.

Switching On and Off

The cordless worklight produces a light beam that emerges from the lamp head 1.

To start the cordless worklight, press the On/Off switch 2.

To switch off the cordless worklight, press the On/Off switch 2 again.

To save energy, only switch the cordless worklight on when using it.

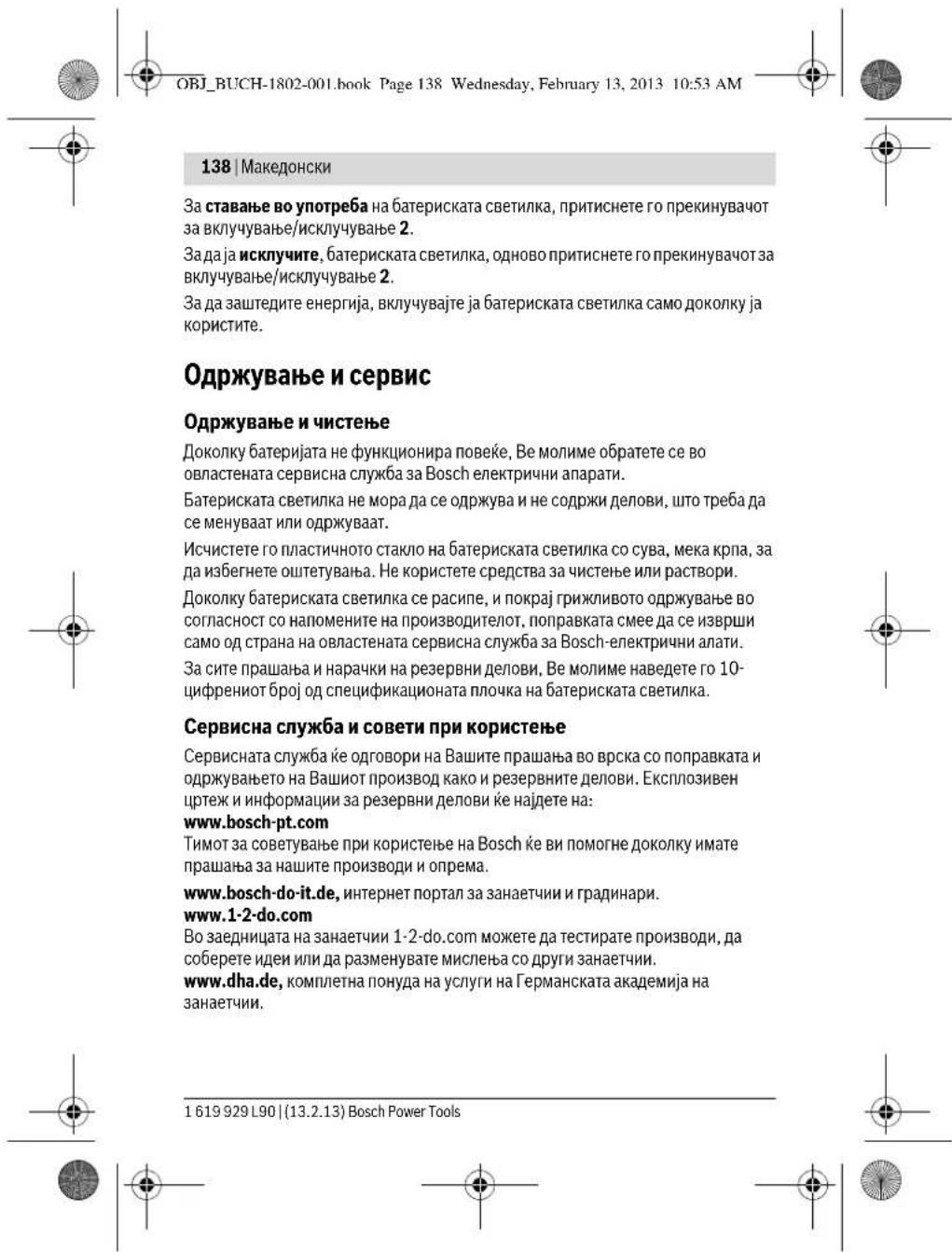

Maintenance and Service

Maintenance and Cleaning

When the battery is no longer operative, please refer to an authorised after-sales service agent for Bosch power tools.

1619929L90|{13.2.13}Bosch Power Tools

OBJ_BUCH-1802-001.book Page 15 Wednesday, February 13, 2013 10:53 AM

English | 15

The cordless worklight is maintenance-free and and contains no components that must be replaced or maintained.

To avoid damage, clean the plastic lens of the cordless worklight only with a dry, soft cloth. Do not use cleaning agents or solvent.

If the cordless worklight should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an authorized after-sales service agent for Bosch power tools.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the cordless worklight.

After-sales Service and Application Service

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under:

www.bosch-pt.com

Bosch's application service team will gladly answer questions concerning our products and their accessories.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O.Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB95HJ

Tel. Service: [phone]

Fax: [phone]

E-Mail: [e-mail]

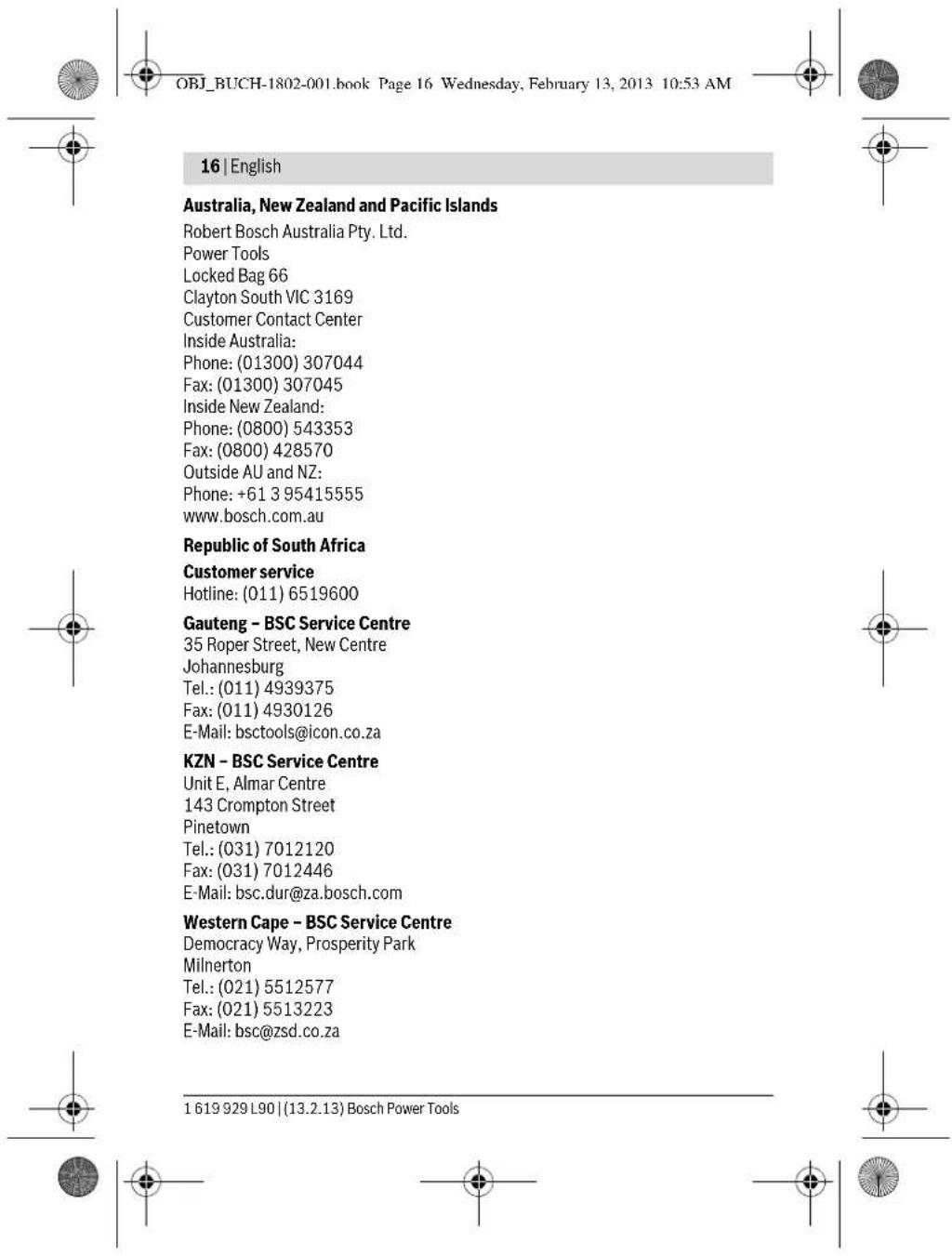

Ireland

Origo Ltd.

Unit 23 Magna Drive

Magna Business Park

City West

Dublin 24

Tel. Service: [phone]

Fax: [phone]

Bosch Power Tools 1619 929 L90| (13.2.13)

Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham
Uxbridge
UB 95HJ
Tel. Service: (0844) 7360
Fax: [phone]
E-Mail: boschservicecentre

OBJ_RUCH-1802-001.book Page 17 Wednesday, February 13, 2013 10:53 AM

English | 17

Bosch Headquarters

Midrand, Gauteng

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

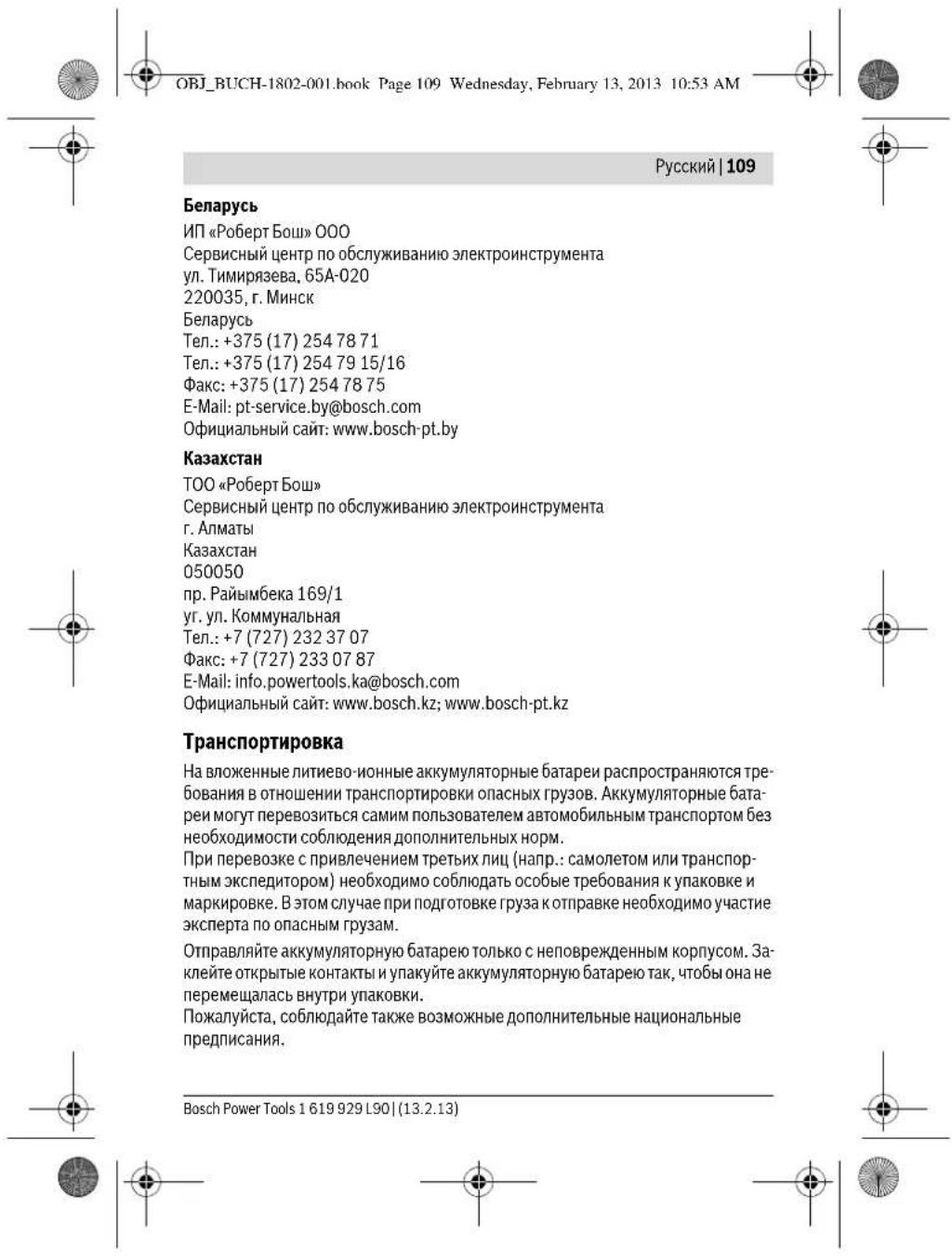

Transport

The contained lithium-ion batteries are subject to the Dangerous Goods Legislation requirements. The user can transport the batteries by road without further requirements.

When being transported by third parties (e.g.: air transport or forwarding agency), special requirements on packaging and labelling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required.

Dispatch batteries only when the housing is undamaged. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging.

Please also observe possibly more detailed national regulations.

Disposal

Cordless worklights, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of cordless worklights into household waste!

Only for EC countries:

According to the European Guideline 2012/19/EU for Waste Electrical and Electronic Equipment, cordless worklights that are no longer usable, and according to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.

Bosch Power Tools 1619 929 L90| (13.2.13)

OBJ_BUCH-1802-001.book Page 19 Wednesday, February 13, 2013 10:53 AM
