USER MANUAL AHS 48-20 LI | AHS 50-20 LI |AHS 53-20 LI | AHS 55-20 LI |UniversalHedgeCut 18-500 | UniversalHedgeCut 18-550 BOSCH

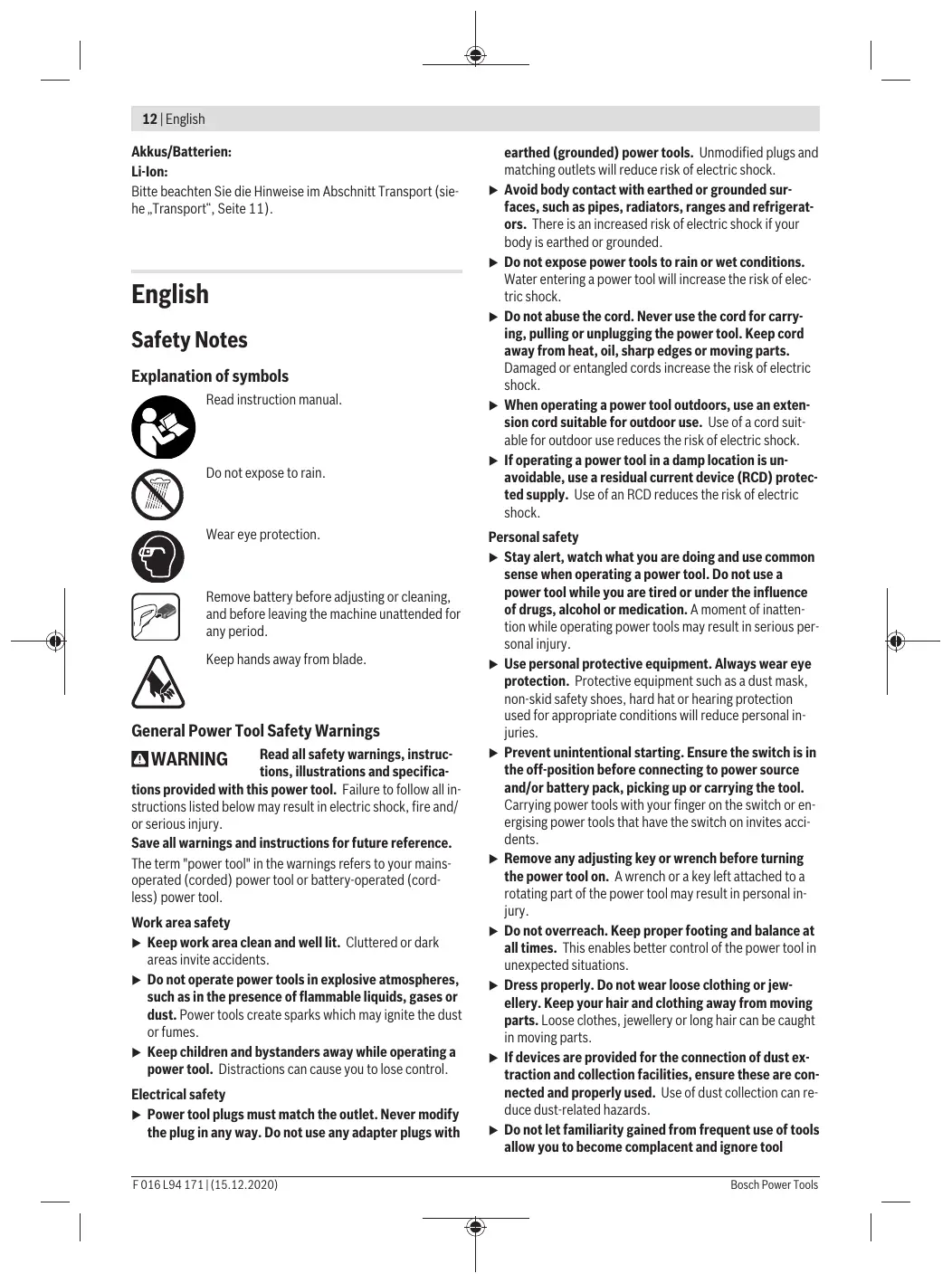

General Power Tool Safety Warnings Read all safety warnings, instruc- EWARNING tions, illustrations and specifica- tions provided with this power tool. Failure to follow all in- structions listed below may result in electric shock, fire and/ or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains- operated (corded) power tool or battery-aperated (cord less) power tool. Work area safety > Keep work area clean and well lit. Cluttered or dark areas invite accidents. > Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. > Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control Electrical safety > Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock Avoid body contact with earthed or grounded sur- faces, such as pipes, radiators, ranges and refrigerat- ors. There is an increased risk of electric shock if your body is earthed or grounded Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of elec- tric shock Do not abuse the cord. Never use the cord for carry- ing, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cord increase the risk of electric shock When operating a power tool outdoors, use an exten- sion cord suitable for outdoor use. Use of à cord suit able for outdoor use reduces the risk of electric shock. If operating a power tool in a damp location is un- avoidable, use a residual current device (RCD) protec- ted supply. Use of an RCD reduces the risk of electric shock

Personal safety > Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. À moment of inatten- tion while operating power tools may result in serious per: sonal injury. Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal in-

juries. > Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or en: ergising power tools that have the switch on invites acci- dents. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal in- jury. Do not overreach. Keep proper footing and balance at alltimes. This enables better control of the power tool in unexpected situations. Dress properly. Do not wear loose clothing or jew- ellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. If devices are provided for the connection of dust ex- traction and collection facilities, ensure these are con- nected and properly used. Use of dust collection can re duce dust-related hazards. Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool

safety principles. À careless action can cause severe in- jury within a fraction of à second. Power tool use and care > Do not force the power tool. Use the correct power tool for your application. The correct power tool ill do the job better and safer at the rate for which it was de- signed. Do not use the power tool ifthe switch does notturn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired Disconnect the plug from the power source and/or re- move the battery pack, if detachable, from the power tool before making any adjustments, changing ac- cessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. Maintain power tools and accessories. Check for mis- alignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. Keep cutting tools sharp and clean. Properly main tained cutting tools with sharp cutting edges are less likely to bind and are easier to control. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into ac- count the working conditions and the work to be per- formed. Use of the power tool for operations different from those intended could result in a hazardous situation. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handies and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations. Battery tool use and care > Recharge only withthe charger specified by the manu- facturer. À charger that is suitable for one type of bat- tery pack may create a risk of fire when used with another battery pack. > Use power tools only with specifically designated bat- tery packs. Use of any other battery packs may create à risk of injury and fire. > When battery pack is not in use, keepit away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns orafire. > Under abusive conditions, liquid may be ejected from the battery: avoid contact. If contact accidentally oc- curs, flush with water. If liquid contacts eyes, addi-

English|13 tionally seek medical help. Liquid ejected from the bat- tery may cause irritation or burns. Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk ofinjury. Do not expose a battery pack or tool to fire or excess- ive temperature. Exposure to fire or temperature above 130°C may cause explosion Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk offre.

Service > Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. > Never service damaged battery packs. Service of bat- tery packs should only be performed by the manufacturer or authorized service providers. Hedge trimmer safety warnings > Keepall parts of the body away from the blade. Do not remove cut material or hold material to be cut when blades are moving. Blades continue to move after the sitchis turned off. À moment of attention while oper- ating the hedge trimmer may result in serious personal in- jury. Carry the hedge trimmer by the handle with the blade stopped and taking care not to operate any power switch. Proper carrying of the hedge trimmer will de- crease the risk of inadvertent starting and resultant per- sonal injury from the blades. When transporting or storing the hedge trimmer, al- ways fit the blade cover. Proper handling of the hedge trimmer will decrease the risk of personal injury from the blades. When clearing jammed material or servicing the unit, make sure all power switches are off and the battery pack is removed or disconnected. Unexpected actu- ation of the hedge trimmer while clearing jammed mater- ial or servicing may result in serious personal injury. Hold the hedge trimmer by insulated gripping sur- faces only, because the blade may contact hidden wir- ing. Blades contacting alive” wire may make exposed metal parts of the hedge trimmer live" and could give the operator an electric shock. Keep all power cords and cables away from cutting area. Povier cords or cables may be hidden in hedges or bushes and can be accidentally cut by the blade. Do not use the hedge trimmer in bad weather condi- tions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning

14] English Additional safety warnings > This tool is not intended for use by persons (including children) with reduced physical, sensory or mental cap- abilities, or lack of experience and knowledge, unless they have been given supervision or instruction concern ing use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play ith the appliance. When working with the machine, always hold it firmly with both hands and provide for a secure stance. The power tool is guided more secure with both hands. Always ensure all handles and guards are fitted when using the machine. Never attempt to use an incomplete machine or one fited with an unauthorized modification. Always lubricate the cutting blade with protective spray before use. Always wait until the machine has come to a complete stop before placing it down. Other persons and animals should remain at distance of 3 metres or more when the machine is being used. The operator is responsible for third persons in the working area. Never grasp the blade of the hedge trimmer. Children or persons unfamiliar with these instructions must not operate the hedge trimmer. Local regulations may restrict the age of the operator. Never cut a hedge while people, especially children or pets, are nearby. The user is responsible for accidents or hazards occurring to other people or their property. Do not operate the hedge timmer when barefoot or wear: ing open sandals, always wear substantial footwear and long trousers. The use of sturdy gloves, non-skid footwear and safety glasses is recommended. Do not wear loose clothing or jewellery which can be caught in moving parts. Thoroughly inspect the area where the hedge trimmer is tobe used and remove all wires and other foreign objects. Prior to operation, check cutter blades, blade bolts and cutter assembly for wear or damage. Do not operate with à damaged or excessively worn cutting device. Know howr to stop the hedge trimmer quickly in an emer: gency. Cut hedge only in daylight or in good artificial light. Never operate the hedge trimmer with defective guards or without the guardn place. Always ensure all handles and guards supplied are fitted when using the hedge trimmer. Never attempt to use an incomplete hedge trimmer or one with an unauthorized modification. > Never hold the hedge trimmer by the guard. > When operating the hedge trimmer, ensure to keep proper footing and balance at alltimes.

> Always be aware of your surroundings and stay alert for possible hazards that you may not hear whilst operating the hedge trimmer. > Keep all nuts, bolts and screws tight to ensure that the hedge trimmer is always in a safe working condition. > The hedge trimmer should be stored in a dry, high or locked up place out of the reach of children. > Replace worn or damaged parts for safety. > Do notattempt to repair the machine unless you are quali- fied to do so. > Ensure replacement parts fitted are Boschrapproved. > To safeguard against contact with the moving cutter blade, this hedge trimmer is constructed with two handles each with a blade control (switch). To operate the hedge trimmer, both controls must be actuated simul taneously. Do not use the tool, ifit runs without a switch being actuated or just one switch being actu- ated. Recommendations for Optimal Handling of the Battery Pack > Do not open the battery. There is a risk of short-circuit- Protect the battery against heat (e.g., against continuous intense sunlight), fire, water, and moisture. There is a risk of explo- sion. > In case of damage and improper use of the battery pack, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system > Only use the battery with products from the manufac- turer, This is the only way in which you can protect the battery against dangerous overload > The battery can be damaged by pointed objects such as naïls or screwdrivers or by force applied externally. An internal short circuit may occur, causing the battery to burn, smoke, explode or overheat. > Do not short-circuit the battery. There is a risk of explo- sion. > Occasionally clean the venting slots of the battery using à soft, clean and dry brush. > Charge the machine only with the supplied battery charger. Safety Warnings for Battery Chargers Read all safety warnings and all instruc- tions. Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury, Save all safety warnings and instructions for future ref- erence. Use the battery charger only when you fully understand and can perform all functions without limitation, or have received appropriate instructions. F016L94 1711(15.12.2020) Bosch Power Tools

»> Never allow children, persons with physical, sensory or mental limita- tions or a lack of experience and/or knowledge and/or people unfamiliar with these instructions to use the battery charger. Local regulations may restrict the age of the operator. > Supervise children at all times. This will ensure that children do not play with the battery charger. > Charge only Bosch lithium-ion bat- teries with a capacity above 1.5 Ah (5 battery cells or more). The battery voltage must match the battery char- ging voltage of the charger. Do not charge non-rechargeable batteries. Otherwise there is a danger of fire and explosion. Keep the battery charger away from rain or moisture. Penetration of water in the battery charger increases the risk of an electric shock. immediately pul the plug from the socket out- letifthe cable is damaged or cut-through, > Keepthe charger clean. Dirt poses a risk of electric shock. > Always check the charger, cable and plug before use. Stop using the charger if you discover any damage. Do not open the charger yourself, and have it repaired only by a qualified specialist using only original re- placement parts. Damaged chargers, cables and plugs increase the risk of electric shock. Do not operate the charger on an easily ignited sur- face (e.g. paper, textiles, etc.) or in a flammable envir- onment. There is a risk of fire due to the charger heating up during operation. Do not cover the ventilation slots of the battery char- ger. Otherwise, the battery charger can overheat and no longer operate properly. For increased electrical safety, we recommend using a re- sidual current device with a max. tripping current of 30 mA. Before using, always check our residual current device.

Symbols The following symbols are important for reading and under: standing the original instructions. Please take note of the English|15 symbols and their meaning. The correct interpretation of the symbols will help you to use the product in a better and safer Meaning Wear protective gloves Wear safety glasses/goggles Movement direction Reaction direction Weïght Switching On Switching Of Audible noise Prohibited action Accessories/Spare Parts Product Description and Specifications Read all safety warnings and all instruc- tions. Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury. Please observe the illustrations at the ending of this operat- ing manual. Intended Use The machine is intended for cutting and trimming hedges and bushes in domestic use. Product Features (see figure A) The numbering of the product features refers to the illustra- tion of the product on the graphics pages. (1) Hand (insulated gripping surface) (2) On/Off switch (8) Lock-off button for On/Off switch (4) Hand guard (5) Chain bar (6) Protection sleeve (7) Charger (8) Battery unlocking button () Battery Bosch Power Tools F016L941711(15.12.2020)

The accessories illustrated or described are not included as standard delivery. À complete overview of accessor- ies can be found in our accessories program. 16 English Technical Data Cordless hedge AHS48-20LI AHS50-20L1 AHS53-20L1 AHSS5-20L1 Universal Universal trimmer HedgeCut HedgeCutl 18500 18-550 Article number 3600H49F. 3600H49F. 3600H49G. 3600H49G.. 3600H49 3600 H49 F.. G.. Stroke rate atno-oad min* 2600 2600 2600 2600 2600 2600 Cutting length mm 480 500 530 550 500 550 ooth opening mm 20 20 20 20 20 20 Weight according to kg 25 25 26 26 25 2.6 EPTA-Procedure 01:2014° Serial number see type plate on garden tool Recommendedambi ‘© 0..+35 0..+35 0..+35 0.+35 0.+35 0.35 ent temperature dur- ing charging, Permitted ambient © 20.+50 20.450 -20.+50 20.450 -20..+50 -20. +50 temperature during operation ‘ and stor- age Battery type PBA 18V...W-

1.5 Ah, 2.0 Ah, 2.5 Ah, 3.0 Ah, 4.0 Ah, 5.0 Ah, 6.0 Ah

A) Depends on battery in use B). Limited performance at temperatures <0°C Charger L 1810 CV EN L 1830 CV L 1880 CV) Charging current A 1.0 15 3.0 8.0 Charging period (battery discharged) — Battery with 1.5 Ah min 94 63 33 27 — Battery with 2.0 Ah min 124 84 45 30 — Battery with 2.5 Ah min 154 105 60 36 — Battery with 3.0 Ah min 185 130 72 46 —_ Battery with 4.0 Ah min 244 168 95 35 — Battery with 6.0 Ah min 364 260 130 62 Weight according to EPTA-Pro- ke 0.17 0.38 0.40 0.60 cedure 01:2014 Protection class Œyi y Eyi y ‘The specifications apply to a rated voltage [U] of 230 V. These specifications may vary at different voltages and in country-specific models. Noise/Vibration Information Vibration total values a, (triax vector sum) and uncertainty K Noise emission values determined according to EN determined according to EN 62841-4-2:2019 62841-4-2:2019 2,5 2.5 m/s°, K = 1.5 m/s. Typically the Aweïghted noise levels of the product are: That the declared vibration total value(s) and the declared Sound pressure level 74 dB(A}; sound pouer level noise emission value(s) have been measured in accordance 94 dB(A). UncertintyK - 1.0 dB, with a standard test method any may be used for comparing Wear hearing protection! one tool to another. F016L94 171|(15.12.2020) Bosch Power Tools

Thatthe declared vibration total value(s) and the declared noise emission value(s) may also be used in a preliminary as- sessment of exposure. Thatthe vibration and noise emissions during actual use of the power tool can differ from the declared values depend ing on the ways in which the tool is used especially what kind of workpiece is processed: and of the need to identify safety measures to protect the operator that are based on an estim- ation of the exposure measures in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when itis running idle in addition to the trigger time). Switching on For Your Safety > Caution: Switch garden tool off and remove battery from machine before adjusting or cleaning. > The blades continue to move for a fraction of a second after the hedge trimmer is switched off. > Do not touch the moving blades. Charging the Battery > Pay attention to the mains voltage. The voltage of the power source must match the voltage specified on the rating plate of the charger. The battery is equipped with temperature monitoring that al- lows charging only in the temperature range between O °C and 35°C. In this manner, a high battery service life is achieved. Note: The battery is supplied partially charged. To ensure full battery capacity, completely charge the battery in the battery charger before using for the first time. The lithium-ion battery can be charged at any time without reducingits service life. nterrupting the charging procedure does not cause damage to the battery. The “Electronic Cell Protection (ECP)" protects the lithium- ion battery against deep discharging. When the battery is empty, the product is switched off by means of a protective circuit: The product no longer operates. Do not continue to press the On/Off switch after an auto- matic shut-off of the product. The battery could become damaged Observe the notes for disposal of the battery. Inserting/Removing the Battery (see figure B) Note: Using unsuitable batteries can lead to malfunctions or damage the machine. Insert the charged battery (9). Ensure the battery is inserted correctiy. To remove the battery (9) from the machine, press the bat- tery unlocking button (8) and pull the battery out. English] 17 Charging Procedure The charging procedure starts as soon as the mains plug of the charger is plugged into a socket outlet and the battery (9) is inserted onto the charger (7) Due to the intelligent charging method, the charging condi tion of the battery is automatically detected and the battery is charged with the optimum charging current, depending on battery temperature and voltage. This gives longer life to the battery and always leaves it fully charged when kept in the charger for storage. Understanding the Indicators (AL 1815 CV) Flashing battery charge indicator be The charging process is indicated by the flash- - ing of the battery charge indicator . Continuous lighting of the battery charge indicator Full Continuous lighting of the battery charge in- —" dicator indicates that the battery is fully charged or that the temperature of the battery is not within the allowable charging temperature range, and cannot be charged for this reason. The battery is charged as soon as the allowable charging temperature range is reached. When the battery is notinserted, continuous lighting of the battery charge indicator indicates that the mains plug is in- serted in the socket outlet and that the battery charger is ready for operation. Meaning of the Indication Elements (AL 1830 CV) Fast) Flashing of the Green Battery Charge Indicator The rapid-charging procedure is indicated by Ch: LE fast flashing of the green battery charge in- dicator . Note: The rapid-charging procedure is only possible when the battery temperature is within the allowable charging temperature range, see section "Technical Data”. (Slow) Flashing of the Green Battery Charge Indicator os Menthe changing condition fthebatery is 80%, the green battery charge indicator flashes slowly. The battery can be removed for immediate use. Continuous Lighting of the Green Battery Charge Indicator Full Continuous lighting of the green battery — charge indicator indicates that the battery is fuly charged When the battery is notinserted, continuous lighting of the battery charge indicator indicates that the mains plug is in- serted in the socket outlet and that the battery charger is ready for operation. Continuous Lighting of the Red Battery Charge Indicator Œ Continuous lighting of the red battery charge indicator indicates that the temperature of the battery is not within the allowable charging temperature Bosch Power Tools F016L941711(15.12.2020)

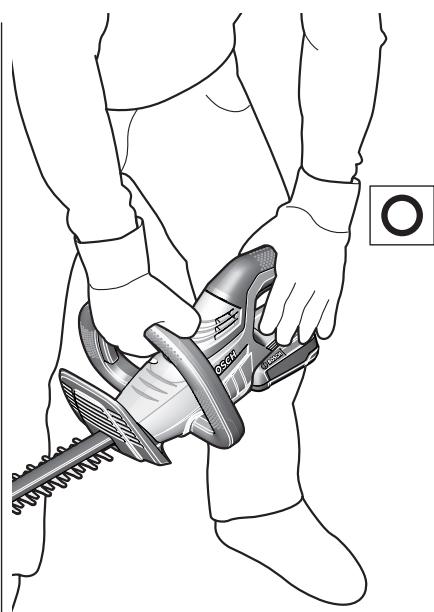

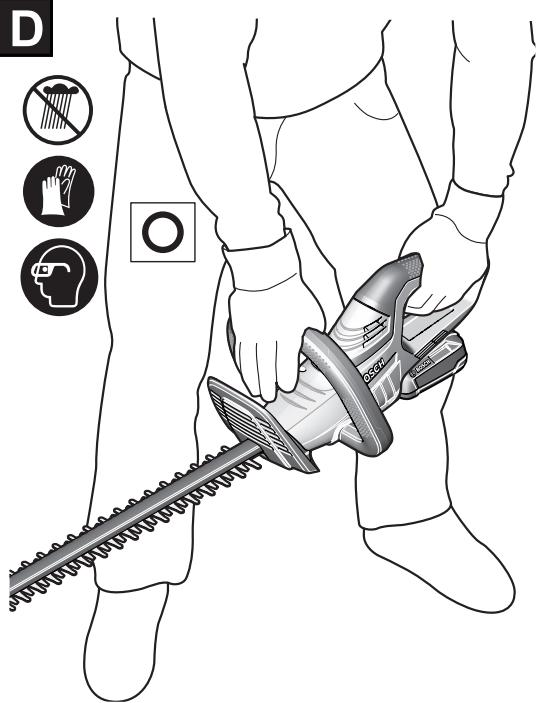

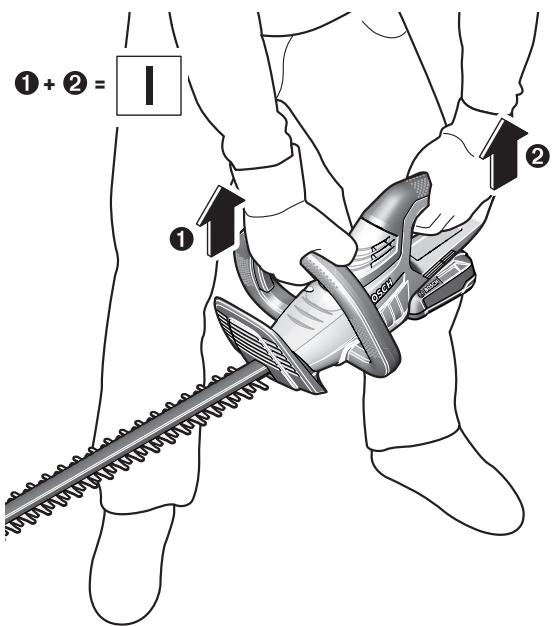

18] English range, see section ‘Technical Data”. As soon as the allowable charging temperature range is reached, the battery charger automatically switches to rapid charging. Flashing Red Battery Charge Indicator # Aflashing red battery charge indicator indic- T7 atesa different malfunction ofthe charging procedure, see section “Troubleshooting - Causes and Cor- rective Measures” Operation Switching ON/OFF (see figures C and D) To switch ON, firstiy press and hold the lock-off button for On/Off switch (3). Then press the On/Off switch (2) and keep it pressed. To switch OFF, release the lock-off button for On/Off switch (3) and then release the On/Off switch (2). Sawing Function Although the tooth opening allows wood to be cut up to 9 20 mm, the tip of the blade is designed to cut wood up to 925 mm Troubleshooting

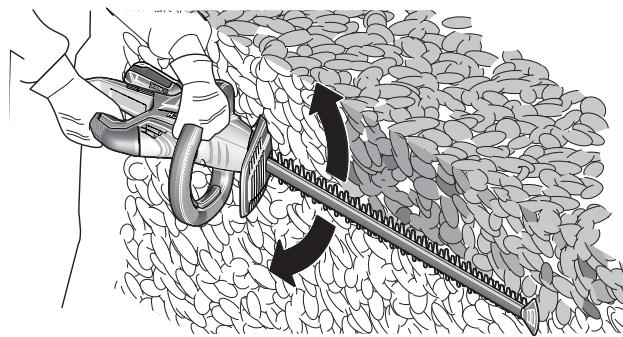

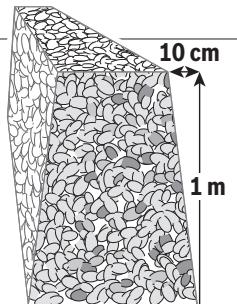

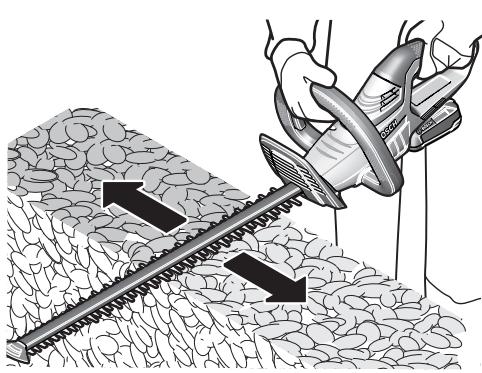

Hedgecutter Problem Possible Cause Hedgecutter does not _ Battery discharged Working with the Hedgecutter (see figure E) Move the hedgecutter evenly forward along the cutting line. The double edge cutting blade enables cutting in either dir- ection, or with a side to side motion. Cutthe sides ofthe hedge fist, then the top. To cut the sides straightly, we recommend cutting from bot- tom to top in the direction of growth. Younger stems tend to move outwards when cutting them from top to bottom, res- ulting in shallow patches or holes in the hedge. To reach level finish, fasten a piece of string along the length of the hedge at the required height and use as an alignment guide. Cut the hedge just above the string. Pay attention that no objects such as wires are cut. The blade or drive can be damaged. Anti Blocking Ifthe blade stalls on a tough material, the load of the motor increases. The intelligent micro-electronics senses this over- load condition and repeatedly reverses the motor, in order to prevent stalling and to cut the branch through. This audible reversing cut action continues for up to 3 s. After cutting through, the garden product continues in its normal mode, or in case the overload condition continues the blades automatically stop in the open position (e.g. in case a piece of metal fence accidentally blocks the garden product). CEE Recharge battery: also see “Battery Charging” operate Battery not fully connected Ensure both locking levels are engaged Hedgecutter operates Internal wiring of garden tool defective Contact Service Agent intermittently On/Off switch defective Contact Service Agent Motor reverses repeatedly then stops after 35. see “Working Advice” (Anti Blocking) Motor runs but blades remain stationary Internal Error Contact Service Agent Cuttingblade hot Cuttingbladeblunt Have blade sharpened Cutting blade has dents Have blade inspected/overhauled Too much friction, due to lack of lubricant Appiy lubricant spray Blade willnotmove Battery discharged Recharge battery; also see “Battery Charging” Machine defective Contact Service Agent Excessive vibrations/ Machine defective noise Contact Service Agent Cutting time per bat- Too much friction, due to lack of lubricant Appiy lubricant spray. tery charge too low Blade needs cleaning Clean blade Poor cutting technique see "WorkingAdvice” (figure E) F016L94 1711(15.12.2020) Bosch Power Tools

Possible Cause Battery not fully charged Problem English] 19 Corrective Action Recharge battery; also see “Battery Charging” The blades are running Battery discharged Recharge battery; also see “Battery Charging” slow or the anti block ing feature is not func- Battery stored outside of battery temperature Allow battery to warm naturally to room temperat- ure (within battery operating temperature 0- tioning 35°C) Battery and charger Problem Possible Cause CH Flashing red battery Battery not (properly) inserted Properly insert battery in charger charge indicator Battery contacts contaminated Clean the battery contacts (e.g. by inserting and No charging procedure removing the battery several times) or replace possible the battery Battery defective Replace the battery Battery charge indicat- Mains plug of battery charger not pluggedin ors do not light up {properly) Insert mains plug (full) into the socket outlet Socket outlet, mains cable or battery charger de: fective Check the mains voltage; have the battery char- ger checked by an authorised after-sales service agent for Bosch power tools Maintenance and Service Maintenance, Cleaning and Storage > Before any work on the garden product itself (e. g. maintenance, tool change, etc.) as well as during transport and storage, remove the battery from the garden product. There is danger of injury when uninten- tionally actuating the On/Off switch. > For safe and proper working, always keep the product clean. Do not place other objects on the garden product. To ensure safe and efficient operation, always keep the product and the ventilation slots clean. Never spray the product with water. Never immerse the product in water. Store the product in a secure, dry place, out of the reach of children. Do not place other objects on the product. Keep all nuts, bolts and screws tight to ensure safe working with the product. Inspect the product and replace worn or damaged parts for safety. Ensure replacement parts fitted are Bosch-approved. Battery Maintenance Use the following procedures to enable optimum usage of the battery: — Protect the battery against moisture and water. — Store the machine and battery only within a temperature range between -20 °C and 50°C. As an example, do not leave the battery in the car in summer. — Itis recommended that the battery is not stored within the product but stored separately. — Donotieave the battery inthe product in direct sunlight. — The ideal storage condition for the battery is 5 °C. — Occasionally clean the venting slots of the battery using à soft, clean and dry brush. A significantly reduced working period after charging indic- ates that the battery is used and must be replaced. After-Sales Service and Application Service Our after-sales service responds to your questions concern- ing maintenance and repair of your product as well as spare parts. You can find explosion drawings and information on spare parts at: www.bosch-pt.com The Bosch product use advice team will be happy to help you with any questions about our products and their accessor ies. In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate ofthe product Great Britain Robert Bosch Ltd. (B.S.C.) P.0.Box98 Broadvrater Park North Orbital Road Denham Uxbridge UB 9 5HJ Atwww.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair. Tel. Service: (0344) 7360109 E-Mail: boschservicecentre@bosch.com You can find further service addresses at: www.bosch-pt.com/serviceaddresses Bosch Power Tools F016L941711(15.12.2020)

20 | Français Transport The contained lithium-ion batteries are subject to the Dan: gerous Goods Legislation requirements. The batteries are suitable for road-transport by the user without further re- strictions. When shipping by third parties (e.g.: by air transport or for- warding agency), special requirements on packaging and la- belling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is re- quired. Dispatch battery packs only when the housing is undam- aged. Tape or mask off open contacts and pack up the bat tery in such a manner that it cannot move around in the packaging. Please also observe the possibility of more de- tailed national regulations. Disposal The product, batteries, accessories and pack- aging should be sorted for environmental. friendiy recycling Do not dispose of the product and batteries/re- chargeable batteries into household vaste! Only for EU countries: According to the European Guideline 2012/19/EU, products that are no longer usable, and according to the European Guideline 2006/66/EC, defective or used battery packs/ batteries, must be collected separately and disposed of in an environmentally correct manner. Battery packs/batteries: Liion: Please observe the notes in the section on transport (see "Transport’, page 20) UK Importer: Robert Bosch Ltd Broadwater Park North Orbital Road Uxbridge UB9 5HJ Français Consignes de sécurité Explication des symboles Lire soigneusement ces instructions d'utilisa- tion Ne pas utiliser par temps de pluie. Porter une protection oculaire. Sortir la batterie avant d'effectuer des travaux de réglage ou de nettoyage sur l'outil de jardin ou si l'outil de jardin reste sans surveillance pour un certain temps. Garder les mains à distance de la lame.
