Width	89.4 cm
Installation Height	6 cm
Depth	32 cm
Weight	9.5 kg
Maximum Airflow	581 m³/h
Minimum Airflow	240 m³/h
Maximum Noise Level	67 dB(A)
Minimum Noise Level	46 dB(A)
Number of Speeds	3
Lighting	LED 2 x 2.5 W
Light Efficiency	29 lux/watt (class A)
Air Outlet Diameter	150 mm
Energy Class	B
Annual Consumption	71 kWh
Grease Filtration Efficiency	76% (class C)
Finish	Stainless Steel
Recycling Mode	Yes (optional charcoal filter)
Manufacturer Reference	PRF0114761A

Frequently Asked Questions - BOXIN LX/IX/A/90 ELICA

What is the required built-in height for the BOXIN LX/IX/A/90?

The BOXIN LX/IX/A/90 extractor unit requires a built-in height of 6 cm in the upper cabinet. Its width is 89.4 cm and its depth is 32 cm. Ensure your cabinet has sufficient space before installation.

How to clean the grease filter of the BOXIN LX/IX/A/90?

The metal grease filters are removable and dishwasher safe. Monthly cleaning is recommended under normal use, more frequently if you cook regularly. Reinstall them completely dry to avoid humidity issues.

Can this hood be used in recirculation mode without external venting?

Yes, the BOXIN LX/IX/A/90 can operate in recirculation mode provided an activated carbon filter, sold separately, is added. In this mode, air is filtered and then recirculated into the kitchen. The direct venting mode remains the most efficient in terms of airflow and odors.

What are the 3 available speeds and when to use them?

The hood offers 3 operating speeds:

• Speed 1 (240 m³/h, 46 dB): light cooking, simmering
• Speed 2: everyday regular cooking
• Speed 3 (581 m³/h, 67 dB): frying, intense cooking

Select the appropriate speed to save energy.

The hood is noisier than usual, how to solve the issue?

Excessive noise levels are often due to clogged grease filters that reduce airflow. Clean or replace them. Also check that the unit is properly secured in the cabinet and that the exhaust duct is not obstructed. At maximum speed, 67 dB(A) is the normal level.

How does the LED lighting of the BOXIN LX/IX/A/90 work?

The hood is equipped with 2 LED bulbs of 2.5 W each, with a luminous efficiency of 29 lux/watt (class A). They directly illuminate the cooking area. In case of failure, replace them with compatible replacement LEDs available from Elica service.

What diameter of exhaust duct is required for installation?

The BOXIN LX/IX/A/90 is equipped with an air outlet of 150 mm diameter. Use a rigid or semi-rigid duct of 150 mm for optimal venting. Limit bends and reduce the length of the duct to maintain the maximum airflow rate of 581 m³/h.

What is the energy class of this Elica extractor unit?

The BOXIN LX/IX/A/90 is rated energy class B, with an estimated annual consumption of 71 kWh. The lighting efficiency class is A and the grease filtration efficiency is 76% (class C).

How to maintain the BOXIN LX/IX/A/90 to extend its lifespan?

Clean the grease filters every 3 to 4 weeks. Wipe the stainless steel surface with a soft damp cloth and a non-abrasive product. If using recirculation mode, replace the carbon filter approximately every 3 months to maintain effective odor filtration.

Can the BOXIN LX/IX/A/90 be installed by oneself or is a professional required?

Installation is feasible for an experienced DIYer. It requires cutting or adapting the cabinet (89.4 cm wide, 6 cm high), connecting to the 150 mm duct, and electrical connection. For the electrical connection, a qualified electrician is recommended if you are not experienced.

Is the carbon filter included in the BOXIN LX/IX/A/90 package?

No, the carbon filter is not included in the basic package. It is only necessary if you wish to operate in recirculation mode (without exhaust duct). It is available separately from Elica or spare parts retailers like Spareka.

What is the weight of the extractor unit and are there any mounting constraints?

The unit weighs 9.5 kg. The supporting cabinet must be securely fastened to the wall and dimensioned to support this weight in addition to the cabinet itself. Follow the mounting instructions in the manual to avoid any risk of detachment.

USER MANUAL BOXIN LX/IX/A/90 ELICA

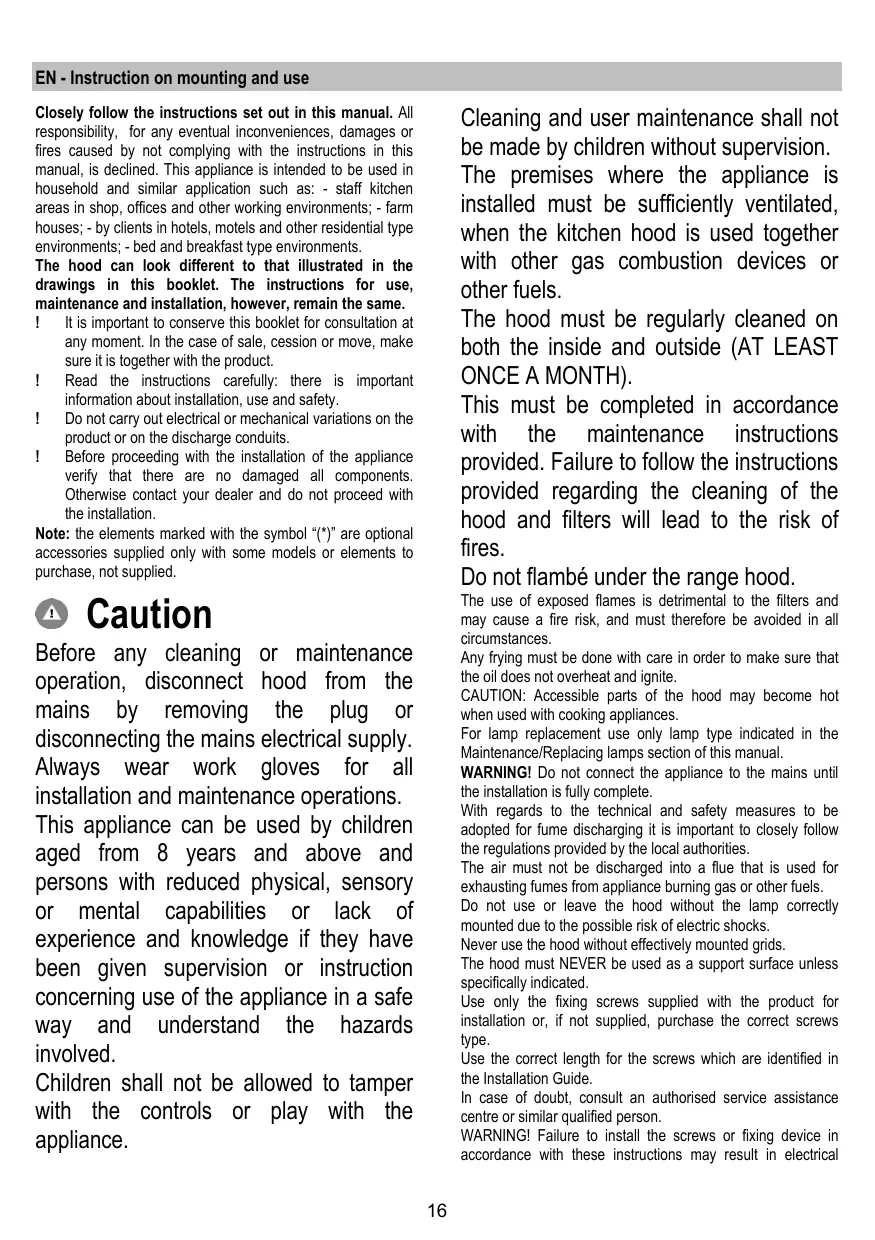

EN Instruction on mounting and use

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. This appliance is intended to be used in household and similar application such as: - staff kitchen areas in shop, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

The hood can look different to that illustrated in the drawings in this booklet. The instructions for use, maintenance and installation, however, remain the same.

It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.
! Read the instructions carefully: there is important information about installation, use and safety.
! Do not carry out electrical or mechanical variations on the product or on the discharge conduits.
! Before proceeding with the installation of the appliance verify that there are no damaged all components. Otherwise contact your dealer and do not proceed with the installation.

Note: the elements marked with the symbol (^*) are optional accessories supplied only with some models or elements to purchase, not supplied.

Caution

Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply. Always wear work gloves for all installation and maintenance operations.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not be allowed to tamper with the controls or play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

This must be completed in accordance with the maintenance instructions provided. Failure to follow the instructions provided regarding the cleaning of the hood and filters will lead to the risk of fires.

Do not flambé under the range hood.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.

For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual.

WARNING! Do not connect the appliance to the mains until the installation is fully complete.

With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

The air must not be discharged into a flue that is used for exhausting fumes from appliance burning gas or other fuels.

Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

Never use the hood without effectively mounted grids.

The hood must NEVER be used as a support surface unless specifically indicated.

Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.

Use the correct length for the screws which are identified in the Installation Guide.

In case of doubt, consult an authorised service assistance centre or similar qualified person.

WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical

hazards.

Do not use with a programmer, timer, separate remote control system or any other device that switches on automatically.

This appliance is marked according to the European directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Appliance designed, tested and manufactured according to:

• Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.
  Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301.
• EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapour and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odour reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

Use

The hood is designed to be used either for exhausting or filter version.

Ducting version

In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood.

Attention! The exhausting pipe is not supplied and must be purchased apart.

Diameter of the exhausting pipe must be equal to that of the connection ring.

Attention! If the hood is supplied with active charcoal filter, then it must be removed.

Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange).

Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic increase in noise.

Any responsibility in the matter is therefore declined.

Use a duct of the minimum indispensable length.
! Use a duct with as few elbows as possible (maximum elbow angle: 90^ ).
Avoid drastic changes in the duct cross-section.

Filter version

The aspirated air will be degreased and deodorised before being fed back into the room.

In order to use the hood in this version, you have to install a system of additional filtering based on activated charcoal.

Installation

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 50cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

Electrical connection

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

Warning! If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid hazard.

Mounting

Before beginning installation:

• Check that the product purchased is of a suitable size for the chosen installation area.
• Remove the charcoal (*) filter/s if supplied (see also relative paragraph). This/these is/are to be mounted only if you want to use the hood in the filtering version.
• Check (for transport reasons) that there is no other supplied material inside the hood (e.g. packets with screws (), guarantees (), etc.), eventually removing them and keeping them.

In the case of the presence of panels and/or walls and/or lateral wall units check that there is sufficient space to install the hood and that access to the command panel is easy.

Operation

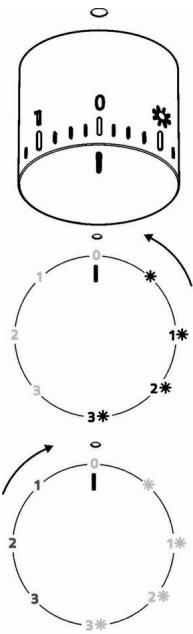

Always fully open the vapour catcher (A). Fig. 10

	Light ON
1	Speed 1 Light ON
2	Speed 2 Light ON
3	Speed 3 Light ON
0	OFF
1	Speed 1 Light OFF
2	Speed 2 Light OFF
3	Speed 3 Light OFF

Maintenance

Cleaning

Clean using ONLY the cloth dampened with neutral liquid detergent. DO NOT CLEAN WITH TOOLS OR INSTRUMENTS. Do not use abrasive products. DO NOT USE ALCOHOL!

Panel

Fig. 8

Attention! Hold the panel with both hands when dismantling and re-mounting in position to avoid it falling and causing damage to people or things.

Dismantling:

-pull the panel (FRONT SIDE) downward with decision,

-push to the left the small lever located on the right side of the panel,

-unhook it from the back hinges.

Cleaning:

Clean the suction panel with the same frequency as the fats filter using a cloth soaked in neutral liquid detergents.

Avoid the use of products containing abrasives. DO NOT USE ALCOHOLS.

Montage:

The panel must be hooked at the back and fixed in front fitted into the pins for the purpose on the surface of the hood.

Attention! always check that the panel is well fixed in its place.

Grease filter

Fig. 1-7

Traps cooking grease particles.

The grease filter must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

To remove the grease filter, pull the spring release handle.

Charcoal filter (filter version only)

Fig. 6

It absorbs unpleasant odours caused by cooking.

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter.

In any case it is necessary to replace the cartridge at least every four months.

The charcoal filter may NOT be washed or regenerated.

Circular carbon filter

Apply one on each side as cover to both the shield grids of the motor impeller, then turn clockwise.

For the disassembly, turn counter-clockwise.

Replacing lamps

Fig. 9

Disconnect the appliance from the electricity.

Warning! Prior to touching the light bulbs ensure they are cooled down.

Replace the old light bulb with the one of the same type as specified in the feature label or near the light lamp on the hood.

1. Using a flat head screwdriver or equivalent tool, carefully pry loose the light cover.
2. Remove the damaged light and replace with a new 12 Volt, 20 Watt (Maximum) halogen light made for a G-4 base SuITABLE FOR USE IN OPEN LUMINAires. Follow package directions and do not touch new light with bare hands.
3. Reinstall the light cover. (it will snap shut).

If the lights do not work, make sure that the lamps are fitted properly into their housings before you call for technical assistance.

• Model with LED light

The hood is equipped with a lighting system based on LED technology.

The LEDs guarantee an optimum lighting, a duration up to 10 times as long as the traditional lamps and allow to save 90% electrical energy.

For replacement, contact the technical service.
