USER MANUAL SU-WL450 SONY

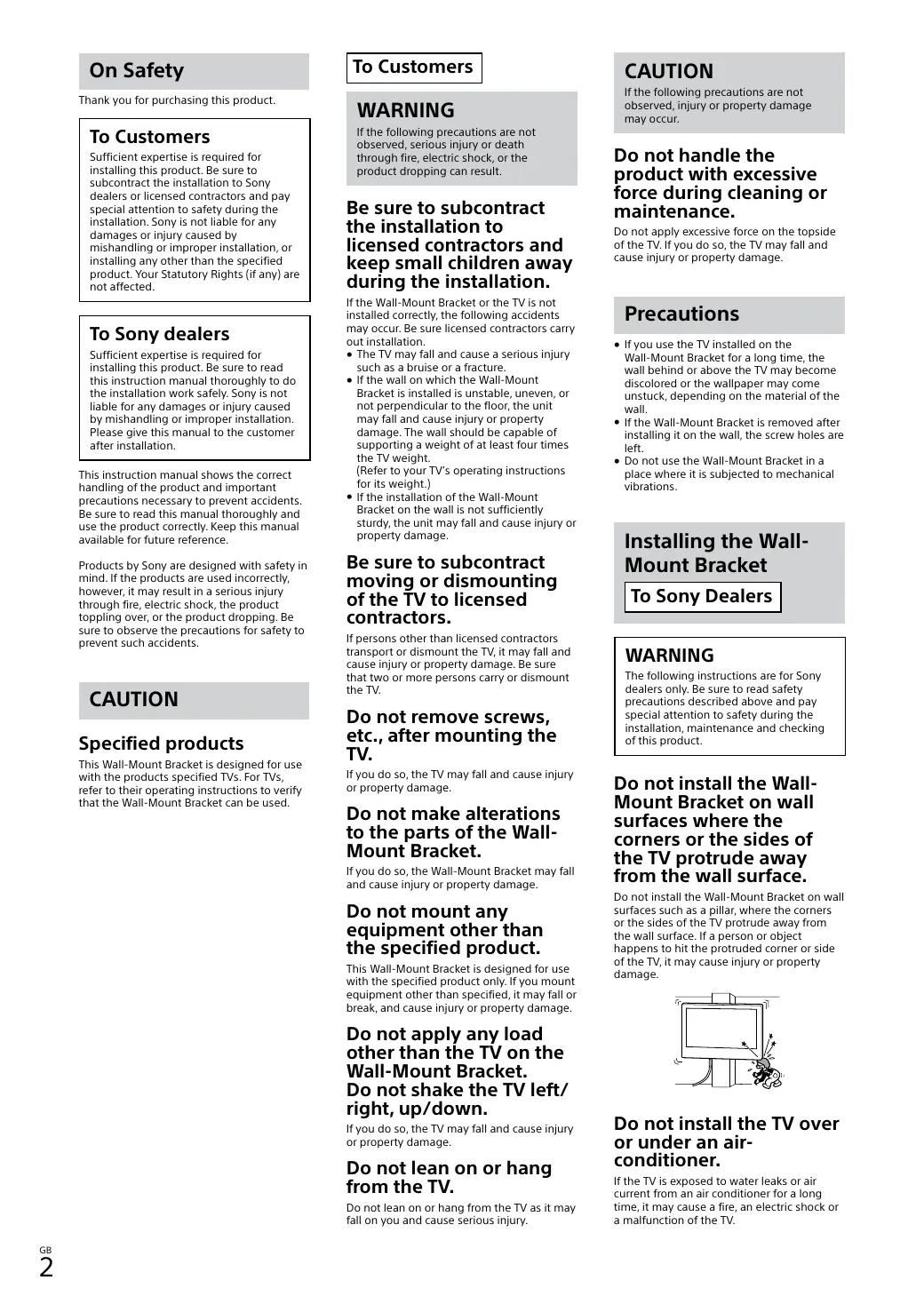

Thank you for purchasing this product.

To Customers

Sufficient expertise is required for installing this product. Be sure to subcontract the installation to Sony dealers or licensed contractors and pay special attention to safety during the installation. Sony is not liable for any damages or injury caused by mishandling or improper installation, or installing any other than the specified product. Your Statutory Rights (if any) are not affected.

To Sony dealers

Sufficient expertise is required for installing this product. Be sure to read this instruction manual thoroughly to do the installation work safely. Sony is not liable for any damages or injury caused by mishandling or improper installation. Please give this manual to the customer after installation.

This instruction manual shows the correct handling of the product and important precautions necessary to prevent accidents. Be sure to read this manual thoroughly and use the product correctly. Keep this manual available for future reference.

Products by Sony are designed with safety in mind. If the products are used incorrectly, however, it may result in a serious injury through fire, electric shock, the product toppling over, or the product dropping. Be sure to observe the precautions for safety to prevent such accidents.

CAUTION

Specified products

This Wall-Mount Bracket is designed for use with the products specified TVs. For TVs, refer to their operating instructions to verify that the Wall-Mount Bracket can be used.

To Customers

WARNING

If the following precautions are not observed, serious injury or death through fire, electric shock, or the product dropping can result.

Be sure to subcontract the installation to licensed contractors and keep small children away during the installation.

If the Wall-Mount Bracket or the TV is not installed correctly, the following accidents may occur. Be sure licensed contractors carry out installation.

The TV may fall and cause a serious injury such as a bruise or a fracture.
- If the wall on which the Wall-Mount Bracket is installed is unstable, uneven, or not perpendicular to the floor, the unit may fall and cause injury or property damage. The wall should be capable of supporting a weight of at least four times the TV weight. (Refer to your TV's operating instructions for its weight.)
- If the installation of the Wall-Mount Bracket on the wall is not sufficiently sturdy, the unit may fall and cause injury or property damage.

Be sure to subcontract moving or dismounting of the TV to licensed contractors.

If persons other than licensed contractors transport or dismount the TV, it may fall and cause injury or property damage. Be sure that two or more persons carry or dismount the TV.

Do not remove screws, etc., after mounting the TV.

If you do so, the TV may fall and cause injury or property damage.

Do not make alterations to the parts of the Wall-Mount Bracket.

If you do so, the Wall-Mount Bracket may fall and cause injury or property damage.

Do not mount any equipment other than the specified product.

This Wall-Mount Bracket is designed for use with the specified product only. If you mount equipment other than specified, it may fall or break, and cause injury or property damage.

Do not apply any load other than the TV on the Wall-Mount Bracket. Do not shake the TV left/right, up/down.

If you do so, the TV may fall and cause injury or property damage.

Do not lean on or hang from the TV.

Do not lean on or hang from the TV as it may fall on you and cause serious injury.

CAUTION

If the following precautions are not observed, injury or property damage may occur.

Do not handle the product with excessive force during cleaning or maintenance.

Do not apply excessive force on the topside of the TV. If you do so, the TV may fall and cause injury or property damage.

Precautions

• If you use the TV installed on the Wall-Mount Bracket for a long time, the wall behind or above the TV may become discolored or the wallpaper may come unstuck, depending on the material of the wall.
  If the Wall-Mount Bracket is removed after installing it on the wall, the screw holes are left.
• Do not use the Wall-Mount Bracket in a place where it is subjected to mechanical vibrations.

Installing the WallMount Bracket

To Sony Dealers

WARNING

The following instructions are for Sony dealers only. Be sure to read safety precautions described above and pay special attention to safety during the installation, maintenance and checking of this product.

Do not install the WallMount Bracket on wall surfaces where the corners or the sides of the TV protrude away from the wall surface.

Do not install the Wall-Mount Bracket on wall surfaces such as a pillar, where the corners or the sides of the TV protrude away from the wall surface. If a person or object happens to hit the protruded corner or side of the TV, it may cause injury or property damage.

Do not install the TV over or under an air-conditioner.

If the TV is exposed to water leaks or air current from an air conditioner for a long time, it may cause a fire, an electric shock or a malfunction of the TV.

Be sure to install the Wall-Mount Bracket securely to the wall following the instructions in this instruction manual.

If any of the screws are loose or fall out, the Wall-Mount Bracket may fall and cause injury or property damage. Be sure to use the appropriate screws for the material of the wall and install the unit securely using four or more screws of 8mm diameter (or equivalent).

Be sure to use the supplied screws and attachment parts properly following the instructions given in this instruction manual. If you use substitute items, the TV may fall and cause bodily injury to someone or damage to the TV.

Be sure to assemble the bracket properly following the instructed procedure explained in this instruction manual.

If any of the screws are loose or fall out, the TV may fall and cause bodily injury to someone or damage to the TV.

Be sure to tighten the screws securely in the designated position.

If you fail to do so, the TV may fall and cause bodily injury to someone or damage to the TV.

Be careful not to subject the TV to shock during installation.

If the TV is exposed to shock, it may fall or break apart. This may cause injury.

Be sure to install the TV on a wall that is both perpendicular and flat.

If you fail to do so, the TV may fall and cause injury.

After proper installation of the TV, secure the cables properly.

If people or objects get tangled with cables, this may result in injury or damage to the TV.

Do not allow the AC power cord or the connecting cable to be pinched.

If the AC power cord or the connecting cable is pinched between the unit and the wall or is bent or twisted by force, the internal conductors may become exposed and cause a short circuit or an electrical break. This may cause a fire or an electric shock.

The screws needed to secure the Wall-Mount Bracket to the wall are not supplied.

Use the appropriate screws for the wall material and structure when mounting the Wall-Mount Bracket.

Installing the TV onto the wall

Installation procedure differs, depending on your TV.

Follow the instructions in this manual, referring to the "Installation Guide".

Preparing for installation

• Have the TV's operating instructions at hand before installation.
  Refer to the "Installation Guide".
• Be sure to have a Phillips screwdriver that fits the screws prior to the assembly.
• Confirm the installing position of your TV.
• Prepare four or more screws of 8mm diameter and one screw of 5mm or equivalent (not supplied). Select screws suitable for the material of the wall.

Checking the parts

• Verify that all the parts are included.
• Identify the parts by their shape, referring to the "Installation Guide", 1.

Base (20) (1)
⑧ Pulley (2)
PSW 6x20 (4)
PSW 4x20 with Bush (2)
Spacer (20) (2)
Belt (1)
⑥ Bush (20) (M4) (2)
PSW 4x20 (2)
① Base Adaptor (2)
① PSW 4x10 (8)
Spacer (60) (2)
PSW 6x50 (2)
M Bush (M4) (2)
PSW 4x50 (2)
Wall-Mount Attachment (S) (2)
Spacer (2)
@ Washer (1)
PSW 5x12 (1)

Deciding on the installation location

1 Decide on the installation location.

Refer to the TV installation dimensions table. For details, refer to the TV's instruction manual.

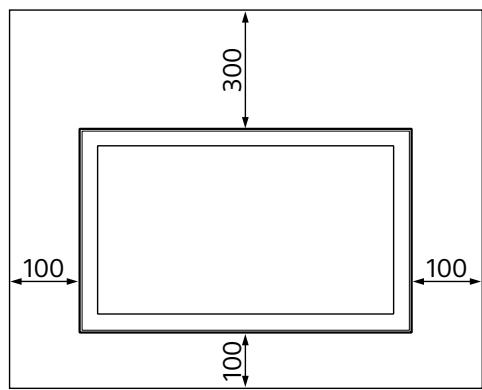

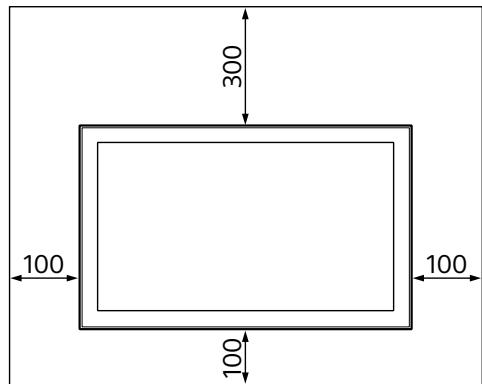

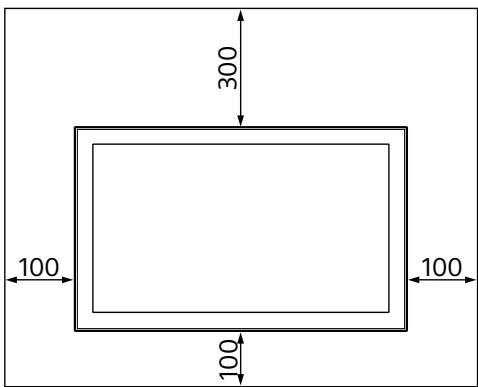

Allow for suitable clearance between the TV and the ceiling and protruding parts of the wall as shown below.

Unit: mm

Never install the TV as shown below:

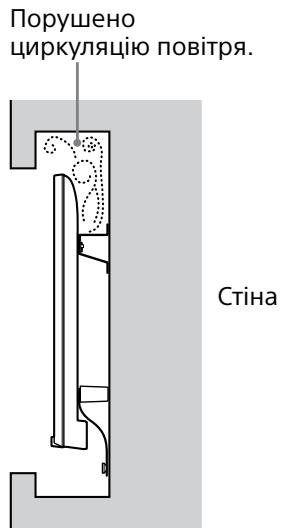

Air circulation is blocked.

Note

• If you intend to route the cables in the wall, make a hole in the wall to insert the cables before beginning the installation.

To prevent pinching the cables, prepare a hole in the wall somewhere outside the perimeter of the Base (20) A. Base Adaptor 1 and Spacer (20) E, Spacer (60) K.

2 Select Wall mounting style. It is selectable as shown below.

2-a Standard mount
2-b Slim mount
2-c Super Slim mount

Refer to the "Installation Guide", 2 and the Table of "Preparing for installation of the TV to the wall", 3.

WARNING

• When 2-b or 2-c is selected, Rear terminal access is limited.

3 Fit Base Adaptor ① by using Screw (PSW 4x10) ② to Base (20) ④ when selecting 2-a. Refer to Installation Guide, 3 and "Installing the TV to the wall" of TV's instruction manual, 7. In case of selecting 2-b or 2-c, then skip this step.
4 Decide the positions of the screws for installing the Base (20) (A).

Refer to the specifications on page 6. When selecting 2-a, please use the hole positions of Base Adaptor ①

WARNING

• The wall that the TV will be mounted on should be able to support a weight of at least four times that of the TV (Refer to your TV's operating instructions for its weight.).
• Determine the strength of the wall the TV will be mounted on. Reinforce the wall sufficiently, if necessary.

Installing the Base on the wall

• Use four or more screws of 8mm diameter or equivalent (not supplied).
• Fit four screws to the holes of Base Adaptor ① With Base (20) A (2-a only).
  Install the Base (20) ④ on the wall horizontally. Refer to the "Installation Guide", 4.

Preparing for the installation of the TV

Prepare installation of the TV, following the "Installing the TV to the wall" of TV's instruction manual.

Installing the TV on the wall

1 Connect the necessary cable(s) to the TV.

Make sure to connect the cables before installing the TV on the wall. You will be unable to connect the cables when the TV is installed.

Refer to the operating instructions supplied with your TV.

Note

• Subcontract the cable routing in the wall to a licensed contractor.
• Bundle the connecting cables to prevent stepping on them before wall mounting.

2 Install the TV onto the Base.

• For the location of the Pulleys ⑧ to the hang on the Base, refer to the TV installation dimensions table. For details, refer to the TV's instruction manual.
• Hold the TV securely with both hands and gently hang the Pulleys ⑧ attached to the rear of the TV to the Base, making sure to confirm the shape of the holes.
• After installing the TV on the wall, confirm the Pulleys (B) are firmly latched into the Base. Refer to the "Installation Guide", 5.

WARNING

• Be sure that two or more persons hold the TV when carrying it.

3 Preventing the bottom of the TV from shifting.

Take up the slack of Belt F and attach it to the wall tightly. Refer to the "Installation Guide", 6.
- Use a 5mm diameter screw or equivalent (not supplied).

Note

• Try to pull the bottom of the TV forwards yourself slightly, to make sure that it does not move forward. If there is any movement, it is not fixed correctly, and the Belt F should be secured firmly again.

Confirming the completion of the installation

Check the following points.

• The Pulleys (B) are firmly hung onto the Base.
• The cord and the cable are not twisted or pinched.
• The Belt () is tight with no slack.

WARNING

• Improper placement of the AC power cord, etc., may cause fire or electric shock through a short circuit. Be sure to confirm the completion of the installation for safety.

Other information

When removing the TV, reverse the previous installation procedure.

Refer to the "Installation Guide", 7.

WARNING

• Be sure that two or more persons hold the TV when removing it.

Specifications

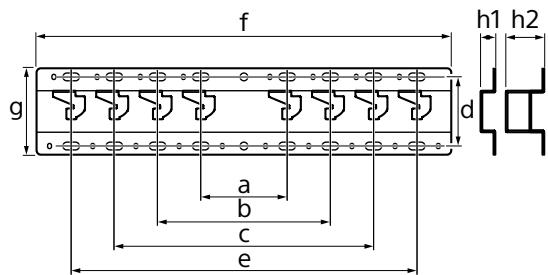

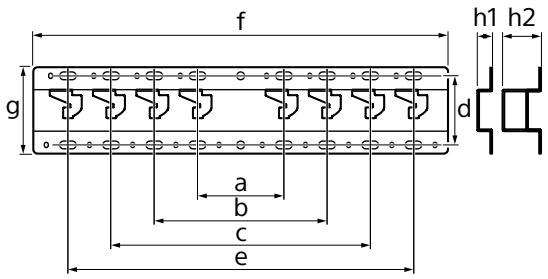

Dimensions: (Approx.) [mm]

a :100

b : 200

c :300

d : 80

e :400

f :480

g :100

h1 : 20 (case 2-b, 2-c)

h2 : 60 (case a)

Weight (base only): (Approx.) [kg]

0.8

Design and specifications are subject to change without notice.

Sécurité

Dimensions: (approx.) [mm]

a :100

b : 200

c :300

d : 80

e :400

f :480

g :100

h1 : 20 (cas 2-b, 2-c)

h2:60 (cas 2-a)

Poids (base seule) : (approx.) [kg]

0,8

Se "Installationshandboken", 5.

WARNING

2 Instale o television na base (20) A.

Dimensoes: (Aprox.) [mm]

a : 100

b : 200

c :300

d : 80

e : 400

f :480

q : 100

h1 : 20, h2 : 60

h1 : case 2-b, 2-c

h2 : case 2-a

Peso (apenas base): (Aprox.) [kg]

0,8

Specifications producer
