USER MANUAL SMG.180.90 Grundfos
Safety instructions and other important information


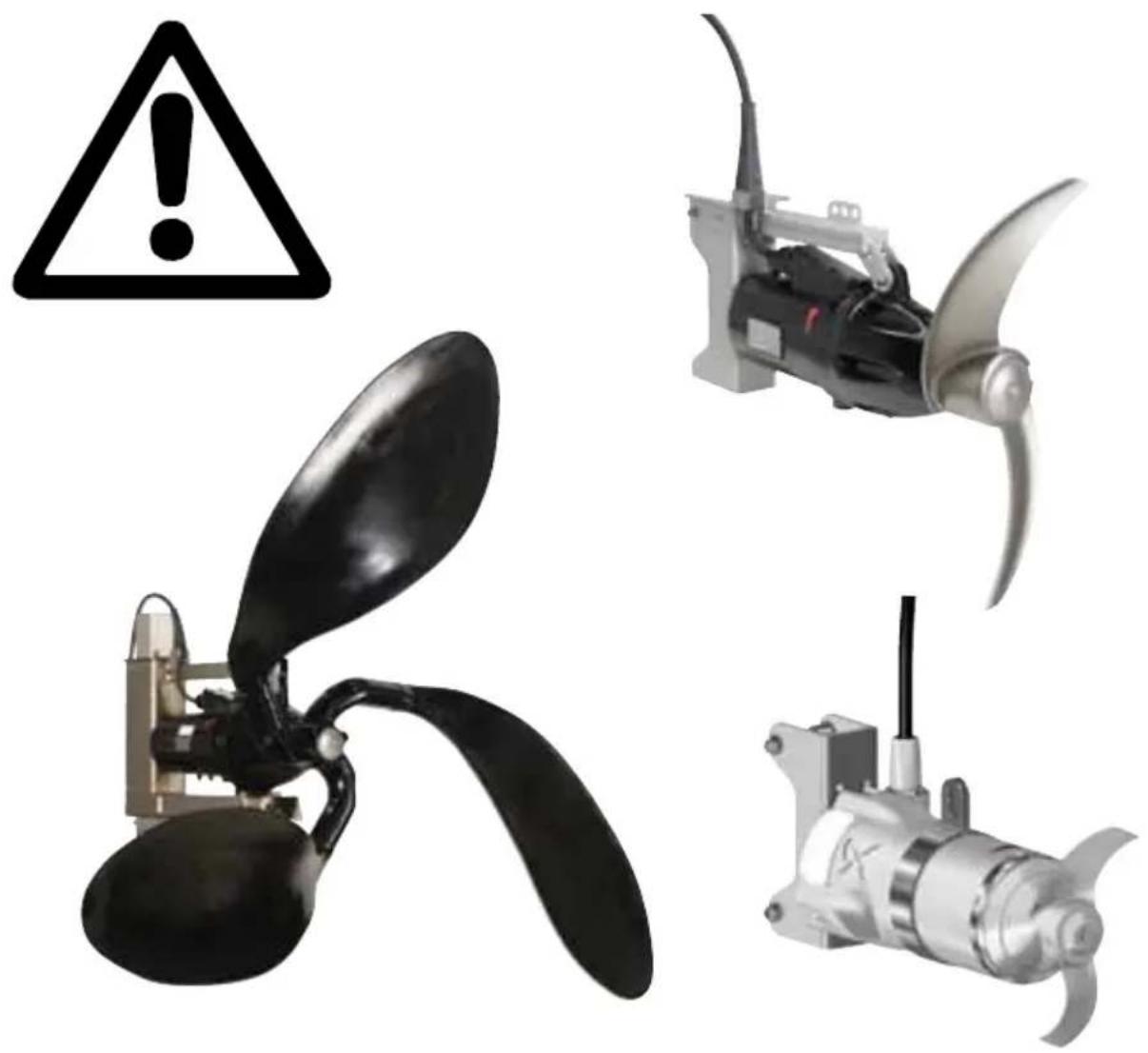

Three industrial propeller devices with warning symbols: a triangular warning triangle, a multi-blade propeller, and a multi-blade motor (no text or labels visible)
Installation and operating instructions
http://net.grundfos.com/qr/i/98826058
English (GB)
Safety instructions....5
Български (BG)
Declaration of conformity 90
Operating manual EAC 92
Original safety instructions
These safety instructions give a quick overview of the safety precautions to be taken in connection with any work on this product.
Observe these safety instructions during handling, installation, operation, maintenance, service and repair of this product.
These safety instructions are a supplementary document, and all safety instructions will appear again in the relevant sections of the installation and operating instructions.
Keep these safety instructions at the installation site for future reference.
Safety instructions
DANGER
Electric shock
Death or serious personal injury
- Before starting work on mixers or flowmakers, make sure that the fuses have been removed or the main switch has been switched off. Make sure that the power supply cannot be accidentally switched on.
The explosion protection classification of the SMD mixer is 2G Ex db h IIB T4 Gb. The classification of the installation must be approved by the local authorities in each individual case.
Explosion-proof versions
When using explosion-proof mixers, observe the following safety regulations.
Temperature monitoring
The motor temperature must always be monitored via the built-in PTC or PTO (Klixon) sensors. The associated relay must be certified for this use with the safety level, SIL 1. If the relay is built in as part of a frequency converter, the converter must also fulfil SIL 1.
Power cable
The factory-fitted power cable must not be shortened.
DANGER
Explosive environment
Death or serious personal injury
- Do not dismantle mixers and flowmakers in an explosive atmosphere.
Soft starter and frequency converter
Only use soft starters and frequency converters if the Ex classification of these is higher than the one applying to the mixer, and they are installed in accordance with the Ex regulations.
Accessories
Only use the mixer together with accessories supplied and approved by Grundfos.
Maintenance, service and repair
Only Grundfos or authorised service workshops are allowed to dismantle mixers. This also applies to the cable entry.
Use only components produced by Grundfos for repair purposes.
For inspection and maintenance the standard EN 60079-17 must be considered and fulfilled.
Service log
Spare parts must be registered in a service log in order to have a 100 % traceability during the product life.
Installing the product
DANGER
Electric shock
Death or serious personal injury
- Before making any electrical connections, make sure to remove the fuses or switch off the main switch. Make sure that the power supply cannot be accidentally switched on.
Electrical connection
DANGER
Electric shock
Death or serious personal injury
- Before making any electrical connections, make sure to remove the fuses or switch off the main switch. Make sure that the power supply cannot be accidentally switched on.
The explosion protection classification of the SMD mixer is II 2G Ex db h IIB T4 Gb. The classification of the installation must be approved by the local authorities in each individual case.
For the electrical installation the standard EN 60079-14 must be fulfilled.
Explosion-proof SMD mixers must be protected against too high temperature by means of PTC or PTO (Klixon) sensors.
The sensors must be connected to a certified signal converter with the safety level, SIL 1. If the relay is built in as part of a frequency converter, the converter must also fulfil SIL 1.
If the power cable to the sensor is lengthened, comply with the ATEX directive as well as the EN 60079-0 and EN 60079-14 standards for the intrinsically safe circuit.
The terminal connections of the intrinsically safe and the not intrinsically safe circuits must be separated and must be clearly distinguishable.
The operator must make sure that all installation work is done in conformity with the relevant standards.
DANGER
Electric shock
Death or serious personal injury
- When adjusting the relay, beware of electric voltage.
For explosion-proof products, the PTC or PTO sensors placed in the windings must be connected to a suitable relay with the appropriate safety level (SIL 1).
Starting up the product
CAUTION
Pressurised system
Minor or moderate personal injury
- As pressure may have built up in the oil chamber, do not remove the oil level screw until the pressure has been fully relieved.
Identification

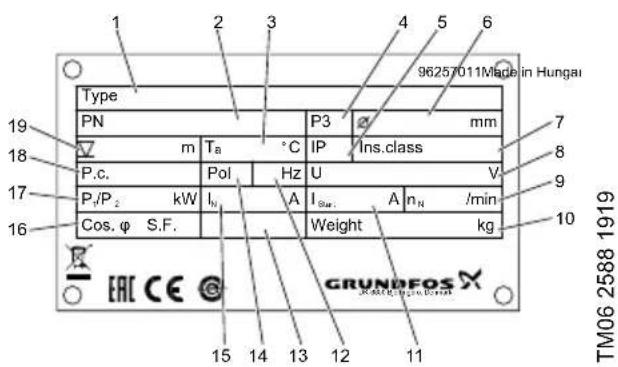

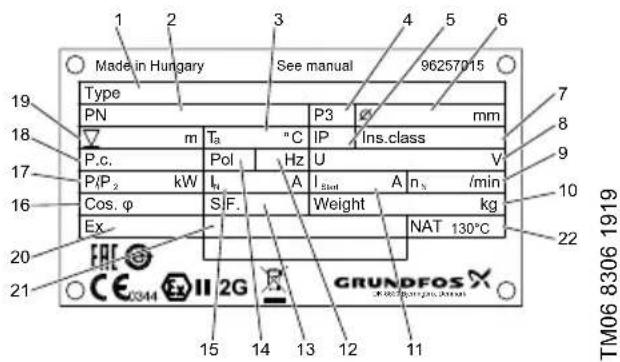

Nameplate
The additional nameplate supplied with the mixer or flowmaker must be fixed in a visible position at the installation site.
| Pos. Description |
| 1 Type designation |
| 2 Product number |
| 3 Liquid temperature range |
| 4 Production site |
| 5 Enclosure class according to IEC |
| 6 Propeller diameter |
| 7 Insulation class |
| 8 Rated voltage |
| 9 Rated speed (propeller) |
| 10 Weight |
| 11 Starting current |
| 12 Frequency |
| 13 Safety factor |
| 14 Number of poles |
| 15 Rated current |
| 16 Power factor |
| 17 Motor power P1/P2 |
| 18 Production code |
| 19 Maximum installation depth |
| 20 ATEX approval class |
| 21 Certificate number |
| 22 Nominal tripping temperature (NAT) |
Type key
Example: SMG.30.45.325.5.0B
| Code Explanation Designation | ||
| S SMD, SMG, SFG Type range | ||
| M M i x e r | Version | |
| F Flowmaker | ||
| G Gear-driven | Drive | |
| D Direct-driven | ||
| 30 | Code from type designation / 10 kW30 = 3.0 kW | Motor output power P2 |
| 45 45 cm | Propeller diameter [cm] | |
| [ ] Standard | Application | |
| A Agriculture | ||
| M | Mud, for high density | |
| H | Heavy duty, biogas plants | |
| 325 325 RPM | Propeller speed [min-1] | |
| [ ] Standard | Installation method | |
| T | 2" thread connection | |
| [ ] | Non-explosion-proof | Explosion protection |
| Ex Explosion-proof | ||
| 5 50 Hz | Frequency [Hz] | |
| 6 60 Hz | ||
| 0B 3 x 400-415 V, Y | Voltage code | |
| 1B 3 x 400-415 V, D | ||
| 0K 3 x 380 V, Y | ||
| 1K 3 x 380 V, D | ||
| 0P 3 x 440-480 V, Y | ||
| 1P 3 x 440-480 V, D | ||
| [ ] First generation | GenerationA Second g | |
| B Third generation | ||
| Z | Custom-built product | Customisation |
Servicing the product
Observe all regulations applying to mixers installed in potentially explosive environments.
Make sure that no work is carried out in potentially explosive environment.
CAUTION
Biological hazard
Minor or moderate personal injury
- Flush the mixer or flowmaker thoroughly with clean water and rinse the mixer or flowmaker parts in water after dismantling.
CAUTION
Pressurised system
Minor or moderate personal injury - As pressure may have built up in the oil chamber, do not remove the oil level screw until the pressure has been fully relieved.
Fault finding the product
Observe all regulations applying to mixers or flowmakers installed in potentially explosive environments.
Make sure that no work is carried out in potentially explosive environment.
Keep a service log.
Disposal
The crossed-out wheelie bin symbol on a product means that it must be disposed of separately from household waste. When a product marked with this symbol reaches its end of life, take it to a collection point designated by the local
waste disposal authorities. The separate collection and recycling of such products will help protect the environment and human health.
See also end-of-life information at www.grundfos.com/product-recycling.
GB: EC/EU declaration of conformity
We, Grundfos, declare under our sole responsibility that the products SMD, SMG, SFG, to which the declaration below relates, are in conformity with the Council Directives listed below on the approximation of the laws of the EC/EU member states.
