USER MANUAL HM Stick STEINEL

Black steinel HM Stick electric shaver tool (no visible text or symbols on body)

DE

Inhalt

Close-up of a metallic cylindrical mechanical part with a tapered shaft (no text or symbols visible)

B

3D rendered mechanical component with curved and straight sections, no visible text or symbols

C

3D rendered mechanical component with a cylindrical base and curved top (no text or symbols)

D

3D rendered metallic mechanical component with a curved top and side slot (no text or symbols)

A Reduzierdüse 7 mm
B Reduzierdüse mit Schutzreflektor
C Reflektordüse 40 mm
D Reflektordüse 10 mm

Close-up of a white car hood with a dark square grille and a small eye (no text or symbols visible)

LED-Leuchte

Four-panel black-and-white photo collage showing hands using power tools and a small robotic device, no visible text or symbols.

Schrumpfen

Close-up of a metallic mechanical component with a curved tip and black handle (no visible text or symbols)

Close-up of a metallic mechanical component with curved ends and a cylindrical shaft (no visible text or symbols)

1. About this document 17
2. General safety precautions 17
3. System description 20
4. Proper use 21
5. Commissioning 22
6. Applications 23
7. Disposal 25
8. Declaration of conformity 25
9. Manufacturer's warranty 26
10. Technical specifications 28

1. About this document

– Under copyright. Reproduction either in whole or in part only with our consent.
- Subject to change in the interest of technical progress.

Hazard warning!

Warning of hazards due to environmental influences!

Beware of toxic gases and fire hazards!

Warning of hazards from electricity!

2. General safety precautions

Failure to observe these operating instructions presents hazards!

These instructions contain important information on the safe use of this product. Particular attention is drawn to potential hazards. Failure to observe this information may lead to death or serious injuries.

• Read instructions carefully.
• Follow safety advice.
• Keep instructions within easy reach.

When using power tools, the following basic safety measures must be observed to protect against electric shock, risk of injury and fire. If the appliance is not handled with care, a fire may break out or people may be injured. Check the appliance for any damage (mains connection cable, housing, etc.) before commissioning and do not operate the appliance if it is damaged.

Do not operate the appliance unsupervised. Children should be supervised to ensure that they do not play with the appliance.

Initial commissioning

Some smoke may be emitted on first use. The smoke is caused by binding agents that are released from the insulating foil of the heater by the heat during the first use. The appliance should be placed on its base to ensure that smoke is emitted quickly. The working area should be well ventilated during the first use. The smoke emitted is not harmful!

Warning of hazards due to environmental influences!

• Do not expose power tools to rain. Do not use power tools when damp or in a damp or wet environment.
• Take care when using the appliances in the vicinity of flammable materials.
• Do not aim at the same spot for long periods of time.
• Do not use in the presence of an explosive atmosphere.
• Heat can be conducted to combustible materials that are covered.

Warning of hazards from electricity!

• Avoid coming into contact with earthed objects, such as pipes, radiators, cookers or refrigerators.
• Do not leave the tool unattended while it is in operation.

Store your tools in a safe place.

• After use, set the tool down on its standing surface and let it cool before putting it away.

• When not in use, tools must be stored in a dry, locked room out of children's reach.

• This tool may be used by children aged 8 or above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been given instructions on how to use the tool safely and understand the hazards involved.

• Do not allow children to play with the tool.
• Children are not allowed to clean or carry out maintenance work on the tool without supervision.

Work safety and personal protection gear

Beware of falling tools or objects! Make sure that persons are not struck by falling tools or objects!

• Wear your personal protection gear.
• Depending on tool use, wear protective gloves, eye and / or breathing protection.

Beware of toxic gases and fire hazards!

• For your own safety, only use accessories and attachments that are specified in the operating instructions or recommended or specified by the tool manufacturer.
• The use of tools or accessories other than those recommended in the operating instructions or in the catalog may pose a risk of personal injury to you.

Repairs only by a qualified electrician

• This power tool complies with the relevant safety regulations.
• Repairs should only be performed by a qualified electrician. Otherwise the user may run the risk of accidents.

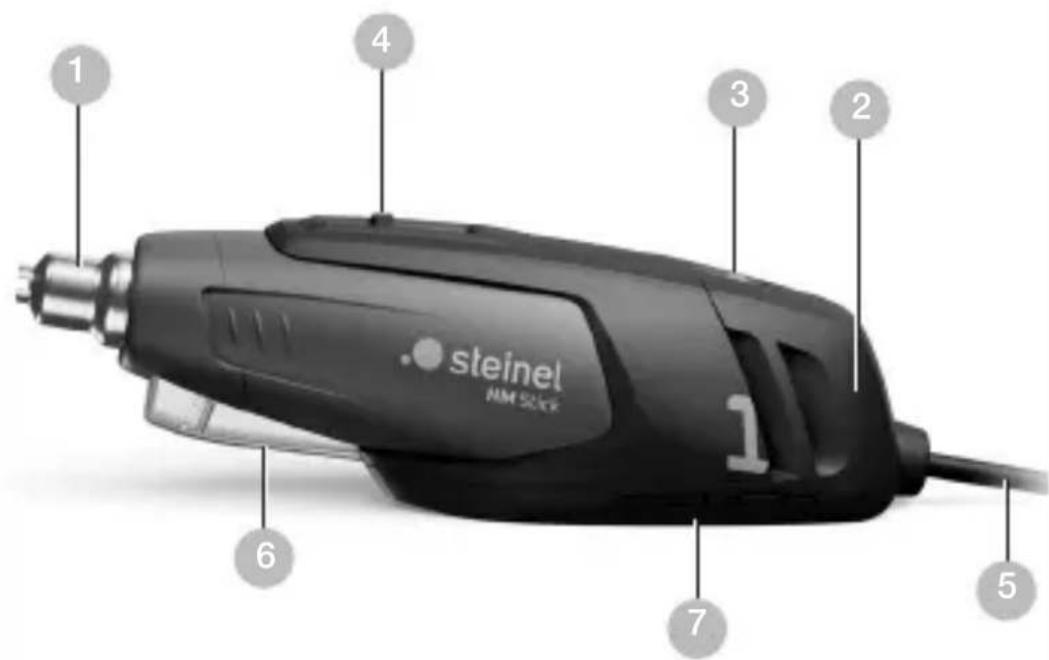

3. System description

3.1

1 4 3 2 steinel NMM SKX 6 7 5

1 Stainless steel outlet nozzle
2 Air inlet
3 ON/OFF slide switch
4 Hanging ring
5 Rubber sheathed cord
6 LED light for illuminating the work area
7 Standing surface

Accessoires

GB

3.2

A

Close-up of a metallic cylindrical mechanical part with a flanged end (no text or symbols visible)

B

3D rendered mechanical component with curved and straight sections (no text or symbols)

C

3D rendered mechanical component with a cylindrical base and curved top (no text or symbols)

D

3D rendered metallic mechanical component with curved and angular features (no text or symbols)

A Reduction nozzle 7 mm
B Reduction nozzle with reflector guard
C Reflector nozzle 40 mm
D Reflector nozzle 10 mm

4. Proper use

The STEINEL HM Stick power tool is intended for shaping plastic as well as for heating shrink tubing. It is also suitable for soldering, de-soldering and undoing bonded joints.

The tool is not intended for use as a hot-air barbecue lighter, as a hair-drier or for use in vehicles.

5. Commissioning

The tool is switched ON and OFF at the 3 slide switch. The distance from the object you are working on depends on material and intended method of working. Always try out temperature on a test piece first. Using the attachable nozzles (see accessories page on the cover) the flow of hot air can be controlled with maximum precision.

Take care when changing hot nozzles! When using the hot air tool in the self-resting position, make sure it is standing on a stable, non-slip and clean surface.

Hanging ring

The integrated ring 4 can be used for hanging the tool. Note: max. pulling force = 150 N

Close-up of a white car hood with a black arched grille and a circular opening (no text or symbols visible)

LED light

The LED ^6 is lit when the tool is switched ON in addition to illuminating the area you are working on, it also serves as „tool ON“ telltale light.

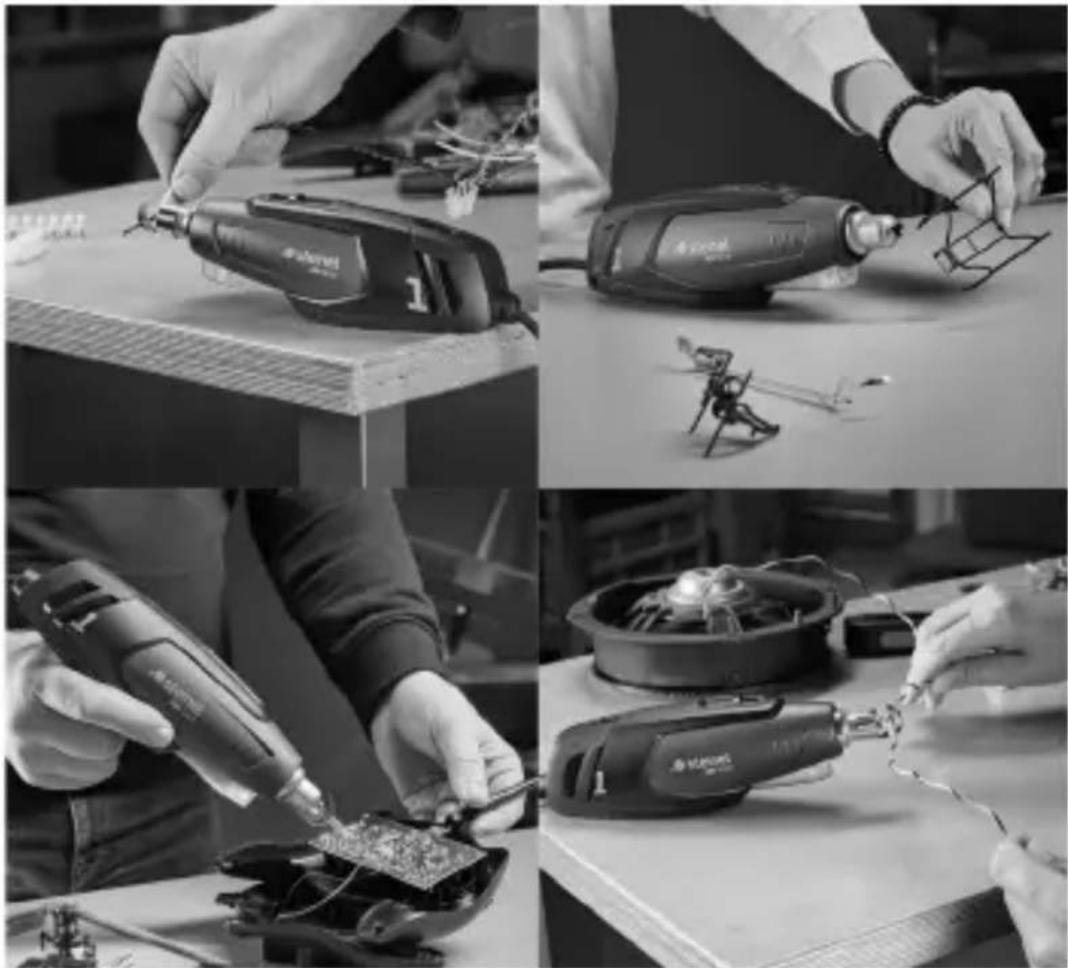

6. Applications

The hot air tool is ideal for use on smaller-type components and shrink tubing. In particular, it has come to be appreciated by model-makers and electronics technicians.

6.1

Four-panel black-and-white photo collage showing hands using power tools to repair electronic components, including a tool holder and a wire-wrapped device (no visible text or symbols)

Heat-shrinking

– Shrink-fitting connectors for cables and wires

- Fitting heat-shrinkable products

Shaping

- Work on plastic parts, e.g. in model-making

Soldering / de-soldering

- Soldering SMD components

- Repairs and corrections to electronic SMD assemblies

Drying

- Paints

- Plastics

For your safety

Close-up of a metallic mechanical component with a curved handle (no visible text or symbols)

Close-up of a metallic mechanical component with curved and flat ends (no visible text or symbols)

- The thermal cut-out shuts the tool down if it is overloaded.

- Attaching the reflector nozzle

7. Disposal

Electrical and electronic equipment, accessories and packaging must be recycled in an environmentally compatible manner.

Do not dispose of electrical and electronic equipment as domestic waste.

EU countries only:

Under the current European Directive on Waste Electrical and Electronic Equipment and its implementation in national law, electrical and electronic equipment no longer suitable for use must be collected separately and recycled in an environmentally compatible manner.

8. Declaration of conformity

STEINEL GmbH hereby declares that the hot air blower HM Stick complies with Directive 2006/42/EC.

The full text of the EU Declaration of Conformity is available at the following Internet address:

www.steinel.de

9. Manufacturer's warranty

Manufacturer's warranty of STEINEL GmbH,

Dieselstrasse 80-84, DE-33442 Herzebrock-Clarholz,

Germany

All STEINEL products meet the highest quality standards.

For this reason, we, the manufacturer, are pleased to provide you, the consumer, with a warranty under the following terms and conditions:

The warranty covers the absence of deficiencies which are proven to be the result of a material defect or fault in manufacturing and which are reported to us immediately after detection and within the warranty period. The warranty shall apply to all STEINEL products sold and used in Germany - excluding STEINEL Professional products.

You can opt for warranty cover in the form of repair or replacement which will be provided free of charge (if applicable, in the form of a successor model of the same or higher quality) or in the form of a credit note.

The warranty period for the STEINEL product you have purchased is 3 years (5 years for products from the XLED home range) in each case from the date on which the product was purchased.

We shall bear the shipping costs but not the transport risks involved in return shipment.

Statutory rights accruing from defects, gratuitousness

The warranty cover described here shall be applicable in addition to the statutory rights of warranty – including special consumer protection provisions – and shall not restrict or replace them. Exercising your statutory rights in the event of defects is gratuitous.

Exemptions from the warranty

All replaceable lamps are expressly excluded from this warranty. In addition to this, the warranty shall not cover:

– any wear resulting from use or any other natural wear of product parts or any deficiencies in the STEINEL product that are attributable to wear caused by use or other natural wear,

– any improper or non-intended use of the product or any

failure to observe the operating instructions,
– any unauthorised additions, alterations or other modifications to the product or any deficiencies attributable to the use of accessory,
– supplementary or replacement parts which are not genuine STEINEL parts,
– any maintenance or care of products that is not carried out in accordance with the operating instructions,
– any attachment or installation that is not in accordance with STEINEL’s installation instructions,
– any damage or loss occurring in transit.

Application of German law

The warranty shall be governed by German law excluding the United Nations Convention concerning the International Sale of Goods (CISG).

Making claims

If you wish to make a warranty claim, please send your product complete and carriage paid with the original receipt of purchase, which must show the date of purchase and product designation, either to your retailer or directly to us at STEINEL (UK) Ltd. – 25 Manasty Road, Axis Park, Orton Southgate, GB- Peterborough Cambs PE2 6UP United Kingdom. For this reason, we recommend that you keep your receipt of purchase in a safe place until the warranty period expires.

10. Technical specifications

• Voltage supply: 230 - 240 V, 50 Hz
• Output: 350 W
• Temperatures ^1 : 400 °C without nozzle

500 °C with 7 mm reduction nozzle (included)

• Airflow rate: max. 100 l/min
• Mains power cord: H05
• Protection class: //
• Emission sound pressure level: ≤ 70 dB (A)
• Total vibration value: ≤ 2,5m / s2 I K = 0,08m / s2
• Weight: 0,7 kg

- ^1 Temperature profile:

Distance from outlet nozzle	Temperature without nozzle	Temperature with nozzle
20 mm	360 °C	450 °C.
30 mm	320 °C	350 °C.
40 mm	280 °C	290 °C.
50 mm	230 °C	250 °C.
100 mm	150 °C	150 °C.
150 mm	100 °C	100 °C.
200 mm	75 °C	75 °C.
