This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description	Parameter value
Product name	Kegerator
Model	RCGK-KEG1
Rated voltage [V~] / Frequency [Hz]	230 / 50
Rated power [W]	85
Working temperature range [°C]	-5 / 10
Refrigerant:	R600a/40g
Dimensions [Width x Depth x Height; mm]	600 x 590 x 980
Weight [kg]	31

ATTENTION!

CO2 gas can be dangerous. Make sure to always use CO2 in a well-ventilated place.

Never exceed 40psi on your keg system.

Flush out chemicals from your beer line completely before tapping keg.

Always thoroughly check for gas leaks once you have set up your system.

NOTE!

Beer Font, CO2 regulator, keg coupler and ball/pin disconnector are not part of this kit.

WARNINGS AND GENERAL SAFETY

1. Power Supply & Cords:

• DO NOT operate if the power supply cord is damaged.
- If the power cord is damaged, it MUST be replaced by the manufacturer, service agent, or a qualified person to avoid hazards.
- Ensure the power cord is not trapped or damaged when positioning the appliance.
- DO NOT place multiple portable socket-outlets or power supplies at the rear of the appliance.

2. Refrigerant & Disposal:

• The refrigerant used in this appliance is flammable. When disposing of the appliance, keep it away from fire sources.
• Disposal should be handled by a qualified company to prevent harm to people, property, and the environment.
  • DO NOT dispose of the appliance by combustion.

3. Electrical Safety:

• Beware of electricity around liquids! Keep power cords away from potential spills and condensation pooling.
• DO NOT power up the refrigeration unit until it has been upright for 24 hours. Failure to do so will void the Warranty.

4. Ventilation & Placement:

• Ensure 100mm clearance to the rear and sides of the appliance for ventilation.
• Keep ventilation holes in the outer walls clear of obstruction. Failing to maintain clearance will void the Warranty.

5. Defrosting & Maintenance:

• The refrigeration unit may require manual defrosting.
  • DO NOT scrape ice or frost from the walls or cold plates.
• DO NOT use mechanical devices or other non-recommended means to accelerate defrosting, as this can damage the unit and void the Warranty.
  • DO NOT damage the refrigerant circuit.

6. Hazardous Materials:

• DO NOT store explosive substances (e.g., aerosol cans with flammable propellants) in this appliance.
• CO2 gas leaks can cause suffocation. Always use CO2 in a well-ventilated area and never exceed 40psi gas pressure with your keg system.

7. Usage Limitations:

• DO NOT use electrical appliances inside food storage compartments unless recommended by the manufacturer.
• This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities unless supervised.

• Children should be supervised and should not play with the appliance.
- Cleaning and maintenance SHOULD NOT be performed by children without supervision.
• Children aged 3 to 8 years CAN load and unload refrigerating appliances.

8. Food Contamination Prevention Guidelines:

- Avoid Leaving the Door Open:

- DO NOT leave the door open for extended periods, as it can cause a significant rise in temperature, which may lead to food spoilage and contamination.

- When the Appliance is Not in Use:

- If the refrigerating appliance is left empty for long periods:

■ Switch it off.
■ Defrost it.
■ Clean and dry the appliance.
- Leave the door open to prevent the formation of mold inside.

9. Intended Usage of the Appliance:

This appliance is intended for indoor use only in the following environments:

• Staff kitchen areas in shops, offices, and other workplace environments.
- Farmhouses.
- Clients use it in hotels, motels, and other residential settings.
• "Bed & Breakfast" environments.
• Catering and similar non-retail applications.

Kegerator Keg Types and Fittings

When setting up your kegerator, it's important to understand the different types of kegs and fittings available. Kegs are generally split into two main categories: Commercial Kegs and Home Brewing Kegs.

1. Commercial Kegs:

These are typically used by commercial breweries.

• Common Coupling Types:

○ A-Type Coupler: fits most German keg valves.
○ D-Type Coupler: fits U.S. Sankey keg valves
- G-Type Coupler: fits some European keg valves.
○ U-Type Coupler: fits some European keg valves
- S-Type Coupler: fits European Sankey keg valves.

- Keg Coupler: The device that connects the beer and gas lines to the keg's coupling. It's crucial to know the type of coupler needed for your keg to ensure you purchase the right equipment.

2. Home Brewing Kegs:

These are often used by home brewers or small microbreweries and come in two main sizes: 19L and 9.5L.

- Post Types:

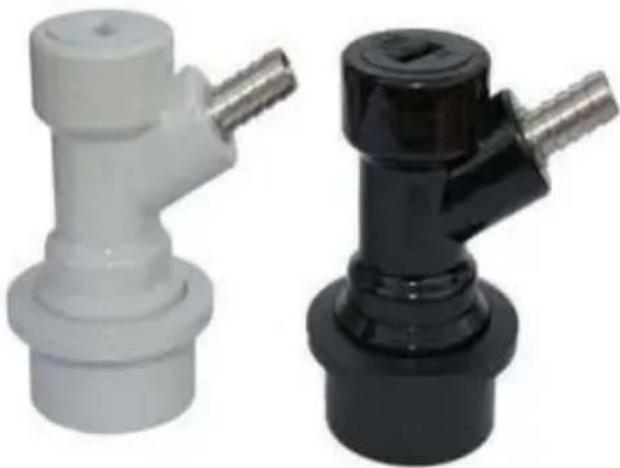

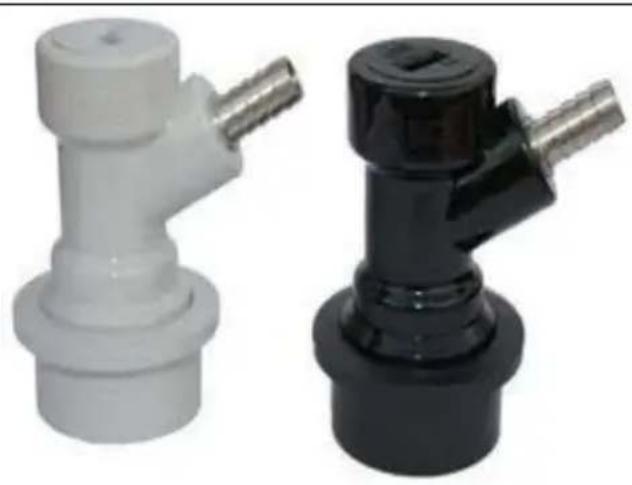

• Pin Lock: Features distinct posts for connecting the beer and gas lines. Uses the Pin Lock Disconnect (red) for attachment.

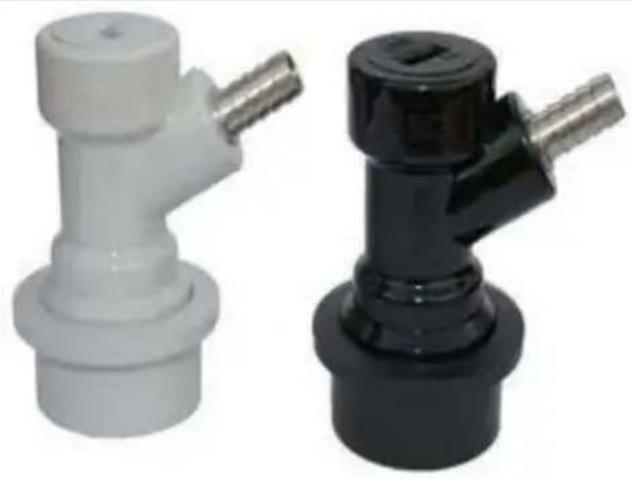

• Ball Lock: The more popular choice among home brewers due to the availability of spare parts and accessories. Uses the Ball Lock Disconnect (grey for gas, black for beer).

Setting up the Plumbing on your Kegerator

Installation Diagram for Commercial Kegs


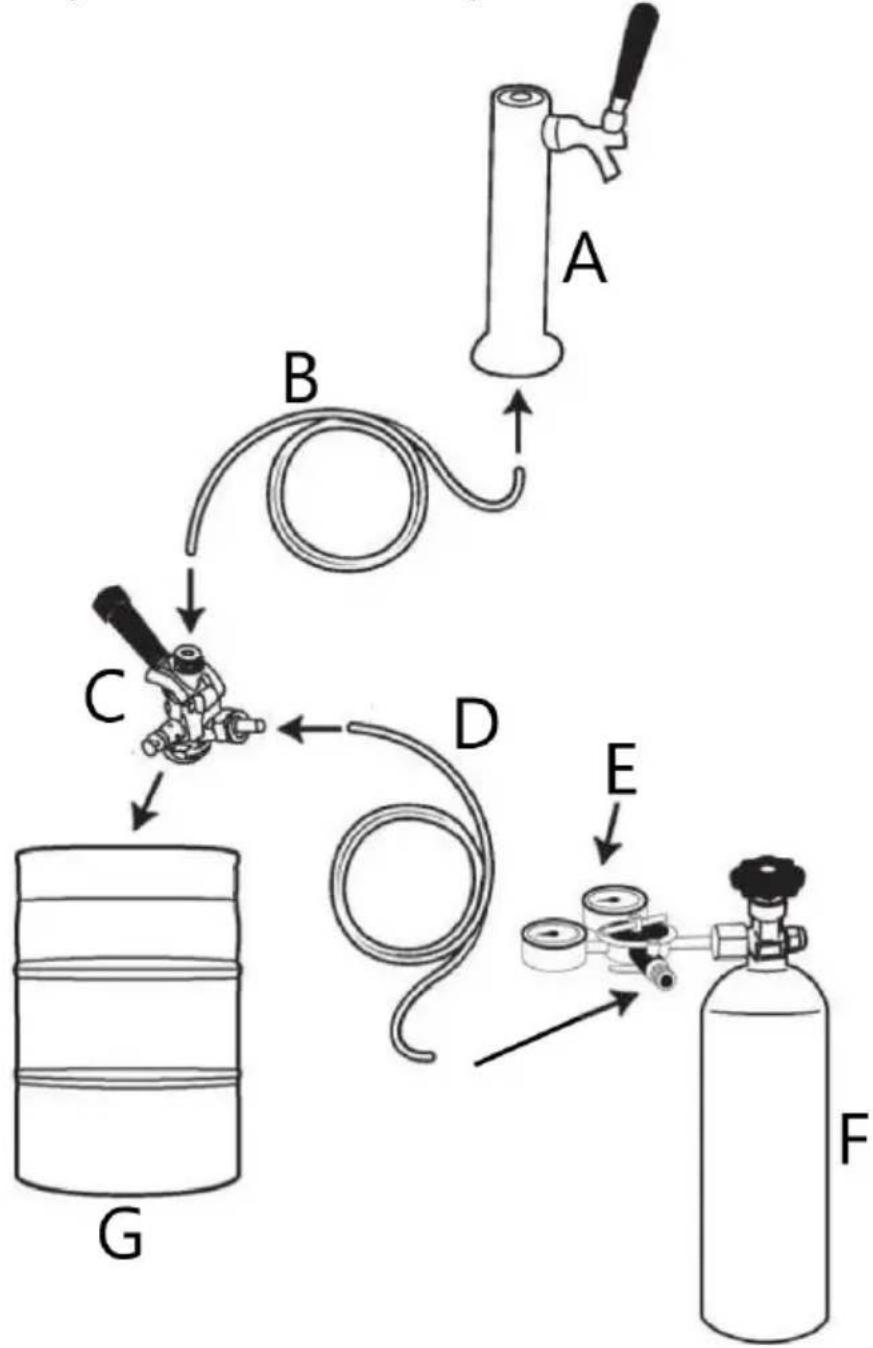

A Beer Font

B Beer line

C Keg Coupler

D Gas line

E CO2 Regulator

F CO2 Gas Cylinder

G Commercial Keg

Installation Diagram for Home Brewing Kegs


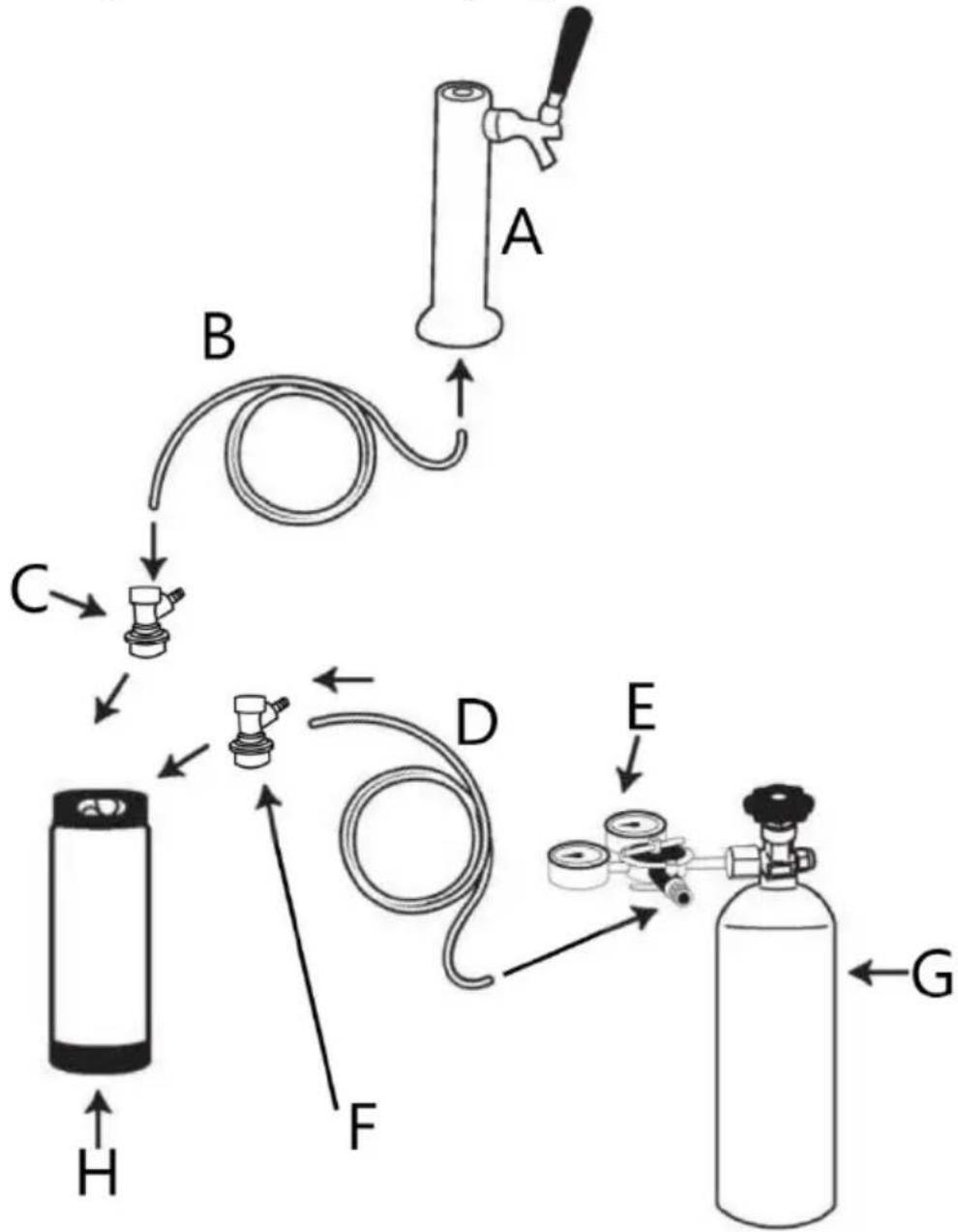

A Beer Font

B Beer line

C Black Ball/Pin lock Disconnect

D Gas line

E CO2 Regulator

F Grey Ball/Pin lock Disconnect

G CO2 Gas Cylinder

H Home brewing keg

Balancing Your Keg System with CO2

Properly balancing your keg system is essential for achieving optimal draft beer performance, particularly when using CO2 for dispensing. To achieve balance, two key factors must be considered:

• Carbonation Level
• Keg Storage Temperature

1. Carbonation Level

• Carbonation is measured in “volumes of carbonation.”
• Most draft beers have a carbonation level between 2.6 and 2.8 volumes of carbonation.
• Knowing the beer's carbonation level is essential for determining the correct CO2 pressure. If unknown, assume a carbonation level of 2.6 volumes.

2. Keg Storage Temperature

- Use a thermometer to measure the keg storage temperature accurately. To do this, place a glass of water in the fridge along with the keg for two hours and insert a thermometer in the water to get a precise reading.

- Ideal keg storage temperatures:

○ Most beers: 0^ C to 2.5^ C.
○ Lightly carbonated beers (e.g., English Ales): up to 8°C.

Example:

If the carbonation level is 2.6 volumes and the keg storage temperature is 1°C (33.8°F), the equilibrium pressure is 70 kPa (10.2 PSI).

• Set your dispense pressure 10% higher than the equilibrium pressure.
• In this case, the dispense pressure should be set to 77 kPa (11.2 PSI).

Important Tips:

- Setting Pressure Correctly:

• If the dispense pressure is below equilibrium, the beer will go flat over time.
• If the dispense pressure is above equilibrium, the beer will become over-carbonated.

- Flow Speed Adjustment:

- Many mistakenly adjust keg pressure to change the flow speed. This is incorrect. Instead, the flow speed should be adjusted by modifying the beer line length and diameter.

Important: CO2 Pressure Check

To ensure your kegerator is functioning properly and has no leaks in the CO2 system, perform a CO2 pressure check by following these steps:

Step 1:

• With all hoses connected, set the CO2 regulator pressure to 140 kPa (about 20 psi).
• Turn off the valve on the CO2 gas cylinder.

Step 2:

• Wait for 2 hours and then check if the pressure on the CO2 regulator has remained the same.

• If the pressure has dropped, there is likely a CO2 leak.

• Inspect all hose connections using soapy water to detect leaks.

• After resolving any leaks, repeat the pressure check.

CO2 Consumption Rate

CO2 is used for two primary purposes in your kegerator:

1. Carbonating your beer or other drink in the keg.
2. Dispensing your beer or drink from the keg.

- Carbonation: If you're homebrewing, the CO2 cylinder will carbonate your beer at a rate of approximately 6 grams of CO2 per liter.

- Dispensing: Whether your beer is homebrewed or purchased commercially, dispensing consumes 6 grams of CO2 per liter.

CO2 Cylinder Sizes and Usage:

1. 2.6 kg Gas Cylinder:

2. For homebrew, it will carbonate and dispense approximately 200 liters of beer.

3. For commercially carbonated beer, it will dispense around 400 liters.

4. 6 kg Gas Cylinder:

5. For homebrew, it will carbonate and dispense approximately 500 liters.

6. For commercially carbonated beer, it will dispense around 900 liters.

Beer Line Diameter and Length Adjustment

The beer line in your kegerator is more than just a hose; it also controls flow resistance. This resistance ensures the beer flows out of the tap at the right speed. The internal diameter (ID) and length of the beer line both influence flow resistance.

• Too little resistance: Beer flows too fast.
• Too much resistance: Beer flows too slow.

Recommended Beer Line Lengths Based on Diameter:

• 4mm ID Beer Line: 1.5–2 meters
• 5mm ID Beer Line: 3–4 meters
• 6mm ID Beer Line: 7–8 meters

Key Points:

- Smaller ID beer lines (e.g., 4mm ID) create more flow resistance, allowing you to use shorter lines, which minimizes beer sitting in the line and reduces mess inside the fridge.

• 4mm ID Line: Holds 12.5ml per meter, approx. 22.5ml total.
• 5mm ID Line: Holds 20ml per meter, approx. 70ml total.
• 6mm ID Line: Holds 28ml per meter, approx. 210ml total.

Advantages of 4mm ID Beer Line:

• Shorter length makes it more practical and cleaner inside the fridge.
• Minimizes the amount of beer sitting in the line.

However, 4mm ID lines can be difficult to fit over barb fittings (e.g., keg couplers or ball lock disconnects).

How to Fit 4mm ID Beer Line Over Barb Fittings:

1. Soften the Beer Line:

- Submerge the line in boiling water for 30 seconds to soften it.

2. Stretch the Line:

- Use needle-nose pliers to stretch the internal diameter of the beer line.

- P ush the softened beer line onto the needle-nose pliers, then open the plier handles to further stretch the line.

Minimum Clearances Around the Kegerator

• The kegerator has radiators located on the left and right-hand walls. These radiators must be well-ventilated to allow heat to escape.
• Ensure a minimum clearance of 100mm (4 inches) on both sides of the kegerator for proper ventilation.
  • Inadequate ventilation may lead to:

○ Void warranty.
○ Increased electrical consumption.
o Premature failure of the kegerator.

- Avoid placing the kegerator in corners or against two walls where proper ventilation cannot occur, as this will limit the unit's ability to cool efficiently and may cause overheating.

Circular metallic object with concentric rings and central hole (no text or symbols)

D-Type

Circular metallic object with concentric rings, resembling a mechanical or decorative component (no text or symbols visible)

S-Type

Close-up of a circular mechanical component with concentric rings and central bore (no visible text or symbols)

U-Type

Close-up of a circular mechanical component with central bore and textured surface (no visible text or symbols)

A-Type

Close-up of a metallic hexagonal nut with a circular dial (no text or symbols visible)

G-Type

Two red and black industrial electrical connectors with metallic fittings (no text or symbols visible)

White plastic mechanical component with a metallic protrusion (no text or symbols visible)

Close-up of a black mechanical component with a metallic fitting (no visible text or symbols)

PL

A Pivní písmo

B Pivní řada

Close-up of a metallic circular mechanical component with concentric rings and central hole (no text or symbols visible)

D-Type

Circular metallic object with concentric rings, resembling a mechanical or decorative component (no text or symbols visible)

S-Type

Circular mechanical component with concentric rings and central bore (no visible text or symbols)

U-Type

Circular object with a central circular pattern and radial lines, resembling a stylized eye or dial (no text or symbols visible)

A-Type

Close-up of a metallic hexagonal nut with a circular hole and three triangular cutouts (no text or symbols visible)

G-Type

Two red and black industrial valve components with metallic fittings (no text or symbols visible)

Two plastic pipe fittings, one white and one black, shown against a plain background (no text or symbols visible)

Close-up of a metallic circular mechanical component with concentric rings (no visible text or symbols)

D-Type

Circular metallic object with concentric rings, resembling a mechanical or decorative component (no text or symbols visible)

S-Type

Circular mechanical component with concentric rings and central bore (no visible text or symbols)

U-Type

Close-up of a circular mechanical component with central hole and textured surface (no visible text or symbols)

A-Type

Close-up of a metallic mechanical component with a circular top and central hub (no visible text or symbols)

G-Type

Two red and black industrial electrical plug holders with metallic fittings (no text or symbols visible)

Two plastic pipe fittings, one white and one black, shown against a white background (no text or symbols visible)

Close-up of a metallic circular component with concentric rings and central hole (no text or symbols visible)

D-Type

Circular metallic object with concentric rings, resembling a mechanical or decorative component (no text or symbols visible)

S-Type

Close-up of a circular mechanical component with concentric rings and central bore (no visible text or symbols)

U-Type

Circular mechanical component with concentric rings and central hole (no visible text or symbols)

A-Type

Close-up of a metallic hexagonal nut with a circular top and central star-like pattern (no text or symbols visible)

G-Type

Two red and black industrial electrical connectors with metallic fittings (no text or symbols visible)

White plastic mechanical component with a metallic tip and flanged base (no text or symbols visible)

Close-up of a black mechanical component with a metallic shaft (no visible text or symbols)

Close-up of a metallic circular mechanical component with concentric rings and central bore (no visible text or symbols)

D-Type

Circular metallic object with concentric rings, resembling a ripple or vortex (no text or symbols)

S-Type

Circular mechanical component with concentric rings and central bore (no visible text or symbols)

U-Type

Close-up of a circular mechanical component with central hole and textured surface (no visible text or symbols)

A-Type

Close-up of a metallic hexagonal nut with a circular center and three triangular cutouts (no text or symbols visible)

G-Type

Two red and black industrial electrical connectors with metallic fittings (no text or symbols visible)

White plastic mechanical component with a metallic protrusion (no text or symbols visible)

Close-up of a black plastic mechanical component with a metallic fitting (no text or symbols visible)

A Sör betűtípus

B Sörsor

C Black Ball/Pin lock Bontsa le

D Gázvezeték

E CO2 szabályozó

Close-up of a metallic circular mechanical component with concentric rings and central hole (no text or symbols visible)

D-Type

Circular metallic object with concentric rings, resembling a mechanical or decorative component (no text or symbols visible)

S-Type

Close-up of a metallic cylindrical object with concentric rings and central depression (no visible text or symbols)

U-Type

Circular object with a central circular pattern and radial lines, resembling a stylized clock face (no text or symbols visible)

A-Type

Close-up of a metallic hexagonal nut with a circular hole in the center (no visible text or symbols)

G-Type

Two red and black industrial electrical connectors with metallic fittings (no text or symbols visible)

White plastic mechanical component with a metallic protrusion (no text or symbols visible)

Close-up of a black mechanical valve fitting with a metallic handle (no text or symbols visible)

EN ∅l skrifttype

C Sort kugle/stiftlås Afbryd

E CO2 regulator

G CO2 gascylinder

B ∅l linje

D Gasledning

F Grå kugle/stiftlås Afbryd

Close-up of a metallic circular mechanical component with concentric rings and central hole (no text or symbols visible)

D-Type

Circular metallic object with concentric rings, resembling a ripple or vortex (no text or symbols)

S-Type

Close-up of a metallic cylindrical object with a central hole, resembling a lens or aperture (no text or symbols visible)

U-Type

Circular object with a central circular feature and radial lines, resembling a stylized clock face (no text or symbols visible)

A-Type

Close-up of a metallic hexagonal nut with a circular dial (no visible text or symbols)

G-Type

Two red and black industrial electrical connectors with metallic fittings (no text or symbols visible)

White plastic mechanical component with a metallic protrusion (no text or symbols visible)

Close-up of a black mechanical component with a metallic protrusion (no visible text or symbols)

A Olut-fontti

B Olut linja

C Tynnyriliitin

D Kaasulinja

E CO2 säädin

F CO2 kaasupullo

C Black Ball/Pin lock Irrota

D Kaasulinja

E CO2 säädin

F Harmaa pallo/tastalukko Irrota

G CO2 kaasupullo

H Kotitekoinen keittotynnyri

Close-up of a metallic circular mechanical component with concentric rings and central hole (no text or symbols visible)

D-Type

Circular metallic object with concentric rings, resembling a mechanical or decorative component (no text or symbols visible)

S-Type

Circular mechanical component with concentric rings and central bore (no visible text or symbols)

U-Type

Circular mechanical component with central hole and symmetrical top surface (no visible text or symbols)

A-Type

Close-up of a metallic mechanical component with a circular recess and central hole (no visible text or symbols)

G-Type

2. Thuisbrouwvaten:

Two red and black industrial electrical plug holders with metallic fittings (no text or symbols visible)

White plastic mechanical component with a metallic tip and flange (no text or symbols visible)

Close-up of a black mechanical component with a metallic protrusion (no text or symbols visible)

A Bier lettertype

B Bierlijn

C Zwarte

D Gasleiding

bal/penvergrendeling loskoppelen

E CO2-regelaar

F Grijze

bal/pinvergrendeling loskoppelen

G CO2-gascilinder

H Thuisbrouwvat

Close-up of a metallic circular mechanical component with concentric rings and central hole (no text or symbols visible)

D-Type

Circular metallic object with concentric rings, resembling a mechanical or decorative component (no text or symbols visible)

S-Type

Close-up of a metallic cylindrical object with concentric rings and central depression (no visible text or symbols)

U-Type

Circular object with a central circular pattern and radial lines, resembling a stylized clock face (no text or symbols visible)

A-Type

Close-up of a metallic hexagonal nut with a circular dial (no visible text or symbols)

G-Type

2. Hjemmebryggefat:

Two red and black industrial electrical connectors with metallic fittings (no text or symbols visible)

White plastic mechanical component with a metallic threaded tip (no text or symbols visible)

Close-up of a black mechanical valve fitting with a metallic handle (no text or symbols visible)

Sette opp rørleggerarbeidet på Kegerator

EN ølfont

C Svart kule/pinnelås Koble fra

E CO2 regulator

G CO2 gassflaske

B ∅llinje

D Gassledning

F Grå kule/stiftlås Koble fra

H Hjemmebryggetønne

Close-up of a metallic circular mechanical component with concentric rings and central hole (no text or symbols visible)

D-Type

Circular metallic object with concentric rings, resembling a mechanical or decorative component (no text or symbols visible)

S-Type

Close-up of a metallic cylindrical object with concentric rings and central depression (no visible text or symbols)

U-Type

Circular object with a central circular pattern and radial lines, resembling a stylized clock face (no text or symbols visible)

A-Type

Close-up of a metallic hexagonal nut with a central circular design (no visible text or symbols)

G-Type

Two red and black industrial electrical plug holders with metallic fittings (no text or symbols visible)

White plastic mechanical component with a metallic protrusion (no text or symbols visible)

Close-up of a black plastic mechanical component with a metallic protrusion (no text or symbols visible)

A Typsnitt för öl

B Öl linje

C Fatkoppling

D Gasledning

E CO2 regulator

F CO2 gascylinder

G Kommersiell fat

A Typsnitt för öl

B Öl linje

Close-up of a metallic circular component with concentric rings and central hole (no text or symbols visible)

D-Type

Circular metallic object with concentric rings, resembling a mechanical or decorative component (no text or symbols visible)

S-Type

Close-up of a circular mechanical component with concentric rings and central bore (no visible text or symbols)

U-Type

Circular mechanical component with concentric rings and central hole (no visible text or symbols)

A-Type

Close-up of a metallic hexagonal nut with a circular top and central star-like pattern (no text or symbols visible)

G-Type

Two red and black industrial electrical connectors with metallic fittings (no text or symbols visible)

White plastic mechanical component with a metallic tip and flange (no text or symbols visible)

Close-up of a black mechanical component with a metallic shaft (no visible text or symbols)

UM Fonte de cerveja

Two red and black industrial valve components with metallic fittings (no text or symbols visible)

Two plastic pipe fittings, one white and one black, shown against a white background (no text or symbols visible)

Nastavenie potrubia na vašom Kegeratore

A Pivné písmo

B Linka na pivo

C Spojka sudov

D Plynové vedenie

E Regulátor CO2

F Plynová fl'aša CO2

G Komerčný súdok

Close-up of a metallic circular mechanical component with concentric rings and central hole (no text or symbols visible)

D-Type

Circular metallic object with concentric rings, no visible text or symbols

S-Type

Close-up of a circular mechanical component with concentric rings and central bore (no visible text or symbols)

U-Type

Close-up of a circular mechanical component with central dial and textured surface (no visible text or symbols)

A-Type

Close-up of a metallic hexagonal nut with a circular dial (no text or symbols visible)

G-Type

Two red and black industrial electrical connectors with metallic fittings (no text or symbols visible)

Two plastic pipe fittings, one white and one black, shown against a plain background (no text or symbols visible)

Two red and black industrial valve components with metallic fittings (no text or symbols visible)

Two plastic pipe fittings, one white and one black, shown against a plain background (no text or symbols visible)

A Font za pivo

B Linija piva

C Crna kugla/pin brava Odspojite

D Plinski vod

E CO2 regulator

F Siva kugla/pin brava Odspojite

G CO2 plinska boca

Close-up of a metallic circular mechanical component with concentric rings and central hole (no text or symbols visible)

D-Type

Circular metallic object with concentric rings, resembling a mechanical or decorative component (no text or symbols visible)

S-Type

Close-up of a metallic cylindrical object with concentric rings and central depression (no visible text or symbols)

U-Type

Circular object with a central circular pattern and radial lines, resembling a stylized clock face (no text or symbols visible)

A-Type

Close-up of a metallic hexagonal nut with a circular dial (no visible text or symbols)

G-Type

Two red and black industrial electrical plug holders with metallic fittings (no text or symbols visible)

White plastic mechanical component with a metallic protrusion (no text or symbols visible)

Close-up of a black mechanical component with a metallic protrusion (no visible text or symbols)

A Alaus šriftas

B Alaus linija

Two red and black industrial electrical connectors with metallic fittings (no text or symbols visible)

White plastic mechanical component with a metallic protrusion (no text or symbols visible)

Close-up of a black plastic mechanical component with a metallic shaft (no text or symbols visible)

O Font de bere

B Linie de bere

C Black Ball/Pin lock Deconectare

D Linie de gaz

E Regulator de CO2

F Grey Ball/pin lock Deconectare

G Cilindru de gaz CO2

Close-up of a metallic circular mechanical component with concentric rings and central hole (no text or symbols visible)

D-Type

Circular metallic object with concentric rings, resembling a mechanical or decorative component (no text or symbols visible)

S-Type

Circular mechanical component with concentric rings and central bore (no visible text or symbols)

U-Type

Circular object with a central circular pattern and radial lines, resembling a stylized clock face (no text or symbols visible)

A-Type

Close-up of a metallic hexagonal nut with a circular design featuring a central symbol (no text or labels visible)

G-Type

Two red and black industrial electrical connectors with metallic fittings (no text or symbols visible)

White plastic mechanical component with a metallic protrusion (no text or symbols visible)

Close-up of a black plastic mechanical component with a metallic protrusion (no text or symbols visible)

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.
