USER MANUAL RCWS-48-B Royal Catering

Silhouette of a lion-like creature on a blue background (no text or symbols)

DE	Produktname:	KÜHLVITRINE 105 L
EN	Product name:	CABINET COOLER 105 L
PL	Nazwa produktu:	WITRYNA GRZEWCZA 105L
CZ	Název výrobku	CHLADÍCÍ VITRÍNA 105L
FR	Nom du produit:	VITRINE RÉFRIGÉRÉE DE 105 L
IT	Nome del prodotto:	VETRINA REFRIGERATA 105 L
ES	Nombre del producto:	VITRINA REFRIGERADA 105 L
HU	Termék neve	HÚTÓVITRIN 105 L
DA	Produktnavn	K∅LEVITRINE 105 L
DE	Modell:	RCWS-48-B
EN	Product model:
PL	Model produktu:
CZ	Model výrobku
FR	Modèle:
IT	Modello:
ES	Modelo:
HU	Modell
DA	Model
DE	Hersteller	expondo Polska sp. z o.o. sp. k.
EN	Manufacturer
PL	Producent
CZ	Výrobce
FR	Fabricant
IT	Produttore
ES	Fabricante
HU	Termelő
DA	Producent
DE	Anschrift des Herstellers	ul. Nowy Kisielin – Innowacyjna 7, 66-002 Zielona Góra | Poland, EU
EN	Manufacturer Address
PL	Adres producenta
CZ	Adresa výrobce
FR	Adresse du fabricant
IT	Indirizzo del produttore
ES	Dirección del fabricante
HU	A gyártó címe
DA	Producentens adresse

Technische Daten

Exterior view of a modern kitchen appliance with glass lid and cooling unit (no visible text or symbols)

1 – Bedienungsfeld

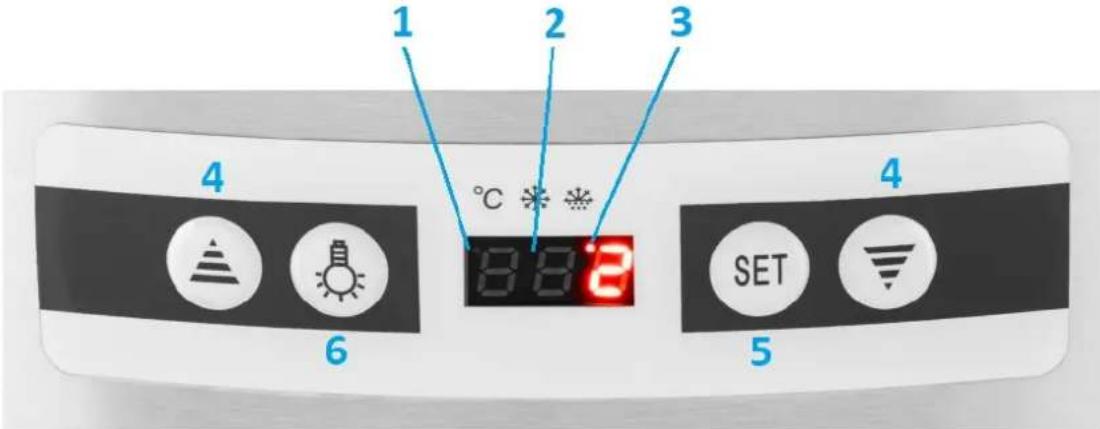

Steuerung:

1 2 3 4 °C 882 SET 4 6 5

Parameter description	Parameter value
Product name	Cooler cabinet
Model	RCWS-48-B
Supply voltage [V~] / frequency [Hz]	230 / 50
Rated current [A]	1.6
Climate class	4
Temperature range[°C]	2-8
Capacity [l]	100
Refrigerant/amount of refrigerant [g]	R600a/40
Safety class	I
Lamp power [W]	4
Dimensions (width x depth x height) [mm]	490 x 490 x 1045
Weight [kg]	50

1. General Description

The manual is intended to assist in safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components and maintaining the highest quality standards.

CAREFULLY READ AND UNDERSTAND THIS MANUAL BEFORE STARTING THE WORK.

To ensure the long and reliable operation of the device, make sure to operate and maintain it properly following the guidelines in this instruction manual. The technical data and specifications in this manual are up-to-date. The manufacturer reserves the right to make changes to improve the quality. Taking the technical progress and the possibility of reducing noise into account, the unit is designed and built in such a way that risks resulting from noise emissions are reduced to the lowest possible level.

Explanation of symbols

CE	The product complies with applicable safety standards.
	Read the manual before use.
	Recyclable product.
	General warning sign.
	CAUTION! Risk of electric shock!
	CAUTION! Danger of fire - flammable material!
	Caution! The hot surface of the compressor can cause burns!
	For indoor use only.

CAUTION! The figures in this manual are illustrative only and may vary in some details from the actual appearance of the product.

2. Safety of use

CAUTION! Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury or death.

The term "device" or "product" in the warnings and the description of the instructions refers to Cooler cabinet

2.1. Electrical safety

a) The plug of this device must fit into the outlet. Do not modify the plug in any way. Original plugs and matching outlets reduce the risk of electric shock.
b) Avoid touching grounded parts, such as pipes, heaters, ovens, and refrigerators. There is an increased risk of electric shock if your body is grounded and touches the device while exposed to direct rain, wet pavement, or while working in a damp environment. If water enters the device, there is an increased risk of damage to the unit and electric shock.
c) Do not touch the device with wet or damp hands.
d) Do not use the cord in an unintended manner. Never use it to carry the device or to pull the plug out of the socket. Keep the cord away from heat sources, oil, sharp edges, or moving parts. Damaged or tangled cords increase the risk of electric shock.
e) If you cannot avoid using the product in a wet environment, use a residual current device (RCD) to connect it to electrical mains. Using an RCD reduces the risk of electric shock.
f) Do not use the device if the power cord is damaged or shows signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service department.
g) To avoid electric shock, do not immerse the cable, plug, or the device itself in water or other liquid. Do not use the appliance on wet surfaces.
h) CAUTION – DANGER TO LIFE! When cleaning or using the appliance, never immerse it in water or other liquids.
i) Do not use the appliance in rooms with very high humidity / in the immediate vicinity of water tanks!

2.2. Safety in the workplace

a) Keep the work area tidy and well-lit. Disorder or poor lighting can lead to accidents. Be foresighted, watch what you are doing, and use common sense when using the unit.
b) Do not use the unit in an explosive area, for example in the presence of flammable liquids, gases or dust.
c) If you find any damage or irregularities in the operation of the product, immediately turn it off and report it to an authorized person.
d) If you have any doubts as to whether the product is working properly or if it is damaged, contact the manufacturer's service department.
e) Repairs to the device may only be carried out by the manufacturer's service. Do not attempt to repair the product on your own!
f) In case of open flames or fire, use only dry powder or snow (CO2) fire extinguishers to extinguish the live equipment.
g) Use the product in a well-ventilated area.
h) Keep this manual for future reference. If the product is to be handed over to a third party, hand it over with this user manual.
i) Keep packaging components and small installation parts out of the reach of children.
j) Keep the device away from children and animals.

Remember! Keep children and other bystanders safe while operating the appliance.

2.3. Personal safety

a) The unit may be operated by persons who are physically fit, capable of operating it, and appropriately trained, and who have read this instruction manual and have been trained in occupational safety and health.
b) The machine is not intended to be used by persons (including children) with reduced mental, sensory, or intellectual functions or persons who lack experience and/or knowledge unless they are supervised or have been instructed by a person responsible for their safety on how to operate the machine.
c) Use caution and common sense when operating this device. A moment's inattention during operation may result in serious personal injury.
d) To prevent accidental start-up, make sure the switch is in the off position before connecting to a power source.
e) The product is not a toy. Children should be watched to ensure that they do not play with the appliance.

2.4. Safe use of the device

a) Do not overload the device. Use tools that are suitable for the application. A correctly selected product will do a better and safer job for which it was designed.
b) Disconnect the device from the power supply before adjusting, cleaning, or servicing. This precaution reduces the risk of accidental start-up.
c) Keep unused product out of the reach of children and anyone unfamiliar with the device or this manual. Products are dangerous when used by inexperienced users.
d) Keep the product in good working order. Check before each use for general damage or damage to moving parts (cracks in parts and components or any other condition that may affect the safe operation of the device). If damaged, return the device for repair before use.
e) Keep the product out of the reach of children.
f) Repairs and maintenance should be carried out by qualified personnel using only original spare parts. This will ensure the safety of use.
g) To ensure the designed operational integrity of the device, do not remove factory-installed covers or loosen screws.
h) When transporting or moving the unit from storage to the place of use, observe the health and safety rules for manual handling applicable in the country where the unit is used.

i) Do not move, shift, or rotate the machine while in operation.

i) Clean the device regularly to prevent permanent dirt build-up.

k) The product is not a toy. Cleaning and maintenance must not be performed by children without adult supervision.

I) Do not tamper with the device to alter its performance or design.

m) Keep the unit away from sources of fire and heat.

n) Do not block the ventilation openings of the unit!

o) Do not store heavy, poisonous or corrosive objects inside the unit.

p) Do not use the device in unheated rooms or places with high air humidity.

q) CAUTION! The unit in its construction contains flammable substances. For this reason, the unit should be taken to a specialist for disposal at the end of its service life.

r) Do not store explosive substances, such as cans containing compressed flammable gas, inside the unit.

s) Do not place the unit near open fire sources, electric stoves, coal stoves, etc., and do not place the unit in direct sunlight, as the effect of heat may reduce the cooling capacity and thus increase electricity consumption.

t) The unit must be connected directly to a wall plug socket; do not use splitters etc.

u) Ensure that the power supply to the unit corresponds to that specified on the identification plate!

v) Do not place heavy objects on the unit.

w) Do not use mechanical devices to accelerate the cooling down process!

x) Do not damage the refrigerant circuit.

y) Do not use electrical appliances inside the refrigerator other than those provided by the manufacturer.

z) Do not tilt the appliance by more than 45° to avoid refrigerant compressor failure.

aa) If the refrigeration unit remains empty for an extended period of time, turn it off, defrost, clean, dry and leave the door open to prevent mold growth in the unit.

bb) This appliance is not suitable for freezing food.

CAUTION! Although the product has been designed to be safe, with adequate safeguards, and despite the additional safety features provided to the user, there is still a slight risk of accident or injury when handling the unit. Caution and common sense are advised when using the product.

3. Instructions for use

The product is used to store food products that require a sufficiently low temperature.

The operator is responsible for any damage caused by misuse.

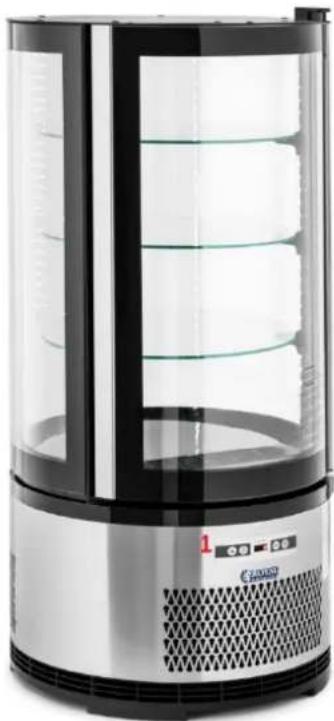

3.1. Product overview

Exterior view of a modern kitchen appliance with glass lid and control panel (no visible text or symbols)

1 - control panel

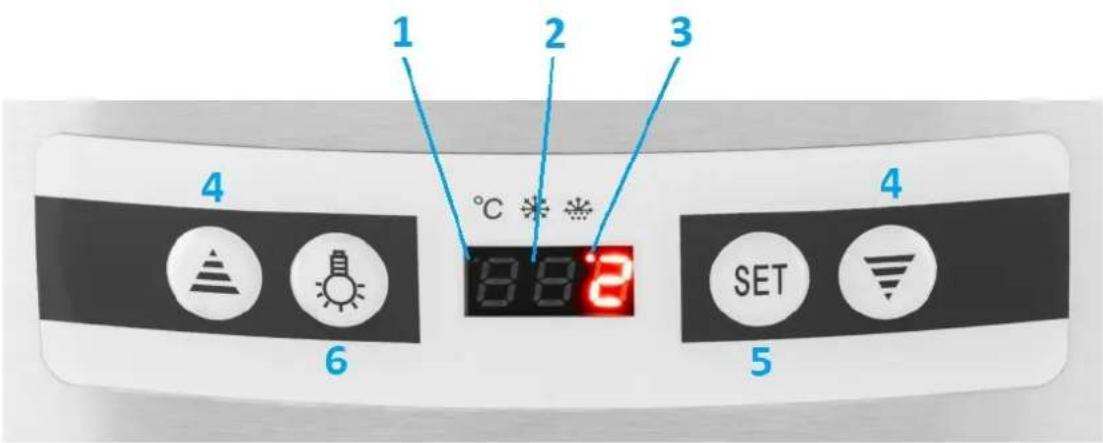

Control panel:

1 2 3 4 882 SET 4 6 5

1 - display showing the current temperature inside the cooler cabinet
2 - LED light indicating cooling mode
3 - LED light indicating defrosting mode
4 - temperature setting buttons
5 - SET button for setting the temperature
6 - button for illuminating the interior of the cooler cabinet

3.2. Preparation for operation

POSITIONING OF THE UNIT

The ambient temperature must not exceed 40^ C and ambient humidity should not exceed 85%. Place the unit in a way that ensures good air circulation. Maintain a minimum clearance of 10 cm from any wall of the unit. Keep the unit away from any hot surfaces. Always operate the unit on a level, stable, clean, fireproof, and dry surface and out of the reach of children and persons with impaired mental, sensory, and intellectual functions. Place the unit in such a way that the main plug can be reached at any time. Ensure that the power supply to the unit corresponds to that specified on the identification plate!

Before using the unit for the first time, disassemble all parts and wash them as well as the entire unit.

3.3. Working with the device

Temperature setting:

Press the SET button, so the set temperature can be displayed.

By pressing the temperature setting buttons (4), set and save the displayed value.

Press the SET button to exit the settings and display the inside temperature of the cooler cabinet. If no other button is pressed within 10 seconds, the current internal temperature of the cooler cabinet will be displayed.

Backlight:

Press the interior lighting button of the cooler cabinet (6) to turn on the backlight. Pressing the button again will turn off the backlight.

Manual defrost start/stop:

Press and hold the interior lighting button (6) for 6 seconds to start or stop defrosting.

Refrigerant LED light (2):

During cooling, the LED light is on. When the temperature of the cooler cabinet is at a constant level, the LED light is off. The LED light flashes when starting work.

Defrosting LED light (3)

During defrosting, the LED light is on. When defrosting is complete, the LED light will turn off, and it will flash when defrosting begins.

3.4. Cleaning and maintenance

a) Pull the mains plug and let the unit cool down completely before cleaning, adjusting or replacing accessories and when the unit is not in use.
b) Use only non-corrosive cleaning agents for cleaning the surfaces.
c) Only mild detergents designed for cleaning food contact surfaces may be used to clean the unit.
d) After each cleaning, all parts should be thoroughly dried before the device is reused.
e) Store the unit in a dry and cool place protected from moisture and direct sunlight.
f) Do not spray the unit with a stream of water or immerse it in water.
g) Make sure that no water enters through the ventilation openings in the casing.
h) Clean the ventilation openings with a brush and compressed air.
i) Perform regular inspections of the unit checking technical fitness and any damages.
j) Use a soft, damp cloth for cleaning.
k) Do not use sharp and/or metal objects (e.g. wire brush or metal spatula) as they may damage the surface of the material from which the appliance is made.
I) Do not clean the unit with acidic substances, medical agents, thinners, fuel, oils, or other chemicals. It may cause damage to the device.

DISPOSAL OF USED UNITS.

At the end of its useful life, this product should not be disposed of with normal household waste but should be taken to a collection point for the recycling of electrical and electronic equipment. This is indicated by the symbol on the product, operating instructions, or packaging. The materials used in this appliance are recyclable according to their marking. By reusing, recycling, or applying other forms of use of waste machines, you make a significant contribution to the protection of our environment.

Your local administration will provide you with information about the appropriate disposal point for used appliances.

Exterior view of a modern kitchen appliance with glass dome and ventilation grilles (no visible text or symbols)

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.

Exterior view of a modern kitchen appliance with glass doors and control panel (no visible text or symbols)

1 - ovládací panel

Ovládací panel:

1 2 3 4 °C 882 SET 4 6 5

Exterior view of a modern kitchen appliance with glass lid and control panel (no visible text or symbols)

Exterior view of a modern kitchen appliance with glass lid and control panel (no visible text or symbols)

Exterior view of a modern kitchen appliance with glass lid and control panel (no visible text or symbols)

1 - panel de control

Panel de mando:

1 2 3 4 5 6 8 8 2 SET 4

Exterior view of a modern kitchen appliance with glass lid and control panel (no visible text or symbols)

1 - vezérlőpanel

Kezelőpanel:

1 2 3 4 5 6 8 8 2 SET 4

Exterior view of a modern stainless steel appliance with glass lid and control panel (no visible text or symbols)

1 - Styrepanel

Betjeningspanel:

1 2 3 4 882 SET 4 6 5

APPARATETS PLACERING

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.
