USER MANUAL RCLK-W600 Royal Catering

Abstract white line drawing of a stylized mythical creature on a dark blue background (no text or symbols)

DE Produktname		Glastürkühlschrank	Lager-Kühlschrank	Gefri
EN Product name Chiller Chiller Freezer
PL	Nazwa produktu	Chłodziarka zeszklanymi drzwiami	Chłodziarka	Zamrażarka
CZ	Název výrobku	Chladnička seskleněnými dveřmi	Chladnička	Mraznička
FR Nom du produit Porte en verre de		réfrigérateur	Réfrigérateur destockage	Congélateur
IT Nome del prodotto Vetrina frigo Frigorifero Congelatore
ES Nombre del producto Puerta de cristal parafrigorífico			Frigorífico	Congelador
HU	Termék neve	Hútógép üvegajtóval	Hútógép	Fagyasztó
DA	Produktnavn	Køleskab med glasdør	Køleskab	Fryser
FI	Tuotteen nimi	Jäähdytyslaite	Jäähdytyslaite	Pakastin
NL	Productnaam	Koeler	Koeler	Vriezer
NO	Produktnavn	Kjøler	Kjøler	Fryseboks
SE	Produktnamn	Chiller	Chiller	Frys
PT	Nome do produto	Refrigerador	Refrigerador	Freezer
SK	Názov produktu	Chladič	Chladič	Mraznička
BG	Име на продукта	Чилър	Чилър	Фризер
EL	Όνομα προϊόντος	Αυτός που παγώνει	Αυτός που παγώνει	Καταψύκτης
HR	Naziv proizvoda	Hladnjak	Hladnjak	Zamrzivač
LT	Produkto pavadinimas	Aušintuvas	Aušintuvas	Šaldiklis
RO	Numele produsului	Răcitor	Răcitor	Congelator
SL	Ime izdelka	Hladilnik	Hladilnik	Zamrzovalnik
DE Modell | EN Product model | PL Model produktu | CZ Model výrobku | FR Modèle | IT Modello | ES Modelo | HU Modell | DA Model | FI Tuotteen malli | NL Productmodel | NO Produktmodell | SE Produktmodell | PT Modelo do produto | SK Model | BG Модел на продукт | EL Movtéλο προϊόντος | HR Model proizvoda | LT: Gaminio modelis | RO: Model de produs | SL: Model izdelka		RCGK-W200RCGK-W400	RCLK-W600RCLK-C590GBRCLK-C590RCLK-C380GBRCLK-C380GRCLK-C170	RCLK-F590SRCLK-F590-GRCLK-F590GBRCLK-F590RCLK-F380SRCLK-F380GRCLK-F380GBRCLK-F380RCLK-F170S
DE Hersteller | EN Manufacturer | PL Producent | CZ Výrobce | FR Fabricant | IT Produttore | ES Fabricante | HU Termelő | DA Producent | FI Valmistaja | NL Producent | NO Produsent | SE Tillverkare | PT Fabricante | SK Výrobca | BG Производител | EL Κατασκευαστής | HR Proizvođač | LT Gamintojas | RO Producător | SL Proizvajalec		expondo Polska sp. z o.o. sp. k.

rschrank

DE Anschrift des Herstellers |EN Manufacturer Address | PL Adres producenta | CZ Adresa výrobce |FR Adresse du fabricant | IT Indirizzo del produttore | ES Dirección del fabricante | HU A gyártó címe | DA Producentens adresse | FIValmistajan osoite |NL Adres producent | NOProdusentens adresse | SETillverkarens adress |PT Endereço do fabricante | SKAdresa výrobcu | BG Adrec на производителя | EL: Διεύθυνση κατασκευαστή | HR Adresa proizvođača | LT Gamintojo adresas |RO Adresa producătorului | SLNaslov proizvajalca

ul. Nowy Kisielin – Innowacyjna 7, 66-002 Zielona Góra | Poland, EU

Diagram of a white refrigerator with numbered labels pointing to its front panel.

Technical line drawing of a mechanical assembly with no visible text or symbols

This User Manual has been translated using machine translation. We have made every effort to ensure the translation is accurate, but please note that automated translations are not perfect and are not meant to replace human translators. The official version of the User Manual is in English. Any differences between the translated version and the original English are not legally binding. If you have any questions about the accuracy of the translation, please refer to the English version, which is the official reference. More language versions are available upon request via [e-mail].

Technical data

Parameter description	Parameter value
Product name Chiller
Model	RCGK-W200	RCGK-W400	RCLK-W600
Rated input power [W]	180 215 235
Rated current [A]	1.4		2
Power consumption [kWh/24h]	1.5 1.7 1.5
Energy class B			C
Power supply [V]/ Frequency [Hz]	230~/50
Refrigerant	R600a/54g R600a /128g		R600a/145g
Temperature [°C]	0÷8
Net volume [l]	-	-	376
Gross volume [l]	170	391	590
Electric shock protection class	I
Emitted noise level	39dB	48.7dB	43.4dB
AEC (Annual Energy Consumption) [kWh/Year]	569 836 567
Climate class	4
Weight [kg]	45	73.5	89.5
Dimensions [mm]	595x680x870	680x600x1870	725x777x1885
Height adjustment	Yes
Basket/shelves	3 shelves	4 shelves
Lock	Yes

Parameter description	Parameter value
Product name	Chiller
Model	RCLK-C590GB	RCLK-C590	RCLK-C380GB
Rated input power [W]	228		215
Rated current [A]	-
Power consumption [kWh/24h]	-
Energy class	B	D	B
Power supply [V]/ Frequency [Hz]	230~/50
Refrigerant	R600a/145g		R600a/100g
Temperature [°C]	0÷5	0÷8	0÷5
Net volume [l]	-	376	-
Gross volume [l]	590		380
Electric shock protection class	I
AEC (Annual Energy Consumption) [kWh/Year]	1296	896	1071
Climate class	4
Weight [kg]	95	89	78
Dimensions [mm]	775x705x1850	775x723x1850	595x635x1850

Height adjustment Yes
Basket/shelves 4 shelves
Lock Yes

Parameter description	Parameter value
Product name Chiller
Model	RCLK-C380G	RCLK-C170
Rated input power [W]	215 187
Rated current [A]	-	1.4
Power consumption [kWh/24h]	--
Energy class	D -
Power supply [V]/ Frequency [Hz]	230~/50
Refrigerant	R600a/ 100g	R600a/ 54g
Temperature [°C]	0÷8	0÷8
Net volume [l]	239	-
Gross volume [l]	380	170
Electric shock protection class	I
AEC (Annual Energy Consumption) [kWh/Year]	603	-
Climate class	4
Weight [kg]	75	43
Dimensions [mm]	595x635x1850	595x653x880
Height adjustment Yes
Basket/shelves	4 shelves	3 shelves
Lock	Yes

Parameter description	Parameter value
Product name	Freezer
Model	RCLK-F590S	RCLK-F590-G	RCLK-F590GB
Rated input power [W]	492
Rated current [A]	2.8	-
Power consumption [kWh/24h]	6.2 -
Energy class	D	C
Power supply [V]/ Frequency [Hz]	230~/50
Refrigerant R290 / 110g
Temperature [°C]	-22÷-18	-22÷-13
Net volume [l]	321	-
Gross volume [l]	590
Electric shock protection class	I
AEC (Annual Energy Consumption) [kWh/Year]	2260	3015
Climate class	4
Weight [kg]	105	127	123
Dimensions [mm]	775x723x1850	775x705x1850
Height adjustment	Yes
Basket/shelves	7 shelves
Lock	Yes

Parameter description	Parameter value
Product name	Freezer

Model	RCLK-F590	RCLK-F380S	RCLK-F380G
Rated input power [W]	492 425
Rated current [A]	2.8	2.6	-
Power consumption [kWh/24h]	3.2 5.0 -
Energy class	D		C
Power supply [V]/ Frequency [Hz]	230~/50
Refrigerant	R290/110g	R290/120g
Temperature [°C]	-22 ÷ -18		-13÷-21
Net volume [l]	321	206	-
Gross volume [l] 590 380
Electric shock protection class	I
AEC (Annual Energy Consumption) [kWh/Year]	2260	1816	2237
Climate class	4
Weight [kg]	105	89	102
Dimensions [mm]	775x723x1850	595x653x1850	595x635x1850
Height adjustment	Yes
Basket/shelves	7 shelves
Lock	Yes

Parameter description	Parameter value
Product name	Freezer
Model	RCLK-F380GB	RCLK-F380	RCLK-F170S
Rated input power [W]	425		215
Rated current [A]	-	2.6	2
Power consumption [kWh/24h]	-	4.9	-
Energy class	C	D	-
Power supply [V]/ Frequency [Hz]	230~/50
Refrigerant	R290/120g		R600a/65g
Temperature [°C]	-13÷-21	-22÷-18	-20÷-18
Net volume [l]	-	206	-
Gross volume [l]	380		170
Electric shock protection class	I
AEC (Annual Energy Consumption) [kWh/Year]	2237	1816	-
Climate class	4
Weight [kg]	101	85	46
Dimensions [mm]	595x635x1850		595x653x880
Height adjustment	Yes
Basket/shelves	7 shelves		3 shelves
Lock	Yes

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual

are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

The product satisfies the relevant safety standards.

Read instructions before use.

The product must be recycled.

WARNING! or CAUTION! or REMEMBER! Applicable to the given situation. (general warning sign)

ATTENTION! Electric shock warning!

ATTENTION! Fire hazard - flammable materials!

Only use indoors.

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

2. Usage safety

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to:

Chiller/Freezer

2.1. Safety instructions

General safety information for the use of electrical devices: To avoid any risk of injury from fire or electric shock, please follow the basic safety instructions when using this device. Please read the instructions carefully and make sure that you have understood them well. Keep the manual near the equipment to be able to read it at any time. Always use current sources connected to the ground that provide the correct voltage (indicated on the label on the device). If you have any doubts, let an electrician check that the connection is properly grounded. Never use a defective power cable. Do not open the unit in damp or wet environment, or if your hands or body are damp or wet. Protect the unit from solar radiation. Use the device in a protected place to avoid damaging the equipment or putting at risk others. Make sure the device is able to cool and avoid placing it too close to other devices that produce heat. Before cleaning the machine, disconnect it from the power source. Use a soft damp cloth for cleaning. Avoid using detergents and make sure that no liquid enters the unit. No internal element of this device needs to be maintained by the user. Opening the device without our approval leads to a loss of warranty!

2.2. Safety guidelines

a) Please read and understand these instructions carefully before using the device! Please observe the safety guidelines carefully to prevent damage through improper use!
b) Please keep this manual available for future reference. If this device is passed on to third parties, the manual must be passed on with it.
c) Only use this device indoors and for its intended use.
d) We do not offer any warranty for damages resulting from improper use or incorrect operation.
e) Before using this device for the first time, please check whether the main voltage type and current comply with the indicated data on the type plate.
f) This device is not intended to be used by persons (including children) with limited physical, sensory or mental capabilities or lack of experience and/or knowledge unless they are supervised by a person responsible for their safety or have received instruction as to how the device is used.
g) ELECTRIC SHOCK HAZARD! Do not try to repair the unit yourself. In case of device failures, repairs must be done by qualified experts.
h) Please check the main plug and the power cable regularly. If the power cable for this device is damaged, it has to be replaced by the manufacturer or its customer service or another qualified person in order to prevent hazards.
i) It is necessary to prevent damage to the power cable due to its crushing, breaking or abrasions on sharp edges and to keep it away from hot surfaces and open sources of fire. It may also not hang or be immersed in water.
j) ATTENTION! DANGER TO LIFE! While cleaning, never immerse the device in water or other liquids.
k) Under no circumstances should the housing be opened.
I) Do not store heavy, poisonous, or corrosive objects in the device.
m) In order to avoid damaging the compressor during transport, the fridge should not be tilted by more than 45^ .
n) Do not use the appliance in unheated rooms and in locations with high air humidity.
o) ATTENTION! The ventilation openings of the appliance should always be free from blockages.
p) ATTENTION! Do not use any electrical appliances or machines to accelerate defrosting.
q) ATTENTION! Pay special attention not to damage the elements of the coolant circuit.
r) ATTENTION! Do not use any electrical appliances inside the chamber of the appliance which serves to store food.
s) ATTENTION! The appliance in its design contains flammable gases serving for insulation. For this reason, at the end of its service life, the appliance should be handed over for disposal by professionals.
t) ATTENTION! The plug of the appliance should be connected to the socket in a place that enables its easy and quick disconnection.
u) ATTENTION! Installation of the appliance must be carried out by a qualified person.
v) Children may not play with the appliance.
w) It is not allowed to store potentially explosive substances in the appliance, e.g.: cans containing compressed flammable gas.
x) Do not use malfunctioning or damaged devices.

y) Parts or accessories not recommended by the manufacturer cannot be used in the device. The act of using parts not recommended by the manufacturer, results in loss of warranty and can lead to a direct threat to the life or health of the user.

z) It is forbidden to move, adjust, and rotate the device in the course of work.

aa) It is forbidden to place the device on a combustible surface.

bb) It is forbidden to place the device near an open flame, electric stoves, coal stoves or other heat sources, as well as near direct sunlight. High temperatures can damage the cooling capacity and rise the consumption of electricity.

cc) The device must not be connected to the outlet other than a wall-mounted socket, do not use a multiple outlet adapter or multiple sockets.

dd) In case the power supply is cut off from the appliance it is necessary to wait about 5 minutes before reconnecting the appliance to the electricity in order to avoid damage to the appliance.

ee) Do not expose the device to rain.

ff) Do not place any containers with liquids that can freeze in the freezer.

Remember! When using the device, protect children and other bystanders. Failure to follow safety recommendations and instructions may result in serious injuries or death!

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

The chillers are designed for refrigerating and storing food.

The freezers are intended for freezing and frozen storage of food.

The user is liable for any damage resulting from unintended use of the device.

3.1. Device description

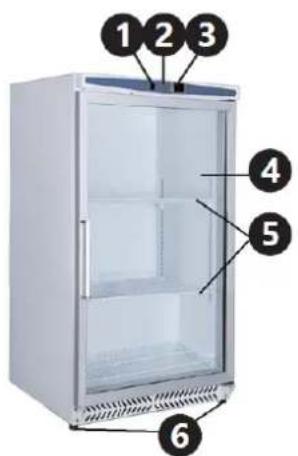

RCGK-W200

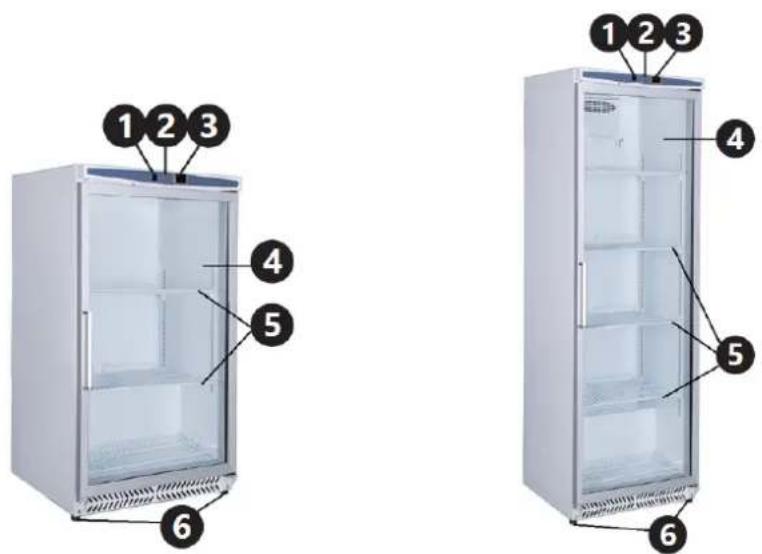

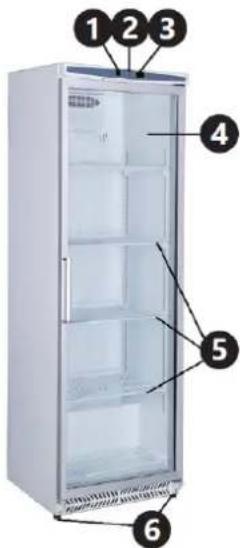

RCGK-W400, RCLK-F590-G, RCLK-F590GB, RCLK-F380G, RCLK-F380GB, RCLK-C590GB

1 2 3 4 5 6

1 2 3 4 5 6

1. Backlight on/off button

2. Lock

3. Control panel

4. Glass door

5. Shelves

6. Adjustable feet

RCLK-W600, RCLK-F590S, RCLK-F590, RCLK-F380S, RCLK-F380, RCLK-F170S, RCLK-C590, RCLK-C380G, RCLK-C170

Diagram of a white refrigerator with numbered labels pointing to its front panel.

1. Lock

2. Control panel

3. Door

4. Adjustable feet

All models come with two wheels in the rear part of the device to facilitate moving to another position.

3.2. Preparing for use

BERORE THE FIRST USE

Upon receipt of the goods, check the packaging for defects and open the packaging if there are no damages. If the packaging is damaged, please contact your transport company and distributor within 3 days, and document the damages as detailed as possible. Do not turn the package upside down! When transporting the package, please ensure that it is kept horizontal and stable.

DISPOSING OF THE PACKAGING

Please keep all packaging materials (cardboard, plastic tapes and Styrofoam), so that in case of a problem, the device can be sent back to the service centre in accurate condition!

GENERAL HINTS FOR THE USER

The appliance must be cleaned after unpacking and before its connection to the power supply network. Once the appliance has reached the set temperature, it can be filled. It is forbidden to fill the appliance with warm liquids and food and any food products put into the appliance should be covered. Food products and drinks should be stored in sealed airtight containers. To ensure adequate air circulation inside the appliance it is recommended to place products be in such a manner to maintain distance between them. If the door is opened too often, there is increased energy consumption, which could lead to possible damage. Maximum loading of a single shelf: 30 kg. Always close the door of the appliance when it is not in use. Do not use screwdrivers or other metal tools to remove ice layers that are formed on the walls of the appliance during its use. In case of you do not use the appliance for a longer time; to save electricity, it is necessary to disconnect the cleaned appliance from the electricity, to clean and leave the door open to prevent gathering of unpleasant odours inside the appliance.

3.3. Assembling the device

Always carry and transport the device in an upright position. Grab by the base. If the device was stored or transported in a position other than its working position, before use stand the device in the correct position for 12h. If there are any doubts, let it stand for the required period of time.

CAUTION! Correct connection of the device to the single socket with the earth is the guarantee of proper work. In the case of inappropriate installation, the machine may cause injury. Place the appliance on a flat, stable surface that will withstand its weight together with its contents. To provide adequate ventilation, keep at least 20 cm of space between the appliance and the wall or other objects. Poor ventilation caused by insufficient space around the device may adversely impact the refrigeration process and reduce the fridge's lifetime.

FIRST START UP

1. Unpack the whole appliance.
2. Make sure that no packing material has been left in the compressor chamber.
3. Remove all documents and other accessories from the inside of the appliance.
4. Install all additional components of the appliance.
5. Set the height and level the device.
6. Clean and dry the interior
7. Close the door of the appliance.
8. Connect the appliance plug to the socket.
9. Set refrigeration according to requirements.
10. Load the device once the pre-set temperature has been reached.

HEIGHT ADJUSTMENT/LEVELLING

To adjust the height or level of the chiller, it is necessary to unscrew or screw in the feet of the appliance.

FITTING SHELVES

1. Align one set of shelf brackets on each side of the interior at the required height.
2. Slide the shelf into place.
3. Repeat for the remaining shelves.
   Shelf malignant is significant for correct water drainage.

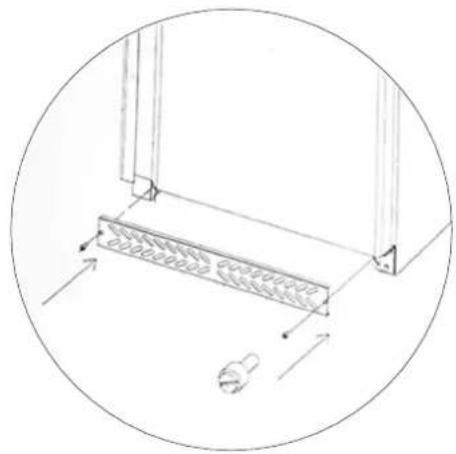

ASSEMBLING THE OUTSIDE PANEL

Attach the outside panel to the lower part of the device, under the doors as shown on the diagram below:

Technical line drawing of a mechanical component with directional arrows indicating movement (no text or symbols)

3.4. Device use

SWITCHING THE DEVICE ON

Models RCGK-W200, RCKG-W400, RCLK-F590-G, RCLK-F590GB, RCLK-F380G, RCLK-F380GB, RCLK-C590GB

1. Close the appliance door.
2. Make sure that the backlight on/off button is set to "O" and plug the appliance power cord into a mains outlet.
3. The appliance will start. See the control panel settings further in this manual.
4. You can turn the appliance backlight on and off with the backlight on/off button.

Model RCLK-W600

1. Close device doors.
2. The device will start automatically once connected to a power source.

The device will start refrigerating to the set temperature and will regularly run a defrost a few times a day depending on controller settings (usually every 4 hours).

DEFROSTING

AUTOMATIC DEFROST

The device shall require a defrost if internal ice build-up occurs. This may happen due to too frequent opening of the doors for long periods. The device automatically activates its auto defrost cycle every four hours. To manually activate defrost:

MANUAL DEFROST

Press and hold down the “” button for at least 5 seconds – defrost will start and an appropriate message will appear in the display. Defrost takes a maximum of 30 minutes.

ATTENTION!

• Manual defrost resets the automatic defrost schedule. The next automatic defrost will start 4 hours after manual defrost ends.
• Do not use electrical devices (such as a hair dryer) or open fire to defrost the device. Plastic elements of the interior may melt, and a spark or flame may ignite the fumes. The device floor includes an opening with a cap used to discharge larger quantities water outside of the device. Wipe dry small quantities of condensed water with a soft cloth or sponge.

DOOR LOCK

To prevent unauthorized opening the device doors may be locked.

-8.8°C F SET CLK

SET	Displaying settings. In service programming mode – select parameter and conform changes.
	Start manual defrost.
	Scroll list of parameters (in service programming mode)/ Increase set value
	Scroll list of parameters (in service programming mode)/ Decrease set value
BUTTON COMBINATIONS
	Lock/unlock buttons
SET+▽	Initiate service programming mode – ATTENTION! IT IS RECOMMENDED NOT TO INITIATE THE SERVICE MODE – all the factory parameters were set in this mode and changes may result in incorrect device operation.
SET+△	Return to ambient temperature display.

SYMBOL MODE DESCRIPTION
		ON Compressor is active
		Flashing Prevention of short operation periods activated
		ON Active defrosting
		Flashing Active dripping
		ON Fan ON
		Flashing Delayed ventilator activation after defrosting
		ON Unit of temperature
		Flashing Programming mode
		ON Unit of temperature
		Flashing Programming mode

DISPLAYING SETTINGS

1. Briefly press the SET button and the current setting will be displayed.
2. To return to the standard screen briefly press SET or wait for approximately 5 seconds.

CHANGING SETTINGS

1. Press and hold down the button for approximately 3 seconds.
2. The current setting will be displayed and °C or °F diode will flash.
3. Change the setting using or.
4. To accept changes, press the SETn.

LOCKING BUTTONS

Press and hold down the ▼ and △ buttons for at least 3 seconds. "OF" will be displayed – the buttons are now locked.

UNLOCKING BUTTONS

Press and hold down the and buttons for at least 3 seconds. " " will be displayed – the buttons are now active.

3.5. Transportation and storage

During transport, the machine should be protected from shaking, falling and turning upside down. Store it in a properly ventilated place with dry air and without any corrosive gas.

3.6. Cleaning and maintenance

It is recommended to wash the appliance regularly. Before start of cleaning of the appliance or before performance of any repair or maintenance work, it is necessary to disconnect the appliance from the power supply and wait until it has cooled down. Do not use for washing any caustic cleaners, such as cleaning powders, agents with alcohol content, thinners, diluents, etc., and do not allow water to enter the appliance interior. Never immerse the appliance, cord or plug in water or any other liquid. It is forbidden to clean the device with a water jet. The interior of the device should be cleaned with a disinfectant suitable for the food industry. To clean, use a damp, soft cloth and then dry thoroughly. Dry the surface with a soft, dry cloth. The following actions should be taken if the machine is not used for a long period of time: Disconnect the appliance completely from the power supply and remove all food products from it. Then wash the entire appliance with a damp, soft cloth and mild cleaning agent, rinse with clean water and dry thoroughly, for some time leave the door open, so that the appliance will be completely dry. From time to time, check that the cable is not damaged. Do not use the appliance if the cable is damaged. A damaged cable must be replaced by a service or a qualified electrician. In the event of damage or malfunction, please contact your dealer or our service. Maintenance and repair work must be done only by qualified personnel using original spare parts and accessories. Attempts to make repairs on your own can lead to a direct threat to life or health and will void the warranty!

CHECK REGULARLY THE DEVICE

Check regularly that the device doesn't present any damage. If there is any damage, please stop using the device. Please contact your customer service to solve the problem.

What to do in case of a problem?

Please contact your customer service and prepare the following information:

• Invoice number and serial number (the latter is to be found on the technical plate on the device).
• If relevant, a picture of the damaged, broken, or defective part.

- It will be easier for your customer service clerk to determine the source of the problem if you give a detailed and precise description of the matter. The more detailed your information, the better the customer service will be able to answer your problem rapidly and efficiently!

CAUTION! Never open the device without the authorization of your customer service. This can lead to a loss of warranty!

DISPOSING OF USED DEVICES

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.

3.7. Troubleshooting

Problem	Possible	cause
The appliance is not working.	The unit is not switched on.	Check the unit is plugged in correctly and switched on.
	Plug and lead are damaged. Call your agent or qualified technician.
	The fuse in the plug has blown. Replace the fuse.
The appliance is not working.	Power supply.	Check the power supply.
	Internal wiring fault.	Call your agent or qualified technician.
The appliance turns on, but the temperature is too high/low.	Too much ice on the evaporator. Defrost the appliance.
	Condenser blocked with dust.	Call your agent or qualified technician.
	The doors are not shut properly.	Check doors are shut, and seals are not damaged.
	Appliance is located near a heat source or airflow to the condenser is being interrupted.	Move the appliance to a more suitable location.
	The ambient temperature is too high.	Increase ventilation or move the appliance to a cooler position.
	Unsuitable foodstuffs are being stored in the appliance.	Remove any excessive hot foodstuffs or blockages to the fan.
	The appliance is over-loaded.	Reduce the amount of food stored in the appliance.
The appliance is unusually loud.	Loose nut/screw.	Check and tighten all nuts and screws.
	The appliance has not been installed in a level or stable position.	Check the installation position and change it if necessary.
The appliance is leaking water.	The appliance is not properly levelled.	Adjust the screw feet to level the appliance (if applicable).
	The discharge outlet is blocked. Clear the discharge outlet.
	The movement of water to the drain is obstructed.	Clear the floor of the appliance (if applicable).
	The water container is damaged.	Call your agent or qualified technician.

RCLK-F380G, RCLK-F380GB, RCLK-C590GB

Diagram of a white refrigerator with numbered labels pointing to the front panel.

Technical line drawing of a mechanical assembly with no visible text or symbols

Modele RCGK-W200, RCKG-W400, RCLK-F590-G, RCLK- F590GB, RCLK-F380G, RCLK-F380GB, RCLK-C590GB
