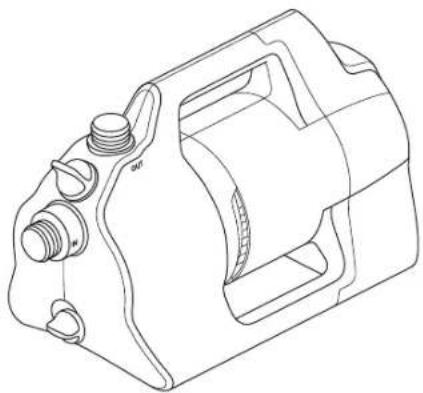

USER MANUAL 4200 Silent GARDENA

Translation of the original instructions.

1.1 Explanation of the symbols

Read operator’s manual.

1.2 General safety warnings

1.2.1 General pump safety warnings

DANGER! Electric shock!Risk of injury due to electric current.v The product must be supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30 mA.v Disconnect the product from the mains before you put it into storage, maintain it or replace parts. Thereby the disconnected socket must be in the visual range.

1.2.2 Garden pump safety warnings

1.2.2.1 Safe operating practices:The water temperature should not exceed 35 °C.The pump must not be used when people are in the water.Pollution of the liquid could occur due to leakage of lubricants.1.2.2.2 Circuit breakers:Thermal protection switch:In the event of an overload, the pump is switched off by the built-in thermal motor protection. After sufficient cooling of the motor, the pump is operational again.

2. auf Verlangen des Endnutzers Altgeräte, die in keiner äußeren Abmes-

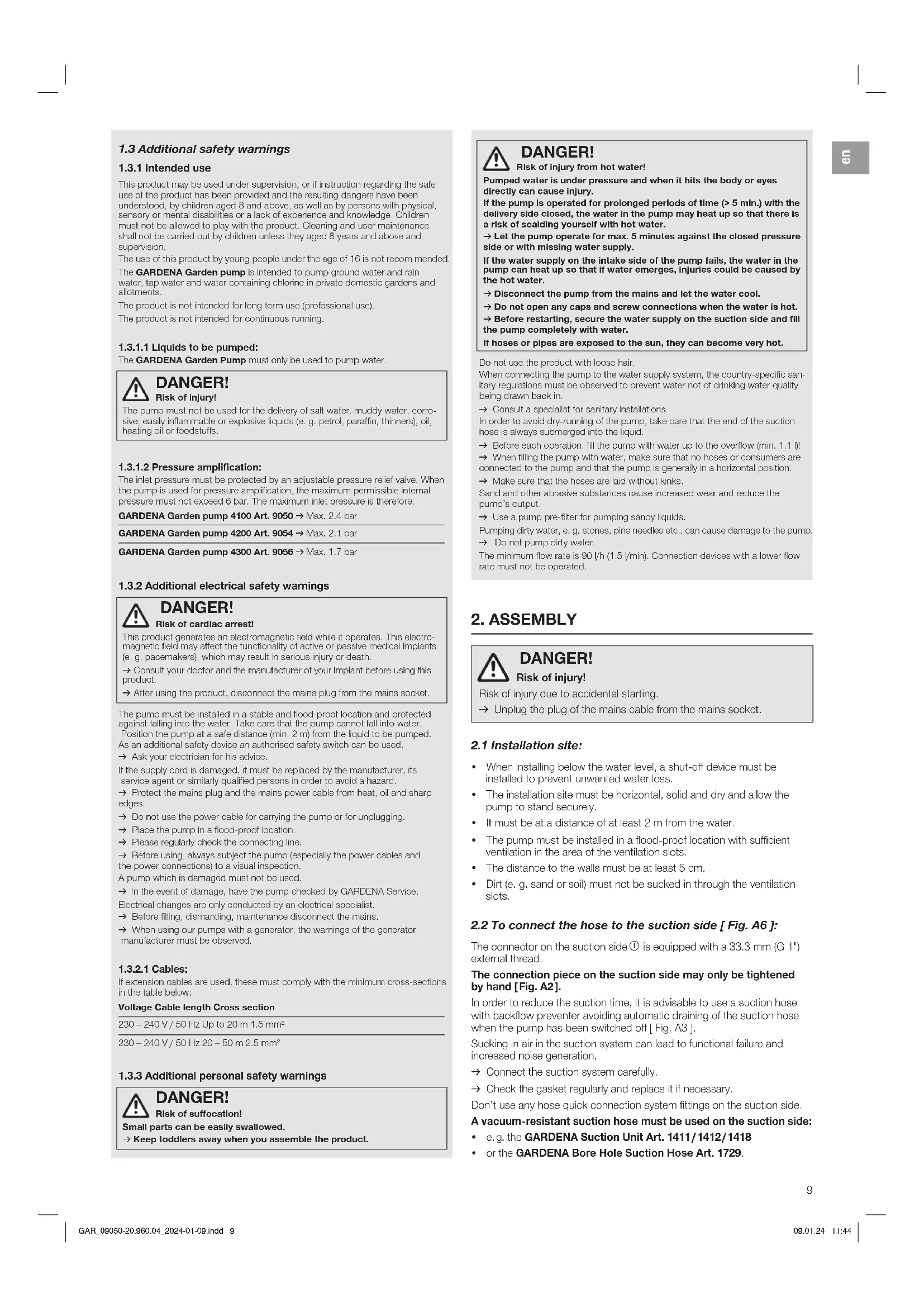

1.3 Additional safety warnings

This product may be used under supervision, or if instruction regarding the safe use of the product has been provided and the resulting dangers have been understood, by children aged 8 and above, as well as by persons with physical, sensory or mental disabilities or a lack of experience and knowledge. Children must not be allowed to play with the product. Cleaning and user maintenance shall not be carried out by children unless they aged 8 years and above and supervision.The use of this product by young people under the age of 16 is not recom mended.The GARDENA Garden pump is intended to pump ground water and rain water, tap water and water containing chlorine in private domestic gardens and allotments.The product is not intended for long term use (professional use).The product is not intended for continuous running.1.3.1.1 Liquids to be pumped:The GARDENA Garden Pump must only be used to pump water. DANGER! Risk of injury!The pump must not be used for the delivery of salt water, muddy water, corro-sive, easily inflammable or explosive liquids (e. g. petrol, paraffin, thinners), oil, heating oil or foodstuffs.1.3.1.2 Pressure amplification:The inlet pressure must be protected by an adjustable pressure relief valve. When the pump is used for pressure amplification, the maximum permissible internal pressure must not exceed 6 bar. The maximum inlet pressure is therefore:GARDENA Garden pump 4100 Art. 9050 v Max. 2.4 barGARDENA Garden pump 4200 Art. 9054 v Max. 2.1 barGARDENA Garden pump 4300 Art. 9056 v Max. 1.7 bar

1.3.2 Additional electrical safety warnings

DANGER! Risk of cardiac arrest!This product generates an electromagnetic field while it operates. This electro-magnetic field may affect the functionality of active or passive medical implants (e. g. pacemakers), which may result in serious injury or death. v Consult your doctor and the manufacturer of your implant before using this product. v After using the product, disconnect the mains plug from the mains socket. The pump must be installed in a stable and flood-proof location and protected against falling into the water. Take care that the pump cannot fall into water. Position the pump at a safe distance (min. 2 m) from the liquid to be pumped. As an additional safety device an authorised safety switch can be used.v Ask your electrician for his advice.If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. v Protect the mains plug and the mains power cable from heat, oil and sharp edges.v Do not use the power cable for carrying the pump or for unplugging.v Place the pump in a flood-proof location.v Please regularly check the connecting line.v Before using, always subject the pump (especially the power cables and the power connections) to a visual inspection.A pump which is damaged must not be used.v In the event of damage, have the pump checked by GARDENA Service.Electrical changes are only conducted by an electrical specialist.v Before filling, dismantling, maintenance disconnect the mains.v When using our pumps with a generator, the warnings of the generator manufacturer must be observed.1.3.2.1 Cables:If extension cables are used, these must comply with the minimum cross-sections in the table below:Voltage Cable length Cross section230 – 240 V / 50 Hz Up to 20 m 1.5 mm²230 – 240 V / 50 Hz 20 – 50 m 2.5 mm²

1.3.3 Additional personal safety warnings

DANGER! Risk of suffocation!Small parts can be easily swallowed.v Keep toddlers away when you assemble the product. DANGER! Risk of injury from hot water!Pumped water is under pressure and when it hits the body or eyes directly can cause injury.If the pump is operated for prolonged periods of time (> 5 min.) with the delivery side closed, the water in the pump may heat up so that there is arisk of scalding yourself with hot water.v Let the pump operate for max. 5 minutes against the closed pressure side or with missing water supply.If the water supply on the intake side of the pump fails, the water in the pump can heat up so that if water emerges, injuries could be caused by the hot water.v Disconnect the pump from the mains and let the water cool.v Do not open any caps and screw connections when the water is hot.v Before restarting, secure the water supply on the suction side and fill the pump completely with water.If hoses or pipes are exposed to the sun, they can become very hot.Do not use the product with loose hair.When connecting the pump to the water supply system, the country-specific san-itary regulations must be observed to prevent water not of drinking water quality being drawn back in.v Consult a specialist for sanitary installations.In order to avoid dry-running of the pump, take care that the end of the suction hose is always submerged into the liquid.v Before each operation, fill the pump with water up to the overflow (min. 1.1 l)!v When filling the pump with water, make sure that no hoses or consumers are connected to the pump and that the pump is generally in a horizontal position.v Make sure that the hoses are laid without kinks.Sand and other abrasive substances cause increased wear and reduce the pump’s output.v Use a pump pre-filter for pumping sandy liquids.Pumping dirty water, e. g. stones, pine needles etc., can cause damage to the pump.v Do not pump dirty water.The minimum flow rate is 90 l/h (1.5 l/min). Connection devices with a lower flow rate must not be operated.

DANGER! Risk of injury! Risk of injury due to accidental starting. v Unplug the plug of the mains cable from the mains socket.

2.1 Installation site:

• When installing below the water level, a shut-off device must be installed to prevent unwanted water loss.

• The installation site must be horizontal, solid and dry and allow the pump to stand securely.

• It must be at a distance of at least 2 m from the water.

• The pump must be installed in a flood-proof location with sufficient ventilation in the area of the ventilation slots.

• The distance to the walls must be at least 5 cm.

• Dirt (e. g. sand or soil) must not be sucked in through the ventilation slots.

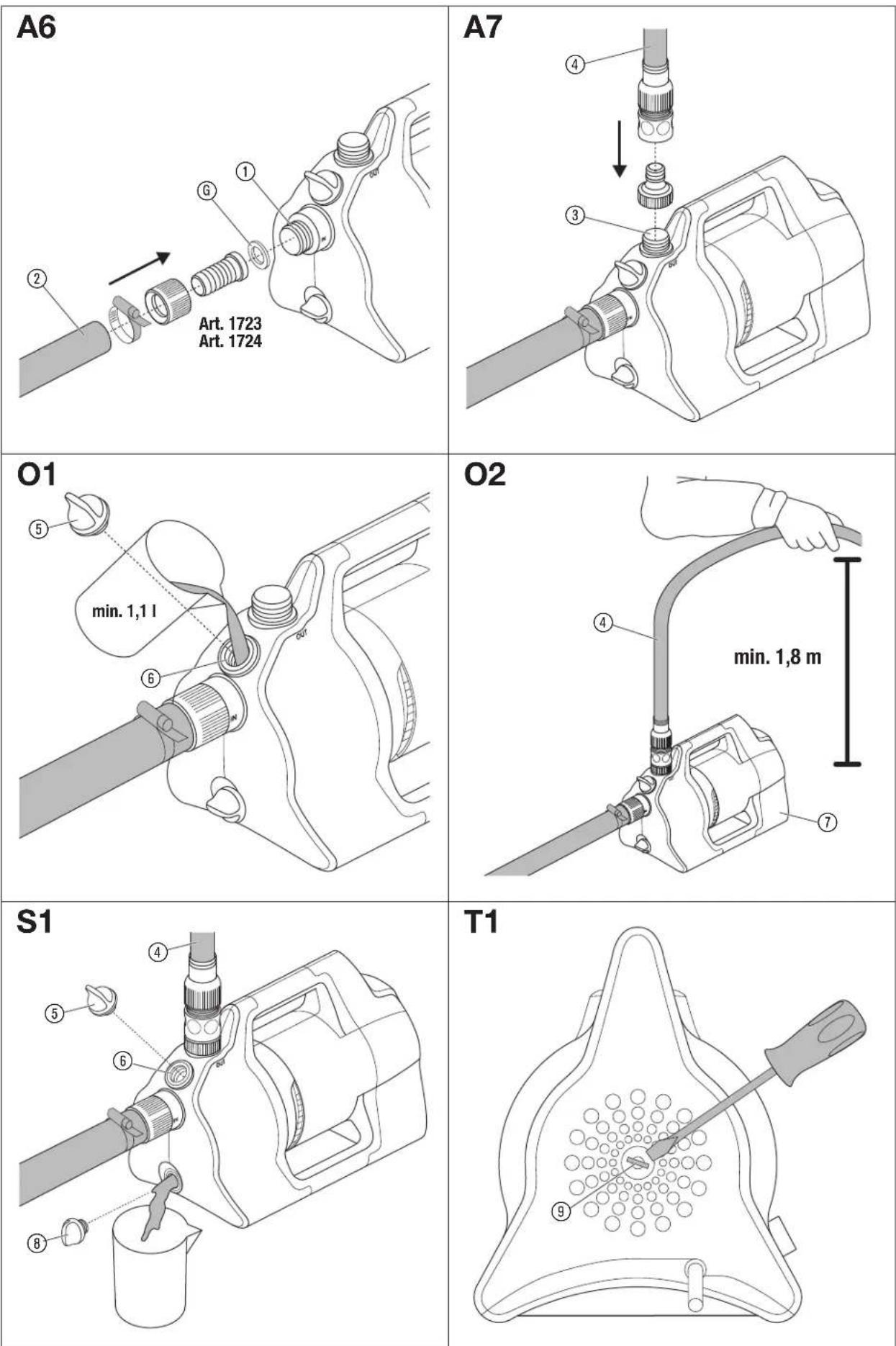

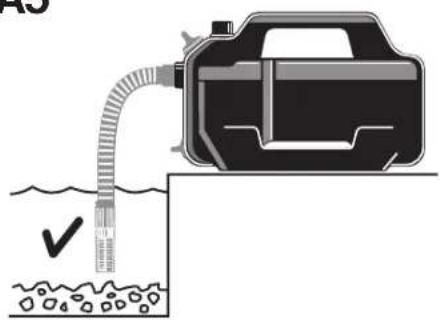

2.2 To connect the hose to the suction side [ Fig. A6 ]:

The connector on the suction side

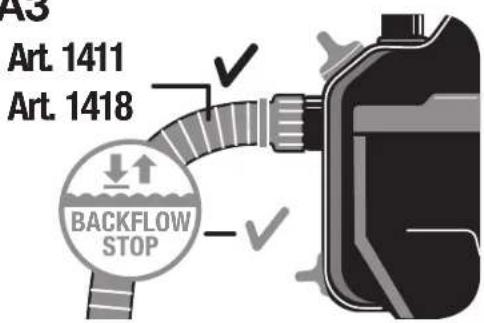

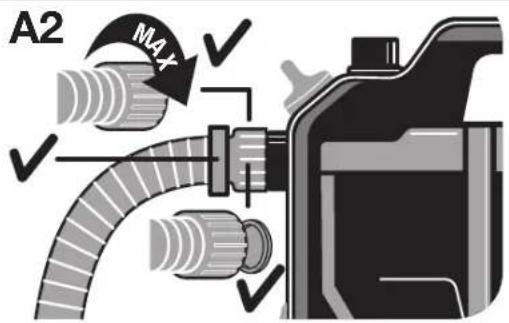

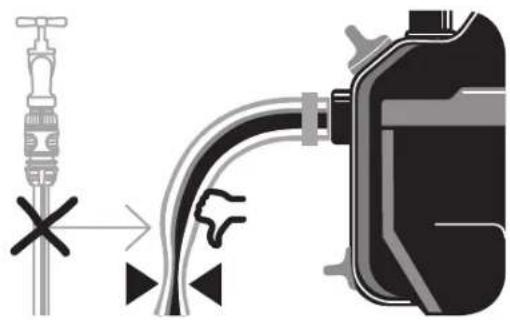

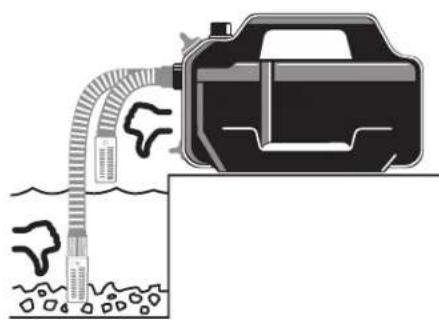

is equipped with a 33.3 mm (G 1") external thread. The connection piece on the suction side may only be tightened byhand [ Fig. A2 ]. In order to reduce the suction time, it is advisable to use a suction hose with backflow preventer avoiding automatic draining of the suction hose when the pump has been switched off [ Fig. A3 ]. Sucking in air in the suction system can lead to functional failure and increased noise generation. v Connect the suction system carefully. v Check the gasket regularly and replace it if necessary. Don’t use any hose quick connection system fittings on the suction side. A vacuum-resistant suction hose must be used on the suction side:

• Connect suction hoses without threaded connection via a suction hose connection piece (e. g. Art. 1723 / 1724) to the connection of the suction side and screw it airtight.

2.2.1 There are 2 types of connection systems:

Intended for flat gasket: No thread sealing tape is required.v Make sure that the flat gasket

is inserted in the suction hose connection piece and is undamaged.Intended for thread sealing tape (Teflon):No flat gasket is required.An unsuitable sealing system can lead to leaks.v Use the sealing system intended for this purpose.1. Make sure that the flat gasket

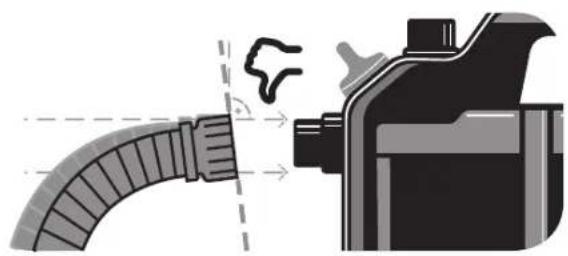

is inserted in the suction hose connection piece. 2. Screw the vacuum-resistant suction hose airtight on the connectoron the suction side . The connection piece must be placed straighton [ Fig. A1 ].3. Lay the suction hose straight and free of twists.4. For suction heights exceeding 3 m: Fix the suction hose additionally.(e. g. by fastening it to a wooden post).Therefore, the pump is relieved of the weight of the suction hose.

2.3 To connect the hose to the pressure side [ Fig. A7 ]:

The connector on the pressure side is equipped with a 33.3 mm (G 1") external thread.The connection pieces on the pressure side may only be tightened by hand.Optimised use of the pump capacity is achieved by connecting 19mm (3/4") hoses with:• e. g. the GARDENA Pump Connection Set Art. 1752• or by connecting 25 mm (1") hoses with the GARDENA QuickThread Coupling with female thread Art. 7109 / Quick CouplingHose Connector Art. 7103.Hold or fix the pressure hose vertically to avoid kinking of the pressure hose at the vertical pump outlet.Lay the hose flat on the ground; avoid u-shaped elevations of the hose and coiling it. In order to allow the air to escape optimally, lay out the pressure hose completely and give it a rising course as seen from the pump.v Connect the pressure hose with the connector on the pressure side

connection system: 19 mm (3/4") / 16 mm (5/8") and 13 mm (1/2") hoses can be connected via the GARDENA Connection System.Hose diameter Pump connection13 mm (1/2") GARDENA Pump Connection Set Art. 175016 mm (5/8") GARDENA Tap ConnectorGARDENA Hose ConnectorArt. 18202Art. 1821619 mm (3/4") GARDENA Pump Connection Set Art. 1752

2.3.2 Only for Art. 9056: Parallel connection of pressure hoses:

When connecting more than one pressure hose in parallel, we recommend the use of:• e. g. the GARDENA 2- or 4-Channel Water DistributorArt. 8193 / 8194• or the GARDENA Twin-Tap Connector Art. 940.These can be screwed directly onto the connector of the pressure side

DANGER!Risk of injury!Risk of injury due to accidental starting.v Unplug the plug of the mains cable from the mains socket.

3.1 To start / To stop the pump [ Fig. O1 / O2 ]:

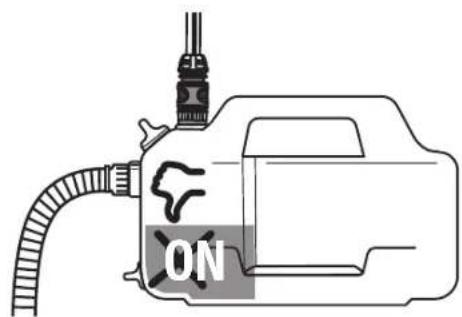

CAUTION! Dry-Running of the pump!Make sure that the pump is filled with water up to the overflow (min. 1.1 l) before each starting procedure.

3.1.1 To start the pump:

1. Connect the suction hose (In).2. Disconnect the pressure hose (Out).3. Unscrew the screw connection

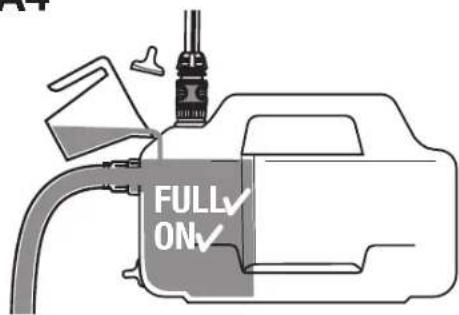

on the filling opening by hand.4. Slowly fill in at least 1.1 l of water via the filler opening until a stablewater level is reached at the level of the suction side connection[ Fig. A4 ].5. If a non-return valve is used: Fill the suction hose with water.This speeds up the suction process.6. Empty the residual water in the pressure hose before connecting.This allows the air to escape during the suction process.7. After filling the pump: Connect the pressure hose (Out) to the pump.8. Tighten the screw connection on the filling opening by hand(do not use pliers).9. Open any shut-off valves in the pressure line (connection devices,water stop, etc.). All consumers must be opened to the max. possibleposition. 10. Insert the plug of the mains cable into a mains socket. 11. For high suction heights: Lift and hold the pressure hose at least1.8 m vertically above the pump during the suction process. 12. Push the On / Off switch to the position On.The pump starts (the On/Off switch lights) and pumps the water afterthe suction process.The suction process can take up to 5 minutes.If the pump does not pump water after 5 minutes:1. Push the On / Off switch to the position Off.The pump stops.2. Let the pump cool down.3. Search in the 6.2 Troubleshooting table for possible causes.4. Start the pump again (see 3.1.1 To start the pump).

3.1.2 To stop the pump:

v Push the On/Off switch to the position Off. The pump stops.

3.2.1 General tip on suction:

The specified maximum self-priming height is only reached when the pump is filled to the overflow via the filling opening and the pressure hose

is held upwards during the priming process so that no water can escape from the pump via the pressure hose . Fill the pump before hoses, fixed piping etc. are connected to the pump on the pressure side. This ensures that the pump can be completely filled with water (1.1 l) (air can escape). The pump is to be filled with 1.1 l of water.

3.2.2 Silent operation:

The pump is silent. This advantage can only be maintained with the correct installation:v Choose a low-vibration base (e. g. do not place on metal sheets or plastic tanks).

3.2.3 Assembly of the prefilter

If a prefilter is too long, it can be assembled in another position (e. g. horizontally) instead of in the vertical position still below.

4.1 To clean the Pump:

DANGER! Risk of injury! Risk of injury and risk of damage to the product. v Do not clean the product with water or with a water jet (in particular high-pressure water jet). v Do not clean with chemicals including petrol or solvents. Some can destroy critical plastic parts. The airflow slots must always be clean.

1. Clean the pump housing with a damp cloth.

2. Clean the airflow slots with a soft brush (do not use sharp objects).

4.2 To flush the pump:

After pumping chlorinated water, the pump must be flushed.

1. Pump through lukewarm water (max. 35 °C), possibly adding a mild

cleaning agent (e. g. detergent) until the pumped water runs clear.

2. Dispose of the residues in accordance with local waste disposal

5.1 To put into storage [ Fig. S1 ]:

CAUTION! Damage to the pump due to frost! v Store the pump in a frost-free place. The product must be stored away from children.

1. Unplug the plug of the mains cable from the mains socket.

2. Close any shut-off valves in the suction line.

3. Open any shut-off valves in the pressure line (accessories, water

stop, etc.). Therefore the pressure line is depressurized.

4. Unscrew the screw fitting

and the water drain screw

by hand. Therefore the pump is drained.

5. Tilt the pump in the direction of the drain (approx. 80°) so that the

pump empties completely.

6. Unscrew the suction hose and the pressure hose.

7. Tighten the screw connection

on the filling opening

and the water drain screw

by hand (do not use pliers).

8. Clean the pump (see 4. MAINTENANCE).

9. Store the pump in a dry, enclosed and frost-free place.

DANGER! Risk of injury! Risk of injury due to accidental starting. v Unplug the plug of the mains cable from the mains socket.

6.1 To loosen the impeller [ Fig. T1 ]:

An impeller blocked by dirt can be loosened. v Turn the shaft of the impeller

clockwise with an insulated screw driver. Therefore the blocked impeller is loosened.

6.2 Troubleshooting table:

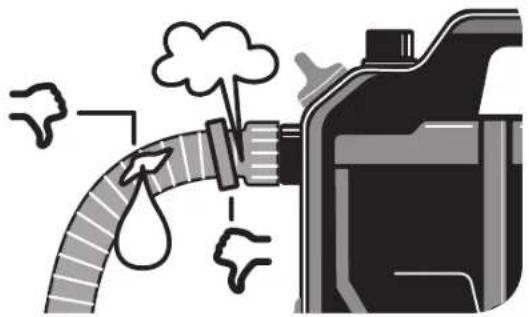

Problem Possible Cause RemedyPump is running, but the suction action doesn’t take placeLeaky or damaged suction line [Fig. A2].v Check the suction line for damage and seal so is airtight.Problem Possible Cause RemedyPump is running, but the suction action doesn’t take placePump sucks in air at a con-nection point [Fig. A2].v Seal the suction side con-nections airtight.No water available in the cistern,water tank, water pipe, etc.v Make sure that the water supply is on the suction side.Pump was not filled with water [Fig. A4].v Fill the pump (see 3.1.1 To start the pump).Water escapes during the suction process via the pressure hose.1. Fill the pump again.2. Hold up the pressure hose.3. Start the pump again (see 3.1.1 To start the pump).Absolutely vacuum-resistant connection is achieved by using GARDENA Suction Hoses (see 8. ACCESSORIES / SPARE PARTS).Screw fitting on the filler neck is leaking [ Fig. A2 ].v Check the seal (replace ifnecessary) and tighten the screw fitting by hand (do not use pliers).Air cannot escape, since the delivery line is closed or remaining water is in the pressure hose.v Open any shut-off valves (e. g. nozzle) in the delivery line, or drain the pressure hose.Air cannot escape because the pressure hose is coiled.1. Lay out the pressure hose straight along its entire length.2. Lay the hose from the pump outlet upwards.3. Do not kink the pressure hose at the pump outlet.4. Open all consumers maxi- mum. Suction time of 5 min. was not waited for.v Wait up to 5 minutes for the pump to pump water.Suction filter or backflow preventer in the suction hose are clogged.v Clean the suction filter or the back flow preventer.The end of the suction hose is not in the water [Fig. A5].v Submerge the end of the suction hose deeper in the water.Suction height is too high [Fig. A5].v Reduce the suction height.In case of any other difficulties concerning the suction action, use GARDENA Suction Hoses with Backflow Preventer (see 8. ACCESSORIES / SPARE PARTS). Fill the pump with water before starting it.Pump does not start, or stops suddenly during operationThermal switch has turned the pump off because of over-heating.v Let the pump cool down, empty the pump and fill it again.v Observe the max. media Temperature (35 °C).No power supply to the pump. v Check the fuses and electrical plug connections.RCD has triggered (residual current).v Unplug the plug from the mains socket and contact the GARDENA Service.Pump is not switched on. v Push the On / Off switch to the position On.Pump is running, but the delivery drops suddenlyThe end of the suction hose is not in the water [Fig. A5].v Submerge the end of the suc-tion hose deeper in the water.Suction filter or backflow preventer in the suction hose are clogged.v Clean the suction filter or the back flow preventer.No water available in the cistern, water tank, water pipe, etc.v Make sure that the water supply is on the suction side.Suction line is leaking [Fig. A2]. v Eliminate the leak.Impeller is blocked. v Loosen the impeller.Pressure hose is kinked. v Lay the pressure hose with-out kinks and do not kink the pressure hose at the pump outlet. NOTE: Repairs must only be done by the GARDENA service departments or specialist dealers approved by GARDENA. v For any other malfunctions please contact the GARDENA service department. GAR_09050-20.960.04_2024-01-09.indd 11GAR_09050-20.960.04_2024-01-09.indd 11 09.01.24 11:4409.01.24 11:44fr Pompe d’arrosage de surface 4100 Silent / 4200 Silent / 4300 Silent

10.1 Disposal of the pump:

(according to Directive 2012/19/EU) The product must not be disposed of to normal household waste. It must be disposed of in line with local environmental regulations. IMPORTANT! v Dispose of the product through or via your local recycling collection centre.

Max. self-priming suction heightm 8 8 8Permitted internal pressure (delivery side)bar 6 6 6Power cable m (H07RN-F) (H07RN-F) (H07RN-F)Weight without cable (approx.)kg 5.6 5.8 6.3Sound pressure level L Distance: 1 m 5 m 10 m

measured / guaranteedUncertainty k dB (A)73 / 75 71 / 74 73 / 75

Max. media temperature °C 35 35 35 Measuring process complying with: RL 2000/14/EU

8. ACCESSORIES / SPARE PARTS

GARDENA Suction Hoses Kink-proof and vacuum-proof, optionally available by the metre Art. 1720 / 1721 (19 mm (3/4") / 25 mm (1")) without connecting fittings or in fixed length Art. 1411 / 1418 complete with connect-ing fittings.GARDENA Suction Hose Fitting For connection on the suction side. Art. 1723 / 1724 GARDENA Pump Connection Set For connection on the delivery side. Art. 1750 / 1752 GARDENA Suction Filter with backflow preventerTo equip suction hoses with backflow preventer sold by the meter.Art. 1726 / 1727 / GARDENA Pump Preliminary Filter Recommended for pumping sandy water. Art. 1730 / 1731 GARDENA Bore Hole Suction Hose For vacuum-resistant connection of the pump to boreholes or pipe networks. Length 0.5 m. With 33.3 mm (G1) female thread at both ends.Art. 1729GARDENA Floating suction systemFor dirt-free suction below the water surface. Art. 1417 GARDENA Quick coupling For pressure-side connection of 1" pressure hoses.Art. 7109 / 7103

9. WARRANTY / SERVICE

9.1 Product registration:

Please register your product at gardena.com/registration.

Please find the current contact information of our service on the back page and online:

• United Kingdom: https://www.gardena.com/uk/support/advice/contact/

• South Africa: https://www.gardena.com/za/support/contact/

• https://www.gardena.com/int/support/advice/contact/

• https://www.gardena.com/int/support/advice/contact/

EC Declaration of Conformity The undersigned hereby certifies as the authorized representative of the manufacturer, GARDENA Germany AB, PO Box 7454, S-103 92, Stockholm, Sweden, that, when leaving our factory, the unit(s) indicated below is / are in accordance with the harmonised EU guidelines, EU standards of safety and product specific standards. This certificate becomes void if the unit(s) is / are modified without our approval. Conformity Assessment procedure according to 2000/14/EC Art.14 Annex V, Noise level: measured / guaranteed (1) Deposited Documentation (2) | Year of CE marking: 2022 | Ulm, 01/11/2022 Garden pump Art. No.
