USER MANUAL 975305 Hendi

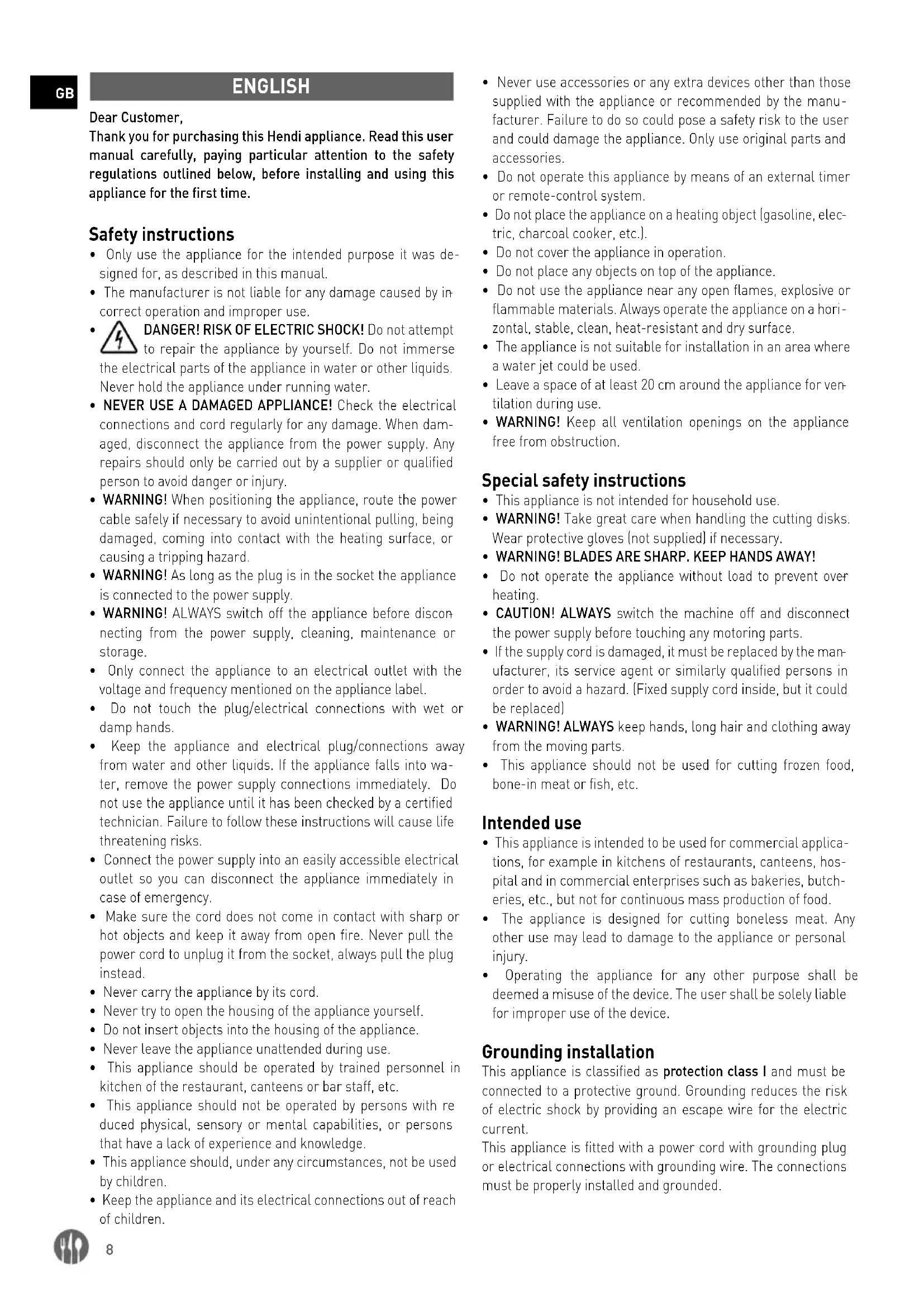

ENGLISH Dear Customer, Thank you for purchasing this Hendi appliance. Read this user manual carefully, paying particular attention to the safety regulations outlined below, before installing and using this appliance for the first time. Safety instructions

• Only use the appliance for the intended purpose it was de- signed for, as described in this manual.

• The manufacturer is not liable for any damage caused by in

correct operation and improper use.

DANGER! RISK OF ELECTRIC SHOCK! Do not attempt to repair the appliance by yourself. Do not immerse the electrical parts of the appliance in water or other liquids. Never hold the appliance under running water.

• NEVER USE A DAMAGED APPLIANCE! Check the electrical connections and cord regularly for any damage. When dam

aged, disconnect the appliance from the power supply. Any repairs should only be carried out by a supplier or qualified person to avoid danger or injury.

• WARNING! When positioning the appliance, route the power cable safely if necessary to avoid unintentional pulling, being damaged, coming into contact with the heating surface, or causing a tripping hazard.

• WARNING! As long as the plug is in the socket the appliance is connected to the power supply.

• WARNING! ALWAYS switch off the appliance before discon

necting from the power supply, cleaning, maintenance or storage.

• Only connect the appliance to an electrical outlet with the voltage and frequency mentioned on the appliance label.

• Do not touch the plug/electrical connections with wet or damp hands.

• Keep the appliance and electrical plug/connections away from water and other liquids. If the appliance falls into wa

ter, remove the power supply connections immediately. Do not use the appliance until it has been checked by a certified technician. Failure to follow these instructions will cause life threatening risks.

• Connect the power supply into an easily accessible electrical outlet so you can disconnect the appliance immediately in case of emergency.

• Make sure the cord does not come in contact with sharp or hot objects and keep it away from open fire. Never pull the power cord to unplug it from the socket, always pull the plug instead.

• Never carry the appliance by its cord.

• Never try to open the housing of the appliance yourself.

• Do not insert objects into the housing of the appliance.

• Never leave the appliance unattended during use.

• This appliance should be operated by trained personnel in kitchen of the restaurant, canteens or bar staff, etc.

• This appliance should not be operated by persons with re

duced physical, sensory or mental capabilities, or persons that have a lack of experience and knowledge.

• This appliance should, under any circumstances, not be used by children.

• Keep the appliance and its electrical connections out of reach of children.

• Never use accessories or any extra devices other than those supplied with the appliance or recommended by the manu

facturer. Failure to do so could pose a safety risk to the user and could damage the appliance. Only use original parts and accessories.

• Do not operate this appliance by means of an external timer or remote-control system.

• Do not place the appliance on a heating object (gasoline, elec

• Do not cover the appliance in operation.

• Do not place any objects on top of the appliance.

• Do not use the appliance near any open flames, explosive or flammable materials. Always operate the appliance on a hori

zontal, stable, clean, heat-resistant and dry surface.

• The appliance is not suitable for installation in an area where a water jet could be used.

• Leave a space of at least 20 cm around the appliance for ven

tilation during use.

• WARNING! Keep all ventilation openings on the appliance free from obstruction. Special safety instructions

• This appliance is not intended for household use.

• WARNING! Take great care when handling the cutting disks. Wear protective gloves (not supplied) if necessary.

• WARNING! BLADES ARE SHARP. KEEP HANDS AWAY!

• Do not operate the appliance without load to prevent over

• CAUTION! ALWAYS switch the machine off and disconnect the power supply before touching any motoring parts.

• If the supply cord is damaged, it must be replaced by the man

ufacturer, its service agent or similarly qualified persons in order to avoid a hazard. (Fixed supply cord inside, but it could be replaced)

• WARNING! ALWAYS keep hands, long hair and clothing away from the moving parts.

• This appliance should not be used for cutting frozen food, bone-in meat or fish, etc. Intended use

• This appliance is intended to be used for commercial applica- tions, for example in kitchens of restaurants, canteens, hos- pital and in commercial enterprises such as bakeries, butch- eries, etc., but not for continuous mass production of food.

• The appliance is designed for cutting boneless meat. Any other use may lead to damage to the appliance or personal injury.

• Operating the appliance for any other purpose shall be deemed a misuse of the device. The user shall be solely liable for improper use of the device. Grounding installation This appliance is classified as protection class I and must be connected to a protective ground. Grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is fitted with a power cord with grounding plug or electrical connections with grounding wire. The connections must be properly installed and grounded.9

Circuit diagram (Fig.1 on page 3) 1: Switch1: Switch 2: Capacitor2: Capacitor 3: Terminal3: Terminal 4: fuse4: fuse 5.: varistor5.: varistor 6: transformer6: transformer 7: off7: off 8: indication light8: indication light 9: on9: on 10: connecting wire10: connecting wire

• Remove all protective packaging and wrapping.

Check that the device is in good condition and with all accesso- ries. In case of incomplete or damaged delivery, please contact the supplier immediately. In this case, do not use the device.

• Clean the accessories and the appliance before use (See ==> Cleaning & Maintenance).

• Make sure the appliance is completely dry.

• Place the appliance on a horizontal, stable and heat resistant surface that is safe against water splashes.

• Keep the packaging if you intend to store your appliance in the future.10

• Keep the user manual for future reference. NOTE! Due to manufacturing residues, the appliance may emit a light odor during the first few uses. This is normal and does not indicate any defect or hazard. Make sure the appliance is well ventilated. Installation / Assembly & Disassembly Assembling instructions (Fig.3 on page 4) Attention: Always unplug the appliance from the electrical pow

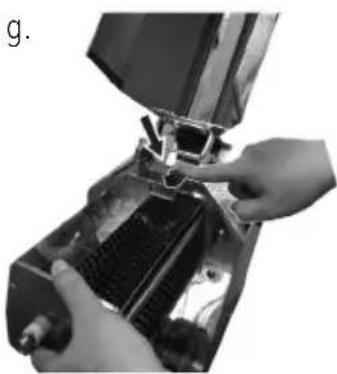

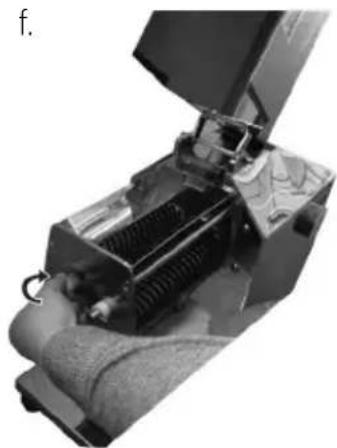

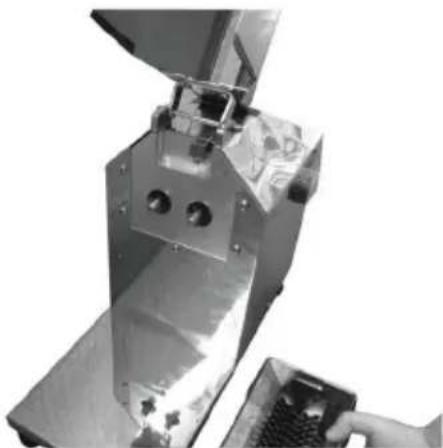

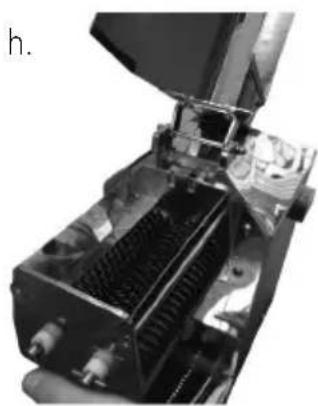

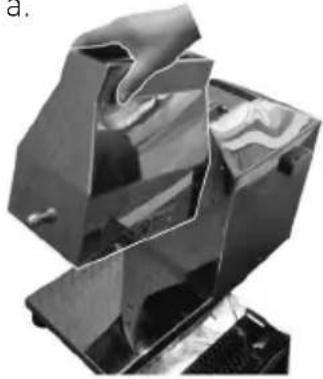

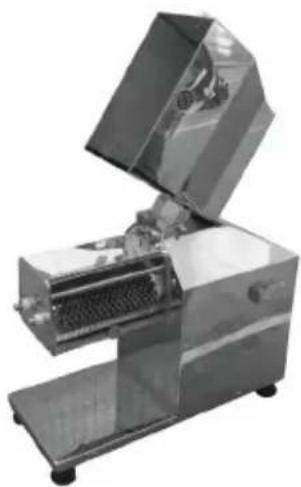

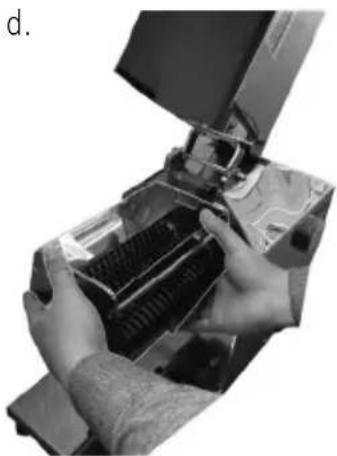

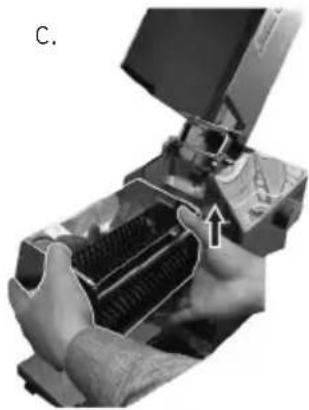

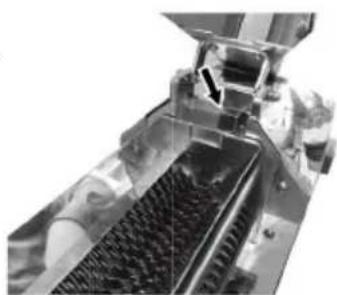

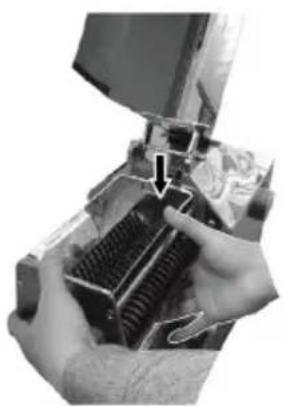

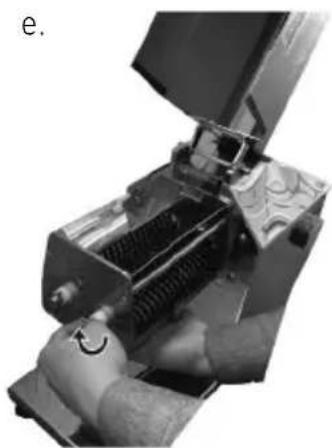

er outlet before starting assembling or disassembling. Disassembling instructions (Fig.4 on page 5) Operating instructions 1). Preparation:

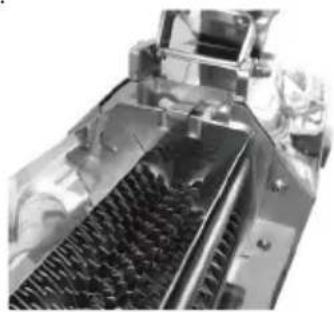

• Make sure the appliance is unplugged from the electrical power supply and check if the “roller blade” is properly placed inside the appliance. DO NOT operate the appliance without “roller blade” installed.

• WARNING! Do not use meat larger than : 160 mm wide x 30 mm thick. Do not use meat with thick veins or bones. Failure to comply will result in damage to your appliance. For the best result use refrigerated meat.

• Prepare meat for tenderizing by removing all skin and bones. Then, cut the meat into appropriately sized pieces for ten

• Place the appliance on a on a horizontal, stable, dry and heat resistant surface with 4 suction cup rubber feet firmly placed on the surface.

• Place a plate underneath the tenderizer opening to catch the meat as it falls from the bottom. 2). Start Processing:

• Connect the power plug to a suitable electrical power supply.

• Turn ON the appliance by pressing down the GREEN “I” but

ton. Now the motor starts operating.

• Feed the meat into the tenderizer slowly piece by piece. In

sert meat into the top opening until it makes contact with the blades. The blades will pull the meat through.

• WARNING! DO NOT use force to get the meat to go through the rollers by hands or fingers.

• If the meat is jammed inside, turn the appliance off and use a pair of stainless steel tongs to unjam the meat, take great care not to make contact with the sharp blades.

• Turn OFF the appliance by pressing down the RED “O” button when finished and disconnect the appliance from the power supply. Note: There are 2 optional interchangeable accessories: Roll

ers for poultry (Item 975329) and rollers for shoarma (Item 975312) that sale separately. Cleaning & maintenance

• ATTENTION! Always disconnect the appliance from the pow- er supply and cool down before storage, cleaning & mainte- nance.

• Do not use water jet or steam cleaner for cleaning and do not push the appliance under the water as the parts will get wet and electric shock might be resulted.

• If the appliance is not kept in a good state of cleanliness, this can adversely affect the life of the appliance and result in a dangerous situation.

• Food residues should be regularly cleaned and removed from the appliance. If the appliance is not cleaned properly, it will reduce its lifespan and may result in a dangerous condition during use. Cleaning

• Clean the cooled exterior surface with a cloth or sponge slightly dampened with a mild soap solution.

• For reasons of hygiene, the appliance should be cleaned be

• Avoid water contacting the electrical components.

• Never immerse the appliance in water or other liquids.

• Never use aggressive cleaning agents, abrasive sponges, or cleaning agents containing chlorine. Do not use steel wool, metallic utensils, or any sharp or pointed objects for cleaning. Do not use petrol or solvents!

• No parts are dishwasher safe. Maintenance

• Check the operation of the appliance regularly to prevent se

• If you see that the appliance is not working properly or that there is a problem, stop using it, switch it off and contact the supplier.

• All maintenance, installation and repair work must be car

ried out by specialised and authorised technicians, or recom- mended by the manufacturer. Transportation and Storage

• Before storage, always make sure that the appliance has been disconnected from the power supply and completely cooled down.

• Store the appliance in a cool, clean and dry place.

• Never place heavy objects on the appliance as this could damage it.

• Do not move the appliance while it is under operation. Dis

connect the appliance from power supply when moving and hold it at the bottom.11

Troubleshooting If the appliance does not function properly, please check the below table for the solution. If you are still unable to solve the problem, please contact the supplier/service provider. Problems Possible cause Possible solution The appliance does not switch on. - Power plug is not connected prop

erly with the elec- trical outlet. - I / O button is not pressed. - Check the power plug to make sure it is connected prop

erly. - Press down the GREEN “I” button. Meat jammed inside the blades - The meat is too thick or with too much cartilage or gristle. - Turn OFF the ap

pliance by pressing down the RED “O” button and unplug it. Lift up the cover, use the steel tongs to clear the jammed meat. Warranty Any defect affecting the functionality of the appliance which becomes apparent within one year after purchase will be re

paired by free repair or replacement provided the appliance has been used and maintained in accordance with the instructions and has not been abused or misused in any way. Your statutory rights are not affected. If the appliance is claimed under war

ranty, state where and when it was purchased and include proof of purchase (e.g. receipt). In line with our policy of continuous product development we reserve the right to change the product, packaging and docu

mentation specifications without notice. Discarding & Environment When decommissioning the appliance, the prod- uct must not be disposed of with other household waste. Instead, it is your responsibility to dispose to your waste equipment by handing it over to a designated collection point. Failure to follow this rule may be penalized in accordance with applicable regula

tions on waste disposal. The separate collection and recycling of your waste equipment at the time of disposal will help con

serve natural resources and ensure that it is recycled in a man- ner that protects human health and the environment. For more information about where you can drop off your waste for recycling, please contact your local waste collection compa
